Household and similar electrical appliances - Safety - Part 2-118: Particular requirements for professional ice-cream makers

IEC 60335-2-118:2020 deals with the safety of appliances for making ice cream and artisan gelato.
Appliances taken into account are those intended for commercial use and similar appliances not intended for normal household use but which may nevertheless be a source of danger to the public, such as appliances intended to be used by laymen in shops, stores, by artisans or on farms, which rated voltage is not more than 250 V for single-phase appliances and 480 V for other appliances.
Appliances covered by this standard are provided with a refrigerant condensing unit which is usually incorporated, but for some appliances may be remote.
This standard also applies to following types of appliances:
- mixers to make ice cream and similar pastry products in which, for the preparation of the product, an heating process is made within the appliance before the cooling process;
- appliances for storing whipping cream mix in a refrigerated tank and for whipping the cream for the delivery process.
Attention is drawn to the fact that:
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements can be necessary;
– in many countries, additional requirements are specified by the national health authorities, the national authorities responsible for the protection of labour, the national water supply authorities and similar authorities.
This standard does not apply to:
– appliances with a refrigerating system operating with flammable refrigerant;
– ice cream appliances for household use (IEC 60335-2-24);
– appliances intended exclusively for industrial purposes;
– appliances intended to be used in locations where special conditions prevail, such as the presence of a corrosive or explosive atmosphere (dust, vapour or gas).
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its amendments. It was established on the basis of the fifth edition (2010) of that standard.

Appareils électrodomestiques et analogues - Sécurité - Partie 2-118 : Exigences particulières pour les fabriques de crème glacée à usage professionnel

L'IEC 60335-2-118:2020 traite de la sécurité des appareils qui permettent de fabriquer de la crème glacée et des glaces artisanales.
Les appareils dont il est question sont ceux destinés à un usage commercial et analogues non destinés à un usage domestique normal, mais qui peuvent néanmoins constituer une source de danger pour le public, tels que les appareils destinés à être utilisés par des personnes inexpérimentées dans les ateliers ou les magasins, par les artisans ou sur des exploitations agricoles, dont la tension assignée ne dépasse pas 250 V pour les appareils monophasés et 480 V pour les autres appareils.
Les appareils couverts par la présente norme sont équipés d'un groupe de condensation frigorifique qui est habituellement intégré, mais cela peut ne pas être le cas pour certains appareils.
La présente norme s'applique également aux types d'appareils suivants:
- les mélangeurs pour la fabrication de crème glacée et de produits pâtissiers similaires dans lesquels, pour la préparation du produit, un procédé de chauffage est appliqué dans l'appareil avant le procédé de refroidissement;
- les appareils pour le stockage du mélange de crème à fouetter dans un réservoir réfrigéré et pour le fouettage de la crème avant le procédé de livraison.
L'attention est attirée sur le fait que:
– pour les appareils destinés à être utilisés dans des véhicules ou à bord de navires ou d'avions, des exigences supplémentaires peuvent être nécessaires;
– dans de nombreux pays, des exigences supplémentaires sont spécifiées par les autorités sanitaires nationales, les organismes nationaux en charge de la protection des travailleurs, les organismes nationaux responsables de l'alimentation en eau et des organismes analogues.
La présente norme ne s'applique pas:
– aux appareils équipés d'un système de réfrigération fonctionnant avec un fluide frigorigène inflammable;
– aux sorbetières destinées à un usage domestique (IEC 60335-2-24);
– aux appareils prévus exclusivement pour des usages industriels;
– aux appareils destinés à être utilisés dans des locaux présentant des conditions particulières, telles que la présence d'une atmosphère corrosive ou explosive (poussière, vapeur ou gaz).
La présente partie 2 doit être utilisée conjointement avec la dernière édition de l'IEC 60335-1 et ses amendements. Elle a été établie sur la base de la cinquième édition (2010) de cette norme.

General Information

Status
Published
Publication Date
24-Mar-2020
Current Stage
PPUB - Publication issued
Completion Date
25-Mar-2020
Ref Project

Buy Standard

Standard
IEC 60335-2-118:2020 - Household and similar electrical appliances - Safety - Part 2-118: Particular requirements for professional ice-cream makers
English and French language
58 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 60335-2-118
Edition 1.0 2020-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-118: Particular requirements for professional ice-cream makers
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-118: Exigences particulières pour les fabriques de crème glacée
à usage professionnel
IEC 60335-2-118:2020-03(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 60335-2-118
Edition 1.0 2020-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-118: Particular requirements for professional ice-cream makers
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-118: Exigences particulières pour les fabriques de crème glacée
à usage professionnel
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 97.040.99 ISBN 978-2-8322-8007-2

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 60335-2-118:2020 © IEC 2020

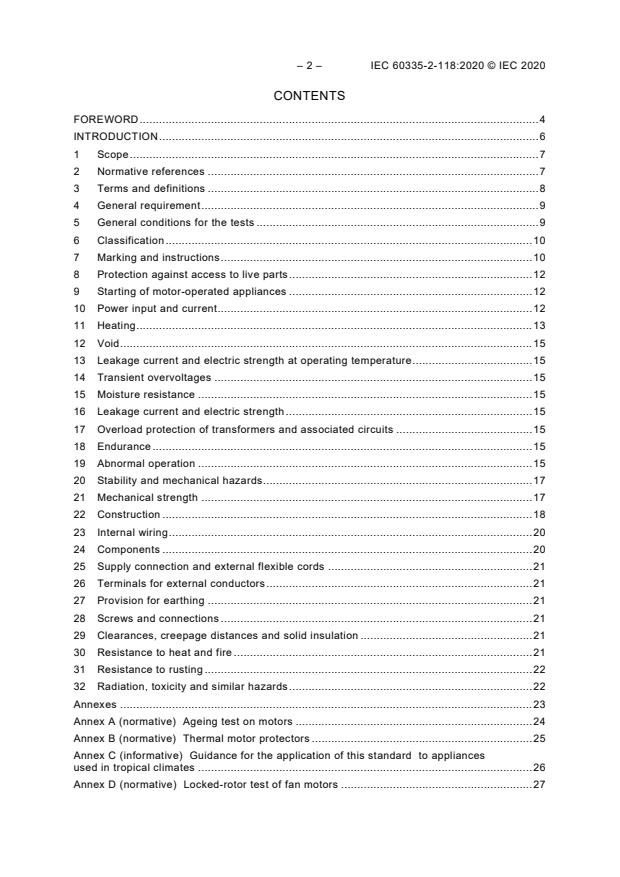

CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms and definitions ...................................................................................................... 8

4 General requirement ........................................................................................................ 9

5 General conditions for the tests ....................................................................................... 9

6 Classification ................................................................................................................. 10

7 Marking and instructions ................................................................................................ 10

8 Protection against access to live parts ........................................................................... 12

9 Starting of motor-operated appliances ........................................................................... 12

10 Power input and current ................................................................................................. 12

11 Heating .......................................................................................................................... 13

12 Void ............................................................................................................................... 15

13 Leakage current and electric strength at operating temperature ..................................... 15

14 Transient overvoltages .................................................................................................. 15

15 Moisture resistance ....................................................................................................... 15

16 Leakage current and electric strength ............................................................................ 15

17 Overload protection of transformers and associated circuits .......................................... 15

18 Endurance ..................................................................................................................... 15

19 Abnormal operation ....................................................................................................... 15

20 Stability and mechanical hazards ................................................................................... 17

21 Mechanical strength ...................................................................................................... 17

22 Construction .................................................................................................................. 18

23 Internal wiring ................................................................................................................ 20

24 Components .................................................................................................................. 20

25 Supply connection and external flexible cords ............................................................... 21

26 Terminals for external conductors .................................................................................. 21

27 Provision for earthing .................................................................................................... 21

28 Screws and connections ................................................................................................ 21

29 Clearances, creepage distances and solid insulation ..................................................... 21

30 Resistance to heat and fire ............................................................................................ 21

31 Resistance to rusting ..................................................................................................... 22

32 Radiation, toxicity and similar hazards ........................................................................... 22

Annexes ............................................................................................................................... 23

Annex A (normative) Ageing test on motors ......................................................................... 24

Annex B (normative) Thermal motor protectors .................................................................... 25

Annex C (informative) Guidance for the application of this standard to appliances

used in tropical climates ....................................................................................................... 26

Annex D (normative) Locked-rotor test of fan motors ........................................................... 27

---------------------- Page: 4 ----------------------
IEC 60335-2-118:2020 © IEC 2020 – 3 –

Figure AA.1 – Supply circuit for locked-rotor test of a single-phase fan motor ....................... 27

Table 101 – Maximum temperatures for motor-compressors ................................................. 14

---------------------- Page: 5 ----------------------
– 4 – IEC 60335-2-118:2020 © IEC 2020
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –
Part 2-118: Particular requirements for professional ice-cream makers
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60335-2-118 has been prepared by subcommittee 61C: Safety of

refrigeration appliances for household and commercial use, of IEC technical committee 61:

Safety of household and similar electrical appliances.
The text of this International Standard is based on the following documents:
CDV Report on voting
61C/798/CDV 61C/823A/RVC

Full information on the voting for the approval of this International Standard can be found in the

report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts of the IEC 60335 series, under the general title Household and similar electrical

appliances – Safety, can be found on the IEC website.

This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its

amendments. It was established on the basis of the fifth edition (2010) of that standard.

---------------------- Page: 6 ----------------------
IEC 60335-2-118:2020 © IEC 2020 – 5 –
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.

This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to convert

that publication into the IEC standard: Safety requirements for professional ice-cream makers.

When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies as

far as is reasonable. When this standard states “addition”, “modification” or “replacement”, the

relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:

– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;

– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including

those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.

Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the

associated noun are also in bold.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 7 ----------------------
– 6 – IEC 60335-2-118:2020 © IEC 2020
INTRODUCTION

It has been assumed in the drafting of this international standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in normal

use taking into account the manufacturer's instructions. It also covers abnormal situations that

can be expected in practice and takes into account the way in which electromagnetic

phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that there

is compatibility with the wiring rules when the appliance is connected to the supply mains.

However, national wiring rules may differ.

If an appliance within the scope of this standard also incorporates functions that are covered

by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as

far as is reasonable. If applicable, the influence of one function on the other is taken into

account.

When a part 2 standard does not include additional requirements to cover hazards dealt with in

Part 1, Part 1 applies.

NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is

not necessary to specify particular requirements for the appliance in question over and above the general

requirements.

This standard is a product family standard dealing with the safety of appliances and takes

precedence over horizontal and generic standards covering the same subject.

NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into

consideration when developing the general and particular requirements for the IEC 60335 series of standards. For

example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as

ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.

An appliance that complies with the text of this standard will not necessarily be considered to

comply with the safety principles of the standard if, when examined and tested, it is found to

have other features that impair the level of safety covered by these requirements.

An appliance employing materials or having forms of construction differing from those detailed

in the requirements of this standard may be examined and tested according to the intent of the

requirements and, if found to be substantially equivalent, may be considered to comply with the

standard.
---------------------- Page: 8 ----------------------
IEC 60335-2-118:2020 © IEC 2020 – 7 –
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY
Part 2-118: Particular requirements for professional ice-cream makers
1 Scope
This clause of Part 1 is replaced by the following.

This part of IEC 60335 deals with the safety of appliances for making ice cream and artisan

gelato.

Appliances taken into account are those intended for commercial use and similar appliances

not intended for normal household use but which may nevertheless be a source of danger to

the public, such as appliances intended to be used by laymen in shops, stores, by artisans or

on farms, which rated voltage is not more than 250 V for single-phase appliances and 480 V for

other appliances.

Appliances covered by this standard are provided with a refrigerant condensing unit which is

usually incorporated, but for some appliances may be remote.
This standard also applies to following types of appliances:

• mixers to make ice cream and similar pastry products in which, for the preparation of the

product, an heating process is made within the appliance before the cooling process;

• appliances for storing whipping cream mix in a refrigerated tank and for whipping the cream

for the delivery process.
NOTE 101 Attention is drawn to the fact that:

– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements can be

necessary;

– in many countries, additional requirements are specified by the national health authorities, the national

authorities responsible for the protection of labour, the national water supply authorities and similar authorities.

This standard does not apply to:
– appliances with a refrigerating system operating with flammable refrigerant;
– ice cream appliances for household use (IEC 60335-2-24);
– appliances intended exclusively for industrial purposes;

– appliances intended to be used in locations where special conditions prevail, such as the

presence of a corrosive or explosive atmosphere (dust, vapour or gas).
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:

IEC 60335-2-34:2012, Household and similar electrical appliances – Safety – Part 2-34:

Particular requirements for motor-compressors
IEC 60335-2-34:2012/AMD1:2015
IEC 60335-2-34:2012/AMD2:2016
IEC 60598-1:2014, Luminaires – Part 1: General requirements and tests
IEC 60598-1:2014/AMD1:2017

IEC 60947-5-1, Low-voltage switchgear and controlgear – Part 5-1: Control circuit devices and

switching elements – Electromechanical control circuit devices
---------------------- Page: 9 ----------------------
– 8 – IEC 60335-2-118:2020 © IEC 2020

IEC 61770, Electric appliances connected to the water mains – Avoidance of backsiphonage

and failure of hose-sets
ISO 817:2014, Refrigerants – Designation and safety classification
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Addition:
3.1.9.101
normal operation for ice cream making appliances
ice cream making appliances operated under the following conditions:

The appliance uses the maximum quantity of the mixture of ingredients indicated in the

instructions which gives the most unfavourable results, the mixture being at an initial

temperature of 23 °C ± 2 °C.
Appliances are operated the time necessary to reach steady state conditions.

For appliances connected to a water supply, the water other than cooling water, is at a

temperature of 15 °C ± 2 °C and at and the most unfavourable pressure specified in the

instructions. The cooling water is at the temperature specified in 5.7.

For appliances with a separate refrigerant unit, the refrigerant unit is connected to the cabinet

in accordance with the manufacturer’s instructions.
3.1.9.102
normal operation for pasteurising ice cream making appliances

pasteurising ice cream making appliances operated under the following conditions:

Appliances are operated at ambient temperature as indicated in 5.7.

The appliance is filled using the maximum quantity of the mixture of ingredients indicated in the

instructions which gives the most unfavourable results, the mixture being at an initial

temperature of 23 °C ± 2 °C.

The appliance shall be operated for the time necessary for the mix to reach the maximum

pasteurisation temperature and then, for the cooling process, for the number of cycles needed

to reach steady state conditions.
3.1.9.103
normal operation for cream whipping appliances
cream whipping appliances operated under the following conditions:
Appliances are operated at an ambient temperature as indicated in 5.7.

The appliance is filled with liquid cream being kept at preservation temperature of 4 °C ± 1 °C

in the maximum quantity prescribed by the instructions and shall be operated the time

necessary to reach steady state conditions.

The appliance is operated in continuous or cyclic mode, following the instructions for user.

3.101
compression-type appliance

appliance in which refrigeration is effected by the vaporisation at low pressure in a heat

exchanger (evaporator) of a liquid refrigerant, the vapour thus formed being restored to the

liquid state by mechanical compression at a higher pressure and subsequent cooling in another

heat exchanger (condenser)
3.102
condenser

heat exchanger in which, after compression, vaporised refrigerant is liquefied by rejecting heat

to an external cooling medium
---------------------- Page: 10 ----------------------
IEC 60335-2-118:2020 © IEC 2020 – 9 –
3.103
evaporator

heat exchanger in which, after pressure reduction, the liquid refrigerant is vaporised by

absorbing heat from the medium to be refrigerated
3.104
refrigerant unit

factory assembled unit for performing part of the refrigeration cycle (compressing gas,

condensation or gas cooling) comprising one or more refrigerant compressors with motors,

condensers, liquid receivers, interconnecting pipe work and ancillary equipment all mounted on

a common base
3.105
heating system

heating element with associated components such as timers, switches, thermostats and other

controls
3.106
ancillary heating element

heating device which performs an auxiliary function, such as a defrost heater, door heater or

anti-condensation heater
3.107
pasteurising cycle

cycle during which the mixture is brought to the pasteurising temperature and then immediately

cooled down to a preservation temperature ≤ 5 °C
3.108
skilled person

person having the appropriate training and experience necessary to be aware of hazards to

which they are exposed in performing a task and of measures to minimise the danger to

themselves or other persons
3.109
free space

any space with a volume exceeding 60 l where a child can be entrapped and which is accessible

after opening any door, lid or drawer and removing any detachable internal parts, including

shelves, containers or drawers which are only accessible after opening any door, lid or drawer

In calculating the volume, a space with any single dimension not exceeding 150 mm or any two

orthogonal dimensions each of which do not exceed 200 mm is ignored.
4 General requirement
This clause of part 1 is applicable.
5 General conditions for the tests
This clause of part 1 is applicable except as follows.
5.2 Addition:

NOTE 101 Separate samples of the motor-compressor can be needed for the tests of 19.1.

5.3 Addition:
The test of 15.101 is carried out immediately after the test of 15.2.
5.4 Replacement:

For appliances intended to be connected to water supply, water is supplied at the appropriate

rated pressure, according to the instructions.
---------------------- Page: 11 ----------------------
– 10 – IEC 60335-2-118:2020 © IEC 2020
5.7 Addition:

Tests according to Clauses 10, 11, 13 and 19.103 are carried out at an ambient temperature

of:

– 32 °C ± 1 °C on appliances of extended temperate (SN) and temperate (N) classes;

– 38 °C ± 1 °C on appliances of subtropical (ST) class;
– 43 °C ± 1 °C on appliances of tropical (T) class.

and for appliances connected to a water supply for cooling at a water temperature

– 20 °C ± 1 °C on appliances of extended temperate (SN) and temperate (N) classes;

– 25 °C ± 1 °C on appliances of subtropical (ST) class;
– 30 °C ± 1 °C on appliances of tropical (T) class.

Other tests are carried out at an ambient temperature of 20 °C ± 5 °C and with cooling water at

a temperature of 15 °C ± 2 °C.

Appliances classified for several climatic classes are tested at the ambient temperature relevant

to the highest climatic class.

NOTE 101 Steady conditions are considered to be established when three successive readings of the temperature,

taken at approximately 60 min intervals, at the same point of any operating cycle, do not differ by more than1 K.

5.101 Compression-type appliances with heating systems are tested as combined
appliances.
6 Classification
This clause of part 1 is applicable except as follows.
6.1 Replacement:

For appliances provided with hoses and water outlets for cleaning internal parts designed for

ice cream production, the protection against harmful ingress of water shall be at least IPX1.

6.101 Appliances shall be of one or more of the following climatic classes:
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
