Process management for avionics - Aerospace and defence electronic systems containing lead-free solder - Part 4: Ball grid array (BGA) re-balling

IEC TS 62647-4:2018(E) defines the requirements for replacing solder balls on ball grid array (BGA) component packages in the context of an electronic components management plan (ECMP) for aerospace, defence and high reliability products. The intent of this document is to provide re-balling companies (hereinafter referred to as the re-balling provider) with the administrative and technical requirements to be incorporated within existing processes or for establishing, implementing and maintaining a new set of processes or the creation of a stand-alone re-balling process.

General Information

Status
Published
Publication Date
09-Apr-2018
Current Stage
PPUB - Publication issued
Start Date
16-Apr-2018
Completion Date
16-Apr-2018
Ref Project

Buy Standard

Technical specification
IEC TS 62647-4:2018 - Process management for avionics - Aerospace and defence electronic systems containing lead-free solder - Part 4: Ball grid array (BGA) re-balling
English language
41 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

IEC TS 62647-4
Edition 1.0 2018-04
TECHNICAL
SPECIFICATION
Process management for avionics – Aerospace and defence electronic systems
containing lead-free solder –
Part 4: Ball grid array (BGA) re-balling
IEC TS 62647-4:2018-04(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------

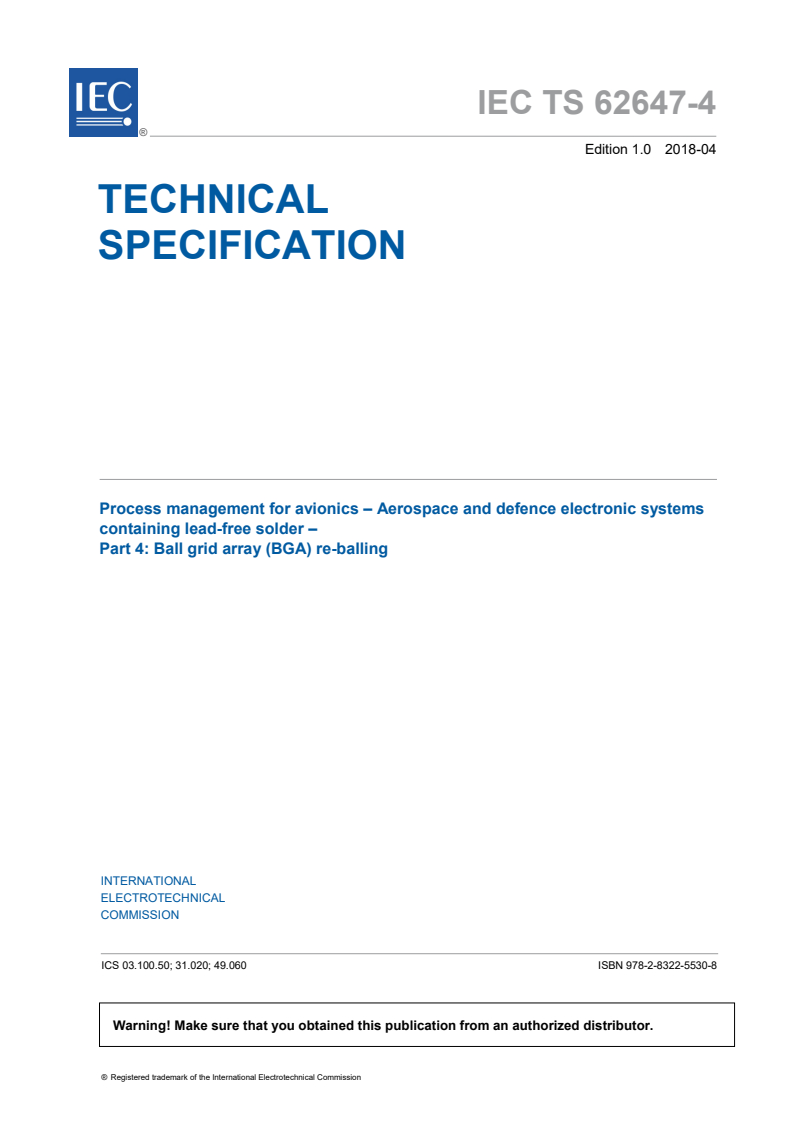

IEC TS 62647-4
Edition 1.0 2018-04
TECHNICAL
SPECIFICATION
Process management for avionics – Aerospace and defence electronic systems
containing lead-free solder –
Part 4: Ball grid array (BGA) re-balling
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 03.100.50; 31.020; 49.060 ISBN 978-2-8322-5530-8

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------

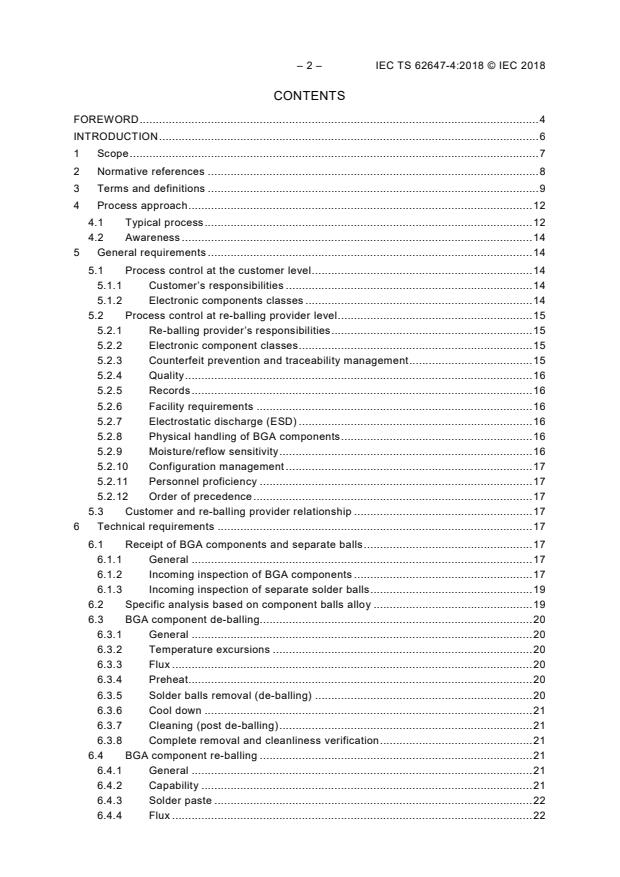

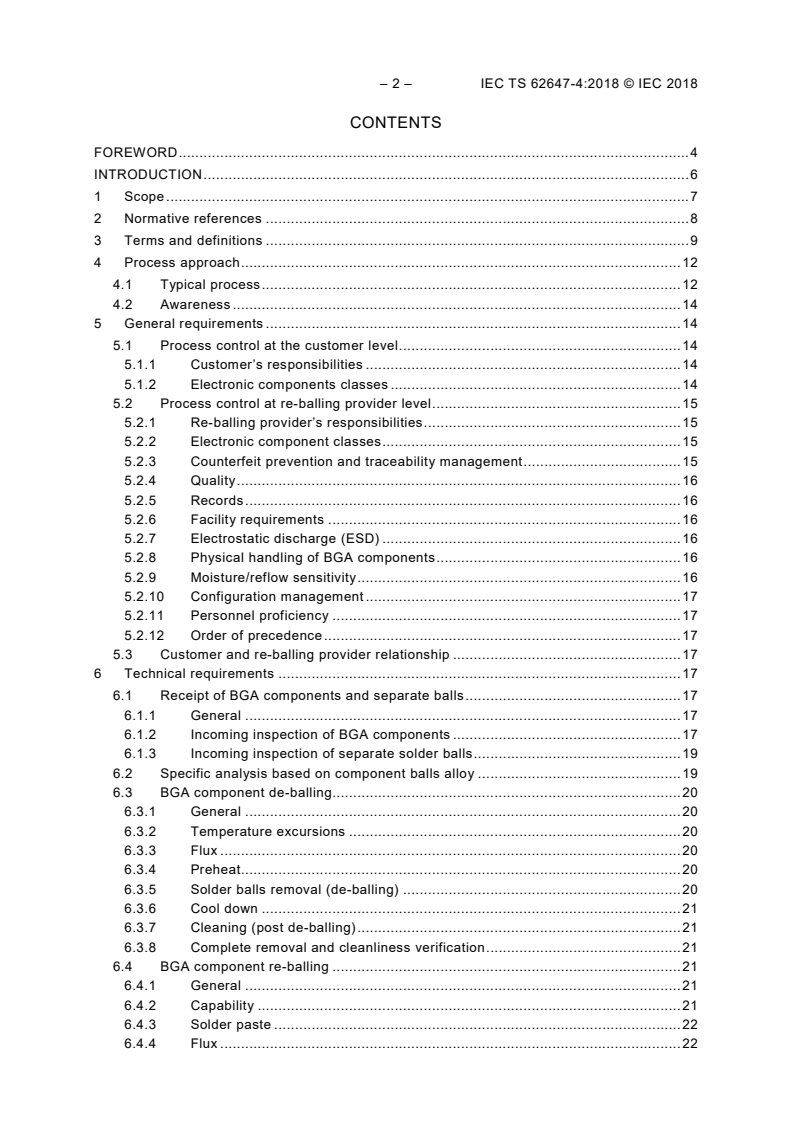

– 2 – IEC TS 62647-4:2018 © IEC 2018
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 8

3 Terms and definitions ...................................................................................................... 9

4 Process approach .......................................................................................................... 12

4.1 Typical process ..................................................................................................... 12

4.2 Awareness ............................................................................................................ 14

5 General requirements .................................................................................................... 14

5.1 Process control at the customer level .................................................................... 14

5.1.1 Customer’s responsibilities ............................................................................ 14

5.1.2 Electronic components classes ...................................................................... 14

5.2 Process control at re-balling provider level ............................................................ 15

5.2.1 Re-balling provider’s responsibilities .............................................................. 15

5.2.2 Electronic component classes ........................................................................ 15

5.2.3 Counterfeit prevention and traceability management ...................................... 15

5.2.4 Quality ........................................................................................................... 16

5.2.5 Records ......................................................................................................... 16

5.2.6 Facility requirements ..................................................................................... 16

5.2.7 Electrostatic discharge (ESD) ........................................................................ 16

5.2.8 Physical handling of BGA components ........................................................... 16

5.2.9 Moisture/reflow sensitivity .............................................................................. 16

5.2.10 Configuration management ............................................................................ 17

5.2.11 Personnel proficiency .................................................................................... 17

5.2.12 Order of precedence ...................................................................................... 17

5.3 Customer and re-balling provider relationship ....................................................... 17

6 Technical requirements ................................................................................................. 17

6.1 Receipt of BGA components and separate balls .................................................... 17

6.1.1 General ......................................................................................................... 17

6.1.2 Incoming inspection of BGA components ....................................................... 17

6.1.3 Incoming inspection of separate solder balls .................................................. 19

6.2 Specific analysis based on component balls alloy ................................................. 19

6.3 BGA component de-balling.................................................................................... 20

6.3.1 General ......................................................................................................... 20

6.3.2 Temperature excursions ................................................................................ 20

6.3.3 Flux ............................................................................................................... 20

6.3.4 Preheat.......................................................................................................... 20

6.3.5 Solder balls removal (de-balling) ................................................................... 20

6.3.6 Cool down ..................................................................................................... 21

6.3.7 Cleaning (post de-balling) .............................................................................. 21

6.3.8 Complete removal and cleanliness verification ............................................... 21

6.4 BGA component re-balling .................................................................................... 21

6.4.1 General ......................................................................................................... 21

6.4.2 Capability ...................................................................................................... 21

6.4.3 Solder paste .................................................................................................. 22

6.4.4 Flux ............................................................................................................... 22

---------------------- Page: 4 ----------------------
IEC TS 62647-4:2018 © IEC 2018 – 3 –

6.4.5 Ball placement (alignment and co-planarity) .................................................. 22

6.4.6 Preheating ..................................................................................................... 22

6.4.7 Reflow temperature profile ............................................................................. 22

6.4.8 Cooling down ................................................................................................. 22

6.4.9 Cleaning (post re-balling) .............................................................................. 23

6.5 Post-process inspection of re-balled BGA components ......................................... 23

6.5.1 General ......................................................................................................... 23

6.5.2 Production lot tests ........................................................................................ 23

6.5.3 Process monitoring and control ...................................................................... 23

6.5.4 Case of failures ............................................................................................. 24

6.5.5 Records ......................................................................................................... 24

6.6 Rework ................................................................................................................. 24

6.6.1 General ......................................................................................................... 24

6.6.2 Rework if authorized by the customer ............................................................ 24

6.7 New BGA component part number qualification ..................................................... 24

6.7.1 General ......................................................................................................... 24

6.7.2 New BGA component part number qualification by similarity .......................... 25

6.7.3 New BGA component part number qualification ............................................. 25

6.7.4 Records ......................................................................................................... 26

6.7.5 Customer’s approval ...................................................................................... 26

6.7.6 Cases of BGA component re-qualification ...................................................... 26

6.8 Physical marking ................................................................................................... 27

6.9 Packaging and shipping ........................................................................................ 27

6.10 Re-balled BGA components segregation ............................................................... 27

Annex A (informative) Template for tailoring the requirements of IEC TS 62647-4................ 28

Annex B (informative) Requirement matrix for IEC TS 62647-4 ............................................ 29

Annex C (normative) Test methods ...................................................................................... 37

Annex D (informative) Template for test methods tailoring in the frame of a BGA

component production lot test plan or a new BGA component part number qualification

test plan ................................................................................................................................ 39

Bibliography .......................................................................................................................... 40

Figure 1 – Typical flowchart of de-balling/re-balling operations ............................................. 13

Table 1 – Electronic component class ................................................................................... 14

Table 2 – Typical control and inspection test methods .......................................................... 19

Table 3 – Typical production lot test methods ....................................................................... 23

Table 4 – Typical test methods for process monitoring and control ....................................... 24

Table 5 – Typical test methods used for inspection of re-balled BGA components

within the framework of new BGA component part number qualification ................................ 25

Table 6 – Typical optional additional tests for new BGA component part number

qualification .......................................................................................................................... 26

Table A.1 – Template for tailoring of requirements ................................................................ 28

Table B.1 – Requirement matrix ............................................................................................ 29

Table C.1 – Test methods ..................................................................................................... 37

Table D.1 – Template for requirements tailoring .................................................................... 39

---------------------- Page: 5 ----------------------
– 4 – IEC TS 62647-4:2018 © IEC 2018
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PROCESS MANAGEMENT FOR AVIONICS –
AEROSPACE AND DEFENCE ELECTRONIC
SYSTEMS CONTAINING LEAD-FREE SOLDER –
Part 4: Ball grid array (BGA) re-balling
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. In

exceptional circumstances, a technical committee may propose the publication of a technical

specification when

• the required support cannot be obtained for the publication of an International Standard,

despite repeated efforts, or

• the subject is still under technical development or where, for any other reason, there is the

future but no immediate possibility of an agreement on an International Standard.

Technical specifications are subject to review within three years of publication to decide

whether they can be transformed into International Standards.

IEC TS 62647-4, which is a Technical Specification, has been prepared by IEC technical

committee 107: Process management for avionics.
---------------------- Page: 6 ----------------------
IEC TS 62647-4:2018 © IEC 2018 – 5 –
The text of this technical specification is based on the following documents:
Enquiry draft Report on voting
107/314/DTS 107/331/RVDTS

Full information on the voting for the approval of this technical specification can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all the parts in the IEC 62647 series, published under the general title Process

management for avionics – Aerospace and defence electronic systems containing lead-free

solder, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• transformed into an International standard,
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
---------------------- Page: 7 ----------------------
– 6 – IEC TS 62647-4:2018 © IEC 2018
INTRODUCTION

As the result of RoHS directives, soldering assembly processes have migrated predominantly

from tin-lead to Pb-free, and a majority of BGA components manufacturers have converted

from tin-lead solder balls to Pb-free solder balls. This has introduced well documented

reliability concerns. In the case of a leaded soldering process, a solution can be to replace the

Pb-free solder balls on the BGA components with tin-lead solder balls. This will prevent

mixing solder alloys.

This document was prepared to standardize the requirements and guidelines for replacing the

solder balls on applicable BGA components. The requirements within this document are

derived from existing industry standards and a collaboration of service providers and

customers, typically avionics original equipment manufacturers (OEMs).

This document is intended to be used by de-balling/re-balling providers and customers to

incorporate these requirements into their operations to provide a consistent and well-

controlled process, or to create a de-balling/re-balling plan that augments their existing

processes.

There are two major reasons to de-ball/re-ball BGA components: alloy compatibility and

replacement of damaged balls.

The customer should understand the potential risks of the BGA de-balling/re-balling process

for a specific package.

To avoid reliability problems, the BGA de-balling/re-balling process should be qualified and

carefully controlled to prevent the possibility of BGA failure after re-balling. Generally,

automated processes contribute positively to this objective and are encouraged in the

electronic industry.

This document does not guarantee a particular yield or reliability of BGA components going

through the de-balling/re-balling process. BGA component construction and materials used

should be evaluated for compatibility with the solder re-balling process to ensure that BGA

component reliability and integrity are maintained.

Because of the dynamic nature of the transition to lead-free (Pb-free) electronics, this and

other similar documents are based on the best information and expertise available; its update

will be considered as future knowledge and data are obtained.
---------------------- Page: 8 ----------------------
IEC TS 62647-4:2018 © IEC 2018 – 7 –
PROCESS MANAGEMENT FOR AVIONICS –
AEROSPACE AND DEFENCE ELECTRONIC
SYSTEMS CONTAINING LEAD-FREE SOLDER –
Part 4: Ball grid array (BGA) re-balling
1 Scope

This part of IEC 62647, which is a Technical Specification, defines the requirements for

replacing solder balls on ball grid array (BGA) component packages in the context of an

electronic components management plan (ECMP) for aerospace, defence and high reliability

products.

NOTE 1 IEC TS 62239-1 and EIA-STD-4899 describe the electronic components management program (ECMP).

It does not apply to column grid array (CGA) components or chip scale components.

This re-balling document addresses two types of configurations. For other configuration types,

see Annex A for tailoring.

• Configuration 1: A BGA package that will be de-balled and then re-balled with tin-lead

balls compatible with a tin-lead soldering assembly process.

• Configuration 2: A BGA package that will be de-balled and then re-balled with Pb-free

balls compatible with a Pb-free soldering assembly process.

The intent of this document is to provide re-balling companies (hereinafter referred to as the

re-balling provider) with the administrative and technical requirements to be incorporated

within existing processes or for establishing, implementing and maintaining a new set of

processes or the creation of a stand-alone re-balling process.

This document is intended to be used by de-balling/re-balling providers and customers,

typically avionics original equipment manufacturers (OEM); it defines the requirements for re-

balling providers who are providing services to the aerospace, defence, high performance and

high reliability electronics industry.

Requirements for new BGA component part number qualification are also included. This

document identifies the need for the creation of new part numbers for re-balled BGA

components, covers process and testing requirements for the de-balling/re-balling process

and encourages the automated processes due to the ability to control the process.

Companies engaged in re-balling are supposed to have the necessary knowledge, experience

and tools, and to customize if needed their own methods for defining a de-balling/re-balling

process that meets the requirements in this document.

Each customer determines the applicability of this document and the need for full replacement

of the existing solder balls. Some applications can have unique requirements that exceed the

scope of this document and are therefore specified separately.

This document is not intended to address all procedures and processes associated with a de-

balling/re-balling facility; it is assumed there are management, quality, manufacturing, safety,

calibration and training processes/procedures in place as well as all the necessary tools and

equipment to accomplish the work.

NOTE 2 For the purposes of this document, if the term “BGA” is used alone, it is stated as “BGA component".

---------------------- Page: 9 ----------------------
– 8 – IEC TS 62647-4:2018 © IEC 2018

NOTE 3 The replacement, for example, of damaged tin-lead balls by new tin-lead balls or damaged Pb-free balls

by new Pb-free balls is not specifically addressed in this document but some parts of the document and the table

for tailoring the requirements (see Annex A) can be used for supporting the operations.

Although developed for the avionics industry, this process can be applied by other industrial

sectors at their discretion.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 61340-5-1, Electrostatics – Part 5-1: Protection of electronic devices from electrostatic

phenomena – General requirements

IEC TR 61340-5-2, Electrostatics – Part 5-2: Protection of electronic devices from

electrostatic phenomena – User guide

IEC 62090, Product package labels for electronic components using bar code and two-

dimensional symbologies
IEC 62668 (all parts), Process management for avionics – Counterfeit prevention
AEC-Q100-010, Solder ball shear test

ANSI/ESD S20.20, Protection of Electrical and Electronic Parts, Assemblies and Equipment

(Excluding Electrically Initiated Explosive Devices)

ECA/IPC/JEDEC J-STD-075, Classification of Non-IC Electronic Components for Assembly

Processes
IPC J-STD-001, Requirements for Soldered Electrical and Electronic Assemblies

IPC J-STD-001xS , Space Applications Electronic Hardware Addendum to IPC J-STD-001x

Requirements for Soldered Electrical and Electronic Assemblies

IPC J-STD-002, Solderability Tests for Component Leads, Terminations, Lugs, Terminals and

Wires
IPC J-STD-004, Requirements for Soldering Fluxes
IPC J-STD-005, Requirements for Soldering Pastes

IPC/JEDEC J-STD-020, Moisture/Reflow Sensitivity Classification for Non-hermetic Solid

State Surface Mount Devices

IPC/JEDEC J-STD-033, Handling, Packing Shipping and Use of Moisture/Reflow Sensitive

Surface Mount Devices

IPC/JEDEC J-STD-035, Acoustic Microscopy for Non-Hermetic. Encapsulated. Electronic.

Components
___________

In « IPC J-STD-001xS » the « x » refers to the issue of the IPC J-STD-001 document ; for exemple « IPC J-

STD-001FS » refers to « IPC JST-001F » (issue F).
---------------------- Page: 10 ----------------------
IEC TS 62647-4:2018 © IEC 2018 – 9 –

IPC-TM-650 number 2.3.25, Test Methods Manual – Detection and Measurement of Ionizable

Surface Contaminants by Resistivity of Solvent Extract (ROSE)

JEDEC J-STD-046, Customer Notification of Product/Process Changes by Electronic Product

Suppliers

JEDEC JESD625, Requirements for Handling Electrostatic-Discharge-Sensitive (ESDS)

Devices
JEDEC JESD22-A101, Steady State Temperature Humidity Bias Life Test
JEDEC JESD22-B101, External visual
JEDEC JESD22-B107, Mark Permanency
JEDEC JESD22-B117, Solder Ball Shear

JEDEC JESD213, Standard Test Method Utilizing X-ray Fluorescence (XRF) for Analyzing

Component Finishes and Solder Alloys to Determine Tin (Sn) – Lead (Pb) Content
MIL-STD-883, Test Method Standard: Microcircuits

SAE AS5553, Counterfeit Electronic Parts; Avoidance, Detection, Mitigation, and Disposition

3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
acoustic microscopy
microscopy that employs very high or ultra-high frequency ultrasound

Note 1 to entry: Acoustic microscopy is a technical field where the acoustic microscope operates non-

destructively and penetrates most solid materials to make visible images of internal features, including defects

such as cracks, delaminations and voids; the acoustic microscope is generally called “scanning acoustic

microscope (SAM)”.
3.2
approved supplier

organization selling or supplying materiel, parts, products or provision of a service, which has

been determined capable by a procuring organization to deliver throughout the lifetime of a

contract
3.3
BGA
ball grid array

surface mount package wherein the balls for terminations are formed in a grid on the bottom

of a package

Note 1 to entry: There are different varieties of BGA packages and solder ball technologies such as CBGA,

PBGA, TBGA pac
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
