Radio Data System (RDS) - VHF/FM sound broadcasting in the frequency range from 64,0 MHz to 108,0 MHz - Part 9: RBDS - RDS variant used in North America

IEC 62106-9:2021 specifies the Radio Broadcast Data System (RBDS), which is an RDS-compatible variant used in countries of North America. RBDS was first standardized by the U.S. National Radio Systems Committee (NRSC) in 1993 and subsequently revised in 1998, 2004, 2005 and 2011 . With the publication of this edition of IEC 62106, the RDS and RBDS standards are now harmonized into a single document. The frequency range of operation (64,0 MHz to 108,0 MHz as indicated by the title of this document) varies according to regional regulatory authority. The U.S. range is 88 MHz to 108 MHz, as set by the U.S. Federal Communications Commission.

General Information

Status
Published
Publication Date
19-May-2021
Current Stage
PPUB - Publication issued
Completion Date
20-May-2021
Ref Project

Buy Standard

Standard
IEC 62106-9:2021 - Radio Data System (RDS) - VHF/FM sound broadcasting in the frequency range from 64,0 MHz to 108,0 MHz - Part 9: RBDS - RDS variant used in North America
English language
19 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 62106-9
Edition 1.0 2021-05
INTERNATIONAL
STANDARD
Radio data system (RDS) –VHF/FM sound broadcasting in the frequency range
from 64,0 MHz to 108,0 MHz –
Part 9: RBDS – RDS variant used in North America
IEC 62106-9:2021-05(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always have

committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 18 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62106-9
Edition 1.0 2021-05
INTERNATIONAL
STANDARD
Radio data system (RDS) –VHF/FM sound broadcasting in the frequency range
from 64,0 MHz to 108,0 MHz –
Part 9: RBDS – RDS variant used in North America
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.060.01; 33.160.20; 33.170 ISBN 978-2-8322-9785-8

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC 62106-9:2021 © IEC 2021

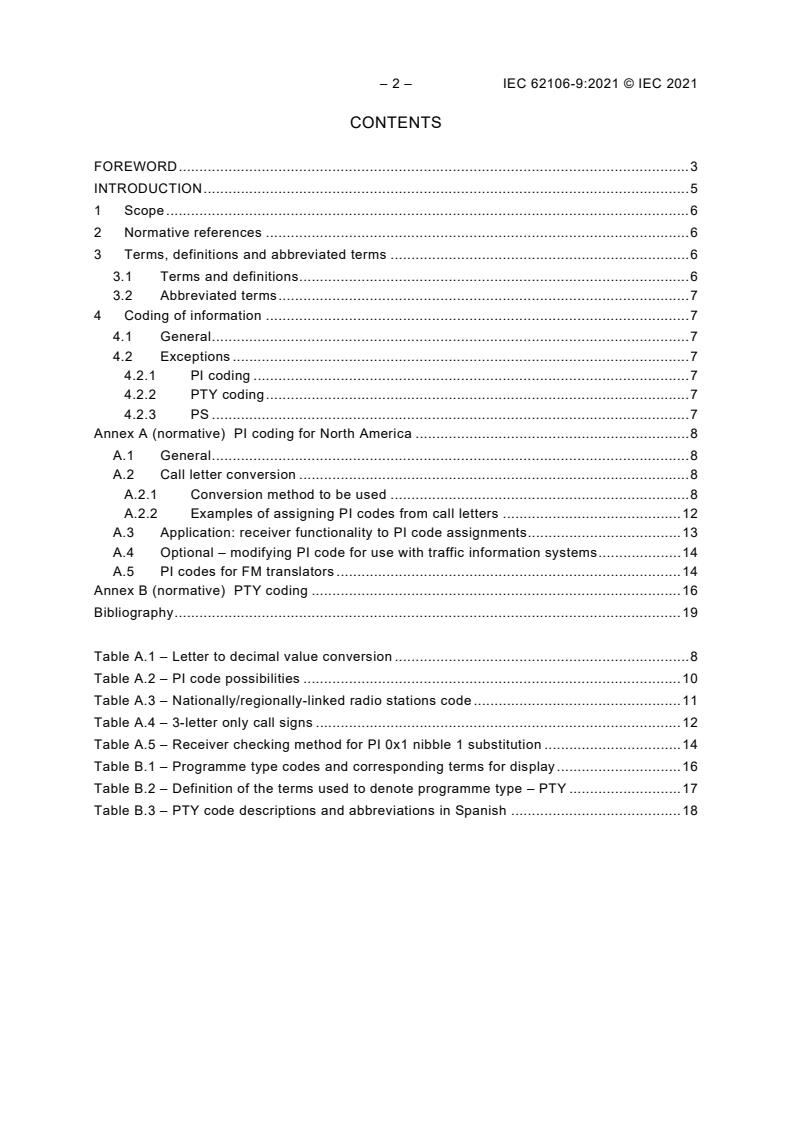

CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms, definitions and abbreviated terms ........................................................................ 6

3.1 Terms and definitions .............................................................................................. 6

3.2 Abbreviated terms ................................................................................................... 7

4 Coding of information ...................................................................................................... 7

4.1 General ................................................................................................................... 7

4.2 Exceptions .............................................................................................................. 7

4.2.1 PI coding ......................................................................................................... 7

4.2.2 PTY coding ...................................................................................................... 7

4.2.3 PS ................................................................................................................... 7

Annex A (normative) PI coding for North America .................................................................. 8

A.1 General ................................................................................................................... 8

A.2 Call letter conversion .............................................................................................. 8

A.2.1 Conversion method to be used ........................................................................ 8

A.2.2 Examples of assigning PI codes from call letters ........................................... 12

A.3 Application: receiver functionality to PI code assignments ..................................... 13

A.4 Optional – modifying PI code for use with traffic information systems .................... 14

A.5 PI codes for FM translators ................................................................................... 14

Annex B (normative) PTY coding ......................................................................................... 16

Bibliography .......................................................................................................................... 19

Table A.1 – Letter to decimal value conversion ....................................................................... 8

Table A.2 – PI code possibilities ........................................................................................... 10

Table A.3 – Nationally/regionally-linked radio stations code .................................................. 11

Table A.4 – 3-letter only call signs ........................................................................................ 12

Table A.5 – Receiver checking method for PI 0x1 nibble 1 substitution ................................. 14

Table B.1 – Programme type codes and corresponding terms for display .............................. 16

Table B.2 – Definition of the terms used to denote programme type – PTY ........................... 17

Table B.3 – PTY code descriptions and abbreviations in Spanish ......................................... 18

---------------------- Page: 4 ----------------------
IEC 62106-9:2021 © IEC 2021 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO DATA SYSTEM (RDS) –
VHF/FM SOUND BROADCASTING IN THE FREQUENCY
RANGE FROM 64,0 MHz TO 108,0 MHz –
Part 9: RBDS –
RDS variant used in North America
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62106-9 has been prepared by technical area 1: Terminals for audio,

video and data services and contents, of IEC technical committee 100: Audio, video and

multimedia systems and equipment.

This first edition, together with IEC 62106-1, IEC 62106-2, IEC 62106-3, IEC 62106-4,

IEC 62106-5, IEC 62106-6 and IEC 62106-10, cancels and replaces IEC 62106:2015, and

constitutes a technical revision.

IEC 62106-9 cancels and replaces US NRSC-4-B, National Radio Systems Committee – United

States RBDS standard, published in 2011.
---------------------- Page: 5 ----------------------
– 4 – IEC 62106-9:2021 © IEC 2021
The text of this International Standard is based on the following documents:
Draft Report on voting
100/3399/CDV 100/3553/RVC

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.

A list of all parts in the IEC 62106 series, published under the general title Radio data system

(RDS) – VHF/FM sound broadcasting in the frequency range from 64,0 MHz to 108,0 MHz, can

be found on the IEC website.
The language used for the development of this International Standard is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 62106-9:2021 © IEC 2021 – 5 –
INTRODUCTION

Since the mid-1980s, a fascinating development has taken place. Most of the multimedia

applications and standards have been created or redefined significantly. Hardware has become

extremely powerful with dedicated software and middleware. In the mid-1980s, Internet as well

as its protocols did not exist. Navigation systems became affordable in the late 1990s, and a

full range of attractive smartphones now exist. The computing power of all these new products

is comparable with that of the mainframe installations in that era.

Listener expectations have grown faster than the technology. Visual experience is now very

important, like the Internet look and feel. Scrolling text or delivering just audio is nowadays

perceived as insufficient for FM radio, specifically for smartphone users. New types of radio

receivers with added value features are therefore required. RDS has so far proven to be very

successful.

FM radio with RDS is an analogue-digital hybrid system, which is still a valid data transmission

technology and only the applications need adaptation. Now the time has come to solve the only

disadvantage, the lack of sufficient data capacity. With RDS2, the need to increase the data

capacity can be fulfilled.

RDS was introduced in the early 1980s. During the introductory phase in Europe, the car

industry became very involved and that was the start of an extremely successful roll-out. Shortly

afterwards, RDS (RBDS) was launched in the USA. [1, 2, 3, 4, 5, 6, 7]

The RDS Forum has investigated a solution to the issue of limited data capacity. For RDS2,

both sidebands around the RDS 57 kHz subcarrier can be repeated a few times, up to three,

centred on additional subcarriers higher up in the FM multiplex whike still remaining compatible

with the ITU Recommendations.

The core elements of RDS2 are the additional subcarriers, which will enable a significant

increase of RDS data capacity to be achieved and then only new additional data applications

will have to be created, using the RDS-ODA feature, which has been part of the RDS standard

IEC 62106 for many years.

In order to update IEC 62106:2015 to the specifications of RDS2, the original document has

been restructured as follows:
Part 1: RDS system: Modulation characteristics and baseband coding
Part 2: RDS message format, coding and definition of RDS features
Part 3: Coding and registration of Open Data Applications ODAs
Part 4: Registered code tables
Part 5: Marking of RDS and RDS2 devices

Part 6: Compilation of technical specifications for Open Data Applications in the public domain

Part 9: RBDS – RDS variant used in North America
Part 10: Universal Encoder Communication Protocol UECP
The original specifications of the RDS system have been maintained and the extra
functionalities of RDS2 have been added.
Obsolete or unused functions from the original RDS standard have been deleted.
_______________
Numbers in square brackets refer to the Bibliography.
---------------------- Page: 7 ----------------------
– 6 – IEC 62106-9:2021 © IEC 2021
RADIO DATA SYSTEM (RDS) –
VHF/FM SOUND BROADCASTING IN THE FREQUENCY
RANGE FROM 64,0 MHz TO 108,0 MHz –
Part 9: RBDS –
RDS variant used in North America
1 Scope

This part of IEC 62106 specifies the Radio Broadcast Data System (RBDS), which is an RDS-

compatible variant used in countries of North America. RBDS was first standardized by the U.S.

National Radio Systems Committee (NRSC) in 1993 and subsequently revised in 1998, 2004,

2005 and 2011 . With the publication of this edition of IEC 62106, the RDS and RBDS standards

are now harmonized into a single document.

The frequency range of operation (64,0 MHz to 108,0 MHz as indicated by the title of this

document) varies according to regional regulatory authority. The U.S. range is 88 MHz to 108

MHz, as set by the U.S. Federal Communications Commission. [8]
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 62106 (all parts), Radio Data System (RDS) – VHF/FM sound broadcasting in the frequency

range from 64,0 MHz to 108,0 MHz

IEC 62106-2:2021, Radio data system (RDS) – VHF/FM sound broadcasting in the frequency

range from 64,0 MHz to 108,0 MHz – Part 2: Message format: coding and definition of RDS

features
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 62106-1 apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
_______________

The NRSC (www.nrscstandards.org) is jointly sponsored by the National Association of Broadcasters (NAB) and

the Consumer Technology Association (CTA). Its purpose is to study and make recommendations for technical

standards that relate to radio broadcasting and the reception of radio broadcast signals. See

www.nrscstandards.org.
---------------------- Page: 8 ----------------------
IEC 62106-9:2021 © IEC 2021 – 7 –
3.2 Abbreviated terms

For the purposes of this document, the abbreviated terms given in IEC 62106-1 and the

following apply.
CBC Canadian Broadcasting Corporation
NPR National Public Radio (USA)
NRSC National Radio Systems Committee (USA)
RBDS Radio Broadcast Data System
4 Coding of information
4.1 General

The RBDS standard uses the same data modulation as in IEC 62106-1. It also uses the same

RDS features and group type coding as in IEC 62106-2. Open Data Applications coding and

registration for application identification are specified in IEC 62106-2 and IEC 62106-3,

respectively. Any exceptions for RBDS to these specifications are described in 4.2.

4.2 Exceptions
4.2.1 PI coding

The PI code nibbles are composed differently. The methods used are described in Annex A.

4.2.2 PTY coding

The 5-bit PTY codes are defined with a different meaning in RBDS. The code definitions given

in Annex B shall be used for RBDS.
4.2.3 PS

For RBDS, there is no prohibition on using PS for displaying sequential information and there

is no requirement that PS be static. For RBDS, there are no restrictions on the content or update

rate of the PS field.
---------------------- Page: 9 ----------------------
– 8 – IEC 62106-9:2021 © IEC 2021
Annex A
(normative)
PI coding for North America
A.1 General

PI codes in North America are issued and used differently than in the rest of the world. In areas

licensed by the U.S. Federal Communications Commission (except Guam), PI codes are

calculated by the station’s call letters. Stations in Canada and Mexico use PI codes starting

with 0xC and 0xF, respectively (except for certain CBC FM stations in Canada as indicated in

Table A.2). This gives each station a unique PI code without the need for any outside

coordination.

These PI codes do not make use of coverage area codes (IEC 62106-2). Coverage area codes

are only valid for PI codes with nibble 1 being "B" or "E". (PI codes with nibble 1 being "D" were

repurposed for AM and HD multicast on FM translators in 2017; see Table A.2 through

Table A.4). Broadcasters and receiver manufacturers shall take note of this subtle, yet

significant, difference of RBDS.

An optional method for forming PI codes is given in Clause A.4, which can be useful for

broadcasters that are providing traffic information using RDS.

Because of this optional method, broadcasters should be aware that PI codes cannot be used

in receivers for decoding call letters for display. The PS (program service) data field or the RT+

field STATIONNAME.SHORT may be transmitted instead. [7]
A.2 Call letter conversion
A.2.1 Conversion method to be used

1) Assign decimal values to last 3 letters of call letters using values from Table A.1.

Table A.1 – Letter to decimal value conversion
Letter Decimal value Letter Decimal value
A 0 N 13
B 1 O 14
C 2 P 15
D 3 Q 16
E 4 R 17
F 5 S 18
G 6 T 19
H 7 U 20
I 8 V 21
J 9 W 22
K 10 X 23
L 11 Y 24
M 12 Z 25
_______________

3 Excluding FM translators, see Clause A.5. Note: some broadcasters may elect to substitute 0x1 for the first nibble

of the PI code to support RDS TMC traffic data transmission. See Clause A.4 for additional information.

---------------------- Page: 10 ----------------------
IEC 62106-9:2021 © IEC 2021 – 9 –

2) Calculate a weighted decimal value (call it "") for the last 3 letters of the call sign,

according to each letter's position, and add together to obtain this decimal value (see

exception for 3-letter call signs below).
EXAMPLE 1
K <3rd letter position> <2nd letter position> <1st letter position>
W <3rd letter position> <2nd letter position> <1st letter position>
<3rd letter position value> x 676
+ <2nd letter position value> x 26
+ <1st letter position value>
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
