IEC 61223-3-5:2019
(Main)Evaluation and routine testing in medical imaging departments - Part 3-5: Acceptance and constancy tests - Imaging performance of computed tomography X-ray equipment
Evaluation and routine testing in medical imaging departments - Part 3-5: Acceptance and constancy tests - Imaging performance of computed tomography X-ray equipment
IEC 61223-3-5:2019 applies to CT SCANNERS that conform to IEC 60601-2-44:2009, IEC 60601-2-44:2009/AMD1:2012 and IEC 60601-2-44:2009/AMD1:2012AMD2:2016.
IEC 60601-2-44 and this document
• defines the essential parameters which describe the performance of CT SCANNERS with regard to image quality, RADIATION OUTPUT and PATIENT positioning; the list of parameters to be tested can be found in section 4.3,
• defines the methods of testing the essential parameters, and
• evaluates compliance with the tolerances of the parameters SPECIFIED by the ACCOMPANYING DOCUMENTS.
The methods defined in IEC 60601-2-44 and this document rely on non-invasive measurements, using appropriate test equipment, performed during or after installation. Signed statements covering steps in the installation procedure can be used as part of the ACCEPTANCE TEST report.
This document applies to ACCEPTANCE TESTS and CONSTANCY TESTS on a CT SCANNER. The aim of the ACCEPTANCE TESTS is to verify compliance of the installation or MAJOR SERVICE ACTION with specifications affecting the image quality, RADIATION OUTPUT and PATIENT positioning. The CONSTANCY TESTS are performed to ensure that the functional performance of EQUIPMENT meets ESTABLISHED CRITERIA and to enable the early recognition of changes in the properties of components of the EQUIPMENT, and to verify compliance with specifications affecting the image quality, RADIATION OUTPUT and PATIENT positioning.
This document also contains requirements associated with ACCEPTANCE and CONSTANCY TESTING for the ACCOMPANYING DOCUMENTS of the CT SCANNER.
This document does not apply to
• aspects of mechanical and electrical safety, and
• aspects of mechanical, electrical and software performance, unless they are essential for performing the ACCEPTANCE TESTS and CONSTANCY TESTS, and are directly affecting image quality, RADIATION OUTPUT and PATIENT positioning.
IEC 61223-3-5:2019 cancels and replaces the first edition published in 2004, and the second edition of IEC 61223-2-6 published in 2006. This edition constitutes a technical revision.
This edition includes the following significant technical change with respect to the previous edition and to IEC 61223-2-6:
1) modification of the RADIATION protection and control;
2) modification of the acceptance testing;
3) introduction of constancy testing.
The contents of the corrigendum of June 2022 have been included in this copy.
Essais d'évaluation et de routine dans les services d'imagerie médicale - Partie 3-5: Essais d'acceptation et de constance - Performance d'imagerie des équipements de tomodensitométrie à rayonnement X
L'IEC 61223-3-5:2019 s'applique aux TOMODENSITOMETRES, qui sont conformes à l'IEC 60601-2-44:2009, l'IEC 60601-2-44:2009/AMD1:2012 et l'IEC 60601 2 44:2009/AMD1:2012AMD2:2016.
L'IEC 60601-2-44 et le présent document:
• définissent les paramètres importants qui décrivent les performances des TOMODENSITOMETRES en ce qui concerne la qualité d'image, la PUISSANCE DE RAYONNEMENT et le positionnement du PATIENT; la liste des paramètres à soumettre à l'essai est fournie en 4.3;
• définissent les méthodes d'essai des paramètres importants; et
• évaluent la conformité des paramètres par rapport aux tolérances SPECIFIEES dans les DOCUMENTS D'ACCOMPAGNEMENT.
Les méthodes définies dans l'IEC 60601-2-44 et le présent document s'appuient sur des mesures non invasives, exécutées pendant ou après l'installation, en utilisant des équipements d'essai adéquats. Des déclarations signées couvrant des étapes de la procédure d'installation peuvent être utilisées dans le cadre du rapport d'ESSAI D'ACCEPTATION.
Le présent document s'applique aux ESSAIS D'ACCEPTATION et aux ESSAIS DE CONSTANCE destinés à un TOMODENSITOMETRE. L'objet des ESSAIS D'ACCEPTATION est de vérifier la conformité de l'installation ou d'une OPERATION DE MAINTENANCE IMPORTANTE aux spécifications concernant la qualité de l'image, la PUISSANCE DE RAYONNEMENT et le positionnement du PATIENT. L'objet des ESSAIS DE CONSTANCE est de s'assurer que les performances fonctionnelles de l'APPAREIL satisfont aux CRITÈRES ÉTABLIS et de permettre l'identification précoce des modifications des propriétés des composants de l'APPAREIL, mais également de vérifier la conformité aux spécifications concernant la qualité de l'image, la PUISSANCE DE RAYONNEMENT et le positionnement du PATIENT.
Le présent document contient également les exigences associées aux ESSAIS D'ACCEPTATION et aux ESSAIS DE CONSTANCE en ce qui concerne les DOCUMENTS D'ACCOMPAGNEMENT du TOMODENSITOMETRE.
Le présent document ne s'applique pas aux:
• aspects concernant la sécurité mécanique et électrique; et
• aspects concernant les performances mécaniques, électriques et logicielles, à moins qu'ils ne soient essentiels à l'exécution des ESSAIS D'ACCEPTATION et des ESSAIS DE CONSTANCE, et qu'ils affectent directement la qualité d'image, la PUISSANCE DE RAYONNEMENT et le positionnement du PATIENT.
L'IEC 61223-3-5:2019 annule et remplace la première édition parue en 2004 et la deuxième édition de l'IEC 61223-2-6 parue en 2006. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente et à l'IEC 61223-2-6:
a) modification de la protection contre les RAYONNEMENTS et des contrôles;
b) modification des essais d'acceptation;
c) introduction des essais de constance.
Le contenu du corrigendum de juin 2022 a été pris en considération dans cet exemplaire.
General Information
Relations
Standards Content (Sample)

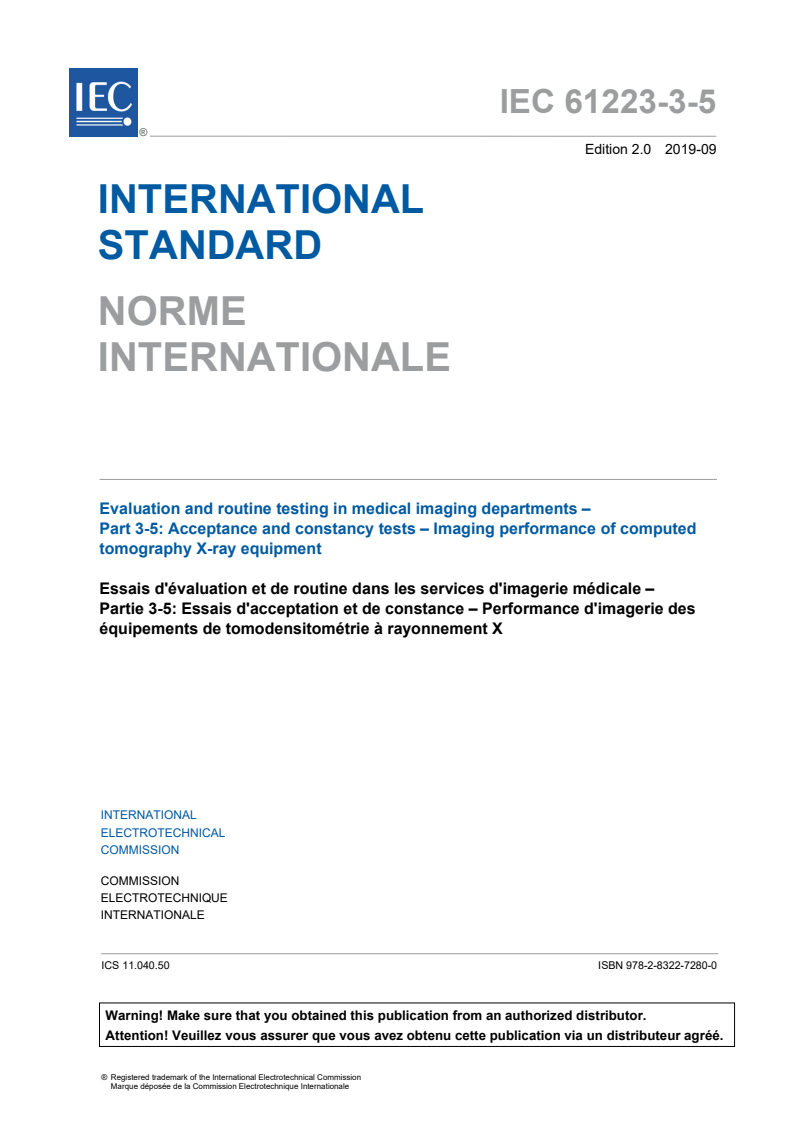

IEC 61223-3-5 ®
Edition 2.0 2019-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Evaluation and routine testing in medical imaging departments –
Part 3-5: Acceptance and constancy tests – Imaging performance of computed
tomography X-ray equipment
Essais d'évaluation et de routine dans les services d'imagerie médicale –
Partie 3-5: Essais d'acceptation et de constance – Performance d'imagerie des
équipements de tomodensitométrie à rayonnement X
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.
IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

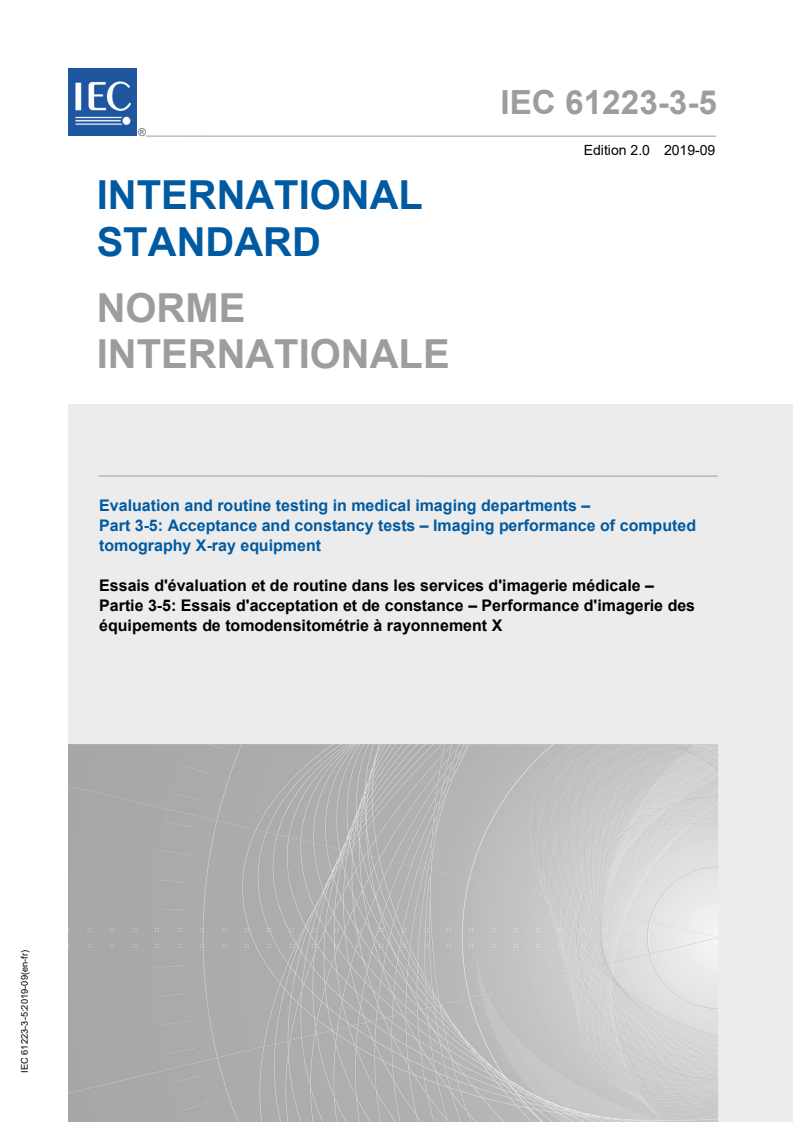

IEC 61223-3-5 ®
Edition 2.0 2019-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Evaluation and routine testing in medical imaging departments –
Part 3-5: Acceptance and constancy tests – Imaging performance of computed
tomography X-ray equipment
Essais d'évaluation et de routine dans les services d'imagerie médicale –
Partie 3-5: Essais d'acceptation et de constance – Performance d'imagerie des
équipements de tomodensitométrie à rayonnement X
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 11.040.50 ISBN 978-2-8322-7280-0

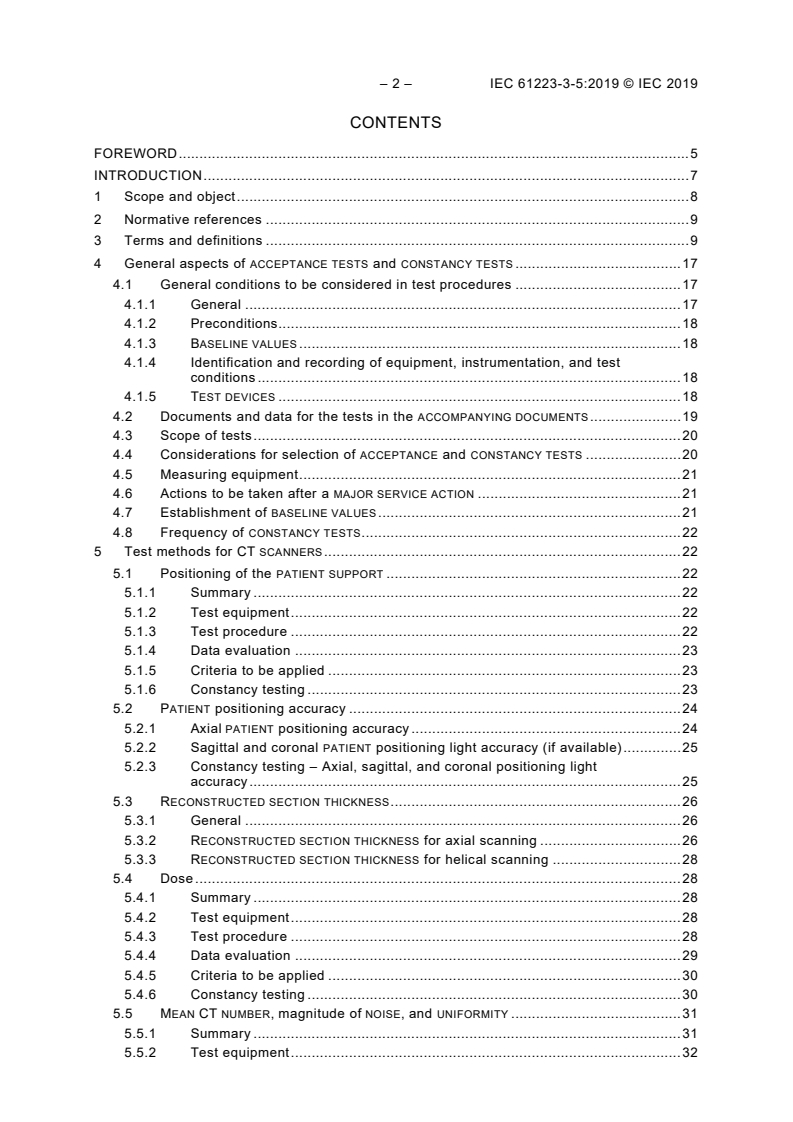

– 2 – IEC 61223-3-5:2019 © IEC 2019

CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope and object . 8
2 Normative references . 9
3 Terms and definitions . 9
4 General aspects of ACCEPTANCE TESTS and CONSTANCY TESTS . 17
4.1 General conditions to be considered in test procedures . 17
4.1.1 General . 17
4.1.2 Preconditions . 18
4.1.3 BASELINE VALUES . 18
4.1.4 Identification and recording of equipment, instrumentation, and test
conditions . 18
4.1.5 TEST DEVICES . 18
4.2 Documents and data for the tests in the ACCOMPANYING DOCUMENTS . 19
4.3 Scope of tests . 20
4.4 Considerations for selection of ACCEPTANCE and CONSTANCY TESTS . 20
4.5 Measuring equipment . 21
4.6 Actions to be taken after a MAJOR SERVICE ACTION . 21
4.7 Establishment of BASELINE VALUES . 21
4.8 Frequency of CONSTANCY TESTS . 22
5 Test methods for CT SCANNERS . 22
5.1 Positioning of the PATIENT SUPPORT . 22
5.1.1 Summary . 22
5.1.2 Test equipment . 22
5.1.3 Test procedure . 22
5.1.4 Data evaluation . 23
5.1.5 Criteria to be applied . 23
5.1.6 Constancy testing . 23
5.2 PATIENT positioning accuracy . 24
5.2.1 Axial PATIENT positioning accuracy . 24
5.2.2 Sagittal and coronal PATIENT positioning light accuracy (if available) . 25
5.2.3 Constancy testing – Axial, sagittal, and coronal positioning light
accuracy . 25
5.3 RECONSTRUCTED SECTION THICKNESS . 26
5.3.1 General . 26
5.3.2 RECONSTRUCTED SECTION THICKNESS for axial scanning . 26
5.3.3 RECONSTRUCTED SECTION THICKNESS for helical scanning . 28
5.4 Dose . 28
5.4.1 Summary . 28
5.4.2 Test equipment . 28
5.4.3 Test procedure . 28
5.4.4 Data evaluation . 29
5.4.5 Criteria to be applied . 30
5.4.6 Constancy testing . 30
5.5 MEAN CT NUMBER, magnitude of NOISE, and UNIFORMITY . 31
5.5.1 Summary . 31
5.5.2 Test equipment . 32
5.5.3 Test procedure . 32
5.5.4 Scan conditions . 32
5.5.5 Criteria to be applied for ACCEPTANCE TEST . 35
5.5.6 Criteria to be applied for CONSTANCY TESTS . 36
5.6 SPATIAL RESOLUTION (high contrast) . 38
5.6.1 Summary . 38
5.6.2 Information to be supplied in the ACCOMPANYING DOCUMENTS . 38
5.6.3 Test equipment . 38
5.6.4 Test procedure . 38
5.6.5 Data evaluation . 39
5.6.6 Criteria to be applied . 39
5.6.7 Constancy testing . 39
5.7 Automatic exposure control (AEC) . 39
5.8 LOW CONTRAST RESOLUTION and LOW CONTRAST DETECTABILITY . 40
Annex A (informative) Visual method for LOW CONTRAST RESOLUTION . 41
Annex B (informative) DOSE PROFILE . 42
B.1 Summary . 42
B.2 Methods . 42
B.2.1 Point dosimeter method . 42
B.2.2 Film method . 42
B.2.3 Criteria to be applied . 42
Annex C (informative) Accuracy of the gantry tilt . 43
C.1 Summary . 43
C.2 Method A . 43
C.2.1 Test equipment . 43
C.2.2 Test procedure . 43
C.2.3 Data evaluation . 43
C.2.4 Criteria to be applied . 43
C.3 Method B . 44
C.3.1 Test equipment . 44
C.3.2 Test procedure . 44
C.3.3 Data evaluation . 44
C.4 Criteria to be applied. 44
Annex D (informative) Characterization of z-axis SPATIAL RESOLUTION . 45
Annex E (informative) Helical RECONSTRUCTED SECTION THICKNESS . 46
E.1 Summary . 46
E.2 Test equipment . 46
E.3 Test procedure . 46
E.4 Data evaluation . 46
Annex F (informative) Guidance on action to be taken . 47
F.1 Failing the ESTABLISHED CRITERIA at first measurement . 47
F.2 Failing the ESTABLISHED CRITERIA after repeated measurement . 47
F.3 Marginally failing the ESTABLISHED CRITERIA . 47
F.4 Substantially failing the ESTABLISHED CRITERIA . 47
F.5 History of repeatedly failing the ESTABLISHED CRITERIA . 48
F.6 Failing the established CONSTANCY CRITERIA but passing the established
ACCEPTANCE CRITERIA . 48
F.7 Cases not covered by Clauses F.1 to F.5 . 48
– 4 – IEC 61223-3-5:2019 © IEC 2019
Annex G (informative) Automated exposure control (AEC) . 49
G.1 Overview. 49
G.2 Test equipment . 49
G.3 Test procedure . 49
G.4 Size-dependent modulation evaluation . 49
G.4.1 Size-dependent modulation evaluation for Adult Body PROTOCOL
ELEMENTS . 49
G.4.2 Size-dependent modulation evaluation for Paediatric Body PROTOCOL
ELEMENTS . 50
G.5 Longitudinal modulation evaluation . 50
G.6 Data evaluation . 51
G.6.1 Size-dependent modulation evaluation . 51
G.6.2 Longitudinal modulation evaluation . 51
G.7 Criteria to be applied. 51
G.7.1 Size-dependent modulation evaluation . 51
G.7.2 Longitudinal modulation evaluation . 51
Annex H (informative) Mapping of IEC requirements to regulations . 52
Annex I (informative) Overview of criteria for acceptance and constancy testing for 5.5 . 54
Annex J (informative) Overview of criteria and frequency for all acceptance and
constancy testing . 55
Bibliography . 59
Index of defined terms . 60
Figure 1 – Coordinate system . 14
Figure 2 – Illustration of N × T, R and (N × T) + R . 16
Figure G.1 – TEST DEVICE aligned . 50
Table 1 – Test pattern for CTDI for Adult Body PROTOCOL ELEMENTS . 29
free air
Table 2 – Combination of PROTOCOL ELEMENTS and PHANTOMS used for ACCEPTANCE
TEST scans . 33
Table 3 – Combination of PROTOCOL ELEMENTS and PHANTOMS used for CONSTANCY
TEST scans . 33
Table H.1 – Mapping of IEC requirements to regulations . 52
Table I.1 – Overview of criteria for ACCEPTANCE and CONSTANCY TESTING for 5.5 . 54
Table J.1 –Overview of criteria and frequency . 55
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
EVALUATION AND ROUTINE TESTING IN
MEDICAL IMAGING DEPARTMENTS –
Part 3-5: Acceptance and constancy tests – Imaging
performance of computed tomography X-ray equipment
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC
Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61223-3-5 has been prepared by subcommittee 62B: Diagnostic
imaging equipment, of IEC technical committee 62: Electrical equipment in medical practice.
This second edition cancels and replaces the first edition published in 2004, and the second
edition of IEC 61223-2-6 published in 2006. This edition constitutes a technical revision.
This edition includes the following significant technical change with respect to the previous
edition and to IEC 61223-2-6:
a) modification of the RADIATION protection and control;
b) modification of the acceptance testing;
c) introduction of constancy testing.
– 6 – IEC 61223-3-5:2019 © IEC 2019
The text of this International Standard is based on the following documents:
FDIS Report on voting
62B/1134/FDIS 62B/1145/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
In this document, the following print types are used:
• requirements, compliance with which can be tested, and definitions: in roman type;
explanations, advice, notes, general statements, exceptions and references: in smaller type;
•
• test specifications: in italic type;
• TERMS USED THROUGHOUT THIS DOCUMENT THAT HAVE BEEN LISTED IN THE INDEX OF DEFINED
TERMS AND DEFINED IN CLAUSE 3, OR IN OTHER STANDARDS: SMALL CAPITALS.
A list of all parts in the IEC 61223 series, published under the general title Evaluation and
routine testing in medical imaging departments, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE The attention of the users of this document is drawn to the fact that equipment MANUFACTURERS and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests. It is the recommendation of the committee that the content of this publication be adopted for
implementation nationally not earlier than 3 years from the date of publication.
INTRODUCTION
This part of IEC 61223 gives methods for acceptance testing and constancy testing for
medical diagnostic CT equipment.
The complete set of ACCEPTANCE TESTS is to be carried out after new equipment has been
installed, or a subset of the tests is to be carried out after each MAJOR SERVICE ACTION that is
made to existing equipment. This is done in order to facilitate verification of applicable safety
and performance standards, regulations, and published and/or contractual specifications that
influence the image quality, RADIATION OUTPUT and PATIENT positioning.
To maintain the homogeneity of this document with the other IEC standards addressing
CT SCANNERS, the measuring methods and the terminology are taken as applicable from the
CT safety standard IEC 60601-2-44:2009, IEC 60601-2-44:2009/AMD1:2012 and IEC 60601-
2-44:2009/AMD2:2016.
Some provisions or statements in this document require additional information, which is
presented in the annexes.
IEC 61223-3-5 is referenced by IEC 60601-2-44:2009 and IEC 60601-2-44:2009/AMD1:2012
using an undated reference. This can suggest the reference to change from
IEC 61223-3-5:2004 to IEC 61223-3-5:2019 with the date of its publication. However, the IEC
technical subcommittee 62B who prepared both standards does not intend this immediate
change of reference. The IEC technical subcommittee 62B clearly recommends in the
foreword of both standards the necessity for MANUFACTURERS and testing organizations for a
transitional period to make products in accordance with the new requirements and to equip
themselves for conducting new or revised tests. Therefore, the reference in IEC 60601-2-44
has to be seen as a dated reference towards IEC 61223-3-5:2004, for a transitional period of
not less than 3 years from the date of publication of this document. The IEC technical
subcommittee 62B intends to clarify this undated reference with the preparation of a new
version 4 of IEC 60601-2-44.
– 8 – IEC 61223-3-5:2019 © IEC 2019
EVALUATION AND ROUTINE TESTING IN
MEDICAL IMAGING DEPARTMENTS –
Part 3-5: Acceptance and Constancy tests – Imaging
performance of computed tomography X-ray equipment
1 Scope and object
This part of IEC 61223 applies to CT SCANNERS that conform to IEC 60601-2-44:2009,
IEC 60601-2-44:2009/AMD1:2012 and IEC 60601-2-44:2009/AMD2:2016.
IEC 60601-2-44 and this document
• defines the essential parameters which describe the performance of CT SCANNERS with
regard to image quality, RADIATION OUTPUT and PATIENT positioning; the list of parameters
to be tested can be found in 4.3,
• defines the methods of testing the essential parameters, and
• evaluates compliance with the tolerances of the parameters SPECIFIED by the
ACCOMPANYING DOCUMENTS.
The methods defined in IEC 60601-2-44 and this document rely on non-invasive
measurements, using appropriate test equipment, performed during or after installation.
Signed statements covering steps in the installation procedure can be used as part of the
ACCEPTANCE TEST report.
This document applies to ACCEPTANCE TESTS and CONSTANCY TESTS on a CT SCANNER. The aim
of the ACCEPTANCE TESTS is to verify compliance of the installation or MAJOR SERVICE ACTION
with specifications affecting the image quality, RADIATION OUTPUT and PATIENT positioning. The
CONSTANCY TESTS are performed to ensure that the functional performance of EQUIPMENT
meets ESTABLISHED CRITERIA and to enable the early recognition of changes in the properties
of components of the EQUIPMENT, and to verify compliance with specifications affecting the
image quality, RADIATION OUTPUT and PATIENT positioning.
This document also contains requirements associated with ACCEPTANCE TEST and CONSTANCY
TEST for the ACCOMPANYING DOCUMENTS of the CT SCANNER.
This document does not apply to
• aspects of mechanical and electrical safety, and
• aspects of mechanical, electrical and software performance, unless they are essential for
performing the ACCEPTANCE TESTS and CONSTANCY TESTS, and are directly affecting image
quality, RADIATION OUTPUT and PATIENT positioning.
NOTE 1 If a user of this document wishes to apply this document to CT SCANNERS that were designed to comply
with editions of IEC 60601-2-44:2009 and earlier, understanding and adjustment for the different definitions that
have been used for CTDI is critical. Additionally, the ACCOMPANYING DOCUMENTS for CT scanners that were
vol
designed and manufactured to these older editions can be referenced to obtain applicable specifications.
NOTE 2 It is possible the accompanying documents that were compiled in accordance with IEC 60601-2-44:2009
and IEC 60601-2-44:2009/AMD1:2012 or IEC 60601-2-44:2009, IEC 60601-2-44:2009/AMD1:2012 and IEC 60601-
2-44:2009/AMD2:2016 do not include all the needed content and specifications identified in this document prior to
the completion of the transition period to this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60601-1:2005, Medical electrical equipment – Part 1: General requirements for basic
safety and essential performance
IEC 60601-1:2005/AMD1:2012
IEC 60601-2-44:2009, Medical electrical equipment – Part 2-44: Particular requirements for
the basic safety and essential performance of X-ray equipment for computed tomography
IEC 60601-2-44:2009/AMD1:2012
IEC 60601-2-44:2009/AMD2:2016
IEC TR 60788:2004, Medical electrical equipment – Glossary of defined terms
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC TR 60788,
IEC 60601-2-44:2009, IEC 60601-2-44:2009/AMD1:2012 and IEC 60601-2-44:2009/
AMD2:2016 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
NOTE 1 Terms printed in SMALL CAPITALS are used in accordance with their definitions in the documents referred
to in the Index of defined terms at the end of this document.
NOTE 2 Attention is drawn to the fact that in cases where the concept addressed is not strongly confined to the
definition given in one of the publications listed above, a corresponding term is printed in lower case letters.
NOTE 3 Associated conditions qualifying the usage of certain terms are given below.
3.1
ACCEPTANCE TEST
test performed after new equipment has been installed, or MAJOR SERVICE ACTIONS have been
made to existing equipment, in order to verify that the functional performance of equipment
meets ESTABLISHED CRITERIA from the MANUFACTURER, contractual specifications, and/or
requirements of this document
Note 1 to entry: The ESTABLISHED CRITERIA verified are specifications affecting the image quality, RADIATION
OUTPUT and PATIENT positioning. Additionally, during or immediately after the ACCEPTANCE TEST, the BASELINE
VALUES for CONSTANCY TEST are established.
3.2
CONSTANCY TEST
test performed to verify that the functional performance of EQUIPMENT meets ESTABLISHED
CRITERIA and to enable the early recognition of changes in the properties of components of the
EQUIPMENT
Note 1 to entry: The test verifies conformance with specifications affecting the image quality, radiation output and
PATIENT positioning.
3.3
CT CONDITIONS OF OPERATION
selectable parameters governing the operation of a CT SCANNER
– 10 – IEC 61223-3-5:2019 © IEC 2019
Note 1 to entry: Examples of such conditions include NOMINAL TOMOGRAPHIC SECTION THICKNESS, CT PITCH
FACTOR, FILTRATION, peak X-RAY TUBE VOLTAGE and either X-RAY TUBE CURRENT and LOADING TIME or CURRENT TIME
PRODUCT.
Note 2 to entry: Some CT CONDITIONS OF OPERATION may vary during the exposure.
Note 3 to entry: CT CONDITIONS OF OPERATION include parameters that are derived by the system from the user-
selectable parameters.
[SOURCE: IEC 60601-2-44:2009 and IEC 60601-2-44:2009/AMD1:2012, 201.3.202]
3.4
CT DOSE INDEX 100
CTDI
integral of the DOSE PROFILE representative of a single axial scan along a line perpendicular to
the TOMOGRAPHIC PLANE divided by N x T according to the following:
for N × T less than or equal to 40 mm
+50 mm
D (z)
= dz
CTDI100
∫
N × T
−50 mm
for N × T greater than 40 mm (all CT CONDITIONS OF OPERATION except collimation are kept the
same for these measurements)
+50 mm
D (z) CTDI
Ref free air, N×T
= dz×
CTDI
∫
(N×T) CTDI
Ref free air, Ref
−50 mm
where
D(z) is the DOSE PROFILE representative of a single axial scan along a line z
perpendicular to the TOMOGRAPHIC PLANE, where dose is reported as
ABSORBED DOSE in air and is evaluated within a polymethylmethacrylate
(PMMA) dosimetry PHANTOM (see IEC 60601-2-44:2009 and IEC 60601-2-
44:2009/AMD1:2012, 203.108);
(N × T) is a SPECIFIC N × T of 20 mm or the largest N × T available not greater
Ref
than 20 mm;
D (z) is the DOSE PROFILE representative of a single axial scan along a line z
Ref
perpendicular to the TOMOGRAPHIC PLANE, where dose is reported as
ABSORBED DOSE in air and is evaluated within a polymethylmethacrylate
(PMMA) dosimetry PHANTOM (see IEC 60601-2-44:2009 and
IEC 60601-2-44:2009/AMD1:2012, 203.108) for (N × T) ;
Ref
CTDI is the CTDI (IEC 60601-2-44:2009 and
free air, N × T free air
IEC 60601-2-44:2009/AMD1:2012, 201.3.215) for a SPECIFIC value of
N × T;
CTDI is the CTDI (IEC 60601-2-44:2009 and
free air, Ref free air
IEC 60601-2-44:2009/AMD1:2012, 201.3.215) for (N × T) ;
Ref
N is the number of TOMOGRAPHIC SECTIONS produced in a single axial scan
of the X-ray source;
T is the NOMINAL TOMOGRAPHIC SECTION THICKNESS
Note 1 to entry: The dose is reported as ABSORBED DOSE to air, but for practical purposes the evaluation of
ABSORBED DOSE to air within a PMMA dosimetry PHANTOM is well approximated by measurement of the AIR KERMA.
Note 2 to entry: This definition assumes that the DOSE PROFILE is centred on z = 0.
Note 3 to entry: A single axial scan is typically a 360° rotation of the X-ray source.
Note 4 to entry: When the TOMOGRAPHIC SECTIONS overlap, for example in CT SCANNERS with a "z-flying FOCAL
SPOT", the denominator of the integral needs to be replaced by the total nominal width along z of overlapping
TOMOGRAPHIC SECTIONS. For example, if the percentage of overlap is 50 %, then the denominator would be
replaced by 0,5 × N × T.
Note 5 to entry: Typically the z-axis is the axis of rotation.
Note 6 to entry: See Annex CC of IEC 60601-2-44:2009 and IEC 60601-2-44:2009/AMD1:2012 for explanation.
[SOURCE: IEC 60601-2-44:2009 and IEC 60601-2-44:2009/AMD1:2012, 201.3.203, modified
– In the term, "computed tomography" has been replaced by "CT". Note 6 has been deleted,
and Note 7 renumbered Note 6.]
3.5
CT DOSE INDEX MEASURED FREE-IN-AIR
CTDI
free air
integral of the DOSE PROFILE representative of a single axial scan along a line through the
ISOCENTRE and perpendicular to the TOMOGRAPHIC PLANE divided by N × T according to the
following
+L/2
D (z)
= dz
CTDIfree air
∫
N × T
−L/2
where
D(z) is the DOSE PROFILE representative of a single axial scan along a line z through
ISOCENTRE and perpendicular to the TOMOGRAPHIC PLANE, where dose is reported as
ABSORBED DOSE in air and is evaluated free-in-air in the absence of a PHANTOM and
the PATIENT SUPPORT;
N is the number of TOMOGRAPHIC SECTIONS produced in a single axial scan of the X-ray
source;
NOMINAL TOMOGRAPHIC SECTION THICKNESS;
T is the
L is at least (N × T) +40 mm, but not less than 100 mm
Note 1 to entry: This definition assumes that the DOSE PROFILE is centred on z = 0.
Note 2 to entry: When the TOMOGRAPHIC SECTIONS overlap, for example in CT SCANNERS with a "z-flying FOCAL
SPOT", the denominator of the integral needs to be replaced by the total nominal width along z of overlapping
TOMOGRAPHIC SECTIONS. For example, if the percentage of overlap is 50 %, then the denominator would be
replaced by 0,5 × N × T.
Note 3 to entry: Typically, a RADIATION DETECTOR of length L or longer is used. Annex DD of
IEC 60601-2-44:2009, IEC 60601-2-44:2009/AMD1:2016 and IEC 60601-2-44:2009/AMD2:2016 provides an
example for alternate measurements.
[SOURCE: IEC 60601-2-44:2009 and IEC 60601-2-44:2009/AMD1:2012, 201.3.215, modified
– In the term, "computed tomography" has been replaced by "CT".]
3.6
CT NUMBER
ATTENUATION associated with each elemental area
number used to represent the mean X-ray
of the COMPUTED TOMOGRAPHY image
Note 1 to entry: The CT NUMBER is normally expressed in Hounsfield units. MEASURED VALUES of the linear
ATTENUATION coefficients are transformed into CT NUMBERS using the international Hounsfield scale, using the
expression:
µ −µ
material water
CT NUMBER= × 1 000
µ
water
where
μ is the linear ATTENUATION coefficient.
Note 2 to entry: The CT NUMBER scale is defined so that water has a value of 0 and air a value of –1 000 (μ is
air
assumed to be 0).
– 12 – IEC 61223-3-5:2019 © IEC 2019
3.7
CT PITCH FACTOR
in helical scanning the ratio of the PATIENT SUPPORT travel Δd along the z direction per rotation
of the X-ray source divided by the product of the NOMINAL TOMOGRAPHIC SECTION THICKNESS T
and the number of TOMOGRAPHIC SECTIONS N:
∆d
CT pitch factor=
N×T
where
∆d is the PATIENT SUPPORT travel along the z-direction per rotation of the X-RAY SOURCE;
T is the NOMINAL TOMOGRAPHIC SECTION THICKNESS;
N is the number of TOMOGRAPHIC SECTIONS produced in a single axial scan of the X-RAY
SOURCE.
Note 1 to entry: Although the CT PITCH FACTOR is associated with helical scanning, its definition refers to
parameters T and N that are defined only for axial scanning. This definition of CT PITCH FACTOR presumes that
these axial-scanning parameters T and N correspond to the same collimation and active-detector configuration as
that of the helical scanning for which the CT PITCH FACTOR is being evaluated.
Note 2 to entry: When the TOMOGRAPHIC SECTIONS overlap, for example in CT SCANNERS with a "z-flying FOCAL
SPOT", the denominator of the integral needs to be replaced by the total nominal width along z of overlapping
TOMOGRAPHIC SECTIONS. For example, if the percentage of overlap is 50 %, then the denominator would be
replaced by 0,5 × N × T.
Note 3 to entry: CT PITCH FACTOR will be a function of time when Δd is variable during the exposure.
Note 4 to entry: The terms "helical" is used in this document as a synonym for the term "spiral".
[SOURCE: IEC 60601-2-44:2009 and IEC 60601-2-44:2009/AMD1:2012, 201.3.204, modified
– Note 2 has been replaced by a new note.]
3.8
CT SCANNER
X-RAY EQUIPMENT intended to generate cross-sectional images of the body by computer
reconstruction of X-ray transmission data obtained at different angles, which may include
signal analysis and display equipment, PATIENT SUPPORT, support parts and ACCESSORIES
Note 1 to entry: The scope of IEC 60601-2-44:2009 is limited to CT SCANNERS intended to be used for both head
and body imaging, characterized by an ENCLOSURE of the X-ray source(s) and imaging detector(s) in a common
protective cover in the shape of a toroid.
Note 2 to entry: Secondary imaging processing is not included in the scope of IEC 60601-2-44:2009.
[SOURCE: IEC 60601-2-44:2009, 201.3.201]
3.9
DOSE PROFILE
representation of the dose as a function of position along a line
[SOURCE: IEC 60601-2-44:2009, 201.3.205]
3.10
FULL WIDTH AT HALF-MAXIMUM
FWHM
interval parallel to the abscissa between the points on a curve with the value of one-half of the
maximum of the curve
3.11
IMAGE DISPLAY DEVICE
device capable of displaying images from an input signal provided by an imaging system
3.12
LOW CONTRAST RESOLUTION
smallest size that can be individually resolved at a given level of contrast and for a SPECIFIED
shape from a uniform background
3.13
MAJOR SERVICE ACTION
service action that may significantly affect RADIATION OUTPUT, image quality, or PATIENT
positioning, and requires an ACCEPTANCE TEST as described in the ACCOMPANYING DOCUMENTS
3.14
MEAN CT NUMBER
mean value of the CT NUMBERS of all pixels within a certain defined REGION OF INTEREST
3.15
NOISE
variation of CT NUMBERS from a mean value in a defined area in the image of a uniform
substance
Note 1 to entry: The magnitude of NOISE is indicated by the standard deviation of the CT NUMBERS of a uniform
substance in the REGION OF INTEREST.
3.16
NOMINAL TOMOGRAPHIC SECTION THICKNESS
in CT SCANNERS, the TOM
...
