IEC 62056-3-1:2013

Electricity metering data exchange - The DLMS/COSEM suite - Part 3-1: Use of local area networks on twisted pair with carrier signalling

IEC 62056-3-1:2013 describes three profiles for local bus data exchange with stations either energized or not. For non-energized stations, the bus supplies energy for data exchange. Three different profiles are supported:
- base profile;
- profile with DLMS;
- profile with DLMS/COSEM. The three profiles use the same physical layer and they are fully compatible, meaning that devices implementing any of these profiles can be operated on the same bus. The transmission medium is twisted pair using carrier signalling and it is known as the Euridis Bus. This first edition cancels and replaces the first edition of IEC 62056-31, issued in 1999, and constitutes a technical revision. The main technical changes are:
- addition of a profile which makes use of the IEC 62056 DLMS/COSEM Application layer and COSEM object model,
- review of the data link layer which is split into two parts: a pure Data Link layer; a "Support Manager" entity managing the communication media;
- ability to negotiate the communication speed, bringing baud rate up to 9 600 bauds.

Echange des données de comptage de l'électricité - La suite DLMS/COSEM - Partie 3-1: Utilisation des réseaux locaux sur paire torsadée avec signal de porteuse

La CEI 62056-3-1:2013 décrit trois profils pour échange de données par bus en local avec des stations alimentées ou non en énergie. Pour les stations télé-alimentées, le bus fournit l'énergie pour l'échange des données. Trois différents profils sont supportés:
- Profil de base;
- Profil avec DLMS;
- Profil avec DLMS/COSEM. Les trois profils utilisent la même couche physique et ils sont entièrement compatibles, c'est-à-dire que des équipements ayant implémenté l'un de ces profils peuvent opérer sur le même bus. Le moyen de transmission est la paire torsadée par signal de porteuse et connue sous le nom de Bus Euridis. Cette première édition annule et remplace la première édition de la CEI 62056-31, parue en 1999, dont elle constitue une révision technique. Les modifications techniques sont:
- Ajout d'un profil qui permet l'utilisation de la couche Application et la modélisation objet DLMS/COSEM de la CEI 62056,
- Révision de la couche liaison de données qui est maintenant scindée en deux parties: la première est intégralement une couche de liaison de données; la dernière, nommée "Gestion du Support", gère le média de communication;
- Capacité de négocier la vitesse de communication, portant la vitesse maximale jusqu'à 9 600 bauds.

General Information

• Status: Published
• Publication Date: 19-Aug-2013
• ICS: 17.220.20 - Measurement of electrical and magnetic quantities
• ICS: 35.110 - Networking
• ICS: 91.140.50 - Electricity supply systems
• Technical Committee: TC 13 - Electrical energy measurement and control
• Drafting Committee: MT 62056-3-1 - TC 13/MT 62056-3-1
• Current Stage: DELPUB - Deleted Publication
• Start Date: 07-Jul-2021
• Completion Date: 26-Oct-2025

Relations

• Replaces: IEC 62056-31:1999 - Electricity metering - Data exchange for meter reading, tariff and load control - Part 31: Use of local area networks on twisted pair with carrier signalling
• Effective Date: 05-Sep-2023
• Revised: IEC 62056-3-1:2021 - Electricity metering data exchange - The DLMS/COSEM suite - Part 3-1: Use of local area networks on twisted pair with carrier signalling
• Effective Date: 05-Sep-2023

Overview

IEC 62056-3-1:2013 is an international standard published by the International Electrotechnical Commission (IEC) that specifies protocols for electricity metering data exchange using the DLMS/COSEM suite. This part (3-1) focuses specifically on the use of local area networks over twisted pair cables with carrier signalling, commonly known as the Euridis Bus.

This standard defines three profiles for local bus data exchange supporting stations that may or may not be energized by the bus itself. The profiles-base profile, profile with DLMS, and profile with DLMS/COSEM-share a unified physical layer, ensuring full compatibility across devices. Key improvements in this 2013 edition include support for the DLMS/COSEM Application layer and object model, enhanced Data Link layer separation, and communication speed negotiation up to 9600 baud.

Key Topics

• Local Bus Data Exchange Profiles
  IEC 62056-3-1:2013 covers three profiles for communication on local buses that operate on twisted pair cables:

  • Base profile without DLMS
  • Profile with DLMS protocol
  • Profile with DLMS/COSEM, aligned with IEC 62056 standards

• Physical Layer and Transmission Medium
  Communication uses twisted pair wiring coupled with a 50 kHz carrier signalling method. This physical setup supports both energized and non-energized stations, with energy supplied on the bus for non-energized devices.

• Data Link Layer Optimization
  The Data Link layer is split into two functional parts: a pure Data Link layer and a Support Manager entity responsible for media communication management, including bus initialization, discovery, and speed negotiation.

• Communication Speed Negotiation
  Devices can negotiate baud rates dynamically, allowing communication speeds up to 9600 baud, improving data transfer efficiency over the local bus.

• Application Layer Integration
  The profiles support the DLMS/COSEM Application layer and COSEM object model for standardized, interoperable metering data representation and exchange.

• Error Handling and System Management
  The standard includes detailed mechanisms for error detection, handling, and recovery across all layers to ensure robust communication.

Applications

IEC 62056-3-1:2013 is critical for utilities and metering system manufacturers involved in smart metering infrastructure, specifically:

• Smart Metering Networks
  Enables reliable data exchange between electricity meters and data concentrators or other primary stations in local area networks using existing twisted pair infrastructure.

• Energy Supply to Non-Energized Devices
  The specification allows the bus itself to power non-energized metering devices, reducing wiring complexity and installation costs.

• Interoperable Metering Systems
  By supporting DLMS/COSEM protocols, it facilitates the integration of devices from multiple manufacturers, enhancing system flexibility and future-proofing.

• Remote Meter Reading and Control
  Supports remote reading, programming, and transfer operations essential for automated meter data acquisition and management in advanced metering infrastructure (AMI).

• Legacy and New Installations
  Given its compatibility between base and DLMS-based profiles, the standard assists in transitioning older systems to modern metering solutions without full infrastructure overhaul.

Related Standards

• IEC 62056 Series
  The parent DLMS/COSEM suite of standards for electricity metering data exchange provides a comprehensive framework across different communication media and layers.

• IEC 62056-3-3
  Defines the use of local area networks with power line carrier (PLC) signalling complementing the twisted pair approach.

• IEC 62056-7-3
  Covers object identification and modeling which dovetails with COSEM profiles detailed in this standard.

• IEC 62056-8-3
  Addresses persistent data exchange mechanisms, which may be layered on top of the physical and data link protocols in IEC 62056-3-1.

Conclusion

IEC 62056-3-1:2013 plays a vital role in standardizing metering data communication over twisted pair local area networks using carrier signalling. Its backward compatibility and support for the DLMS/COSEM protocol suite enable utilities and device manufacturers to ensure interoperable, reliable, and efficient smart metering communications. By implementing this standard, organizations can optimize network performance, enhance remote meter management, and streamline deployment of intelligent electricity metering systems worldwide.

Keywords: IEC 62056-3-1, DLMS/COSEM, electricity metering data exchange, twisted pair communication, Euridis Bus, local area networks, carrier signalling, smart metering protocols, data link layer, communication speed negotiation

Standards Content (Sample)

IEC 62056-3-1 ®
Edition 1.0 2013-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electricity metering data exchange – The DLMS/COSEM suite –
Part 3-1: Use of local area networks on twisted pair with carrier signalling

Échange des données de comptage de l'électricité – La suite DLMS/COSEM –
Partie 3-1: Utilisation des réseaux locaux sur paire torsadée avec signal de
porteuse
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: [e-mail].

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: [e-mail].
IEC 62056-3-1 ®
Edition 1.0 2013-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electricity metering data exchange – The DLMS/COSEM suite –

Part 3-1: Use of local area networks on twisted pair with carrier signalling

Échange des données de comptage de l'électricité – La suite DLMS/COSEM –

Partie 3-1: Utilisation des réseaux locaux sur paire torsadée avec signal de

porteuse
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX XE
ICS 17.220; 35.110; 91.140.50 ISBN 978-2-8322-1046-8

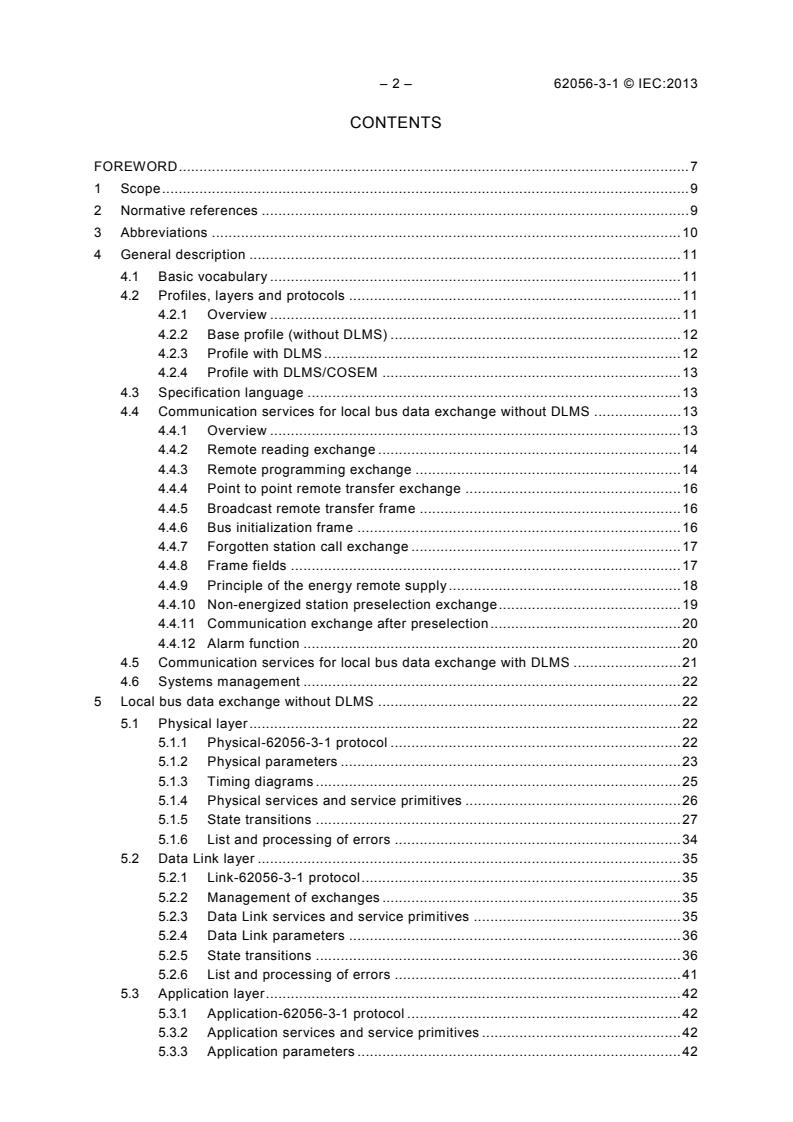

– 2 – 62056-3-1 © IEC:2013
