IEC 61300-2-47:2010

Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 2-47: Tests - Thermal shocks

IEC 61300-2-47:2010 details a procedure for determining the suitability of a fibre optic device to withstand the effects of thermal shock. In practice this means a very short change over time between extreme temperatures. The significant changes include the review of the test severity. The contents of the corrigendum of April 2011 have been included in this copy.

Dispositifs d'interconnexion et composants passifs à fibres optiques - Méthodes fondamentales d'essais et de mesures - Partie 2-47: Essais - Chocs thermiques

La CEI 61300-2-47:2010 détaille une méthode pour déterminer l'aptitude d'un dispositif à fibres optiques à résister aux effets des chocs thermiques. En pratique, cela correspond à un temps de passage très court entre des températures extrêmes. Parmi les modifications significatives, la sévérité d'essai a été revue. Le contenu du corrigendum d'avril 2011 a été pris en considération dans cet exemplaire.

General Information

• Status: Published
• Publication Date: 10-Oct-2010
• ICS: 33.180.20 - Fibre optic interconnecting devices
• Technical Committee: SC 86B - Fibre optic interconnecting devices and passive components
• Drafting Committee: WG 4 - TC 86/SC 86B/WG 4
• Current Stage: DELPUB - Deleted Publication
• Start Date: 19-May-2016
• Completion Date: 26-Oct-2025

Relations

• Corrected By: IEC 61300-2-47:2010/COR1:2011 - Corrigendum 1 - Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 2-47: Tests - Thermal shocks
• Effective Date: 05-Sep-2023
• Revises: IEC 61300-2-47:2006 - Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 2-47: Tests - Thermal shocks
• Effective Date: 05-Sep-2023
• Revised: IEC 61300-2-47:2016 - Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 2-47: Tests - Thermal shocks
• Effective Date: 05-Sep-2023

Overview

IEC 61300-2-47:2010 is an international standard published by the International Electrotechnical Commission (IEC) that specifies the basic test and measurement procedure for assessing the resistance of fibre optic interconnecting devices and passive components to thermal shocks. Thermal shocks refer to rapid transitions between extreme temperatures, designed to simulate real-life conditions where these devices may experience sudden and severe temperature changes. The purpose of this standard is to ensure that fibre optic devices maintain performance and structural integrity under such conditions, enhancing reliability and durability.

This third edition consolidates previous amendments, including the corrigendum of April 2011, and updates the test severity to align with modern applications. It serves as a critical guideline for manufacturers, testing laboratories, and quality assurance professionals involved in fibre optic component reliability testing.

Key Topics

• Scope and Application: The standard defines testing procedures to assess the suitability of fibre optic devices for withstanding rapid temperature fluctuations. It emphasizes short changeover times between extreme high and low temperatures.

• Testing Procedures:

  • Devices Under Test (DUT) experience alternating exposure to hot and cold chambers.
  • Two test methods: manual transfer (up to 3 minutes changeover) and automatic transfer (less than 30 seconds changeover).
  • Temperature cycles include stabilizing periods and exposure times at specified temperature extremes.

• Apparatus and Setup:

  • Climate chambers capable of maintaining controlled temperature and humidity with air velocity of at least 2 m/s near specimens.
  • Supports with low thermal conductivity to minimize heat transfer during testing.
  • Proper cable arrangement to ensure optical transmission is unaffected by physical movement during transfer.

• Measurements and Monitoring:

  • Initial and final optical and mechanical inspections are mandatory.
  • Optical measurements during extreme temperature exposure at intervals no greater than 10 minutes.
  • Preconditioning of DUTs under standard atmospheric conditions for at least 2 hours before testing.

• Test Severity and Recovery:

  • Criteria address temperature ranges, exposure durations, and transition times.
  • Recovery includes drying and stabilization period post-test for accurate final measurement.

Applications

IEC 61300-2-47:2010 is primarily used in sectors involving fibre optic communication and networking infrastructure, ensuring that passive components and interconnecting devices can reliably operate under harsh environmental conditions such as:

• Telecommunications: Testing optical connectors, adaptors, and other fibre optic components to meet stringent performance criteria for outdoor and indoor telecom equipment subject to environmental extremes.

• Data Centers and Networking: Ensuring stability and resilience of fibre optic hardware used in data transmission across temperature-varying environments.

• Aerospace and Defense: Validating components for use in avionics and military systems where rapid temperature shifts are common.

• Industrial Automation: Certification of fibre optic components used in manufacturing environments with fluctuating temperature profiles.

• Research and Development: Providing a benchmark procedure for developing new materials and designs with enhanced thermal shock resistance.

Related Standards

• IEC 60068-2-14: Environmental testing – Part 2-14: Tests – Test N: Change of temperature. This standard defines the environmental temperature tests on electronic equipment, which IEC 61300-2-47 references and builds upon for thermal shock testing.

• IEC 61300-3-1: Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 3-1: Examinations and measurements – Visual examination. This standard is often adopted alongside IEC 61300-2-47 for comprehensive assessment of physical and optical integrity before and after testing.

• IEC 61300 Series: A comprehensive suite covering basic test and measurement procedures for fibre optic interconnecting devices and passive components, where -2-47 addresses the thermal shock aspect specifically.

Practical Value

By adhering to IEC 61300-2-47, manufacturers and testing facilities can:

• Ensure Reliability: Validate that fibre optic connectors and passive components withstand rapid thermal transitions without degradation, minimizing failure risks in field deployment.

• Improve Product Quality: Systematic testing and monitoring aligned with international standards boost product credibility and customer confidence.

• Meet Regulatory Compliance: Align with global market requirements to facilitate international trade and certification.

• Optimize Design and Materials: Identify weaknesses in device construction or materials that could be susceptible to thermal stress for targeted improvements.

• Enhance Safety: Reliable component performance reduces hazards related to optical failures in critical communication infrastructure.

---

Keywords: IEC 61300-2-47, fibre optic testing, thermal shock test, fibre optic devices, passive components, optical connector testing, environmental testing, IEC standards, fibre optic reliability, temperature cycling, interconnecting devices

Standards Content (Sample)

IEC 61300-2-47 ®
Edition 3.0 2010-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components –
Basic test and measurement procedures –
Part 2-47: Tests – Thermal shocks

Dispositifs d'interconnexion et composants passifs à fibres optiques –
Méthodes fondamentales d'essais et de mesures –
Partie 2-47: Essais – Chocs thermiques

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 61300-2-47 ®
Edition 3.0 2010-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components –
Basic test and measurement procedures –
Part 2-47: Tests – Thermal shocks

Dispositifs d'interconnexion et composants passifs à fibres optiques –
Méthodes fondamentales d'essais et de mesures –
Partie 2-47: Essais – Chocs thermiques

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
K
CODE PRIX
ICS 33.180.20 ISBN 978-2-88912-213-4
– 2 – 61300-2-47 © IEC:2010

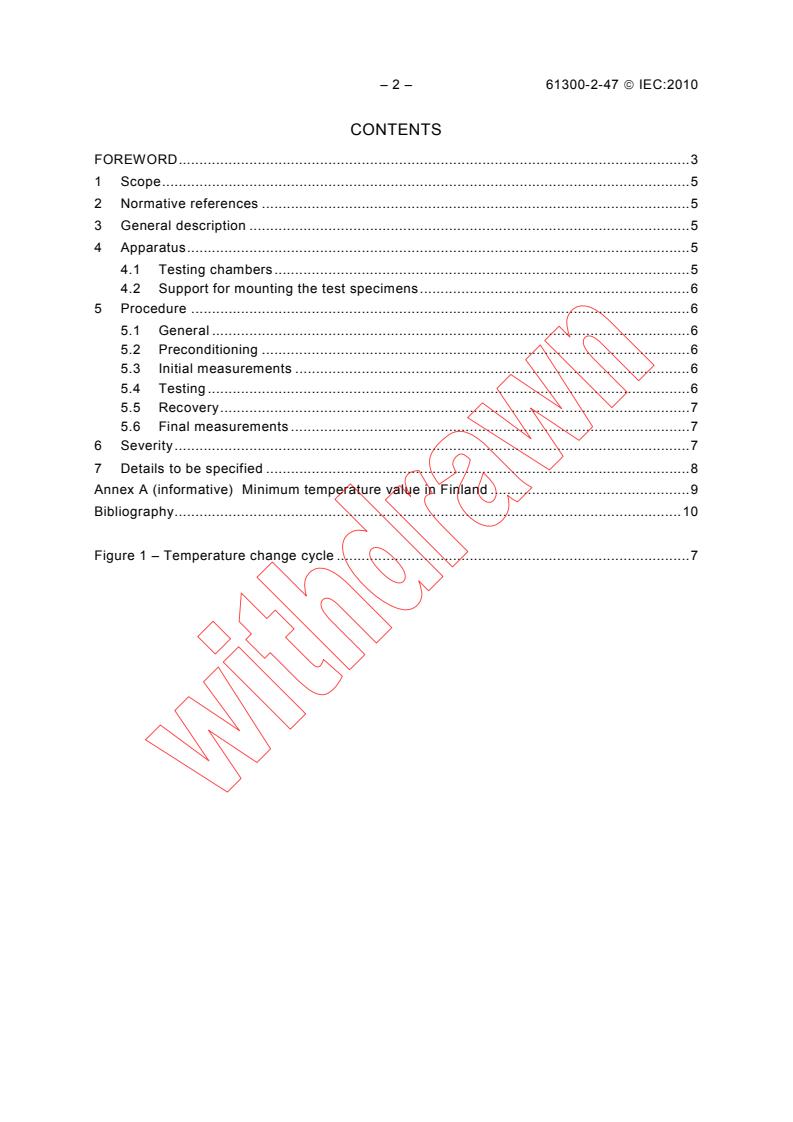

CONTENTS
FOREWORD.3
1 Scope.5
2 Normative references .5
3 General description .5
4 Apparatus.5
4.1 Testing chambers.5
4.2 Support for mounting the test specimens.6
5 Procedure .6
5.1 General .6
5.2 Preconditioning .6
5.3 Initial measurements .6
5.4 Testing .6
5.5 Recovery.7
5.6 Final measurements .7
6 Severity.7
7 Details to be specified .8
Annex A (informative) Minimum temperature value in Finland .9
Bibliography.10

Figure 1 – Temperature change cycle .7

61300-2-47 © IEC:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
BASIC TEST AND MEASUREMENT PROCEDURES –

Part 2-47: Tests – Thermal shocks

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61300-2-47 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components, of IEC technical committee 86: Fibre optics.
This third edition cancels and replaces the second edition published in 2006. It constitutes a
technical revision. The significant changes include the review of the test severity.
The text of this standard is based on the following documents:
FDIS Report on voting
86B/3069/FDIS 86B/3101/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

– 4 – 61300-2-47 © IEC:2010
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The reader’s attention is drawn to the fact that Annex A lists an “in some-country” clause on
differing practices of a less permanent nature relating to the subject of this standard.
A list of all parts of the IEC 61300 series, published under the general title Fibre optic
interconnecting devices and passive components – Basic test and measurement procedures,
can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
The contents of the corrigendum of April 2011 have been included in this copy.

61300-2-47 © IEC:2010 – 5 –
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
BASIC TEST AND MEASUREMENT PROCEDURES –

Part 2-47: Tests – Thermal shocks

1 Scope
This part of IEC 61300 details a procedure for determining the suitability of a fibre optic
device to withstand the effects of thermal shock. In practice this means a very short change
over time between extreme temperatures.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60068-2-14, Environmental testing – Part 2-14: Tests – Test N: Change of temperature
IEC 61300-3-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-1: Examinations and measurements – Visual examination
3 General description
This procedure is conducted in accordance with IEC 60068-2-14, test Na. The device under
test (DUT) is first subjected to one extreme of temperature for a given period of time. It is then
subjected to the other extreme of temperature for an equal period of time.
Two test methods are considered: manual or automatic. Both methods are considered as
equivalent. The reference method is the automatic one.
4 Apparatus
4.1 Testing chambers
a) Two separate chambers or one rapid temperature change rate may be used. If two
chambers are used, one for the low temperature and one for the high temperature, they
are located such as to allow transfer of the DUT from one chamber to the other within the
prescribed time. Either manual and automatic transfer methods may be used.
b) The chambers shall be capable of maintaining the atmosphere at the appropriate
temperature for the test in any region where the DUT is placed.
c) The absolute humidity of the atmosphere inside the chambers should not exceed 20 g/m .
NOTE At the temperature of 60 °C and standard air pressure the relative humidity should be less than 16 %.
d) The temperature of the walls of the hot and cold chambers shall not differ by more than
3 % and 8 % respectively from the specified ambient temperature of the test, expressed in
Kelvin.
e) The volume of the chambers and the air velocity shall be such that after insertion of the
DUT, the temperature of the atmosphere shall be within the specified tolerance after a
time of not more than 10 % of the exposure time.

– 6 – 61300-2-47 © IEC:2010
f) The air of the chamber shall be circulated so that the air velocity, measured close to the
test specimen, shall be not less than 2 m/s.
4.2 Support for mounting the test specimens
Unless otherwise specified in the relevant specifications, the thermal conductivity of the
supports for mounting the specimens shall be low, such that for practical purposes the
specimen is thermally isolated. When testing several specimens simultaneously, they shall be
so placed that free circulation should be provided between specimens, and between
specimens and chamber surfaces.
5 Procedure
5.1 General
Conduct the test according to the following procedure.
Unless otherwise stated in the relevant specification, the following applies.
– If the component construction includes optical leads, include 1,5 m of cable in the climatic
chamber for each port monitored during the test.
– If optical measurements are requested during the test by the relevant specification, these
measurements shall be performed at a maximum interval of 10 min during the extreme
temperature periods.
– It is not the intention of the test to record the effects of mechanical movement of the
optical cables during the movement of the DUT from one environmental chamber to the
other. Therefore the physical arrangement of the cables shall ensure that movement of the
DUT does not affect the optical transmission. To verify this, optical cables similar to those
attached to the DUT shall be positioned alongside the cables attached to the DUT and
monitored throughout the test as a control.
5.2 Preconditioning
Unless otherwise stated in the relevant specification, maintain the DUT under standard
atmospheric conditions for a minimum of 2 h. Clean the mechanical and optical alignment
parts of the DUT according to the manufacturer's instructions.
5.3 Initial measurements
Complete initial examinations and measurements as required by the relevant specification.
5.4 Testing
a) Place the DUT in the chamber in its normal operating position and make connections to
the monitoring equipment.
b) The device shall be subjected to a temperature cycle according to Figure 1.
c) The DUT shall be placed in the cold chamber, the atmosphere of which has been
previously adjusted to the appropriate low temperature T . The atmosphere in the cold
A
chamber shall be maintained at the low temperature T for the appropriate period t (t
A 1 1
includes an initial time for temperature stabilization of atmosphere, according to 4.1e).
d) The DUT shall then be removed from the cold chamber and transferred to the hot chamber
in a changeover time t not more than 3 min. In the case of automatic two-chamber test
equipment, a changeover period shall be of less than 30 s. The transition time shall
include the time of removal from one chamber and the insertion into the second chamber
as well as any dwell time at the ambient temperature of the laboratory.
e) The atmosphere in the hot chamber shall be maintained at the high temperature T for the
B
appropriate period t
1.
61300-2-47 © IEC:2010 – 7 –
f) For the next cycle the DUT shall be transferred to the cold chamber in a transition time t
2.
NOTE The exposure time is measured from the moment of insertion of the specimen into the chamber.
The first cycle includes the two exposure times t and the two changeover times t (see
1 2
Figure 1).
≤ 0,1t
T
B
A B
Time  t
t
t t t 2
1 1
T
A
≤ 0,1t
1 cycle
IEC  2292/10
Key
A = start of first cycle
B = end of first cycle and start of second cycle
NOTE The dotted curve is explained in 4.1e).
Figure 1 – Temperature change cycle
5.5 Recovery
Dry the DUT if necessary and allow it to remain under standard atmospheric conditions for a
period of 2 h.
5.6 Final measurements
On completion of the test, remove all fixtures. Clean the mechanical and optical alignment
parts of the DUT according to the manufacturer’s instructions. Take final measurements as
required by the relevant specification. If specified, visually examine
...
