IEC 62047-44:2024

Semiconductor devices - Micro-electromechanical devices - Part 44: Test methods for dynamic performances of MEMS resonant electric-field-sensitive devices

IEC 62047-44:2024 describes terminology, definitions and test methods that are used to evaluate and determine the dynamic performance of MEMS (Micro-Electromechanical Systems) resonant electric‑field‑sensitive devices. It also specifies sample requirements and test equipment for dynamic performances of MEMS resonant electric‑field‑sensitive devices. The statements made in this document are also applicable to MEMS resonant electric‑field‑sensitive devices with various driving mechanisms such as electrostatic, electrothermal, electromagnetic, piezoelectric, etc.

General Information

• Status: Published
• Publication Date: 21-Feb-2024
• ICS: 31.080.99 - Other semiconductor devices
• Technical Committee: SC 47F - Micro-electromechanical systems
• Drafting Committee: WG 3 - TC 47/SC 47F/WG 3
• Current Stage: PPUB - Publication issued
• Start Date: 22-Feb-2024
• Completion Date: 15-Mar-2024

Overview

IEC 62047-44:2024 - "Semiconductor devices – Micro‑electromechanical devices – Part 44" specifies terminology, sample requirements and test methods for dynamic performances of MEMS resonant electric‑field‑sensitive devices. The standard covers how to evaluate dynamic behavior (resonant operation) and defines test equipment and procedures applicable across driving mechanisms such as electrostatic, electrothermal, electromagnetic and piezoelectric actuation. It is part of the IEC 62047 series for MEMS semiconductor devices.

Key topics and technical requirements

• Scope and definitions: Terminology for MEMS electric‑field‑sensitive and MEMS resonant electric‑field‑sensitive devices (see Annex A for work principles).
• Essential ratings: Identification, device composition (driving/detecting/shielding electrodes, supporting substrate), recommended operating conditions and additional information needed for testing.
• Dynamic characteristics to measure:
  • Resonant frequency - methods to determine device resonance.
  • Quality factor (Q) - procedures and circuit diagrams to quantify damping and energy loss.
  • Response time - measurement setups and data‑processing for transient behavior.
• Measuring methods:
  • Optical test method - optical displacement/velocity sensing and test system diagram.
  • Electrical test method - electrical excitation and readout circuits, data processing and precautions.
  • Detailed data processing methods, specified test conditions and sample requirements.
• Test equipment: Specification of standard electric field equipment (parallel metal plate calibration system, shielding cover, continuously adjustable high‑voltage source) to produce a uniform electric field during tests.
• Informative annexes: Examples of typical sensitive structures and drive types (electrostatic combs, thermal, piezoelectric) and recommended test configurations.

Practical applications

IEC 62047-44:2024 is designed to ensure consistent, reproducible evaluation of MEMS resonant electric‑field‑sensitive devices used where precise electric‑field sensing is required. Typical practical uses include:

• Performance qualification of MEMS E‑field sensors during design verification and production testing.
• Comparative testing by component manufacturers and independent test laboratories.
• Development and validation of sensor modules for industrial monitoring, EMC testing, and any application requiring calibrated electric‑field measurements.

Who should use this standard

• MEMS designers and device manufacturers
• Semiconductor test engineers and quality assurance teams
• Calibration and compliance laboratories
• Procurement/specification authors and system integrators working with resonant electric‑field sensors

Related references

• Other parts of the IEC 62047 series for MEMS devices and IEC Electropedia for terminology. (IEC 62047-44 contains no normative references but points to annexes for examples and test setups.)

Keywords: IEC 62047-44:2024, MEMS resonant electric-field-sensitive devices, test methods, resonant frequency, quality factor Q, response time, electrostatic, electrothermal, piezoelectric, parallel plate standard electric field.

Standards Content (Sample)

IEC 62047-44 ®
Edition 1.0 2024-02
INTERNATIONAL
STANDARD
Semiconductor devices – Micro-electromechanical devices –
Part 44: Test methods for dynamic performances of MEMS resonant electric-
field-sensitive devices
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 62047-44 ®
Edition 1.0 2024-02
INTERNATIONAL
STANDARD
Semiconductor devices – Micro-electromechanical devices –

Part 44: Test methods for dynamic performances of MEMS resonant electric-

field-sensitive devices
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.080.99  ISBN 978-2-8322-8274-8

– 2 – IEC 62047-44:2024 © IEC 2024

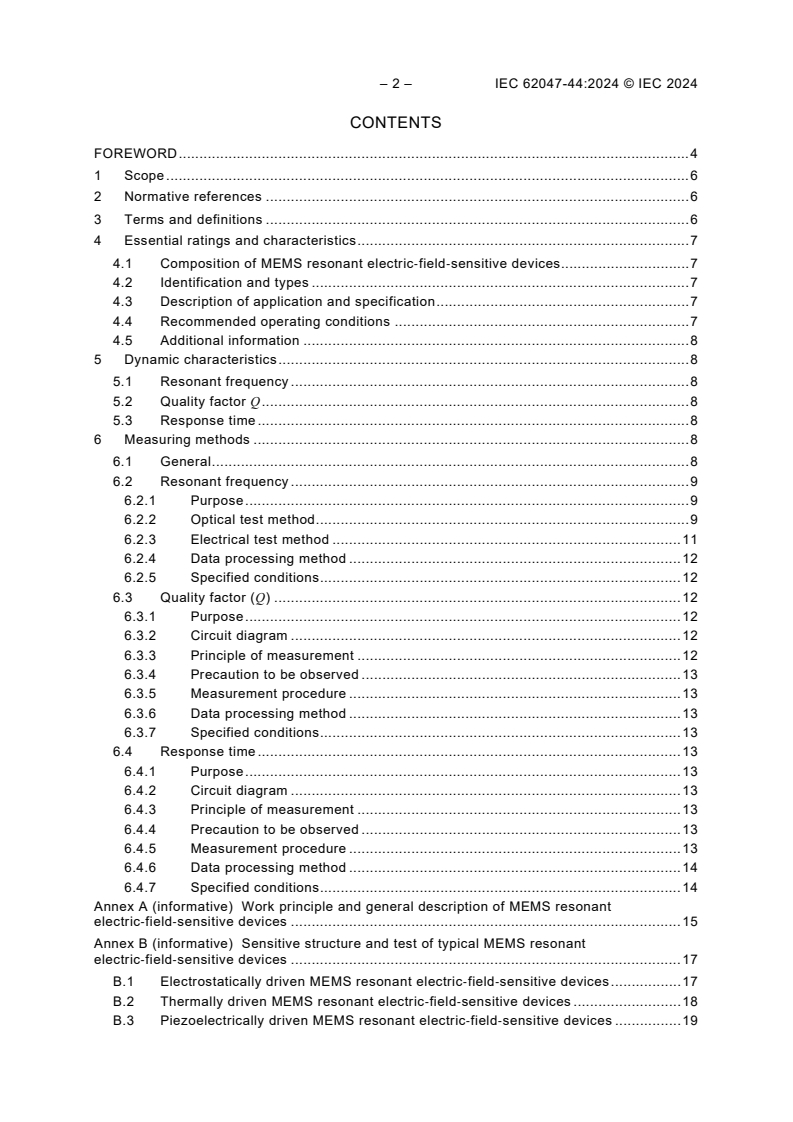

CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Essential ratings and characteristics . 7
4.1 Composition of MEMS resonant electric‑field‑sensitive devices . 7
4.2 Identification and types . 7
4.3 Description of application and specification . 7
4.4 Recommended operating conditions . 7
4.5 Additional information . 8
5 Dynamic characteristics . 8
5.1 Resonant frequency . 8
5.2 Quality factor Q . 8
5.3 Response time . 8
6 Measuring methods . 8
6.1 General . 8
6.2 Resonant frequency . 9
6.2.1 Purpose . 9
6.2.2 Optical test method . 9
6.2.3 Electrical test method . 11
6.2.4 Data processing method . 12
6.2.5 Specified conditions . 12
6.3 Quality factor (Q) . 12
6.3.1 Purpose . 12
6.3.2 Circuit diagram . 12
6.3.3 Principle of measurement . 12
6.3.4 Precaution to be observed . 13
6.3.5 Measurement procedure . 13
6.3.6 Data processing method . 13
6.3.7 Specified conditions . 13
6.4 Response time . 13
6.4.1 Purpose . 13
6.4.2 Circuit diagram . 13
6.4.3 Principle of measurement . 13
6.4.4 Precaution to be observed . 13
6.4.5 Measurement procedure . 13
6.4.6 Data processing method . 14
6.4.7 Specified conditions . 14
Annex A (informative) Work principle and general description of MEMS resonant
electric‑field‑sensitive devices . 15
Annex B (informative) Sensitive structure and test of typical MEMS resonant
electric‑field‑sensitive devices . 17
B.1 Electrostatically driven MEMS resonant electric‑field‑sensitive devices . 17
B.2 Thermally driven MEMS resonant electric‑field‑sensitive devices . 18
B.3 Piezoelectrically driven MEMS resonant electric‑field‑sensitive devices . 19

Figure 1 – Terminals of MEMS resonant electric‑field‑sensitive devices . 7
Figure 2 – Diagram of the MEMS resonant electric‑field‑sensitive device on the parallel
plate system . 9
Figure 3 – Test system diagram of optical test method . 10
Figure 4 – Test system diagram of electrical test method . 11
Figure A.1 – Example for working principle of MEMS resonant electric‑field‑sensitive
device . 16
Figure B.1 – Example for electrostatically driven MEMS resonant
electric‑field‑sensitive device . 17
Figure B.2 – Circuit diagram of electrical test system of electrostatic comb type
electric‑field‑sensitive device . 18
Figure B.3 – Example for thermally driven MEMS resonant electric‑field‑sensitive
devices . 18
Figure B.4 – Example for piezoelectrically driven MEMS resonant
electric‑field‑sensitive devices . 19

– 4 – IEC 62047-44:2024 © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
MICRO-ELECTROMECHANICAL DEVICES –

Part 44: Test methods for dynamic performances of MEMS resonant
electric‑field‑sensitive devices

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 62047-44 has been prepared by subcommittee 47F: Micro-electromechanical systems, of
IEC technical committee 47: Semiconductor devices. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
47F/456/FDIS 47F/463/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 62047 series, published under the general title Semiconductor
devices – Micro-electromechanical devices, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

– 6 – IEC 62047-44:2024 © IEC 2024
SEMICONDUCTOR DEVICES –
MICRO-ELECTROMECHANICAL DEVICES –

Part 44: Test methods for dynamic performances of MEMS resonant
electric‑field‑sensitive devices

1 Scope
This part of IEC 62047 describes terminology, definitions and test methods that are used to
evaluate and determine the dynamic performance of MEMS (Micro-Electromechanical Systems)
resonant electric‑field‑sensitive devices. It also specifies sample requirements and test
equipment for dynamic performances of MEMS resonant electric‑field‑sensitive devices. The
statements made in this document are also applicable to MEMS resonant electric‑field‑sensitive
devices with various driving mechanisms such as electrostatic, electrothermal, electromagnetic,
piezoelectric, etc.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1
MEMS electric‑field‑sensitive device
electric‑field‑sensitive device fabricated by MEMS technology, which can sense the electric field
strength and convert it into electrical signal for output
Note 1 to entry: For a detailed description of the MEMS electric‑field‑sensitive device, see Annex A.
3.2
MEMS resonant electric‑field‑sensitive device
electric‑field‑sensitive device fabricated by MEMS technology, which senses the electric field
strength by driving its sensitive structure to vibrate in the resonant state
Note 1 to entry: For a detailed description of the MEMS resonant electric‑field‑sensitive device, see Annex A.
3.3
standard electric field equipment
standard electric field equipment that is composed of parallel metal plate calibration system,
shielding cover, high voltage source, etc., and can produce uniform electric field environment
Note 1 to entry: The high voltage source with continuous adjustable voltage is connected with the parallel metal
plate calibration system. When the high voltage is loaded on the parallel metal plate calibration system, the uniform
electric field can be maintained between the parallel metal plate calibration system.
Note 2 to entry: The electric‑field‑sensitive devices are placed in the standard electric field for dynamic performance
test.
4 Essential ratings and characteristics
4.1 Composition of MEMS resonant electric‑field‑sensitive devices
MEMS resonant electric‑field‑sensitive device is generally composed of driving electrode,
detecting electrode, shielding electrode, supporting substrate and so on. Some types of field
sensitive devices do not have shielding electrodes, such as piezoelectric MEMS resonant
electric‑field‑sensitive devices. More information on the work principle and the sensitive
structure of typical MEMS resonant electric‑field‑sensitive devices are given in Annex A and
Annex B respectively.
4.2 Identification and types
General description of the function of MEMS resonant electric‑field‑sensitive devices and their
applications shall be stated. The statement shall include the details of manufacturing
technologies about the MEMS resonant electric‑field‑sensitive devices with different operation,
configuration, and actuation mechanism. More information on typical MEMS resonant
electric‑field‑sensitive devices with different drive structures is given in Annex B.
4.3 Description of application and specification
Information on application of the MEMS resonant electric‑field‑sensitive devices shall be given.
Block diagrams of MEMS resonant electric‑field‑sensitive devices and the applied systems
should be also given. All terminals should be identified
...
