Audio, video and related equipment - Methods of measurement for power consumption - Part 7: Computer monitors

IEC 62087-7:2018 specifies the determination of the power consumption of computer monitors including, but is not limited to, those with CRT, LCD, PDP or OLED technologies. Computer monitors that include touch screen functionality are included in the scope of this document. This document is limited to computer monitors that are powered from a main power source other than a battery. Computer monitors that are powered from a battery source are not covered by this document. However mains-powered computer monitors may include any number of auxiliary batteries.
Computer monitors connected by digital inputs such as DisplayPort, HDMI, DVI, or by analogue VGA input, are considered in this document. This document does not apply to network- and wirelessly connected computer monitors.
A computer monitor is a display device that does not include a TV tuner and is intended to be used to display the video signals from a computer. These video signals are produced from software programs that are operating within the computer and can consist of static and moving images. As such, test procedures using static patterns, dynamic video and web-based video are specified.
The test methods specified in this document can be applied to computer monitors of any size, however, this document is not applicable to specialized monitors associated with medical equipment, publishing and other professional, commercial or industrial uses.
The various modes of operation that are relevant for measuring power consumption are also defined.
The measuring conditions in this document represent the normal use of the equipment and can differ from specific conditions, for example as specified in safety standards.

Appareils audio, vidéo et matériel connexe – Méthodes de mesure de la consommation de puissance - Partie 7 : Moniteurs d'ordinateurs

L'IEC 62087-7:2018 spécifie la détermination de la consommation de puissance des moniteurs d'ordinateurs, et notamment de ceux qui utilisent les technologies CRT, LCD, PDP ou OLED. Les moniteurs d'ordinateurs qui disposent d'une fonctionnalité d'écran tactile sont inclus dans le domaine d'application du présent document. Le présent document ne traite que des moniteurs d'ordinateurs alimentés en électricité par une source d'énergie principale autre qu'une batterie. Les moniteurs d'ordinateurs alimentés par batterie ne sont pas couverts par le présent document. Les moniteurs d'ordinateurs alimentés sur secteur peuvent toutefois comprendre un certain nombre de batteries auxiliaires.
Les moniteurs d'ordinateurs connectés par le biais d'entrées numériques de type DisplayPort, HDMI ou DVI, par exemple, ou au moyen d'une entrée VGA analogique, sont traités dans le présent document. Le présent document ne s'applique pas aux moniteurs d'ordinateurs connectés en réseau et sans fil.
Un moniteur d'ordinateur est un dispositif d'affichage qui ne comporte pas de récepteur TV et qui est destiné à être utilisé pour afficher les signaux vidéo à partir d'un ordinateur. Ces signaux vidéo sont produits par des logiciels informatiques exécutés sur l'ordinateur et peuvent être constitués d'images fixes et mobiles. A ce titre, les procédures d'essai qui utilisent des modèles statiques, la vidéo dynamique et la vidéo sur le Web sont spécifiées.
Les méthodes d'essai spécifiées dans le présent document peuvent être appliquées à tous les moniteurs d'ordinateurs, quelle que soit leur taille. En revanche, le présent document ne s'applique pas aux moniteurs spéciaux liés au matériel médical, à l'édition et à d'autres utilisations professionnelles, commerciales ou industrielles.
Les différents modes de fonctionnement adaptés au mesurage de la consommation de puissance sont également définis.
Les conditions de mesure du présent document sont représentatives de l'usage normal du matériel et peuvent différer des conditions particulières, comme celles spécifiées dans les normes de sécurité.

General Information

Status
Published
Publication Date
05-Dec-2018
Current Stage
PPUB - Publication issued
Completion Date
06-Dec-2018
Ref Project

Buy Standard

Standard
IEC 62087-7:2018 - Audio, video and related equipment - Methods of measurement for power consumption - Part 7: Computer monitors
English language
23 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
IEC 62087-7:2018 - Audio, video and related equipment - Methods of measurement for power consumption - Part 7: Computer monitors
English and French language
46 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 62087-7
Edition 1.0 2018-12
INTERNATIONAL
STANDARD
Audio, video, and related equipment – Methods of measurement for power
consumption
Part 7: Computer monitors
IEC 62087-7:2018-12(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62087-7
Edition 1.0 2018-12
INTERNATIONAL
STANDARD
Audio, video, and related equipment – Methods of measurement for power
consumption
Part 7: Computer monitors
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.160.10 ISBN 978-2-8322-6329-7

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC 62087-7:2018 © IEC 2018

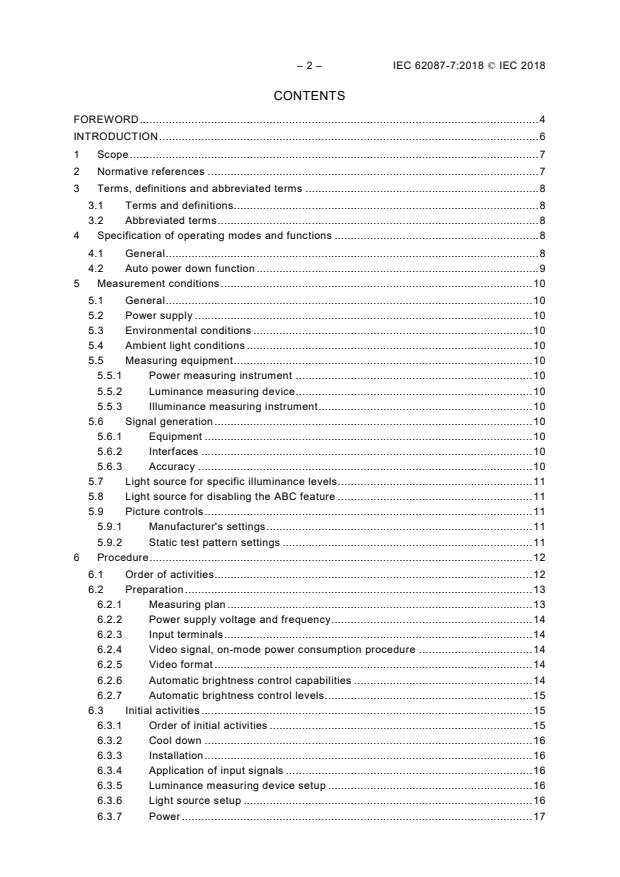

CONTENTS
