IEC 60840:2020/AMD1:2023/COR1:2025
(Amendment)Corrigendum 1 - Amendment 1 - Power cables with extruded insulation and their accessories for rated voltages above 30 kV (Um = 36 kV) up to 150 kV (Um = 170 kV) - Test methods and requirements
Corrigendum 1 - Amendment 1 - Power cables with extruded insulation and their accessories for rated voltages above 30 kV (U<sub>m</sub> = 36 kV) up to 150 kV (U<sub>m</sub> = 170 kV) - Test methods and requirements
General Information
Relations
Standards Content (Sample)
© IEC 2025
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60840
Edition 5.0 2020-05
AMENDMENT 1 –
POWER CABLES WITH EXTRUDED INSULATION AND THEIR ACCESSORIES FOR RATED VOLTAGES ABOVE
30 KV (UM= 36 KV) UP TO 150 KV (UM = 170 KV) – TEST METHODS AND REQUIREMENTS
CO RRI G E NDUM 1

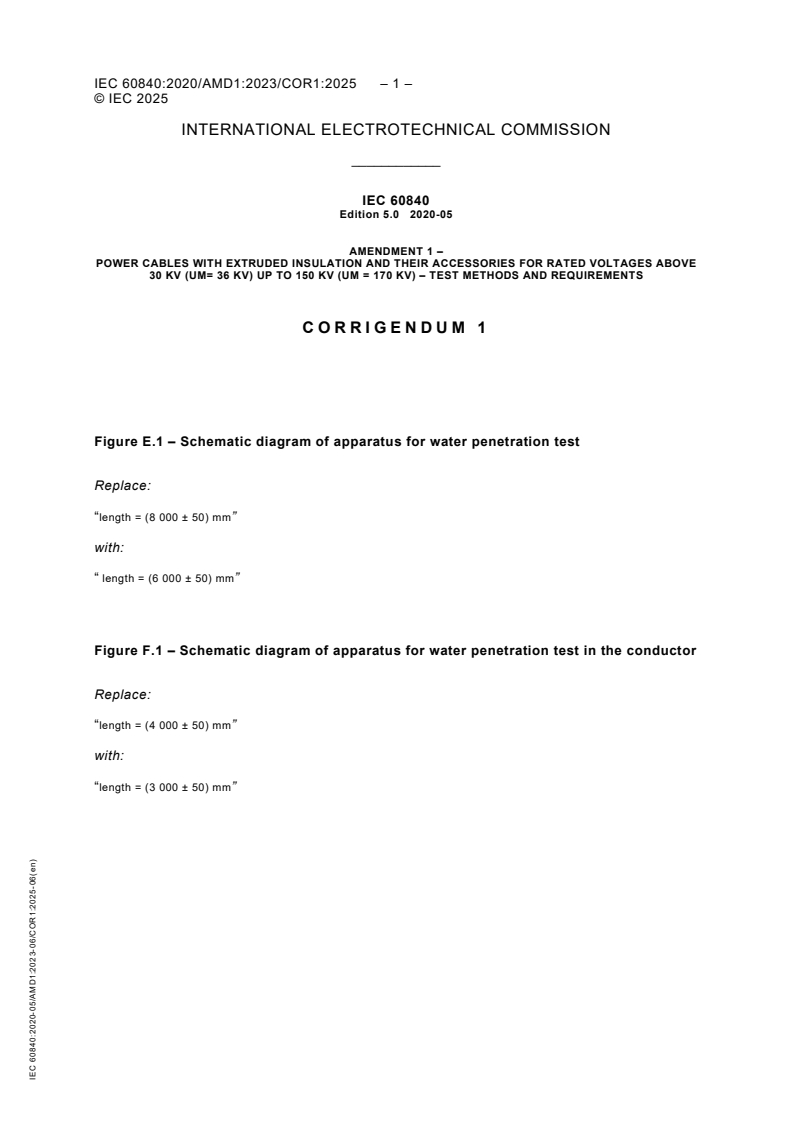

Figure E.1 – Schematic diagram of a
...
