IEC 61347-2-9:2012
(Main)Lamp controlgear - Part 2-9: Particular requirements for electromagnetic controlgear for discharge lamps (excluding fluorescent lamps)
Lamp controlgear - Part 2-9: Particular requirements for electromagnetic controlgear for discharge lamps (excluding fluorescent lamps)
IEC 61347-2-9:2012 series specifies particular safety requirements for electromagnetic controlgear for discharge lamps such as high-pressure mercury vapour, low-pressure sodium vapour, high-pressure sodium vapour and metal halide lamps. The standard covers inductive-type electromagnetic controlgear for use on a.c. supplies up to 1 000 V at 50 Hz or 60 Hz, associated with discharge lamps, having rated wattages, dimensions and characteristics as specified in IEC 60188, IEC 60192 and IEC 60662. This second edition cancels and replaces the first edition published in 2000, Amendment 1:2003 and Amendment 2:2006. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) the addition of a new Clause 14;
b) the word "ballast" is changed to "electromagnetic controlgear".
This publication is to be read in conjunction with IEC 61347-1:2007.
Appareillages de lampes - Partie 2-9: Exigences particulières pour les appareillages électromagnétiques pour lampes à décharge (à l'exclusion des lampes fluorescentes)
La CEI 61347-2-9:2012 donne les exigences particulières de sécurité pour les appareillages électromagnétiques pour lampes à décharge telles que lampes à vapeur de mercure à haute pression, lampes à vapeur de sodium à basse pression, lampes à vapeur de sodium à haute pression et lampes aux halogénures métalliques. La présente norme traite des appareillages électromagnétiques inductifs, pour utilisation en courant alternatif jusqu'à 1 000 V à 50 Hz ou 60 Hz, associés à des lampes à décharge dont les puissances assignées, les dimensions et les caractéristiques sont indiquées dans la CEI 60188, la CEI 60192 et la CEI 60662. Cette deuxième édition annule et remplace la première édition parue en 2000, l'Amendement 1:2003 et l'Amendement 2:2006. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) l'ajout d'un nouvel Article 14;
b) le terme "ballast" est modifié en "appareillage électromagnétique".
Cette publication doit être lue conjointement avec la CEI 61347-1:2007.
General Information
Relations
Standards Content (Sample)

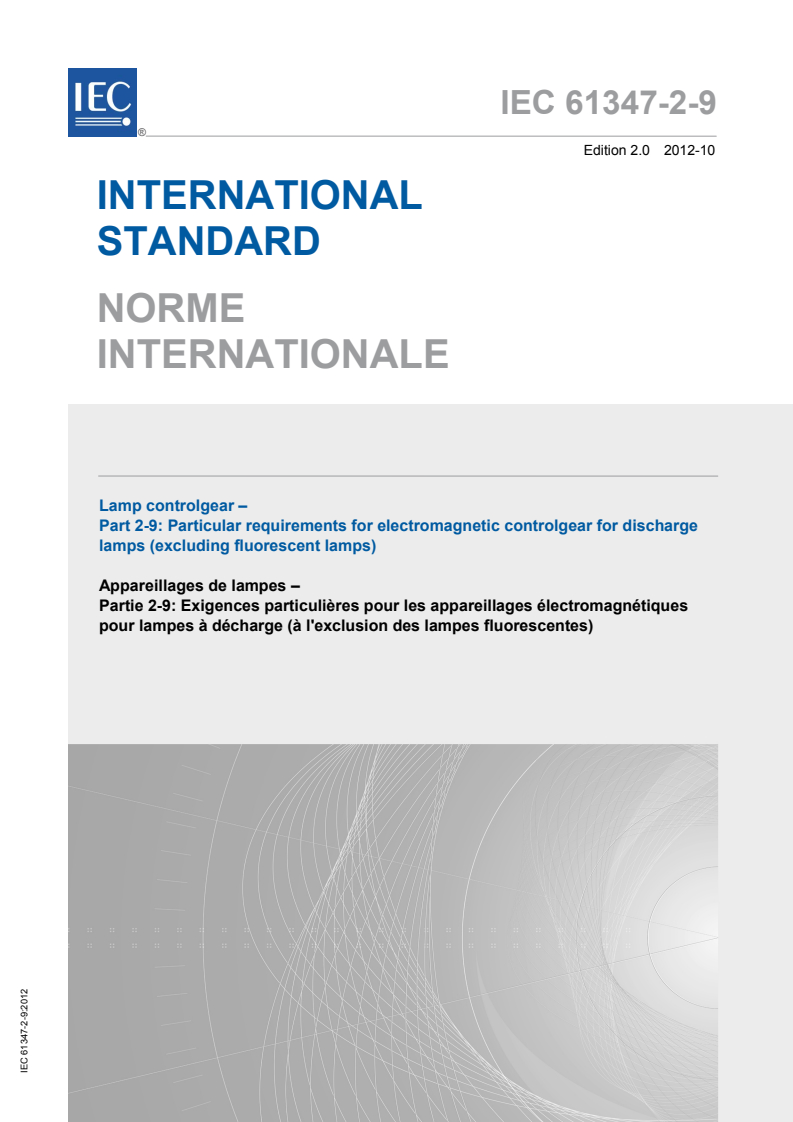

IEC 61347-2-9 ®
Edition 2.0 2012-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Lamp controlgear –
Part 2-9: Particular requirements for electromagnetic controlgear for discharge
lamps (excluding fluorescent lamps)
Appareillages de lampes –
Partie 2-9: Exigences particulières pour les appareillages électromagnétiques
pour lampes à décharge (à l'exclusion des lampes fluorescentes)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.
IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.

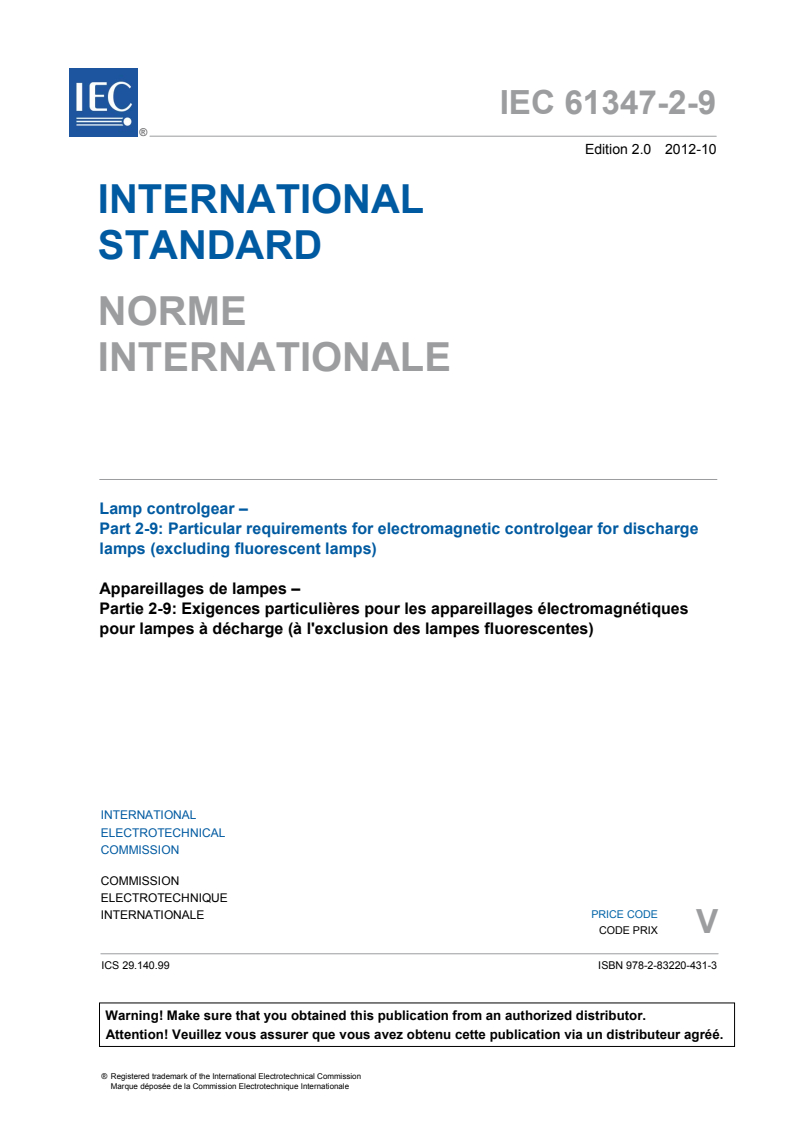

IEC 61347-2-9 ®
Edition 2.0 2012-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Lamp controlgear –
Part 2-9: Particular requirements for electromagnetic controlgear for discharge
lamps (excluding fluorescent lamps)
Appareillages de lampes –
Partie 2-9: Exigences particulières pour les appareillages électromagnétiques
pour lampes à décharge (à l'exclusion des lampes fluorescentes)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX V
ICS 29.140.99 ISBN 978-2-83220-431-3

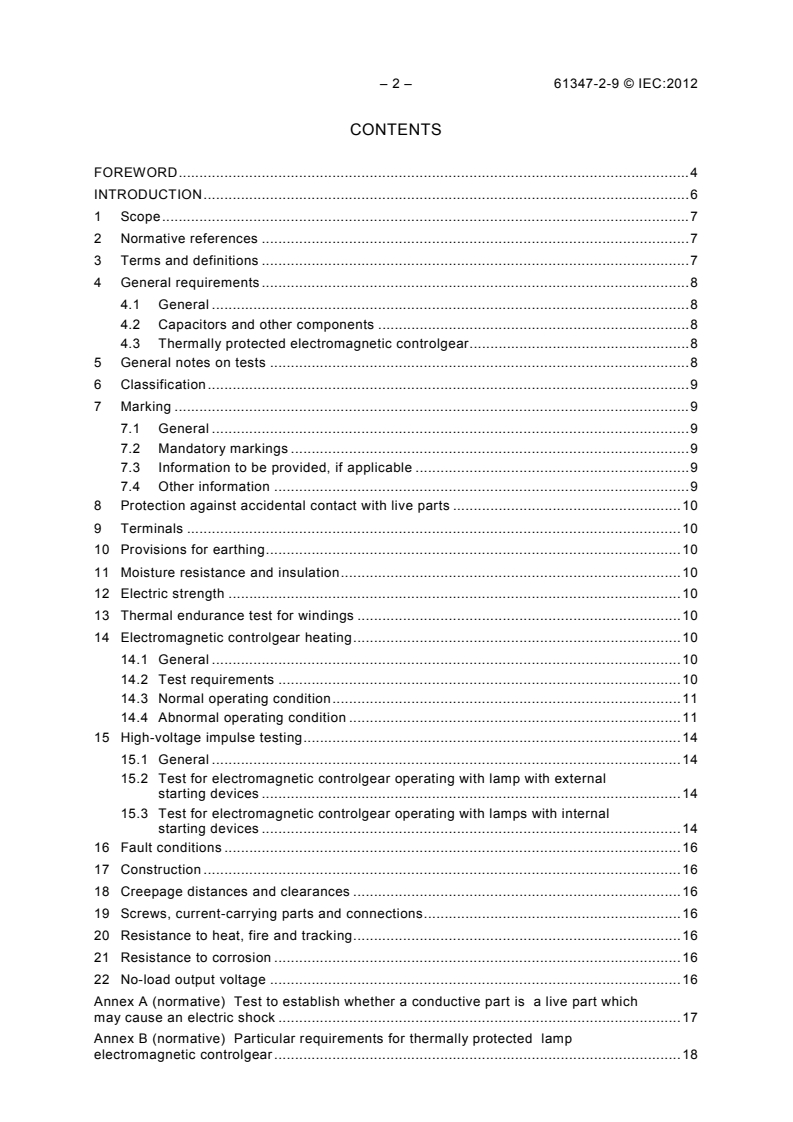

– 2 – 61347-2-9 © IEC:2012
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 General requirements . 8
4.1 General . 8
4.2 Capacitors and other components . 8
4.3 Thermally protected electromagnetic controlgear . 8
5 General notes on tests . 8
6 Classification . 9
7 Marking . 9
7.1 General . 9
7.2 Mandatory markings . 9
7.3 Information to be provided, if applicable . 9
7.4 Other information . 9
8 Protection against accidental contact with live parts . 10
9 Terminals . 10
10 Provisions for earthing . 10
11 Moisture resistance and insulation . 10
12 Electric strength . 10
13 Thermal endurance test for windings . 10
14 Electromagnetic controlgear heating . 10
14.1 General . 10
14.2 Test requirements . 10
14.3 Normal operating condition . 11
14.4 Abnormal operating condition . 11
15 High-voltage impulse testing . 14
15.1 General . 14
15.2 Test for electromagnetic controlgear operating with lamp with external
starting devices . 14
15.3 Test for electromagnetic controlgear operating with lamps with internal
starting devices . 14
16 Fault conditions . 16
17 Construction . 16
18 Creepage distances and clearances . 16
19 Screws, current-carrying parts and connections . 16
20 Resistance to heat, fire and tracking . 16
21 Resistance to corrosion . 16
22 No-load output voltage . 16
Annex A (normative) Test to establish whether a conductive part is a live part which
may cause an electric shock . 17
Annex B (normative) Particular requirements for thermally protected lamp
electromagnetic controlgear . 18
61347-2-9 © IEC:2012 – 3 –
Annex C (normative) Particular requirements for electronic lamp controlgear with
means of protection against overheating . 19
Annex D (normative) Requirements for carrying out the heating tests of thermally
protected lamp electromagnetic controlgear . 20
Annex E (normative) Use of constant S other than 4 500 in t tests . 21
w
Annex F (normative) Draught-proof enclosure . 22
Annex G (normative) Explanation of the derivation of the values of pulse voltages . 23
Annex H (normative) Tests. 24
Annex I (normative) Method for selection of varistors . 25
Annex J (informative) Explanation of electromagnetic controlgear temperatures . 26
Annex K (normative) Additional requirements for built-in electromagnetic controlgear
with double or reinforced insulation . 29
Bibliography . 30
Figure 1 – Test circuit for electromagnetic controlgear for lamps with integral starting
devices . 15
Figure J.1 – Test hood for electromagnetic controlgear heating test . 28
Figure J.2 – Test corner for electromagnetic controlgear heating . 28
Table 1 – Test voltages for electromagnetic controlgear generating pulse voltages . 10
Table 2 – Maximum temperatures . 12
Table 3 – Limiting temperatures of windings under abnormal operating conditions and
at 110 % of rated voltage for electromagnetic controlgear subjected to endurance test
duration of 30 days . 13
Table 4 – Limiting temperatures of windings under abnormal operating conditions and
at 110 % of rated voltage for electromagnetic controlgear marked D6 which are
subjected to an endurance test duration of 60 days . 13
– 4 – 61347-2-9 © IEC:2012
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LAMP CONTROLGEAR –
Part 2-9: Particular requirements for electromagnetic
controlgear for discharge lamps (excluding fluorescent lamps)
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61347-2-9 has been prepared by subcommittee 34C: Auxiliaries
for lamps, of IEC technical committee 34: Lamps and related equipment.
This second edition cancels and replaces the first edition published in 2000,
Amendment 1:2003 and Amendment 2:2006. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the addition of a new Clause 14;
b) the word "ballast" is changed to "electromagnetic controlgear".
61347-2-9 © IEC:2012 – 5 –
The text of this standard is based on the following documents:
FDIS Report on voting
34C/1022/FDIS 34C/1028/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This standard shall be used in conjunction with IEC 61347-1.
This Part 2-9 supplements or modifies the corresponding clauses in IEC 61347-1, so as to
convert that publication into the IEC Standard: Particular requirements for electromagnetic
controlgear for discharge lamps (excluding fluorescent lamps).
Where the requirements of any of the clauses of IEC 61347-1 are referred to in this standard
by the phrase "The requirements of clause n of IEC 61347-1 apply", this phrase is interpreted
as meaning that all requirements of the clause in question of Part 1 apply, except any which
are clearly inapplicable to the specific type of lamp controlgear covered by this particular part
of IEC 61347-2.
NOTE In this standard, the following print types are used:
– Requirements proper: in roman type.
– Test specifications: in italic type.
– Explanatory matter: in smaller roman type.
A list of all parts of the IEC 61347 series, published under the general title Lamp controlgear,
can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – 61347-2-9 © IEC:2012
INTRODUCTION
This second edition of IEC 61347-2-9 is published in conjunction with IEC 61347-1. The
formatting into separately published parts provides for ease of future amendments and
revisions. Additional requirements will be added as and when a need for them is recognized.
This standard, and the parts which make up IEC 61347-2, in referring to any of the clauses of
IEC 61347-1, specify the extent to which such a clause is applicable and the order in which
the tests are to be performed; they also include additional requirements, as necessary. All
parts which make up IEC 61347-2 are self-contained and, therefore, do not include references
to each other.
61347-2-9 © IEC:2012 – 7 –
LAMP CONTROLGEAR –
Part 2-9: Particular requirements for electromagnetic
controlgear for discharge lamps (excluding fluorescent lamps)
1 Scope
This part of the IEC 61347 series specifies particular safety requirements for electromagnetic
controlgear for discharge lamps such as high-pressure mercury vapour, low-pressure sodium
vapour, high-pressure sodium vapour and metal halide lamps. The standard covers inductive-
type electromagnetic controlgear for use on a.c. supplies up to 1 000 V at 50 Hz or 60 Hz,
associated with discharge lamps, having rated wattages, dimensions and characteristics as
specified in IEC 60188, IEC 60192 and IEC 60662.
This standard applies to complete electromagnetic controlgear and to their component parts
such as reactors, transformers and capacitors. Particular requirements for thermally protected
electromagnetic controlgear are given in Annex B.
For certain types of discharge lamps, an ignitor is required.
NOTE Electromagnetic controlgear for fluorescent lamps are covered by IEC 61347-2-8.
Performance requirements are the subject of IEC 60923.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60188, High-pressure mercury vapour lamps – Performance specifications
IEC 60192, Low-pressure sodium vapour lamps – Performance specifications
IEC 60598-1, Luminaires – Part 1: General requirements and tests
IEC 60662, High-pressure sodium vapour lamps – Performance specifications
IEC 61347-1:2007, Lamp controlgear – Part 1: General and safety requirements
Amendment 1:2010
IEC 61347-2-1, Lamp controlgear – Part 2-1: Particular requirements for starting devices
(other than glow starters)
IEC 62035, Discharge lamps (excluding fluorescent lamps) – Safety specifications
3 Terms and definitions
For the purpose of this document, the terms and definitions given in IEC 61347-1:2007,
together with the following apply:
– 8 – 61347-2-9 © IEC:2012
3.1
rated temperature rise of an electromagnetic controlgear winding
∆t
temperature rise assigned by the manufacturer under the conditions specified in this standard
Note 1 to entry: The specifications for the supply and mounting conditions of the electromagnetic controlgear are
given in Annex H.
3.2
high-voltage impulse
intentionally applied periodic transient voltage which rises rapidly to a peak value and then
falls, usually less rapidly, to zero
Note 1 to entry: The term "impulse" is to be distinguished from the term "surge", which refers to transients
occurring in electrical equipment or networks in service.
Note 2 to entry: Such an impulse is, in general, well represented by the sum of two exponentials.
4 General requirements
4.1 General
The requirements of Clause 4 of IEC 61347-1:2007 apply, together with the following
additional requirements:
4.2 Capacitors and other components
Capacitors and other components incorporated in electromagnetic controlgear shall comply
with the requirements of the appropriate IEC standard.
4.3 Thermally protected electromagnetic controlgear
Thermally protected electromagnetic controlgear shall comply with the requirements of
Annex B.
5 General notes on tests
The requirements of Clause 5 of IEC 61347-1:2007 apply, together with the following
additional requirements:
The type test is carried out on one sample consisting of eight electromagnetic controlgear
submitted for the purpose of the type test. Seven electromagnetic controlgear are for the
endurance test and one for all other tests. For conditions of compliance for the endurance
test, see Clause 13.
In addition, six electromagnetic controlgear are required for the high-voltage impulse testing
according to Clause 15 below, for electromagnetic controlgear for metal halide and high-
pressure sodium lamps. There shall be no failure during the test.
The tests are made under the conditions specified in Annex H of IEC 61347-1:2007. In
general, all the tests are carried out on each type of electromagnetic controlgear or, where a
range of similar electromagnetic controlgear is involved, on each rated power in the range, or
on a representative selection from the range as agreed with the manufacturer. A reduction in
the number of samples for the endurance test according to Clause 13 and including the use of
constant S other than 4 500 as shown in Annex E, or even the omission of these tests, is
allowed when electromagnetic controlgear of the same construction but with different
characteristics are submitted together for approval, or when test reports from the
manufacturer or other authority are accepted by the testing station.
61347-2-9 © IEC:2012 – 9 –
6 Classification
The requirements of Clause 6 of IEC 61347-1:2007 apply.
7 Marking
7.1 General
Electromagnetic controlgear which form an integral part of the luminaire need not be marked.
For electromagnetic controlgear intended to be mounted in the base compartment of a
column, all necessary markings according to 7.2 and 7.3 shall be on the electromagnetic
controlgear. The requirements of 7.2 of IEC 61347-1:2007 apply.
7.2 Mandatory markings
Electromagnetic controlgear, other than integral electromagnetic controlgear, shall be clearly
and durably marked with the following mandatory markings:
– items a), b), e), f), g) and r) of 7.1 of IEC 61347-1:2007, together with:
– in the case of electromagnetic controlgear intended to be used with ignitors
(IEC 61347-2-1), the terminals/terminations subjected to the pulse voltage shall be marked
on the electromagnetic controlgear.
This marking may be in the form of a wiring diagram. Simple reactor electromagnetic
controlgear which have several uses, for example, for controlling high-pressure mercury
vapour lamps, certain metal halide lamps, etc., need not be marked in this way.
7.3 Information to be provided, if applicable
In addition to the above mandatory markings, the following information, if applicable, shall be
given either on the electromagnetic controlgear, or be made available in the manufacturer’s
catalogue or similar.
– Items c), h), i), j), k), o), p) and q) of 7.1 of IEC 61347-1:2007, together with:
– for electromagnetic controlgear for use with high-pressure sodium vapour or metal
halide lamps:
1) the maximum peak value of the pulse voltage to which the electromagnetic
controlgear can be subjected if this value exceeds 1 500 V;
2) the catalogue reference of the ignitor(s) which may be used with the
electromagnetic controlgear.
– In the case of an electromagnetic controlgear consisting of more than one separate unit,
the current-controlling inductive element(s) marked with the essential details of the other
unit(s) and/or essential capacitors.
– In the case of an inductive electromagnetic controlgear used with a separate series
capacitor other than a radio interference suppression capacitor, repetition of the marking
of rated voltage, capacitance and tolerance.
– Advice to the installer to prevent overheating of electromagnetic controlgear and
associated components in a multi-electromagnetic controlgear installation mounted in
poles, boxes, etc.
7.4 Other information
Manufacturers may provide the following non-mandatory information, if available:
– the rated temperature rise of the winding following the symbol ∆t, values increasing in
multiples of 5 K.
– 10 – 61347-2-9 © IEC:2012
8 Protection against accidental contact with live parts
The requirements of Clause 10 of IEC 61347-1:2007 apply.
9 Terminals
The requirements of Clause 8 of IEC 61347-1:2007 apply.
10 Provisions for earthing
The requirements of Clause 9 of IEC 61347-1:2007, Amendment 1:2010 apply.
11 Moisture resistance and insulation
The requirements of Clause 11 of IEC 61347-1:2007, Amendment 1:2010 apply.
12 Electric strength
The requirements of Clause 12 of IEC 61347-1:2007 apply.
Additionally for electromagnetic controlgear using ignitors where the pulse voltage is
generated within the electromagnetic controlgear an electric strength test shall be conducted
across insulation barriers subject to the ignition voltage. The test voltages are specified in
Table 1.
Table 1 – Test voltages for electromagnetic
controlgear generating pulse voltages
Pulse voltage ≤ 4 U × 1,414 Pulse voltage > 4 U × 1,414
Double or reinforced insulation 4 U + 2 750 V U /1,414 + 2 750 V
pmax
Basic or supplementary insulation 2 U + 1 000 V
U /2 × 1,414 + 1 000 V
pmax
13 Thermal endurance test for windings
The requirements of Clause 13 of IEC 61347-1:2007 apply.
14 Electromagnetic controlgear heating
14.1 General
Electromagnetic controlgear, or their mounting surfaces, shall not attain a temperature which
would impair safety.
Compliance is checked by the tests of 14.1 to 14.3 and H.12 of IEC 61347-1:2007.
14.2 Test requirements
When the electromagnetic controlgear is tested in accordance with the requirements of 14.2
and 14.3, the temperature shall not exceed the appropriate values given in Table 2 for the test
under normal and abnormal conditions.
61347-2-9 © IEC:2012 – 11 –
Before the test, the following shall be checked and measured:
a) the electromagnetic controlgear shall start and operate the lamp(s) normally;
b) the resistance of each winding shall be measured, if required, at the ambient temperature.
After this heating test, the electromagnetic controlgear shall be allowed to cool to room
temperature and then shall comply with the following conditions:
c) the electromagnetic controlgear marking shall still be legible;
d) the electromagnetic controlgear shall withstand without damage a dielectric strength test
according to Clause 12, the test voltage, however, being reduced to 75 % of the value
given in Table 1 of IEC 61347-1:2007, but not less than 500 V.
14.3 Normal operating condition
For the test under normal conditions, electromagnetic controlgear are operated with
appropriate lamps which are placed in such a way that the heat generated does not contribute
to the heating of the electromagnetic controlgear. Lamps are deemed to be appropriate if they
pass, under the prescribed test conditions, a current within the tolerances of the current a
reference lamp would pass.
The winding temperature t with declared temperature rise ∆t of the winding, the temperature
w
of capacitors and other parts listed in Table 2 if used with the electromagnetic controlgear
shall not exceed the values according to Table 2.
Electromagnetic controlgear windings with temperature rise ∆t are tested under normal
conditions with the following details:
– 100 % of rated voltage and at rated frequency,
– until steady temperature is attained.
Capacitors and parts listed in Table 2 are tested under normal conditions with the following
details:
– 106 % of rated voltage and at rated frequency,
– until steady temperature is attained.
14.4 Abnormal operating condition
The abnormal operating conditions test is only required for electromagnetic controlgear for
some metal halide lamps and some high pressure sodium vapour lamps which, according to
the lamp safety standard IEC 62035, can lead to electromagnetic controlgear overloading.
For electromagnetic controlgear designed in accordance to Annex B of IEC 61347-1:2007,
Amendment 1:2010 the abnormal test is not required.
The abnormal operating tests for electromagnetic controlgear are only required in the built-in
situation in the luminaires and they are a part of the luminaires verifications. The tests for
abnormal circuit conditions are described in IEC 60598-1, Annex C.
Table 3 and Table 4 represent the context between the constants S and the limiting
temperature for different winding temperatures t . Table 3 stands for the endurance test
w
duration of 30 days and Table 4 for the endurance test duration of 60 days.
– 12 – 61347-2-9 © IEC:2012
Table 2 – Maximum temperatures
Maximum temperature
°C
Parts Normal Normal Abnormal
operation at operation at operation at
100 % of rated 106 % of rated 110 % of rated
voltage voltage voltage
Electromagnetic controlgear winding t - -
w
a
- -
with declared temperature rise ∆t ∆t
Electromagnetic controlgear winding - - limiting
temperature t
w
according to
Table 3
b
- -
with declared temperature rise ∆t under abnormal
∆t
ab
conditions
Electromagnetic controlgear case adjacent to
capacitor, if any (incorporated in electromagnetic
controlgear enclosure)
-
- 50
- without temperature declaration
- t -
- with indication of t
c
c
Parts made of
- wood-filled phenolic mouldings - 110 -
- mineral-filled phenolic mouldings - 145 -
- urea mouldings - 90 -
- melamine mouldings - 100 -
- laminated, resin-bonded paper - 110 -
- rubber - 70 -
c
- thermoplastic materials - -
If materials or manufacturing methods are used other than those indicated in the table; they shall not be operated
at temperatures higher than those which are proved to be permissible for those materials.
The temperatures in this table shall not be exceeded when the electromagnetic controlgear is operated at its
maximum declared ambient temperature. The values in the table are based on an ambient temperature of 25 °C.
a
The measurement of the temperature rise of the windings under normal conditions at 100 % of rated voltage,
i.e. verification of a declared value so as to provide information for luminaire design, is non-mandatory and its
measurement is only performed when marked on the electromagnetic controlgear or otherwise claimed in the
catalogue.
b
This measurement is only mandatory for circuits which may produce abnormal conditions. The declared limiting
temperature of the windings under abnormal conditions (if any) is not measured but should correspond to a
number of days at least equal to two-thirds of the theoretical endurance test period so as to provide information
for luminaire design (see Table 3).
c
The temperature of thermoplastic material, other than that used for the insulation of the wiring, which provides
protection against contact with live parts or supporting such parts, is also measured. Values thus obtained
serve to establish the conditions of the test of 18.1 of IEC 61347-1:2007.
61347-2-9 © IEC:2012 – 13 –
Table 3 – Limiting temperatures of windings under abnormal operating
conditions and at 110 % of rated voltage for electromagnetic controlgear
subjected to endurance test duration of 30 days
Constant S Limiting temperature
°C
S4,5 S5 S6 S8 S11 S16
For t = 90 171 161 147 131 119 110
w
95 178 168 154 138 125 115
100 186 176 161 144 131 121
105 194 183 168 150 137 126
110 201 190 175 156 143 132
115 209 198 181 163 149 137
120 217 205 188 169 154 143
125 224 212 195 175 160 149
130 232 220 202 182 166 154
135 240 227 209 188 172 160
140 248 235 216 195 178 166
145 256 242 223 201 184 171
150 264 250 230 207 190 177
Table 4 – Limiting temperatures of windings under abnormal operating conditions
and at 110 % of rated voltage for electromagnetic controlgear marked D6 which are
subjected to an endurance test duration of 60 days
Constant S Limiting temperature
°C
S4,5 S5 S6 S8 S11 S16
For t = 90 158 150 139 125 115 107
w
95 165 157 145 131 121 112
100 172 164 152 137 127 118
105 179 171 158 144 132 123
110 187 178 165 150 138 129
115 194 185 171 156 144 134
120 201 192 178 162 150 140
125 208 199 184 168 155 145
130 216 206 191 174 161 151
135 223 213 198 180 167 156
140 231 220 204 186 173 162
145 238 227 211 193 179 168
150 246 234 218 199 184 173
– 14 – 61347-2-9 © IEC:2012
15 High-voltage impulse testing
15.1 General
Electromagnetic controlgear for metal halide and those for high-pressure sodium vapour
lamps, which are intended for circuits in which high-voltage impulses occur on the
electromagnetic controlgear, shall be subjected to the test of either 15.2 or 15.3 below.
Electromagnetic controlgear designed for operating in a circuit with a starting device external
to the lamp shall be subjected to the test of 15.2.
Electromagnetic controlgear designed for operating lamps with an internal starting device
shall be subjected to the test of 15.3. The manufacturer shall state which test his product has
undergone.
15.2 Test for electromagnetic controlgear operating with lamp with external starting
devices
With a load capacitance of 20 pF, the six electromagnetic controlgear mentioned in Clause 5
are operated with the ignitor and the impulse voltage measured. The ignitor is then removed
and the dielectric strength of components subjected to impulse voltage is then tested as
follows.
The electromagnetic controlgear is operated with another similar ignitor at 1,1 times the rated
voltage, without load capacitance and without a lamp, for a period of 30 days. Should the
ignitor break down before the 30 days have elapsed, it shall be replaced as often as
breakdown occurs until the test duration of 30 days has been completed.
Electromagnetic controlgear which are marked for exclusive use with an ignitor having a time-
delay device (see 7.2), are subjected to the same test, but for a period consisting of
250 on/off cycles, keeping an off period of at least 2 min.
Following this test, the voltage test of Clause 12 is carried out whereby the individual
terminations, with the exception of the earthing conductor, are connected with each other. In
doing so, no sparkover or flashover shall occur. The impulse voltage is then measured again
with the original ignitor and the same load capacitance of 20 pF. Deviation from the original
value shall not be more than 10 %.
15.3 Test for electromagnetic controlgear operating with lamps with internal starting
devices
Using the six samples in 5.1, three samples are subjected to the moisture resistance and
dielectric strength test specified in Clauses 11 and 12, respectively.
The remaining three samples are heated in an oven until they attain the t rating temperature
w
marked on the electromagnetic controlgear.
Immediately following these pre-conditioning tests, all six samples shall withstand the high-
voltage impulse test.
The electromagnetic controlgear under test, together with a variable resistor and a suitable
circuit-breaker with a pull-in time (bounce time excluded) between 3 ms and 15 ms (for
example, a vacuum switch type H16 or VR 312/412), is connected by a d.c. supply in such a
way that, by adjusting the current and operating the circuit-breaker, voltage pulses will be
induced in the electromagnetic controlgear. The current is then adjusted slowly, increasing so
that the peak voltage marked on the electromagnetic controlgear is reached. The
measurement of the voltage pulses is made directly at the electromagnetic controlgear
terminations and in accordance with Figure 1.
61347-2-9 © IEC:2012 – 15 –
If electronic circuit-breakers with a very short pull-in time are used, care should be taken
against producing a highly induced pulse voltage.
The value of the d.c. current at which the starting voltage is reached is noted. The samples
are then operated with this current for 1 h and the current is interrupted during this time, 10
times for 3 s within every minute.
Immediately after the test, all six electromagnetic controlgear shall withstand the moisture
resistance and dielectric strength test specified in Clauses 11 and 12, respectively.
NOTE The use of this test for electromagnetic controlgear other than of the simple reactor type is under
consideration.
C kV 2
D
Va
R
P
A
+
+
R
C S D 25 V
C
D
–
–
IEC 1987/12
Key
1 ammeter for measuring the d.c. current
2 electrostatic voltmeter with a self-capacitance not exceeding 30 pF for measuring the pulse voltage
3 protection circuit for the power supply
4 switching unit for the vacuum switch
Components
C
0,66 µF
C 5 000 pF
C 50 pF
D diode ZD22
D diode IN 4004
D diode (six pieces) BYV96E
P test sample
R adjustable resistor (approximately 100 Ω)
R adjustable resistor R = electromagnetic controlgear × 20
2 2
S vacuum switch
Va varistor (for selection, see Annex D)
Figure 1 – Test circuit for electromagnetic controlgear
for lamps with integral starting devices
– 16 – 61347-2-9 © IEC:2012
16 Fault conditions
The requirements of Clause 14 of IEC 61347-1:2007, Amendment 1:2010 are not applicable.
17 Construction
The requirements of Clause 15 of IEC 61347-1:2007 apply.
18 Creepage distances and clearances
The requirements of Clause 16 of IEC 61347-1:2007 apply, together with the following
additional requirement.
In open-core electromagnetic controlgear, enamel, or similar material, which forms the
insulation for a wire and withstands the voltage test for grade 1 or grade 2 of IEC 60317-0-1
(Clause 13) is judged to contribute 1 mm to the values given in Tables 3 and 4 of
IEC 61347-1:2007 between enamelled wires of different windings or from enamelled wire to
covers, iron cores, etc. However, this applies only in the situation where creepage distances
and clearances are not less than 2 mm in addition to the enamelled layers.
19 Screws, current-carrying parts and connections
The requirements of Clause 17 of IEC 61347-1:2007 apply.
20 Resistance to heat, fire and tracking
The requirements of Clause 18 of IEC 61347-1:2007 apply.
21 Resistance to corrosion
The requirements of Clause 19 of IEC 61347-1:2007 apply.
22 No-load output voltage
The requirements of Clause 20 of IEC 61347-1:2007 apply.
61347-2-9 © IEC:2012 – 17 –
Annex A
(normative)
Test to establish whether a conductive part is
a live part which may cause an electric shock
The requirements of Annex A of IEC 61347-1:2007 apply.
– 18 – 61347-2-9 © IEC:2012
Annex B
(normative)
Particular requirements for thermally protected
lamp electromagnetic controlgear
The requirements of Annex B of IEC 61347-1:2007, Amendment 1:2010 apply, together with
the following additional requirement.
For type test purposes, specially prepared samples shall be supplied by the electromagnetic
controlgear manufacturer.
61347-2-9 © IEC:2012 – 19 –
Annex C
(normative)
Particular requirements for electronic lamp controlgear
with means of protection against overheating
The requirements of Annex C of IEC 61347-1:2007 are not applicable.
– 20 – 61347-2-9 © IEC:2012
Annex D
(normative)
Requirements for carrying out the heating tests
of thermally protected lamp electromagnetic controlgear
The requirements of Annex D of IEC 61347-1:2007 apply.
61347-2-9 © IEC:2012 – 21 –
Annex E
(normative)
Use of constant S other than 4 500 in t tests
w
The requirements of Annex E of IEC 61347-1:2007 apply.
– 22 – 61347-2-9 © IEC:2012
Annex F
(normative)
Draught-proof enclosure
The requirements of Annex F of IEC 61347-1:2007 apply.
61347-2-9 © IEC:2012
...
