IEC 62386-207:2009

Digital addressable lighting interface - Part 207: Particular requirements for control gear - LED modules (device type 6)

IEC 62386-207:2009 specifies a protocol and test procedures for the control by digital signals of electronic control gear for use on a.c. or d.c. supplies, associated with LED modules. This Part 207 is intended to be used in conjunction with IEC 62386-101 and IEC 62386-102, which contain general requirements for the relevant product type (control gear or control devices).

Interface d'éclairage adressable numérique - Partie 207: Exigences particulières pour les appareillages de commande - Modules de DEL (dispositifs de type 6)

La CEI 62386-207:2009 spécifie un protocole et des méthodes d'essai pour la commande par des signaux numériques des appareillages électroniques destinés à être utilisés dans les alimentations alternatives ou continues, associés aux modules de DEL. La présente Partie 207 est destinée à être utilisée conjointement avec la CEI 62386-101 et la CEI 62386-102, qui contiennent les exigences générales pour le type de produit concerné (appareillage ou dispositifs de commande).

General Information

• Status: Published
• Publication Date: 17-Aug-2009
• ICS: 29.140.50 - Lighting installation systems
• ICS: 29.140.99 - Other standards related to lamps
• Technical Committee: SC 34C - Auxiliaries for lamps
• Drafting Committee: WG 11 - TC 34/WG 11
• Current Stage: DELPUB - Deleted Publication
• Start Date: 12-Apr-2018
• Completion Date: 26-Oct-2025

Relations

• Revised: IEC 62386-207:2018 - Digital addressable lighting interface - Part 207: Particular requirements for control gear - LED modules (device type 6)
• Effective Date: 05-Sep-2023

Overview

IEC 62386-207:2009 is an international standard developed by the International Electrotechnical Commission (IEC) focusing on the digital addressable lighting interface (DALI). Specifically, Part 207 addresses the particular requirements for control gear associated with LED modules (device type 6). This standard defines protocols and test procedures for electronic control gear that operate on AC or DC supplies. It is meant to be used alongside IEC 62386-101 and IEC 62386-102, which describe general requirements for control gear and control devices.

This standard is essential for manufacturers, designers, and testers working with LED lighting systems to ensure interoperability, performance, and safety in digital lighting control environments. It promotes consistency in how LED modules are digitally controlled within lighting infrastructure.

Key Topics

• Digital Control Protocol: Defines how control gear for LED modules communicates via digital signals within a DALI system.
• Test Procedures: Specifies type test methodologies to verify compliance with requirements; these tests are primarily for product development and certification, not for production line testing.
• Electrical Specifications: Outlines the conditions for operation on AC and DC supplies and describes characteristics necessary for reliable control and communication.
• Transmission Protocol Structure: Describes the structure and timing of messages exchanged between control devices and LED modules.
• Reference Measurement Process: Details the internal procedures that control gear uses to determine actual LED load, a critical step for dynamic and responsive lighting control.
• Load Change Detection: Provides mechanisms by which the system detects significant decreases in LED load, enabling adaptive control and protection.
• Application Extended Command Set: Includes specific command sequences tailored for enhanced functionality and diagnostics, such as querying features, fault detection (thermal overload, short/open circuit), and power referencing.
• Fast Fade Time and Dimming Curves: Defines parameters for dimming behavior and response timing to achieve smooth, predictable lighting effects.

Applications

IEC 62386-207:2009 serves as a technical foundation for:

• Smart Lighting Systems: Integration of LED modules in intelligent lighting control environments with digital communication capabilities.
• LED Control Gear Design: Assists manufacturers in developing products compliant with international standards ensuring compatibility and interoperability.
• Lighting Automation: Supports implementation of adaptive, programmable LED lighting with accurate feedback and fault monitoring.
• Energy Management: Enables precise control and measurement of LED loads, which facilitates energy-efficient lighting solutions.
• Quality Assurance: Provides test methods that manufacturers and third parties can use to verify functionality and safety of LED control gear before market release.
• Building and Infrastructure Lighting: Useful for commercial and residential building installations requiring digital lighting interfaces for LED modules.

Related Standards

• IEC 62386-101:2009 – Digital addressable lighting interface – Part 101: General requirements – System. This standard covers overall system requirements and applies broadly to all DALI compliant lighting products.
• IEC 62386-102:2009 – Digital addressable lighting interface – Part 102: General requirements – Control Gear. It specifies general requirements for control gear types involved in the DALI ecosystem.
• Other parts of the IEC 62386 series cover device types beyond LED modules, enabling a comprehensive framework for all digital lighting control components.

Practical Value

Adherence to IEC 62386-207 ensures LED modules and their control gear can:

• Interface seamlessly with DALI-based lighting control systems.
• Achieve reliable and safe operation under defined electrical conditions.
• Support advanced diagnostic features such as overcurrent protection, thermal shutdown detection, and user-configurable dimming profiles.
• Enable manufacturers to bring products to market with confidence in international compliance and interoperability.
• Facilitate energy efficiency through accurate measurement and adaptive load control.

For engineers, specifiers, and lighting professionals, IEC 62386-207 represents a vital standard for designing, implementing, and testing LED-based lighting solutions aligned with global best practices and emerging smart lighting technologies.

Standards Content (Sample)

IEC 62386-207 ®
Edition 1.0 2009-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Digital addressable lighting interface –
Part 207: Particular requirements for control gear – LED modules (device type 6)

Interface d’éclairage adressable numérique –
Partie 207: Exigences particulières pour les appareillages de commande –
Modules de DEL (dispositifs de type 6)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by

any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or

IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 62386-207 ®
Edition 1.0 2009-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Digital addressable lighting interface –
Part 207: Particular requirements for control gear – LED modules (device type 6)

Interface d’éclairage adressable numérique –
Partie 207: Exigences particulières pour les appareillages de commande –
Modules de DEL (dispositifs de type 6)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
X
CODE PRIX
ICS 29.140.50; 29.140.99 ISBN 978-2-88910-693-6
– 2 – 62386-207 © IEC:2009

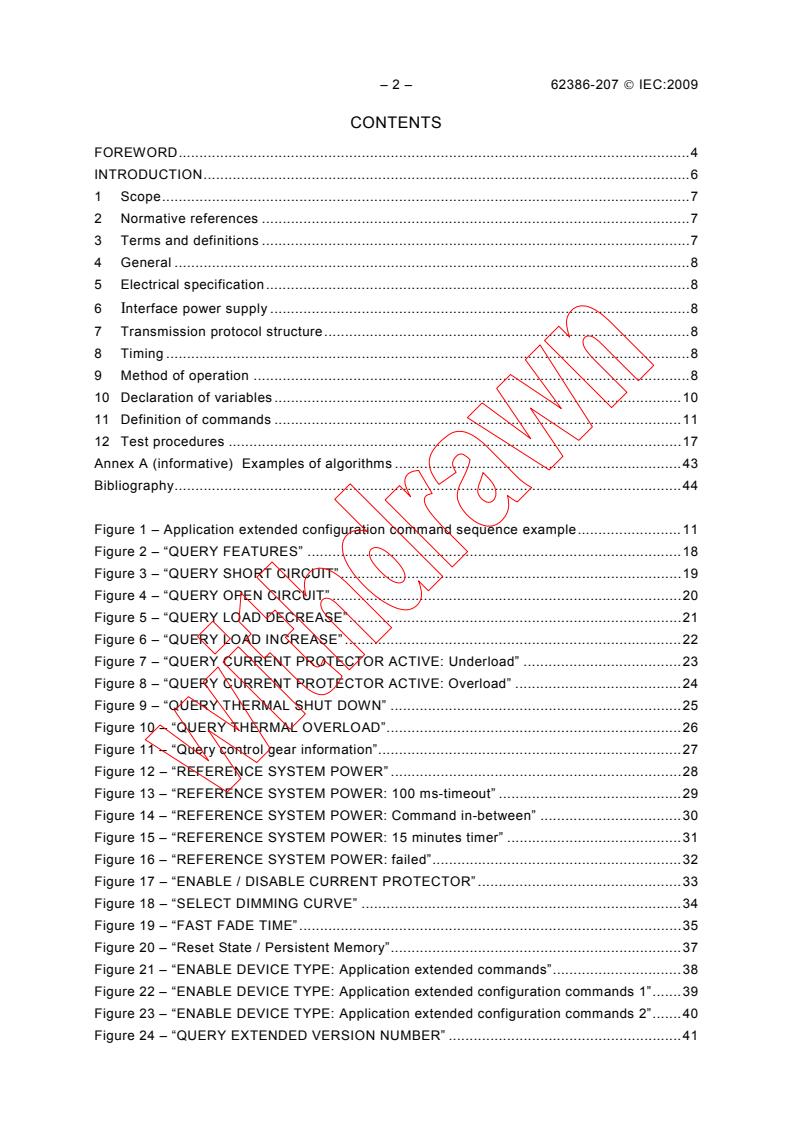

CONTENTS
FOREWORD.4

INTRODUCTION.6

1 Scope.7

2 Normative references .7

3 Terms and definitions .7

4 General .8

5 Electrical specification.8

6 Interface power supply .8
7 Transmission protocol structure.8
8 Timing .8
9 Method of operation .8
10 Declaration of variables .10
11 Definition of commands .11
12 Test procedures .17
Annex A (informative) Examples of algorithms .43
Bibliography.44

Figure 1 – Application extended configuration command sequence example.11
Figure 2 – “QUERY FEATURES” .18
Figure 3 – “QUERY SHORT CIRCUIT”.19
Figure 4 – “QUERY OPEN CIRCUIT” .20
Figure 5 – “QUERY LOAD DECREASE”.21
Figure 6 – “QUERY LOAD INCREASE” .22
Figure 7 – “QUERY CURRENT PROTECTOR ACTIVE: Underload” .23
Figure 8 – “QUERY CURRENT PROTECTOR ACTIVE: Overload” .24
Figure 9 – “QUERY THERMAL SHUT DOWN” .25
Figure 10 – “QUERY THERMAL OVERLOAD”.26
Figure 11 – “Query control gear information”.27
Figure 12 – “REFERENCE SYSTEM POWER” .28

Figure 13 – “REFERENCE SYSTEM POWER: 100 ms-timeout” .29
Figure 14 – “REFERENCE SYSTEM POWER: Command in-between” .30
Figure 15 – “REFERENCE SYSTEM POWER: 15 minutes timer” .31
Figure 16 – “REFERENCE SYSTEM POWER: failed”.32
Figure 17 – “ENABLE / DISABLE CURRENT PROTECTOR” .33
Figure 18 – “SELECT DIMMING CURVE” .34
Figure 19 – “FAST FADE TIME”.35
Figure 20 – “Reset State / Persistent Memory”.37
Figure 21 – “ENABLE DEVICE TYPE: Application extended commands”.38
Figure 22 – “ENABLE DEVICE TYPE: Application extended configuration commands 1”.39
Figure 23 – “ENABLE DEVICE TYPE: Application extended configuration commands 2”.40
Figure 24 – “QUERY EXTENDED VERSION NUMBER” .41

62386-207 © IEC:2009 – 3 –
Figure 25 – “RESERVED APPLICATION EXTENDED COMMANDS”.42

Table 1 – Fast fade time .10

Table 2 – Declaration of variables.10

Table 3 – Summary of the application extended command set .17

Table 4 – Parameters for the test “REFERENCE SYSTEM POWER: Command in-

between”.31

Table 5 – Parameters for test “SELECT DIMMING CURVE” .35

Table 6 – Parameters for test “FAST FADE TIME” .36

Table 7 – Parameters for test “ENABLE DEVICE TYPE: Application extended
commands” .38
Table 8 – Parameters for test “ENABLE DEVICE TYPE: Application extended
configuration commands 1” .40

– 4 – 62386-207 © IEC:2009
INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
DIGITAL ADDRESSABLE LIGHTING INTERFACE –

Part 207: Particular requirements for control gear –

LED modules (device type 6)
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62386-207 has been prepared by subcommittee 34C: Auxiliaries
for lamps, of IEC technical committee 34: Lamps and related equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
34C/888/FDIS 34C/892/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

62386-207 © IEC:2009 – 5 –
This Part 207 is intended to be used in conjunction with IEC 62386-101 and IEC 62386-102,

which contain general requirements for the relevant product type (control gear or control

devices).
A list of all parts of the IEC 62386 series, under the general title Digital addressable lighting

interface, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in

the data related to the specific publication. At this date, the publication will be

• reconfirmed;
• withdrawn;
• replaced by a revised edition; or
• amended.
– 6 – 62386-207 © IEC:2009
INTRODUCTION
This first edition of IEC 62386-207 is published in conjunction with IEC 62386-101 and

IEC 62386-102. The division of IEC 62386 into separately published parts provides for ease

of future amendments and revisions. Additional requirements will be added as and when a

need for them is recognised.
This International Standard, and the other parts that make up the IEC 62386-200 series, in

referring to any of the clauses of IEC 62386-101 or IEC 62386-102, specify the extent to

which such a clause is applicable and the order in which the tests are to be performed. The

parts also include additional requirements, as necessary. All parts that make up

IEC 62386-200 series are self-contained and therefore do not include references to each
other.
Where the requirements of any of the clauses of IEC 62386-101 or IEC 62386-102 are
referred to in this International Standard by the sentence "The requirements of IEC 62386-
1XX, clause ‘n’ apply”, this sentence is to be interpreted as meaning that all requirements of
the clause in question of Part 101 or Part 102 apply, except any which are inapplicable to the
specific type of lamp control gear covered by Part 207.
All numbers used in this International Standard are decimal numbers unless otherwise noted.
Hexadecimal numbers are given in the format 0xVV, where VV is the value. Binary numbers
are given in the format XXXXXXXXb or in the format XXXX XXXX, where X is 0 or 1; 'x' in
binary numbers means 'don't care'.

62386-207 © IEC:2009 – 7 –
DIGITAL ADDRESSABLE LIGHTING INTERFACE –

Part 207: Particular requirements for control gear –

LED modules (device type 6)
1 Scope
This International Standard specifies a protocol and test procedures for the control by digital
signals of electronic control gear for use on a.c. or d.c. supplies, associated with LED
modules.
NOTE Tests in this standard are type tests. Requirements for testing individual control gear during production are
not included.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 62386-101:2009, Digital addressable lighting interface – Part 101: General requirements
– System
IEC 62386-102:2009, Digital addressable lighting interface – Part 102: General requirements
– Control gear
3 Terms and definitions
For the purposes of this document, the terms and definitions given in Clause 3 of
IEC 62386-101:2009 and Clause 3 of IEC 62386-102:2009 shall apply, with the following
additional definitions.
3.1
reference measurement
process during which control gear determines the actual LED load with internal procedures
and measurements
NOTE The details of this process are a matter of detailed design of control gear and are outside the scope of this
standard.
3.2
detection of load decrease
recognition that the actual LED load is significantly below the load measured during a
successful “reference measurement”
NOTE The criteria for regarding a load increase or decrease as significant can only be decided by the
manufacturer and these criteria should be described in the manual.
3.3
detection of load increase
recognition that the actual LED load is significantly above the load measured during a
successful “reference measurement”
NOTE The criteria for regarding a load increase or decrease as significant can only be decided by the
manufacturer and these criteria should be described in the manual.

– 8 – 62386-207 © IEC:2009
3.4
current protector
protective device switching off the output if the actual LED load differs by more than ΔP from

the load detected during the “reference measurement”

NOTE The value ΔP can only be specified by the manufacturer of the control gear and this value should be stated
in the manual.
3.5
thermal overload
scenario where the maximum permissible control gear temperature is exceeded

3.6
thermal shut down
scenario where control gear switches off the LED because of a persistent thermal overload
3.7
light level reduction due to thermal overload
reduction of light level with the objective of decreasing control gear temperature
4 General
The requirements of Clause 4 of IEC 62386-101:2009 and Clause 4 of IEC 62386-102:2009
apply.
5 Electrical specification
The requirements of Clause 5 of IEC 62386-101:2009 and Clause 5 of IEC 62386-102:2009
apply.
6 Interface power supply
The requirements of Clause 6 of IEC 62386-101:2009 and Clause 6 of IEC 62386-102:2009
apply, if a power supply is integrated with the control gear.
7 Transmission protocol structure
The requirements of Clause 7 of IEC 62386-101:2009 and Clause 7 of IEC 62386-102:2009
apply.
8 Timing
The requirements of Clause 8 of IEC 62386-101:2009 and Clause 8 of IEC 62386-102:2009
apply.
9 Method of operation
The requirements of Clause 9 of IEC 62386-101:2009 and Clause 9 of IEC 62386-102:2009
apply, except as follows:
Addition to Clause 9 of IEC 62386-102:2009:

62386-207 © IEC:2009 – 9 –
9.9 Detection of load decrease

If the actual LED load is significantly below the load measured during a successful “reference

measurement”, the gear may switch off the lamp if this is necessary for its safe operation. The

flag bit ‘load decrease’ is to be set.

9.10 Detection of load increase

If the actual LED load is significantly above the load measured during a successful “reference

measurement”, the gear may switch off if this is necessary for its safe operation. The flag bit

‘load increase’ is to be set.
9.11 Current protector
If the actual LED load of the control gear differs by more than a defined amount ΔP from the
load detected during the reference measurement, the current protector becomes active and
switches off the LED.
The current protector shall not become active until there has been a successful reference
measurement.
There are two possible situations in which the current protector becomes active:
– Overload: The actual LED load is higher than the load detected during the reference
measurement by at least ΔP.
– Underload: The actual LED load is lower than the load detected during the reference
measurement by at least ΔP.
The current protector shall become inactive either on mains voltage interruption or on receipt
of a command which causes the arc power level to be 0. If after switching on again, the
situation causing the current protector to become active still remains, the current protector
shall become active again.
The current protector can be enabled and disabled by the commands 225 “ENABLE
CURRENT PROTECTOR” and 226 “DISABLE CURRENT PROTECTOR”.
An active current protector shall become inactive upon reception of command 226 “DISABLE
CURRENT PROTECTOR”.
If the current protector is active, command 224 “REFERENCE SYSTEM POWER” shall be
ignored.
9.12 LED replacement on gear with load increase/decrease or current protector feature
If a LED is replaced with one of a different wattage without a new “REFERENCE SYSTEM
POWER” measurement being performed, the control gear shall detect a load increase or load
decrease as appropriate.
NOTE If a LED is replaced with one of the same wattage, the user should initiate a new ‘REFERENCE SYSTEM
POWER’ measurement only if this is recommended by the manufacturer.
9.13 Fast Fade Time
The Fast Fade Time is used instead of the Fade Time if the Fade Time is equal to 0. The Fast
Fade Time can be set to zero or to any value in the range “Min Fast Fade Time” to 27 as
defined in Table 1.
Programming the Fast Fade Time to 0 means “no fade” (change of light output as quickly as
possible).
– 10 – 62386-207 © IEC:2009
Table 1 – Fast fade time
Fast fade time Fast fade time Fast fade time Fast fade time
N° N° N° N°
ms ms ms ms
0 < 25 7 175 14 350 21 525
1 25 8 200 15 375 22 550
2 50 9 225 16 400 23 575
3 75 10 250 17 425 24 600
4 100 11 275 18 450 25 625
5 125 12 300 19 475 26 650
6 150 13 325 20 500 27 675
The “Min Fast Fade Time” can be queried by command 253 “QUERY MIN FAST FADE TIME”.
10 Declaration of variables
The requirements of Clause 10 of IEC 62386-102:2009 apply, with the following additional
variables for this device type, as indicated in Table 2:
Table 2 – Declaration of variables
b
Variable Default value Reset value Range of validity Memory
(control gear leaves
the factory)
“MIN FAST FADE factory burn-in no change 1 – 27 1 byte ROM
TIME”
“FAST FADE TIME” 0 0 0 1 byte
MIN FAST FADE TIME
– 27
“GEAR TYPE” factory burn-in no change 0 – 255 1 byte ROM
“POSSIBLE factory burn-in no change 0 – 255 1 byte ROM
OPERATING MODES”
“FEATURES” factory burn-in no change 0 – 255 1 byte ROM
C a
“FAILURE STATUS” ???? ???? no change 0 – 255 1 byte RAM
C a
“OPERATING MODE” 0000 ???? no change except 0 – 255 1 byte RAM
bit 4 is reset to 0
“DIMMING CURVE” 0 0 0 – 1 1 byte
“EXTENDED VERSION 1 no change 0 – 255 1 byte ROM
NUMBER”
(See command 255)
"DEVICE TYPE" 6 no change 0 – 254 1 byte ROM
? = undefined
a
Bit 7 of “FAILURE STATUS” and bit 4 of “OPERATING MODE” shall be stored in persistent memory.
b
Persistent memory (storage time indefinite) if not stated otherwise.
c
Power up value, except bit 7 of “FAILURE STATUS” and bits 4-7 of “OPERATING MODE”

62386-207 © IEC:2009 – 11 –
11 Definition of commands
The requirements of Clause 11 of IEC 62386-102:2009 apply, except as follows:

11.3.1 Queries related to status information

Command 146: YAAA AAA1 1001 0010 “QUERY LAMP FAILURE”

Replacement:
Ask if there is a lamp problem at the given address. Answer shall be ‘Yes’ or ‘No’.

“Yes” means either open circuit or short circuit or load increase or load decrease or current
protector active.
“No” does not necessarily imply that no lamps have failed.
Command 153: YAAA AAA1 1001 1001 “QUERY DEVICE TYPE”
Replacement:
The answer shall be 6.
11.3.4 Application extended commands
Replacement:
Application extended commands shall be preceded by command 272
“ENABLE DEVICE TYPE 6”. For device types other than 6 these commands may be used in a
different way. A control gear for LED modules shall not react to application extended
commands preceded by command 272 “ENABLE DEVICE TYPE X” with X ≠ 6.
11.3.4.1 Application extended configuration commands
Every configuration command (224 to 228) shall be received a second time within 100 ms
before it is executed to reduce the probability of incorrect reception. No other commands
addressing the same control gear shall be sent between these two commands, otherwise the
first such command shall be ignored and the respective configuration sequence shall be
aborted.
Command 272 shall be sent before the two instances of the respective configuration

command, but not repeated between them (see Figure 1).
application application
extended extended
command 272
configuration configuration
command command
max. 100 ms
IEC  1665/09
Figure 1 – Application extended configuration command sequence example
All values of DTR shall be checked against the values mentioned in Clause 10, i.e. the value
shall be set to the upper / lower limit if it is above / below the valid range specified in -
Clause 10.
– 12 – 62386-207 © IEC:2009
Command 224: YAAA AAA1 1110 0000 “REFERENCE SYSTEM POWER”

The control gear shall measure and store system power levels to detect load increase or load

decrease. This is an optional feature; it is up to the manufacturer to decide upon the number

of system power levels each type of gear should measure.

The measured power level shall be stored in the persistent memory. Commands received

during the measuring period shall be ignored except query commands and command 256.

After 15 min at most, the control gear shall finish the measurement process and shall go back

to normal operation. The measurement process shall be aborted if command 256

“TERMINATE” is received.
If the current protector is active this command shall be ignored. In this case, bit 7 ‘reference
measurement failed’ in the answer to command 241 “QUERY FAILURE STATUS”, shall be set
and command 249 “QUERY REFERENCE MEASUREMENT FAILED” shall be answered with
“Yes”.
Control gear without this feature shall not react (see command 240).
Command 225: YAAA AAA1 1110 0001 “ENABLE CURRENT PROTECTOR”
Enables the current protector of the control gear. The current protector can become active
after a successful reference measurement started by command 224.
The default configuration of the gear is “current protector enabled”. The status of the current
protector (enabled / disabled) shall be stored in the persistent memory of the control gear.
The current protector is an optional feature. Control gear without this feature shall not react
(see command 240).
Command 226: YAAA AAA1 1110 0010 “DISABLE CURRENT PROTECTOR”
Disables the current protector of the control gear.
The current protector is an optional feature. Control gear without this feature shall not react in
any way. (see command 240).
Command 227: YAAA AAA1 1110 0011 “SELECT DIMMING CURVE”
The dimming curve of the control gear shall be set in accordance with the value of DTR.
DTR = 1 sets the dimming curve to linear. In this case the light output shall be a linear
function of the light level given by any of the arc power control commands in accordance with

the formula
n
X(n) = ⋅100 [%]
DTR = 0 sets the dimming curve to the standard logarithmic output characteristics.
All other values of the DTR are reserved for future needs and shall not change the dimming
curve.
When the dimming curve is changed, the PHYSICAL MINIMUM LEVEL shall also be adjusted
to correspond to the physical minimum light output, which shall not be affected by the choice
of dimming curve.
NOTE 1 There is no requirement for recalculating the programmable arc power levels when changing the dimming
curve.
62386-207 © IEC:2009 – 13 –
NOTE 2 It is recommended that the dimming curve be selected before arc power levels such as scenes, min level,

max level, etc. are programmed.

Command 228: YAAA AAA1 1110 0100 “STORE DTR AS FAST FADE TIME”

If the content of DTR is zero or lies in the range MIN FAST FADE TIME to 27, it shall be

stored as fast fade time. If the content of the DTR is greater than zero but less than MIN

FAST FADE TIME then MIN FAST FADE TIME shall be stored as fast fade time. If the content

of the DTR is greater than 27 then 27 shall be stored as fast fade time.

The control gear uses the fast fade time only if the standard fade time is 0.

Command 229: YAAA AAA1 1110 0101

Reserved for future needs. The control gear shall not react in any way.
Commands 230-231: YAAA AAA1 1110 011X
Reserved for future needs. The control gear shall not react in any way.
Commands 232-235: YAAA AAA1 1110 10XX
Reserved for future needs. The control gear shall not react in any way.
11.3.4.2 Application extended query commands
Commands 236: YAAA AAA1 1110 1100
Reserved for future needs. The control gear shall not react in any way.
Command 237: YAAA AAA1 1110 1101 “QUERY GEAR TYPE”
Answer shall be the following GEAR TYPE byte:
bit 0 LED power supply integrated ‘0’ = No
bit 1 LED module integrated ‘0’ = No
bit 2 a.c. supply possible ‘0’ = No
bit 3 d.c. supply possible ‘0’ = No
bit 4 unused ‘0’ = default value
bit 5 unused ‘0’ = default value
bit 6 unused ‘0’ = default value
bit 7 unused ‘0’ = default value
Command 238: YAAA AAA1 1110 1110 “QUERY DIMMING CURVE”
Answer shall be the dimming curve currently in use:
− 0 means standard logarithmic dimming curve;

− 1 means linear dimming curve.
Command 239: YAAA AAA1 1110 1111 “QUERY POSSIBLE OPERATING
MODES”
Answer shall be the following POSSIBLE OPERATING MODES byte:
bit 0 PWM mode is possible ‘0’ = No
bit 1 AM mode is possible ‘0’ = No
bit 2 output is current controlled ‘0’ = No
bit 3 high current pulse mode ‘0’ = No
bit 4 unused ‘0’ = default value
bit 5 unused ‘0’ = default value
bit 6 unused ‘0’ = default value
bit 7 unused ‘0’ = default value

– 14 – 62386-207 © IEC:2009
Command 240: YAAA AAA1 1111 0000 “QUERY FEATURES”

Answer shall be the following FEATURES byte, giving information about implemented optional

features whose status can be queried from the control gear:

bit 0 short circuit detection can be queried ‘0’ = No

bit 1 open circuit detection can be queried ‘0’ = No

bit 2 detection of load decrease can be queried ‘0’ = No

bit 3 detection of load increase can be queried ‘0’ = No

bit 4 current protector is implemented and can be queried ‘0’ = No

bit 5 thermal shut down can be queried ‘0’ = No

bit 6 light level reduction due to over temperature can be queried ‘0’ = No
bit 7 physical selection supported ‘0’ = No
Bits 2, 3 and 4: If any of these features is available, command 224 “REFERENCE SYSTEM
POWER”, command 249 “QUERY REFERENCE RUNNING” and command 250 “QUERY
REFERENCE MEASUREMENT FAILED” are mandatory.
NOTE The fact that a thermal overload protection is implemented and whose actual status can be queried does
not relieve the user from the obligation to comply with the safety relevant information for installation given by the
manufacturer. A note to this effect should be included in the manual.
Command 241: YAAA AAA1 1111 0001 “QUERY FAILURE STATUS”
Answer shall be the following “FAILURE STATUS” byte:
bit 0 short circuit ‘0’ = No
bit 1 open circuit ‘0’ = No
bit 2 load decrease ‘0’ = No
bit 3 load increase ‘0’ = No
bit 4 current protector active ‘0’ = No
bit 5 thermal shut down ‘0’ = No
bit 6 thermal overload with light level reduction ‘0’ = No
bit 7 reference measurement failed ‘0’ = No
The “FAILURE STATUS” shall be available in the RAM of the control gear and shall be
updated regularly by the control gear in accordance with the actual situation.
Bit 0, short-circuit, means either a severe short circuit or a physical control gear overload
(> 100 % of nominal load).
If any of bits 0 to 4 is set, the answer to command 146 “QUERY LAMP FAILURE” shall be

“Yes” and bit 1 in the answer to command 144 “QUERY STATUS” shall be set.
Bit 7 shall be set if the reference measurement of the system power failed for any reason, or if
there has been no reference measurement at all. It shall be stored in the persistent memory.
If reference measurement is not supported, this bit shall always be “0”.
Command 242: YAAA AAA1 1111 0010 “QUERY SHORT CIRCUIT”
Ask if there is a short circuit detected at the given address. Answer shall be “Yes” or “No”.
If there is a short circuit detected, the answer to command 146 “QUERY LAMP FAILURE”
shall be “Yes” and bit 1 in the answer to command 144 “QUERY STATUS” shall be set.
Control gear without this feature shall not react (see command 240).

62386-207 © IEC:2009 – 15 –
Command 243: YAAA AAA1 1111 0011 “QUERY OPEN CIRCUIT”

Ask if there is an open circuit detected at the given address. Answer shall be “Yes” or “No”.

If there is an open circuit detected, the answer to command 146 “QUERY LAMP FAILURE”
shall be “Yes” and bit 1 in the answer to command 144 “QUERY STATUS” shall be set.

Control gear without this feature shall not react (see command 240).

Command 244: YAAA AAA1 1111 0100 “QUERY LOAD DECREASE”

Ask if there is a significant load decrease (compared to the system reference power) detected
at the given address. Answer shall be “Yes” or “No”.

If there is a significant load decrease, the answer to command 146 “QUERY LAMP FAILURE”
shall be “Yes” and bit 1 in the answer to command 144 “QUERY STATUS” shall be set.
Control gear without this feature shall not react (see command 240).
Command 245: YAAA AAA1 1111 0101 “QUERY LOAD INCREASE”
Ask if there is a significant load increase (compared to the system reference power) detected
at the given address. Answer shall be “Yes” or “No”.
If there is a significant load increase, the answer to command 146 “QUERY LAMP FAILURE”
shall be “Yes” and bit 1 in the answer to command 144 “QUERY STATUS” shall be set.
Control gear without this feature shall not react (see command 240).
Command 246: YAAA AAA1 1111 0110 “QUERY CURRENT PROTECTOR
ACTIVE”
Ask if current protection is active at the given address. Answer shall be “Yes” or “No”.
If current protection is active, the answer to command 146 “QUERY LAMP FAILURE” shall be
“Yes” and bit 1 in the answer to command 144 “QUERY STATUS” shall be set.
Control gear without this feature shall not react (see command 240).
Command 247: YAAA AAA1 1111 0111 “QUERY THERMAL SHUT DOWN”
Ask if there is a thermal shut down detected at the given address. Answer shall be “Yes” or
“No".
Control gear without this feature shall not react (see command 240).

Command 248: YAAA AAA1 1111 1000 “QUERY THERMAL OVERLOAD”
Ask if there is a thermal overload with light level reduction detected at the given address.
Answer shall be “Yes” or “No”.
Control gear without this feature shall not react (see command 240).
Command 249: YAAA AAA1 1111 1001 “QUERY REFERENCE RUNNING”
Ask if there is the REFERENCE SYSTEM POWER measurement running at the given
address. Answer shall be “Yes” or “No”.
Control gear without this feature shall not react (see command 240).

– 16 – 62386-207 © IEC:2009
Command 250: YAAA AAA1 1111 1010 “QUERY REFERENCE MEASUREMENT

FAILED”
Ask if the reference measurement started by command 224 “REFERENCE SYSTEM POWER”

failed. Answer shall be “Yes” or “No”.

Control gear without this feature shall not react (see command 240).

Command 251: YAAA AAA1 1111 1011 “QUERY CURRENT PROTECTOR

ENABLED”
Ask if the current protector is enabled. Answer shall be “Yes” or “No”.

The current protector is an optional feature. Control gear without this feature shall not react in
any way (see command 240).
Command 252: YAAA AAA1 1111 1100 “QUERY OPERATING MODE”
Answer shall be the following OPERATION MODE byte:
bit 0 PWM mode active ‘0’ = No
bit 1 AM mode active ‘0’ = No
bit 2 output is current controlled ‘0’ = No
bit 3 high current pulse mode is active ‘0’ = No
bit 4 non-logarithmic dimming curve active ‘0’ = No
bit 5 unused ‘0’ = default value
bit 6 unused ‘0’ = default value
bit 7 unused ‘0’ = default value
Command 253: YAAA AAA1 1111 1101 “QUERY FAST FADE TIME”
Answer shall be the Fast Fade Time as an 8-bit value.
Command 254: YAAA AAA1 1111 1110 “QUERY MIN FAST FADE TIME”
Answer shall be the Minimum Fast Fade Time as an 8-bit value.
Commands 255: YAAA AAA1 1111 1111 “QUERY EXTENDED VERSION
NUMBER”
Answer shall be 1.
11.4.4 Extended special commands
Amendment:
Command 272: 1100 0001 0000 0110 “ENABLE DEVICE TYPE 6”
The device type for control gears for LED modules is 6.
11.5 Summary of the command set
The commands listed in 11.5 of IEC 62386-102:2009 apply with the following additional
commands for device type 6 listed in Table 3.

62386-207 © IEC:2009 – 17 –
Table 3 – Summary of the application extended command set

Command Number Command Code Command Name

224 YAAA AAA1 1110 0000 REFERENCE SYSTEM POWER

225 YAAA AAA1 1110 0001 ENABLE CURRENT PROTECTOR

226 YAAA AAA1 1110 0010 DISABLE CURRENT PROTECTOR

227 YAAA AAA1 1110 0011 SELECT DIMMING CURVE

228 YAAA AAA1 1110 0100 STORE DTR AS FAST FADE TIME

a
229 YAAA AAA1 1110 0101
a
230 – 231 YAAA AAA1 1110 011X

a
232 – 235 YAAA AAA1 1110 10XX
a
236 YAAA AAA1 1110 1100
237 YAAA AAA1 1110 1101 QUERY GEAR TYPE
238 YAAA AAA1 1110 1110 QUERY DIMMING CURVE
239 YAAA AAA1 1110 1111 QUERY POSSIBLE OPERATING MODES
240 YAAA AAA1 1111 0000 QUERY FEATURES
241 YAAA AAA1 1111 0001 QUERY FAILURE STATUS
242 YAAA AAA1 1111 0010 QUERY SHORT CIRCUIT
243 YAAA AAA1 1111 0011 QUERY OPEN CIRCUIT
244 YAAA AAA1 1111 0100 QUERY LOAD DECREASE
245 YAAA AAA1 1111 0101 QUERY LOAD INCREASE
246 YAAA AAA1 1111 0110 QUERY CURRENT PROTECTOR ACTIVE
247 YAAA AAA1 1111 0111 QUERY THERMAL SHUT DOWN
248 YAAA AAA1 1111 1000 QUERY THERMAL OVERLOAD
249 YAAA AAA1 1111 1001 QUERY REFERENCE RUNNING
250 YAAA AAA1 1111 1010 QUERY REFERENCE MEASUREMENT FAILED
251 YAAA AAA1 1111 1011 QUERY CURRENT PROTECTOR ENABLED
252 YAAA AAA1 1111 1100 QUERY OPERATING MODE
253 YAAA AAA1 1111 1101 QUERY FAST FADE TIME
254 YAAA AAA1 1111 1110 QUERY MIN FAST FADE TIME
255 YAAA AAA1 1111 1111 QUERY EXTENDED VERSION NUMBER
272 1100 0001 0000 0110 ENABLE DEVICE TYPE 6
a
Reserved for future needs. The control gear should not react in any way.

12 Test procedures
The requirements of Clause 12 of IEC 62386-102:2009 apply, except as follows:
12.4 Test sequence “Physical address allocation”
Amendment:
Physical selection is an optional feature of control gears of device type 6. Therefore this test
sequence is not mandatory.
Additional subclause:
– 18 – 62386-207 © IEC:2009
12.7 Test sequences “APPLICATION EXTENDED COMMANDS FOR DEVICE TYPE 6”

The application extended commands defined for device type 6 are tested using the following

test sequences. The sequences also check for possible reaction of the commands on other

device types.
12.7.1 Test sequence “APPLICATION EXTENDED QUERY COMMANDS”

The following test sequences (see Figure 2 to Figure 11) check the application extended

query commands 238 to 250.
12.7.1.1 Test sequence “QUERY FEATURES”

Command 240 “QUERY FEATURES” as well as command 272 “ENABLE DEVICE TYPE 6”
are tested. The test sequence “QUERY FEATURES” is shown in Figure 2.
Test
QUERY FEATURES
SEND TWICE
BROADCAST Reset DUT
RESET
wait
(300 ms + Response time)
SEND TO DEVICE TYPE
Test command using
6 BROADCAST
broadcast address
QUERY FEATURES
Error 7111
"QUERY FEATURES
any reply ? No
not answered for
device type 6"
Yes
Test
done
IEC  1666/09
Figure 2 – “QUERY FEATURES”
12.7.1.2 Test sequence “QUERY SHORT CIRCUIT”
Command 242 “QUERY SHORT CIRCUIT”, bit 0 of the answer of command 241 “QUERY
FAILURE STATUS”, bit 1 and bit 2 of the answer of command 144 “QUERY STATUS” and the
correct function of the commands 146 “QUERY LAMP FAILURE”, 147 “QUERY LAMP
POWER ON” and 160 “QUERY ACTUAL LEVEL” during short circuit conditions are tested.
The test sequence “QUERY SHORT CIRCUIT” is shown in Figure 3.

62386-207 © IEC:2009 – 19 –
Test
QUERY SHORT
CIRCUIT
Error 7123
SEND TWICE
answer "QUERY STATUS
BROADCAST No
Reset DUT
= XXXXX01Xb ? answered wrong with

RESET
short circuit"
Yes
wait
(300 ms + Response time)
SEND
SEND TO DEVICE TYPE
BROADCAST Lamp Failure detected?

6 BROADCAST
QUERY LAMP FAILURE
QUERY FEATURES
Error 7124
"QUERY LAMP
any reply ? No FAILURE not
answer Feature supported
No
answered with
= XXXXXXX1b ? by DUT?
short circuit applied"
Yes
Yes
SEND TO DEVICE TYPE
SEND
6 BROADCAST FAILURE STATUS correct?
Lamp Power has to be
BROADCAST
QUERY FAILURE STATUS
switched off
QUERY LAMP POWER ON
Error 7121
Error 7125
"QUERY FAILURE
answer
"QUERY LAMP
No STATUS answered
= XXXXXXX0b ?
any reply ? Yes POWER ON
wrong without
answered wrong with
short circuit"
short
...
