IEC 61980-1:2020

Electric vehicle wireless power transfer (WPT) systems - Part 1: General requirements

IEC 61980-1:2020 applies to the supply device for charging electric road vehicles using wireless methods at standard supply voltages per IEC 60038 up to 1 000 V AC and up to 1 500 V DC.
Electric road vehicles (EV) covers road vehicles, including plug-in hybrid road vehicles (PHEV) that derive all or part of their energy from on-board rechargeable energy storage systems (RESS).
This document also applies to wireless power transfer (WPT) equipment supplied from on-site storage systems (e.g. buffer batteries).
The aspects covered in this document include
• the characteristics and operating conditions of a supply device,
• the specification for required level of electrical safety of a supply device,
• communication between EV device and vehicle to enable and control WPT,
• efficiency, alignment and other activities to enable WPT, and
• specific EMC requirements for a supply device.
The following aspects are under consideration for future documents:
• requirements for MF-WPT systems supplying power to EVs in motion;
• requirements for bidirectional power transfer.
This document does not apply to:
• safety aspects related to maintenance,
• WPT system for trolley buses, rail vehicles and vehicles designed primarily for use off‑road, and
• any safety or EMC requirements for the vehicle side.
IEC 61980-1:2020 cancels and replaces the first edition published in 2015. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) the contents of IEC 61980-1:2015 have been re-organized so that this document is generally applicable to any WPT technologies;
b) technology specific requirements, mostly for MF-WPT in the main text of IEC 61980-1:2015, have been transferred to IEC 61980-2 and IEC 61980-3;
c) Annex A, Annex B and Annex C have been removed and contents of these annexes have been transferred to the relevant technology specific parts of the IEC 61980 series;
d) duplications and overlaps of the requirements within IEC 61980-1:2015 have been resolved;
e) terms and definitions which are specified in IEC 61851-1:2017 and are applicable for WPT system have been directly described in this document, with modification for some terms. The reference to IEC 61851-1 is withdrawn.

Systèmes de transfert de puissance sans fil (WPT) pour véhicules électriques - Partie 1: Exigences générales

L'IEC 61980-1:2020 s'applique aux dispositifs d'alimentation pour la charge des véhicules électriques routiers au moyen de technologies sans fil, à des tensions d'alimentation normalisées conformément à l'IEC 60038, jusqu'à des tensions alternatives de 1 000 V et des tensions continues de 1 500 V.
Les véhicules électriques (VE) routiers couvrent les véhicules routiers, y compris les véhicules routiers hybrides rechargeables (VEHR), qui tirent tout ou partie de leur énergie de systèmes rechargeables de stockage d'énergie (RESS) embarqués.
Le présent document s'applique également aux matériels de transfert de puissance sans fil (WPT) qui équipent les systèmes de stockage sur site (par exemple, batteries tampons).
Le présent document couvre les aspects suivants:
• les caractéristiques et conditions de fonctionnement d'un dispositif d'alimentation;
• la spécification concernant le niveau exigé de sécurité électrique d'un dispositif d'alimentation;
• la communication entre le dispositif du VE et le véhicule pour permettre et contrôler le WPT;
• le rendement, l'alignement et autres activités pour permettre le WPT; et
• les exigences de CEM spécifiques pour un dispositif d'alimentation.
Les aspects suivants sont à l'étude pour de futurs documents:
• les exigences concernant les systèmes MF-WPT qui alimentent les VE en mouvement;
• les exigences concernant le transfert de puissance bidirectionnel.
Le présent document ne s'applique pas:
• aux aspects de sécurité relatifs à la maintenance;
• aux systèmes WPT pour trolleybus, véhicules ferroviaires et véhicules conçus principalement pour une exploitation non routière;
• aux exigences de sécurité ou de CEM côté véhicule.
L'IEC 61980-1:2020 annule et remplace la première édition parue en 2015. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) le contenu de l'IEC 61980-1:2015 a été réorganisé de sorte que le présent document soit généralement applicable à toutes les technologies WPT;
b) les exigences spécifiques à la technologie, principalement pour le transfert de puissance sans fil par champ magnétique, dans le texte principal de l'IEC 61980-1:2015 ont été transférées dans l'IEC 61980-2 et l'IEC 61980-3;
c) les Annexes A, B et C ont été supprimées et le contenu de ces annexes a été transféré dans les parties spécifiques à la technologie pertinentes de la série IEC 61980;
d) les redondances et les chevauchements des exigences de l'IEC 61980-1:2015 ont été résolus;
e) les termes et définitions qui sont spécifiés dans l'IEC 61851-1:2017 et qui sont applicables au système WPT sont directement décrits dans le présent document, avec des modifications pour certains termes; la référence à l'IEC 61851-1 a été supprimée.

General Information

• Status: Published
• Publication Date: 18-Nov-2020
• ICS: 43.120 - Electric road vehicles
• Technical Committee: TC 69 - Electrical power/energy transfer systems for electrically propelled road vehicles and industrial trucks
• Drafting Committee: WG 7 - TC 69/WG 7
• Current Stage: PPUB - Publication issued
• Start Date: 19-Nov-2020
• Completion Date: 04-Dec-2020

Relations

• Revises: IEC 61980-1:2015 - Electric vehicle wireless power transfer (WPT) systems - Part 1: General requirements
• Effective Date: 05-Sep-2023
• Revises: IEC 61980-1:2015/COR1:2017 - Corrigendum 1 - Electric vehicle wireless power transfer (WPT) systems - Part 1: General requirements
• Effective Date: 05-Sep-2023

Overview

IEC 61980-1:2020 sets the general requirements for electric vehicle wireless power transfer (WPT) systems, specifically focusing on the supply devices used for charging electric road vehicles (EVs) through wireless methods. This standard applies to supply devices operating at up to 1,000 V AC and 1,500 V DC according to IEC 60038. Electric road vehicles covered by this standard include battery electric vehicles and plug-in hybrid electric vehicles (PHEVs) that utilize onboard rechargeable energy storage systems (RESS).

This second edition of IEC 61980-1 replaces the 2015 version and represents a significant technical revision by broadening the scope to be applicable to any WPT technology and reorganizing technology-specific requirements into separate parts of the IEC 61980 series. It also addresses essential aspects such as electrical safety, communication protocols, efficiency, alignment, and electromagnetic compatibility (EMC) of wireless power supplies.

Key Topics

• Scope and Applicability
  Covers supply devices for wireless charging of electric road vehicles, including those powered by onsite energy storage, but excludes off-road vehicles, trolley buses, and rail vehicles. Vehicle-side requirements, as well as safety aspects during maintenance, are outside this document's scope.

• Safety and Protection Requirements
  Includes comprehensive specifications for electrical safety of supply devices, such as protection against electric shock, overcurrent, short circuit withstand, insulation resistance, dielectric strength, and temperature rise limitations to prevent thermal incidents.

• Communication Systems
  Defines communication protocols between the wireless power supply device and the vehicle to enable control, efficiency optimization, and alignment during power transfer, ensuring interoperability and safe operation.

• Efficiency and Alignment
  Specifies performance-related criteria including power transfer efficiency and alignment accuracy between transmitter and receiver components to maximize wireless charging effectiveness.

• Electromagnetic Compatibility (EMC)
  Addresses immunity and emission requirements ensuring WPT systems do not cause or suffer interference within their operating environments. It includes specific limits for magnetic field strengths in targeted frequency ranges.

• Construction and Mechanical Requirements
  Details requirements for device dimensions, mechanical strength, resistance to heat and fire, corrosion resistance, and protective enclosures, ensuring product durability and user safety.

• Marking and Instructions
  Specifies requirements for clear labeling and operating instructions to ensure correct installation and use.

Applications

IEC 61980-1:2020 is essential for manufacturers, designers, and testing laboratories involved in:

• Development and certification of wireless power transfer supply devices for electric vehicles
• Integration of wireless charging infrastructure supporting electric road vehicles and plug-in hybrids
• Ensuring compliance with international safety, performance, and EMC standards in EV wireless charging systems
• Facilitating interoperability and communication standards between charging infrastructure and EVs
• Supporting the expansion of wireless charging technologies in urban, residential, and commercial charging scenarios

This standard guides the creation of reliable, safe, and efficient wireless charging systems that promote the adoption of electric mobility by providing convenient, contactless EV charging solutions.

Related Standards

• IEC 60038 – Standard voltages, providing the foundational voltage ranges applicable to WPT supply devices
• IEC 61851-1 – Electric vehicle conductive charging system – General requirements (referenced and modified for WPT terminology)
• IEC 61980-2 & IEC 61980-3 – Technology-specific standards covering mid-frequency WPT systems and other wireless power transfer technologies
• EMC Standards – Various IEC standards addressing electromagnetic compatibility that supplement the EMC requirements in this standard

These related standards ensure comprehensive safety, interoperability, and performance in the overall ecosystem of electric vehicle charging infrastructure.

---

Keywords: IEC 61980-1:2020, electric vehicle wireless power transfer, EV wireless charging, WPT safety requirements, wireless charging system standard, EV supply device standards, electric vehicle charging interoperability, EMC for wireless power transfer, electric mobility standards, IEC WPT series.

Standards Content (Sample)

IEC 61980-1 ®
Edition 2.0 2020-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric vehicle wireless power transfer (WPT) systems –
Part 1: General requirements
Systèmes de transfert de puissance sans fil (WPT) Pour véhicules électriques –
Partie 1: Exigences générales
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 61980-1 ®
Edition 2.0 2020-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric vehicle wireless power transfer (WPT) systems –

Part 1: General requirements
Systèmes de transfert de puissance sans fil (WPT) Pour véhicules électriques –

Partie 1: Exigences générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 43.120 ISBN 978-2-8322-9022-4

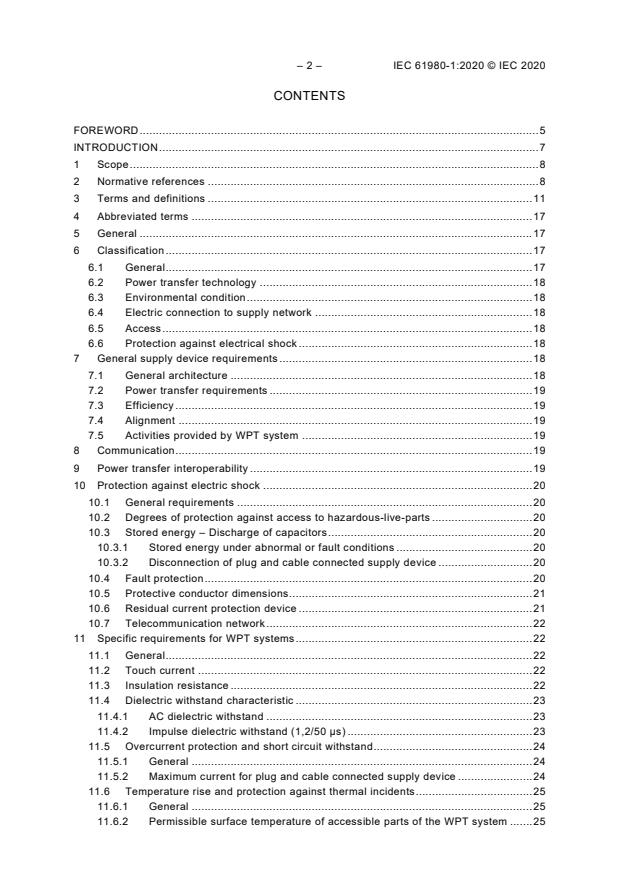

– 2 – IEC 61980-1:2020 © IEC 2020
