IEC 62320-1:2015

Maritime navigation and radiocommunication equipment and systems - Automatic identification system (AIS) - Part 1: AIS Base Stations - Minimum operational and performance requirements, methods of testing and required test results

IEC 62320-1:2015 specifies the minimum operational and performance requirements, methods of testing and required test results for AIS Base Stations, compatible with the performance standards adopted by IMO Resolution MSC.74 (69), Annex 3, Universal AIS. It incorporates the technical characteristics of non-shipborne, fixed station AIS equipment, included in recommendation ITU-R M.1371 and IALA Recommendation A-124. Where applicable, it also takes into account the ITU Radio Regulations. This standard takes into account other associated IEC international standards and existing national standards, as applicable. This standard is applicable for AIS Base Stations. It does not include specifications for the display of AIS data on shore. This second edition cancels and replaces the first edition published in 2007 and its Amendment 1:2008. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- incorporation of the technical characteristics included in Recommendation ITU R M.1371 5;
- the BCE, BCF and CAB sentences replaced with BCG, BCL and RST;
- comment blocks replaced with TAG blocks;
- scheduled broadcast of Message 26 added;
- Message 27 control added;
- transmitter intermodulation attenuation harmonised with ITU;
- 12,5 kHz channel operation removed;
- transmission of Message 24A, Message 25 and Message 26 added;
- 90 % channel load test with VSI and TAG blocks enabled added.

Matériels et systèmes de navigation et de radiocommunication maritimes - Systèmes d'identification automatique (AIS) - Partie 1: Stations de base AIS - Exigences opérationnelles et de fonctionnement minimales, méthodes d'essai et résultats d'essai exigés

L'IEC 62320-1:2015 spécifie les exigences opérationnelles et de fonctionnement minimales, les méthodes d'essai et les résultats d'essai exigés applicables aux stations de base AIS compatibles avec les normes de fonctionnement adoptées par la Résolution MSC.74(69) de l'OMI (Annexe 3, AIS universel). Elle intègre les caractéristiques techniques des systèmes AIS de station fixe non embarquée, incluses dans la Recommandation UIT-R M.1371 et la Recommandation IALA A-124. Le cas échéant, elle tient compte également des réglementations de radiodiffusion de l'UIT. La présente norme s'appuie sur d'autres Normes internationales de l'IEC associées et sur des normes nationales existantes, selon le cas.
La présente norme s'applique aux stations de base AIS. Elle n'inclut pas les spécifications pour l'affichage des données AIS à terre.

General Information

• Status: Published
• Publication Date: 19-Jan-2015
• ICS: 47.020.70 - Navigation and control equipment
• Technical Committee: TC 80 - Maritime navigation and radiocommunication equipment and systems
• Drafting Committee: WG 15 - TC 80/WG 15
• Current Stage: PPUB - Publication issued
• Start Date: 20-Jan-2015
• Completion Date: 31-Mar-2015

Relations

• Revises: IEC 62320-1:2007 - Maritime navigation and radiocommunication equipment and systems - Automatic identification system (AIS) - Part 1: AIS Base Stations - Minimum operational and performance requirements, methods of testing and required test results
• Effective Date: 05-Sep-2023
• Revises: IEC 62320-1:2007/AMD1:2008 - Amendment 1 - Maritime navigation and radiocommunication equipment and systems - Automatic identification system (AIS) - Part 1: AIS Base Stations - Minimum operational and performance requirements, methods of testing and required test results
• Effective Date: 05-Sep-2023

Overview

IEC 62320-1:2015 - "Maritime navigation and radiocommunication equipment and systems - Automatic identification system (AIS) - Part 1: AIS Base Stations" defines the minimum operational and performance requirements, test methods and required test results for AIS Base Stations. Aligned with IMO Resolution MSC.74(69) Annex 3 (Universal AIS), ITU‑R M.1371 and IALA Recommendation A‑124, this 2015 edition updates the 2007 version to incorporate recent technical characteristics for non‑shipborne, fixed AIS equipment and harmonise radio performance with ITU regulations. Note: the standard applies to AIS Base Stations only and does not specify shore display requirements.

Key Topics and Technical Requirements

• Scope and functional architecture: functional layout, VDL (VHF Data Link) sources, access schemes, and presentation interface definitions for AIS Base Stations.
• Radio interface and TDMA: required physical‑layer parameters and TDMA transmitter/receiver minimums (frequency error, carrier power, modulation spectrum, sensitivity, adjacent/co‑channel performance).
• Testing methods and required results: detailed procedures for physical radio tests, conducted spurious emissions, intermodulation attenuation, blocking/desensitisation and measurement uncertainty.
• Functional tests: pre‑setup, normal operation, addressed/broadcast messaging, interrogations, slot phase and frame synchronisation, position source and alarm message handling.
• Message and protocol updates: incorporation of ITU‑R M.1371‑5 message sets; transmission of Message 24A, 25 and 26 added; scheduled broadcast of Message 26 and Message 27 control introduced.
• Data encapsulation and metadata: replacement of BCE/BCF/CAB sentences with BCG/BCL/RST, comment blocks replaced with TAG blocks, and TAG block encapsulation tests (source/destination identification, grouping, UNIX time, line count).
• Channel/load tests: includes a 90% channel load test with VSI and TAG blocks enabled.
• Operational constraints: removal of 12.5 kHz channel operation and harmonised transmitter intermodulation attenuation with ITU limits.

Practical Applications and Who Uses This Standard

• Manufacturers of fixed AIS Base Station equipment use IEC 62320-1 to design and validate radio performance, TDMA behaviour and interface commands.
• Test laboratories and certification bodies apply the standard’s test methods to verify compliance and produce required test results.
• Maritime authorities and harbour/port operators reference the standard when procuring, installing or integrating shore‑based AIS infrastructure to ensure interoperability with shipborne AIS and compliance with IMO/ITU requirements.
• System integrators and solution providers use the functional and presentation interface definitions when connecting AIS Base Stations to VTS, traffic management or coastal monitoring systems.

Related Standards and References

• IMO Resolution MSC.74(69) Annex 3 (Universal AIS)
• ITU‑R M.1371 (latest edition incorporated)
• IALA Recommendation A‑124
• Relevant ITU Radio Regulations and associated IEC international and national standards

Keywords: IEC 62320-1, AIS Base Stations, Automatic Identification System, AIS testing, IMO, ITU‑R M.1371, IALA A‑124, TDMA, VHF Data Link, TAG blocks, AIS performance requirements.

Standards Content (Sample)

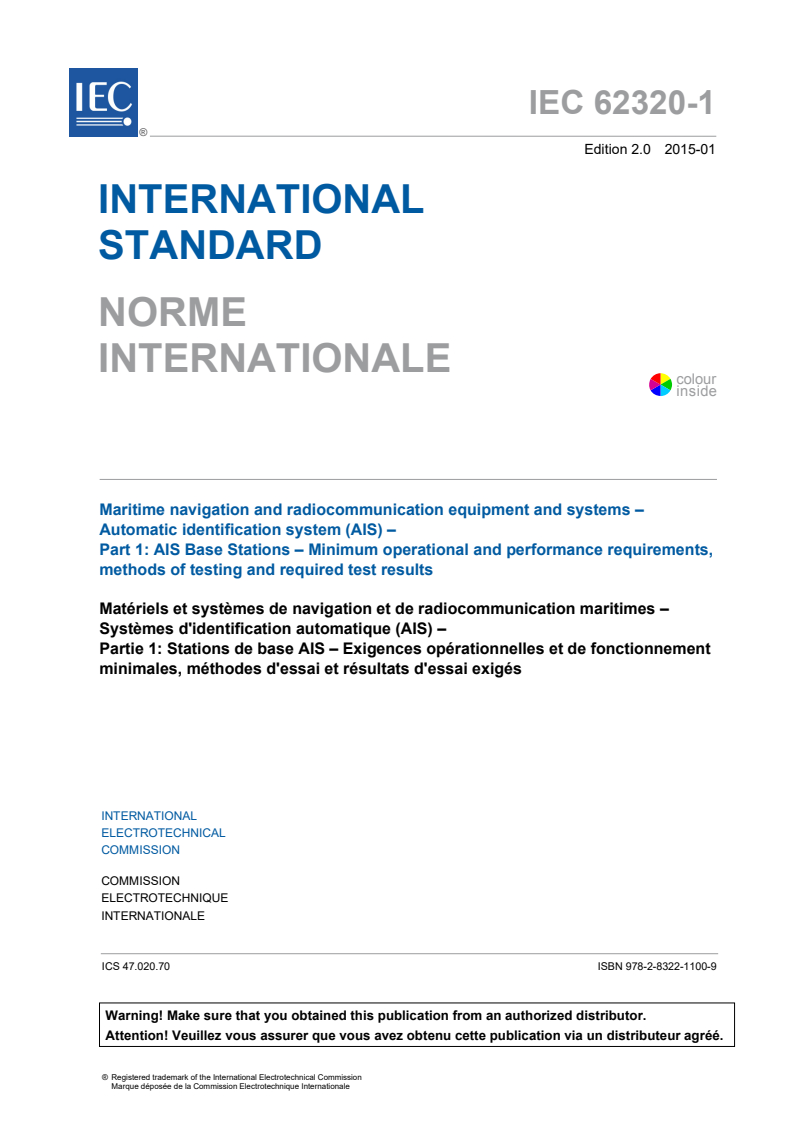

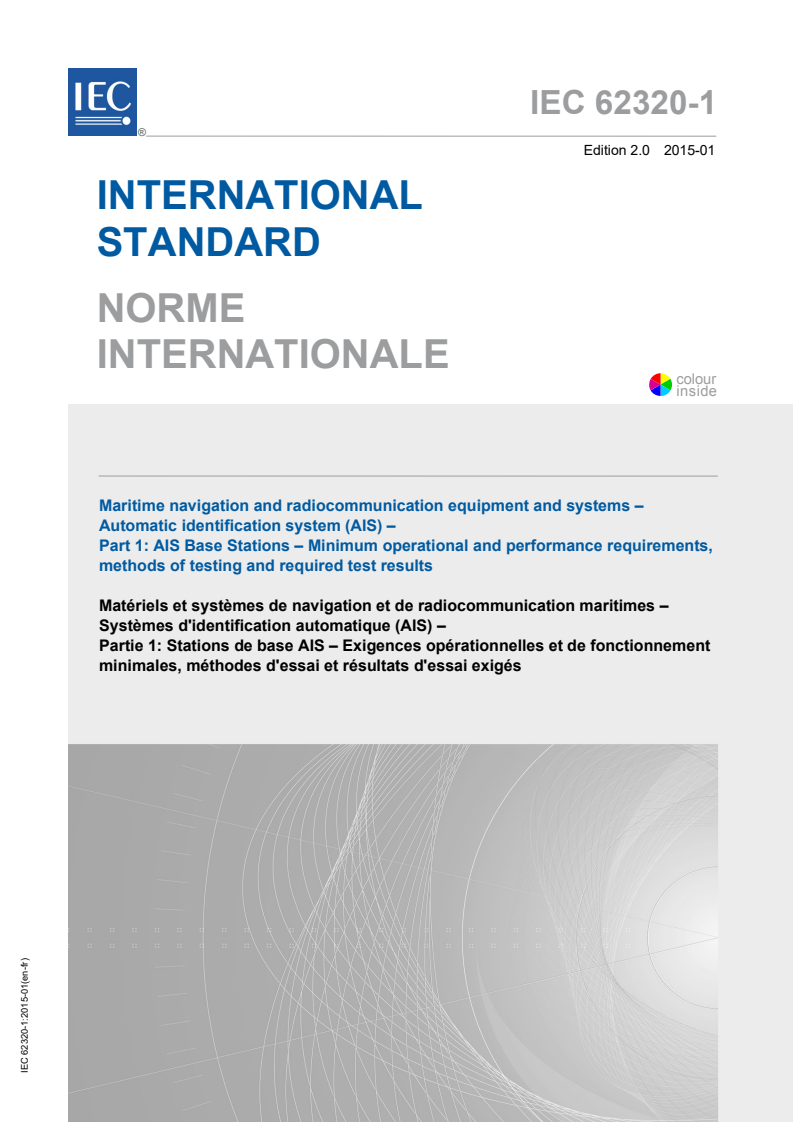

IEC 62320-1 ®
Edition 2.0 2015-01
INTERNATIONAL
STANDARD
colour
inside
Maritime navigation and radiocommunication equipment and systems – Automatic
identification system (AIS) –
Part 1: AIS Base Stations – Minimum operational and performance requirements,
methods of testing and required test results

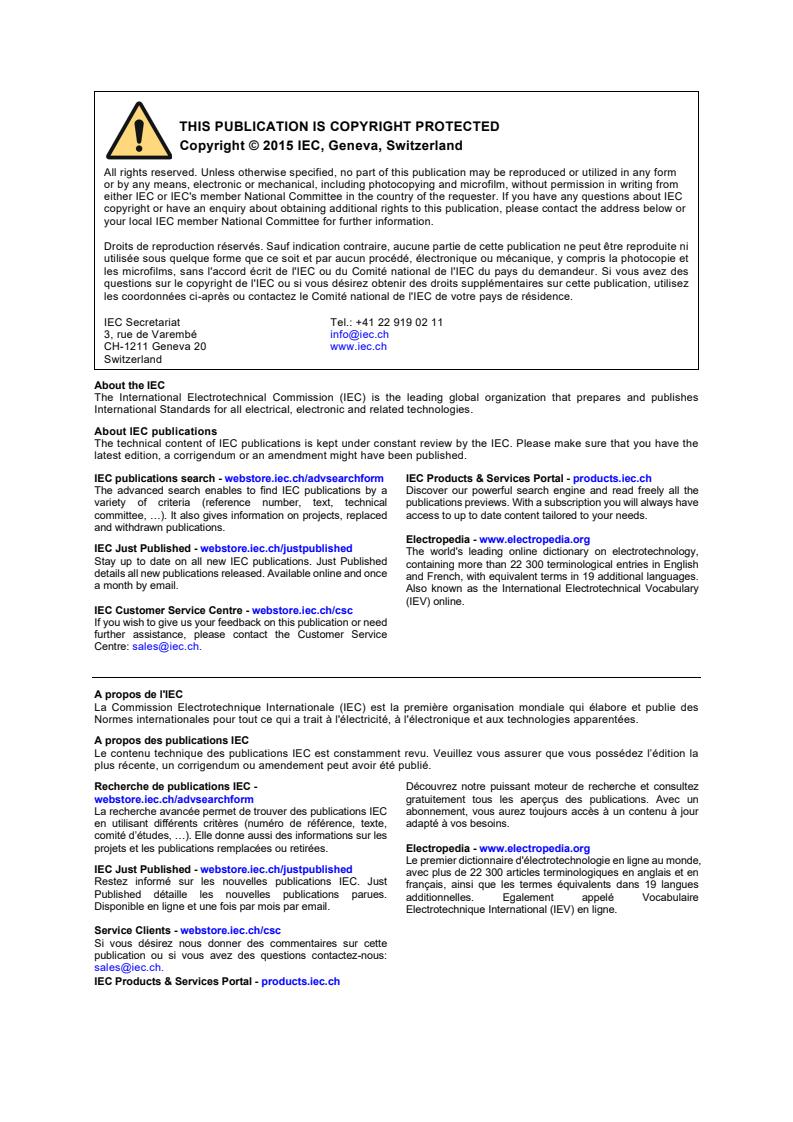

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].

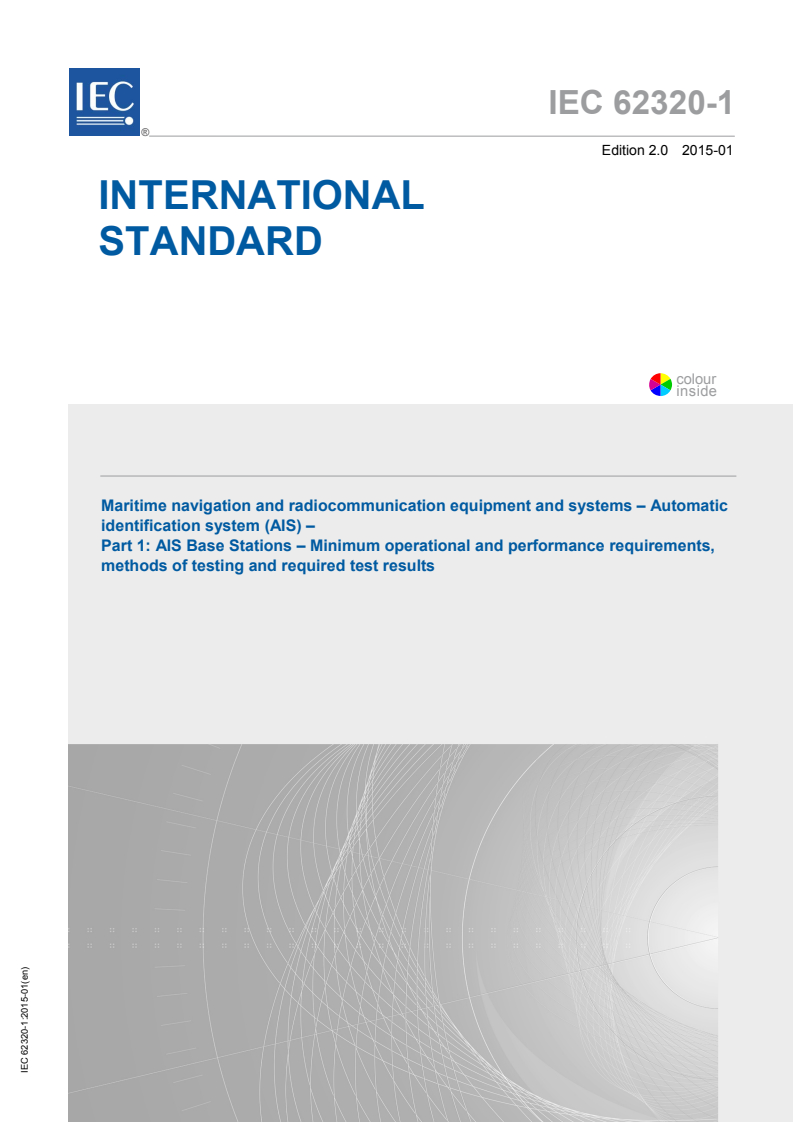

IEC 62320-1 ®
Edition 2.0 2015-01
INTERNATIONAL
STANDARD
colour
inside
Maritime navigation and radiocommunication equipment and systems – Automatic

identification system (AIS) –
Part 1: AIS Base Stations – Minimum operational and performance requirements,

methods of testing and required test results

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 47.020.70 ISBN 978-2-8322-2205-8

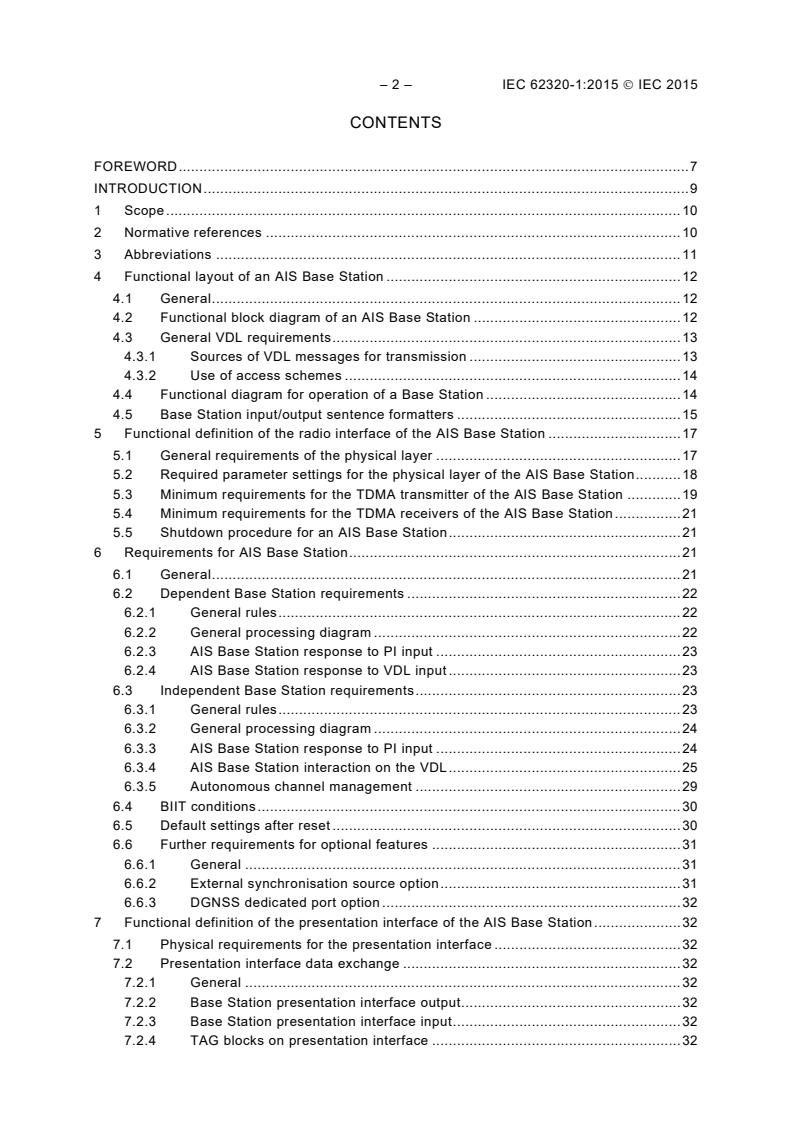

– 2 – IEC 62320-1:2015  IEC 2015
