IEC TS 62607-6-4:2024
(Main)Nanomanufacturing - Key control characteristics - Part 6-4: Graphene-based materials - Surface conductance: non-contact microwave resonant cavity method
Nanomanufacturing - Key control characteristics - Part 6-4: Graphene-based materials - Surface conductance: non-contact microwave resonant cavity method
IEC TS 62607-6-4:2024 has been prepared by IEC technical committee 113: Nanotechnology for electrotechnical products and systems. It is a Technical Specification.
This second edition cancels and replaces the first edition published in 2016. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) changed the document title to better reflect its purpose and application:
old title: Graphene – Surface conductance measurement using resonant cavity
new title: Graphene based materials – Surface conductance: non-contact microwave resonant cavity method.
b) replaced former Figure 1 with new Figure 1 and Figure 2, to better illustrate the method’s fundamentals and its implementation for a non-technical reader.
This part of IEC 62607 establishes a standardized method to determine the key control characteristic
a) surface conductance
for films of graphene and graphene-based materials by the
b) non-contact microwave resonant cavity method
The non-contact microwave resonant cavity method monitors the microwave resonant frequency shifts and changes in the cavity’s quality factor during the insertion of the specimen into the microwave cavity, as a function of the specimen surface area. The empty cavity is an air-filled standard R100 rectangular waveguide operated at one of the resonant frequency modes, typically at 7,5 GHz [4].
1) The method is applicable for graphene materials which are synthesized by chemical vapour deposition (CVD) on metal substrates, epitaxial growth on silicon carbide (SiC), obtained from reduced graphene oxide (rGO), or mechanically exfoliated from graphite [5].
2) This measurement does not explicitly depend on the thickness of the nano-carbon layer. The thickness of the specimen does not need to be known, but it is assumed that the lateral dimensions are uniform over the specimen area.
NOTE In some countries, the R100 standard waveguide is referenced as WR-90.
General Information
Relations
Standards Content (Sample)

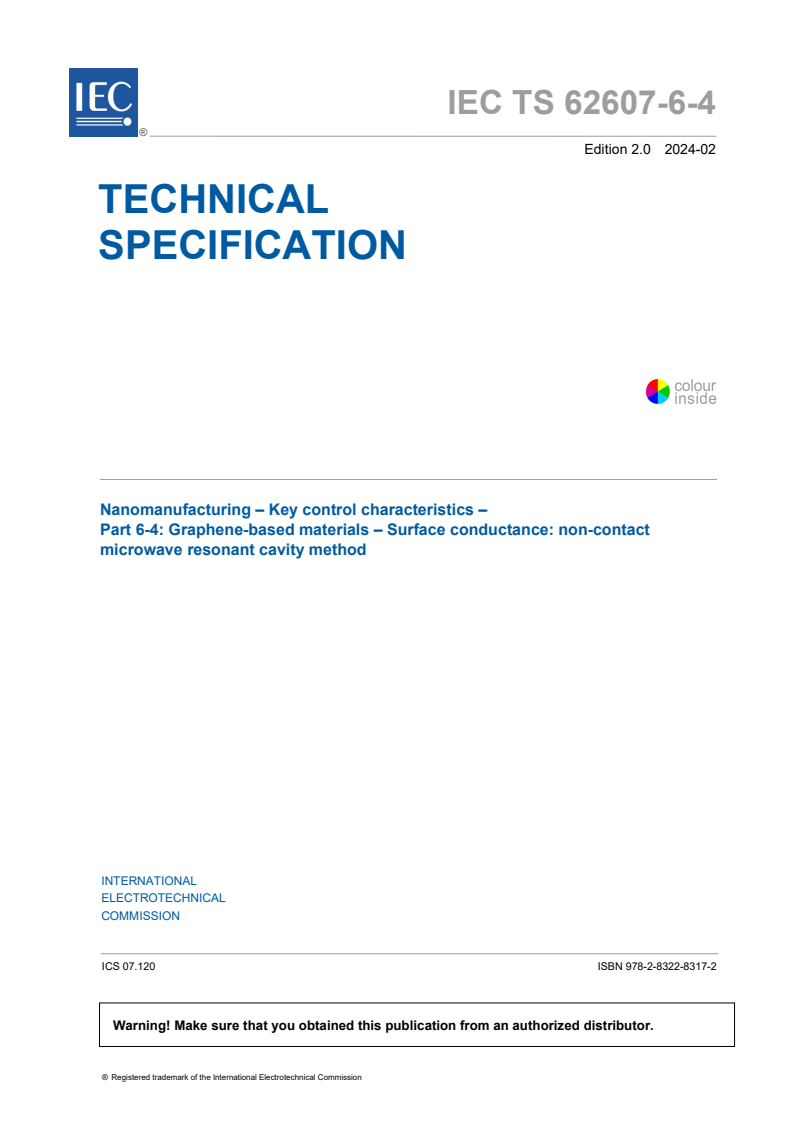

IEC TS 62607-6-4 ®
Edition 2.0 2024-02
TECHNICAL
SPECIFICATION
Nanomanufacturing – Key control characteristics –
Part 6-4: Graphene-based materials – Surface conductance: non-contact
microwave resonant cavity method
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.
IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.
Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC TS 62607-6-4 ®
Edition 2.0 2024-02
TECHNICAL
SPECIFICATION
Nanomanufacturing – Key control characteristics –
Part 6-4: Graphene-based materials – Surface conductance: non-contact
microwave resonant cavity method
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 07.120 ISBN 978-2-8322-8317-2

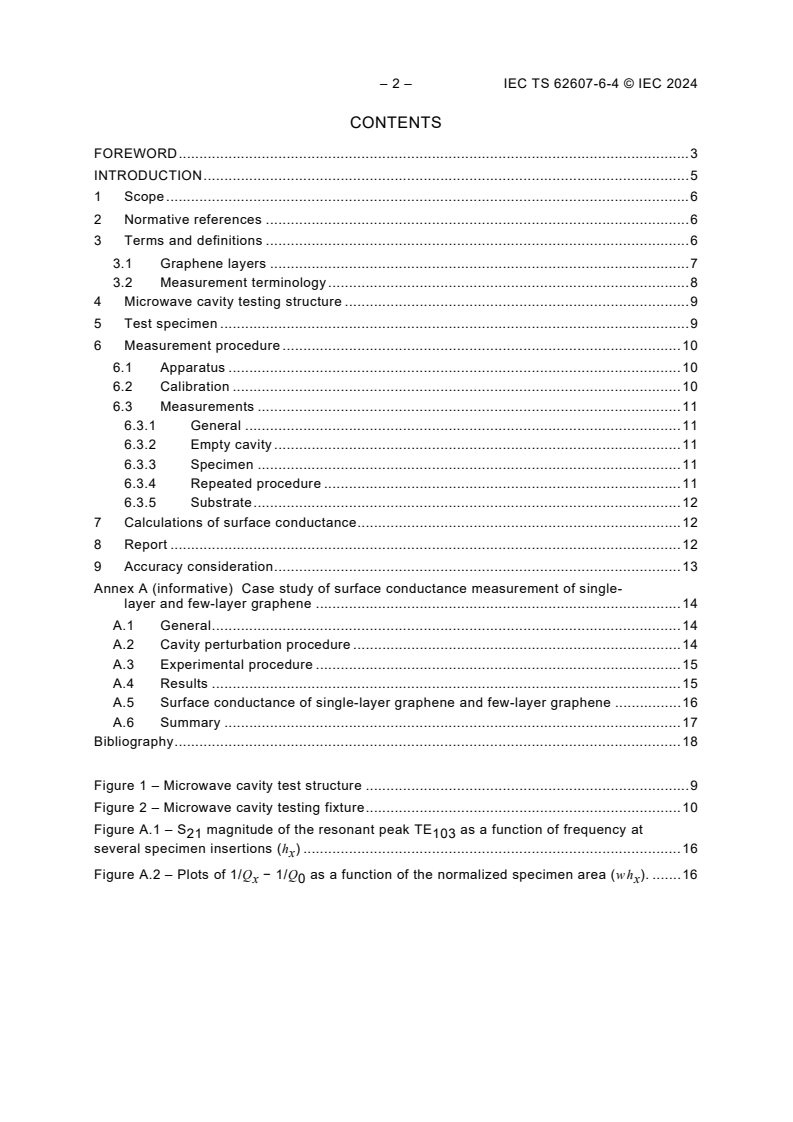

– 2 – IEC TS 62607-6-4 © IEC 2024
