IEC 62888-5:2018

Railway applications - Energy measurement on board trains - Part 5: Conformance test

IEC 62888-5:2018 specifies the conformance test arrangements for newly manufactured EMS (Energy management system) installed on a traction unit. This includes the integration conformance test and installation conformance test. In addition, this document also specifies the conformance test procedures for device and ancillary component replacement (e.g. due to damage in service), and periodic check to verify the EMS conformance test remains valid.

Applications ferroviaires - Mesure d'énergie à bord des trains – Partie 5: Essai de conformité

L’IEC 62888-5:2018 spécifie les conditions d’essai de conformité pour un EMS (système de mesure d'énergie) nouvellement fabriqué, installé sur une unité de traction. Cela inclut l’essai de conformité d'intégration et l'essai de conformité d'installation. De plus, ce document spécifie les procédures d'essai de conformité pour le remplacement d'appareil et de composant auxiliaire (par exemple, pour raison de dommages en service) et le contrôle périodique pour vérifier que l'essai de conformité de l'EMS reste valide.

General Information

• Status: Published
• Publication Date: 14-Aug-2018
• ICS: 33.160.40 - Video systems
• ICS: 45.060.01 - Railway rolling stock in general
• Technical Committee: TC 9 - Electrical equipment and systems for railways
• Current Stage: PPUB - Publication issued
• Start Date: 15-Aug-2018
• Completion Date: 03-Aug-2018

Standards Content (Sample)

IEC 62888-5 ®
Edition 1.0 2018-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Railway applications – Energy measurement on board trains –
Part 5: Conformance test
Applications ferroviaires – Mesure d'énergie à bord des trains –
Partie 5: Essai de conformité
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des
en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées
comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et
projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette
Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:
Disponible en ligne et aussi une fois par mois par email. [e-mail].

IEC 62888-5 ®
Edition 1.0 2018-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Railway applications – Energy measurement on board trains –

Part 5: Conformance test
Applications ferroviaires – Mesure d'énergie à bord des trains –

Partie 5: Essai de conformité
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 45.060.01 ISBN 978-2-8322-5914-6

– 2 – IEC 62888-5:2018 © IEC 2018

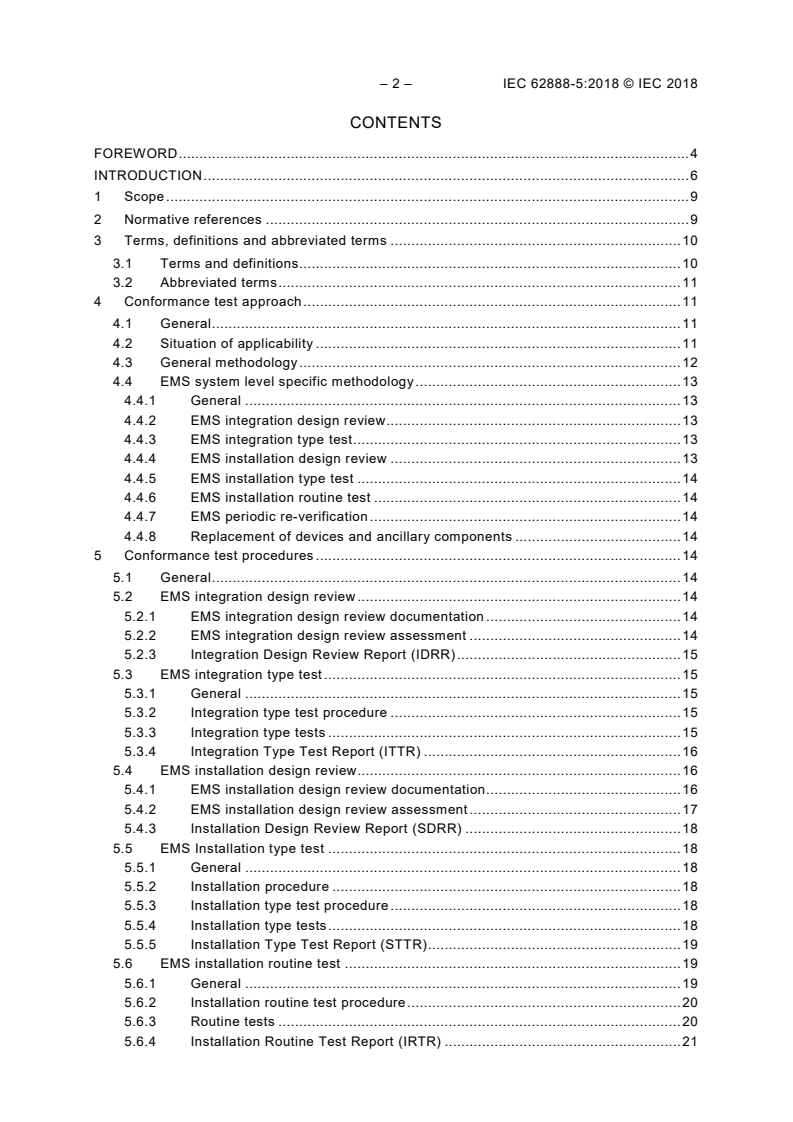

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 9
2 Normative references . 9
3 Terms, definitions and abbreviated terms . 10
3.1 Terms and definitions . 10
3.2 Abbreviated terms . 11
4 Conformance test approach . 11
4.1 General . 11
4.2 Situation of applicability . 11
4.3 General methodology . 12
4.4 EMS system level specific methodology . 13
4.4.1 General . 13
4.4.2 EMS integration design review . 13
4.4.3 EMS integration type test . 13
4.4.4 EMS installation design review . 13
4.4.5 EMS installation type test . 14
4.4.6 EMS installation routine test . 14
4.4.7 EMS periodic re-verification . 14
4.4.8 Replacement of devices and ancillary components . 14
5 Conformance test procedures . 14
5.1 General . 14
5.2 EMS integration design review . 14
5.2.1 EMS integration design review documentation . 14
5.2.2 EMS integration design review assessment . 14
5.2.3 Integration Design Review Report (IDRR) . 15
5.3 EMS integration type test . 15
5.3.1 General . 15
5.3.2 Integration type test procedure . 15
5.3.3 Integration type tests . 15
5.3.4 Integration Type Test Report (ITTR) . 16
5.4 EMS installation design review . 16
5.4.1 EMS installation design review documentation . 16
5.4.2 EMS installation design review assessment . 17
5.4.3 Installation Design Review Report (SDRR) . 18
5.5 EMS Installation type test . 18
5.5.1 General . 18
5.5.2 Installation procedure . 18
5.5.3 Installation type test procedure . 18
5.5.4 Installation type tests . 18
5.5.5 Installation Type Test Report (STTR) . 19
5.6 EMS installation routine test . 19
5.6.1 General . 19
5.6.2 Installation routine test procedure . 20
5.6.3 Routine tests . 20
5.6.4 Installation Routine Test Report (IRTR) . 21

5.7 Periodic re-verification . 21
5.7.1 Procedure . 21
5.7.2 Re-verification Report (RVR) . 21
5.8 Replacement of devices and ancillary components . 21
5.8.1 General . 21
5.8.2 Documentation . 22
5.8.3 Item replacement conformance test . 22
5.8.4 Software . 23
5.8.5 Programmable parameters . 23
5.8.6 Replacement report . 23

Figure 1 – EMS functional structure and dataflow diagram . 8
Figure 2 – Methods of conformance test . 13
Figure 3 – Overview of EMS installation routine test process . 19
Figure 4 – Replacement of devices and ancillary components . 22

– 4 – IEC 62888-5:2018 © IEC 2018
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RAILWAY APPLICATIONS –
ENERGY MEASUREMENT ON BOARD TRAINS –

Part 5: Conformance test
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and
non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates
closely with the International Organization for Standardization (ISO) in accordance with conditions determined
by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62888-5 has been prepared by IEC technical committee 9:
Electrical equipment and systems for railways.
This standard is based on EN 50463.
The text of this International Standard is based on the following documents:
FDIS Report on voting
9/2412/FDIS 9/2426/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 62888 series, published under the general title Railway
applications – Energy measurement on board trains, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 62888-5:2018 © IEC 2018
INTRODUCTION
Three levels are introduced for categorizing EMS as described in this document in 4.1.
This part is Part 5 of the IEC 62888 series which consists of the following parts, under the
common title Railway applications – Energy measurement on board trains:
Part 1: General
Part 2: Energy measurement
Part 3: Data handling
Part 4: Communication
Part 5: Conformance test
Part 6: Requirements for purposes other than billing
This series of International Standards follows the functional guidelines description in Annex A,
“Principles of conformity assessment”, of ISO/IEC 17000:2004 tailored to the Energy
Measurement System (EMS).
The Energy Measurement System (EMS) provides measurement and data suitable for
applications such as energy management, energy saving, billing and others.
This series of International Standards uses the functional approach to describe the EMS.
These functions are implemented in one or more physical devices. The user of this series of
standards is free to choose the physical implementation arrangements.
Structure and main contents of the IEC 62888 series
This series of International Standards is divided into six parts. The titles and brief descriptions
of each part are given below:
IEC 62888-1 – General
The scope of IEC 62888-1 is the Energy Measurement System (EMS).
IEC 62888-1 provides system level requirements for the complete EMS and common
requirements for all devices implementing one or more functions of the EMS.
IEC 62888-2 – Energy measurement
The scope of IEC 62888-2 is the Energy Measurement Function (EMF).
The EMF provides measurement of the consumed and regenerated active energy of a traction
unit. If the traction unit is designed for use on AC traction supply systems, the EMF also
provides measurement of reactive energy. The EMF provides the measured quantities via an
interface to the Data Handling System.
The EMF consists of the three functions: Voltage Measurement Function, Current
Measurement Function and Energy Calculation Function. For each of these functions,
accuracy classes are specified and associated reference conditions are defined. This part
also defines all specific requirements for all functions of the EMF.
The Voltage Measurement Function measures the voltage of the contact line (CL) system and
the Current Measurement Function measures the current taken from and returned to the CL
system. These functions provide signal inputs to the Energy Calculation Function.

The Energy Calculation Function inputs the signals from the Current and Voltage
Measurement Functions and calculates a set of values representing the consumed and
regenerated energies. These values are transferred to the Data Handling System and are
used in the creation of Compiled Energy Measured Data.
All relevant metrological aspects are covered in this part of IEC 62888.
IEC 62888-2 also defines the conformance test of the EMF.
IEC 62888-3 – Data handling
The scope of IEC 62888-3 is the Data Handling System (DHS).
The on board DHS receives, produces and stores data, ready for transmission to any
authorised receiver of data on board or on ground. The main goal of the DHS is to produce
Compiled Energy Measured Data and transfer it to an on-ground Data Collection Service
(DCS). The DHS can support other functionality on board or on-ground with data, as long as
this does not conflict with the main goal.
IEC 62888-3 also defines the conformance test of the DHS.
IEC 62888-4 – Communication
The scope of IEC 62888-4 is the communication services.
This part of IEC 62888 gives requirements and guidance regarding the data between the
functions implemented within EMS as well as between such functions and other on board
units where data are exchanged using a communications protocol stack over a dedicated
physical interface or a shared network.
It includes the on board to ground communication service and covers the requirements
necessary to support data transfer between DHS and DCS.
IEC 62888-4 also defines the conformance test of the communications services.
IEC 62888-5 – Conformance test
The scope of IEC 62888-5 is the conformance test procedures for the EMS.
IEC 62888-5 also covers re-verification procedures and conformance test in the event of the
replacement of a device of the EMS.
IEC 62888-6 – Requirements for purposes other than billing
The scope of IEC 62888-6 is to specify the requirements for EMS to be used for
benchmarking, daily energy consumption monitoring, technical research and development.
This part provides the requirements for monitoring consumed energy on board in daily
services in an easy way and the measured data are applicable for general purposes in
industry such as energy management, energy saving, etc. However, this part is not applicable
for billing purposes.
– 8 – IEC 62888-5:2018 © IEC 2018
EMS functional structure and dataflow
Figure 1 illustrates the functional structure of the EMS, the main sub-functions and the
structure of the dataflow and is informative only. Only the main interfaces required by this
standard are displayed by arrows.
Since the communication function is distributed throughout the EMS, it has been omitted for
clarity. Not all interfaces are shown.
Settlement
Other Systems
Time Reference Source
System
Location Reference Source
Data Storage Function
Current Measurement Function
Voltage Measurement Function
Data compilation Function
Energy Calculation Function
Data
Collection
Energy Measurement Function Service
Data Handling System
(DCS)
(EMF) (DHS)
IEC 62888-2 (Energy Measuring) IEC 62888-3 (Data Handling)
Energy Measurement System (EMS)
Other
Systems
IEC 62888-1 (General), IEC 62888-4 (Communication), IEC 62888-5 (Conformance test),

IEC 62888-6 (Purposes other than billing)
On-board (Traction Unit)
On-ground
IEC
Figure 1 – EMS functional structure and dataflow diagram

RAILWAY APPLICATIONS –
ENERGY MEASUREMENT ON BOARD TRAINS –

Part 5: Conformance test
1 Scope
This part of IEC 62888 specifies the conformance test arrangements for newly manufactured
EMS installed on a traction unit. This includes the integration conformance test and
installation conformance test. In addition, this document also specifies the conformance test
procedures for device and ancillary component replacement (e.g. due to damage in service),
and periodic check to verify the EMS conformance test remains valid.
The assessment methods d) to j) in 4.3 apply at EMS system level. The methods are covered
by IEC 62888-5 for Level 1 and by IEC 62888-6 for Level 2 and Level 3.
This document does not include elements related to conformance test aspects other than
design review and testing provisions for the products, processes or services specified.
Consequently, this document does not delete, change or interpret the general requirements
for conformance test procedures and vocabulary detailed in ISO/IEC 17000.
This document does not cover the conformity assessment schemes that are the responsibility
of ISO policy committee “Committee on conformity assessment” (ISO/CASCO).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60571:2012, Railway applications – Electronic equipment used on rolling stock
IEC 62888-1:2018, Railway applications – Energy measurement on board trains – Part 1:
General
IEC 62888-2:2018, Railway applications – Energy measurement on board trains – Part 2:
Energy measurement
IEC 62888-3:2018, Railway applications – Energy measurement on board trains – Part 3:
Data handling
IEC 62888-4:2018, Railway applications – Energy measurement on board trains – Part 4:
Communication
IEC 62888-6:2018, Railway applications – Energy measurement on board trains – Part 6:
Requirements for purposes other than billing

– 10 – IEC 62888-5:2018 © IEC 2018
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of document, the terms and definitions given in IEC 62888-1:2018 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
conformance test
demonstration that specified requirements are fulfilled
3.1.2
conformance test folder
CTF
folder holding all documentation produced during conformance test
3.1.3
EMS installation
installation of an EMS equipment type into a traction unit of a specified type
3.1.4
EMS integration
integration of devices, interconnections and ancillary components, forming a specific EMS
equipment type
3.1.5
Implementation Under Assessment
IUA
specific EMS equipment type used throughout the conformance test
3.1.6
installer
entity responsible for the installation of an EMS equipment type into a traction unit type
3.1.7
EMS integrator
entity responsible for integrating devices, interconnections and ancillary components, forming
an EMS equipment type
3.1.8
periodic re-verification
activities carried out periodically to check that the conformance test of an in-service EMS
remains valid
Note 1 to entry: These re-verification activities are solely for the purpose stated, consequently other in-service
activities such as maintenance and fault finding, etc., are not covered by this term.
3.1.9
protective interface
interface which permits intended data to be exchanged, and prevents unintended data being
exchanged
3.1.10
traction unit type
specific design of traction unit, produced by one manufacturer and having similar properties,
the same uniform construction of parts determining these properties and the same functional
components
Note 1 to entry: The type is represented by the traction unit sample provided for the EMS installation type tests.
3.2 Abbreviated terms
CTF Conformance Test Folder
CEMD Compiled Energy Measured Data
CPID Consumption Point Identification
DCS Data Collection Service
DHS Data Handling System
EMF Energy Measurement Function
EMS Energy Measurement System
IDRR Integration Design Review Report
IRTR Installation Routine Test Report
ITTR Integration Type Test Report
IUA Implementation Under Assessment
RVR Re-verification Report
SDRR Installation Design Review Report
STTR Installation Type Test Report
4 Conformance test approach
4.1 General
This clause specifies the structure and methodology for the conformance test. The
procedures, design review requirements, testing requirements, and conformance test
documentation requirements are specified in Clause 5. Completion of devices level
conformance test is a pre-requisite to carry out EMS conformance test. The conformance test
is undertaken in the following key stages:
a) device level;
b) EMS level;
c) EMS re-verification and device / ancillary component replacement.
Stage 1 is mandatory for newly manufactured devices and is covered by IEC 62888-2,
IEC 62888-3 and IEC 62888-4. Stages 2, 3 are mandatory for every EMS in accordance with
the scope as specified in Clause 1. The conformance test, undertaken during stages 2 and 3,
deals primarily with system level requirements, and it does not replicate the detail in stage 1.
4.2 Situation of applicability
The EMS conformance test described in this part applies in case of:
• EMS integration,
• EMS installation,
• EMS periodic re-verification,
• EMS device / ancillary component replacement.

– 12 – IEC 62888-5:2018 © IEC 2018
4.3 General methodology
The conformance test is undertaken using the following methods, they are listed in logical
order and may be undertaken in the same testing environment:
a) device design review;
b) device type test;
c) device routine test;
d) EMS integration design review;
e) EMS integration type test;
f) EMS installation design review;
g) EMS installation type test;
h) EMS installation routine test.
Furthermore, the following methods cover the re-verification and replacement:
i) EMS periodic re-verification;
j) EMS device / ancillary component replacement.
Methods a) to c) are used at device level. Conformance test arrangements are covered by
IEC 62888-2, IEC 62888-3, IEC 62888-4 for Level 1 and by IEC 62888-6 for Level 2 and
Level 3.
Methods d) to j) apply at EMS system level. The methods are covered by IEC 62888-5 for
Level 1 and by IEC 62888-6 for Level 2 and Level 3.
Each method described generates evidence of conformance.
Completing the integration methods d) and e) allows the possibility of using this integration
conformance test in conjunction with multiple installation conformance tests. This approach
can be employed when the same EMS equipment type is to be used on several different
traction unit types, using multiple installation conformance tests to deal with the installation
issues only.
Figure 2 illustrates the methods of conformance test arrangements.

Device
Device
Device
IEC 62888-1 Device
conformance
D B C
report
A
E IEC 62888-2 test suite test
documentation
IEC 62888-3
IEC 62888-4
EMS equipment type
IEC 62888-6
A C
B
EMS Integration
IEC 62888-1
IDRR
E
D design review
IEC 62888-6 Integration
documentation DR
IEC 62888-5
Integration design review
report
EMS equipment type
A C
B ITTR
EMS Integration type test
IEC 62888-1
Integration
documentation
IEC 62888-6
E type test
D
IEC 62888-5
report
Integration type test
EMS equipment type + traction unit type
A
C SDRR
B EMS Installation
Conformance
Installation
IEC 62888-1
design review
E
D test
design review
IEC 62888-6
documentation
documentation
report
IEC 62888-5
folder
Installation design review
EMS Equipment Type + Traction unit type
A
C STTR
B EMS Installation type test
IEC 62888-1
Installation
documentation
E
D
IEC 62888-6
type test
IEC 62888-5
report
IEC
Installation Type test
Figure 2 – Methods of conformance test
4.4 EMS system level specific methodology
4.4.1 General
At EMS system level, the methods d) to h) in 4.3 apply for type and routine tests, the methods
i) and j) in 4.3 apply for EMS re-verification and EMS device component replacement.
4.4.2 EMS integration design review
The integration design review demonstrates that all the devices of a specific equipment type
used to form EMS are able to be brought together correctly in accordance with an EMS
design, and when integrated together provide the intended functionality in accordance with
this series of standards.
4.4.3 EMS integration type test
The integration type test demonstrates that all the devices of a specific equipment type used
to form EMS when integrated together are functioning as intended in accordance with this
series of standards.
4.4.4 EMS installation design review
The installation design review assesses the compatibility between an EMS of a specific
equipment type and a traction unit type, so that its functionality is maintained when installed
on board.
– 14 – IEC 62888-5:2018 © IEC 2018
4.4.5 EMS installation type test
The installation type test demonstrates that the integrated EMS of a specific equipment type,
when installed on board on a specimen representative of the traction unit type, is functioning
as intended in accordance with this series of standards.
4.4.6 EMS installation routine test
The installation routine test demonstrates that the type tested EMS functionality is ensured for
each installation on traction units of the same type.
4.4.7 EMS periodic re-verification
The EMS periodic re-verification activities are used to ensure the conformance test of an in-
service EMS remains valid, where necessary to confirm metrological properties, so that the
EMS can continue to be used.
4.4.8 Replacement of devices and ancillary components
If a device / ancillary component of an in-service EMS is replaced, the substitution procedure
ensures that the EMS conformance test remains valid and the EMS can continue to be used.
5 Conformance test procedures
5.1 General
Before undertaking conformance test in accordance with Clause 5, all devices forming an
EMS of a specific equipment type shall have passed the appropriate device level conformance
test in accordance with IEC 62888-2, IEC 62888-3, and IEC 62888-4.
If design changes are made to traction unit, no conformance test of EMS is required, unless
the changes affect the EMS.
5.2 EMS integration design review
5.2.1 EMS integration design review documentation
In order to carry out the EMS integration design review, the following documentation shall be
provided by the EMS integrator for each designated EMS equipment type:
a) list of the devices / ancillary components integrated into the equipment type and relevant
setting information;
b) mapping of the function(s) and sub-function(s) specified in IEC 62888-1, IEC 62888-2,
IEC 62888-3 and IEC 62888-4 to the devices integrated into the equipment type;
c) EMS integration design;
d) device level conformance test documentation for each device integrated into the EMS.
5.2.2 EMS integration design review assessment
Using the documentation listed above and, if necessary, any further information provided by
agreement with the EMS integrator, the EMS integration design review is carried out and shall
give evidence that:
a) all mandatory EMS functionality is provided;
b) the integration ensures compatibility between the devices forming the EMS and, if
applicable, any aspects of the EMS and other systems;
c) the conformance test done at device level remains valid;
d) EMS level requirements, which are to be verified by design review, are met;

e) interfaces between devices that are exchanging CEMD and CEMD-related data are
protective interfaces;
f) interface(s) for service and testing are available and protective;
g) the software dealing with CEMD and CEMD-related data provides the security means
requested by IEC 62888-1:2018, 4.3.4;
h) installation constraints necessary to ensure safety and performance are clearly identified
and documented;
i) the required indicators are available according to IEC 62888-1:2018, 4.3.7.3.
All requirements that cannot be verified by design review shall be listed and verified by the
EMS integration type test. This information shall be produced and used as an input document
during the execution of the type test methods for conformance test to ensure all requirements
are addressed. For example, knowledge of the insulation arrangements at EMS level and the
testing done at device level are necessary to ensure the correct test requirements are
adequate at EMS conformance test stage.
5.2.3 Integration Design Review Report (IDRR)
In case of a positive fulfilment of all the requirements of 5.2.1 and 5.2.2, the Integration
Design Review Report shall be issued and shall be included in the Conformance test Folder.
5.3 EMS integration type test
5.3.1 General
This subclause contains the test requirements for integration type testing carried out as part
of the conformance test during the integration phase.
5.3.2 Integration type test procedure
The EMS integrator shall produce a type test procedure for the EMS equipment type which
describes how the integration type tests are to be performed. The procedure shall also take
into account requirements not verified during integration design review and shall clearly
identify the service, operational and test interfaces including arrangements for applying test
signals and monitoring performance. This document can be produced in collaboration with the
entity in charge of test.
This integration type test procedure is specific to the integration design detailing how the
devices are integrated and interconnected to form a specific EMS equipment type.
The integration type test procedure shall be included in the Conformance Test Folder.
5.3.3 Integration type tests
5.3.3.1 General
As a minimum the following test activities shall be performed.
5.3.3.2 Visual inspection
Check that the IUA matches the EMS equipment type and carry out a visual inspection in
accordance with IEC 60571:2012, 12.2.1.
5.3.3.3 Power-up
Energize the power supply to the EMS and check the EMS reaches operational status within
the time limit specified in Table 2 of IEC 62888-1:2018.

– 16 – IEC 62888-5:2018 © IEC 2018
5.3.3.4 Power-down
Energise the IUA such that it simulates the EMS operating with all external equipment
behaving as intended before and during the power down test.
Power down the EMS, and check:
a) the EMS has successfully powered down,
b) any data being recorded during power down is successfully processed and stored.
NOTE Simulated operation can use signals introduced at the sensor outputs as an alternative to injecting signals
directly into the EMS input.
5.3.3.5 Traction supply system change
Simulate one traction supply system change and check that the requirements stated in
IEC 62888-1:2018, 4.2.5.1 are fulfilled.
NOTE The assessment procedure can use simulated output from the sensors as an alternative to injecting signals
directly into the EMS input.
5.3.3.6 EMS data flow test
Simulate input to the EMS and check the correlation between the input signals applied and
the data stored in the DHS, also ensure that the CEMD is stored correctly.
NOTE 1 The assessment procedure can use simulated output from the sensors as an alternative to injecting
signals directly into the EMS input.
Simulate data export from the DHS via the local service port and compare the data stored in
the DHS with data exported and ensure the data exported is identical to that held in the DHS.
Simulate data export from the DHS to the DCS and compare the data stored in the DHS with
the data stored in the DCS and ensure the two data sets are identical.
NOTE 2 The DCS can be the actual or a simulated one.
5.3.4 Integration Type Test Report (ITTR)
In case of a positive fulfilment of all the requirements of 5.3.1, 5.3.2 and 5.3.3 the entity in
charge of the test shall issue an Integration Type Test Report. The Integration Type Test
Report shall be included in the Conformance Test Folder.
5.4 EMS installation design review
5.4.1 EMS installation design review documentation
In order to carry out the EMS installation design review, the following documentation shall be
provided by the installer for each designated EMS equipment type and its installation into the
specific traction unit type.
Documentation related to the EMS equipment type:
a) list of the devices and ancillary components integrated into the EMS equipment type and
relevant setting information;
b) mapping of the function(s) and sub-function(s) specified in IEC 62888-1, IEC 62888-2,
IEC 62888-3 and IEC 62888-4 to the devices integrated into the equipment type;
c) EMS integration design;
d) device level conformance test documentation for each device integrated into the EMS.
NOTE Mapping from the Integration Design Review can be used.

Documentation related to installation of the EMS equipment type into the traction unit type:
e) installation specification taking into account device environmental, safety, performance
and installation constraints;
f) installation design and settings according to installation specification;
g) installation procedures;
h) installation requirements and constraints to ensure compatibility between the traction unit
type and the EMS equipment type;
i) installation design measures to provide protection from non-authorised access.
5.4.2 EMS installation design review assessment
5.4.2.1 General
Using the documentation listed above and, if necessary, any further information provided by
agreement with the installer, the EMS installation design review is carried out and shall verify
that the EMS equipment type and the traction unit type are compatible (e.g. mechanical,
temperature, electromagnetic compatibility, clearance, rated insulation, safety, and maximum
cable impedance / lengths, etc.).
5.4.2.2 Insulation
Check the insulation level of the EMS equipment type installed on board the design traction
unit type is in accordance with the requirements of IEC 62888-1:2018, 4.3.8.2. Documentation
shall be provided which details the insulation level and overvoltage class and shows that the
requirements are fulfilled.
Check that any installation constraints and requirements, which are relevant to the installation
testing activities, are clearly documented.
5.4.2.3 Enclosure
If additional enclosures are provided as part of the installation design, check that they are in
accordance with IEC 62888-1:2018, 4.3.7.2.
5.4.2.4 Protection from non-authorised access
Check that all requests for access to data, software or system parameters relevant for the
production and storage of CEMD go through an authorisation procedure before access is
granted and that all requests and all changes are logged.
Check that any measures for protectio
...
