Direct current (DC) plugs and socket-outlets for information and communication technology (ICT) equipment installed in data centres and telecom central offices - Part 2: Plug and socket-outlet system for 5,2 kW

IEC TS 62735-2: 2016(E) applies to plugs and fixed socket-outlets for class I equipment with two active contacts plus an earthing contact, a rated power of 5,2 kW and a rated voltage range from 294 V to 400 V d.c. They are intended to power d.c. information and communication technology equipment only. The 2,6 kW system complying with Part 1 is safely compatible with the system complying with this part as it is possible to insert the 2,6 kW plug in the 5,2 kW socket-outlet but it is not possible to insert the 5,2 kW plug into the 2,6 kW socket-outlet.
This publication is to be read in conjunction with IEC TS 62735-1:2015

General Information

Status
Published
Publication Date
13-Dec-2016
Current Stage
PPUB - Publication issued
Completion Date
14-Dec-2016
Ref Project

Buy Standard

Technical specification
IEC TS 62735-2:2016 - Direct current (DC) plugs and socket-outlets for information and communication technology (ICT) equipment installed in data centres and telecom central offices - Part 2: Plug and socket-outlet system for 5,2 kW
English language
21 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC TS 62735-2
Edition 1.0 2016-12
TECHNICAL
SPECIFICATION
Direct current (DC) plugs and socket-outlets for information and communication
technology (ICT) equipment installed in data centres and telecom central
offices –
Part 2: Plug and socket-outlet system for 5,2 kW
IEC TS 62735-2:2016-12(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2016 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
---------------------- Page: 2 ----------------------
IEC TS 62735-2
Edition 1.0 2016-12
TECHNICAL
SPECIFICATION
Direct current (DC) plugs and socket-outlets for information and communication
technology (ICT) equipment installed in data centres and telecom central
offices –
Part 2: Plug and socket-outlet system for 5,2 kW
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.120.01; 29.120.30 ISBN 978-2-8322-3708-3

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC TS 62735-2:2016 © IEC 2016

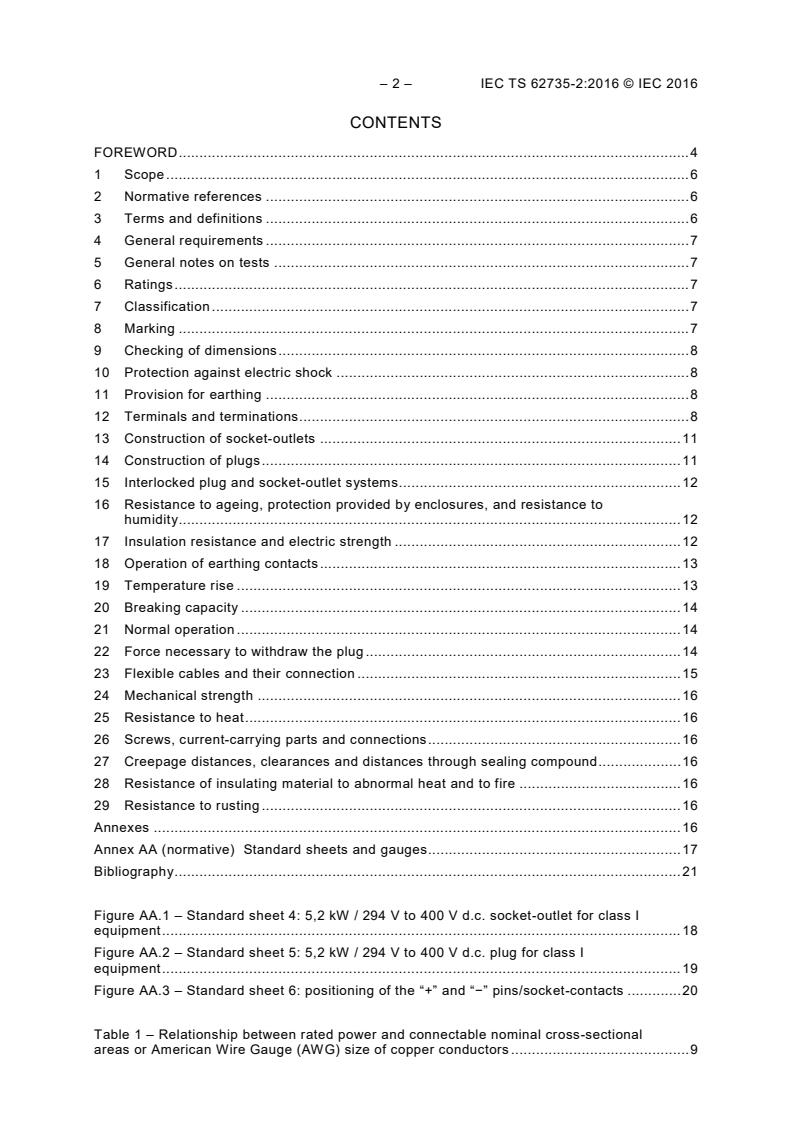

CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 6

4 General requirements ...................................................................................................... 7

5 General notes on tests .................................................................................................... 7

6 Ratings ............................................................................................................................ 7

7 Classification ................................................................................................................... 7

8 Marking ........................................................................................................................... 7

9 Checking of dimensions ................................................................................................... 8

10 Protection against electric shock ..................................................................................... 8

11 Provision for earthing ...................................................................................................... 8

12 Terminals and terminations .............................................................................................. 8

13 Construction of socket-outlets ....................................................................................... 11

14 Construction of plugs ..................................................................................................... 11

15 Interlocked plug and socket-outlet systems .................................................................... 12

16 Resistance to ageing, protection provided by enclosures, and resistance to

humidity ......................................................................................................................... 12

17 Insulation resistance and electric strength ..................................................................... 12

18 Operation of earthing contacts ....................................................................................... 13

19 Temperature rise ........................................................................................................... 13

20 Breaking capacity .......................................................................................................... 14

21 Normal operation ........................................................................................................... 14

22 Force necessary to withdraw the plug ............................................................................ 14

23 Flexible cables and their connection .............................................................................. 15

24 Mechanical strength ...................................................................................................... 16

25 Resistance to heat ......................................................................................................... 16

26 Screws, current-carrying parts and connections ............................................................. 16

27 Creepage distances, clearances and distances through sealing compound .................... 16

28 Resistance of insulating material to abnormal heat and to fire ....................................... 16

29 Resistance to rusting ..................................................................................................... 16

Annexes ............................................................................................................................... 16

Annex AA (normative) Standard sheets and gauges ............................................................. 17

Bibliography .......................................................................................................................... 21

Figure AA.1 – Standard sheet 4: 5,2 kW / 294 V to 400 V d.c. socket-outlet for class I

equipment ............................................................................................................................. 18

Figure AA.2 – Standard sheet 5: 5,2 kW / 294 V to 400 V d.c. plug for class I

equipment ............................................................................................................................. 19

Figure AA.3 – Standard sheet 6: positioning of the “+” and “−” pins/socket-contacts ............. 20

Table 1 – Relationship between rated power and connectable nominal cross-sectional

areas or American Wire Gauge (AWG) size of copper conductors ........................................... 9

---------------------- Page: 4 ----------------------
IEC TS 62735-2:2016 © IEC 2016 – 3 –

Table 2 – Values for pull test for screw-type terminals ............................................................ 9

Table 3 – Composition of conductors for plugs ........................................................................ 9

Table 5 – Relationship between rated power and connectable cross-sectional areas or

AWG size of copper conductors for screwless terminals ....................................................... 10

Table 6 – Value for pull test for screwless-type terminals ...................................................... 10

Table 7 – Values for flexing under mechanical load test for copper conductors ..................... 10

Table 8 – Test current for the verification of electrical and thermal stresses in normal

use for screwless terminals ................................................................................................... 10

Table 9 – Nominal cross-sectional areas or AWG size of rigid copper conductors for

deflection test of screwless terminals .................................................................................... 11

Table 10 – Deflection test forces ........................................................................................... 11

Table 14 – External cable dimension limits for surface-type socket-outlets ........................... 11

Table 15 – Nominal cross-sectional areas of copper conductors and test currents for

the temperature rise test ....................................................................................................... 13

Table 16 – Maximum and minimum withdrawal force for plugs and socket-outlets ................. 15

Table 17 – External dimensions of flexible cables to be accommodated by cord

anchorages ........................................................................................................................... 15

Table 18 – Torque test values for cord anchorages ............................................................... 15

Table 19 – Maximum dimensions of flexible cables to be accommodated in rewirable

accessories .......................................................................................................................... 16

---------------------- Page: 5 ----------------------
– 4 – IEC TS 62735-2:2016 © IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DIRECT CURRENT (DC) PLUGS AND SOCKET-OUTLETS FOR
INFORMATION AND COMMUNICATION TECHNOLOGY (ICT) EQUIPMENT
INSTALLED IN DATA CENTRES AND TELECOM CENTRAL OFFICES –
Part 2: Plug and socket-outlet system for 5,2 kW
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. In

exceptional circumstances, a technical committee may propose the publication of a technical

specification when

• the required support cannot be obtained for the publication of an International Standard,

despite repeated efforts, or

• the subject is still under technical development or where, for any other reason, there is the

future but no immediate possibility of an agreement on an International Standard.

Technical specifications are subject to review within three years of publication to decide

whether they can be transformed into International Standards.

IEC TS 62735-2, which is a technical specification, has been prepared by IEC technical

committee 23: Electrical accessories.
---------------------- Page: 6 ----------------------
IEC TS 62735-2:2016 © IEC 2016 – 5 –
This technical specification is to be used in conjunction with IEC 62735-1:2015.
The text of this technical specification is based on the following documents:
Enquiry draft Report on voting
23/743/DTS 23/745A/RVC

Full information on the voting for the approval of this technical specification can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

This Part 2 supplements or modifies the corresponding clauses in IEC 62735-1 so as to

convert that publication into the IEC technical specification: Direct current (DC) plugs and

socket-outlets for information and communication technology (ICT) equipment installed in data

centres and telecom central offices.

Where this Part 2 states "addition", "modification" or "replacement", the relevant requirement,

test specification or explanatory matter in Part 1 should be adapted accordingly.

Where no change is necessary, this Part 2 indicates that the relevant clause or subclause

applies.
In this publication:
1) The following print types are used:
– Requirements proper: in roman type.
– Test specifications: in italic type.

2) Subclauses, notes, tables or figures which are additional to those in Part 1 are numbered

starting from 101 and additional list items are numbered from aa). Additional annexes are

lettered AA, BB, etc.

A list of all parts in the IEC 62735 series, published under the general title Direct current (DC)

plugs and socket-outlets for information and communication technology (ICT) equipment

installed in data centres and telecom central offices, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• transformed into an International standard,
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
---------------------- Page: 7 ----------------------
– 6 – IEC TS 62735-2:2016 © IEC 2016
DIRECT CURRENT (DC) PLUGS AND SOCKET-OUTLETS FOR
INFORMATION AND COMMUNICATION TECHNOLOGY (ICT) EQUIPMENT
INSTALLED IN DATA CENTRES AND TELECOM CENTRAL OFFICES –
Part 2: Plug and socket-outlet system for 5,2 kW
1 Scope
This clause of Part 1 is applicable except as follows:
Replacement:
Replace the first paragraph with the following:

This part of IEC 62735, which is a technical specification, applies to plugs and fixed socket-

outlets for class I equipment with two active contacts plus an earthing contact, a rated power

of 5,2 kW and a rated voltage range from 294 V to 400 V d.c. They are intended to power d.c.

information and communication technology equipment only.

The 2,6 kW system complying with Part 1 is safely compatible with the system complying with

this part as it is possible to insert the 2,6 kW plug in the 5,2 kW socket-outlet but it is not

possible to in
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
