IEC 62153-4-16:2016
(Main)Metallic communication cable test methods - Part 4-16: Electromagnetic compatibility (EMC) - Extension of the frequency range to higher frequencies for transfer impedance and to lower frequencies for screening attenuation measurements using the triaxial set-up
Metallic communication cable test methods - Part 4-16: Electromagnetic compatibility (EMC) - Extension of the frequency range to higher frequencies for transfer impedance and to lower frequencies for screening attenuation measurements using the triaxial set-up
IEC 62153-4-16:2016(E) describes a method to extrapolate the test results of transfer impedance to higher frequencies and the test results of screening attenuation to lower frequencies when measured with the triaxial set-up according to IEC 62153-4-3 (method B) respectively IEC 62153-4-4. A similar approach to extrapolate the test results of transfer impedance to higher frequencies was already described in IEC 61196-1:1995 Subclause 12.2. This method is applicable for homogenous screens, i.e. screens having a transfer impedance directly proportional to length. The transfer impedance may have any frequency behaviour, i.e. it could have a behaviour where it does not increase with 20 dB per decade as observed for screens made of a foil and a braid.
General Information
Relations
Buy Standard
Standards Content (Sample)

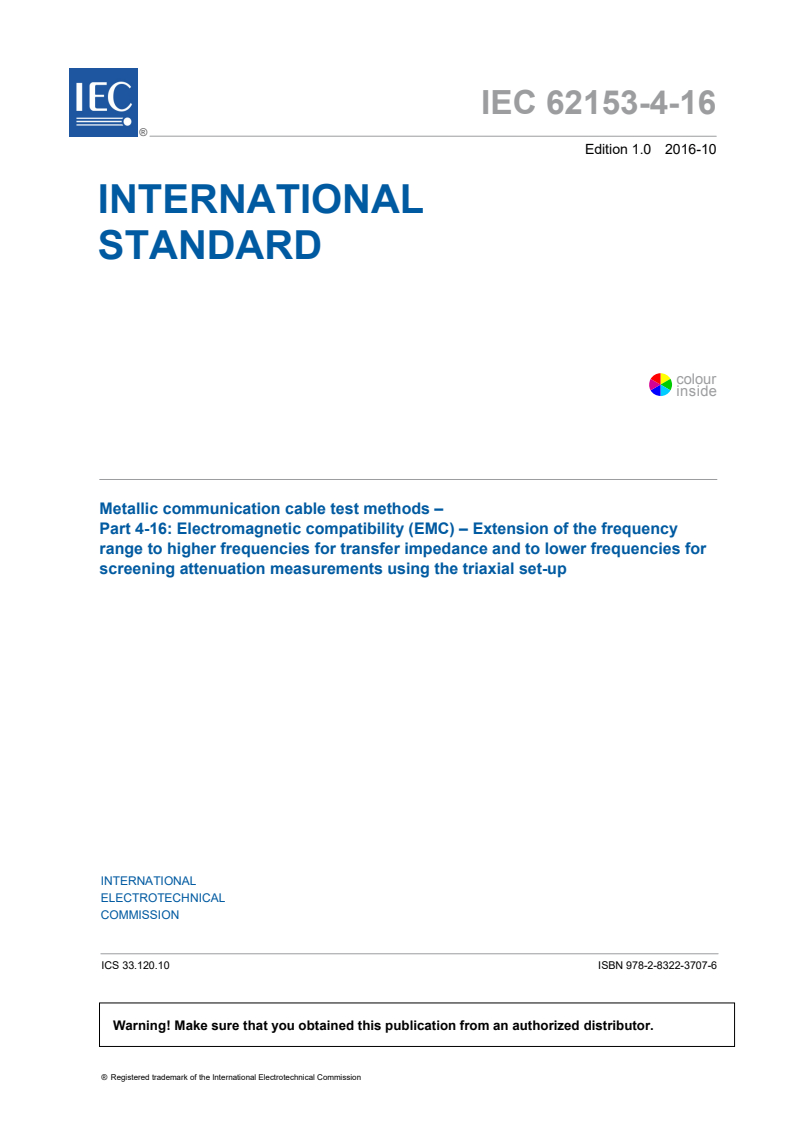

IEC 62153-4-16 ®
Edition 1.0 2016-10
INTERNATIONAL
STANDARD
colour
inside
Metallic communication cable test methods –
Part 4-16: Electromagnetic compatibility (EMC) – Extension of the frequency
range to higher frequencies for transfer impedance and to lower frequencies for
screening attenuation measurements using the triaxial set-up
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC 62153-4-16 ®
Edition 1.0 2016-10
INTERNATIONAL
STANDARD
colour
inside
Metallic communication cable test methods –
Part 4-16: Electromagnetic compatibility (EMC) – Extension of the frequency
range to higher frequencies for transfer impedance and to lower frequencies for
screening attenuation measurements using the triaxial set-up
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.120.10 ISBN 978-2-8322-3707-6
– 2 – IEC 62153-4-16:2016 © IEC 2016

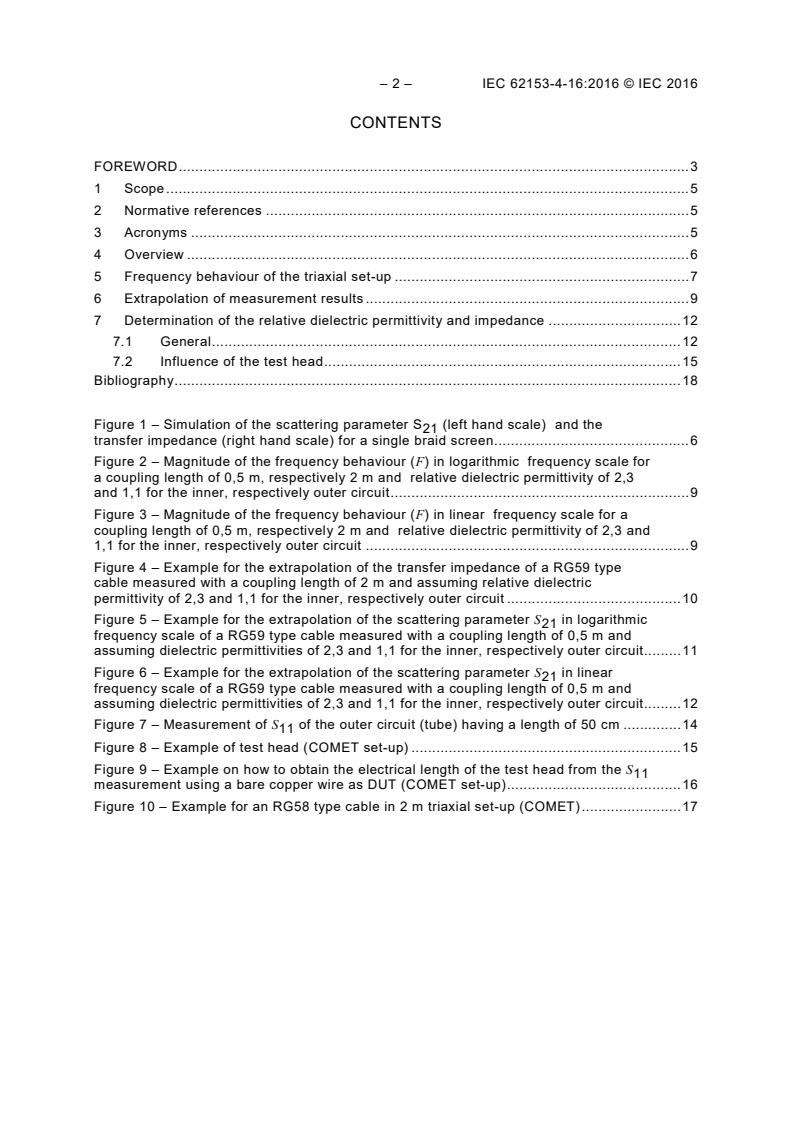

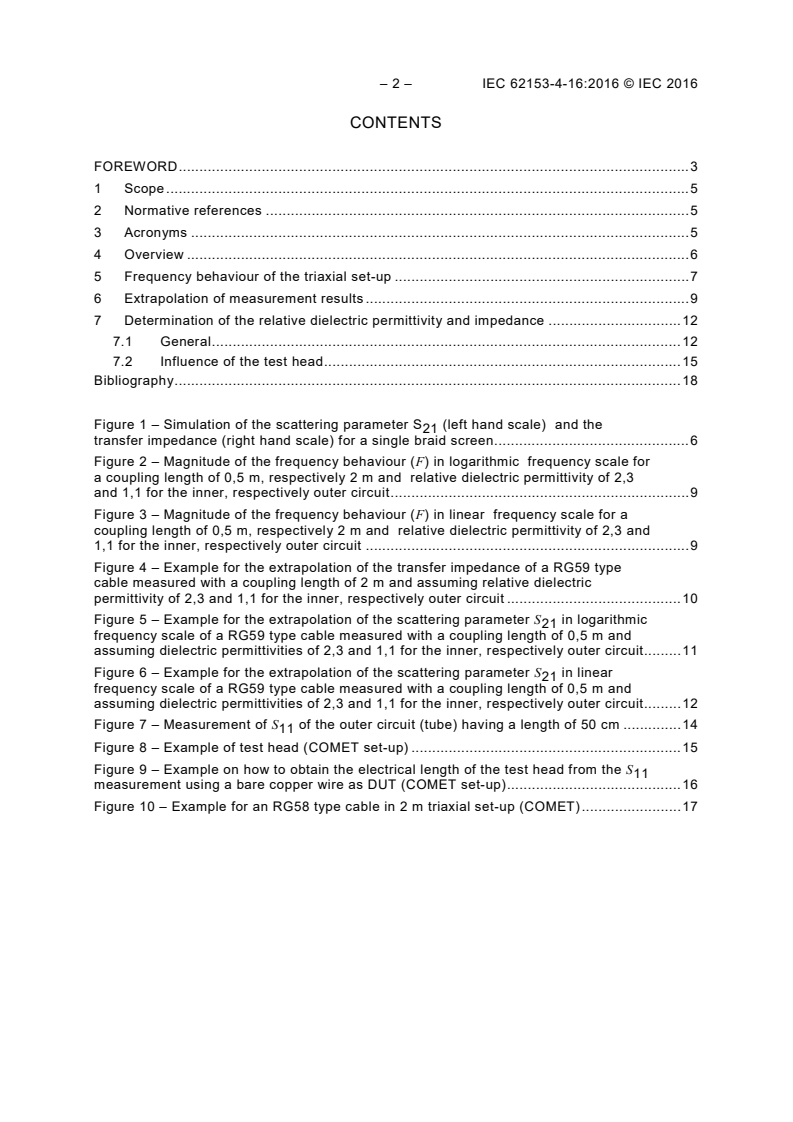

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Acronyms . 5
4 Overview . 6
5 Frequency behaviour of the triaxial set-up . 7
6 Extrapolation of measurement results . 9
7 Determination of the relative dielectric permittivity and impedance . 12
7.1 General . 12
7.2 Influence of the test head . 15
Bibliography . 18
Figure 1 – Simulation of the scattering parameter S (left hand scale) and the
transfer impedance (right hand scale) for a single braid screen. 6
Figure 2 – Magnitude of the frequency behaviour (F) in logarithmic frequency scale for
a coupling length of 0,5 m, respectively 2 m and relative dielectric permittivity of 2,3
and 1,1 for the inner, respectively outer circuit . 9
Figure 3 – Magnitude of the frequency behaviour (F) in linear frequency scale for a
coupling length of 0,5 m, respectively 2 m and relative dielectric permittivity of 2,3 and
1,1 for the inner, respectively outer circuit . 9
Figure 4 – Example for the extrapolation of the transfer impedance of a RG59 type
cable measured with a coupling length of 2 m and assuming relative dielectric
permittivity of 2,3 and 1,1 for the inner, respectively outer circuit . 10
Figure 5 – Example for the extrapolation of the scattering parameter S in logarithmic
frequency scale of a RG59 type cable measured with a coupling length of 0,5 m and
assuming dielectric permittivities of 2,3 and 1,1 for the inner, respectively outer circuit . 11
Figure 6 – Example for the extrapolation of the scattering parameter S in linear
frequency scale of a RG59 type cable measured with a coupling length of 0,5 m and
assuming dielectric permittivities of 2,3 and 1,1 for the inner, respectively outer circuit . 12
Figure 7 – Measurement of S of the outer circuit (tube) having a length of 50 cm . 14
Figure 8 – Example of test head (COMET set-up) . 15
Figure 9 – Example on how to obtain the electrical length of the test head from the S
measurement using a bare copper wire as DUT (COMET set-up) . 16
Figure 10 – Example for an RG58 type cable in 2 m triaxial set-up (COMET) . 17
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
METALLIC COMMUNICATION CABLE TEST METHODS –
Part 4-16: Electromagnetic compatibility (EMC) –
Extension of the frequency range to higher frequencies
for transfer impedance and to lower frequencies for screening
attenuation measurements using the triaxial set-up
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62153-4-16 has been prepared by IEC technical committee 46:
Cables, wires, waveguides, RF connectors, RF and microwave passive components and
accessories.
The text of this standard is based on the following documents:
FDIS Report on voting
46/615/FDIS 46/622/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
– 4 – IEC 62153-4-16:2016 © IEC 2016
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62153 series, published under the general title Metallic
communication cable test methods, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
METALLIC COMMUNICATION CABLE TEST METHODS –
Part 4-16: Electromagnetic compatibility (EMC) –
Extension of the frequency range to higher frequencies
for transfer impedance and to lower frequencies for screening
attenuation measurements using the triaxial set-up
1 Scope
This part of IEC 62153 describes a method to extrapolate the test results of transfer
impedance to higher frequencies and the test results of screening attenuation to lower
frequencies when measured with the triaxial set-up according to IEC 62153-4-3 (method B)
respectively IEC 62153-4-4. A similar approach to extrapolate the test results of transfer
impedance to higher frequencies was already described in IEC 61196-1:1995 Subclause 12.2.
This method is applicable for homogenous screens, i.e. screens having a transfer impedance
directly proportional to length. The transfer impedance may have any frequency behaviour,
i.e. it could have a behaviour where it does not increase with 20 dB per decade as observed
for screens made of a foil and a braid.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC TS 62153-4-1:2014, Metallic communication cable test methods – Part 4-1:
Electromagnetic compatibility (EMC) – Introduction to electromagnetic screening
measurements
IEC 62153-4-3, Metallic communication cable test methods – Part 4-3: Electromagnetic
compatibility (EMC) – Surface transfer impedance – Triaxial method
IEC 62153-4-4, Metallic communication cable test methods – Part 4-4: Electromagnetic
compatibility (EMC) – Test method for measuring of the screening attenuation as up to and
above 3 GHz, triaxial method
IEC 61156-1:2007, Multicore and symmetrical pair/quad cables for digital communications –
Part 1: Generic specification
IEC 61156-1:2007/AMD1:2009
IEC TR 62152:2009, Transmission properties of cascaded two-ports or quadripols –
Background of terms and definitio
...
