IEC 62196-3:2022

Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 3: Dimensional compatibility requirements for DC and AC/DC pin and contact-tube vehicle couplers

IEC 62196-3:2022 is applicable to vehicle couplers with pins and contact tubes of standardized configuration, herein also referred to as "accessories", intended for use in electric vehicle conductive charging systems which incorporate control means, with rated operating voltage and current in accordance with IEC 62196-1:2022.
This second edition cancels and replaces the first edition published in 2014. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
interchangeability requirements have been removed from the title of Part 3;
increased ratings for all configurations;
reference to new tests in IEC 62196-1 (Clauses 34, 35, 36 and 37).

Fiches, socles de prise de courant, prises mobiles de vehicule et socles de connecteur de véhicule - Charge conductive des véhicules électriques - Partie 3: Exigences dimensionnelles de compatibilité pour les prises de courant de véhicule à broches et alvéoles pour courant continu et pour courants alternatif et continu

L’IEC 62196-3:2022 s’applique aux prises de courant de véhicule à broches et alvéoles de configurations normalisées, ci-après dénommés "appareils", destinés à être utilisés dans les systèmes de charge conductive des véhicules électriques (VE) qui intègrent un dispositif de commande, avec une tension assignée d’emploi et un courant assigné d’emploi conformes à l’IEC 62196-1:2022.
Cette seconde édition annule et remplace la première édition parue en 2014. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
les exigences d’interchangeabilité ont été retirées du titre de la Partie 3;
augmentation des caractéristiques assignées pour toutes les configurations;
référence aux nouveaux essais de l’IEC 62196-1 (Articles 34, 35, 36 et 37).

General Information

• Status: Published
• Publication Date: 18-Oct-2022
• ICS: 29.120.30 - Plugs, socket-outlets, couplers
• ICS: 43.120 - Electric road vehicles
• Technical Committee: SC 23H - Plugs, Socket-outlets and Couplers for industrial and similar applications, and for Electric Vehicles
• Drafting Committee: MT 8 - TC 23/SC 23H/MT 8
• Current Stage: PPUB - Publication issued
• Start Date: 19-Oct-2022
• Completion Date: 20-May-2022

Relations

• Revises: IEC 62196-3:2014 - Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 3: Dimensional compatibility and interchangeability requirements for d.c. and a.c./d.c. pin and contact-tube vehicle couplers
• Effective Date: 05-Sep-2023

IEC 62196-3:2022 Overview

The IEC 62196-3:2022 standard, published by the International Electrotechnical Commission (IEC), specifies dimensional compatibility requirements for DC and AC/DC pin and contact-tube vehicle couplers used in conductive charging of electric vehicles (EVs). This second edition supersedes the 2014 version, introducing technical revisions including increased electrical ratings and updated testing methods aligned with IEC 62196-1:2022.

The standard applies to vehicle couplers, incorporating pins and contact tubes of standardized configurations-referred to as “accessories”-designed for conductive charging systems with rated voltage and current aligned to IEC 62196-1:2022. It covers plugs, socket-outlets, vehicle connectors, and inlets to ensure reliable and safe connections between EVs and charging infrastructure.

Key Topics

• Dimensional Compatibility: Defines precise physical dimensions and tolerances for pins and contact tubes to ensure interchangeability and proper fit.
• Electrical Ratings: Updates ratings for voltage and current to accommodate advancements in electric vehicle charging technology.
• Control and Safety Features: Includes requirements for control means embedded in connectors to prevent electric shock and ensure operational safety.
• Material and Durability: Standards for rubber and thermoplastic materials used in connectors to resist aging, heat, fire, corrosion, and mechanical stresses.
• Interlocks and Protection: Specifications for interlocking mechanisms and protective measures to avoid accidental disconnection or exposure to live parts.
• Testing Procedures: Integration of updated testing criteria for thermal cycling, humidity exposure, misalignment, contact endurance, and other reliability assessments as specified in IEC 62196-1 (Clauses 34 to 37).
• Connector Classifications and Markings: Definitions for accessory classifications with detailed marking requirements to support identification and compliance.
• Compliance and Safety: Guidelines to enhance compatibility, safety, and functionality in EV conductive charging interfaces worldwide.

Applications

IEC 62196-3:2022 is essential for manufacturers, designers, and regulatory bodies involved in the development and deployment of electric vehicle charging equipment. Its practical applications include:

• Designing standardized plugs, sockets, and connectors that ensure seamless and safe DC and AC/DC conductive charging for a variety of EV models and charging stations.
• Facilitating global interoperability and compatibility among EVs and charging infrastructure by harmonizing dimensional and electrical requirements.
• Supporting enhanced safety protocols by defining protective and interlocking features to prevent electrical hazards during vehicle charging.
• Enabling increased charging efficiency with updated electrical ratings tailored for the latest EV technologies.
• Assisting certification bodies and testing laboratories in verifying compliance with up-to-date standards for vehicle connectors and inlets.
• Guiding manufacturers in material selection and construction to improve durability and lifespan of EV charging components.
• Helping automotive and charging station sectors meet regulatory requirements for EV conductive charging systems across different regions.

Related Standards

• IEC 62196-1:2022: General requirements for plugs, socket-outlets, vehicle connectors, and vehicle inlets used in conductive EV charging systems, serving as the foundational document supplemented by Part 3.
• IEC 61851 series: Standards specifying requirements for EV conductive supply equipment, covering the overall system and interface safety.
• ISO/IEC Directives: Framework for the development of this and other related international standards ensuring consistency and quality in technical specifications.
• Electropedia (IEC Online Dictionary): Provides terminology definitions relevant to EV charging and connector technologies.

By adhering to IEC 62196-3:2022, stakeholders in the electric vehicle ecosystem promote standardization, safety, and interoperability in conductive charging infrastructure-key factors driving the global transition to sustainable transportation.

Standards Content (Sample)

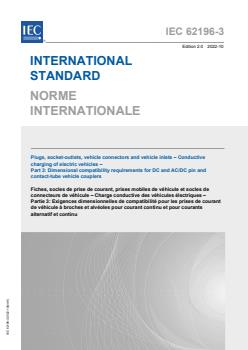

IEC 62196-3 ®
Edition 2.0 2022-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive
charging of electric vehicles –
Part 3: Dimensional compatibility requirements for DC and AC/DC pin and
contact-tube vehicle couplers
Fiches, socles de prise de courant, prises mobiles de véhicule et socles de
connecteurs de véhicule – Charge conductive des véhicules électriques –
Partie 3: Exigences dimensionnelles de compatibilité pour les prises de courant
de véhicule à broches et alvéoles pour courant continu et pour courants
alternatif et continu
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 300 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
19 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].

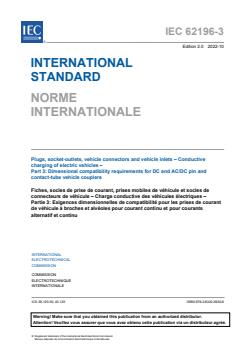

IEC 62196-3 ®
Edition 2.0 2022-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive

charging of electric vehicles –

Part 3: Dimensional compatibility requirements for DC and AC/DC pin and

contact-tube vehicle couplers
Fiches, socles de prise de courant, prises mobiles de véhicule et socles de

connecteurs de véhicule – Charge conductive des véhicules électriques –

Partie 3: Exigences dimensionnelles de compatibilité pour les prises de courant

de véhicule à broches et alvéoles pour courant continu et pour courants

alternatif et continu
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.30; 43.120 ISBN 978-2-8322-5930-6

– 2 – IEC 62196-3:2022 © IEC 2022

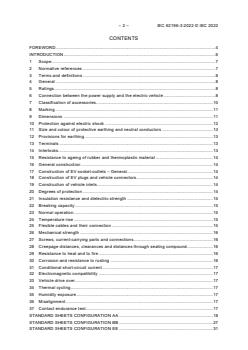

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 General . 8
5 Ratings . 8
6 Connection between the power supply and the electric vehicle . 8
7 Classification of accessories. 10
8 Marking . 11
9 Dimensions . 11
10 Protection against electric shock . 12
11 Size and colour of protective earthing and neutral conductors . 13
12 Provisions for earthing . 13
13 Terminals . 13
14 Interlocks. 13
15 Resistance to ageing of rubber and thermoplastic material . 14
16 General construction . 14
17 Construction of EV socket-outlets – General . 14
18 Construction of EV plugs and vehicle connectors . 14
19 Construction of vehicle inlets . 14
20 Degrees of protection . 14
21 Insulation resistance and dielectric strength . 15
22 Breaking capacity . 15
23 Normal operation . 15
24 Temperature rise . 15
25 Flexible cables and their connection . 15
26 Mechanical strength . 16
27 Screws, current-carrying parts and connections . 16
28 Creepage distances, clearances and distances through sealing compound . 16
29 Resistance to heat and to fire . 16
30 Corrosion and resistance to rusting . 16
31 Conditional short-circuit current . 17
32 Electromagnetic compatibility . 17
33 Vehicle drive over . 17
34 Thermal cycling . 17
35 Humidity exposure . 17
36 Misalignment . 17
37 Contact endurance test . 17
STANDARD SHEETS CONFIGURATION AA . 18
STANDARD SHEETS CONFIGURATION BB . 27
STANDARD SHEETS CONFIGURATION EE . 31

STANDARD SHEETS CONFIGURATION FF . 45
Annex A (informative) Legacy drawings from IEC 62196-3:2014 . 60
Bibliography . 66

Table 301 – Overview of the DC vehicle interface . 9
Table 302 – Overview of the combined AC/DC vehicle interface . 10
Table 303 – Interface overview . 12
Table 304 – Functionality of the contacts for configuration EE . 31
Table 305 – Functionality of the contacts for DC configuration FF . 45

– 4 – IEC 62196-3:2022 © IEC 2022
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PLUGS, SOCKET-OUTLETS, VEHICLE CONNECTORS AND VEHICLE
INLETS – CONDUCTIVE CHARGING OF ELECTRIC VEHICLES –

Part 3: Dimensional compatibility requirements
for DC and AC/DC pin and contact-tube vehicle couplers

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 62196-3 has been prepared by subcommittee 23H: Plugs, socket-outlets, and couplers for
industrial and similar applications, and for electric vehicles, of IEC technical committee 23:
Electrical accessories. It is an International Standard.
This second edition cancels and replaces the first edition published in 2014. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) interchangeability requirements have been removed from the title of Part 3;
b) increased ratings for all configurations;
c) reference to new tests in IEC 62196-1 (Clauses 34, 35, 36 and 37).

The text of this International Standard is based on the following documents:
Draft Report on voting
23H/500/FDIS 23H/504/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all the parts in the IEC 62196 series, published under the general title Plugs,
socket-outlets, vehicle connectors and vehicle inlets – Conductive charging of electric vehicles,
can be found on the IEC website.
This document is to be read in conjunction with IEC 62196-1:2022. The clauses of the particular
requirements in this document supplement or modify the corresponding clauses in
IEC 62196-1:2022. Where the text indicates an "addition" to or a "replacement" of the relevant
requirement, test specification or explanation of IEC 62196-1:2022, these changes are made to
the relevant text of IEC 62196-1:2022, which then becomes part of this document. Where no
change is necessary, the words "Clause X of IEC 62196-1:2022 is applicable" are used.
Subclauses, figures, tables, or notes which are additional to those in IEC 62196-1:2022 are
numbered starting from 301.
In this document, the following print types are used:
– requirements proper: in roman type;
– test specifications: in italic type;
– notes: in smaller roman type.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 62196-3:2022 © IEC 2022
INTRODUCTION
IEC 61851 (all parts) specifies requirements for electric vehicle (EV) conductive supply
equipment.
IEC 62196 (all parts) specifies the requirements for plugs, socket-outlets, vehicle connectors,
vehicle inlets and cable assemblies as described in IEC 61851 (all parts).
Charging using off-board DC charging equipment can be achieved by the direct connection of
an electric vehicle to DC EV supply equipment incorporating control and communication circuits.
To support the connection of DC power for such vehicles, this document provides the standard
interface configurations of DC vehicle couplers and accessories to be used in conductive
charging of electric vehicles, taking the most frequent charging situations into consideration.
IEC 62196 is divided into several parts as follows:
– Part 1: General requirements, comprising clauses of a general character.
– Part 2: Dimensional compatibility requirements for AC pin and contact-tube accessories.
– Part 3: Dimensional compatibility requirements for DC and AC/DC pin and contact-tube
vehicle couplers.
– Part 3-1: Vehicle connector, vehicle inlet and cable assembly intended to be used with a
thermal management system for DC charging.
– Part 4: Dimensional compatibility requirements for DC pin and contact-tube accessories for
Class II or Class III applications.
– Part 6: Dimensional compatibility requirements for DC pin and contact-tube couplers for
applications using a system of protective electrical separation.

PLUGS, SOCKET-OUTLETS, VEHICLE CONNECTORS AND VEHICLE
INLETS – CONDUCTIVE CHARGING OF ELECTRIC VEHICLES –

Part 3: Dimensional compatibility requirements
for DC and AC/DC pin and contact-tube vehicle couplers

1 Scope
This part of IEC 62196 is applicable to vehicle couplers with pins and contact tubes of
standardized configuration, herein also referred to as "accessories", intended for use in electric
vehicle conductive charging systems which incorporate control means, with rated operating
voltage and current in accordance with IEC 62196-1:2022.
This document applies to high power DC interfaces and combined AC/DC interfaces of vehicle
couplers that are intended for use in conductive charging systems for circuits specified in
IEC 61851-1:2017 and IEC 61851-23:— .
The DC vehicle connectors and inlets covered by this document are used only in charging
mode 4, according to IEC 61851-1:2017, 6.2.4, and case C, as shown in IEC 61851-1:2017,
Figure 3.
These vehicle couplers are intended to be used for circuits specified in IEC 61851-23:— which
operate at different voltages, and which can include ELV and communication signals.
This document applies to the vehicle couplers to be used in an ambient temperature between
–30 °C and +40 °C.
NOTE 1 In some countries, other requirements may apply.
NOTE 2 In the following country, −35 °C applies: SE.
These vehicle couplers are intended to be connected only to cables with copper or copper-alloy
conductors.
2 Normative references
Clause 2 of IEC 62196-1:2022 applies, except as follows.
Additional normative references:
IEC 60364-5-54:2011, Low-voltage electrical installations – Part 5-54: Selection and erection
of electrical equipment – Earthing arrangements and protective conductors
IEC 62196-1:2022, Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive
charging of electric vehicles – Part 1: General requirements
IEC 62196-2:2022, Plugs, socket-outlets, vehicle connectors and vehicle inlets – Conductive
charging of electric vehicles – Part 2: Dimensional compatibility requirements for AC pin and
contact-tube accessories
____________
Second edition under preparation. Stage at the time of publication: IEC PRVC 61851-23:2022.

– 8 – IEC 62196-3:2022 © IEC 2022
3 Terms and definitions
Clause 3 of IEC 62196-1:2022 applies.
4 General
Clause 4 of IEC 62196-1:2022 applies except as follows:
Addition:
Accessories of the combined interface for AC/DC type intended for use with AC shall comply
with the ratings and requirements of IEC 62196-2:2022.
5 Ratings
Clause 5 of IEC 62196-1:2022 applies, except as follows:
Addition:
5.2.2 Rated current for signal or control purposes
Add the following text at the end of Subclause 5.2.2:
For configuration AA, control pilot contacts are rated 30 V, 10 A. The auxiliary power supply
may consist of a safety extra-low voltage system circuit.
Add the following new subclause:
5.301 Rated current for auxiliary power supply contacts
For configuration BB, auxiliary power supply contacts are rated 30 V, 20 A. The auxiliary power
supply may consist of a safety extra-low voltage system circuit.
6 Connection between the power supply and the electric vehicle
Clause 6 of IEC 62196-1:2022 applies, except as follows:
6.2 Basic interface
Not applicable.
6.3 DC interface
Replacement:
Replace the existing text of IEC 62196-1:2022, 6.3 with the following:
The DC interface may contain up to 12 power or signal contacts, with only one physical
configuration of contact positions. The electrical ratings and contact functions are described in
Table 301.
Table 301 – Overview of the DC vehicle interface
Configuration
AA BB
Position
a
number
U I U I
max max max max
Symbol Function
V A V A
1 1 000 400 950 250 DC + DC +
2 1 000 400 950 250
DC − DC −
3 30 10 30 2 CP Control Pilot 1
4 30 10 30 2 CP2 Control Pilot 2
5 30 10 - - CP3 Control Pilot 3
6 30 2 30 2 COM1 Communication 1 (+)
7 30 2 30 2 COM2 Communication 1 (−)
8 30 2 - - IM Isolation Monitor
9 - - 950 Rated PE Protective earth
b
for fault
10 30 2 - - PP or CS Proximity detection or
connection switch
c c
11 30 20 AUX1 Auxiliary Power Supply 1 (+)
30 10
12 - - 30 20 AUX2
Auxiliary Power Supply 1 (−)
a
Position number does not refer to the location and/or identification of the contact in the accessory.
b
"Rated for fault" means "rated for the highest fault current".
c
For system AA, position 11 is optional.

DC vehicle interfaces shall be used in a system according to IEC 61851-23:—, Annex AA "DC
EV supply equipment of System A" or Annex BB "DC EV supply equipment of System B",
respectively. See the corresponding standard sheets for additional interface details.
For use with non-isolated DC EV supply equipment, the interface shall be provided with a
contact for protective earthing conductors.
For use with isolated DC EV supply equipment, the interface may be provided with a contact
for protective earthing conductors.
6.4 Combined interface
Replacement:
Replace the existing text of IEC 62196-1:2022, 6.4 with the following:
A combined interface extends the use of a basic interface for AC and DC charging.
The combined interface permits AC or DC energy through separate power contacts. The
electrical ratings and their function are described in Table 302.

– 10 – IEC 62196-3:2022 © IEC 2022
Table 302 – Overview of the combined AC/DC vehicle interface
Configuration EE Configuration FF
Position
U I U I
max max max max
a
number
Symbol Function Symbol Function
V A V A
b b c c,e
1 L1 L1 L1 L1
250 32 480 63
b b c c
2 L2 L2/N L2 L2
250 32 480 63
c c
3 – – – – 480 63 L3 L3
c c,e
4 – – – – 480 63 N Neutral
Protective Protective
f f
5 – PE – PE
– –
earth earth
d d d d
6 CP Control pilot CP Control pilot
30 2 30 2
Proximity Proximity
detection or detection or
d d d d
7 PP or CS PP or CS
30 2 30 2
connection connection
switch switch
8 1 000 400 DC+ DC+ 1 000 400 DC+ DC+
9 1 000 400 DC− DC− 1 000 400 DC− DC−
a
Position number does not refer to the location and/or identification of the contact in the accessory.
b
These contacts are only available in Configuration EE single-phase vehicle inlet. They may be used as portion
of basic interface, see IEC 62196-2:2022, Standard Sheets 2-I.
c
These contacts are optional in Configuration FF. They may be used as a portion of basic interface, see
IEC 62196-2:2022, Standard Sheets 2-II.
d
These contacts may be used as basic interface. For requirements for basic interface see IEC 62196-2:2022,
Standard Sheets 2-I and 2-II.
e
Contacts 1 and 4 for single phase rated I = 70 A.
max
f
Conductor size dependent upon system requirements.

The basic portion of the combined vehicle inlet can be used with a basic connector for either
AC charging or with a combined vehicle connector for DC charging.
Combined couplers shall only be used for DC charging with the "DC EV supply equipment of
System C" described in IEC 61851-23:—, Annex CC.
NOTE 1 Implementation of all aspects (i.e., topology and communication) according to IEC 61851-23:—, Annex CC
ensures that:
This system allows DC charging but prevents AC and DC charging at the same time.
– AC chargeable EVs with a basic vehicle inlet do not need any means to protect themselves against DC voltage
at the inlet. This protection is provided by the DC charging system.
– Vehicle protection against mischarging in case of fault is provided in accordance with ISO 17409:2020.
NOTE 2 If the AC or DC ratings of a mating connector and inlet differ, the coupler (mating pair) is used at the lower
rating of either the vehicle connector or vehicle inlet of the mating accessory.
7 Classification of accessories
Clause 7 of IEC 62196-1:2022 applies, except as follows:

7.1 According to purpose
Replacement:
Replace the existing text of IEC 62196-1:2022, 7.1 with the following:
– vehicle connectors;
– vehicle inlets.
7.5 According to interface
Replacement:
Replace the existing text of IEC 62196-1:2022, 7.5 with the following:
As specified in Clause 6 of this document and in IEC 61851-1:2017:
– combined interface;
– DC interface.
Addition:
Additional subclause:
7.301 According to the standard sheets used
– Configuration AA;
– Configuration BB;
– Configuration EE and AC corresponding to Type 1 in IEC 62196-2:2022;
– Configuration FF and AC corresponding to Type 2 in IEC 62196-2:2022.
8 Marking
Clause 8 of IEC 62196-1:2022 applies.
9 Dimensions
Clause 9 of IEC 62196-1:2022 applies, except as follows:
Addition:
Add the following text at the end of Clause 9 of IEC 62196-1:2022.
The vehicle connector and vehicle inlet shall comply with the relevant configuration shown in
Table 303.
– 12 – IEC 62196-3:2022 © IEC 2022
Table 303 – Interface overview
Shall only be used with DC
Max. rated Max. rated
Dimensions charging station according to
Configuration voltage current
described in: the following annexes in
V DC A DC
IEC 61851-23:—
AA Standard Sheets 3-I 1 000 400 Annex AA
BB Standard Sheets 3-II 950 250 Annex BB
a
Standard Sheets 3-III 1 000 400 Annex CC
EE
b
FF Standard Sheets 3-IV 1 000 400 Annex CC
a
AC ratings are in accordance with IEC 62196-2:2022, 6.2, type 1.
b
AC ratings are in accordance with IEC 62196-2:2022, 6.2, type 2.

10 Protection against electric shock
Clause 10 of IEC 62196-1:2022 applies, except as follows:
10.3 Contact sequencing and order of contact insertion and withdrawal
Replacement:
Replace the existing text of IEC 62196-1:2022, 10.3 with the following:
For all DC interfaces, the contact sequence during the connection process shall be:
– protective earth (if any),
– DC power contacts,
– isolation monitor contacts,
– control pilot contact.
The isolation monitor contacts and the control pilot contacts shall mate in the sequence shown
or can mate simultaneously.
The proximity contact or the connection switch contact, if any, shall mate after the protective
earth contact and before or simultaneously with the control pilot contact.
During disconnection the order shall be reversed.
Accessories shall be so designed that:
a) when inserting the vehicle connector:
1) the protective earth connection is made before the DC power contacts, if any, are
made;
2) the control pilot connection, if any, is made after the DC power contacts are made;
3) the proximity contact or connection switch contact, if any, is made after the protective
earth contact and before or simultaneously as the control pilot is made.
b) when withdrawing the vehicle connector:
1) the DC power contacts are broken before the protective earth connection is broken;
2) the control pilot connection, if any, is broken before the DC power contacts are broken;
3) the proximity contact or connection switch contact, if any, is broken before the
protective earth contact and after or simultaneously as the control pilot is opened.

Compliance is checked by inspection and manual test, if required.
11 Size and colour of protective earthing and neutral conductors
Clause 11 of IEC 62196-1:2022 applies for the AC portion.
Additional subclauses:
11.301 For the DC portion, the following applies.
The protective earthing conductor shall be of sufficient cross-sectional area calculated by the
I t-methodology according to the formula in IEC 60364-5-54:2011, 543.1.2.
The I t-values for the respective system, used in the calculation above, shall be according to
the manufacturer’s data sheet.
NOTE 1 In the following country, the size and rating of the protective conductor is specified in national codes and
regulations: CA.
NOTE 2 At the time of publication of this document, ISO 17409 provides higher I t-values. For example, for
conductors with a crosslinked insulation and a maximum short circuit temperature of 250 °C, a minimum cross-section
of 25 mm appplies.
The conductor connected to the protective earthing terminal shall be identified by the colour
combination green-and-yellow.
NOTE 3 In the following countries, the colour green may be used to identify the earthing conductor: JP, US, CA.
12 Provisions for earthing
Clause 12 of IEC 62196-1:2022 applies, except as follows:
12.1 This subclause is not applicable for configuration AA.
12.2 This subclause is not applicable for configuration AA.
12.3 This subclause is not applicable for configuration AA.
12.4 This subclause is not applicable for configuration AA.
13 Terminals
Clause 13 of IEC 62196-1:2022 applies.
14 Interlocks
Clause 14 of IEC 62196-1:2022 applies, except as follows:
Additional subclause:
14.301 Latching function
Accessories shall be provided with a latching device to prevent the connection from being
separated unintentionally or by unauthorized persons.

– 14 – IEC 62196-3:2022 © IEC 2022
The interlock function shall be performed by the proper functioning of the latching device.
A means shall be provided to indicate that the interlock is properly engaged.
Compliance is checked by inspection and manual test.
15 Resistance to ageing of rubber and thermoplastic material
Clause 15 of IEC 62196-1:2022 applies.
16 General construction
Clause 16 of IEC 62196-1:2022 applies, except as follows.
16.16 Replacement
Replace the first paragraph of the existing text of IEC 62196-1:2022, 16.6 with the following:
The force to insert and withdraw a vehicle connector shall be less than 100 N. Means to facilitate
the insertion and withdrawal of the vehicle connector from the vehicle inlet may be provided. If
a vehicle coupler is equipped with an assist device to reduce this force (e.g. mechanical assist
device), the operating force of the assist device shall be less than 100 N.
17 Construction of EV socket-outlets – General
Clause 17 of IEC 62196-1:2022 does not apply.
18 Construction of EV plugs and vehicle connectors
Clause 18 of IEC 62196-1:2022 applies, except as follows:
Additional subclause:
18.301 A thermal sensing device is required on each DC+ and DC− contact in the vehicle
connector for DC charging.
19 Construction of vehicle inlets
Clause 19 of IEC 62196-1:2022 applies, except as follows:
Additional subclause:
19.301 A thermal sensing device is required on each DC+ and DC− contact in the vehicle inlet
for DC charging.
20 Degrees of protection
Clause 20 of IEC 62196-1:2022 applies.

21 Insulation resistance and dielectric strength
Clause 21 of IEC 62196-1:2022 applies.
22 Breaking capacity
Clause 22 of IEC 62196-1:2022 is not applicable.
23 Normal operation
Clause 23 of IEC 62196-1:2022 applies, except as follows:
23.2 Load endurance test
Not applicable.
24 Temperature rise
Clause 24 of IEC 62196-1:2022 applies, except as follows:
24.1 Addition:
Add the following after the first paragraph of the existing text of IEC 62196-1:2022, 24.1:
For the purposes of the temperature rise test, any thermal monitoring or thermal cut-out device
shall be short circuited (i.e. the test results shall be acceptable without relying on the thermal
monitoring or thermal cut-out).
Replacement:
Replace the fourth paragraph of the existing text of IEC 62196-1:2022, 24.1, i.e. "The test
current is shown in Table 10.", with the following:
The test current is a direct or alternating current of the value shown in Table 10 of
IEC 62196-1:2022.
25 Flexible cables and their connection
Clause 25 of IEC 62196-1:2022 applies except as follows:
Additional subclause:
25.301 Additional test for strain relief
Accessories shall be submitted to the additional following test:
Non-rewirable accessories are tested as delivered.
Rewirable accessories are tested with the maximum and minimum size cables recommended
by the manufacturer.
– 16 – IEC 62196-3:2022 © IEC 2022
Conductors of the cable of rewirable accessories are introduced into the terminals, the terminal
screws being tightened just sufficiently to prevent the conductors from easily changing their
position.
The cable anchorage is used in the normal way, clamping screws being tightened with a torque
equal to two-thirds of that specified in IEC 62196-1:2022, 27.1. After reassembly of the sample,
with cable glands, if any, in position, the component parts shall fit snugly, and it shall not be
possible to push the cable into the sample to any appreciable extent.
The sample is fixed in the test apparatus so that the axis of the cable is vertical where it enters
the sample.
The cable is then subjected once to a pull of 750 N. The pull is applied without jerks for a
duration of 1 min.
Immediately afterwards, the cable is subjected to a torque, of the value specified in
IEC 62196-1:2022, Table 11, for 1 min.
During the tests, the cable shall not be damaged.
After the tests, the cable shall not have been displaced by more than the values indicated in
IEC 62196-1:2022, Table 11. For rewirable accessories, the ends of the conductors shall not
have moved noticeably in the terminals; for non-rewirable accessories, there shall be no break
in the electrical connections.
For the measurement of the longitudinal displacement, a mark is made on the cable at a
distance of approximately 2 cm from the end of the sample or the cable anchorage before
starting the tests. If, for non-rewirable accessories, there is no definite end to the sample, an
additional mark is made on the body of the sample.
After the tests, the displacement of the mark on the cable in relation to the sample or the cable
anchorage is measured.
26 Mechanical strength
Clause 26 of IEC 62196-1:2022 applies.
27 Screws, current-carrying parts and connections
Clause 27 of IEC 62196-1:2022 applies.
28 Creepage distances, clearances and distances through sealing compound
Clause 28 of IEC 62196-1:2022 applies.
29 Resistance to heat and to fire
Clause 29 of IEC 62196-1:2022 applies.
30 Corrosion and resistance to rusting
Clause 30 of IEC 62196-1:2022 applies.

31 Conditional short-circuit current
Clause 31 of IEC 62196-1:2022 does not apply.
32 Electromagnetic compatibility
Clause 32 of IEC 62196-1:2022 applies.
33 Vehicle drive over
Clause 33 of IEC 62196-1:2022 applies, except as follows:
33.3 Not applicable.
33.4 Not applicable.
34 Thermal cycling
Clause 34 of IEC 62196-1:2022 applies.
35 Humidity exposure
Clause 35 of IEC 62196-1:2022 applies.
36 Misalignment
Clause 36 of IEC 62196-1:2022 applies.
37 Contact endurance test
Clause 37 of IEC 62196-1:2022 applies.

– 18 – IEC 62196-3:2022 © IEC 2022
STANDARD SHEETS
CONFIGURATION AA
VEHICLE COUPLER RATED 1 000 V DC AND UP TO 400 A
STANDARD SHEET 3-la
VEHICLE INLET
Sheet 1
Dimensions in millimetres
Dimensions in parentheses for reference

CONFIGURATION AA
STANDARD SHEET 3-la
VEHICLE INLET
Sheet 2 (continuation of Sheet 1)

General tolerance
10 max. 50 max. 100 max. Angle
±0,15 ±0,2 ±0,3 ±30°
Key (STANDARD SHEET 3-Ia)
① 8 min difference between power and signal terminal contact point at worst case
② Signal terminal contact point
③ Packing (if necessary); a sealing method for IP44 when coupled with vehicle connector
④ Power terminal contact point
⑤ Drain hole
⑥ Sealing area
⑦ Standard datum plane
⑧ Grommet (if necessary)
– 20 – IEC 62196-3:2022 © IEC 2022
CONFIGURATION AA
STANDARD SHEET 3-lb
VEHICLE CONNECTOR
Sheet 1
Dimensions in millimetres
Dimensions in parentheses for reference

CONFIGURATION AA
STANDARD SHEET 3-lb
VEHICLE CONNECTOR
Sheet 2 (continuation of sheet 1)
Dimensions in millimetres
General tolerance
10 max. 50 max. 100 max. Angle
±0,15 ±0,2 ±0,3 ±30°
⑨ Drain hole (if necessary)
⑩ For optional latch outline: 29,5 maximum
⑪ Standard datum plane
⑫ Latch
⑬ Any dimension for guide rib
⑭ Lever stopper (if necessary) (This portion is movable)

– 22 – IEC 62196-3:2022 © IEC 2022
CONFIGURATION AA
STANDARD SHEET 3-lb
VEHICLE CONNECTOR
Sheet 3 (continuation of Sheet 2)
Dimensions in millimetres
Dimensions in parentheses for reference

Key
15 Terminal
16 Insulated end cap
17 Full R
18 Standard datum plane
19 Any dimension
20 Any dimension for guide rib
21 Optional for movable terminal design
22 Optional shape
CONFIGURATION AA
STANDARD SHEET 3-lc
MAXIMUM DIMENSIONS OF VEHICLE CONNECTOR BODY OUTLINE
Dimensions in millimetres
Key
23 Vehicle surface
24 Centre line of vehicle connector
25 Standard datum plane
26 Vehicle connector body shape shall be within these solid lines (the sketches are not intended to restrict
design of vehicle connector)
27 Latch
– 24 – IEC 62196-3:2022 © IEC 2022
CONFIGURATION AA
STANDARD SHEET 3-ld
MAXIMUM DIMENSIONS OF VEHICLE CONNECTOR BODY OUTLINE
Dimensions in millimetres
Dimensions in parentheses for reference

CONFIGURATION AA
STANDARD SHEET 3-le
MAXIMUM OUTLINE OF LATCH
Dimensions in millimetres
Dimensions in parentheses for reference

Key
28 Latch (the sketches are not intended to
restrict design of latch shape)
29 Centre line of vehicle connector
30 Optional shape
31 Standard datum plane of vehicle

– 26 – IEC 62196-3:2022 © IEC 2022
CONFIGURATION AA
STANDARD SHEET 3-lf
OPTIONAL OUTLINE OF LATCH
Dimensions in millimetres
Dimensions in parentheses for reference

Key
32 Standard datum plane of vehicle connector
33 Latch (the sketches are not intended to govern design of latch shape)
34 Centre line of vehicle connector

STANDARD SHEETS
CONFIGURATION BB
VEHICLE COUPLER 950 V DC AND UP TO 250 A
STANDARD SHEET 3-IIa
VEHICLE CONNECTOR
Sheet 1
Dimensions in millimetres
Dimensions in parentheses for reference

The dimension of Ø65 is allowed to have draft; after the preliminary stage, the maximum dimensional position (datum
plane C) should comply with the dimensional tolerance requirements.

– 28 – IEC 62196-3:2022 © IEC 2022
CONFIGURATION BB
STANDARD SHEET 3-IIa
VEHICLE CONNECTOR
Sheet 2 (continuation of Sheet 1)
Dimensions in millimetres
CONFIGURATION BB
STANDARD SHEET 3-IIb
VEHICLE INLET
...
