IEC 60730-2-11:2025
(Main)Automatic electrical controls - Part 2-11: Particular requirements for energy regulators
Automatic electrical controls - Part 2-11: Particular requirements for energy regulators
IEC 60730-2-11:2025 applies to energy regulators
• for use in, on, or in association with equipment for household appliance and similar use;
NOTE 1 Throughout this document, the word "equipment" means "appliance and equipment" and "controls" means "energy regulators".
• for equipment that is used by the public, such as equipment intended to be used in shops, offices, hospitals, farms and commercial and industrial applications;
EXAMPLE 1 Energy regulators for commercial catering, heating and air-conditioning equipment.
• that are smart enabled energy regulators;
EXAMPLE 2 Smart grid control, remote interfaces/control of energy-consuming equipment including computer or smart phone.
• that are AC or DC powered controls with a rated voltage not exceeding 690 V AC or 600 V DC;
• used in, on, or in association with equipment that use electricity, gas, oil, solid fuel, solar thermal energy, etc., or a combination thereof;
• utilized as part of a control system or controls which are mechanically integral with multifunctional controls having non-electrical outputs;
• using NTC or PTC thermistors and to discrete thermistors, requirements for which are contained in Annex J;
• that are mechanically or electrically operated, responsive to or controlling such characteristics as temperature, pressure, passage of time, humidity, light, electrostatic effects, flow, or liquid level, current, voltage, acceleration, or combinations thereof;
• as well as manual controls when such are electrically and/or mechanically integral with automatic controls.
NOTE 2 Requirements for manually actuated mechanical switches not forming part of an automatic control are contained in IEC 61058-1-1.
This document applies to
- the inherent safety of energy regulators, and
- functional safety of energy regulators of low complexity safety related systems and controls,
- controls where the performance (for example the effect of EMC phenomena) of the product can impair the overall safety and performance of the controlled system,
- the operating values, operating times, and operating sequences where such are associated with equipment safety.
- manual energy regulators which are electrically and/or mechanically integral with automatic controls.
- energy regulators incorporating electronic devices, requirements for which are contained in Annex H.
- the electrical and functional safety of controls capable of receiving and responding to communications signals, including signals for power billing rate and demand response.
The signals can be transmitted to or received from external units being part of the control (wired), or to and from external units which are not part of the control (wireless) under test.
This document specifies the requirements for construction, operation and testing of automatic energy regulators used in, on, or in association with an equipment.
This document does not
• apply to automatic energy regulators intended exclusively for industrial process applications unless explicitly mentioned in the relevant part 2 or the equipment standard. However, this document can be applied to evaluate automatic energy regulators intended specifically for industrial applications in cases where no relevant safety standard exists.
• take into account the response value of an automatic action of an energy regulator, if such a response value is dependent upon the method of mounting the energy regulator in the equipment. Where a response value is of significant purpose for the protection of the user, or surroundings, the value defined in the appropriate equipment standard or as determined by the manufacturer will apply.
• address the integrity of the output signal to the network devices, such as interoperability with other devices unless it has been evaluated as part of the control system.
This fourth edition cancels and replaces the third edition published in 2019. This edition constitutes a technical revision.
This edition includes the following

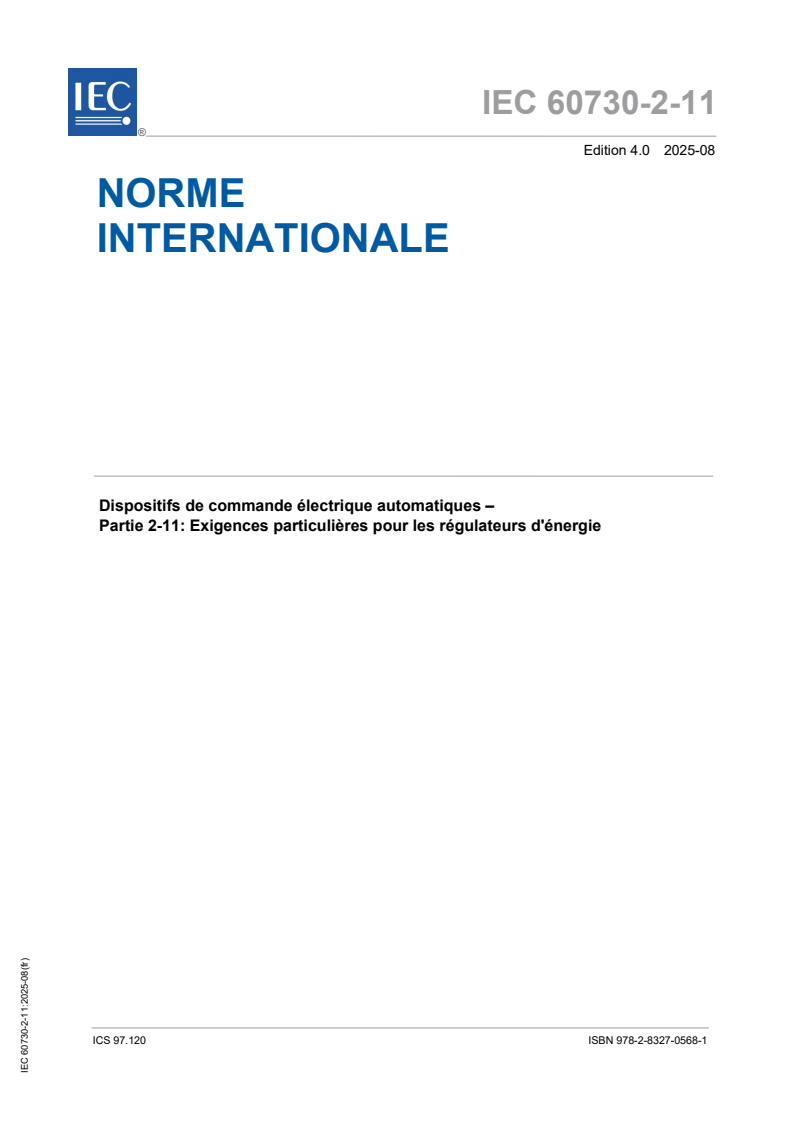

Dispositifs de commande électrique automatiques - Partie 2-11: Exigences particulières pour les régulateurs d'énergie
L'IEC 60730-2-11:2025 s'applique aux régulateurs d'énergie
• utilisés dans, sur ou avec des matériels pour appareil domestique et usage analogue;
NOTE 1 Dans le présent document, le terme "matériel" signifie "appareil et matériel" et "dispositifs de commande" signifie "régulateurs d'énergie".
• pour des matériels utilisés par le public, tels que les matériels destinés à être utilisés dans des magasins, des bureaux, des hôpitaux, des fermes et des applications commerciales et industrielles;
EXEMPLE 1 Les régulateurs d'énergie pour les installations de restauration, de chauffage et d'air conditionné.
• qui sont des régulateurs d'énergie activés intelligents;
EXEMPLE 2 Les dispositifs de commande de réseau intelligent, les interfaces distantes/dispositifs de commande de matériels utilisateurs d'énergie électrique, y compris les ordinateurs ou les mobiles multifonctions.
• qui sont des dispositifs de commande à courant alternatif ou continu dont la tension assignée ne dépasse pas 690 V en courant alternatif ou 600 V en courant continu;
• qui sont utilisés dans, sur ou avec des matériels qui utilisent l'électricité, le gaz, le pétrole, des combustibles solides, l'énergie thermique solaire, etc. ou une combinaison de ces sources d'énergie;
• qui sont utilisées dans le cadre d'un système de commande ou de dispositifs de commande qui sont mécaniquement intégrés à des dispositifs de commande multifonctions comportant des sorties non électriques;
• qui utilisent des thermistances CTN ou CTP ainsi qu'aux dispositifs à thermistances discrètes, dont les exigences sont fournies à l'Annexe J;
• à commande mécanique ou électrique, qui réagissent à des caractéristiques telles que la température, la pression, le passage du temps, l'humidité, la lumière, les effets électrostatiques, le débit ou le niveau d'un liquide, le courant, la tension, l'accélération, ou une combinaison de ces caractéristiques, ou qui les régulent;
• ainsi qu'aux dispositifs de commande manuels qui sont électriquement et/ou mécaniquement intégrés à des dispositifs de commande automatique.
NOTE 2 Les exigences relatives aux interrupteurs mécaniques à action manuelle qui ne font pas partie d'un dispositif de commande automatique sont contenues dans l'IEC 61058-1-1.
Le présent document s'applique
− à la sécurité intrinsèque des régulateurs d'énergie; et
− à la sécurité fonctionnelle des régulateurs d'énergie des systèmes et dispositifs de commande de sécurité peu complexe;
− aux dispositifs de commande pour lesquels les performances (par exemple, l'effet des phénomènes CEM) du produit peuvent compromettre la sécurité et les performances globales du système commandé;
− aux valeurs de fonctionnement, aux temps de fonctionnement et aux séquences de fonctionnement lorsque ces éléments interviennent dans la sécurité du matériel;
− aux régulateurs d'énergie manuels qui sont électriquement et/ou mécaniquement intégrés à des dispositifs de commande automatique;
− aux régulateurs d'énergie qui incorporent des dispositifs électroniques, dont les exigences figurent à l'Annexe H;
− à la sécurité électrique et la sécurité fonctionnelle des dispositifs de commande capables de recevoir et de répondre à des signaux de communication, y compris les signaux propres au taux de facturation de l'électricité et à la gestion de la demande.
Les signaux peuvent être transmis ou reçus d'unités externes qui font partie intégrante du dispositif de commande (câblé), ou vers et depuis des unités externes qui ne font pas partie intégrante du dispositif de commande (non câblé) soumis à l'essai.
Le présent document spécifie les exigences relatives à la construction, au fonctionnement et aux essais des régulateurs d'énergie automatiques utilisés dans, sur ou avec du matériel.
Le présent document
• ne s'applique pas aux régulateurs d'énergie automatiques destinés exclusivement à des applications de processus industriels, sauf mention particulière dans la partie 2 applicable ou la norme
General Information
Relations
Standards Content (Sample)

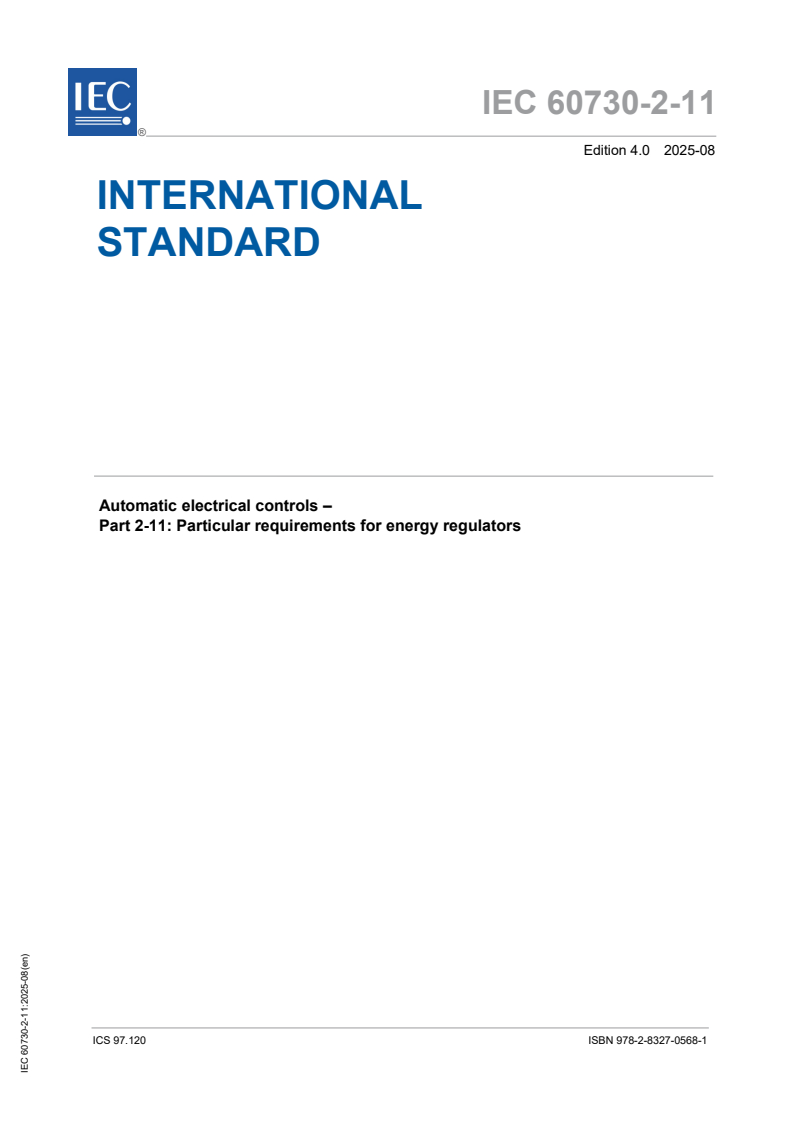

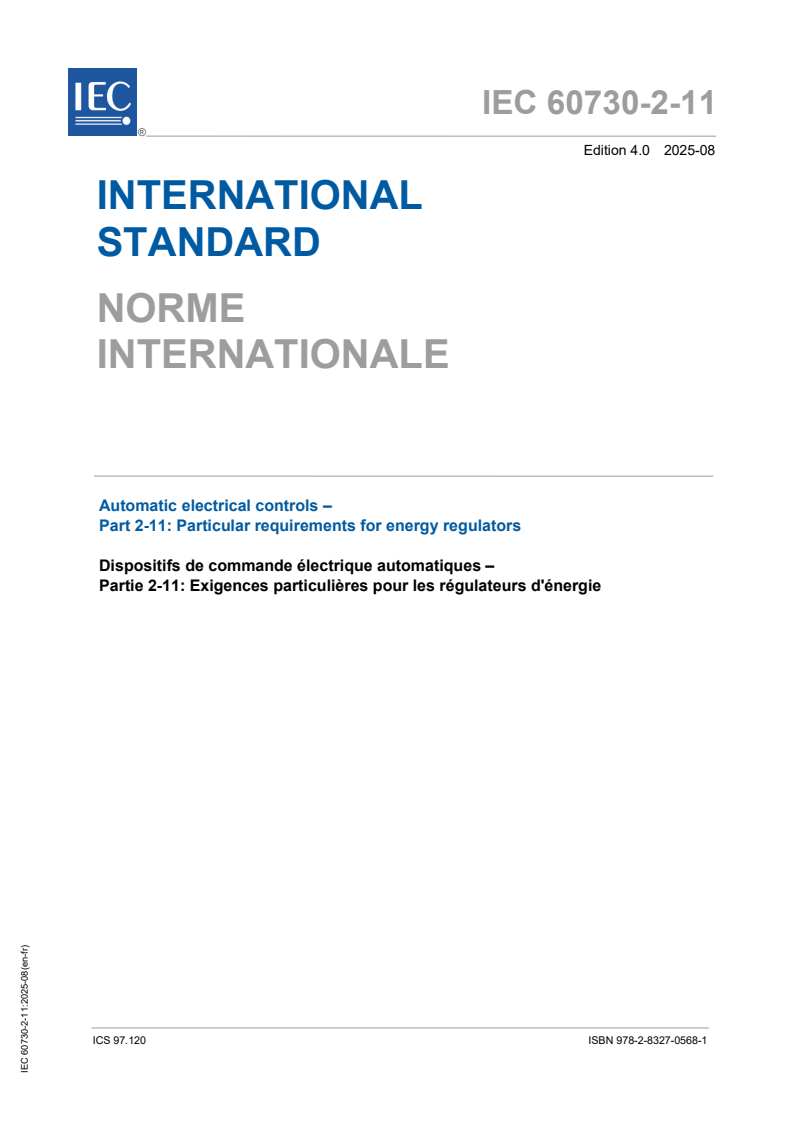

IEC 60730-2-11 ®
Edition 4.0 2025-08
INTERNATIONAL
STANDARD
EXTENDED VERSION
This full version of IEC 60730-2-11:2025 includes the content of the references made
to IEC 60730-1:2022
Automatic electrical controls –
Part 2-11: Particular requirements for energy regulators
ICS 97.120 ISBN 978-2-8327-0642-8

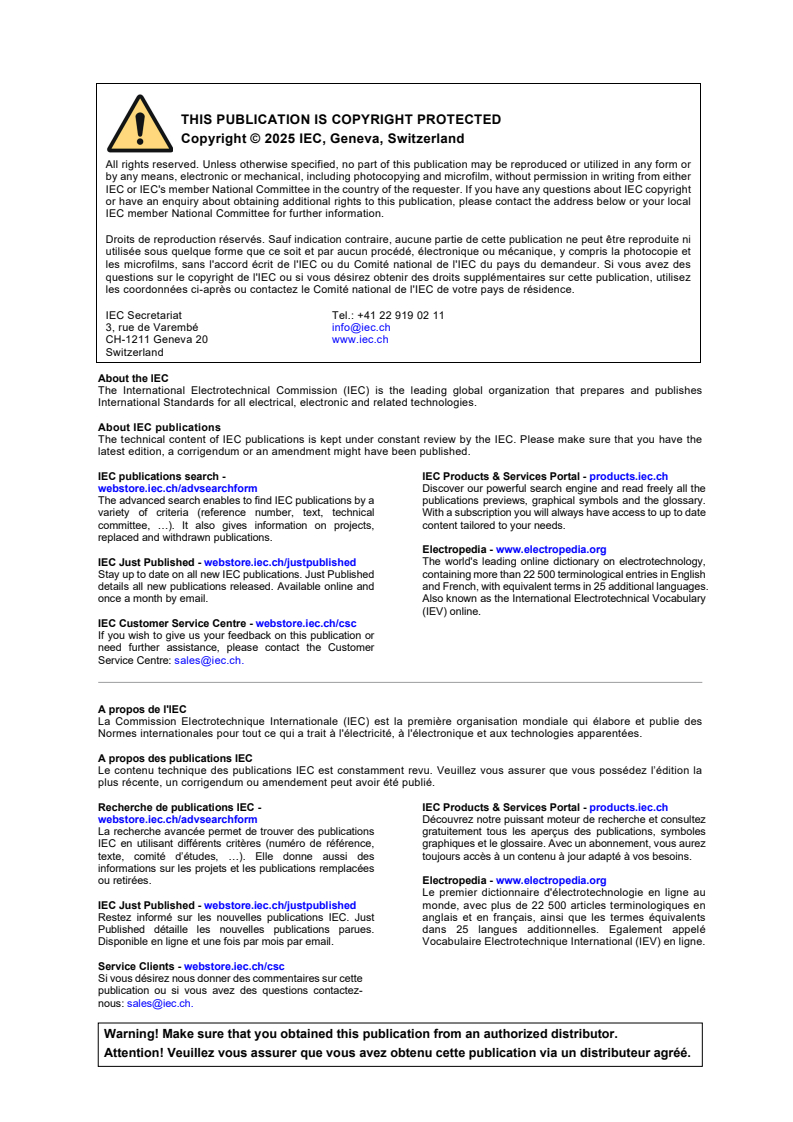

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
The world's leading online dictionary on electrotechnology,
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.

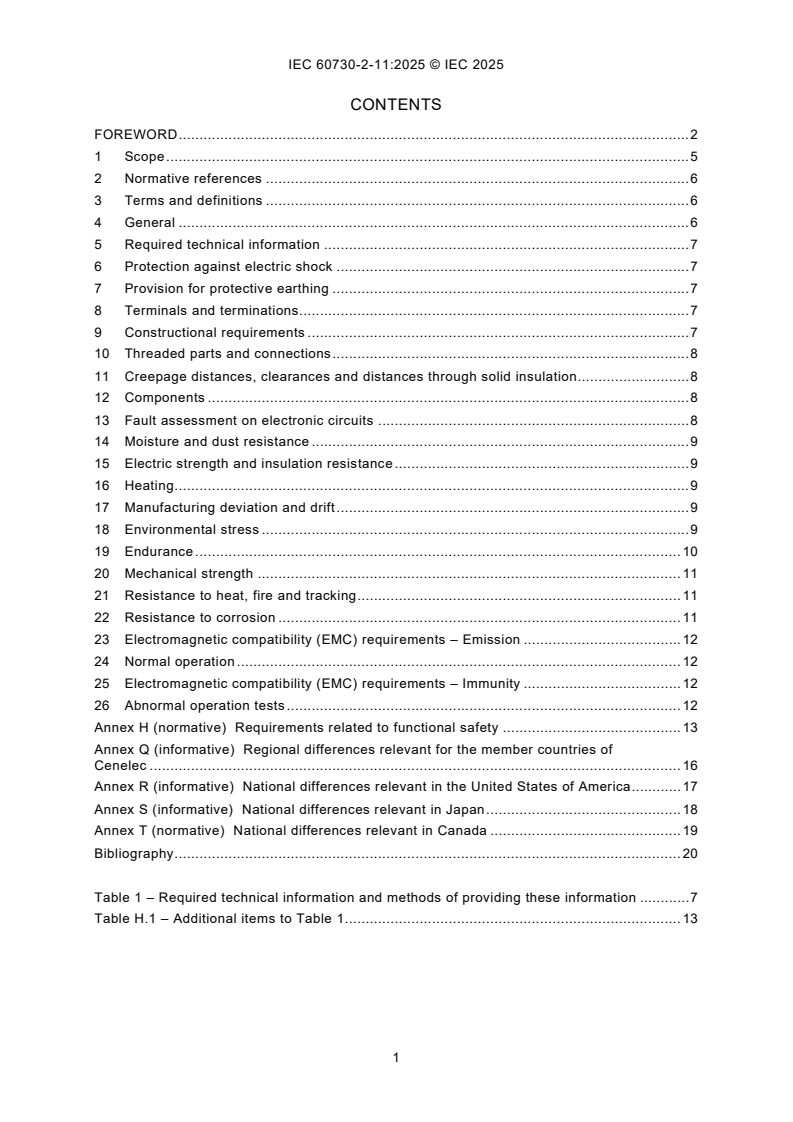

CONTENTS
FOREWORD . 9
1 Scope . 12
2 Normative references . 13
3 Terms and definitions . 17
3.1 Definitions relating to ratings, voltages, currents, frequencies, and wattages . 17
3.2 Definitions of types of control according to purpose . 19
3.3 Definitions relating to the function of controls . 22
3.4 Definitions relating to disconnection and interruption . 25
3.5 Definitions of types of control according to construction . 26
3.6 Definitions of type of automatic action of a control . 27
3.7 Definitions relating to protection against electric shock and type of insulation . 28
3.8 Definitions relating to component parts of controls . 32
3.9 Definitions of types of terminals and terminations of controls . 33
3.10 Definitions relating to the connections to controls . 35
3.11 Definitions relating to the performance of type 2 actions . 36
3.12 Definitions relating to the requirements for creepage distances and
clearances . 36
3.13 Miscellaneous definitions . 37
3.14 Definitions relating to manufacturer and user . 39
3.15 Definitions pertaining to thermistors . 39
3.16 Definitions relating to the structure of controls using software . 39
3.17 Definitions relating to error avoidance in controls using software . 39
3.18 Definitions relating to fault/error control techniques for controls using
software . 39
3.19 Definitions relating to memory tests for controls using software . 39
3.20 Definitions of software terminology – General . 39
3.21 Definitions relating to classes of control functions . 39
3.22 Definitions relating to functional safety . 39
3.23 Definitions related to access to data exchange . 40
3.24 Definitions related to EMC performance . 40
4 General . 42
4.1 General structure of the document . 42
4.2 General requirements . 43
4.3 General notes on tests . 43
5 Required technical information . 47
5.1 General requirements . 47
5.2 Methods of providing technical information . 47
5.3 Class II symbol . 55
5.4 Additional requirements for marking . 55
5.5 Warning or cautionary markings . 57
6 Protection against electric shock . 57
6.1 General requirements . 57
6.2 Actuating members and actuating means . 59
6.3 Capacitors . 60
6.4 Covers and uninsulated live or hazardous parts . 60
6.5 Battery operated controls provided with a user accessible mains supply input
connector . 61
7 Provision for protective earthing . 61
7.1 Class 0I and Class I controls. 61
7.2 Class II and class III controls . 61
7.3 Adequacy of earth connections . 61
7.4 Corrosion resistance . 62
7.5 Other requirements . 63
7.6 Protective equipotential bonding . 63
8 Terminals and terminations. 63
8.1 Terminals and terminations for external copper conductors . 63
8.2 Terminals and terminations for internal conductors . 68
8.3 Terminals and terminations for integrated conductors . 70
9 Constructional requirements . 70
9.1 Materials . 70
9.2 Protection against electric shock . 71
9.3 Actuation and operation . 73
9.4 Actions . 76
9.5 Openings in enclosures . 79
9.6 Mounting of controls . 79
9.7 Attachment of cords . 80
9.8 Size of cords – non-detachable . 81
9.9 Inlet openings . 82
9.10 Equipment inlets and socket-outlets . 83
9.11 Requirements during mounting, use, maintenance and servicing . 83
9.12 Controls using software . 86
9.13 Protective controls and components of protective control systems . 88
10 Threaded parts and connections . 91
10.1 Threaded parts moved during mounting or servicing . 91
10.2 Current-carrying connections and connections providing protective earthing
continuity . 93
11 Creepage distances, clearances and distances through solid insulation . 94
11.1 General . 94
11.2 Clearances . 94
11.3 Creepage distances . 98
11.4 Solid insulation . 102
12 Components . 103
12.1 Transformers . 103
12.2 Switch mode power supplies and converters . 103
12.3 Capacitors . 104
12.4 Fuses . 104
12.5 Varistors . 104
12.6 Thermistors. 104
12.7 Relays . 105
12.8 Other components . 105
13 Fault assessment on electronic circuits . 105
13.1 Fault assessment for inherent safety . 105
13.2 Fault assessment to ensure functional safety . 111
14 Moisture and dust resistance . 111
14.1 Protection against ingress of water and dust . 111
14.2 Protection against humid conditions . 112
14.3 Touch current test for in-line cord controls and free-standing controls . 113
15 Electric strength and insulation resistance . 114
15.1 Insulation resistance . 114
15.2 Electric strength . 114
15.3 Additional tests for in-line cord and free-standing controls . 116
16 Heating .
...
