Standards Content (sample)

IEC 60747-19-1
Edition 1.0 2019-11
INTERNATIONAL
STANDARD
Semiconductor devices –
Part 19-1: Smart sensors – Control scheme of smart sensors
IEC 60747-19-1:2019-11(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 60747-19-1
Edition 1.0 2019-11
INTERNATIONAL
STANDARD
Semiconductor devices –
Part 19-1: Smart sensors – Control scheme of smart sensors
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.080.99 ISBN 978-2-8322-7606-8

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC 60747-19-1:2019  IEC 2019

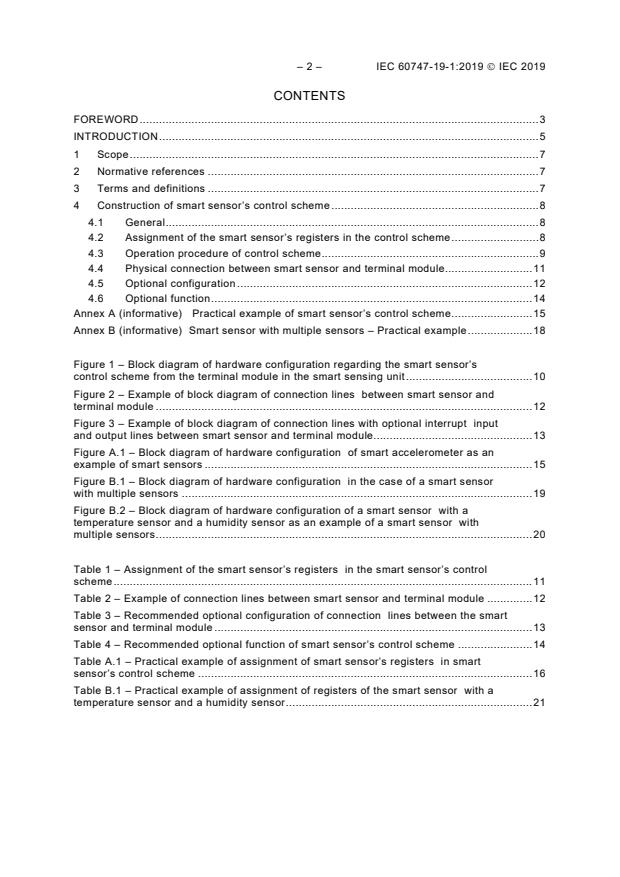

CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms and definitions ...................................................................................................... 7

4 Construction of smart sensor’s control scheme ................................................................ 8

4.1 General ................................................................................................................... 8

4.2 Assignment of the smart sensor’s registers in the control scheme ........................... 8

4.3 Operation procedure of control scheme ................................................................... 9

4.4 Physical connection between smart sensor and terminal module........................... 11

4.5 Optional configuration ........................................................................................... 12

4.6 Optional function ................................................................................................... 14

Annex A (informative) Practical example of smart sensor’s control scheme ......................... 15

Annex B (informative) Smart sensor with multiple sensors – Practical example .................... 18

Figure 1 – Block diagram of hardware configuration regarding the smart sensor’s

control scheme from the terminal module in the smart sensing unit ....................................... 10

Figure 2 – Example of block diagram of connection lines between smart sensor and

terminal module .................................................................................................................... 12

Figure 3 – Example of block diagram of connection lines with optional interrupt input

and output lines between smart sensor and terminal module................................................. 13

Figure A.1 – Block diagram of hardware configuration of smart accelerometer as an

example of smart sensors ..................................................................................................... 15

Figure B.1 – Block diagram of hardware configuration in the case of a smart sensor

with multiple sensors ............................................................................................................ 19

Figure B.2 – Block diagram of hardware configuration of a smart sensor with a
temperature sensor and a humidity sensor as an example of a smart sensor with

multiple sensors .................................................................................................................... 20

Table 1 – Assignment of the smart sensor’s registers in the smart sensor’s control

scheme ................................................................................................................................. 11

Table 2 – Example of connection lines between smart sensor and terminal module .............. 12

Table 3 – Recommended optional configuration of connection lines between the smart

sensor and terminal module .................................................................................................. 13

Table 4 – Recommended optional function of smart sensor’s control scheme ....................... 14

Table A.1 – Practical example of assignment of smart sensor’s registers in smart

sensor’s control scheme ....................................................................................................... 16

Table B.1 – Practical example of assignment of registers of the smart sensor with a

temperature sensor and a humidity sensor ............................................................................ 21

---------------------- Page: 4 ----------------------
IEC 60747-19-1:2019  IEC 2019 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
Part 19-1: Smart sensors – Control scheme of smart sensors
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60747 has been prepared by subcommittee SC47E: Discrete

semiconductor devices, of IEC technical committee 47: Semiconductor devices.
The text of this International Standard is based on the following documents:
CDV Report on voting
47E/642/CDV 47E/668/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 60747 series, published under the general title Semiconductor

devices, can be found on the IEC website.
---------------------- Page: 5 ----------------------
– 4 – IEC 60747-19-1:2019  IEC 2019

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
---------------------- Page: 6 ----------------------
IEC 60747-19-1:2019  IEC 2019 – 5 –
INTRODUCTION

The development of smart sensors which integrate analog-to-digital conversion and digital

processing of the captured sensor signal(s) is in progress. A smart sensing unit, which

comprises a smart sensor; a terminal module, to control the smart sensor and perform

wireless communication; and a power supply for the smart sensor and the terminal module,

can send the output data of the smart sensor wirelessly to the outside. Here, the power supply

can be a plug-in power supply, a battery, an energy harvester, or their combination. A smart

sensing network where a large number of smart sensing units are located in manufacturing

factories, offices, and stores has been examined. With this network, environmental

monitoring, sensing of operational situations of manufacturing equipment and sensing of other

various events contribute to the realization of the following outcomes by analyzing the

collected sensing data. Namely, energy saving, improvement in factory productivity such as

operation rate, shortening of production lead time, preventive equipment maintenance, and

product quality improvement can be achieved.

However, considering the three components of the smart sensing unit, namely, the smart

sensor, terminal module, and power supply, standardization regarding control schemes to

connect the components to each other and regarding the indication of specifications of the

components has not been sufficiently established yet. This issue leads to the present situation,

where the development of each component in the smart sensing unit has not proceeded

efficiently.

The IEC 60747-19 series aims to address this issue. The IEC 60747-19 series comprises two

parts and its structure is currently conceived as follows:
Part 19-1: Smart sensors – Control scheme of smart sensors

Part 19-2 : Smart sensors – Indication of specifications of smart sensors and power supplies

to drive smart sensors

Part 19-1 specifies a control scheme of the smart sensor from the terminal module in the

smart sensing unit. Generally, the manufacturers of sensors have incorporated into the

sensors various parameters and conditions for sensing operations to fulfil various requests

and needs of the users. Therefore, it has been quite difficult for the users to understand how

to set the parameters and conditions adequately and master the use of sensors. This issue

has been a considerable obstacle in designing the smart sensing unit and smart sensing

system. The main objective of this part is to solve this obstacle for future expansion of the

smart sensors and smart sensing network systems.

Part 19-2 aims to provide guidelines to specify information that is required when the smart

sensing unit is newly designed. When the smart sensing unit is newly designed especially to

use an autonomous power supply, the designers have to appropriately arrange the selection

of the components of the unit and their usage conditions to satisfy that the power capability of

the power supply successfully exceeds the total power budget to be consumed in the unit as a

whole. First, information about the detailed power consumption characteristics of the smart

sensors is indispensable for this achievement. Namely, information about time-axis power

profiles which is not necessarily described in the datasheet of sensors is essential when

intermittent sensing operations are often adopted and a careful lower power design including

time-axis characteristics to allow adoption of an autonomous power supply is needed in IoT

(Internet of Things) applications. Therefore, Part 19-2 discusses an indication of smart

sensors’ electrical characteristics of time-axis power profiles. Second, information about total

power capability of the power supply to drive the unit and the smart sensor(s) is essential.

This power supply as a module comprises (a) primary battery(batteries), and(or) (a)

secondary battery(batteries), and(or) (an) energy harvester(s), or their combinations.

—————————
Under development.
---------------------- Page: 7 ----------------------
– 6 – IEC 60747-19-1:2019  IEC 2019

Considering the not-so-simple configuration including power management circuits as a power

supply, Part 19-2 also discusses the indication of specifications of the power supply. With the

establishment of appropriate indications, the three components of the smart sensing unit can

be easily selected and combined from a point of view of a low-power design, when the smart

sensing unit is newly designed and the overall design of the smart sensing unit itself can be

facilitated.
---------------------- Page: 8 ----------------------
IEC 60747-19-1:2019  IEC 2019 – 7 –
SEMICONDUCTOR DEVICES –
Part 19-1: Smart sensors – Control scheme of smart sensors
1 Scope

This part of IEC 60747 specifies the control scheme of a sensor which is a device or a module

which achieves a sensing function, data processing function and data output function, by

employing a digital processing unit and a means of bidirectional communication between the

sensor and an external terminal module.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
smart sensor

sensor device or sensor module which integrates analog-to-digital conversion and digital

processing of the captured sensor signal(s)
3.2
smart sensing unit

unit comprising a smart sensor, a terminal module, and a power supply, which can send

output data of the smart sensor to the outside
3.3
terminal module

integrated circuit device or module which is a component of a smart sensing unit, and which

controls the smart sensor, receives the output data of the smart sensor, and sends the output

data to the outside
3.4
digital processing circuit

integrated circuit device or a module performing digital arithmetic and(or) logic operations on

digital data
3.5
register

local storage area on a digital processing circuit, which holds digital data that is being

processed by the digital processing circuit
---------------------- Page: 9 ----------------------
– 8 – IEC 60747-19-1:2019  IEC 2019
3.6
operation mode

operation type of an electronic device or module predetermined by its manufacturer, and in

some cases, determined by its user
3.7
sleep mode

power-saving mode for an electronic device or module in which all unnecessary components

in the device or module are shut down
3.8
status information
information regarding the current condition of an electronic device or module
3.9
data ready

type of status information, which is a piece of digital data to mark when a data preparing

operation has been conducted and when data has been available in an electronic device or

module
3.10
error flag

type of status information, which is a piece of digital data to mark when an error event has

occurred in an electronic device or module
3.11
inter-integrated circuit
I C
widely used two-line digital serial communication bus
3.12
serial peripheral interface
SPI
widely used three-line or four-line digital serial communication bus
4 Construction of smart sensor’s control scheme
4.1 General

Figure 1 provides a block diagram of the hardware configuration regarding the smart sensor’s

control scheme from the terminal module in the smart sensing unit. The smart sensor’s

control scheme utilizes registers which a digital processing circuit embedded in the smart

sensor possesses. The smart sensor’s control scheme is established by operations in which

both the terminal module and the smart sensor mutually read and write data to the registers.

Each register is of 1 byte. Table 1 provides the byte assignment of the registers in the control

scheme. Here, the name, address, and content of each register are defined, and
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
