IEC 62841-3-15:2024
(Main)Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 3-15: Particular requirements for transportable magnetic drills
Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 3-15: Particular requirements for transportable magnetic drills
IEC 62841-3-15:2024 is to be used in conjunction with the first edition of IEC 62841-1 (2014).
This document supplements or modifies the corresponding clauses in IEC 62841-1:2014, so as to convert it into the IEC Standard: Particular requirements for transportable magnetic drills.
Where a particular subclause of IEC 62841-1:2014 is not mentioned in this Part 3-15, that subclause applies as far as relevant. Where this document states "addition", "modification" or "replacement", the relevant text in IEC 62841-1:2014 is to be adapted accordingly.
IEC 62841-1:2014, Clause 1 is applicable, except as follows.
Addition: This document applies to transportable magnetic drills which can include a liquid system.
The content of the corrigendum 1 (2025-02) has been included in this copy.
Outils électroportatifs à moteur, outils portables et machines pour jardins et pelouses - Sécurité - Partie 3-15: Exigences particulières pour les perceuses magnétiques portables
IEC 62841-3-15:2024 doit être utilisée conjointement avec la première édition de l'IEC 62841 1 (2014).
Le présent document complète ou modifie les articles correspondants de l'IEC 62841-1:2014, de façon à la transformer en norme IEC: Exigences particulières pour les perceuses magnétiques portables.
Lorsqu'un paragraphe particulier de l'IEC 62841-1:2014 n'est pas mentionné dans la présente Partie 3-15, ce paragraphe s'applique pour autant qu'il soit pertinent. Lorsque le présent document mentionne "addition", "modification" ou "remplacement", le texte correspondant de l'IEC 62841-1:2014 doit être adapté en conséquence.
L'Article 1 de l'IEC 62841-1:2014 s'applique, avec l'exception suivante.
Addition: Le présent document s'applique aux perceuses magnétiques portables qui peuvent comporter un système liquide.
Le contenu du corrigendum 1 (2025-02) a été pris en considération dans cet exemplaire.
General Information
Relations
Standards Content (Sample)

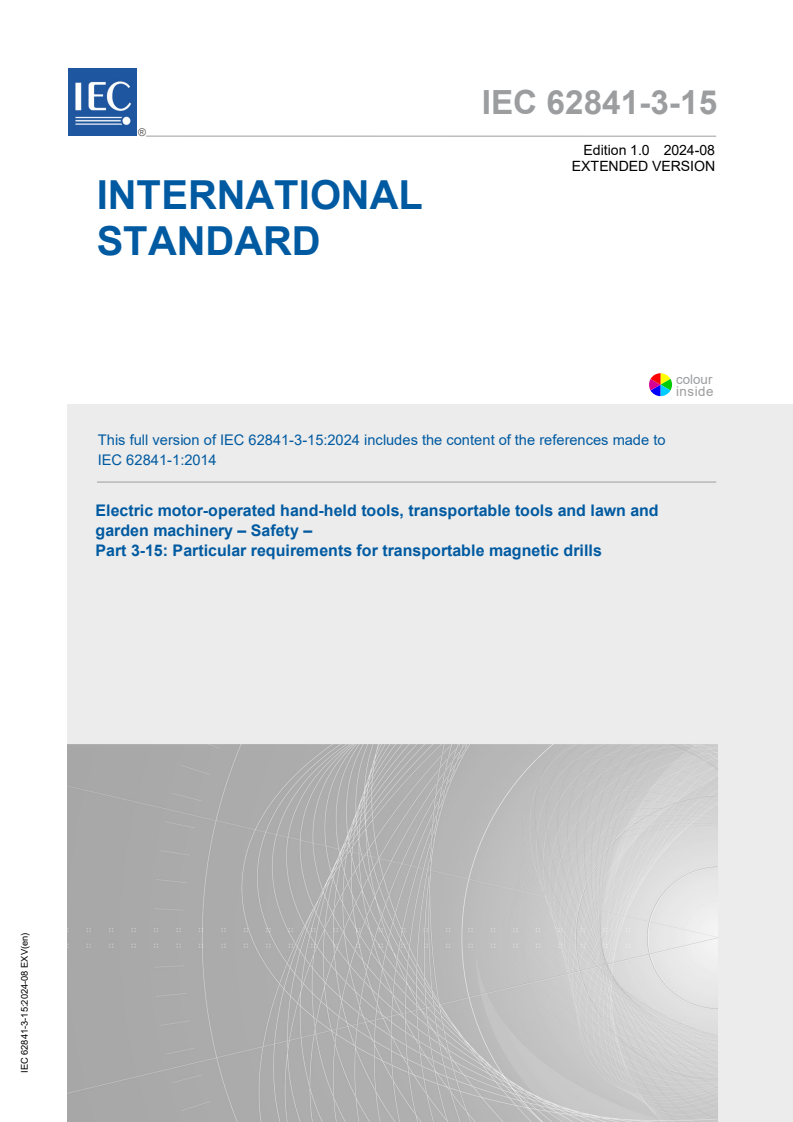

IEC 62841-3-15 ®
Edition 1.0 2024-08
EXTENDED VERSION
INTERNATIONAL
STANDARD
colour
inside
This full version of IEC 62841-3-15:2024 includes the content of the references made to
IEC 62841-1:2014
Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety –
Part 3-15: Particular requirements for transportable magnetic drills
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a
Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.
IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.
Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 62841-3-15 ®
Edition 1.0 2024-08
EXTENDED VERSION
INTERNATIONAL
STANDARD
colour
inside
This full version of IEC 62841-3-15:2024 includes the content of the references made to
IEC 62841-1:2014
Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety –
Part 3-15: Particular requirements for transportable magnetic drills
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 25.140.20 ISBN 978-2-8322-9616-5
– 2 – IEC 62841-3-15:2024 EXV © IEC 2024

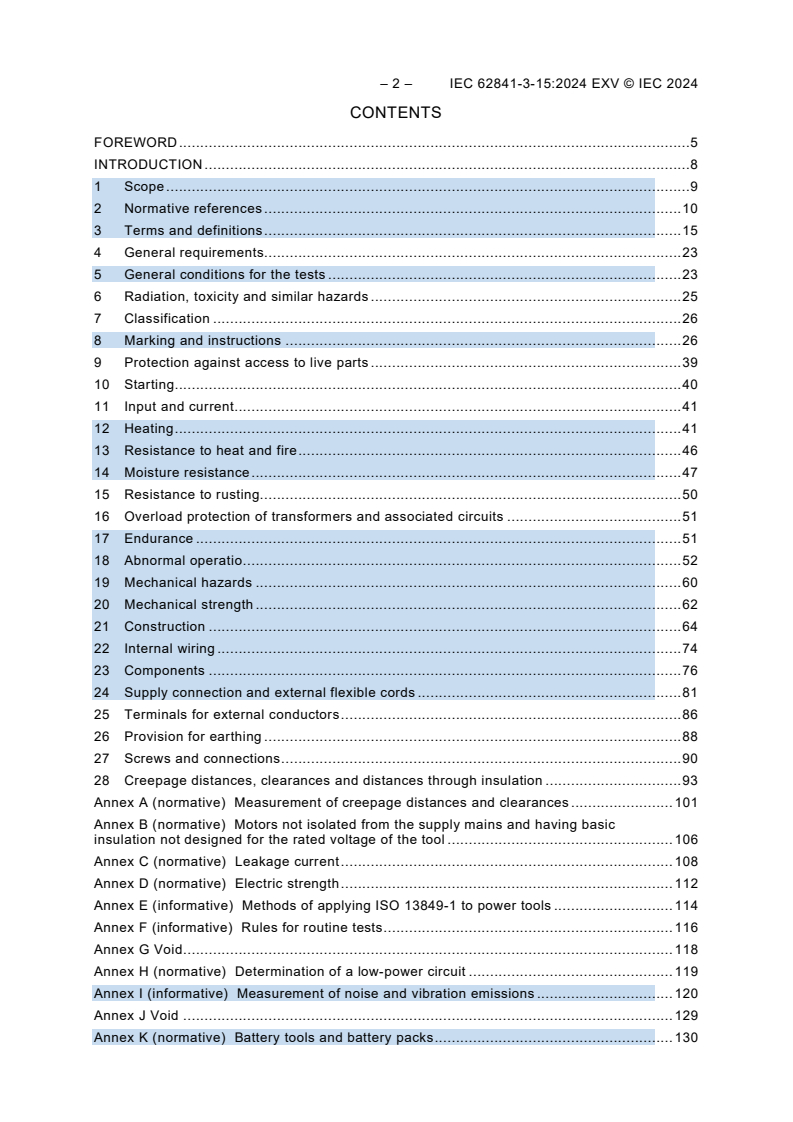

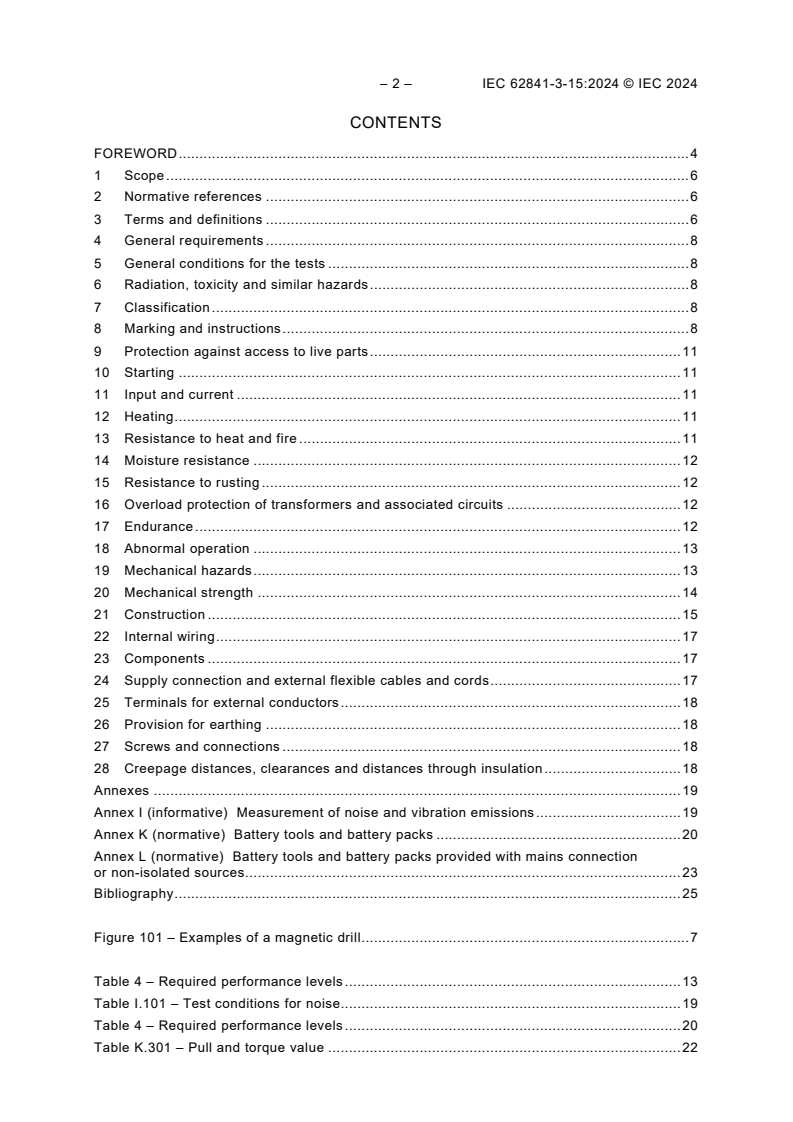

CONTENTS
FOREWORD .5
INTRODUCTION .8
1 Scope .9
2 Normative references . 10
3 Terms and definitions . 15
4 General requirements . 23
5 General conditions for the tests . 23
6 Radiation, toxicity and similar hazards . 25
7 Classification . 26
8 Marking and instructions . 26
9 Protection against access to live parts . 39
10 Starting . 40
11 Input and current . 41
12 Heating . 41
13 Resistance to heat and fire . 46
14 Moisture resistance . 47
15 Resistance to rusting. 50
16 Overload protection of transformers and associated circuits . 51
17 Endurance . 51
18 Abnormal operatio . 52
19 Mechanical hazards . 60
20 Mechanical strength . 62
21 Construction . 64
22 Internal wiring . 74
23 Components . 76
24 Supply connection and external flexible cords . 81
25 Terminals for external conductors . 86
26 Provision for earthing . 88
27 Screws and connections . 90
28 Creepage distances, clearances and distances through insulation . 93
Annex A (normative) Measurement of creepage distances and clearances . 101
Annex B (normative) Motors not isolated from the supply mains and having basic
insulation not designed for the rated voltage of the tool . 106
Annex C (normative) Leakage current . 108
Annex D (normative) Electric strength . 112
Annex E (informative) Methods of applying ISO 13849-1 to power tools . 114
Annex F (informative) Rules for routine tests . 116
Annex G Void . 118
Annex H (normative) Determination of a low-power circuit . 119
Annex I (informative) Measurement of noise and vibration emissions . 120
Annex J Void . 129
Annex K (normative) Battery tools and battery packs . 130
Annex L (normative) Battery tools and battery packs provided with mains connection
or non-isolated sources . 151
Bibliography . 171
Figure 101 – Examples of a magnetic drill . 22
Figure 1 – Test fingernail . 98
Figure 2 – Flexing test apparatus . 99
Figure 3 – Overload test of a class II armature . 100
Figure A.1 – Clearance gap for parallel sided and V-shaped groove . 102
Figure A.2 – Clearance gap for rib and uncemented joint with groove . 103
Figure A.3 – Clearance gap for uncemented joint and diverging-sided groove . 104
Figure A.4 – Clearance gap between wall and screw . 105
Figure B.1 – Simulation of fault conditions . 107
Figure C.1 – Diagram for leakage current measurement for single-phase connection
and three-phase tools suitable for single-phase supply . 110
Figure C.2 – Diagram for leakage current measurement for three-phase connection . 111
Figure C.3 – Circuit of the leakage current meter . 111
Figure H.1 – Example of an electronic circuit with low-power points . 119
Figure I.1 – Test bench . 127
Figure I.2 – Positions of a hand-held power tool and microphones for the
hemispherical / cylindrical measurement surface . 127
Figure I.3 – Microphone positions on a cubic measurement surface . 128
Figure I.4 – Directions of vibation measurement . 128
Figure K.1 – Measurement of clearances . 150
Figure L.1 – Measurement of clearances. 170
Table 1 – Maximum normal temperature rises (1 of 2) . 44
Table 2 – Maximum outside surface temperature rises . 46
Table 3 – Maximum winding temperature . 53
Table 4 – Required performance levels . 59
Table 5 – Impact energies . 63
Table 6 – Test torques . 64
Table 7 – Switch trigger force . 69
Table 8 – Minimum cross-sectional area and AWG sizes of supply cords . 82
Table 9 – Pull and torque value . 84
Table 10 – Quick-connect terminals for earthing conductors . 89
Table 11 – Torque for testing screws and nuts . 92
Table 12 – Minimum creepage distances and clearances . 95
Table D.1 – Test voltages . 112
Table F.1 – Test voltages for the electric strength test . 117
Table I.101 – Test conditions for noise. 124
Table 4 – Required performance levels . 141
Table K.301 – Pull and torque value . 148
Table K.1 – Minimum creepage distances and clearances between parts of opposite
polarity . 149
– 4 – IEC 62841-3-15:2024 EXV © IEC 2024
Table L.1 – Minimum creepage distances and clearances between parts of opposite
polarity . 169
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY – SAFETY –
Part 3-15: Particular requirements for transportable magnetic drills
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s),
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
https://patents.iec.ch. IEC shall not be held responsible for identifying any or all such patent rights.
This extended version (EXV) of the official IEC Standard provides the user with the full
content of the Standard.
references made to IEC 62841-1:2014.
The specific content of IEC 62841-3-15:2024 is displayed on a blue background.
– 6 – IEC 62841-3-15:2024 EXV © IEC 2024
IEC 62841-3-15 has been prepared by IEC technical committee 116: Safety of motor-operated
electric tools. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
116/801/FDIS 116/823/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement,
available at www.iec.ch/members_experts/refdocs. The main document types developed by
IEC are described in greater detail at www.iec.ch/standardsdev/publications.
This Part 3-15 is to be used in conjunction with the first edition of IEC 62841-1 (2014).
This Part 3-15 supplements or modifies the corresponding clauses in IEC 62841-1:2014, so
as to convert it into the IEC Standard: Particular requirements for transportable magnetic
drills.
Where a particular subclause of IEC 62841-1:2014 is not mentioned in this Part 3-15, that
subclause applies as far as relevant. Where this document states "addition", "modification" or
"replacement", the relevant text in IEC 62841-1:2014 is to be adapted accordingly.
The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type;
– terms defined in Clause 3: in bold typeface.
Subclauses, notes, tables and figures which are additional to those in IEC 62841-1:2014,
except as described below for Annex K and Annex L, are numbered starting from 101.
Subclauses, notes, tables and figures in Annex K and Annex L which are additional to those
in the main body of this document are numbered starting from 301.
A list of all parts of the IEC 62841 series, under the general title: Electric motor-operated
hand-held tools, transportable tools and lawn and garden machinery – Safety, can be found
on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 36 months from the date of publication.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 8 – IEC 62841-3-15:2024 EXV © IEC 2024
INTRODUCTION
Individual countries may wish to consider the application of this Part 1 of IEC 62841, so far as
is reasonable, to tools not mentioned in an individual part of IEC 62841-2, IEC 62841-3 or
IEC 62841-4 and to tools designed on new principles.
Examples of standards dealing with non-safety aspects of hand-held tools, transportable
tools and lawn and garden machinery are
– standards dealing with EMC aspects;
– standards dealing with environmental aspects.
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY –
SAFETY –
Part 3-15: Particular requirements for transportable magnetic drills
1 Scope
This International Standard deals with the safety of electric motor-operated or magnetically
driven:
– hand-held tools (IEC 62841-2);
– transportable tools (IEC 62841-3);
– lawn and garden machinery (IEC 62841-4).
The above listed categories are hereinafter referred to as “tools” or “machines”.
The rated voltage is not more than 250 V for single-phase a.c. or d.c. tools, and 480 V for
three-phase a.c. tools. The rated input is not more than 3 700 W.
The limits for the applicability of this standard for battery tools are given in K.1 and L.1.
This standard deals with the hazards presented by tools which are encountered by all persons
in the normal use and reasonably foreseeable misuse of the tools.
Tools with electric heating elements are within the scope of this standard.
Requirements for motors not isolated from the supply, and having basic insulation not
designed for the rated voltage of the tools, are given in Annex B. Requirements for
rechargeable battery-powered motor-operated or magnetically driven tools and the battery
packs for such tools are given in Annex K. Requirements for such tools that are also operated
and/or charged directly from the mains or a non-isolated source are given in Annex L.
Hand-held electric tools, which can be mounted on a support or working stand for use as fixed
tools without any alteration of the tool itself, are within the scope of this standard and such
combination of a hand-held tool and a support is considered to be a transportable tool and
thus covered by the relevant Part 3.
This standard does not apply to:
– tools intended to be used in the presence of explosive atmosphere (dust, vapour or gas);
– tools used for preparing and processing food;
– tools for medical purposes;
NOTE 1 IEC 60601 series covers a variety of tools for medical purposes.
– tools intended to be used with cosmetics or pharmaceutical products;
– heating tools;
NOTE 2 IEC 60335-2-45 covers a variety of heating tools.
– electric motor-operated household and similar electrical appliances;
NOTE 3 IEC 60335 series covers a variety of electric motor-operated household and similar electrical appliances.
– electrical equipment for industrial machine-tools;
– 10 – IEC 62841-3-15:2024 EXV © IEC 2024
NOTE 4 IEC 60204 series deals with electrical safety of machinery.
– small low voltage transformer operated bench tools intended for model making, e.g. the
making of radio controlled model aircraft or cars, etc.
NOTE 5 In the United States of America, the following conditions apply:
This standard deals with tools used in non-hazardous locations in accordance with the National Electrical Code,
NFPA 70.
NOTE 6 In Canada, the following conditions apply:
This standard deals with tools used in non-hazardous locations in accordance with the Canadian Electric Code,
Part 1, CSA C22.1, and General Requirements – Canadian Electrical Code, Part II, CAN/CSA-C22.2 No. 0.
This document applies to transportable magnetic drills which can include a liquid system.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60061, Lamp caps and holders together with gauges for the control of interchangeability
and safety, available at http://std.iec.ch/iec60061
IEC 60065:2001, Audio, video and similar electronic apparatus – Safety requirements
Amendment 2:2010
Amendment 1:2005
IEC 60068-2-75:1997, Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests
IEC/TR 60083, Plugs and socket-outlets for domestic and similar general use standardized in
member countries of IEC
IEC 60085:2007, Electrical insulation – Thermal evaluation and designation
IEC 60127 (all parts), Miniature fuses
IEC 60227 (all parts), Polyvinyl chloride insulated cables of rated voltages up to and including
450/750 V
IEC 60238, Edison screw lampholders
IEC 60245 (all parts), Rubber insulated cables – Rated voltages up to and including
450/750 V
IEC 60252-1, AC motor capacitors – Part 1: General – Performance, testing and rating –
Safety requirements – Guidance for installation and operation
IEC 60320 (all parts), Appliance couplers for household and similar general purposes
IEC 60320-1, Appliance couplers for household and similar general purposes – Part 1:
General requirements
_________
There exists a consolidated version (Edition 7.2:2011) which includes IEC 60065:2001 and its Amendment 1
(2005) and Amendment 2 (2010).
IEC 60335-1:2010, Household and similar electrical appliances – Safety – Part 1: General
requirements
IEC 60384-14, Fixed capacitors for use in electronic equipment – Part 14: Sectional
specification – Fixed capacitors for electromagnetic interference suppression and connection
to the supply mains
IEC 60417, Graphical symbols for use on equipment, available at http://www.graphical-
symbols.info/graphical-symbols/equipment/db1.nsf/$enHome?OpenForm
IEC 60529:1989, Degrees of protection provided by enclosures (IP Code)
Amendment 1:1999
Amendment 2:2013
IEC 60664-1, Insulation coordination for equipment within low-voltage systems – Part 1:
Principles, requirements and tests
IEC 60695-2-11:2000, Fire hazard testing – Part 2-11: Glowing/hot-wire based test methods –
Glow-wire flammability test method for end-products
IEC 60695-2-13:2010, Fire hazard testing – Part 2-13: Glowing/hot-wire based test methods –
Glow-wire ignition temperature (GWIT) test method for materials
IEC 60695-10-2:2003, Fire hazard testing – Part 10-2: Abnormal heat – Ball pressure test
IEC 60695-11-10:2013, Fire hazard testing – Part 11-10: Test flames – 50 W horizontal and
vertical flame test methods
IEC 60730-1:2010, Automatic electrical controls for household and similar use – Part 1:
General requirements
IEC 60825-1:2007, Safety of laser products – Part 1: Equipment classification and
requirements
IEC 60884 (all parts), Plugs and socket-outlets for household and similar purposes
IEC 60906-1, IEC system of plugs and socket-outlets for household and similar purposes –
Part 1: Plugs and socket-outlets 16 A 250 V a.c.
IEC 60990:1999, Methods of measurement of touch current and protective conductor current
IEC 60998-2-1, Connecting devices for low-voltage circuits for household and similar
purposes – Part 2-1: Particular requirements for connecting devices as separate entities with
screw-type clamping units
IEC 60998-2-2, Connecting devices for low-voltage circuits for household and similar
purposes – Part 2-2: Particular requirements for connecting devices as separate entities with
screwless-type clamping units
IEC 60999-1:1999, Connecting devices – Electrical copper conductors – Safety requirements
for screw-type and screwless-type clamping units – Part 1: General requirements and
2 2
particular requirements for clamping units for conductors from 0,2 mm up to 35 mm
(included)
_________
There exists a consolidated version (Edition 2.2:2013) which includes IEC 60529:1989 and its Amendment 1
(1999) and Amendment 2 (2013).
– 12 – IEC 62841-3-15:2024 EXV © IEC 2024
IEC 61000-4-2:2008, Electromagnetic compatibility (EMC) – Part 4-2: Testing and
measurement techniques – Electrostatic discharge immunity test
IEC 61000-4-3:2006, Electromagnetic compatibility (EMC) – Part 4-3: Testing and
measurement techniques – Radiated, radio-frequency, electromagnetic field immunity test
Amendment 1:2007
Amendment 2:2010
IEC 61000-4-4:2012, Electromagnetic compatibility (EMC) – Part 4-4: Testing and
measurement techniques – Electrical fast transient/burst immunity test
IEC 61000-4-5:2005, Electromagnetic compatibility (EMC) – Part 4-5: Testing and
measurement techniques – Surge immunity test
IEC 61000-4-6:2008, Electromagnetic compatibility (EMC) – Part 4-6: Testing and
measurement techniques – Immunity to conducted disturbances, induced by radio-frequency
fields
IEC 61000-4-11:2004, Electromagnetic compatibility (EMC) – Part 4-11: Testing and
measurement techniques – Voltage dips, short interruptions and voltage variations immunity
tests
IEC 61032:1997, Protection of persons and equipment by enclosures – Probes for verification
IEC 61056-1, General purpose lead-acid batteries (valve-regulated types) – Part 1: General
requirements, functional characteristics – Methods of test
IEC 61058-1:2000, Switches for appliances – Part 1: General requirements
Amendment 1:2001
Amendment 2:2007
IEC 61210, Connecting devices – Flat quick-connect terminations for electrical copper
conductors – Safety requirements
IEC 61540:1997, Electrical accessories – Portable residual current devices without integral
overcurrent protection for household and similar use (PRCDs)
Amendment 1:1998
IEC 61558-1, Safety of power transformers, power supplies, reactors and similar products –
Part 1: General requirements and tests
IEC 61558-2-4, Safety of transformers, reactors, power supply units and similar products for
supply voltages up to 1 100 V – Part 2-4: Particular requirements and tests for isolating
transformers and power supply units incorporating isolating transformers
IEC 61558-2-6, Safety of transformers, reactors, power supply units and similar products for
supply voltages up to 1 100 V – Part 2-6: Particular requirements and tests for safety isolating
transformers and power supply units incorporating safety isolating transformers
_________
There exists a consolidated version (Edition 3.2:2010) which includes IEC 61000-4-3:2006 and its Amendment
1 (2007) and Amendment 2 (2010).
There exists a consolidated version (Edition 3.2:2008) which includes IEC 61058-1:2000 and its Amendment 1
(2001) and Amendment 2 (2007).
There exists a consolidated version (Edition 1.1:1999) which includes IEC 61540:1997 and its Amendment 1
(2001).
IEC 61558-2-16, Safety of transformers, reactors, power supply units and similar products for
supply voltages up to 1 100 V – Part 2-16: Particular requirements and tests for switch mode
power supply units and transformers for switch mode power supply units
IEC 61951-1, Secondary cells and batteries containing alkaline or other non-acid electrolytes
– Portable sealed rechargeable single cells – Part 1: Nickel-cadmium
IEC 61951-2, Secondary cells and batteries containing alkaline or other non-acid electrolytes
– Portable sealed rechargeable single cells – Part 2: Nickel-metal hydride
IEC 61960, Secondary cells and batteries containing alkaline or other non-acid electrolytes –
Secondary lithium cells and batteries for portable applications
IEC 61984, Connectors – Safety requirements and tests
IEC 62133, Secondary cells and batteries containing alkaline or other non-acid electrolytes –
Safety requirements for portable sealed secondary cells, and for batteries made from them,
for use in portable applications
IEC 62233, Measurement methods for electromagnetic fields of household appliances and
similar apparatus with regard to human exposure
IEC 62471, Photobiological safety of lamps and lamp systems
IEC/TR 62471-2:2009, Photobiological safety of lamps and lamp systems – Part 2: Guidance
on manufacturing requirements relating to non-laser optical radiation safety
IEC 62841-1:2014, Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety – Part 1: General requirements
ISO 630-2:2021, Structural steels – Part 2: Technical delivery conditions for structural steels
for general purposes
ISO 1463, Metallic and oxide coatings – Measurement of coating thickness – Microscopical
method
ISO 2178, Non-magnetic coatings on magnetic substrates – Measurement of coating
thickness – Magnetic method
ISO 2768-1, General tolerances – Part 1: Tolerances for linear and angular dimensions
without individual tolerance indications
ISO 3744, Acoustics – Determination of sound power levels and sound energy levels of noise
sources using sound pressure – Engineering methods for an essentially free field over a
reflecting plane
ISO 3864-2, Graphical symbols – Safety colours and safety signs – Part 2: Design principles
for product safety labels
ISO 3864-3, Graphical symbols – Safety colours and safety signs – Part 3: Design principles
for graphical symbols for use in safety signs
ISO 4871:1996, Acoustics – Declaration and verification of noise emission values of
machinery and equipment
ISO 5347 (all parts), Methods for the calibration of vibration and shock pick-ups
– 14 – IEC 62841-3-15:2024 EXV © IEC 2024
ISO 5349-1, Mechanical vibration – Measurement and evaluation of human exposure to hand-
transmitted vibration – Part 1: General requirements
ISO 5349-2, Mechanical vibration – Measurement and evaluation of human exposure to hand-
transmitted vibration – Part 2: Practical guidance for measurement in the workplace
ISO 7000:2012, Graphical symbols for use on equipment – Index and synopsis
ISO 7010, Graphical symbols – Safety colours and safety signs – Registered safety signs
ISO 7574-4, Acoustics – Statistical methods for determining and verifying stated noise
emission values of machinery and equipment – Part 4: Methods for stated values for batches
of machines
ISO 8041, Human response to vibration – Measuring instrumentation
ISO 9772:2012, Cellular plastics – Determination of horizontal burning characteristics of small
specimens subjected to a small flame
ISO 11201, Acoustics – Noise emitted by machinery and equipment – Determination of
emission sound pressure levels at a work station and at other specified positions in an
essentially free field over a reflecting plane with negligible environmental corrections
ISO 11203, Acoustics – Noise emitted by machinery and equipment – Determination of
emission sound pressure levels at a work station and at other specified positions from the
sound power level
ISO 12100, Safety of machinery – General principles for design – Risk assessment and risk
reduction
ISO 13849-1, Safety of machinery – Safety-related parts of control systems – Part 1: General
principles for design
ISO 13850, Safety of machinery – Emergency stop – Principles for design
ISO/TR 11690-3, Acoustics – Recommended practice for the design of low-noise workplaces
containing machinery – Part 3: Sound propagation and noise prediction in workrooms
ISO 16063-1, Methods for the calibration of vibration and shock transducers – Part 1: Basic
concepts
EN 12096, Mechanical vibration – Declaration and verification of vibration emission values
ASTM B 258, Standard specification for standard nominal diameters and cross-sectional
areas of AWG sizes of solid round wires used as electrical conductors
UL 969, Standard for marking and labeling systems
NOTE 1 In the United States of America, the following normative reference applies:
US, Code of Federal Regulations (CFR) Title 21, Food and Drugs.
NOTE 2 In Canada, the following normative reference applies:
C.R.C., c. 1370, Radiation Emitting Devices Regulations
NOTE 3 In Europe (EN 62841-1), the following normative references apply:
CR 1030-1, Hand-arm vibration – Guidelines for vibration hazards reduction – Part 1: Engineering methods by
design of machinery
EN ISO 11688-1, Acoustics – Recommended practice for the design of low-noise machinery and equipment –
Part 1: Planning (ISO/TR 11688-1)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
Where the terms voltage and current are used, they imply the r.m.s. values, unless otherwise
specified.
Where in this standard the expressions “with the aid of a tool”, “without the aid of a tool”, and
“requires the use of a tool”, are used, the word “tool” means a hand tool, for example a
screwdriver, which may be used to operate a screw or other fixing means.
3.1
accessible part
conductive part or surface of insulating materials that can be touched by means of the test
probe B of IEC 61032:1997
3.2
accessory
device that is attached only to the output mechanism of the tool
3.3
adjustable guard
guard which is adjustable as a whole or which incorporates adjustable part(s). For manually
adjustable guards, the adjustment remains fixed during a particular operation
3.4
all-pole disconnection
disconnection of all supply conductors except the protective earthing (grounding) conductor
by a single initiating action
3.5
attachment
device attached to the housing or other component of the tool and which may or may not be
attached to the output mechanism and does not modify the normal use of the tool within the
scope of this standard
3.6
basic insulation
insulation applied to live parts to provide protection against electric shock. Insulation applied
to live parts not intended to provide electric shock protection is considered to be insulation
for functional purposes, such as magnet wire insulation
3.7
battery
assembly of one or more cells intended to provide electrical current to the tool
3.8
class I tool
tool in which protection against electric shock does not rely on basic, double or reinforced
insulation only, but which includes an additional safety precaution in that conductive
accessible parts are connected to the protective earthing conductor in the fixed wiring of the
installation in such a way that conductive accessible parts cannot become live in the event of
a failure of the basic insulation
– 16 – IEC 62841-3-15:2024 EXV © IEC 2024
Note 1 to entry: Also considered as class I tools are tools with double insulation and/or reinforced insulation
throughout, but also having an earthing terminal or earthing contact.
3.9
class II tool
tool in which protection against electric shock does not rely on basic insulation only, but in
which additional safety precautions, such as double insulation or reinforced insulation, are
provided, there being no provision for protective earthing or reliance upon installation
conditions
3.10
class III tool
tool in which protection against electric shock relies on supply at safety extra-low voltage,
and in which voltages higher than those of safety extra-low voltages are not generated
3.11
class II construction
part of a tool for which protection against electric shock relies upon double insulation or
reinforced insulation
3.12
class III construction
part of a tool for which protection against electric shock relies upon safety extra-low voltage,
and in which voltages higher than those of safety extra-low voltages are not generated
3.13
clearance
shortest distance between two conductive parts, or between a conductive part and the outer
surface of the enclosure, considered as though metal foil were pressed into contact with
accessible surfaces of insulating material, measured through air
Note 1 to entry: Examples of clearances are given in Annex A.
3.14
control device
device used by the user to adjust and/or regulate an electrical or mechanical function of the
tool
3.15
creepage distance
shortest path between two conductive parts, or between a conductive part and the outer
surface of the enclosure, considered as though metal foil were pressed into contact with
accessible surfaces of insulating material, measured along the surface of the insulating
material
Note 1 to entry: Examples of creepage distances are given in Annex A.
3.16
detachable part
part which can be removed or opened without the aid of a tool, or a part which is removed in
accordance with the instruction for use, except externally accessible brush caps, even if
removal requires the use of a tool
Note 1 to entry: A non-detachable part is covered by the requirements of 21.22.
3.17
double insulation
insulation system comprising both basic insulation and supplementary insulation
3.18
electronic circuit
circuit incorporating at least one electronic component
3.19
electronic component
part in which conduction is achieved principally by electrons moving through a vacuum, gas or
semiconductor, with the exclusion of neon indicators
Note 1 to entry: Examples of electronic components are diodes, transistors, triacs and monolithic integrated
circuits. Resistors, capacitors and inductors are not considered electronic components.
3.20
explosion
failure that occurs, when an enclosure opens violently and major components are forcibly
expelled in a manner that could result in injury
3.21
extra-low voltage
voltage supplied from a source within the tool and, which, when the tool is supplied at rated
voltage, does not exceed 50 V between conductors and between conductors and earth
3.22
fixed guard
guard affixed in such a manner (e.g. by screws, nuts, welding) that it can only be opened or
removed with the use of tools or by destruction of the affixing means
3.23
guard
physical barrier, designed as part of the tool, to provide protection
3.24
hand-held tool
tool intended to do mechanical work, with or without provisions for mounting on a support, and
so designed that the motor and the machine form an assembly which can easily be brought to
the place of operation, and which is either held or supported by hand or suspended during
operation
Note 1 to entry: Hand-held tools include tools provided with a flexible shaft, the motor being either fixed or
portable.
3.25
inherent operating cycle
repetitive
...
IEC 62841-3-15 ®
Edition 1.0 2024-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety –
Part 3-15: Particular requirements for transportable magnetic drills
Outils électroportatifs à moteur, outils portables et machines pour jardins et
pelouses – Sécurité –
Partie 3-15: Exigences particulières pour les perceuses magnétiques portables
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.
IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.
Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications, symboles
en utilisant différents critères (numéro de référence, texte, graphiques et le glossaire. Avec un abonnement, vous aurez
comité d’études, …). Elle donne aussi des informations sur les toujours accès à un contenu à jour adapté à vos besoins.
projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 500 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 25 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 62841-3-15 ®
Edition 1.0 2024-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety –
Part 3-15: Particular requirements for transportable magnetic drills
Outils électroportatifs à moteur, outils portables et machines pour jardins et
pelouses – Sécurité –
Partie 3-15: Exigences particulières pour les perceuses magnétiques portables
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.140.20 ISBN 978-2-8322-9548-9
– 2 – IEC 62841-3-15:2024 © IEC 2024
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General requirements . 8
5 General conditions for the tests . 8
6 Radiation, toxicity and similar hazards . 8
7 Classification . 8
8 Marking and instructions . 8
9 Protection against access to live parts . 11
10 Starting . 11
11 Input and current . 11
12 Heating . 11
13 Resistance to heat and fire . 11
14 Moisture resistance . 12
15 Resistance to rusting . 12
16 Overload protection of transformers and associated circuits . 12
17 Endurance . 12
18 Abnormal operation . 13
19 Mechanical hazards . 13
20 Mechanical strength . 14
21 Construction . 15
22 Internal wiring . 17
23 Components . 17
24 Supply connection and external flexible cables and cords . 17
25 Terminals for external conductors . 18
26 Provision for earthing . 18
27 Screws and connections . 18
28 Creepage distances, clearances and distances through insulation . 18
Annexes . 19
Annex I (informative) Measurement of noise and vibration emissions . 19
Annex K (normative) Battery tools and battery packs . 20
Annex L (normative) Battery tools and battery packs provided with mains connection
or non-isolated sources . 23
Bibliography . 25
Figure 101 – Examples of a magnetic drill . 7
Table 4 – Required performance levels . 13
Table I.101 – Test conditions for noise. 19
Table 4 – Required performance levels . 20
Table K.301 – Pull and torque value . 22
Table 4 – Required performance levels . 23
– 4 – IEC 62841-3-15:2024 © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY – SAFETY –
Part 3-15: Particular requirements for transportable magnetic drills
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 62841-3-15 has been prepared by IEC technical committee 116: Safety of motor-operated
electric tools. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
116/801/FDIS 116/823/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
This Part 3-15 is to be used in conjunction with the first edition of IEC 62841-1 (2014).
This Part 3-15 supplements or modifies the corresponding clauses in IEC 62841-1:2014, so as
to convert it into the IEC Standard: Particular requirements for transportable magnetic drills.
Where a particular subclause of IEC 62841-1:2014 is not mentioned in this Part 3-15, that
subclause applies as far as relevant. Where this document states "addition", "modification" or
"replacement", the relevant text in IEC 62841-1:2014 is to be adapted accordingly.
The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
notes: in small roman type;
–
– terms defined in Clause 3: in bold typeface.
Subclauses, notes, tables and figures which are additional to those in IEC 62841-1:2014,
except as described below for Annex K and Annex L, are numbered starting from 101.
Subclauses, notes, tables and figures in Annex K and Annex L which are additional to those in
the main body of this document are numbered starting from 301.
A list of all parts of the IEC 62841 series, under the general title: Electric motor-operated hand-
held tools, transportable tools and lawn and garden machinery – Safety, can be found on the
IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation nationally
not earlier than 36 months from the date of publication.
– 6 – IEC 62841-3-15:2024 © IEC 2024
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY – SAFETY –
Part 3-15: Particular requirements for transportable magnetic drills
1 Scope
IEC 62841-1:2014, Clause 1 is applicable, except as follows.
Addition:
This document applies to transportable magnetic drills which can include a liquid system.
2 Normative references
IEC 62841-1:2014, Clause 2 is applicable, except as follows.
Addition:
IEC 62841-1:2014, Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety – Part 1: General requirements
ISO 630-2:2021, Structural steels – Part 2: Technical delivery conditions for structural steels
for general purposes
3 Terms and definitions
IEC 62841-1:2014, Clause 3 is applicable, except as follows.
Addition:
3.101
drill unit
assembly consisting of a motor and a fitting for attachment to a magnetic drill stand
3.102
magnetic drill
tool consisting of an assembly of a drill unit and a magnetic drill stand designed to cut ferrous
metal by means of a cutter (e.g. drill bit, hole saw or linear cutter)
Note 101 to entry: See Figure 101.
3.103
magnetic drill stand
device for supporting the drill unit in its operating position which is attached to the workpiece
by means of a permanent magnet or an electromagnet
3.104
magnetic means
device using magnetic force to secure the magnetic drill stand to the workpiece
3.105
separable magnetic drill stand
magnetic drill stand intended to be separated from the drill unit and where the drill unit
supply is provided by the magnetic drill stand
a) Example of a magnetic drill using an electromagnet as a magnetic means
b) Example of a magnetic drill using a permanent magnet as a magnetic means
Key
1 drill unit
2 magnetic drill stand
3 magnetic means
4 magnetic means actuator (electromagnet)
5 magnetic means actuator (permanent magnet)
6 drill unit power switch
7 drill unit feed handle
8 transportation (carry) handle
9 lubrication bottle
10 supply cord
Figure 101 – Examples of a magnetic drill
– 8 – IEC 62841-3-15:2024 © IEC 2024
4 General requirements
IEC 62841-1:2014, Clause 4 is applicable.
5 General conditions for the tests
IEC 62841-1:2014, Clause 5 is applicable, except as follows.
5.5 Addition:
For drill units which have both a mechanical means of setting different ranges of speed and
an electronic means of setting the speed within a given range, the mechanical device is adjusted
to the lowest range possible and the electronic device is adjusted to the highest setting within
the given range.
5.17 Replacement:
If a requirement is based upon the mass of the tool, the mass shall be determined without the
supply cord, but shall include the drill unit, the drill chuck and the magnetic drill stand. Liquid
containers, if any, shall be empty.
6 Radiation, toxicity and similar hazards
IEC 62841-1:2014, Clause 6 is applicable.
7 Classification
IEC 62841-1:2014, Clause 7 is applicable.
8 Marking and instructions
IEC 62841-1:2014, Clause 8 is applicable, except as follows.
8.1 Replacement:
Magnetic drills with a magnetic drill stand that is not a separable magnetic drill stand and
separable magnetic drill stands shall be marked with rating information as follows:
– rated voltage(s) or rated voltage range, in volts. Tools for star-delta connection shall be
clearly marked with the two rated voltages (for example 230 ∆/ 400 Y). A tool that complies
with this standard for a voltage range, may also be marked with any single voltage or smaller
voltage range within that range;
– symbol for nature of supply, unless the rated frequency(ies) or rated frequency range is
marked. The symbol for nature of supply shall be placed next to the marking for rated
voltage;
– rated input, in watts or rated current, in amperes. The rated input or rated current to be
marked on the tool is the total maximum input or current that can be drawn from external
circuit at the same time. If a tool has alternative components which can be selected by a
control device, the rated input or rated current is that corresponding to the highest
loading possible;
– symbol for class II construction, for class II tools only;
– IP number according to degree of protection against ingress of water other than IPX0. If the
first numeral for the IP numbering is omitted, the omitted numeral shall be replaced by the
letter X, for example IPX5.
Drill units intended to be used with a separable magnetic drill stand shall be marked with
rating information as follows:
– input, in watts or current, in amperes. The input or current to be marked on the drill unit is
the total maximum input or current that can be drawn from the magnetic drill stand.
Drill units intended to be used with a separable magnetic drill stand shall not be marked as
a class II tool.
8.2 Modification:
This subclause of IEC 62841-1:2014 is applicable for
– magnetic drills with a magnetic drill stand that is not a separable magnetic drill stand;
and
– separable magnetic drill stands; and
– drill units intended to be used with a separable magnetic drill stand.
Addition:
Magnetic drill stands shall be marked with the following safety warnings:
– " WARNING – Do not use this tool if you or any bystanders have a cardiac pacemaker or
other medical implants" or symbol P007 of ISO 7010; and
– “ WARNING – Always use the safety strap when operating the tool” or a symbol that is
described in the instruction manual.
8.14.1 Addition:
The additional safety instructions as specified in 8.14.1.101 shall be given. This part may be
printed separately from the "General Power Tool Safety Warnings".
8.14.1.101 Safety instructions for magnetic drills
a) Do not use this tool if you or any bystanders have a cardiac pacemaker or other
medical implants. Cardiac pacemakers and other medical implants may malfunction due
to magnetic fields emitted by the tool, which may result in personal injury.
b) Always check the safety strap for wear or damage before each use. A worn or damaged
safety strap may fail unexpectedly during use and may result in personal injury.
NOTE 101 It is possible to replace the term "strap" with "chain" or another descriptive term in the warning in
item b) above.
c) Only attach the magnetic drill to ferrous metal. The magnetic base will not secure
properly to non-ferrous metals, such as non-magnetic grades of stainless steel.
d) Clean the surface before attaching the drill stand to the work surface. Paint, rust or
scale decrease the holding strength of the magnet. Chips, burrs, dirt and other foreign
matter on the surface of the magnetic base will also decrease holding power.
e) Always secure the magnetic base on a smooth, flat work surface. If the workpiece is
uneven and not smooth or flat, the magnetic base may release from the workpiece, causing
unexpected movement of the tool or workpiece and personal injury.
f) Use clamps or other practical ways to secure and support the workpiece to a stable
platform. It is important to support the workpiece properly to minimise body exposure,
binding, or loss of control.
– 10 – IEC 62841-3-15:2024 © IEC 2024
g) Always use the safety strap provided or recommended to secure the tool to the
workpiece before turning on the drill motor. The magnetic base may release from the
workpiece, causing unexpected movement of the tool or workpiece and personal injury.
NOTE 102 It is possible to replace the term "strap" with "chain" or another descriptive term in the warning in
item g) above.
h) Always activate the magnetic base and make sure it is securely attached to the
workpiece before turning on the drill motor. Failure to secure the magnetic base to the
workpiece may cause unexpected movement of the tool or workpiece and personal injury.
i) Always ensure the workpiece is in a fixed or stable position. Unexpected movement of
the workpiece may result in personal injury.
j) Make sure you are in a stable position and able to control the tool while releasing the
tool from the workpiece. A loss of control upon releasing the tool from the workpiece may
result in personal injury.
k) Keep your hands out of the drilling area while the tool is running. Contact with rotating
parts or chips may result in personal injury.
l) Make sure the bit is rotating before feeding into the workpiece. Otherwise the accessory
may become jammed in the workpiece causing unexpected movement of the workpiece and
personal injury.
m) Do not use excessive feed force while drilling. Use of excessive feed force may cause
the magnetic base to release from the workpiece, causing unexpected movement of the tool
or workpiece and personal injury.
n) Avoid generating long chips by regularly interrupting downward pressure. Sharp metal
chips may cause entanglement and personal injuries.
o) Never remove chips from the drilling area while the tool is running. To remove chips,
move the bit away from the workpiece, switch off the drill motor and wait for the bit
to stop moving. Use tools such as a brush or hook to remove chips. Contact with
rotating parts or chips may result in personal injury.
p) When performing drilling that requires the use of cutting fluid, route the cutting fluid
away from the operator’s work area or use a liquid collection device. Such
precautionary measures keep the operator’s work area dry and reduce the risk of electric
shock.
q) When the bit is jammed, stop applying downward pressure and turn off the tool.
Investigate and take corrective actions to eliminate the cause of bit jamming.
r) When restarting a drill in the workpiece, check that the bit rotates freely before
starting. If the bit is bound it may not start, may overload the tool, or may cause the drill
stand release from the workpiece.
s) Do not deactivate the magnetic base until the tool is turned off and the bit has come
to a complete stop. Premature deactivation of the magnetic base may cause unexpected
movement of the tool or workpiece and personal injury.
8.14.2 a) Addition:
101) For separable magnetic drill stands, instructions indicating the appropriate drill
unit(s) for use, such as by a catalog number, series identification or the equivalent;
102) Instruction for surface preparation of the workpiece and the base of the magnetic drill
stand;
103) Instructions for securing the magnetic drill stand to the workpiece;
104) Instruction for assembling the drill unit to the magnetic drill stand, if applicable.
8.14.2 b) Addition:
101) Information about which drill chucks may be used with the tool and instruction on how to
fit them;
102) Information about which drill bits and cutters may be used with the tool;
103) Information on how to use the supplementary means of attachment between the
magnetic drill stand and the workpiece as required in 21.101.
8.14.2 c) Addition:
101) Information about maintenance and replacement of the supplementary means of
attachment between the magnetic drill stand and the workpiece.
9 Protection against access to live parts
IEC 62841-1:2014, Clause 9 is applicable.
10 Starting
IEC 62841-1:2014, Clause 10 is applicable.
11 Input and current
IEC 62841-1:2014, Clause 11 is applicable.
12 Heating
IEC 62841-1:2014, Clause 12 is applicable, except as follows.
12.1 Addition:
Prior to the test, the magnetic drill stand is placed on a steel plate with
– a thickness of (12 ± 2) mm; and
– a length and width of at least the same size as the base of the magnetic drill stand.
The test may be conducted with the drill unit mechanically separated from, but electrically
connected to, the magnetic drill stand.
12.2.1 Replacement:
The load conditions for the heating test of 12.2 are as follows.
For magnetic drills that are not equipped with a separable magnetic drill stand, the tool is
operated with a torque load applied such that rated input or rated current of the magnetic
drill stand is drawn continuously for a period of 30 min.
For magnetic drills that are equipped with a separable magnetic drill stand, the tool is
operated with a torque load applied such that input or current marked on the drill unit is drawn
continuously for a period of 30 min.
13 Resistance to heat and fire
IEC 62841-1:2014, Clause 13 is applicable.
– 12 – IEC 62841-3-15:2024 © IEC 2024
14 Moisture resistance
IEC 62841-1:2014, Clause 14 is applicable, except as follows.
14.3 Replacement:
Liquid systems or spillage of liquid shall not subject the user to an increased risk of electrical
shock.
If the tool complies with at least IPX4 in accordance with IEC 62841-1:2014, 14.2, this
requirement is deemed to be fulfilled.
For tools not complying with at least IPX4 in accordance with IEC 62841-1:2014, 14.2,
compliance is checked by the following test:
The residual current device, if any, shall be disabled during the test. Electrical components,
covers and other parts which can be removed without the aid of a tool are removed, except
those fulfilling the test of IEC 62841-1:2014, 21.22.
The tool is prepared with approximately 1,0 % NaCl solution in the following modes if applicable:
– as described in 8.14.2;
– the liquid container of the tool is completely filled, and a further quantity, equal to 15 % of
the capacity of the container, or 0,25 l, whichever is the greater, is poured in steadily over
+0
a period of 60 s, while the tool is resting in its filling position according to 8.14.2 d);
−10
– a detachable liquid container is filled completely and mounted and dismounted 10 times on
the tool.
In each applicable preparation, the tool is operated at rated voltage in each position consistent
with the instructions in accordance with 8.14.2 b) for 1 min while monitoring the leakage current
in accordance with IEC 62841-1:2014, Clause C.3. During the test the leakage current shall not
exceed:
– 2 mA for a class II tool;
– 5 mA for a class I tool.
Following this test, the tool shall meet the electric strength test of IEC 62841-1:2014,
Clause D.2 between live parts and accessible parts after being allowed to dry for 24 h at
ambient temperature.
15 Resistance to rusting
IEC 62841-1:2014, Clause 15 is applicable.
16 Overload protection of transformers and associated circuits
IEC 62841-1:2014, Clause 16 is applicable.
17 Endurance
IEC 62841-1:2014, Clause 17 is applicable, except as follows.
17.2 Replacement of the fifth paragraph:
Magnetic drills are operated for 12 h at a voltage equal to 1,1 times the highest rated voltage
or 1,1 times the upper limit of the rated voltage range, and then for 12 h at a supply voltage
equal to 0,9 times the lowest rated voltage or 0,9 times the lower limit of the rated voltage
range. The 12 h of operation need not be continuous. During the test, the tool is placed in three
different positions, the operating time, at each test voltage, being approximately 4 h for each
position.
18 Abnormal operation
IEC 62841-1:2014, Clause 18 is applicable, except as follows.
18.8 Replacement of Table 4:
Table 4 – Required performance levels
Type and purpose of SCF Minimum performance level
(PL)
Power switch – prevent unwanted activation of drill unit b
Power switch – provide desired deactivation of drill unit b
Provide desired direction of rotation Not an SCF
Any electronic control to pass the test of 18.3 a
Prevent exceeding thermal limits as in 18.4 and 18.5.3 a
Magnetic means actuator as in 21.102.1– prevent unwanted deactivation a
Magnetic means actuator as in 21.102.1– prevent unwanted activation Not an SCF
Magnetic means actuator as in 21.102.1 – provide desired switch-off Not an SCF
Function to have two separate and dissimilar actions before the magnetic a
means is deactivated as required by 21.102.2
Prevent operation of the spindle of the drill unit unless the magnetic means b
of the magnetic drill stand is activated as in 21.103
Prevent operation of the spindle if the power switch is in the “on” position b
when the magnetic means of the magnetic drill stand is activated as in
21.103
Prevent self-resetting as required in 23.3 a
NOTE 101 In Europe (EN IEC 62841-3-15), the following additional b
requirement applies:
Restart prevention as required by 21.18.2.1
19 Mechanical hazards
IEC 62841-1:2014, Clause 19 is applicable, except as follows.
19.1 Addition:
The test with probe B of IEC 61032:1997 does not apply to the chuck and any accessory that
may be inserted.
19.6 This subclause of IEC 62841-1:2014 is not applicable.
19.7 This subclause of IEC 62841-1:2014 is not applicable.
– 14 – IEC 62841-3-15:2024 © IEC 2024
19.8 This subclause of IEC 62841-1:2014 is not applicable.
19.101 Chuck keys, if any, shall be so designed that they drop out of position when released.
This requirement does not exclude the provision of clips for holding the key in place when not
in use; metal clips fixed to the flexible cable or cord are not allowed.
Compliance is checked by inspection and by manual test.
The key is inserted in the chuck and, without tightening, the tool is turned such that the key is
facing down. The key shall fall out within 2 s.
19.102 The tool shall be so designed that unintentional separation of the drill unit from the
magnetic drill stand is prevented.
Compliance is checked by the following test.
The tool is configured such that any adjustments for positioning and feeding the drill unit in
accordance with 8.14.2 are loosened, excluding any means for securing the drill unit to a
separable magnetic drill stand. With the tool oriented in the most unfavourable position and
while adding an additional mass of (0,2 ± 0,02) times the mass of the drill unit for (60 ± 5) s,
the drill unit shall not separate from the magnetic drill stand.
19.103 The magnetic device for fixing the magnetic drill stand to the workpiece shall be able
to withstand the forces during the drilling process in the event of a jammed drill bit.
Compliance is checked by the following test.
The magnetic drill is centred on a steel plate
– made of S235 material in accordance with ISO 630-2:2021; and
– with the minimum thickness in accordance with IEC 62841-1:2014, 8.14.2 b) 4); and
– with a length and width that is at least twice that of the base of the magnetic drill stand.
The output spindle of the magnetic drill is coupled to a stalling device. If the tool is equipped
with a gear selection, the gear resulting in the highest torque shall be chosen. If the tool is
equipped with an adjustable clutch, this shall be adjusted to the highest torque setting. The tool
shall come to full speed and then stopped by the stalling device within 45° to 90° of spindle
rotation. If the stalling device stops the movement of the spindle in less than 45° and the tool
still complies with the acceptance criteria below, then this is considered to be an acceptable
test result. The stall is maintained for (3 ± 0,5) s. Following this test, the tool is maintained in
the stalled position and the power switch is then switched in the "on" position for (1 ± 0,2) s
and then switched in the "off" position for (60 ± 5) s a total of 3 times.
NOTE 101 An example of a method to measure the rotation of the spindle is the use of a high-speed camera.
While conducting the test, care shall be taken such that the operator is outside the radius of
the potential movement of the tool.
During the test, the magnetic drill stand shall not rotate by more than 120°.
20 Mechanical strength
IEC 62841-1:2014, Clause 20 is applicable, except as follows.
20.5 This subclause of IEC 62841-1:2014 is not applicable.
20.101 Strength of the supplementary attachment means
The supplementary means of attachment between the magnetic drill stand and the workpiece,
as required in 21.101, shall have adequate mechanical strength.
Compliance is checked by the following test.
The tool is attached to a mounting means such as a steel plate, such that the tool is hanging
upside down from the mounting means, with the magnetic means of the magnetic drill stand
activated in accordance with 8.14.2 a) 103). The mounting means shall be constructed in a way
to not influence the test result, for example due to sharp edges. The tool is then additionally
secured to the mounting means using the supplementary attachment means between the
magnetic drill stand and the workpiece, as required in 21.101, in accordance with
8.14.2 b) 103).
The magnetic means of the magnetic drill stand is then deactivated, so that the tool is only
secured to the mounting means by the supplementary attachment means. A mass of
(3 ± 0,1) times the mass of the tool is then gradually applied to the tool and held for a duration
of (10 ± 0,5) min. Care shall be taken to apply the mass in a location on the tool that best
distributes the load evenly.
During the test, the tool shall not become detached from the mounting means.
21 Construction
IEC 62841-1:2014, Clause 21 is applicable, except as follows.
21.15 Addition:
This subclause of IEC 62841-1:2014 is not applicable for tools employing liquid systems that
are not pressurized and are not routed through an electrical enclosure.
21.18.1 This subclause of IEC 62841-1:2014 is not applicable.
21.18.2.1 This subclause of IEC 62841-1:2014 is not applicable.
NOTE 101 In Europe (EN IEC 62841-3-15), this subclause of Part 1 is applicable and the following requirement
applies:
The drill unit shall not restart after an interruption of the mains supply without releasing and re-actuating the power
switch. Reactivation of an electromagnet, if any, after an interruption of the mains supply is permitted.
Compliance is checked by inspection.
21.18.2.2 Replacement:
The drill unit shall be capable of being turned off by the operator with a single straight-line
motion.
Compliance is checked by manual test.
21.18.2.4 Replacement:
A power switch with a push-pull actuator shall be turned off by an inward push.
Compliance is checked by inspection.
– 16 – IEC 62841-3-15:2024 © IEC 2024
21.30 This subclause of IEC 62841-1:2014 is not applicable.
21.35 This subclause of IEC 62841-1:2014 is not applicable.
21.101 Supplementary attachment means
Magnetic drills shall be provided with a supplementary means of attachment between the
magnetic drill stand and the workpiece, such as a safety strap or a safety chain, designed to
prevent the magnetic drill stand from falling in the event of a
– failure of; or
– loss of power to
the magnetic means of the magnetic drill stand.
NOTE 101 The strength requirements of the supplementary means of attachment between the magnetic drill stand
and the workpiece are specified in 20.101.
Compliance is checked by inspection.
21.102 Magnetic means actuator
21.102.1 General
Magnetic drills shall be provided with a magnetic means actuator that activates and
deactivates the magnetic means of the magnetic drill stand. The magnetic means actuator
shall be independent of the power switch actuator.
The magnetic means of the magnetic drill stand shall not be activated or deactivated by the
power switch actuator.
Compliance is checked by inspection and by manual test.
21.102.2 Inadvertent deactivation of the magnetic means
The magnetic means actuator shall be so located, designed or guarded that inadvertent
deactivation of the magnetic means of the magnetic drill stand is unlikely to occur.
It shall either not be possible to deactivate the magnetic means of the magnetic drill stand
when a rigid sphere with a diameter of (100 ± 1) mm is applied to the magnetic means actuator
in any direction with a single linear motion;
or
two separate and dissimilar actions shall be necessary before the magnetic means is
deactivated (e.g. a magnetic means actuator which has to be pushed in before it can be moved
laterally to deactivate the magnetic means). It shall not be possible to achieve these two
actions with a single grasping motion or a straight line motion.
Compliance is checked by inspection and by manual test.
21.103 Operation of the drill unit spindle
It shall not be possible to operate the spindle of the drill unit unless the magnetic means of
the magnetic drill stand is activated.
In addition, if the power switch is in the "on" position when the magnetic means of the
magnetic drill stand is activated, the spindle of the drill unit shall not operate. If the power
switch is then switched to the "off" position and back to the "on" position, the spindle of the
drill unit may operate.
Compliance is checked by inspection and by manual test.
22 Internal wiring
IEC 62841-1:2014, Clause 22 is applicable, except as follows.
22.6 Modification:
The rate of flexing for the test is a minimum of 1 per minute.
23 Components
IEC 62841-1:2014, Clause 23 is applicable, except as follows.
23.1.10.1 Addition:
Switches used to activate and deactivate the magnetic means of the magnetic drill stand
shall fulfil the same requirements as for power switches. The declared specific load in
accordance with IEC 61058-1:2008, 7.1.2.5 shall be based upon the load conditions in the
electrical circuit of the magnetic m
...
