IEC 60730-2-12:2015

Automatic electrical controls - Part 2-12: Particular requirements for electrically operated door locks

IEC 60730-2-12:2015 applies to electrically operated door locks for use in, on or in association with equipment, including equipment for heating, air-conditioning and similar applications. The equipment may use electricity, gas, oil, solid fuel, solar thermal energy, etc., or a combination thereof. This standard also applies to electrically operated door locks for equipment that may be used by the public, such as equipment intended to be used in shops, offices, hospitals, farms and commercial and industrial applications. This standard does not apply to electrically operated door locks intended exclusively for industrial process applications unless explicitly mentioned in the equipment standard. This standard does not apply to electrically operated door locks intended for security access applications. It was established on the basis of the fifth edition (2013) of that publication. Consideration may be given to future editions of, or amendments to, IEC 60730-1. This third edition cancels and replaces the second edition published in 2005. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- aligns the text with IEC 60730-1, Edition 5;
- modifies requirements for Class B control function (H.27.1.2.2);
- modifies requirements for Class C control function (H.27.1.2.3) and
- modifies requirements for faults during safety shut-down. Key words: Locks, Door Locks, Control Systems
This publication is to be read in conjunction with IEC 60730-1:2013.

Dispositifs de commande électrique automatiques - Partie 2-12: Exigences particulières pour les serrures électriques de portes

l'IEC 60730-2-12:2015 s'applique aux serrures électriques de portes destinées à être utilisées dans, sur ou avec du matériel, y compris des équipements pour des applications comme le chauffage, le conditionnement d'air et les applications analogues. Le matériel peut utiliser l'électricité, le gaz, le pétrole, des combustibles solides, l'énergie thermique solaire, etc., ou une combinaison de ces sources d'énergie. La présente norme s'applique également aux serrures électriques de portes du matériel qui peut être utilisé par le public, par exemple le matériel destiné à être utilisé dans les magasins, bureaux, hôpitaux, exploitations agricoles, ainsi que dans les applications commerciales et industrielles. Sauf indication contraire dans la norme du matériel, la présente norme ne s'applique pas aux serrures électriques de portes destinées exclusivement aux applications industrielles. La présente norme ne s'applique pas aux serrures électriques de portes conçues pour des applications d'accès sécurisé. Elle a été créée sur la base de la cinquième édition (2013) de cette publication. On pourra envisager de futures éditions ou modifications de la I’IEC 60730-1. Cette troisième édition annule et remplace la deuxième édition parue en 2005. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
alignement du texte sur la 5e édition de l'IEC 60730-1;
modification des exigences relatives à la fonction de commande de classe B (H.27.1.2.2);
modification des exigences relatives à la fonction de commande de classe C (H.27.1.2.3);
modification des exigences relatives aux pannes lors d'un arrêt de sécurité.

General Information

• Status: Published
• Publication Date: 14-Apr-2015
• ICS: 29.060.10 - Wires
• ICS: 97.120 - Automatic controls for household use
• Technical Committee: TC 72 - Automatic electrical controls
• Drafting Committee: WG 6 - TC 72/WG 6
• Current Stage: PPUB - Publication issued
• Start Date: 15-Apr-2015
• Completion Date: 30-Apr-2015

Relations

• Revised: IEC 60730-2-12:2025 - Automatic electrical controls - Part 2-12: Particular requirements for electrically operated door locks
• Effective Date: 10-May-2024
• Revises: IEC 60730-2-12:2005 - Automatic electrical controls for household and similar use - Part 2-12: Particular requirements for electrically operated door locks
• Effective Date: 05-Sep-2023

Overview

IEC 60730-2-12:2015 - Automatic electrical controls, Part 2-12 - specifies particular requirements for electrically operated door locks used in or in association with equipment (e.g., heating, air‑conditioning and similar appliances). This third edition (2015) updates the previous edition and aligns the requirements with IEC 60730-1:2013 (Edition 5). It covers inherent safety, operating values, operating sequences and test methods for door locks up to rated voltages of 690 V a.c. or 600 V d.c., and is intended for equipment that may be used by the public (shops, offices, hospitals, farms, commercial/industrial settings). It does not apply to security access locks or door locks exclusively for industrial process applications unless the equipment standard explicitly includes them.

Key topics and technical requirements

• Scope and definitions: clear definitions for electrically operated door locks, locking, drop‑out value, locking/unlocking delays, locking force and locking security.
• Safety and functional requirements: requirements for inherent safety, operating values and safe operating sequences when door locks protect users or equipment.
• Testing and verification: endurance, mechanical strength, electrical strength and insulation resistance, moisture/dust resistance, heating, environmental stress and manufacturing deviation/drift tests.
• Electrical protection: protection against electric shock, provisions for protective earthing, terminals and terminations.
• EMC and immunity: emission and immunity requirements to ensure proper operation in the intended electromagnetic environment.
• Components and construction: constructional requirements, resistance to heat/fire/tracking, corrosion resistance, and requirements for threaded parts and connections.
• Electronic elements: special provisions for door locks incorporating electronics (Annex H) and thermistor‑based devices (Annex J).
• Classification and information: rating, classification, required documentation and marking for safe installation and maintenance.
• Modifications in Edition 3: alignment with IEC 60730‑1 Edition 5 and modified requirements for Class B and Class C control functions and fault behavior during safety shut‑down.

Applications

IEC 60730-2-12 is intended for electrically operated door locks that prevent access or control operation of equipment powered by electricity, gas, oil, solid fuel, solar thermal energy or combinations thereof. Typical use cases include door locks integrated into appliances and equipment where door control is safety‑relevant (e.g., equipment doors, covers or lids used by the public or lay operators).

Who should use this standard

• Appliance and equipment designers and manufacturers (heating, HVAC, domestic and commercial appliances)
• Product safety and compliance engineers ensuring conformity with automatic electrical control requirements
• Test laboratories and certification bodies performing type testing and conformity assessment
• Suppliers of door lock mechanisms and control systems integrating locking functions

Related standards

• IEC 60730-1:2013 (general requirements for automatic electrical controls) - to be read in conjunction with Part 2-12.
• Security‑access lock standards (IEC TC 79) - for locks intended for access control/security applications.

Keywords: IEC 60730-2-12, electrically operated door locks, door locks, locks, control systems, automatic electrical controls, appliance safety, EMC, testing, certification.

Standards Content (Sample)

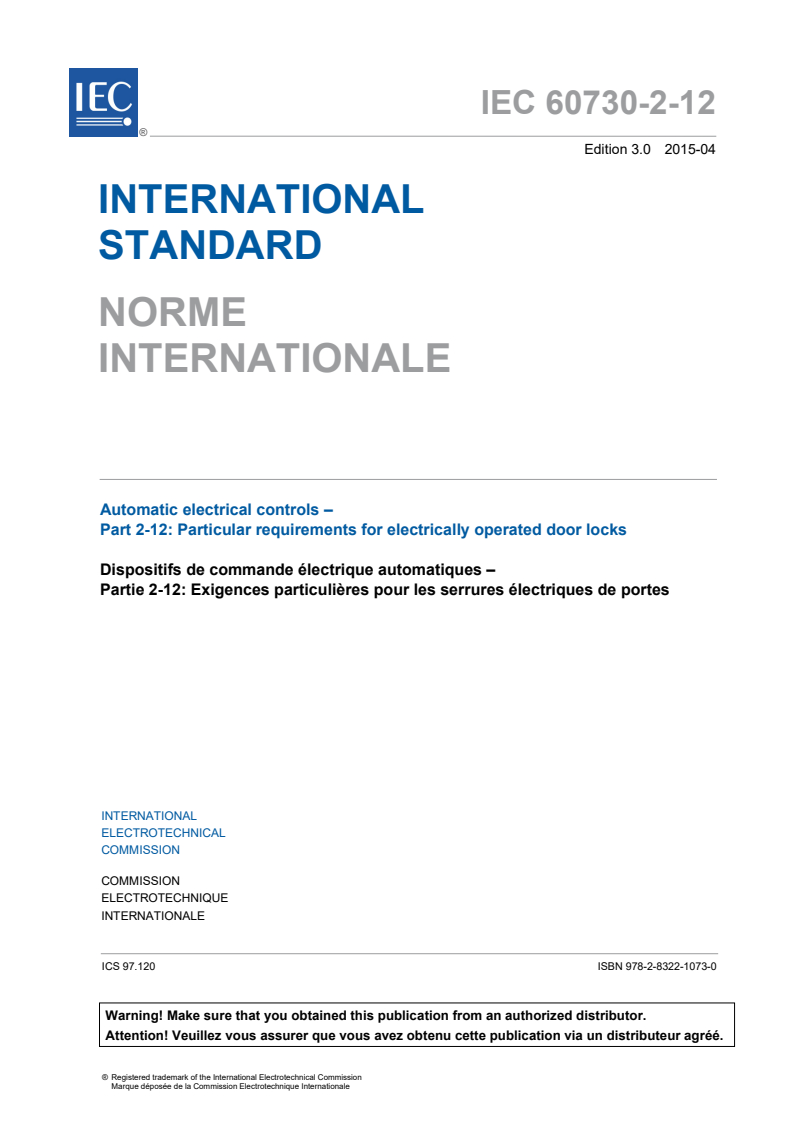

IEC 60730-2-12 ®
Edition 3.0 2015-04
INTERNATIONAL
STANDARD
Automatic electrical controls –
Part 2-12: Particular requirements for electrically operated door locks
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 60730-2-12 ®
Edition 3.0 2015-04
INTERNATIONAL
STANDARD
Automatic electrical controls –

Part 2-12: Particular requirements for electrically operated door locks

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 97.120 ISBN 978-2-8322-2586-8

– 2 – IEC 60730-2-12:2015 © IEC 2015

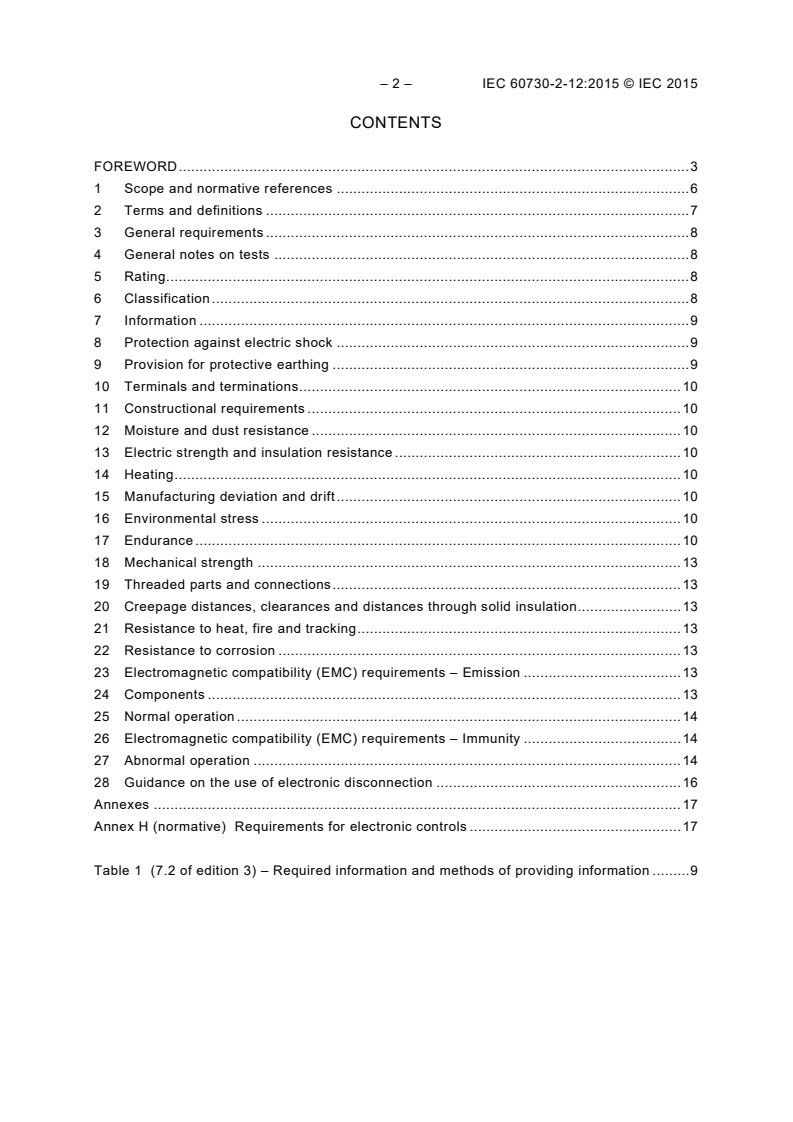

CONTENTS
FOREWORD . 3
1 Scope and normative references . 6
2 Terms and definitions. 7
3 General requirements . 8
4 General notes on tests . 8
5 Rating . 8
6 Classification . 8
7 Information . 9
8 Protection against electric shock . 9
9 Provision for protective earthing . 9
10 Terminals and terminations . 10
11 Constructional requirements . 10
12 Moisture and dust resistance. 10
13 Electric strength and insulation resistance . 10
14 Heating . 10
15 Manufacturing deviation and drift. 10
16 Environmental stress . 10
17 Endurance . 10
18 Mechanical strength . 13
19 Threaded parts and connections . 13
20 Creepage distances, clearances and distances through solid insulation . 13
21 Resistance to heat, fire and tracking . 13
22 Resistance to corrosion. 13
23 Electromagnetic compatibility (EMC) requirements – Emission . 13
24 Components . 14
25 Normal operation . 14
26 Electromagnetic compatibility (EMC) requirements – Immunity . 14
27 Abnormal operation . 14
28 Guidance on the use of electronic disconnection . 16
Annexes . 17
Annex H (normative) Requirements for electronic controls . 17

Table 1 (7.2 of edition 3) – Required information and methods of providing information . 9

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
AUTOMATIC ELECTRICAL CONTROLS –

Part 2-12: Particular requirements for
electrically operated door locks

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60730-2-12 has been prepared by technical committee 72:
Automatic electrical controls.
This third edition cancels and replaces the second edition published in 2005. This edition
constitutes a technical revision. This edition includes the following significant technical changes
with respect to the previous edition:
a) aligns the text with IEC 60730-1, Edition 5;
b) modifies requirements for Class B control function (H.27.1.2.2);
c) modifies requirements for Class C control function (H.27.1.2.3);
d) modifies requirements for faults during safety shut-down.

– 4 – IEC 60730-2-12:2015 © IEC 2015
The text of this standard is based on the following documents:
FDIS Report on voting
72/981/FDIS 72/993/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 is intended to be used in conjunction with IEC 60730-1. It was established on the
basis of the fifth edition (2013) of that publication. Consideration may be given to future
editions of, or amendments to, IEC 60730-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60730-1 so as to convert
that publication into the IEC standard: Particular requirements for electrically operated door
locks.
Where this part 2 states "addition", "modification", or "replacement", the relevant requirement,
test specification or explanatory matter in part 1 should be adapted accordingly.
Where no change is necessary, this part 2 indicates that the relevant clause or subclause
applies.
In the development of a fully international standard, it has been necessary to take into
consideration the differing requirements resulting from practical experience in various parts of
the world and to recognize the variation in national electrical systems and wiring rules.
The “in some countries” notes regarding differing national practices are contained in the
following subclauses:
17.1.3.1
17.7.1
17.7.7
17.10.4
27.2.3.1
In this publication:
1) The following print types are used:
– Requirements proper: in roman type;
– Test specifications: in italic type;
– Notes; in small roman type;
– Words defined in Clause 2: bold.
2) Subclauses, notes, tables and figures which are additional to those in part 1 are numbered
starting from 101; additional annexes are lettered AA, BB, etc.
A list of all parts of the IEC 60730 series, published under the title Automatic electrical controls
can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

– 6 – IEC 60730-2-12:2015 © IEC 2015
AUTOMATIC ELECTRICAL CONTROLS –

Part 2-12: Particular requirements for
electrically operated door locks

1 Scope and normative references
This clause of Part 1 is applicable except as follows:
1.1 Scope
Replacement:
This part of IEC 60730 applies to electrically operated door locks for use in, on or in
association with equipment, including equipment for heating, air-conditioning and similar
applications. The equipment may use electricity, gas, oil, solid fuel, solar thermal energy, etc.,
or a combination thereof.
NOTE 1 Throughout this standard, the word "equipment" includes "appliance" and "control system".
This standard also applies to electrically operated door locks for equipment that may be
used by the public, such as equipment intended to be used in shops, offices, hospitals, farms
and commercial and industrial applications.
This standard does not apply to electrically operated door locks intended exclusively for
industrial process applications unless explicitly mentioned in the equipment standard.
This standard does not apply to electrically operated door locks intended for security access
applications.
NOTE 2 Standards that cover these applications are under IEC Technical Committee 79.
1.1.1 Replacement:
This standard applies to the inherent safety, to the operating values, operating sequences
where such are associated with equipment protection, and to the testing of door locks used in,
or in association with equipment.
This standard is also applicable to door locks for appliances within the scope of IEC 60335-1.
NOTE Throughout this standard, the word “door” means “door, cover or lid”. The words “door lock” mean
“electrically operated door lock”.
This standard is also applicable to individual door locks utilized as part of a control system or
door locks which are mechanically integral with multi-functional controls having non-electrical
outputs or employing motors.
Door locks for equipment not intended for normal household use, but which nevertheless may
be used by the public, such as equipment intended to be used by laymen in shops, in light
industry and on farms, are within the scope of this standard.
This standard is also applicable to the functional safety of low complexity safety related
systems and controls employing door locks as the actuating element.

1.1.2 Replacement:
This standard applies to door locks with electrical circuits and control circuits which are,
for example, operated by bimetals, magnet coils, memory metals, pressure elements,
temperature-sensitive expansion elements or electronic elements.
1.1.3 Not applicable.
1.1.4 Replacement:
This standard applies to manual controls when such are electrically and/or mechanically
integral with door locks.
NOTE Requirements for manual switches not forming part of a door lock are contained in IEC 61058-1.
1.1.5 Replacement:
This standard applies to a.c. or d.c. powered door locks with a rated voltage not exceeding
690 V a.c. or 600 V d.c.
1.1.6 Replacement:
This standard does not take into account the response value of an automatic action of a
door lock, if such a response value is dependent upon the method of mounting the control in
the equipment. Where a response value is of significant purpose for the protection of the
user, or surroundings, the value defined in the appropriate equipment standard or as
determined by the manufacturer shall apply.
1.1.7 Replacement:
This standard applies also to door locks incorporating electronic devices, requirements for
which are contained in Annex H and door locks using thermistors, requirements for which are
contained in Annex J.
2 Terms and definitions
This clause of Part 1 is applicable except as follows:
2.2 Definitions of types of control according to purpose
Additional definition:
2.2.101
electrically operated door lock
incorporated or integrated electrically operated mechanism intended to control the door
locking in equipment by means of a mechanical output mechanism which physically secures a
door, cover or lid
2.3 Definitions relating to the function of controls
Additional definitions:
2.3.101
drop-out value
operating value at which the locking means is disengaged

– 8 – IEC 60730-2-12:2015 © IEC 2015
2.3.102
locking
mechanical action intended to block a door mechanism in such a way that opening of the door
is prevented under defined conditions
2.3.103
locking delay
period of time elapsing between the signal to lock and completion of the locking action
2.3.104
locking force
minimum mechanical force intended for the door lock to prevent opening of the door
2.3.105
locking security
condition in which the door lock either prevents an appliance door from being opened or
prevents the appliance from being operated, even if the door lock is damaged
2.3.106
unlocking delay
period of time elapsing between the signal to unlock and completion of the unlocking action
3 General requirements
This clause of Part 1 is applicable.
4 General notes on tests
This clause of Part 1 is applicable except as follows:
4.1 Conditions of test
4.1.1 Addition:
NOTE 101 An actual door or a suitable device simulating the door may be used for the tests of this standard.
5 Rating
This clause of Part 1 is applicable.
6 Classification
This clause of Part 1 is applicable except as follows:
6.3 According to their purpose
Additional subclauses:
6.3.101 – door locks;
6.3.101.1 – voltage sensing;
NOTE The design may include a voltage-sensitive heating element, a magnet coil or an electronic element.
6.3.101.2 – current sensing;
NOTE The design may include a current-sensitive heating element, a magnet coil or an electronic element.
6.3.101.3 – thermally operated;
NOTE Locking may be controlled either directly or indirectly by a temperature-sensitive element.
6.3.101.4 – pressure operated.
NOTE Latching may either be directly or indirectly controlled by pressure-sensitive elements.
6.4 According to features of automatic action
Additional subclause:
6.4.101 – locking security (Type 1.AA or 2.AA).
7 Information
This clause of Part 1 is applicable except as follows:
7.2 Methods of providing information
Table 1 (7.2 of edition 3) – Required information and methods of providing information
Addition:
Clause
Information or Method
subclause
101 Locking delay 2.3.103 X
102 Unlocking delay 2.3.106 X
103 Locking force (if declared) 2.3.104 X
18.101.1
104 Drop-out value 2.3.101 X
105 Effects on controlled outputs (if declared) 6.4.101 X
18.101.2
106 Method of operation for the test of Clause 17 17 X
Addition to Note i:
For door locks, limits of activating quantity are specified either in the applicable appliance standard, by the
appliance manufacturer or as declared by the door lock manufacturer (see 17.7 and 17.8).
Additional notes:
These are specified either in the applicable appliance standard, by the appliance manufacturer or by the
door lock manufacturer.
This provides for manufacturer declaration of the outputs which will result after failure of the door lock.

8 Protection against electric shock
This clause of Part 1 is applicable.
9 Provision for protective earthing
This clause of Part 1 is applicable.

– 10 – IEC 60730-2-12:2015 © IEC 2015
10 Terminals and terminations
This clause of Part 1 is applicable.
11 Constructional requirements
This clause of Part 1 is applicable.
12 Moisture and dust resistance
This clause of Part 1 is applicable.
13 Electric strength and insulation resistance
This clause of Part 1 is applicable.
14 Heating
This clause of Part 1 is applicable.
15 Manufacturing deviation and drift
This clause of Part 1 is applicable.
16 Environmental stress
This clause of Part 1 is applicable.
17 Endurance
This clause of Part 1 is applicable except as follows:
17.1.3 Test sequence and conditions
Replacement:
17.1.3.1 In general, the sequence of tests is:
– an ageing test specified in 17.6 (this test applies only to those actions classified as
Type 1.M or 2.M);
– an over-voltage test of automatic action at accelerated rate specified in 17.7 (in Canada
and the USA this test is replaced by the overload test);
– a test of automatic action at ac
...

IEC 60730-2-12 ®
Edition 3.0 2015-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Automatic electrical controls –
Part 2-12: Particular requirements for electrically operated door locks

Dispositifs de commande électrique automatiques –
Partie 2-12: Exigences particulières pour les serrures électriques de portes

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez
webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un
La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour
en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.

Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC Products & Services Portal - products.iec.ch

IEC 60730-2-12 ®
Edition 3.0 2015-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Automatic electrical controls –

Part 2-12: Particular requirements for electrically operated door locks

Dispositifs de commande électrique automatiques –

Partie 2-12: Exigences particulières pour les serrures électriques de portes

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 97.120 ISBN 978-2-8322-1073-0

– 2 – IEC 60730-2-12:2015 © IEC 2015
CONTENTS
FOREWORD . 3
1 Scope and normative references . 6
2 Terms and definitions . 7
3 General requirements . 8
4 General notes on tests . 8
5 Rating. 8
6 Classification . 8
7 Information . 9
8 Protection against electric shock . 9
9 Provision for protective earthing . 9
10 Terminals and terminations . 10
11 Constructional requirements . 10
12 Moisture and dust resistance . 10
13 Electric strength and insulation resistance . 10
14 Heating . 10
15 Manufacturing deviation and drift . 10
16 Environmental stress . 10
17 Endurance . 10
18 Mechanical strength . 13
19 Threaded parts and connections . 13
20 Creepage distances, clearances and distances through solid insulation . 13
21 Resistance to heat, fire and tracking . 13
22 Resistance to corrosion . 13
23 Electromagnetic compatibility (EMC) requirements – Emission . 13
24 Components . 13
25 Normal operation . 14
26 Electromagnetic compatibility (EMC) requirements – Immunity . 14
27 Abnormal operation . 14
28 Guidance on the use of electronic disconnection . 16
Annexes . 17
Annex H (normative) Requirements for electronic controls . 17

Table 1 (7.2 of edition 3) – Required information and methods of providing information . 9

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
AUTOMATIC ELECTRICAL CONTROLS –

Part 2-12: Particular requirements for
electrically operated door locks

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60730-2-12 has been prepared by technical committee 72:
Automatic electrical controls.
This third edition cancels and replaces the second edition published in 2005. This edition
constitutes a technical revision. This edition includes the following significant technical
changes with respect to the previous edition:
a) aligns the text with IEC 60730-1, Edition 5;
b) modifies requirements for Class B control function (H.27.1.2.2);
c) modifies requirements for Class C control function (H.27.1.2.3);
d) modifies requirements for faults during safety shut-down.

– 4 – IEC 60730-2-12:2015 © IEC 2015
The text of this standard is based on the following documents:
FDIS Report on voting
72/981/FDIS 72/993/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 is intended to be used in conjunction with IEC 60730-1. It was established on the
basis of the fifth edition (2013) of that publication. Consideration may be given to future
editions of, or amendments to, IEC 60730-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60730-1 so as to
convert that publication into the IEC standard: Particular requirements for electrically operated
door locks.
Where this part 2 states "addition", "modification", or "replacement", the relevant requirement,
test specification or explanatory matter in part 1 should be adapted accordingly.
Where no change is necessary, this part 2 indicates that the relevant clause or subclause
applies.
In the development of a fully international standard, it has been necessary to take into
consideration the differing requirements resulting from practical experience in various parts of
the world and to recognize the variation in national electrical systems and wiring rules.
The “in some countries” notes regarding differing national practices are contained in the
following subclauses:
17.1.3.1
17.7.1
17.7.7
17.10.4
27.2.3.1
In this publication:
1) The following print types are used:
– Requirements proper: in roman type;
– Test specifications: in italic type;
– Notes; in small roman type;
– Words defined in Clause 2: bold.
2) Subclauses, notes, tables and figures which are additional to those in part 1 are
numbered starting from 101; additional annexes are lettered AA, BB, etc.
A list of all parts of the IEC 60730 series, published under the title Automatic electrical
controls can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 60730-2-12:2015 © IEC 2015
AUTOMATIC ELECTRICAL CONTROLS –

Part 2-12: Particular requirements for
electrically operated door locks

1 Scope and normative references
This clause of Part 1 is applicable except as follows:
1.1 Scope
Replacement:
This part of IEC 60730 applies to electrically operated door locks for use in, on or in
association with equipment, including equipment for heating, air-conditioning and similar
applications. The equipment may use electricity, gas, oil, solid fuel, solar thermal energy, etc.,
or a combination thereof.
NOTE 1 Throughout this standard, the word "equipment" includes "appliance" and "control system".
This standard also applies to electrically operated door locks for equipment that may be
used by the public, such as equipment intended to be used in shops, offices, hospitals, farms
and commercial and industrial applications.
This standard does not apply to electrically operated door locks intended exclusively for
industrial process applications unless explicitly mentioned in the equipment standard.
This standard does not apply to electrically operated door locks intended for security
access applications.
NOTE 2 Standards that cover these applications are under IEC Technical Committee 79.
1.1.1 Replacement:
This standard applies to the inherent safety, to the operating values, operating sequences
where such are associated with equipment protection, and to the testing of door locks used in,
or in association with equipment.
This standard is also applicable to door locks for appliances within the scope of IEC 60335-1.
NOTE Throughout this standard, the word “door” means “door, cover or lid”. The words “door lock” mean
“electrically operated door lock”.
This standard is also applicable to individual door locks utilized as part of a control system
or door locks which are mechanically integral with multi-functional controls having non-
electrical outputs or employing motors.
Door locks for equipment not intended for normal household use, but which nevertheless may
be used by the public, such as equipment intended to be used by laymen in shops, in light
industry and on farms, are within the scope of this standard.
This standard is also applicable to the functional safety of low complexity safety related
systems and controls employing door locks as the actuating element.

1.1.2 Replacement:
This standard applies to door locks with electrical circuits and control circuits which are,
for example, operated by bimetals, magnet coils, memory metals, pressure elements,
temperature-sensitive expansion elements or electronic elements.
1.1.3 Not applicable.
1.1.4 Replacement:
This standard applies to manual controls when such are electrically and/or mechanically
integral with door locks.
NOTE Requirements for manual switches not forming part of a door lock are contained in IEC 61058-1.
1.1.5 Replacement:
This standard applies to a.c. or d.c. powered door locks with a rated voltage not exceeding
690 V a.c. or 600 V d.c.
1.1.6 Replacement:
This standard does not take into account the response value of an automatic action of a
door lock, if such a response value is dependent upon the method of mounting the control in
the equipment. Where a response value is of significant purpose for the protection of the
user, or surroundings, the value defined in the appropriate equipment standard or as
determined by the manufacturer shall apply.
1.1.7 Replacement:
This standard applies also to door locks incorporating electronic devices, requirements for
which are contained in Annex H and door locks using thermistors, requirements for which are
contained in Annex J.
2 Terms and definitions
This clause of Part 1 is applicable except as follows:
2.2 Definitions of types of control according to purpose
Additional definition:
2.2.101
electrically operated door lock
incorporated or integrated electrically operated mechanism intended to control the door
locking in equipment by means of a mechanical output mechanism which physically secures
a door, cover or lid
2.3 Definitions relating to the function of controls
Additional definitions:
2.3.101
drop-out value
operating value at which the locking means is disengaged

– 8 – IEC 60730-2-12:2015 © IEC 2015
2.3.102
locking
mechanical action intended to block a door mechanism in such a way that opening of the door
is prevented under defined conditions
2.3.103
locking delay
period of time elapsing between the signal to lock and completion of the locking action
2.3.104
locking force
minimum mechanical force intended for the door lock to prevent opening of the door
2.3.105
locking security
condition in which the door lock either prevents an appliance door from being opened or
prevents the appliance from being operated, even if the door lock is damaged
2.3.106
unlocking delay
period of time elapsing between the signal to unlock and completion of the unlocking action
3 General requirements
This clause of Part 1 is applicable.
4 General notes on tests
This clause of Part 1 is applicable except as follows:
4.1 Conditions of test
4.1.1 Addition:
NOTE 101 An actual door or a suitable device simulating the door may be used for the tests of this standard.
5 Rating
This clause of Part 1 is applicable.
6 Classification
This clause of Part 1 is applicable except as follows:
6.3 According to their purpose
Additional subclauses:
6.3.101 – door locks;
6.3.101.1 – voltage sensing;
NOTE The design may include a voltage-sensitive heating element, a magnet coil or an electronic element.
6.3.101.2 – current sensing;
NOTE The design may include a current-sensitive heating element, a magnet coil or an electronic element.
6.3.101.3 – thermally operated;
NOTE Locking may be controlled either directly or indirectly by a temperature-sensitive element.
6.3.101.4 – pressure operated.
NOTE Latching may either be directly or indirectly controlled by pressure-sensitive elements.
6.4 According to features of automatic action
Additional subclause:
6.4.101 – locking security (Type 1.AA or 2.AA).
7 Information
This clause of Part 1 is applicable except as follows:
7.2 Methods of providing information
Table 1 (7.2 of edition 3) – Required information and methods of providing information
Addition:
Clause
Information or Method
subclause
101 Locking delay 2.3.103 X
102 Unlocking delay 2.3.106 X
103 Locking force (if declared) 2.3.104 X
18.101.1
104 Drop-out value 2.3.101 X
105 Effects on controlled outputs (if declared) 6.4.101 X
18.101.2
106 Method of operation for the test of Clause 17 17 X
Addition to Note i:
For door locks, limits of activating quantity are specified either in the applicable appliance standard, by the
appliance manufacturer or as declared by the door lock manufacturer (see 17.7 and 17.8).
Additional notes:
These are specified either in the applicable appliance standard, by the appliance manufacturer or by the
door lock manufacturer.
This provides for manufacturer declaration of the outputs which will result after failure of the door lock.

8 Protection against electric shock
This clause of Part 1 is applicable.
9 Provision for protective earthing
This clause of Part 1 is applicable.

– 10 – IEC 60730-2-12:2015 © IEC 2015
10 Terminals and terminations
This clause of Part 1 is applicable.
11 Constructional requirements
This clause of Part 1 is applicable.
12 Moisture and dust resistance
This clause of Part 1 is applicable.
13 Electric strength and insulation resistance
This clause of Part 1 is applicable.
14 Heating
This clause of Part 1 is applicable.
15 Manufacturing deviation and drift
This clause of Part 1 is applicable.
16 Environmental stress
This clause of Part 1 is applicable.
17 Endurance
This clause of Part 1 is applicable except as follows:
17.1.3 Test sequence and conditions
Replacement:
17.1.3.1 In general, the sequence of tests is:
– an ageing test specified in 17.6 (this test applies only to those actions classified as
Type 1.M or 2.M);
– an over-voltage test of automatic action at accelerated rate specified in 17.7 (in Canada
and the USA this test is replaced by the overload test);
– a test of automatic action at acceleration rate specified in 17.8;
– an over-voltage test of manual action at accelerated speed specified in 17.10 (in Canada
and the USA, this test is replaced by an overload test);
– a test of manual action as specified in 17.11.

17.3 Thermal conditions for the tests
Replacement:
17.3.1 The following thermal conditions apply to door locks:
– those parts which are accessible when the door lock is mounted in a declared manner
shall be exposed to normal room temperature;
– the mounting surface of the door lock shall be maintained between T and
s max
T +5 °C, or 1,05 times T , whichever is greater;
s max s max
– if the control does not cycle with a mounting surface temperature of T , then the test
s max
is conducted at (20 ± 5) °C.
17.3.2 Not applicable.
17.4 Manual and mechanical conditions for the tests
17.4.1 Replacement:
Manual actuation shall simulate operation of the door. Each operating cycle shall consist of
one closing and opening action of the door.
17.4.2 Replacement:
The speed of movement of the simulated door latch for the test shall be:
– (9 to 45) °/s for rotary actions;
– (5 to 25) mm/s for linear actions.
17.4.3 to 17.4.5 Not applicable.
17.7 Overvoltage (or overload test in Canada, the USA, and all countries using an
overload test) of automatic action at accelerated rate
Replace the existing title with the following new title:
17.7 Overvoltage (or, in Canada and the USA, overload) test of automatic action at
accelerated rate
17.7.1 Replacement:
The electrical conditions for automatically operated circuits, with the exception of the lock
control circuit of current sensing door locks, shall be those specified for overvoltage (or, in
Canada, China and the USA, overload) in 17.2.
The current for the control circuit of current sensitive door locks shall be that declared in
Table 1.
17.7.3 Replacement:
The method of operation and the operating sequence shall be as declared by the
manufacturer.
17.7.7 Replacement:
During the test, the locking means of the door lock shall be in its operating position.
NOTE In Canada and the USA, the number of cycles is 50.

– 12 – IEC 60730-2-12:2015 © IEC 2015
17.8 Test of automatic action at accelerated rate
Replacement:
17.8.1 The electrical conditions for all automatically operated circuits, with the exception of
the lock control circuit of current sensing door locks, shall be those specified in 17.2. The
current for the control circuit of current sensing door locks shall be that specified in 17.2.
17.8.2 The thermal conditions shall be those specified in 17.3.
17.8.3 The method of operation and the operating sequence shall be as declared by the
manufacturer.
17.8.4 The number of automatic cycles for the test is that declared in Table 1,
requirement 27, less the number of cycles specified in 17.7.
17.9 Test of automatic action at slow rate
Not applicable.
17.10 Overvoltage (or overload test in Canada USA and 17.10 all countries that use the
overload test) of manual action at accelerated speed
17.10.3 Replacement:
The method of operation and the operating sequence shall be as declared by the
manufacturer.
17.10.4 Replacement:
The number of manual cycles is either 10 % of the number declared in Table 1 or 100 cycles,
whichever is the smaller.
NOTE In Canada and the USA, the number of cycles is 50.
17.11 Test of manual action at slow speed
Replacement:
17.11.1 The electrical conditions for manually operated circuits shall be those specified in
17.2.
17.11.2 The thermal conditions shall be those specified in 17.3.
17.11.3 The method of operation and the operating sequence shall be as declared by the
manufacturer.
17.11.4 The number of manual cycles is that declared in Table 1, requirement 26, less the
number of cycles specified in 17.10.
17.12 Test of manual action at high speed
Not applicable.
17.13 Test of manual action at accelerated speed
Not applicable.
18 Mechanical strength
This clause of Part 1 is applicable except as follows:
Additional subclauses:
18.101 Locking tests
One sample shall be used for the tests of 18.101.1 and 18.101.2.
18.101.1 Locking force
Upon completion of the locking process, the declared locking force shall be applied, without
jerks, on the locking means for 1 min.
After this test, there shall be no evidence of mechanical damage to the door lock. The door
lock shall continue to operate as intended and shall comply with the requirements of Clauses
8 and 20.
18.101.2 Locking security
After the tests of 18.101.1, the locking force shall be increased at an even rate and without
jerks until unlocking occurs.
After this test, the door lock shall comply with the requirements of Clauses 8 and 20.
In addition, for door locks classified under 6.4.101, the outputs shall be as declared in
Table 1, requirement 105.
19 Threaded parts and connections
This clause of Part 1 is applicable.
20 Creepage distances, clearances and distances through solid insulation
This clause of Part 1 is applicable.
21 Resistance to heat, fire and tracking
This clause of Part 1 is applicable.
22 Resistance to corrosion
This clause of Part 1 is applicable.
23 Electromagnetic compatibility (EMC) requirements – Emission
This clause of Part 1 is applicable.
24 Components
This clause of Part 1 is applicable.

– 14 – IEC 60730-2-12:2015 © IEC 2015
25 Normal operation
This clause of Part 1 is applicable.
26 Electromagnetic compatibility (EMC) requirements – Immunity
This clause of Part 1 is applicable. See also Annex H.
27 Abnormal operation
This clause of Part 1 is applicable except as follows:
27.2.3 Blocked mechanical output test (abnormal temperature test)
Modification of the first paragraph and the following subclauses:
Electrically operated door locks with motors shall withstand the effects of blocked output
without exceeding the temperatures indicated in Table 26. Temperatures are measured by the
method specified in 14.7.1. This test is not conducted on electrically operated door locks
with motors where, when tested under blocked output conditions for 7 h, any protective
device, if provided, does not cycle under stalled conditions, and which do not exceed
temperature limits in Table 13.
27.2.3.1 Electrically operated door locks with motors are tested for 24 h with the output
blocked at rated voltage and in a room temperature in the range of 15 °C to 30 °C, the
resulting measured temperature being corrected to a 25 °C reference value.
NOTE In Canada and the USA, the test is conducted at the voltages indicated in 17.2.3.1 and 17.2.3.2.
27.2.3.3 During the test, power shall be continually supplied to the door lock.
27.2.3.4 Immediately upon completion of the test, the door lock shall be capable of
withstanding the electric strength test specified in Clause 13, without first applying the
humidity treatment of 12.2.
27.5 Not applicable.
Additional subclauses:
27.101 Test with disconnected phase on three phase electrically operated door locks
with motors
27.101.1 With any one phase disconnected, the electrically operated door lock with
motors is operated under normal operation and supplied at rated voltage. For asymmetrical
motor windings, the test is to be repeated until all phases have been singly opened.
27.101.1.1 The test duration shall be such that the first and second hour winding
temperatures are recorded or until temperatures stabilize, whichever is longer. Temperatures
are measured by the method specified in 14.7.1.
27.101.1.2 The temperature of the winding shall not exceed the temperatures indicated in
Table 26.
27.102 Running overload test
27.102.1 A running overload test is carried out on electrically operated door locks with
motors that are intended to be remotely or automatically controlled or liable to be operated
continuously in unattended mode. If present, overload protective devices relying on electronic
circuits to protect the motor windings, are also subjected to the running overload test.
27.102.2 The door lock is operated under normal operating condition, carrying its rated load
and supplied at rated voltage until the temperature of the motor windings stabilizes. The
protector or protective method shall not operate or open the circuit while the door lock is
operating under the above conditions.
27.102.2.1 For all electrically operated door locks with motors where the maximum trip
point in the sensing variable is not known or cannot be quickly determined (for example,
temperature sensing method, impedance protected motors, sensor-less motor protection
methods, position sensing, etc.), the load to the door lock is increased in increments of 10 %
of the rated value (torque, current, etc.) and operated until temperatures of the winding
stabilize. If the protector or the protective circuit does not function under this overload
condition, the load to the door lock is again increased by 10 % of the previous load setting
and the door lock is operated until temperatures of the windings stabilize. This process is
continued until the protective device or protective circuit operates.
When the protector or protective circuit operates, the load is slowly decreased until the
protector or protective circuit is not activated. The door lock is then run at this maximum load
until the temperature of the winding stabilizes.
Any mechanical protection such as a clutch shall be defeated for this test.
27.102.2.2 For electrically operated door locks with motors where the maximum trip point
in the sensing variable is known or can be quickly determined (for example, current sensing
methods), the load to the door lock is gradually increased, in a controlled manner, until the
protective device or protective circuit is activated. This is the load cut-off point and the
loading parameters (torque, current, etc.) shall be measured and recorded. Then, the load is
decreased slowly from the load cut-off point until the protector or protective circuit is not
activated. The door lock is then run at this maximum load until the temperature of the winding
stabilizes.
NOTE A brake dynamometer may be used to gradually increase the torque on the door lock shaft in a controlled
manner.
27.102.3 During the test, the maximum winding temperature prior to the functioning of the
protective device or protective circuit shall not exceed:
– 140 °C, for class 105 (A) winding insulation;
– 155 °C, for class 120 (E) winding insulation;
– 165 °C, for class 130 (B) winding insulation;
– 180 °C, for class 155 (F) winding insulation;
– 200 °C, for class 180 (H) winding insulation;
– 220 °C, for class 200 (N) winding insulation;
– 240 °C, for class 220 (R) winding insulation;
– 270 °C, for class 250 winding insulation.
NOTE If the load cannot be increased in appropriate steps, the motor and the protective electronics, if applicable,
may be removed from the door lock assembly and tested separately.
27.102.3.1 During the test, the maximum temperature recorded on insulating parts that
directly supports the motor shall not exceed 1,5 times the relevant values specified in
Clause 14.
– 16 – IEC 60730-2-12:2015 © IEC 2015
28 Guidance on the use of electronic disconnection
This clause of Part 1 is applicable.

Annexes
The annexes of Part 1 are applicable except as follows:
Annex H
(normative)
Requirements for electronic controls
This annex of Part 1 is applicable except as follows:
H.2 Terms and definitions
Additional definitions:
H.2.101.1
permanent operation
continuous monitoring of the protective function during the operation of the appliance or
system for longer than 24 h
Note 1 to entry: 24 h is considered the typical time period for fault assessment.
H.2.101.2
non-permanent operation
continuous monitoring of the protective function during the operation of the appliance or
system for less than 24 h
Note 1 to entry: 24 h is considered the typical time period for fault assessment.
H.6 Classification
H.6.18 According to classes of control functions
H.6.18.2 Addition:
H.6.18.2.101 Door locks with Type 2.AA action intended to prevent a hazardous condition
according to H.2.22.2 are classified as having class B control functions or class C control
functions.
H.6.18.3 Addition:
H.6.18.3.101 Door locks with Type 2.AA action that are used on self-cleaning ovens
intended to prevent a hazardous condition according to H.2.22.3 are classified as having
class C control functions.
– 18 – IEC 60730-2-12:2015 © IEC 2015
H.7 Information
Additional requirements to Table 1:
Information Clause or Method
subclause
H.27.1.2.2.2
107 Frequency of the defined state test function X
H.27.1.2.3.2
H.27.1.2.3.3
H.2.101.1
108 The control is for permanent operation or non-permanent operation X
H.2.101.2
H.27.1.2.2.2
H.27.1.2.3.2
H.11 Constructional requirements
H.11.12 Controls using software
H.11.12.2.6 Replacement:
NOTE The values declared in Table 1, requirement 71 may be given in the applicable appliance standard.
H.11.12.2.7 Addition:
NOTE 101 The values declared in Table 1 requirement 72 may be given in the applicable appliance standard.
H.23.1.2 Radio frequency emission
Addition:
Integrated and incorporated controls are not subjected to the tests of H.23.1.2, as the
results of these tests are influenced by the incorporation of the control into the equipment
and the use of measures to control emissions used therein. These tests may, however, be
carried out under declared conditions if so requested by the manufacturer.
H.26 Electromagnetic compatibility (EMC) requirements – Immunity
H.26.1 Addition:
Additionally, for Type 1.AA or 2.AA door locks, the ability of the door lock to physically secure
a door, cover or lid shall remain unaffected after each test. Auxiliary circuits and electronic
outputs shall comply with the requirements of H.26.15.
H.26.2 Replacement (including H.26.2.1 and H.26.2.2):
For door locks with Type 2, Type 1.AA or Type 2.AA action, compliance is checked by the
tests of H.26.4 to H.26.14 inclusive. For Type 1 door locks other than Type 1.AA, compliance
is checked by the tests of H.26.8 and H.26.9.
For integrated and incorporated door locks with Type 2, Type 1.AA and Type 2.AA action, with
the exception of H.26.5, the applicable tests are optional and are only performed if declared
by the manufacturer under Table 1, requirement 58a.
For integrated and incorporated Type 1 door locks other than Type 1.AA, compliance is
checked by the tests of H.26.8 and H.26.9 if declared by the manufacturer under Table 1,
requirement 58a.
The tests of H.26.4 to H.26.14 are performed with the door lock in the locked and unlocked
condition.
H.26.6 Test of influence of voltage unbalance
Not applicable.
H.26.7 Test of the influence of d.c. in a.c. networks
Replacement:
NOTE Under consideration for type 2 door locks.
H.26.8 Surge immunity test
H.26.8.3 Test procedure
Replacement:
The test apparatus and procedure shall be as described in IEC 61000-4-5. The door lock shall
be connected to an appropriate source of supply operating at the rated voltage with an
impulse generator connected across the terminals.
The door lock is subjected to five impulses of each polarity, positive and negative (+,-),
applied between the two power supply terminals and between each supply terminal and
neutral at intervals not less than 60 s.
Additional subclause:
H.26.8.3.101 60 % of the tests are performed when the door lock is locked and 40 % are
performed when it is not.
H.26.9 Electrical fast transient/burst test
H.26.9.2 Test levels
Modification to the Operating conditions line:
Replace the existing text “as in the relevant part 2” with “see H.26.9.3”.
H.26.9.3 Test procedure
Addition:
The relevant operating modes are when the door lock is in the locked position and when it is
not.
H.26.10 Ring wave immunity test
H.26.10.5 Test procedure
Additional subclause:
H.26.10.5.101 60 % of the tests are performed when the door lock is locked and 40 % are
performed when it is not.
– 20 – IEC 60730-2-12:2015 © IEC 2015
H.26.12 Radio-frequency electromagnetic field immunity
H.26.12.2 Immunity to conducted disturbances
H.26.12.2.2 Test procedure
Additional subclause:
H.26.12.2.2.101 The relevant operating modes are when the door lock is in the locked
position and when it is not.
H.26.12.3 Immunity to radiated disturbances
H.26.12.3.2 Test procedure
Additional subclause:
H.26.12.3.2.101 The relevant operating modes are when the door lock is in the locked
position and when it is not.
H.26.13 Test of influence of supply frequency variations
H.26.13.3 Test procedure
Additional subclause:
H.26.13.3.101 The relevant operating modes are when the door lock is in the locked position
and when it is not.
H.26.14 Power frequency magnetic field immunity test
H.26.14.3 Test procedure
Additional subclause:
H.26.14.3.101 The test is performed when the door lock is in the locked position and when it
is not.
H.26.15 Evaluation of compliance
H.26.15.4 Replacement:
After the tests, if the door lock is operational, the door lock shall continue to operate as
intended with no loss of protective function and the operation of the protective function shall
be verified by the requirements of Clause 15. If the door lock is not operational, the locking
security defined in 2.3.105 shall not be affected.
H.27 Abnormal operation
This clause of Part 1 is applicable except as follows:
H.27.1.1.2 Replace the first line by:
The door lock shall be operated under the following conditions.
Replace item e) by:
e) The door lock shall be tested when it is locked and when it is not.

H.27.1.1.3
This subclause of Part 1 is applicable except item c).
H.27.1.2.2 Class B control function
This clause of Part 1 is applicable except as follows:
H.27.1.2.2.2 First fault
Replace item b) as follows:
b) the control shall react within the fault reaction time (see Table 1, requirement 91) by
proceeding to the defined state provided that a subsequent restart under the same fault
conditions results in the system returning to the same defined state condition;
Replace item c) as follows:
c) for systems with non-permanent operation, the control shall continue to operate as
intended, the fault shall be detected during the next start-up sequence. The compliance
criteria shall be a) or b).
NOTE Requirements for systems with permanent operation are under consideration.
Replace item d) as follows:
d) the control shall continue to operate as intended.
...
