IEC 62379-5-1:2014

Common control interface for networked digital audio and video products - Part 5-1: Transmission over networks - General

IEC 62379-5-1:2014 specifies aspects of the common control interface that are common to all network technologies, including setting up and tearing down of sessions and the service provided by the network.

Interface de commande commune pour produits audio et vidéo numériques connectés en réseau - Partie 5-1: Transmission sur des réseaux - Généralités

L'IEC 62379-5-1:2014 spécifie des aspects de l'interface de commande commune, qui sont communs à toutes les technologies de réseau, incluant la création et la rupture de sessions et le service fourni par le réseau.

General Information

• Status: Published
• Publication Date: 08-Jul-2014
• ICS: 33.160.01 - Audio, video and audiovisual systems in general
• ICS: 35.100.05 - Multilayer applications
• Technical Committee: TC 100 - Audio, video and multimedia systems and equipment
• Drafting Committee: MT 62379-1 - TC 100/TA 4/MT 62379-1
• Current Stage: PPUB - Publication issued
• Start Date: 15-Sep-2014
• Completion Date: 09-Jul-2014

Overview

IEC 62379-5-1:2014 is an international standard developed by the International Electrotechnical Commission (IEC) that defines the common control interface for networked digital audio and video products with a focus on transmission over networks. This part, titled "Transmission over networks – General," specifies the elements of a control interface that apply universally across all network technologies used in digital audio and video systems.

This standard facilitates the management of session setup and teardown, as well as defining the network services that ensure effective live media transmission and management message handling. As part of the IEC 62379 family, IEC 62379-5-1:2014 lays foundational protocols and Management Information Bases (MIBs) used for controlling transmission functions across diverse network infrastructures.

Key Topics

• Network Service Specifications
  Defines services for live media streaming and management messages across different network protocols. This ensures seamless handling of audiovisual streams over IP, Ethernet, and other network types.

• Common Control Interface Elements
  Specifies universally applicable components such as session management (call setup, maintenance, and termination), network port management, and media source/destination listing.

• Management Information Bases (MIBs)
  Provides definitions for managed objects relevant to all network types, including network ports, lists of media sources, and live media destinations to support interoperability and standardized device control.

• Session Control and Calls
  Details the mechanisms for connecting and disconnecting media flows between networked audiovisual devices, ensuring reliable device communication and media routing.

• Status Broadcasts
  Describes the coding and encapsulation of status and report messages to communicate device and network status, enhancing monitoring and automation.

• Future Network Support
  Includes guidelines anticipating evolving network technologies, ensuring the standard remains adaptable to upcoming transport methods and control protocols.

Applications

IEC 62379-5-1:2014 is pivotal for professionals involved in designing, implementing, and managing networked digital audio and video equipment. Practical applications include:

• Broadcasting Industry
  Enables standardized control of networked audio and video equipment in studios and transmission facilities to streamline workflows and equipment interoperability.

• Audio-Visual (AV) Systems Integration
  Facilitates interoperability among AV devices across networks in venues such as conference centers, theaters, and public events.

• IP-Based Media Transport
  Supports control and management in environments transitioning from traditional point-to-point connections to IP multimedia streaming and distribution systems.

• Device and Network Management
  Assists manufacturers and system integrators in establishing management systems that conform to international standards for network service and device control.

• Research and Development
  Offers a framework for R&D in multimedia networking, supporting future enhancements to media transmission protocols and control interfaces.

Related Standards

To fully utilize and implement IEC 62379-5-1:2014, understanding its relation within the IEC 62379 series and other relevant standards is essential:

• IEC 62379-1:2007 – Common aspects for all equipment and introduction to the common control interface protocol.
• IEC 62379-2, IEC 62379-3, IEC 62379-4 – Specific controls for audio, video, and data equipment respectively.
• IEC 62379-5-2 – Protocols for call control between heterogeneous networks.
• IEC 62379-6 – Control message carriage over non-audiovisual transports like RS232.
• IEC 62379-7 – Measurement of service quality experienced by audio and video streams.

Additionally, compliance with normative references cited within IEC 62379-5-1 is critical for interoperability and adherence to international best practices.

---

Keywords

IEC 62379-5-1, common control interface, digital audio and video, network transmission, session management, MIB definitions, media streaming, audiovisual networking, IEC standards, live media transmission, multimedia control protocols, IP-based media transport, broadcast equipment control, networked audiovisual products.

Standards Content (Sample)

IEC 62379-5-1 ®
Edition 1.0 2014-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Common control interface for networked digital audio and video products –
Part 5-1: Transmission over networks – General

Interface de commande commune pour produits audio et vidéo numériques
connectés en réseau –
Partie 5-1: Transmission sur des réseaux – Généralités

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].

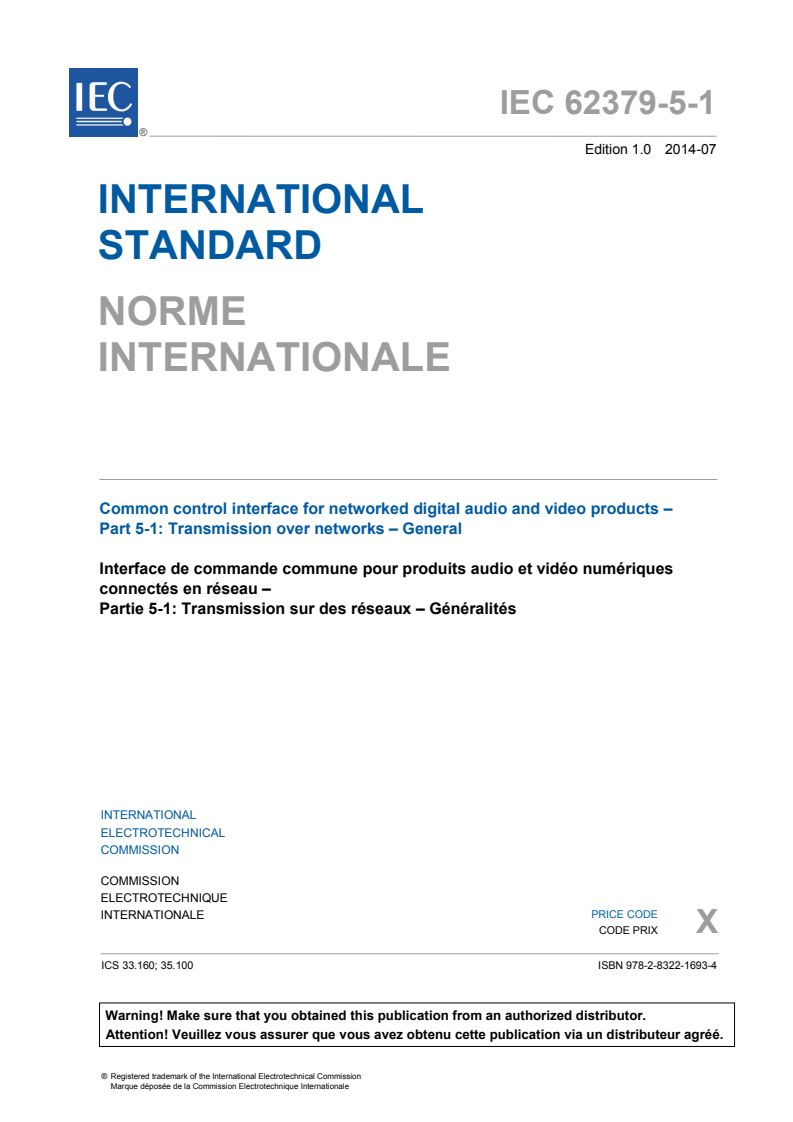

IEC 62379-5-1 ®
Edition 1.0 2014-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Common control interface for networked digital audio and video products –

Part 5-1: Transmission over networks – General

Interface de commande commune pour produits audio et vidéo numériques

connectés en réseau –
Partie 5-1: Transmission sur des réseaux – Généralités

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX X
ICS 33.160; 35.100 ISBN 978-2-8322-1693-4

– 2 – IEC 62379-5-1:2014  IEC 2014

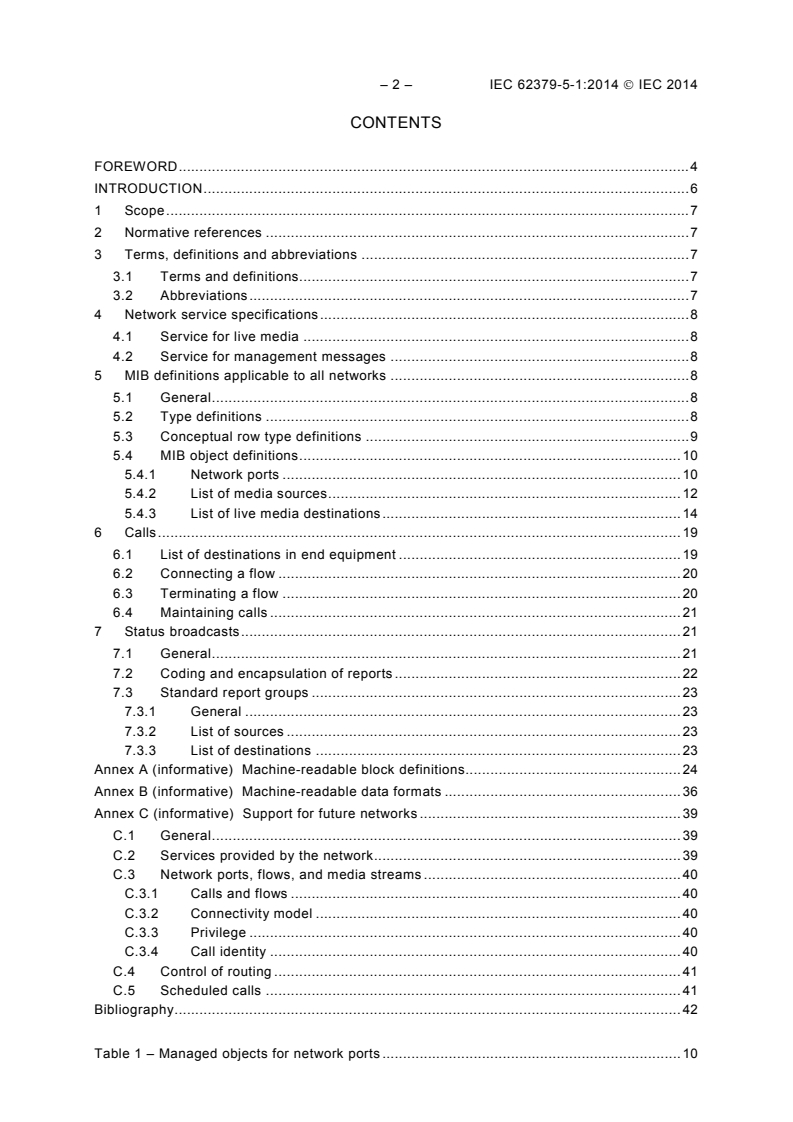

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and abbreviations . 7
3.1 Terms and definitions. 7
3.2 Abbreviations . 7
4 Network service specifications . 8
4.1 Service for live media . 8
4.2 Service for management messages . 8
5 MIB definitions applicable to all networks . 8
5.1 General . 8
5.2 Type definitions . 8
5.3 Conceptual row type definitions . 9
5.4 MIB object definitions . 10
5.4.1 Network ports . 10
5.4.2 List of media sources . 12
5.4.3 List of live media destinations . 14
6 Calls . 19
6.1 List of destinations in end equipment . 19
6.2 Connecting a flow . 20
6.3 Terminating a flow . 20
6.4 Maintaining calls . 21
7 Status broadcasts . 21
7.1 General . 21
7.2 Coding and encapsulation of reports . 22
7.3 Standard report groups . 23
7.3.1 General . 23
7.3.2 List of sources . 23
7.3.3 List of destinations . 23
Annex A (informative) Machine-readable block definitions. 24
Annex B (informative) Machine-readable data formats . 36
Annex C (informative) Support for future networks . 39
C.1 General . 39
C.2 Services provided by the network . 39
C.3 Network ports, flows, and media streams . 40
C.3.1 Calls and flows . 40
C.3.2 Connectivity model . 40
C.3.3 Privilege . 40
C.3.4 Call identity . 40
C.4 Control of routing . 41
C.5 Scheduled calls . 41
Bibliography . 42

Table 1 – Managed objects for network ports . 10

Table 2 – Managed objects conveying the list of sources . 12
Table 3 – Managed objects conveying the list of destinations . 15

– 4 – IEC 62379-5-1:2014  IEC 2014
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COMMON CONTROL INTERFACE FOR NETWORKED
DIGITAL AUDIO AND VIDEO PRODUCTS –

Part 5-1: Transmission over networks –
General
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62379-5-1 has been prepared by technical area 4: Digital system
interfaces and protocol of IEC technical committee 100: Audio, video and muiltimedia systems
and equipment.
The text of this standard is based on the following documents:
CDV Report on voting
100/2107/CDV 100/2304/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

A list of all parts in the IEC 62379 series, published under the general title Common control
interface for networked digital audio and video products, can be found on the IEC website.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 62379-5-1:2014  IEC 2014
INTRODUCTION
Structure of the family of standards
IEC 62379 specifies the common control Interface, a protocol for managing networked
audiovisual equipment. The following parts exist or are planned:
1 General
2 Audio
3 Video
4 Data
5 Transmission over networks
6 Packet transfer service
7 Measurement
IEC 62379-1:2007, specifies aspects which are common to all equipment, and it includes an
introduction to the common control interface.
IEC 62379-2:2008, IEC 62379-3 (under consideration) and IEC 62379-4 (under consideration)
specify control of internal functions specific to equipment carrying particular types of live
media. IEC 62379-4 refers to time-critical data such as commands to automation equipment,
but not to packet data such as the control messages themselves.
IEC 62379-5 specifies control of transmission of these media over each individual network
technology. It includes network specific management interfaces along with network specific
control elements that integrate into the control framework.
IEC 62379-5-1, (this standard) specifies management of aspects which are common to all
network technologies.
IEC 62379-5-2 specifies protocols which can be used between networking equipment to
enable the setting up of calls which are routed across different networking technologies.
IEC 62379-5-3, onwards, specify management of aspects which are particular to individual
networking technologies.
IEC 62379-6, specifies carriage of control and status messages and non-audiovisual data
over transports that do not support audio and video, such as RS232 serial links, with (as for
IEC 62379-5) a separate subpart for each technology.
IEC 62379-7 specifies aspects that are specific to the measurement of the service
experienced by audio and video streams and in particular to the requirements of EBU ECN-
IPM Measurements Group.
COMMON CONTROL INTERFACE FOR NETWORKED
DIGITAL AUDIO AND VIDEO PRODUCTS –

Part 5-1: Transmission over networks –
General
1 Scope
This part of IEC 62379 specifies aspects of the common control interface that are common to
all network technologies, including setting up and tearing down of sessions and the service
provided by the network.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 62379-1:2007, Common control interface for networked digital audio and video products –
Part 1: General
IEC 62379-5-2:2014, Common control interface for networked digital audio and video products
– Part 5-2: Transmission over networks – Signalling
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62379-1 and
IEC 62379-5-2, as well as the following apply.
3.1.1
media port
source or destination of media data in an interface unit
Note 1 to entry: A media port is either a physical port (e.g. an external audio or video connector on the unit) or a
logical port (e.g. an internal connection to another part of the unit).
3.1.2
switch
network element which routes media data and other messages between links
3.2 Abbreviations
a
TCP Transmission Control Protocol
b
UDP User Datagram Protocol
MIB Management Information Base
a
See RFC 793.
b
See RFC 768.
– 8 – IEC 62379-5-1:2014  IEC 2014
4 Network service specifications
4.1 Service for live media
Live media (including status broadcasts) shall be transmitted using a service for which, if the
network supports it, guaranteed levels of throughput, delay, and data loss shall be requested.
4.2 Service for management messages
Management messages should be transmitted in data units on an asynchronous flow as
specified in IEC 62379-5-2. If no such service is available, a connectionless datagram service
such as UDP may be used.
Where a connection-oriented service is used, at least one call at each privilege level shall be
accepted by a destination unit at any given time. If more calls at one privilege level are
accepted, this shall not prevent the acceptance of at least one call at each other privilege
level.
5 MIB definitions applicable to all networks
5.1 General
The structure of the MIB shall be as specified in IEC 62379-1.
5.2 Type definitions
The following application-wide types shall be used:
NetPortState::= INTEGER {
disabled     (1),
closing     (2),
linkDown     (3),
linkUp      (4), -- does not know to what linked
pointToPoint   (5), -- link is point-to-point
peerGroup    (6), -- e.g. Ethernet hub
sharedMedia   (7)  -- with master, e.g. 802.11
} (disabled.sharedMedia)
PortIdentifier::= OCTET STRING (SIZE(3))
' octet 1 = port type
' octets 2 and 3 = port number (high byte in octet 2)

ConnectionEnd::= INTEGER {
source   (1),
destination (2)
} (source.destination)
CauseCode::= OBJECT IDENTIFIER
NOTE Cause codes may be defined in other parts of the IEC 62379-5 series or elsewhere.

ConnectionState::= INTEGER {
readyToConnect    (1),
connectionRequested  (2),
terminating      (3),
active        (4),
failed        (5),
disconnected     (6),
pending        (7),
inactive       (8),
finished       (9),
callProceeding    (10),
receivedOffer    (11),
acceptedOffer    (12),
reservationRequested (13),
clearing       (14)
} (readyToConnect.clearing )
Importance::= INTEGER (1.255)

Priority::= INTEGER (1.255)
5.3 Conceptual row type definitions
The following types are used to specify the syntax of managed objects in this standard that
represent conceptual table rows.
NetPortEntry::= SEQUENCE {
nPortBlockId   BlockId,
nPortName    Utf8String,
nPortState    NetPortState,
nPortAddressType TDomain,
nPortAddress   TAddress,
nPortPAddrType  TDomain,
nPortPartnerAddr TAddress,
nPortBarred   TruthValue
}
UnitSourceEntry::= SEQUENCE {
usFlowIdentifier OCTET STRING,
usBlockId    SourceBlockId,
usBlockInput   IndexNumber,
usPackageSize  CardianlNumber,
usPrivilege   PrivilegeLevel,
usState     ConnectionState,
usCause     CauseCode,
usSource     Utf8String,
usDestination  Utf8String,
usService    Utf8String,
usImportance   Importance,
usPriority    Priority,
uStartTime    DateTime,
usEndTime    DateTime,
usConnectTime  CardinalNumber,
usFlowIdStandard TruthValue
}
UnitDestEntry::= SEQUENCE {
udFlowIdentifier OCTET STRING,
udNetBlockId   SourceBlockId,
udNetBlockOutput IndexNumber,
udSourceAddrType TDomain,
udSourceAddress TAddress,
udPackageSize  CardianlNumber,
udPrivilege   PrivilegeLevel,
udState     ConnectionState,
udCause     CauseCode,
udSource     Utf8String,
udDestination  Utf8String,
udService    Utf8String,
udImportance   Importance,
udPriority    Priority,
– 10 – IEC 62379-5-1:2014  IEC 2014
udStartTime   DateTime,
udEndTime    DateTime,
udConnectTime  CardinalNumber,
udConnectCount  CardinalNumber,
udRemembered   TruthValue,
udDestBlockId  DestBlockId,
udDestBlockInput IndexNumber,
usFlowIdStandard TruthValue
}
5.4 MIB object definitions
5.4.1 Network ports
5.4.1.1 General
Each physical connection to a network, in a switch or end equipment, shall be represented
using a network port block. A network port block shall have one input for each outgoing media
flow and one output for each incoming media flow.
The group of objects in Table 1 shall be implemented by all switches. The root node for these
objects shall be
{ iso(1) standard(0) iec62379(62379) network(5) general (1) networkMIB(1) networkPorts(1) }
This node shall be used as the block type identifier for network port blocks.
Table 1 – Managed objects for network ports
Identifier Syntax Index Readable Writable Volatile Syntax
netPortTable(1) SEQUENCE OF NetPortEntry  none none yes mandatory
└netPortEntry(1) NetPortEntry  none none yes mandatory
├nPortBlockId(1) BlockId yes none none no mandatory
├nPortName(2) Utf8String  listener supervisor no mandatory
├nPortState(3) NetPortState  listener supervisor yes mandatory
├nPortAddressType(4) TDomain  listener none no mandatory
├nPortAddress(5) TAddress  listener none no mandatory
├nPortPAddrType(6) TDomain  listener none yes mandatory
├nPortPartnerAddr(7) TAddress  listener none yes mandatory
└nPortBarred(8) TruthValue listener supervisor no mandatory

5.4.1.2 netPortTable
A table of network port descriptors for this unit. Each physical network port on the unit shall
have a corresponding entry in this table. There may also be entries for "virtual" network ports.
5.4.1.3 netPortEntry
An entry in the network port table.
5.4.1.4 nPortBlockId
The block identifier for this port. Used as an index when accessing the network port table.

5.4.1.5 nPortName
The name assigned to this port. This is an arbitrary text string assigned by the system
manager. Such assignment should persist across resets of the unit.
Until a name has been assigned, this object shall have a value that relates to a visible
marking associated with the port's physical connector.
Note that the name of a port on a network switch whose connector is labelled "2" on the unit's
enclosure should default to a value such as "Port 2" or "Ethernet port 2" or "Front panel
port 2". If it is connected to a network socket in, say, studio 6, a supervisor may then rename
it as "Studio 6".
5.4.1.6 nPortState
The current link-layer state of the port's network connection.
If a management terminal sets this object to closing or linkDown, the managed unit shall
reroute or, if that is not possible, gracefully close down all calls that pass through the port. In
the case of closing, the port shall then enter the disabled state.
For as long as the port is in linkDown state, the managed unit shall attempt to establish a
network connection on the port.
5.4.1.7 nPortAddressType
The type of network address used for nPortAddress.
5.4.1.8 nPortAddress
An address which identifies the port.
NOTE This will normally be the 48-bit MAC address of the interface. An IP address may be used if it is
permanently assigned, but not if it is acquired via DHCP.
5.4.1.9 nPortPAddrType
The type of network address used for nPortPartnerAddr.
5.4.1.10 nPortPartnerAddr
In pointToPoint state, the address of the unit to which the port is connected.
In sharedMedia state, the address of the unit which controls the local network to which the
port is connected, e.g. wireless base station or clock master.
In other states, the nPortPartnerAddr value is not defined by this standard.
NOTE 1 This object is intended to allow a management terminal to "crawl" a network to discover its topology and
what resources are present. The address allows it to make a management connection to the link partner in the
case of a point-to-point link, or, in the case of a shared-media network segment, to a unit which may be able to
supply a list of all the units on the segment. In contrast to nPortAddress, the nPortPartnerAddr value should
identify the unit rather than its interface, so an EUI-64 is appropriate.
NOTE 2 For some kinds of network segment, such as an Ethernet segment using CSMA/CD, there is no
straightforward method for enumerating all the units present on the segment.
5.4.1.11 nPortBarred
false (the default) if the unit is allowed to connect a route via the port; true if forbidden.

– 12 – IEC 62379-5-1:2014  IEC 2014
5.4.2 List of media sources
5.4.2.1 General
The “list of sources” has an entry for each synchronous flow transmitted by the managed unit.
The group of objects in Table 2 shall be implemented by all end equipment that can be the
source for a synchronous flow, and by all switches. The root node for these objects shall be
{ iso(1) standard(0) iec62379(62379) network(5) general(1) networkMIB(1) callSources(2) }
NOTE 1 Calls are always connected by the destination, so this table is read-only, apart from the ability to clear
down a call from the source end. Management calls are not included in this list.
NOTE 2 It is assumed that incoming calls specify a source in some way that may be at least partially network-
dependent, and whenever a new connection is made an entry appears in this table, disappearing again when the
call is released.
Table 2 – Managed objects conveying the list of sources
Identifier Syntax Index Readable Writable Volatile Syntax
unitSourceListTable(1) SEQUENCE OF none none yes mandatory
UnitSourceEntry
└unitSourceEntry(1) UnitSourceEntry none none yes mandatory
├usFlowIdentifier(1) OCTET STRING yes none none yes mandatory
├usBlockId(2) SourceBlockId yes listener none yes mandatory
├usBlockInput(3) IndexNumber listener none yes mandatory
├usPackageSize(4) CardinalNumber listener none yes mandatory
├usPackageRate(5) CardinalNumber listener none yes mandatory
├usPrivilege(6) PrivilegeLevel listener none yes mandatory
├usState(7) ConnectionState listener see 6.3 yes mandatory
├usCause(8) CauseCode listener see 6.3 yes mandatory
├usSource(9) Utf8String listener none yes mandatory
├usDestination(10) Utf8String listener none yes mandatory
├usService(11) Utf8String listener none yes mandatory
├usImportance(12) Importance listener none yes mandatory
├usPriority(13) Priority listener none yes mandatory
├usStartTime(14) DateandTime listener none yes mandatory
├usEndTime(15) DateandTime listener none yes mandatory
├usConnectTime(16) CardinalNumber listener none yes mandatory
└usFlowIdStandard(17) TruthValue listener none yes mandatory

5.4.2.2 unitSourceListTable
The list of flows for which this unit transmits media data.
NOTE In the case of end equipment, the table lists flows for which the unit is the source. In the case of a switch,
it lists information relating to onwards transmission towards the destination(s), for all synchronous flows passing
through the unit.
5.4.2.3 unitSourceEntry
An entry in the list of flows for which this unit transmits media data.

5.4.2.4 usFlowIdentifier
An octet string which identifies the flow. The format specified in IEC 62379-5-2 should be
used if available; see 5.4.2.20.
5.4.2.5 usBlockId
The identifier of the network port block for the unit's network port through which this flow
passes.
5.4.2.6 usBlockInput
The input number, to the network port identified by usBlockId, through which this flow
passes.
NOTE The entry associated with this input in connectorTable (see Table 2 of IEC 62379-1:2007) shows the
block output which is the source of the media stream. The entry associated with that output in modeTable (see
Table 2 of IEC 62379-1:2007) shows the media format being transmitted.
5.4.2.7 usPackageSize
The maximum number of payload octets that may be transmitted in a single data unit on the
flow.
NOTE This is the size negotiated for the flow, which, when multiplied by the usPackageRate value, defines the
bandwidth required.
It is not the maximum transmission unit size for the links over which the flow will be
transmitted. For example:
– for an ATM link this would be fixed at the value 48, the number of payload octets in a cell;
– for an RTP stream this would be the maximum payload size for the RTP packets.
5.4.2.8 usPackageRate
The number of data units per second that may be transmitted on the flow.
5.4.2.9 usPrivilege
The privilege level associated with this flow, which is the highest of the privilege levels
associated with its destinations if the network provides that information, supervisor
otherwise.
5.4.2.10 usState
The current state of this flow. The callProceeding state shall indicate that an incoming
connection request has been accepted and confirmation from the caller is awaited.
5.4.2.11 usCause
This object shall be initialised to a zero-length value, which shall indicate “normal call
clearing”, and shall be set by the managed unit when it changes usState to failed or
disconnected. See also 6.3.
5.4.2.12 usSource
The source name for this flow.
NOTE In the case of end equipment, the source name is specified as part of the definition of one of the blocks
through which the signal passes on its way to the network port. In the case of a switch, it is inherited from the
flow’s udSource object (see 5.4.3.16).

– 14 – IEC 62379-5-1:2014  IEC 2014
5.4.2.13 usDestination
The destination name for the most important destination of the flow reached via this network
port.
5.4.2.14 usService
The service name for the most important destination of the flow reached via this network port.
5.4.2.15 usImportance
The importance of the most important destination of the flow reached via this network port.
5.4.2.16 usPriority
The priority of the part of the flow connected via this network port.
5.4.2.17 usStartTime
The time at which the state is expected to change from pending to
reservationRequested or active.
5.4.2.18 usEndTime
The time after which the network may release the resources reserved for the flow on this port.
5.4.2.19 usConnectTime
The number of seconds for which this flow has been active on this network port or the
maximum CardinalNumber value, whichever is the less; zero if the state is not active.
5.4.2.20 usFlowIdStandard
true if usFlowIdentifier is in the format specified in IEC 62379-5-2, false otherwise.
Note that if the format specified in IEC 62379-5-2 is used, a flow has the same identifier in
every piece of equipment through which it passes. Thus, records in which
usFlowIdStandard or (in the list of destinations, see 5.4.3.28) udFlowIdStandard is
true, even in units managed differently, refer to the same flow if, and only if, they have the
same usFlowIdentifier or udFlowIdentifier value.
Note that if usFlowIdStandard is false, the management terminal should regard the flow
identifier simply as a value chosen by the managed unit which, when combined with
usBlockId, forms an index to this table. Thus, the management terminal should not assume
any relationship between flows on different ports in unitSourceListTable, or between
flows in unitSourceListTable and in unitDestListTable (see 5.4.3), based on a
comparison of their identifiers; relationships should be established via connectorTable (see
Table 2 of IEC 62379-1:2007).
5.4.3 List of live media destinations
5.4.3.1 General
The “list of destinations” has an entry for each synchronous flow received by the managed
unit.
The group of objects in Table 3 shall be implemented by all end equipment that can be the
destination for synchronous flows, and by all switches. The root node for these objects shall
be
{iso(1) standard(0) iec62379(62379) network(5) general(1) networkMIB(1) callDestinations(3)}
Table 3 – Managed objects conveying the list of destinations

Identifier Syntax Index Readable Writable Volatile Syntax
a
b
unitNextFlowId(1) OCTET STRING listener none yes see
unitNextCallId(2) OCTET STRING listener none yes see 5.4.3.3
unitDestListTable(3) SEQUENCE OF none none yes mandatory
UnitDestEntry
│
└unitDestEntry(1) UnitDestEntry none none yes mandatory
OCTET STRING
├udFlowIdentifier(1) yes none none maybe mandatory
├udNetBlockId(2) SourceBlockId listener see 6.1 yes mandatory
├udNetBlockOutput(3) IndexNumber listener none yes mandatory
├udSourceAddrType(4) TDomain listener see 6.1 maybe mandatory
├udSourceAddress(5) TAddress listener see 6.1 maybe mandatory
├udPackageSize(6) CardinalNumber listener none maybe mandatory
├udPackageRate(7) CardinalNumber listener none maybe mandatory
├udPrivilege(8) PrivilegeLevel listener see 6.1 maybe mandatory
├udState(9) ConnectionState listener see 6.1 yes mandatory
├udCause(10) CauseCode listener see 6.1 yes mandatory
├udSource(11) Utf8String listener none maybe mandatory
├udDestination(12) Utf8String listener see 6.1 maybe mandatory
├udService(13) Utf8String listener see 6.1 maybe mandatory
├udImportance(14) Importance listener see 6.1 maybe mandatory
├udPriority(15) Priority listener see 6.1 maybe mandatory
├udStartTime(16) DateandTime listener see 6.1 maybe mandatory
├udEndTime(17) DateandTime listener see 6.1 maybe mandatory
├udConnectTime(18) CardinalNumber listener none maybe mandatory
├udConnectCount(19) CardinalNumber listener supervisor maybe optional
b
├udRemembered(20) TruthValue listener see 6.1 no see
b
├udDestBlockId(21) DestBlockId listener see 6.1 maybe see
b
├udDestBlockInput(22) IndexNumber listener see 6.1 maybe see
└udFlowIdStandard(23) TruthValue listener none maybe mandatory
Management calls are not included in this list. Synchronous flows are always connected by the destination, so in
the case of end equipment every entry in this list is a flow which has been initiated by a management terminal
through the process detailed in Clause 6.
a
Where the volatility is shown as "maybe", the object is volatile, if, and only if, udRemembered is false.
b b
Objects shown as “see ” are mandatory for end equipment but should return noSuchName in units that cannot
be the destination of a media flow.

5.4.3.2 unitNextFlowId
A flow identifier value, not in the form specified in IEC 62379-5-2, for which a new record is
created in the table, as described in 6.1. Consecutive Get requests for this object shall return
different values. Values should be chosen in a way that maximises the time before re-use of
any particular value. A GetNext request for this object shall not create a new record. The
value returned (if any) is not defined by this standard.

– 16 – IEC 62379-5-1:2014  IEC 2014
Whereas the port number is an index into the list of sources, the source flow numbers only
need to be unique for each port, in the list of destinations the flow number is the only index,
and therefore it needs to be unique across all ports of the managed unit.
Managed units that support flow identifiers in the format specified in IEC 62379-5-2 should
internally allocate a call identifier as if unitNextCallId had been requested. The value
returned may be the call identifier, or a flow identifier based on it, or some other value which
refers to it. In any case, the record that is created shall have udFlowIdStandard set to
false, and the value returned shall be different from any flow identifier in the format
specified in IEC 62379-5-2 that could be created using a call identifier returned by reading
unitNextCallId.
To meet this requirement, it is sufficient for the octet string to be a different length from the
format specified in IEC 62379-5-2, or to begin with the internally allocated call identifier.
5.4.3.3 unitNextCallId
A new call identifier value in the form specified in IEC 62379-5-2, from which flow identifiers
may be derived, as described in 6.1. Consecutive Get requests for this object shall return
different values. Values should be chosen in a way that maximises the time before re-use of
any particular value. The value (if any) returned for a GetNext request for this object is not
defined by this standard.
This object is mandatory for end equipment that supports flow identifiers in the format
specified in IEC 62379-5-2, but shall return noSuchName in units that do not support that
format and in units that return noSuchName for unitNextFlowId.
5.4.3.4 unitDestList
The list of synchronous flows which this unit receives.
NOTE In the case of end equipment, the table lists flows for which the unit is the destination. In the case of a
switch, it lists information relating to reception from the source, for all media flows passing through the unit.
5.4.3.5 unitDestEntry
An entry in the list of synchronous flows which this unit receives.
5.4.3.6 udFlowIdentifier
An octet string which identifies the flow uniquely within the unit. See also 5.4.3.28.
Note that this is the only index field, so it shall be unique within the unit, not merely for each
port.
5.4.3.7 udNetBlockId
In inactive and readyToConnect states, the identifier of the network port block for the
unit's network port through which this flow should be connected, or nullBlock if the network
port is to be chosen by the managed unit. The managed unit may ignore this value even if it is
not nullBlock.
In other states, the identifier of the network port block for the unit's network port through
which this flow passes, or zero if the flow is not associated with a specific network port.
5.4.3.8 udNetBlockOutput
The output number, of the network port identified by udNetBlockId, through which this flow
passes, or zero if udNetBlockId is zero or the output has not yet been chosen.

NOTE The entry associated with this output in modeTable (see Table 2 of IEC 62379-1:2007) shows the media
format being received, and connectorTable (see Table 2 of IEC 62379-1:2007) shows to which block inputs (if
any) the received media stream is being routed internally. In the case of a switch, these blocks will be the network
ports on which the flow is being output.
5.4.3.9 udSourceAddrType
The type of network address used for ucSourceAddress.
5.4.3.10 udSourceAddress
The network address of the source.
5.4.3.11 udPackageSize
The maximum number of payload octets that may be transmitted in a single data unit on the
flow.
NOTE See examples in 5.4.2.7.
5.4.3.12 udPackageRate
The number of data units per second that may be transmitted for the flow.
5.4.3.13 udPrivilege
The privilege level associated with this flow.
5.4.3.14 udState
The current state of this flow.
5.4.3.15 udCause
This object shall be initialised to a zero-length value, which shall indicate “normal call
clearing”, and shall be set by the managed unit when it changes udState to failed or
disconnected. See also 6.3.
5.4.3.16 udSource
The source name for this flow.
NOTE This object is not writable by the management terminal. The source name is inherited from the source of
the flow.
5.4.3.17 udDestination
The destination name for this flow.
5.4.3.18 udService
The service name
...
