IEC 61968-4:2007

Application integration at electric utilities - System interfaces for distribution management - Part 4: Interfaces for records and asset management

IEC 61968-4:2007 Specifies the information content of a set of message types that can be used to support many of the business functions related to records and asset management. Typical uses of the message types include network extension planning, copying feeder or other network data between systems, network or diagram edits and asset inspection.
This publication is of core relevance for Smart Grid.

Intégration d'applications pour les services électriques – Système d’interfaces pour la gestion de la distribution – Partie 4: Interfaces pour la gestion des dossiers et des biens

IEC 61968-4:2007 spécifie le contenu informationnel d’un ensemble de types de message pouvant être utilisés afin de prendre en charge de nombreuses activités fonctionnelles liées à la gestion des dossiers et des biens. Les utilisations associées aux types de message définis dans cette partie de l'IEC 61968 incluent la planification d’extension du réseau, la copie des données de départ ou d’autres données du réseau entre les systèmes, les éditions de réseau ou de diagramme et l'inspection des biens

General Information

• Status: Published
• Publication Date: 10-Jul-2007
• ICS: 33.200 - Telecontrol. Telemetering
• Technical Committee: TC 57 - Power systems management and associated information exchange
• Drafting Committee: WG 14 - TC 57/WG 14
• Current Stage: DELPUB - Deleted Publication
• Start Date: 08-Mar-2019
• Completion Date: 29-Sep-2017

Relations

• Revised: IEC 61968-4:2019 - Application integration at electric utilities - System interfaces for distribution management - Part 4: Interfaces for records and asset management
• Effective Date: 05-Sep-2023

Overview

IEC 61968-4:2007 defines message content and system interfaces for records and asset management in electric utility distribution management. Part of the IEC 61968 series, this standard specifies a set of interoperable message types to exchange network, asset and catalogue information between loosely coupled applications in a Distribution Management System (DMS). It is of core relevance to Smart Grid implementations that require consistent, standardized data exchange for planning, operations and asset lifecycle management.

Key topics

• Message types: standardizes content for Network Data Set, Change Set, Presentation, Asset List, Asset Catalogue and Type Asset Catalogue messages.
• Static information model: message fields are drawn from a common information model (CIM classes), ensuring consistent attribute names and types across systems.
• Interface reference model: aligns with the IEC 61968-1 IRM to support inter-application integration for distribution management.
• Loose coupling and middleware: intended for heterogeneous environments where applications communicate via message exchange (not tight, intra-application middleware).
• Data referencing: messages may include identifiers that reference external documents or catalogues (e.g., assets, type catalogues) rather than duplicating full definitions.
• Formats & use cases: defines formats for created/changed/shown/deleted NetworkDataSet messages and others to support typical records workflows.
• Smart Grid relevance: supports integration needs for modern grid monitoring, planning, and asset inspection processes.

Applications

IEC 61968-4 enables practical utility use cases such as:

• Network extension planning - exchanging proposed “as-planned” or “as-built” feeder data between planners and analysis tools.
• Copying feeder or network data - transferring portions of the network model between systems (GIS, DMS, planning tools).
• Network/diagram edits - publishing change sets and presentations for collaborative editing and version control.
• Asset inspection and lifecycle management - sharing asset lists and catalogues for maintenance, procurement and field work.
  These message types support exchanges occurring on operational timescales (seconds to hours), complementing batch or warehouse solutions.

Who should use it

• Utility IT architects and data modelers
• DMS, GIS and asset management vendors and integrators
• System integrators implementing Smart Grid interfaces
• Network planners, asset managers and operations teams

Related standards

• IEC 61968-1 (Interface architecture and general requirements)
• IEC 61968-3 (Network operations interfaces)
• IEC 61970-301 / CIM (information model)
• Annex A of IEC 61968-4 references Geography Markup Language (GML) usage for geospatial data

Using IEC 61968-4 helps utilities achieve interoperable, consistent records and asset data exchange across the enterprise-critical for efficient distribution management and Smart Grid modernization.

Standards Content (Sample)

INTERNATIONAL IEC
STANDARD 61968-4
First edition
2007-07
Application integration at electric utilities –
System interfaces for distribution management –
Part 4:
Interfaces for records and asset management

Reference number

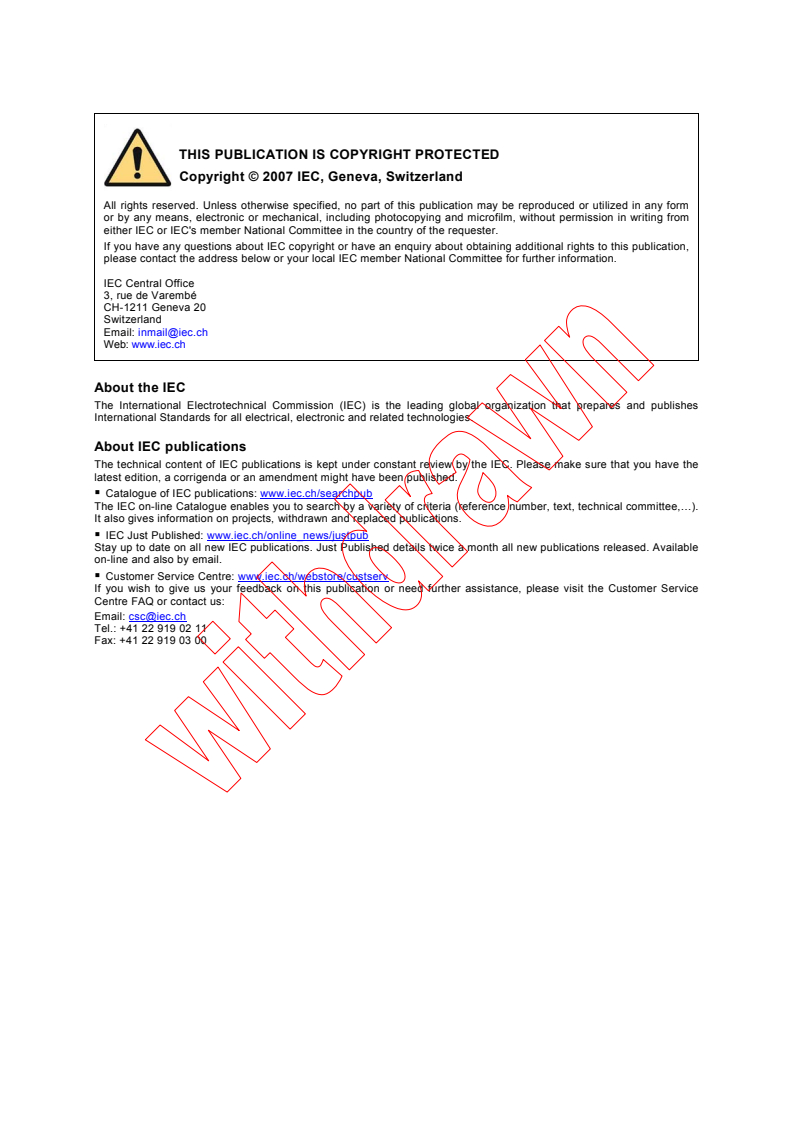

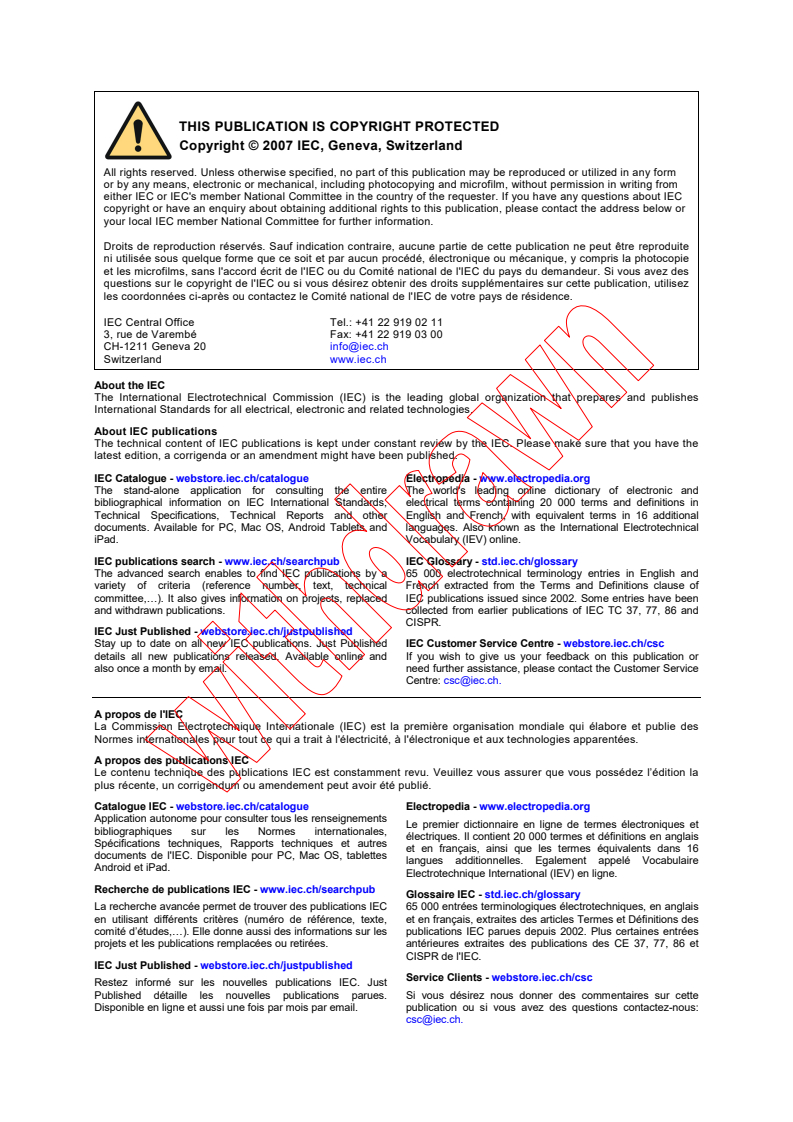

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
INTERNATIONAL IEC
STANDARD 61968-4
First edition
2007-07
Application integration at electric utilities –
System interfaces for distribution management –
Part 4:
Interfaces for records and asset management

PRICE CODE
Commission Electrotechnique Internationale XA
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue

– 2 – 61968-4 © IEC:2007(E)

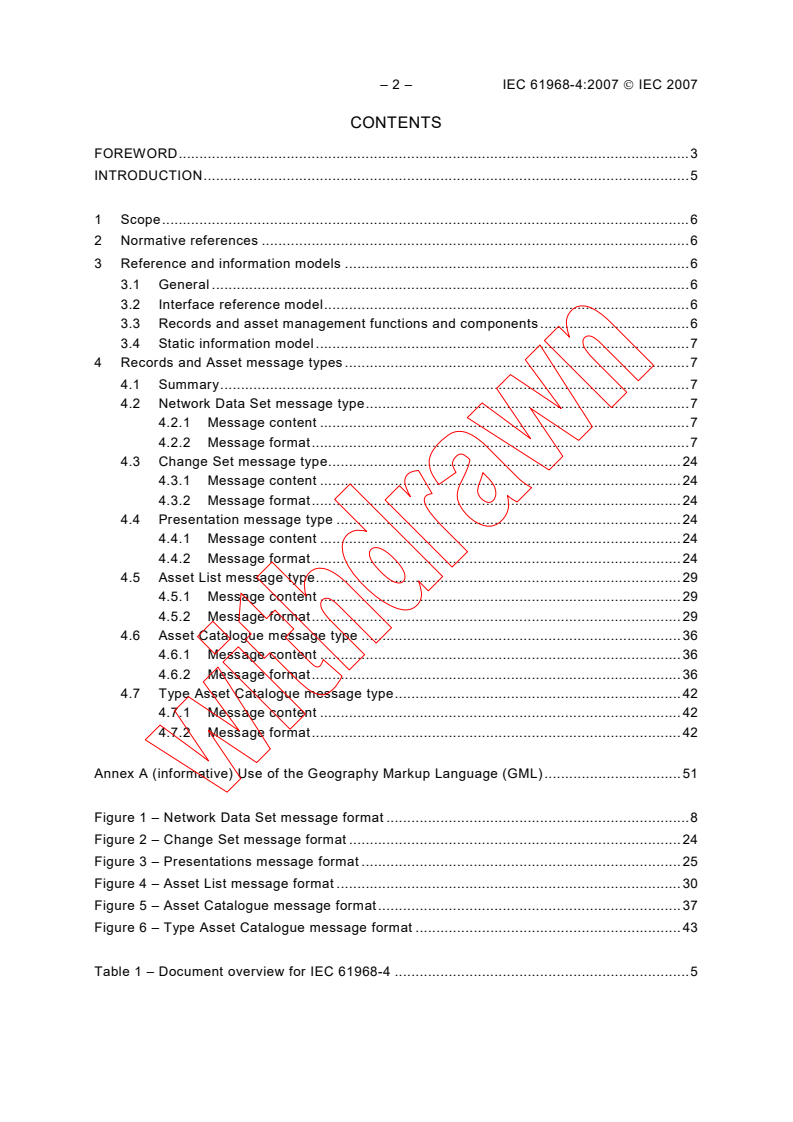

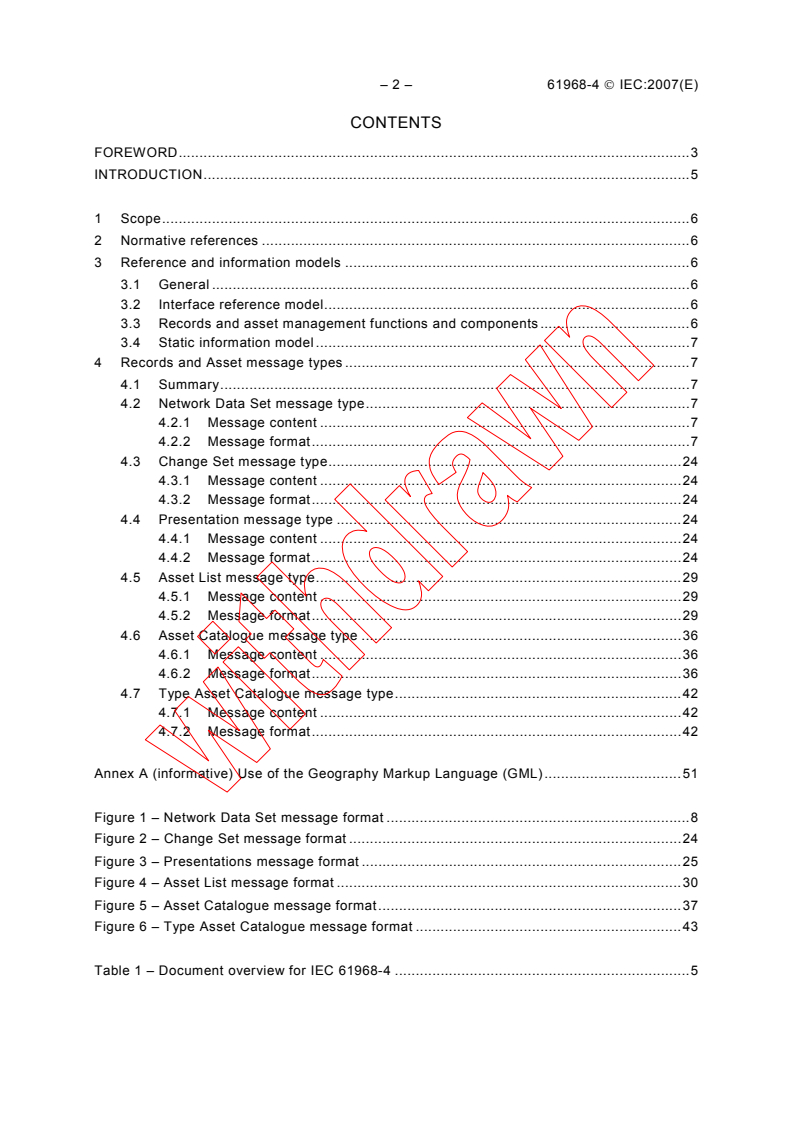

CONTENTS
FOREWORD.3

INTRODUCTION.5

1 Scope.6

2 Normative references .6

3 Reference and information models .6

3.1 General .6

3.2 Interface reference model.6
3.3 Records and asset management functions and components .6
3.4 Static information model.7
4 Records and Asset message types .7
4.1 Summary.7
4.2 Network Data Set message type.7
4.2.1 Message content .7
4.2.2 Message format.7
4.3 Change Set message type.24
4.3.1 Message content .24
4.3.2 Message format.24
4.4 Presentation message type .24
4.4.1 Message content .24
4.4.2 Message format.24
4.5 Asset List message type.29
4.5.1 Message content .29
4.5.2 Message format.29
4.6 Asset Catalogue message type .36
4.6.1 Message content .36
4.6.2 Message format.36
4.7 Type Asset Catalogue message type.42
4.7.1 Message content .42
4.7.2 Message format.42

Annex A (informative) Use of the Geography Markup Language (GML).51

Figure 1 – Network Data Set message format .8
Figure 2 – Change Set message format .24
Figure 3 – Presentations message format .25
Figure 4 – Asset List message format .30
Figure 5 – Asset Catalogue message format.37
Figure 6 – Type Asset Catalogue message format .43

Table 1 – Document overview for IEC 61968-4 .

61968-4 © IEC:2007(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION

______________
APPLICATION INTEGRATION AT ELECTRIC UTILITIES –

SYSTEM INTERFACES FOR DISTRIBUTION MANAGEMENT –

Part 4: Interfaces for records and asset management

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61968 has been prepared by IEC technical committee 57: Power
systems management and associated information exchange.
The text of this standard is based on the following documents:
FDIS Report on voting
57/880/FDIS 57/901/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

– 4 – 61968-4 © IEC:2007(E)
A list of all parts of the IEC 61968 series, under the general title Application integration at
electric utilities – System interfaces for distribution management, can be found on the IEC

website.
The committee has decided that the contents of this publication will remain unchanged until

the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in

the data related to the specific publication. At this date, the publication will be

• reconfirmed;
• withdrawn;
• replaced by a revised edition, or

• amended.
A bilingual version of this publication may be issued at a later date.

61968-4 © IEC:2007(E) – 5 –
INTRODUCTION
The IEC 61968 series of standards is intended to facilitate inter-application integration as

opposed to intra-application integration. Intra-application integration is aimed at programs in

the same application system, usually communicating with each other using middleware that is

embedded in their underlying runtime environment, and tends to be optimized for close, real-

time, synchronous connections and interactive request/reply or conversation communication

models. IEC 61968, by contrast, is intended to support the inter-application integration of a

utility enterprise that needs to connect disparate applications that are already built or new

(legacy or purchased applications), each supported by dissimilar runtime environments.

Therefore, these interface standards are relevant to loosely coupled applications with more

heterogeneity in languages, operating systems, protocols and management tools. This series
of standards is intended to support applications that need to exchange data every few
seconds, minutes, or hours rather than waiting for a nightly batch run. This series of
standards, which are intended to be implemented with middleware services that exchange
messages among applications, will complement, not replace utility data warehouses,
database gateways, and operational stores.
As used in the IEC 61968 series, a DMS consists of various distributed application
components for the utility to manage electrical distribution networks. These capabilities
include monitoring and control of equipment for power delivery, management processes to
ensure system reliability, voltage management, demand-side management, outage
management, work management, automated mapping and facilities management. Standards
interfaces are defined for each class of applications identified in the Interface Reference
Model (IRM), which is described in IEC 61968-1.
This Part of IEC 61968 contains the Clauses shown in Table 1.
Table 1 – Document overview for IEC 61968-4
Clause Title Purpose
1 Scope The scope and purpose of the document are described.
2 Normative references Documents that contain provisions which, through reference in
this text, constitute provisions of this International Standard.
3 Reference and information Description of the relevant parts of the interface reference
models model, static information model and message type naming
convention.
4 Records and asset management Message types related to the exchange of information for
message types network data sets, assets, and asset catalogues.

– 6 – 61968-4 © IEC:2007(E)
APPLICATION INTEGRATION AT ELECTRIC UTILITIES –

SYSTEM INTERFACES FOR DISTRIBUTION MANAGEMENT –

Part 4: Interfaces for records and asset management

1 Scope
This Part of IEC 61968 specifies the information content of a set of message types that can
be used to support many of the business functions related to records and asset management.
Typical uses of the message types defined in this Part of IEC 61968 include network
extension planning, copying feeder or other network data between systems, network or
diagram edits and asset inspection. Message types defined in other Parts of IEC 61968 may
also be relevant to these use cases.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 61968-1, Application integration at electric utilities – System interfaces for distribution
management – Part 1: Interface architecture and general requirements
IEC 61968-3, Application integration at electric utilities - System interfaces for distribution
management - Part 3: Interface for network operations
3 Reference and information models
3.1 General
The message types defined in IEC 61968-4 are based on a logical partitioning of the DMS
business functions and components called the IEC 61968-1 Interface reference model.
As described, in IEC 61968-1, the contents of the message types are based on a static
information model to ensure consistency of field names and data types. Each message type is
defined as a set of fields copied from the information model classes. The message types

defined in this standard are intended to satisfy a majority of typical applications. In some
particular project implementations, it may be desirable to modify the set of fields using a
methodology such as that described in IEC 61968-1.
3.2 Interface reference model
It is not the intention of the IEC 61968 series to define the applications and systems that
vendors should produce. It is expected that a concrete (physical) application will provide the
functionality of one or more abstract (logical) components as listed in this standard. These
abstract components are grouped by the business functions of the IEC 61968-1 interface
reference model.
3.3 Records and asset management functions and components
The Records and Asset Management part of the IEC 61968-1 Interface reference model
shows those functions and typical components that are applicable to the message types
defined in IEC 61968-4.
61968-4 © IEC:2007(E) – 7 –
For the message types de
...

IEC 61968-4 ®
Edition 1.0 2007-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Application integration at electric utilities – System interfaces for distribution
management –
Part 4: Interfaces for records and asset management

Intégration d'applications pour les services électriques – Système d’interfaces
pour la gestion de la distribution –
Partie 4: Interfaces pour la gestion des dossiers et des biens

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 61968-4 ®
Edition 1.0 2007-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Application integration at electric utilities – System interfaces for distribution

management –
Part 4: Interfaces for records and asset management

Intégration d'applications pour les services électriques – Système d’interfaces

pour la gestion de la distribution –

Partie 4: Interfaces pour la gestion des dossiers et des biens

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.200 ISBN 978-2-8322-4474-6

– 2 – IEC 61968-4:2007  IEC 2007

CONTENTS
FOREWORD . 3

INTRODUCTION . 5

1 Scope . 6

2 Normative references . 6

3 Reference and information models . 6

3.1 General . 6

3.2 Interface reference model . 6
3.3 Records and asset management functions and components . 6
3.4 Static information model . 7
4 Records and Asset message types . 7
4.1 Summary . 7
4.2 Network Data Set message type . 7
4.2.1 Message content . 7
4.2.2 Message format . 7
4.3 Change Set message type . 24
4.3.1 Message content . 24
4.3.2 Message format . 24
4.4 Presentation message type . 24
4.4.1 Message content . 24
4.4.2 Message format . 24
4.5 Asset List message type . 29
4.5.1 Message content . 29
4.5.2 Message format . 29
4.6 Asset Catalogue message type . 36
4.6.1 Message content . 36
4.6.2 Message format . 36
4.7 Type Asset Catalogue message type . 42
4.7.1 Message content . 42
4.7.2 Message format . 42

Annex A (informative) Use of the Geography Markup Language (GML) . 51

Figure 1 – Network Data Set message format . 8
Figure 2 – Change Set message format . 24
Figure 3 – Presentations message format . 25
Figure 4 – Asset List message format . 30
Figure 5 – Asset Catalogue message format . 37
Figure 6 – Type Asset Catalogue message format . 43

Table 1 – Document overview for IEC 61968-4 . 5

INTERNATIONAL ELECTROTECHNICAL COMMISSION

______________
APPLICATION INTEGRATION AT ELECTRIC UTILITIES –

SYSTEM INTERFACES FOR DISTRIBUTION MANAGEMENT –

Part 4: Interfaces for records and asset management

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61968 has been prepared by IEC technical committee 57: Power
systems management and associated information exchange.
This bilingual version (2018-07) corresponds to the English version, published in 2007-07.
The text of this standard is based on the following documents:
FDIS Report on voting
57/880/FDIS 57/901/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.

– 4 – IEC 61968-4:2007  IEC 2007

A list of all parts of the IEC 61968 series, under the general title Application integration at
electric utilities – System interfaces for distribution management, can be found on the IEC

website.
The committee has decided that the contents of this publication will remain unchanged until

the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in

the data related to the specific publication. At this date, the publication will be

• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION
The IEC 61968 series of standards is intended to facilitate inter-application integration as

opposed to intra-application integration. Intra-application integration is aimed at programs in

the same application system, usually communicating with each other using middleware that is

embedded in their underlying runtime environment, and tends to be optimized for close, real-

time, synchronous connections and interactive request/reply or conversation communication

models. IEC 61968, by contrast, is intended to support the inter-application integration of a

utility enterprise that needs to connect disparate applications that are already built or new

(legacy or purchased applications), each supported by dissimilar runtime environments.

Therefore, these interface standards are relevant to loosely coupled applications with more

heterogeneity in languages, operating systems, protocols and management tools. This series
of standards is intended to support applications that need to exchange data every few
seconds, minutes, or hours rather than waiting for a nightly batch run. This series of
standards, which are intended to be implemented with middleware services that exchange
messages among applications, will complement, not replace utility data warehouses,
database gateways, and operational stores.
As used in the IEC 61968 series, a DMS consists of various distributed application
components for the utility to manage electrical distribution networks. These capabilities
include monitoring and control of equipment for power delivery, management processes to
ensure system reliability, voltage management, demand-side management, outage
management, work management, automated mapping and facilities management. Standards
interfaces are defined for each class of applications identified in the Interface Reference
Model (IRM), which is described in IEC 61968-1.
This part of IEC 61968 contains the Clauses shown in Table 1.
Table 1 – Document overview for IEC 61968-4
Clause Title Purpose
1 Scope The scope and purpose of the document are described.
2 Normative references Documents that contain provisions which, through reference in
this text, constitute provisions of this International Standard.
3 Reference and information Description of the relevant parts of the interface reference
models model, static information model and message type naming
convention.
4 Records and asset management Message types related to the exchange of information for
message types network data sets, assets, and asset catalogues.

– 6 – IEC 61968-4:2007  IEC 2007

APPLICATION INTEGRATION AT ELECTRIC UTILITIES –

SYSTEM INTERFACES FOR DISTRIBUTION MANAGEMENT –

Part 4: Interfaces for records and asset management

1 Scope
This Part of IEC 61968 specifies the information content of a set of message types that can
be used to support many of the business functions related to records and asset management.
Typical uses of the message types defined in this Part of IEC 61968 include network
extension planning, copying feeder or other network data between systems, network or
diagram edits and asset inspection. Message types defined in other Parts of IEC 61968 may
also be relevant to these use cases.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 61968-1, Application integration at electric utilities – System interfaces for distribution
management – Part 1: Interface architecture and general requirements
IEC 61968-3, Application integration at electric utilities - System interfaces for distribution
management - Part 3: Interface for network operations
3 Reference and information models
3.1 General
The message types defined in IEC 61968-4 are based on a logical partitioning of the DMS
business functions and components called the IEC 61968-1 Interface reference model.
As described, in IEC 61968-1, the contents of the message types are based on a static
information model to ensure consistency of field names and data types. Each message type is
defined as a set of fields copied from the information model classes. The message types

defined in this standard are intended to satisfy a majority of typical applications. In some
particular project implementations, it may be desirable to modify the set of fields using a
methodology such as that described in IEC 61968-1.
3.2 Interface reference model
It is not the intention of the IEC 61968 series to define the applications and systems that
vendors should produce. It is expected that a concrete (physical) application will provide the
functionality of one or more abstract (logical) components as listed in this standard. These
abstract components are grouped by the business functions of the IEC 61968-1 Interface
reference model.
3.3 Records and asset management functions and components
The Records and Asset Management part of the IEC 61968-1 Interface reference model
shows those functions and typical components that are applicable to the message types
defined in IEC 61968-4.
For the message types defined in IEC 61968-4, it is expected that the typical abstract

components listed below will be producers of information. Typical consumers of the

information are the other components as listed in IEC 61968-1.

3.4 Static information model
The information model relevant to records and asset management consists of classes that

provide a template for the attributes for each message. The classes are defined in detail in

IEC 61970-301 or in future document IEC 61968-11.

4 Records and Asset message types

4.1 Summary
The records and asset message types describe information for the following types of
document:
• network data set,
• change set,
• presentation,
• asset list,
• asset catalogue,
• type asset catalogue.
For all message types shown in IEC 61968-4, elements that correspond with CIM classes
contain all native and inherited attributes of that class. Unless explicitly shown otherwise, all
message type associations are simple associations.
4.2 Network Data Set message type
4.2.1 Message content
A NetworkDataSet message can contain data for any part of a distribution network typically
selected for operational or extension planning studies. The message contents could be part of
a feeder, a single feeder or more than one feeder. The data could be either the ‘As built’
network or a proposed network selected for analysis.
A NetworkDataSet message may contain references to other Documents containing static
reference data such as TypeAssetCatalogue or AssetCatalogue. It may also contain
references to Assets performing the roles of the associated types of PowerSystemResources.

The same is true for other “leaf node” elements such as Organisations, Locations, and
Measurements. In these cases, only the identifier for the referenced data is to be included in
this message type. The actual data for referenced elements are provided through other types
of messages (e.g.,TypeAssetCatalogue, AssetCatalogue, AssetList, Measurements).
The basic structure is a hierarchy as shown in Figure 1. The initial dynamic state of the
network including switch positions is defined as a set of MeasurementValues. These values
can be updated using the ShowMeasurementList message defined in IEC 61968-3.
4.2.2 Message format
Created NetworkDataSet, changed NetworkDataSet, show NetworkDataSet and deleted
NetworkDataSet have the same message formats as shown in Figure 1.

– 8 – IEC 61968-4:2007  IEC 2007

IEC
Figure 1 – Network Data Set message format (continued on next page)

IEC
Figure 1 (continued)
– 10 – IEC 61968-4:2007  IEC 2007

IEC
Figure 1 (continued)
IEC
Figure 1 (continued)
– 12 – IEC 61968-4:2007  IEC 2007

IEC
Figure 1 (continued)
IEC
Figure 1 (continued)
– 14 – IEC 61968-4:2007  IEC 2007

IEC
Figure 1 (continued)
IEC
Figure 1 (continued)
– 16 – IEC 61968-4:2007  IEC 2007

IEC
Figure 1 (continued)
IEC
Figure 1 (continued)
– 18 – IEC 61968-4:2007  IEC 2007

IEC
Figure 1 (continued)
IEC
Figure 1 (continued)
– 20 – IEC 61968-4:2007  IEC 2007

IEC
Figure 1 (continued)
IEC
Figure 1 (continued)
– 22 – IEC 61968-4:2007  IEC 2007

IEC
Figure 1 (continued)
IEC
Figure 1 (end)
– 24 – IEC 61968-4:2007  IEC 2007

4.3 Change Set message type
4.3.1 Message content
A ChangeSet message type contains updates required in a transaction for an existing

NetworkDataSet, which is referenced in the uppermost hierarchy of this message type. Each

step in the ChangeSet is described through a separate ChangeItem. A change item identifies

the change type (add, delete, modify) and sequence number for a particular change within a

set of changes of a ChangeSet. The changes for this change item are articulated in an
instance of NetworkDataSet, which is a child element of the ChangeItem. Only the identifiers
of the relevant NetworkDataSet messages are to be included in a ChangeSet message. The

actual contents are provided in accompanying NetworkDataSets messages.

The basic structure is a hierarchy as shown in Figure 2.
4.3.2 Message format
Created ChangeSet, changed ChangeSet, show ChangeSet and deleted ChangeSet have the
same message formats as shown in Figure 2.

IEC
Figure 2 – Change Set message format
4.4 Presentation message type
4.4.1 Message content
A Presentation message can contain location information for most any element represented in
the Common Information Model, particularly elements of the distribution network. It can be
used for providing location information of individual assets or power system resources or to
provide a set of location information as a companion to the NetworkDataSet. The basic

structure is a hierarchy as shown in Figure 3. Refer to Annex A for information regarding the
use of Georaphy Markup Language (GML).
4.4.2 Message format
Created Presentation, changed Presentation, show Presentation and deleted Presentation
have the same message formats as shown in Figure 3.

IEC
Figure 3 – Presentations message format (continued)

– 26 – IEC 61968-4:2007  IEC 2007

IEC
Figure 3 (continued)
IEC
Figure 3 (continued)
– 28 – IEC 61968-4:2007  IEC 2007

IEC
Figure 3 (continued)
IEC
Figure 3 (end)
4.5 Asset List message type
4.5.1 Message content
An AssetList message can contain various amounts of data for any set of utility assets. An
AssetList message may contain references to static reference data such as elements of a
AssetCatalogue or TypeAssetCatlogue. It may also contain references to the types of
PowerSystemResources that specify the role in which the Asset is being used (i.e., if it has
been installed rather than sitting in inventory). The same is true for other “leaf node” elements
such as Organisations, Locations, and Measurements. In these cases, only the identifier for
the referenced data is to be included in this message type. The actual data for referenced

elements are provided through other types of messages (e.g.,TypeAssetCatalogue,
AssetCatalogue, NetworkDataSet, Measurements).
4.5.2 Message format
Created AssetList, changed AssetList, show AssetList and deleted AssetList have the same
message formats as shown in Figure 4.

– 30 – IEC 61968-4:2007  IEC 2007

IEC
Figure 4 – Asset List message format (continued)

IEC
Figure 4 (continued)
– 32 – IEC 61968-4:2007  IEC 2007

IEC
Figure 4 (continued)
IEC
Figure 4 (continued)
– 34 – IEC 61968-4:2007  IEC 2007

IEC
Figure 4 (continued)
IEC
Figure 4 (continued)
– 36 – IEC 61968-4:2007  IEC 2007

IEC
Figure 4 (end)
4.6 Asset Catalogue message type
4.6.1 Message content
An AssetCatalogue is a collection of information regarding available types of products and
materials that are used to build or install an Asset(s), to maintain an Asset(s) or to operate an
Asset(s). Each catagoue item is for a specific product available from a specific supplier. An
AssetCatalogue message may contain references to static reference data such as elements of
a TypeAssetCatalogue or Specifications. The same is true for other “leaf node” elements such

as Organisations. In these cases, only the identifier for the referenced data is to be included
in this message type. The actual data for referenced elements are provided through other
types of messages (e.g.,TypeAssetCatalogue).
4.6.2 Message format
Created AssetCatalogue, changed AssetCatalogue, show AssetCatalogue and deleted
AssetCatalogue have the same message formats as shown in Figure 5.

IEC
Figure 5 – Asset Catalogue message format (continued)

– 38 – IEC 61968-4:2007  IEC 2007

IEC
Figure 5 (continued)
IEC
Figure 5 (continued)
– 40 – IEC 61968-4:2007  IEC 2007

IEC
Figure 5 (continued)
IEC
Figure 5 (end)
– 42 – IEC 61968-4:2007  IEC 2007

4.7 Type Asset Catalogue message type

4.7.1 Message content
A TypeAssetCatalog message can contain data for a set of utility asset types. It is a collection
of information regarding generic types of assets that may be used for design purposes,
analysis, and so on. A TypeAsset is not associated with a particular manufacturer. A

TypeAssetCatalogue message may contain references to other Documents containing static

reference data such as elements of a AssetCatalogue. The same is true for other “leaf node”

elements such as Organisations. In these cases, only the identifier for the referenced data

shall be included in this message type. The actual data for referenced elements are provided

through other types of messages (e.g., AssetCatalogue).

4.7.2 Message format
Created TypeAssetCatalogue, changed TypeAssetCatalogue, show TypeAssetCatalogue and
deleted TypeAssetCatalogue have the same message formats as shown in Figure 6.

IEC
Figure 6 – Type Asset Catalogue message format (continued)

– 44 – IEC 61968-4:2007  IEC 2007

IEC
Figure 6 (continued)
IEC
Figure 6 (continued)
– 46 – IEC 61968-4:2007  IEC 2007

IEC
Figure 6 (continued)
IEC
Figure 6 (continued)
– 48 – IEC 61968-4:2007  IEC 2007

IEC
Figure 6 (continued)
IEC
Figure 6 (continued)
– 50 – IEC 61968-4:2007  IEC 2007

IEC
Figure 6 (end)
Annex A
(informative)
Use of the Geography Markup Language (GML)

For presentation purposes (refer to Subclause 4.4), IEC 61968-4 recommends use of the

Geography Markup Language (GML) for the exchange of geographic information for both

utility resources and landbase data. The Presentation message type may be used without
actually employing GML for exchanging elementary rendering data about utility resources.

However, GML provides a much richer set of capabilities that will be useful in many

circumstances. When GML is to be employed, note that use of the appropriate GML elements
is facilitated with the “Gml” prefix on the CIM elements of the Presentation message type.
This should enable implementations to use these two standards together with only minimal
and straightforward transformations being necessary.
GML is an XML encoding for the transport and storage of geographic information, including
both the geometry and properties of geographic features. The key concepts used by GML to
model the world are drawn from the Open GIS Consortium Abstract Specification
(www.opengis.org).
GML provides a variety of types of objects for describing geography including features,
coordinate reference systems, geometry, and topology. A geographic feature is "an
abstraction of a real world phenomenon; it is a geographic feature if it is associated with a
location relative to the Earth” . So a digital representation of the real world can be thought of
as a set of features. The state of a feature is defined by a set of properties, where each
property can be thought of as a {name, type, value} triple.
Geographic features with geometry are those with properties that may be geometry-valued.
A feature collection is a collection of features that can itself be regarded as a feature; as a
consequence a feature collection has a feature type and thus may have distinct properties of
its own, in addition to the features it contains.
The number of properties a feature may have, together with their names and types, are
determined by its type definition. Geographic features with geometry are those with properties
that may be geometry-valued. A feature collection is a collection of features that can itself be
regarded as a feature; as a consequence a feature collection has a feature type and thus may
have distinct properties of its own, in addition to the features it contains.
A coordinate reference system consists of a set of coordinate system axes that is related to
the earth through a datum that defines the size and shape of the earth. Geometries in GML

indicate the coordinate reference system in which their measurements have been made. The
“parent” geometry element of a geometric complex or geometric aggregate makes this

indication for its constituent geometries.
Refer to http://www.opengeospatial.org/standards/gml for further information. The XML
schema for the GML feature object is defined in the file feature.xsd available from
http://schemas.opengis.net/gml/3.1.1/base/.

___________
—————————
Cox, Simpon, Daisey, Paul, Lake, Ron, Portele, Clemens, Whitseside, Arliss. 2003. “OpenGIS® Geography
Markup Language (GML) Implementation Specification,” Open GIS Consortium, Inc.

– 52 – IEC 61968-4:2007  IEC 2007

SOMMAIRE
AVANT-PROPOS . 53

INTRODUCTION . 55

1 Domaine d’application . 56

2 Références normatives . 56

3 Modèles de référence et d’informations . 56

3.1 Généralités . 56

3.2 Modèle d’interface de référence . 56
3.3 Composants et fonctions pour la gestion des dossiers et des biens . 57
3.4 Modèle d’informations statiques . 57
4 Types de message des dossiers et des biens . 57
4.1 Récapitulatif . 57
4.2 Type de message Network Data Set . 57
4.2.1 Contenu du message . 57
4.2.2 Format du message . 58
4.3 Type de message Change Set . 74
4.3.1 Contenu du message . 74
4.3.2 Format du message . 74
