Process management for avionics - Management plan - Part 1: Preparation and maintenance of an electronic components management plan

IEC 62239-1:2018 defines the requirements for developing an electronic components management plan (ECMP) to guarantee to customers that all of the electronic components in the equipment of the plan owner are selected and applied in controlled processes compatible with the end application and that the technical requirements detailed in Clause 4 are accomplished. In general, the plan owner of a complete electronic components management plan (ECMP) is the avionics original equipment manufacturer (OEM).
This first edition cancels and replaces IEC TS 62239-1 published in 2015. This edition includes the following significant technical changes with respect to the previous edition:
a) added references to SAE EIA-STD-4899, IECQ OD 3702, IECQ OD 3407-1, IEC TR 62240-2, IECQ component schemes, SAE AS6081, SAE AS6171. GEIA-STD-0005-1 GEIA STD 0008;
b) replaced Annex C (which was transferred into IEC TR 62240-2) with a cross-reference table to SAE EIASTD4899 rev C clauses/ subclauses for guidance purposes only;
c) added the analysis of component technical erratum
d) updated Bibliography and reference documents

Gestion des processus pour l'avionique - Plan de gestion - Partie 1: Préparation et maintenance d'un plan de gestion des composants électroniques

l’IEC 62239-1:2018 définit les exigences pour la mise au point d'un plan de gestion des composants électroniques (ECMP) permettant de garantir que tous les composants électroniques de l'équipement du propriétaire du plan sont choisis et appliqués dans le cadre de processus contrôlés, compatibles avec l'application finale, et que les exigences techniques détaillées à l'Article 4 sont satisfaites. En général, le propriétaire d’un plan de gestion des composants électroniques (ECMP) complet est le fabricant d'équipements avioniques d'origine (OEM).
Cette première édition annule et remplace la première édition de l’IEC TS 62239-1 parue en 2015. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) ajout de références aux spécifications SAE EIA-STD-4899, IECQ OD 3702, IECQ OD 3407-1, IEC TR 62240-2, schémas de composants IECQ, SAE AS6081, SAE AS6171. GEIA-STD-0005-1 GEIA STD 0008;
b) remplacement de l’Annexe C (transférée dans l'IEC TR 62240-2) par une table de références croisées avec les articles/paragraphes de la SAE EIASTD4899 rév. C, à titre de recommandation uniquement;
c) ajout d’un erratum technique relatif à l’analyse des composants
d) mise à jour de la Bibliographie et documents de référence

General Information

Status
Published
Publication Date
23-Sep-2018
Current Stage
PPUB - Publication issued
Completion Date
24-Sep-2018
Ref Project

Buy Standard

Standard
IEC 62239-1:2018 - Process management for avionics - Management plan - Part 1: Preparation and maintenance of an electronic components management plan
English and French language
159 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

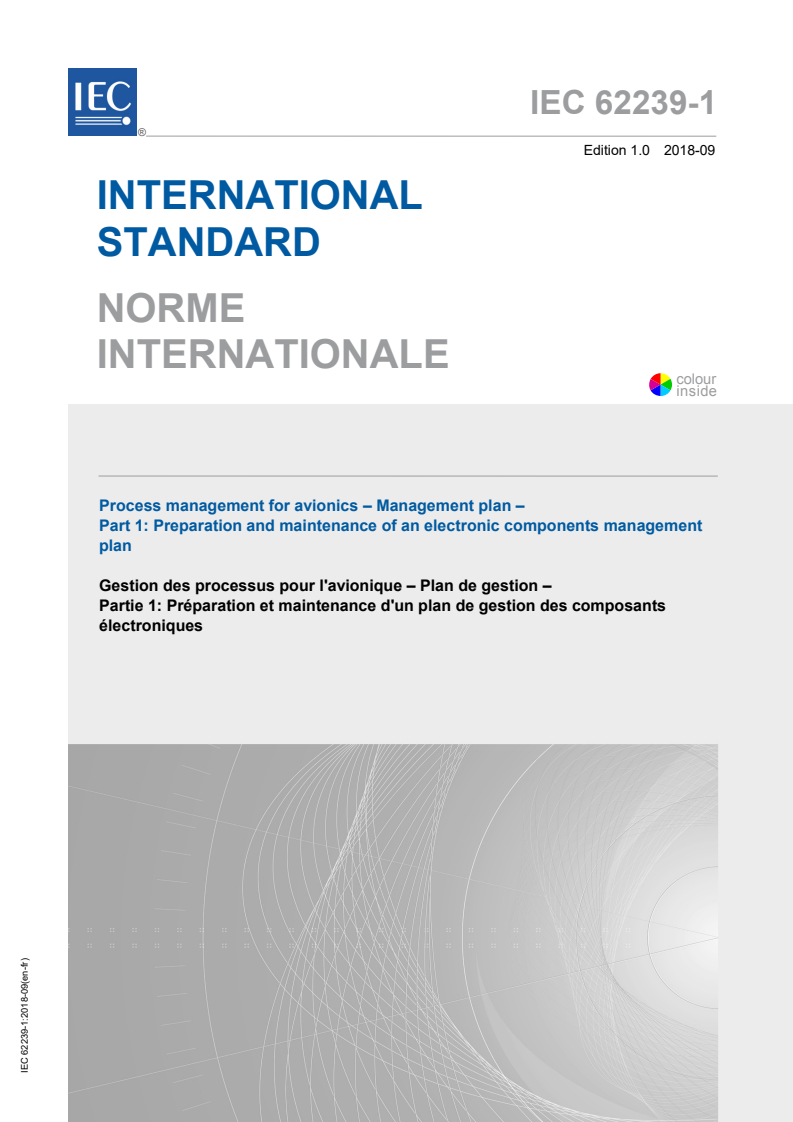

IEC 62239-1
Edition 1.0 2018-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Process management for avionics – Management plan –
Part 1: Preparation and maintenance of an electronic components management
plan
Gestion des processus pour l'avionique – Plan de gestion –
Partie 1: Préparation et maintenance d'un plan de gestion des composants
électroniques
IEC 62239-1:2018-09(en-fr)
---------------------- Page: 1 ----------------------

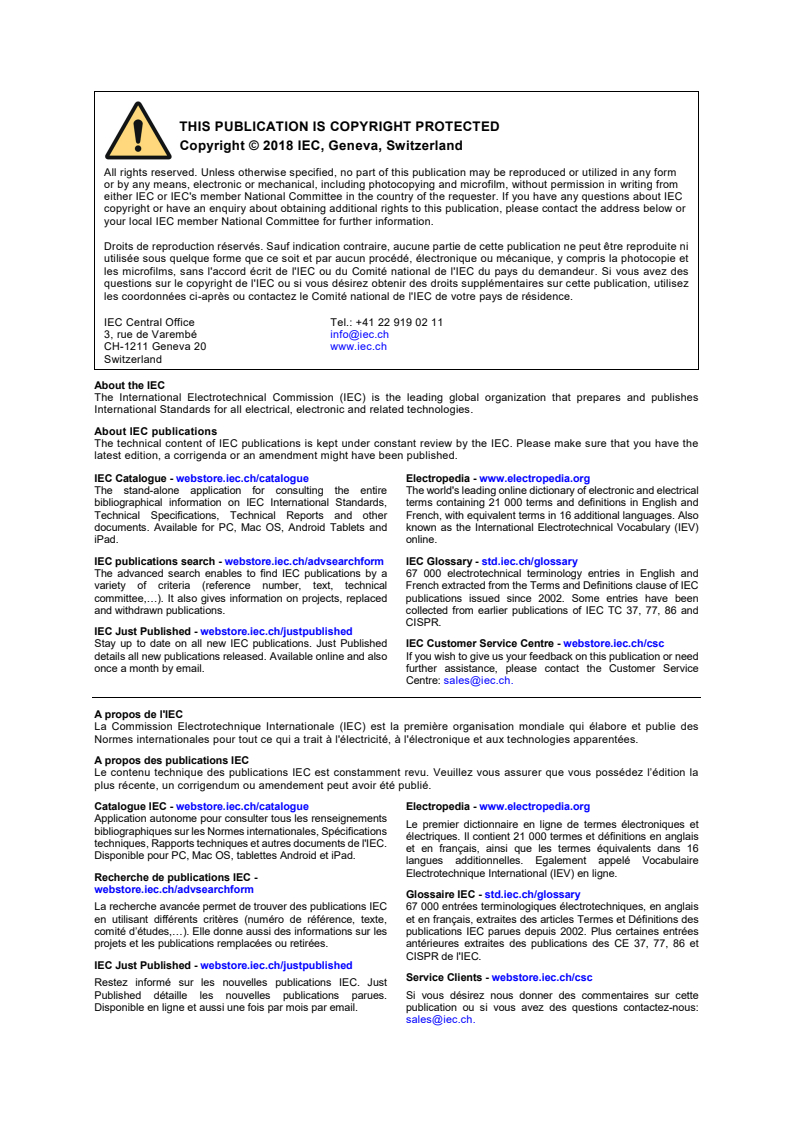

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni

utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et

les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and electrical

bibliographical information on IEC International Standards, terms containing 21 000 terms and definitions in English and

Technical Specifications, Technical Reports and other French, with equivalent terms in 16 additional languages. Also

documents. Available for PC, Mac OS, Android Tablets and known as the International Electrotechnical Vocabulary (IEV)

iPad. online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of IEC

committee,…). It also gives information on projects, replaced publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and also If you wish to give us your feedback on this publication or need

once a month by email. further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales, Spécifications
électriques. Il contient 21 000 termes et définitions en anglais
techniques, Rapports techniques et autres documents de l'IEC.
et en français, ainsi que les termes équivalents dans 16
Disponible pour PC, Mac OS, tablettes Android et iPad.
langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC -
webstore.iec.ch/advsearchform
Glossaire IEC - std.iec.ch/glossary

La recherche avancée permet de trouver des publications IEC 67 000 entrées terminologiques électrotechniques, en anglais

en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des

comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées

projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just

Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette

Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:

sales@iec.ch.
---------------------- Page: 2 ----------------------

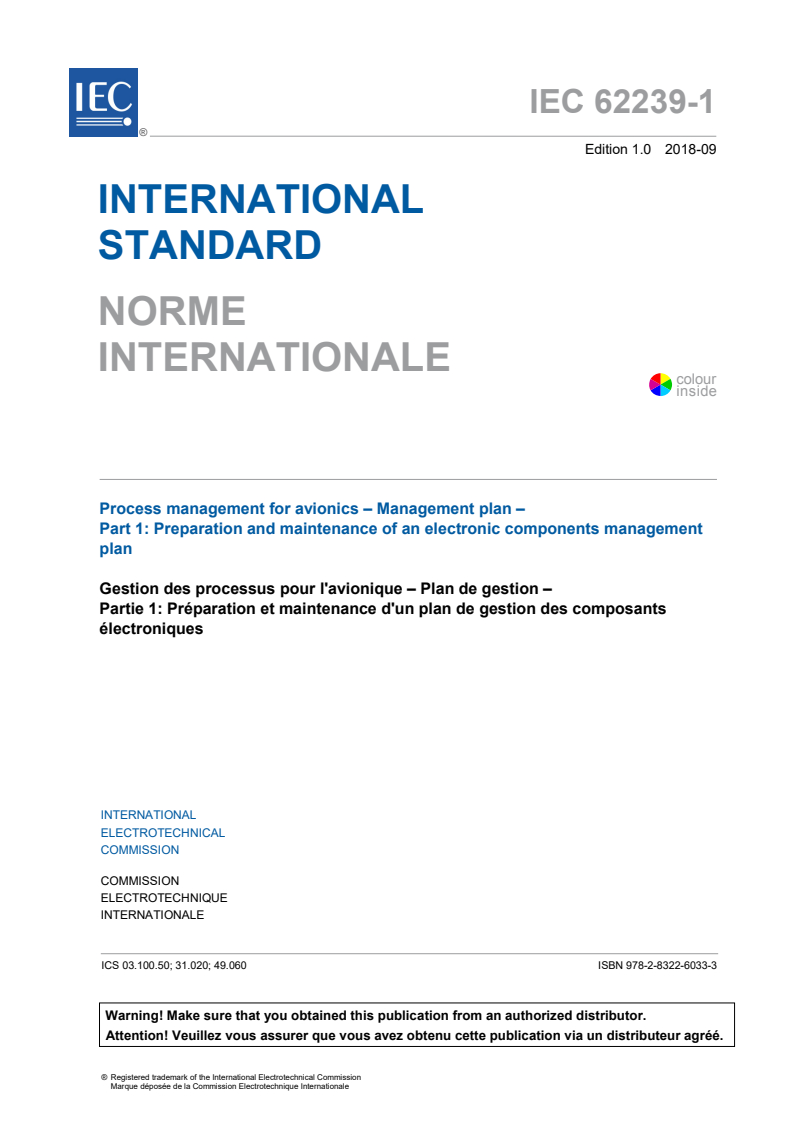

IEC 62239-1
Edition 1.0 2018-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Process management for avionics – Management plan –
Part 1: Preparation and maintenance of an electronic components management
plan
Gestion des processus pour l'avionique – Plan de gestion –
Partie 1: Préparation et maintenance d'un plan de gestion des composants
électroniques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 03.100.50; 31.020; 49.060 ISBN 978-2-8322-6033-3

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

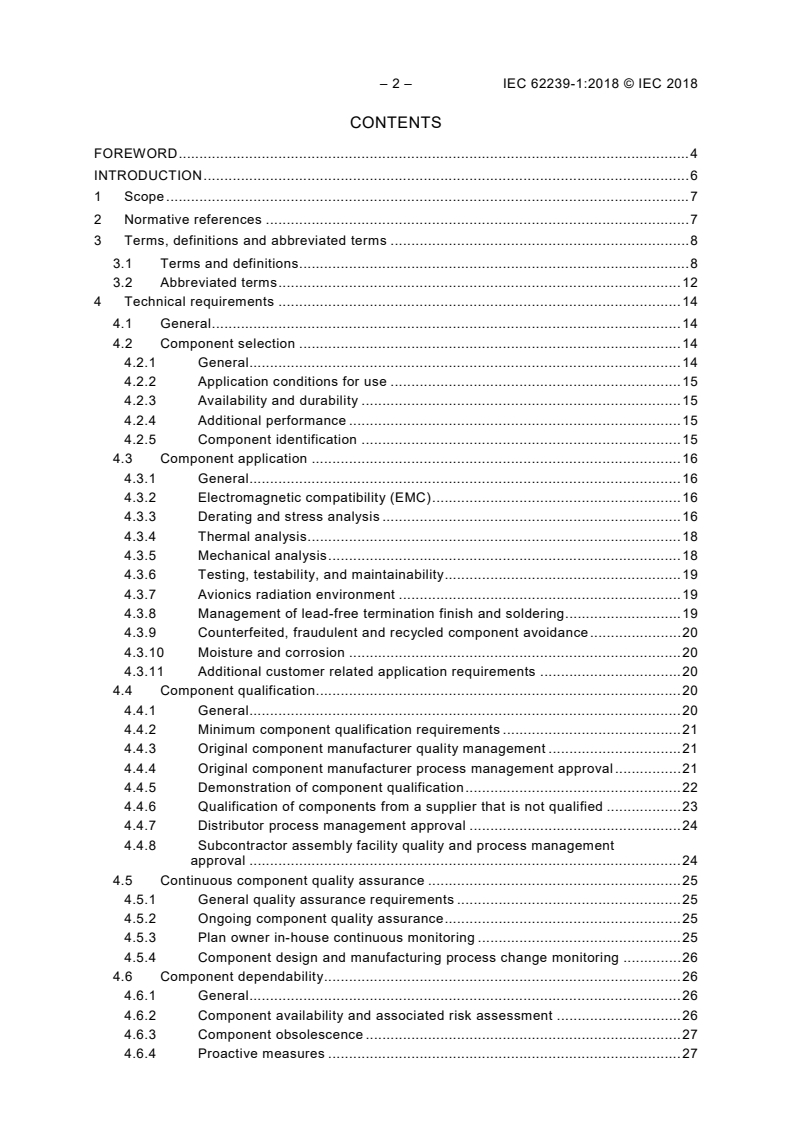

– 2 – IEC 62239-1:2018 © IEC 2018
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms, definitions and abbreviated terms ........................................................................ 8

3.1 Terms and definitions .............................................................................................. 8

3.2 Abbreviated terms ................................................................................................. 12

4 Technical requirements ................................................................................................. 14

4.1 General ................................................................................................................. 14

4.2 Component selection ............................................................................................ 14

4.2.1 General........................................................................................................ 14

4.2.2 Application conditions for use ...................................................................... 15

4.2.3 Availability and durability ............................................................................. 15

4.2.4 Additional performance ................................................................................ 15

4.2.5 Component identification ............................................................................. 15

4.3 Component application ......................................................................................... 16

4.3.1 General........................................................................................................ 16

4.3.2 Electromagnetic compatibility (EMC) ............................................................ 16

4.3.3 Derating and stress analysis ........................................................................ 16

4.3.4 Thermal analysis .......................................................................................... 18

4.3.5 Mechanical analysis ..................................................................................... 18

4.3.6 Testing, testability, and maintainability ......................................................... 19

4.3.7 Avionics radiation environment .................................................................... 19

4.3.8 Management of lead-free termination finish and soldering ............................ 19

4.3.9 Counterfeited, fraudulent and recycled component avoidance ...................... 20

4.3.10 Moisture and corrosion ................................................................................ 20

4.3.11 Additional customer related application requirements .................................. 20

4.4 Component qualification ........................................................................................ 20

4.4.1 General........................................................................................................ 20

4.4.2 Minimum component qualification requirements ........................................... 21

4.4.3 Original component manufacturer quality management ................................ 21

4.4.4 Original component manufacturer process management approval ................ 21

4.4.5 Demonstration of component qualification .................................................... 22

4.4.6 Qualification of components from a supplier that is not qualified .................. 23

4.4.7 Distributor process management approval ................................................... 24

4.4.8 Subcontractor assembly facility quality and process management

approval ........................................................................................................ 24

4.5 Continuous component quality assurance ............................................................. 25

4.5.1 General quality assurance requirements ...................................................... 25

4.5.2 Ongoing component quality assurance ......................................................... 25

4.5.3 Plan owner in-house continuous monitoring ................................................. 25

4.5.4 Component design and manufacturing process change monitoring .............. 26

4.6 Component dependability ...................................................................................... 26

4.6.1 General........................................................................................................ 26

4.6.2 Component availability and associated risk assessment .............................. 26

4.6.3 Component obsolescence ............................................................................ 27

4.6.4 Proactive measures ..................................................................................... 27

---------------------- Page: 4 ----------------------
IEC 62239-1:2018 © IEC 2018 – 3 –

4.6.5 Component obsolescence awareness .......................................................... 27

4.6.6 Reporting ..................................................................................................... 27

4.6.7 Semiconductor reliability, wear out and lifetime ............................................ 28

4.6.8 Reliability assessment ................................................................................. 28

4.7 Component compatibility with the equipment manufacturing process .................... 28

4.8 Component data ................................................................................................... 29

4.8.1 General........................................................................................................ 29

4.8.2 Minimum component data requirements ....................................................... 30

4.9 Configuration control ............................................................................................. 30

4.9.1 General........................................................................................................ 30

4.9.2 Alternative components................................................................................ 30

4.9.3 Alternative sources ...................................................................................... 30

4.9.4 Equipment change documentation ............................................................... 31

4.9.5 Customer notifications and approvals .......................................................... 31

4.9.6 Focal organization ....................................................................................... 31

5 Plan administration requirements ................................................................................... 31

5.1 Plan organization .................................................................................................. 31

5.2 Plan terms and definitions ..................................................................................... 31

5.3 Plan focal point ..................................................................................................... 31

5.3.1 Primary interface ......................................................................................... 31

5.3.2 Plan focal point responsibilities .................................................................... 32

5.4 Plan references..................................................................................................... 32

5.5 Plan applicability ................................................................................................... 32

5.6 Plan implementation ............................................................................................. 32

5.6.1 ECMP compliance ........................................................................................ 32

5.6.2 Plan objectives ............................................................................................ 32

5.6.3 Plan owner's subcontracted activities ........................................................... 33

5.7 Plan acceptance ................................................................................................... 33

5.8 Plan maintenance ................................................................................................. 33

Annex A (informative) Requirement matrix for IEC 62239-1 ................................................. 34

Annex B (informative) Typical qualification requirements and typical component

minimum qualification requirements ...................................................................................... 50

Annex C (informative) IEC 62239-1 cross-references to SAE EIA-STD-4899 for

guidance ............................................................................................................................... 53

Annex D (informative) Guidelines for environmental protection techniques and for

comparison of components specifications ............................................................................. 56

Bibliography .......................................................................................................................... 70

Figure 1 – Suspect components perimeter ............................................................................ 20

Table A.1 – Requirements matrix .......................................................................................... 34

Table B.1 – Typical qualification requirements and typical component minimum

qualification requirements ..................................................................................................... 50

Table C.1 – Cross-reference overview between IEC 62239-1 and SAE EIA-STD-4899,

for guidance .......................................................................................................................... 53

Table D.1 – Environmental protection techniques to be considered during the avionics

design process ..................................................................................................................... 56

Table D.2 – Guidelines for the comparison of internationally available component

specifications – Microcircuits .............................................................................................. 61

---------------------- Page: 5 ----------------------
– 4 – IEC 62239-1:2018 © IEC 2018
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PROCESS MANAGEMENT FOR AVIONICS –
MANAGEMENT PLAN –
Part 1: Preparation and maintenance of
an electronic components management plan
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62239-1 has been prepared by IEC technical committee 107:

Process management for avionics.
IEC 62239-1 cancels and replaces IEC TS 62239-1 published in 2015.

This first edition cancels and replaces the first edition of IEC TS 62239-1 published in2015.

This edition constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:
a) added references to SAE EIA-STD-4899, IECQ OD 3702, IECQ OD 3407-1, IEC TR
62240-2, IECQ component schemes, SAE AS6081, SAE AS6171. GEIA-STD-0005-1 GEIA
STD 0008;
---------------------- Page: 6 ----------------------
IEC 62239-1:2018 © IEC 2018 – 5 –

b) replaced Annex C (which was transferred into IEC TR 62240-2) with a cross-reference

table to SAE EIASTD4899 rev C clauses/subclauses for guidance purposes only;
c) added the analysis of component technical erratum in 4.8.2;
d) updated Bibliography and reference documents.
The text of this international standard is based on the following documents:
CDV Report on voting
107/320/CDV 107/333/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all the parts in the IEC 62239 series under the general title Process management for

avionics – Management plan, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 7 ----------------------
– 6 – IEC 62239-1:2018 © IEC 2018
INTRODUCTION

This document provides the structure for avionics equipment manufacturers, subcontractors,

maintenance facilities, and other aerospace component users to develop their own electronic

component management plan (ECMP), hereinafter also referred to as ‘plan’. This document

states objectives to be accomplished. The plan does not describe specific requirements and

those who prepare plans in compliance with this document will document processes that are

the most effective and efficient for them in accomplishing the objectives of this document. In

order to allow flexibility in implementing and updating the documented processes, plan owners

are encouraged to refer to their own internal process documents instead of including detailed

process documentation within their plans.

NOTE The equipment manufacturer, often called in the industry the original equipment manufacturer (OEM) is in

general considered as the plan owner.
This component management document is intended for aerospace users of electronic

components. This document is not intended for use by the manufacturers of electronic

components. Components selected and managed according to the requirements of a plan

compliant with this document may be approved by the concerned parties for the proposed

application, and for other applications with equal or less severe requirements.

Organizations that prepare such plans may prepare a single plan and use it for all relevant

products supplied by the organization or may prepare a separate plan for each relevant

product or customer.
---------------------- Page: 8 ----------------------
IEC 62239-1:2018 © IEC 2018 – 7 –
PROCESS MANAGEMENT FOR AVIONICS –
MANAGEMENT PLAN –
Part 1: Preparation and maintenance of
an electronic components management plan
1 Scope

This part of IEC 62239 defines the requirements for developing an electronic components

management plan (ECMP) to guarantee to customers that all of the electronic components in

the equipment of the plan owner are selected and applied in controlled processes compatible

with the end application and that the technical requirements detailed in Clause 4 are

accomplished.

In general, the plan owner of a complete electronic components management plan (ECMP) is

the avionics original equipment manufacturer (OEM).

NOTE SAE EIA-STD-4899 can be used to comply with the requirements of IEC 62239-1 where applicable (see

Annex C), to enable the plan owner to harmonise its plan for both documents.
This document provides an aid in the aerospace certification process.

Although developed for the avionics industry, this process can be applied by other industrial

sectors.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 62396 (all parts), Process management for avionics – Atmospheric radiation effects

IEC 62396-1:2016, Process management for avionics – Atmospheric radiation effects –

Part 1: Accommodation of atmospheric radiation effects via single event effects within

avionics electronic equipment

IEC TS 62647-1, Process management for avionics – Aerospace and defence electronic

systems containing lead-free solder – Part 1: Preparation for a lead-free control plan

GEIA-STD-0005-1, Performance Standard for Aerospace and High Performance Electronic

Systems Containing Lead-Free Solder

IPC/JEDEC J-STD-20, Moisture/Reflow Sensitivity Classification for Nonhermetic Solid State

Surface Mount Devices
---------------------- Page: 9 ----------------------
– 8 – IEC 62239-1:2018 © IEC 2018
3 Terms, definitions and abbreviated terms

For the purposes of this document, the following terms, definitions and abbreviated terms

apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp

NOTE In their plan, plan owners can use alternative definitions consistent with convention in their company.

3.1 Terms and definitions
3.1.1
environment

applicable environmental conditions (as described in the equipment specification) that the

equipment is able to withstand without loss or degradation in equipment performance

throughout its manufacturing cycle and maintenance life (the length of which is defined by the

plan owner in conjunction with customers)
3.1.2
purchased
bought outside the plan owner's organization, from an independent supplier

Note 1 to entry: This indicates that the plan owner does not manufacture this in-house.

3.1.3
capable
capacity of a component to be used successfully in the intended application
3.1.4
certified
assessed to and compliant with an applicable certification body
3.1.5
characterization

process of testing a sample of components to determine the key electrical parameter values

that can be expected of all produced components of the type tested
3.1.6
component application
domain of use where the component meets the design requirements
3.1.7
component manufacturer
organization responsible for the component specification and its production
3.1.8
component obsolescence

absence of availability of a component which is not procurable due to the manufacturer(s)

ceasing production

Note 1 to entry: Component obsolescence management is considered an element of component dependability.

---------------------- Page: 10 ----------------------
IEC 62239-1:2018 © IEC 2018 – 9 –
3.1.9
component qualification

process used to demonstrate that the component is capable of meeting its specification for all

the required conditions and environments
3.1.10
component quality assurance

activities and processes to provide adequate confidence that each individual component

meets the performance and environmental requirements
3.1.11
component selection
process of choosing a specific component for a specific application
3.1.12
component standardization

process of developing and agreeing by consensus on uniform engineering criteria for products

and methods for achieving compatibility, interoperability, interchangeability, or commonality of

material

Note 1 to entry: Standardization is used to reduce proliferation of components into inventory.

3.1.13
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
