IEC 61169-51:2015

Radio-frequency connectors - Part 51: Sectional specification for RF coaxial connectors with inner diameter of outer conductors 13,5 mm with bayonet lock - Characteristic impedance 50 Ω (type QLI)

IEC 61169-51:2015 provides information and rules for the preparation of detail specifications (DS) for type QLI R.F. coaxial connectors with quick lock. The connectors are normally used with 50 Ohms corrugated cable and flexible cables for middle power applications in an operating range up to 6 GHz. It describes the interface dimensions for general purpose connectors with gauging information and the mandatory tests selected from IEC 61169-1 applicable to all detail specifications relative to type QLI connectors. This specification indicates the recommended performance characteristics to be considered when writing a DS and covers all tests schedules and inspection requirements.

Connecteurs pour fréquence radioélectriques - Partie 51: Spécification intermédiaire relative aux connecteurs coaxiaux pour fréquences radioélectriques avec diamètre intérieur des conducteurs extérieurs de 13,5 mm à verrouillage à baïonnette - Impédance caractéristique 50 Ω (type QLI)

L'IEC 61169-51:2015 fournit des informations et des règles en vue de l'établissement de spécifications particulières (SP) relatives aux connecteurs coaxiaux pour fréquences radioélectriques de type QLI à verrouillage rapide. Les connecteurs sont normalement utilisés avec des câbles 50 Ohms annelés et des câbles souples pour des applications en moyenne puissance au sein d'une plage de fonctionnement inférieure ou égale à 6 GHz. Elle décrit les dimensions d'interface pour des connecteurs d'usage général, ainsi que des informations concernant les calibres et les essais obligatoires choisis dans l'IEC 61169-1, applicables à toutes les spécifications particulières ayant trait aux connecteurs de type QLI. La présente spécification indique les caractéristiques de performance recommandées à prendre en compte pour la rédaction d'une SP et elle couvre tous les programmes d'essais et les exigences de contrôle.

General Information

• Status: Published
• Publication Date: 04-Feb-2015
• ICS: 33.120.30 - RF connectors
• Technical Committee: SC 46F - RF and microwave passive components
• Current Stage: PPUB - Publication issued
• Start Date: 05-Feb-2015
• Completion Date: 15-Feb-2015

Standards Content (Sample)

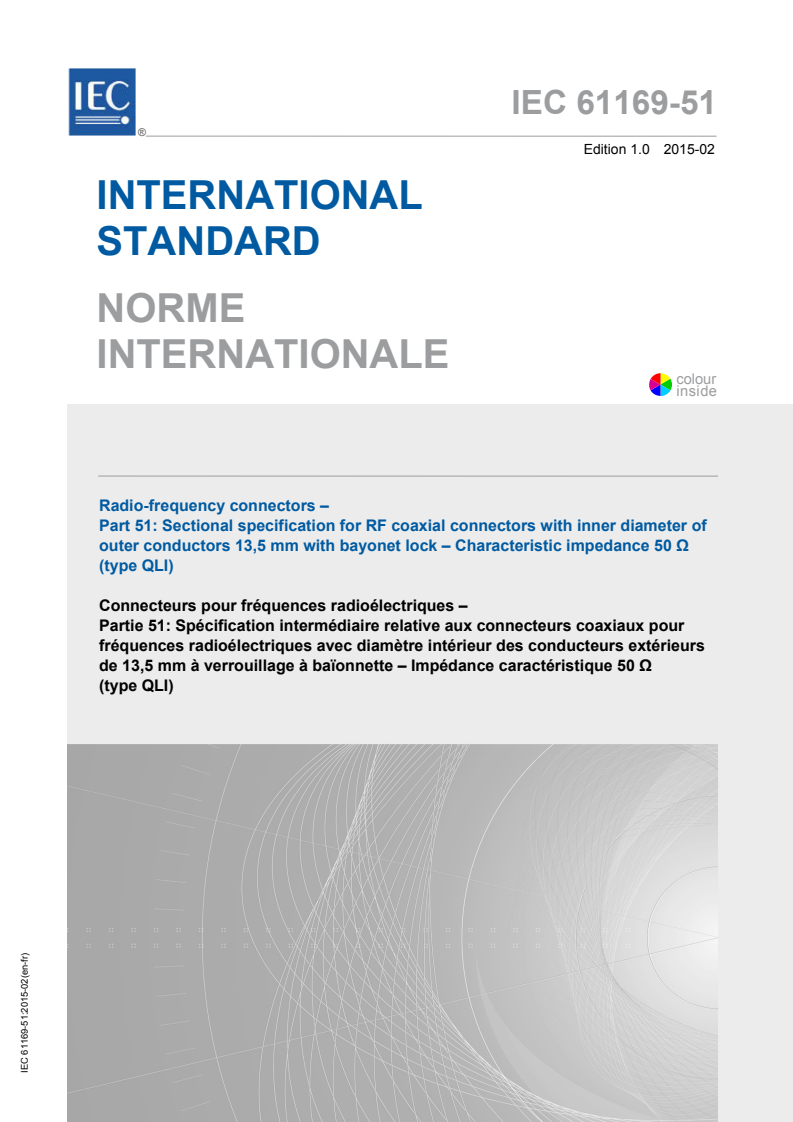

IEC 61169-51 ®
Edition 1.0 2015-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Radio-frequency connectors –
Part 51: Sectional specification for RF coaxial connectors with inner diameter of
outer conductors 13,5 mm with bayonet lock – Characteristic impedance 50 Ω
(type QLI)
Connecteurs pour fréquences radioélectriques –
Partie 51: Spécification intermédiaire relative aux connecteurs coaxiaux pour
fréquences radioélectriques avec diamètre intérieur des conducteurs extérieurs
de 13,5 mm à verrouillage à baïonnette – Impédance caractéristique 50 Ω
(type QLI)

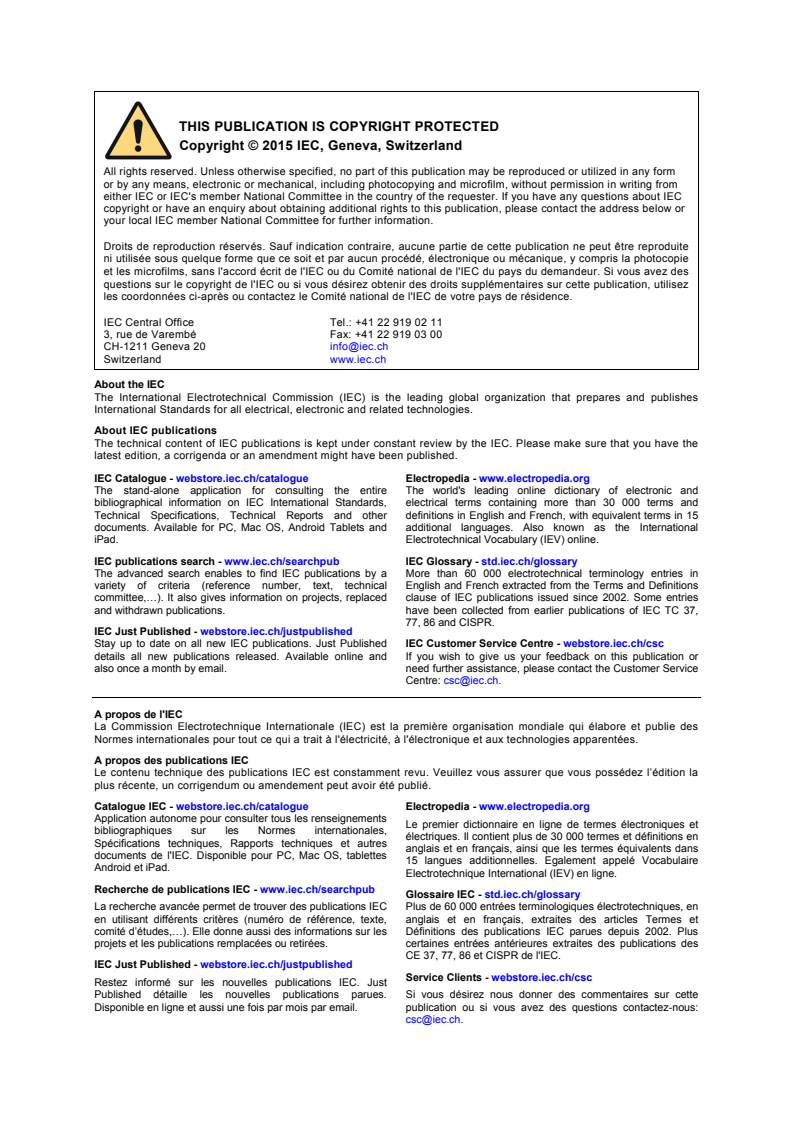

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC Plus de 60 000 entrées terminologiques électrotechniques, en
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].

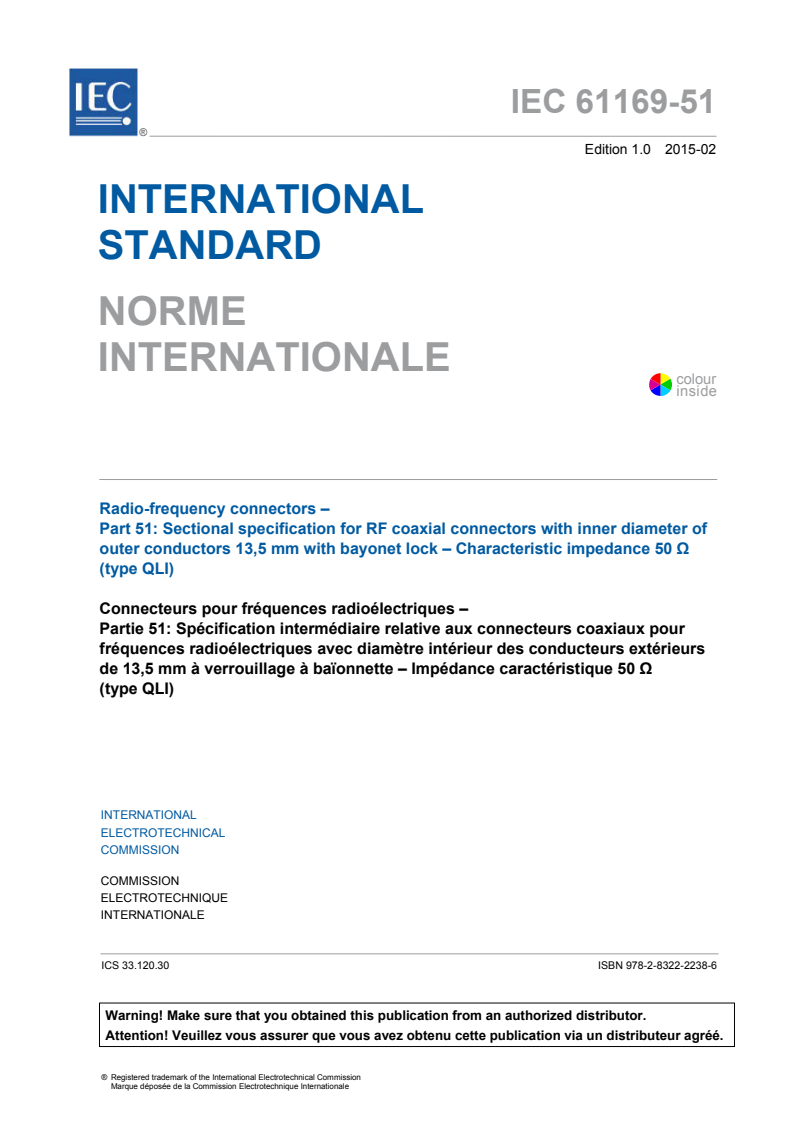

IEC 61169-51 ®
Edition 1.0 2015-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Radio-frequency connectors –
Part 51: Sectional specification for RF coaxial connectors with inner diameter of

outer conductors 13,5 mm with bayonet lock – Characteristic impedance 50 Ω

(type QLI)
Connecteurs pour fréquences radioélectriques –

Partie 51: Spécification intermédiaire relative aux connecteurs coaxiaux pour

fréquences radioélectriques avec diamètre intérieur des conducteurs extérieurs

de 13,5 mm à verrouillage à baïonnette – Impédance caractéristique 50 Ω

(type QLI)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.120.30 ISBN 978-2-8322-2238-6

– 2 – IEC 61169-51:2015 © IEC 2015

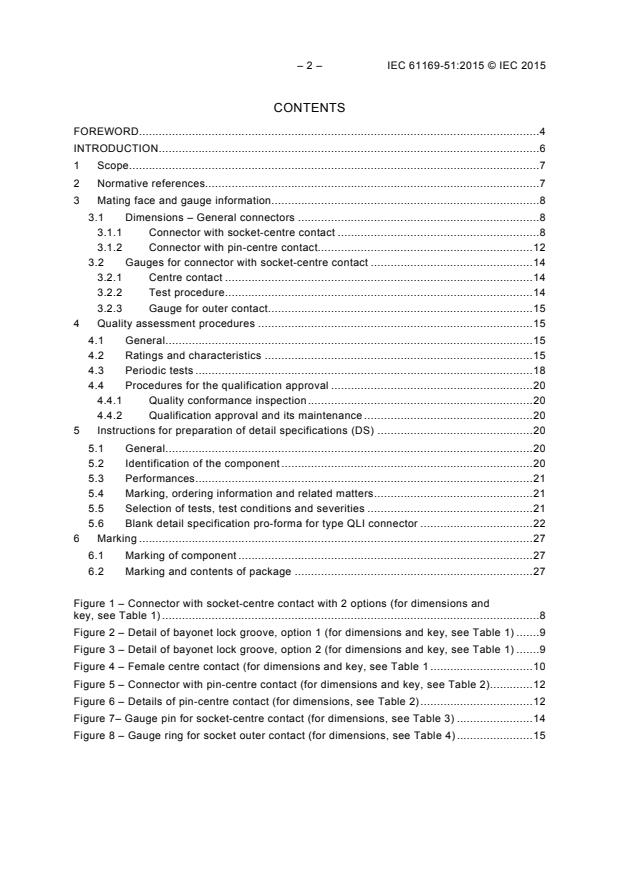

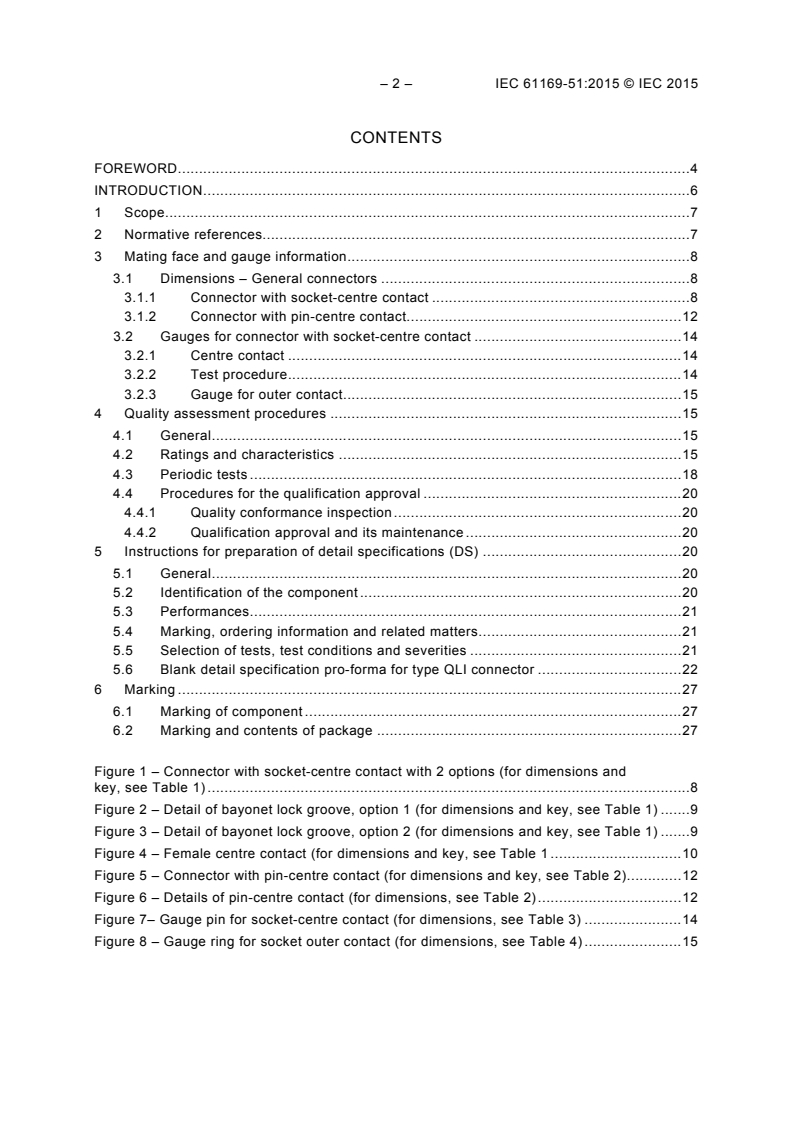

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references. 7
3 Mating face and gauge information . 8
3.1 Dimensions – General connectors . 8
3.1.1 Connector with socket-centre contact . 8
3.1.2 Connector with pin-centre contact. 12
3.2 Gauges for connector with socket-centre contact . 14
3.2.1 Centre contact . 14
3.2.2 Test procedure . 14
3.2.3 Gauge for outer contact . 15
4 Quality assessment procedures . 15
4.1 General . 15
4.2 Ratings and characteristics . 15
4.3 Periodic tests . 18
4.4 Procedures for the qualification approval . 20
4.4.1 Quality conformance inspection . 20
4.4.2 Qualification approval and its maintenance . 20
5 Instructions for preparation of detail specifications (DS) . 20
5.1 General . 20
5.2 Identification of the component . 20
5.3 Performances . 21
5.4 Marking, ordering information and related matters . 21
5.5 Selection of tests, test conditions and severities . 21
5.6 Blank detail specification pro-forma for type QLI connector . 22
6 Marking . 27
6.1 Marking of component . 27
6.2 Marking and contents of package . 27

Figure 1 – Connector with socket-centre contact with 2 options (for dimensions and
key, see Table 1) . 8
Figure 2 – Detail of bayonet lock groove, option 1 (for dimensions and key, see Table 1) . 9
Figure 3 – Detail of bayonet lock groove, option 2 (for dimensions and key, see Table 1) . 9
Figure 4 – Female centre contact (for dimensions and key, see Table 1 . 10
Figure 5 – Connector with pin-centre contact (for dimensions and key, see Table 2) . 12
Figure 6 – Details of pin-centre contact (for dimensions, see Table 2) . 12
Figure 7– Gauge pin for socket-centre contact (for dimensions, see Table 3) . 14
Figure 8 – Gauge ring for socket outer contact (for dimensions, see Table 4) . 15

Table 1 – Dimensions of connector with socket-centre contact . 11
Table 2 – Dimensions of connector with pin-centre contact . 13
Table 3 – Gauge dimensions for socket-centre contact . 14
Table 4 – Dimensions of gauge ring for socket outer contact . 15
Table 5 – Rating and characteristics . 16
Table 6 – Acceptance tests . 18
Table 7 – Periodic tests . 19

– 4 – IEC 61169-51:2015 © IEC 2015
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 51: Sectional specification for
RF coaxial connectors with inner diameter
of outer conductors 13,5 mm with bayonet lock –
Characteristic impedance 50 Ω (type QLI)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
International Standard IEC 61169-51 has been prepared by subcommittee 46F: R.F. and
microwave passive components, of IEC technical committee 46: Cables, wires, waveguides,
R.F. connectors, R.F. and microwave passive components and accessories.
The text of this standard is based on the following documents:
FDIS Report on voting
46F/295/FDIS 46F/310/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts of the IEC 61169 series, under the general title: Radio-frequency connectors,
can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 61169-51:2015 © IEC 2015
INTRODUCTION
The international Electrotechnical Commission (IEC) draws attention to the fact that it is
claimed that compliance with this document may involve the use of a patent concerning the
design of the connector given in 3.1.
IEC takes no position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has assured the IEC that he/she is willing to negotiate licence
under reasonable and non-discriminatory terms and conditions with applicants throughout the
world. In this respect, the statement of the holders of this patent right is registered with IEC.
More detailed information may be obtained from:
Radiall SA
Mr. Pierre Bigot, RFI Division
[e-mail]
Phone:[phone]
Z.I Centr’alp – 642 rue Emile Romanet, B.P. 35 – F-38341 Voreppe Cedex, France
Attention is drawn to the possibility that some of elements of this document may be the
subject of patent rights other than those identified above. IEC shall not be held responsible for
identifying any or all such patent rights.
ISO (www.iso.org/patents) and IEC (http://patents.iec.ch) maintain on-line data bases of
patents relevant to their standards. Users are encouraged to consult the data bases for the
most up to date information concerning patents.

RADIO-FREQUENCY CONNECTORS –
Part 51: Sectional specification for
RF coaxial connectors with inner diameter
of outer conductors 13,5 mm with bayonet lock –
Characteristic impedance 50 Ω (type QLI)

1 Scope
This part of IEC 61169, which is a sectional specification (SS), provides information and rules
for the preparation of detail specifications (DS) for type QLI R.F. coaxial connectors with quick
lock.
The connectors are normally used with 50 Ω corrugated cable and flexible cables for middle
power applications in an operating range up to 6 GHz.
It describes the interface dimensions for general purpose connectors with gauging information
and the mandatory tests selected from IEC 61169-1 applicable to all detail specifications
relative to type QLI connectors.
This specification indicates the recommended performance characteristics to be considered
when writing a DS and covers all tests schedules and inspection requirements.
NOTE Metric dimension are original dimensions.
All un-dimensioned pictorial configurations are for reference purpose only.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60529, Degrees of protection provided by enclosures (IP Code)
IEC 61169-1:2013, Radio-frequency connectors – Part 1: Generic specification – General
requirements and measuring methods
IEC 62037 (all parts), Passive RF and microwave devices, intermodulation level measurement
ISO 21207, Corrosion tests in artificial atmospheres – Accelerated corrosion tests involving
alternate exposure to corrosion-promoting gases, neutral salt-spray and drying

– 8 – IEC 61169-51:2015 © IEC 2015
3 Mating face and gauge information
3.1 Dimensions – General connectors
3.1.1 Connector with socket-centre contact

IEC IEC
a) Option 1 − connector for outdoor b) Option 2 − connector for indoor
(1) Reference plane
(2) Slotted and flared to meet mechanical and electrical requirements
(3) Sealing O-ring to meet required electrical and environmental performance
(4) The nut is permitted to use either option 1 or option 2 depending on outdoor or indoor use.
Figure 1 – Connector with socket-centre contact with 2 options
(for dimensions and key, see Table 1)

IEC
(1) Reference plane
Figure 2 – Detail of bayonet lock groove, option 1 (for dimensions and key, see Table 1)
IEC
(1) Reference plane
Figure 3 – Detail of bayonet lock groove, option 2 (for dimensions and key, see Table 1)

– 10 – IEC 61169-51:2015 © IEC 2015

IEC
(5) Slotted and closed to meet socket gauge test
Figure 4 – Female centre contact (for dimensions and key, see Table 1

Table 1 – Dimensions of connector with socket-centre contact
Ref. mm Additional notes
Min. Max.
A 0,22 0,38
B 0,1 0,3
C − −
D
− −
E 18,48 18,58
F 15,2 15,28
G 6 −
H 4,1 nom.
J − −
K1 3,9 5,2
K2 5,1 5,5
L 2,45 2,6
M 0,20 0,28
N 20 35 Degree
Q 20,4 20,5
R 7,60 8,5
S 3,59 3,77
U 6,5 6,8
– 12 – IEC 61169-51:2015 © IEC 2015
3.1.2 Connector with pin-centre contact
IEC
(1) Reference plane
(2) A concave depression between studs is permissible.
(3) The O-ring is optional.
Figure 5 – Connector with pin-centre contact (for dimensions and key, see Table 2)
IEC
Figure 6 – Details of pin-centre contact (for dimensions, see Table 2)

Table 2 – Dimensions of connector with pin-centre contact
Ref. mm Additional notes
Min. Max.
A 0,07 0,23
B 0,05 0,25
D 15,02 15,08
E 18,28 18,40
F 15,30 15,40
G 4,30 4,70
H 4,1 nom.
J 2,87 2,93
K 7,00 7,30
L 2,25 2,35
M 20,10 20,25
N 6,35 6,45
P 2,40 2,60
Q 20,00 20,20
R 12,00
−
S 4,05 4,15
T 1,95
−
U 6,30 6,50
– 14 – IEC 61169-51:2015 © IEC 2015
3.2 Gauges for connector with socket-centre contact
3.2.1 Centre contact
IEC
Figure 7– Gauge pin for socket-centre contact (for dimensions, see Table 3)
Table 3 – Gauge dimensions for socket-centre contact
Gauge A Gauge B
Maximum material for sizing purpose and measurement of Minimum material for measurement of minimum retention
maximum retention force force
Mass of gauge: 1,3 Kg ± 2 g Mass of gauge: 400 g ± 2 g
Ref. mm mm
Min. Max. Min. Max.
A 2,930 2,935 2,865 2,870
Material: steel, polished
Surface roughness: Ra=0,4 µm maximum

3.2.2 Test procedure
The gauge A (see Figure 7) shall be inserted into the socket-centre contact three times with a
minimum depth of 4 mm. The insertion force shall not exceed 30 N. The contact shall retain
the mass of gauge in a vertical downward position. The test also shall be carried out on
connector when the socket-centre contact is not removed.
After this, the gauge B shall be inserted in socket-centre contact. The contact shall retain the
mass the gauge in a vertical downward position. The test also shall be carried out on
connector when socket-centre contact is not removed.

3.2.3 Gauge for outer contact
IEC
Figure 8 – Gauge ring for socket outer contact (for dimensions, see Table 4)
Table 4 – Dimensions of gauge ring for socket outer contact
Gauge B
Gauge A
Minimum material for measurement of minimum retention
Maximum material for measurement of retention force
force
Mass of gauge: 0,8 Kg ± 0,02 Kg
Mass of gauge: 400 g ± 2 g
Ref. mm mm
Min. Max. Min. Max.
A 15,45 15,55 2,865 2,870
D 15,08 15,09 2,865 2,870
E 18,2 18,4 18,2 18,4
F 15,3 15,4 15,3 15,4
T 3,0 nom. 3,0 nom.
U 7 7,2 7 7,2
Material: steel, polished
Surface roughness: Ra=0,4 µm maximum

For slotted outer contacts, a steel test ring (see Figure 8) with inner diameter A shall be
placed over the outer contact of the connector. The test ring shall uniformly meet the outer
contact when pushed no more than 3,05 mm over this contact.
4 Quality assessment procedures
4.1 General
Subclauses 4.2 to 4.4 provide recommended ratings, performance and test conditions to be
considered when writing a detail specification (DS). They also provide an appropriate
schedule of tests with minimum levels of conformance.
4.2 Ratings and characteristics
The values indicated below are recommended for type QLI connectors and are given for the
writer of the detail specification. They are applicable for the condition when the connectors
are fully mated.
– 16 – IEC 61169-51:2015 © IEC 2015
Certain tests will usually not be required. When these tests are required, appropriate values
shall be entered in the detail specification at the discretion of the specification writer.
The connectors have a maximum working voltage of 1,4 kV at sea level.
Connection to the cable may be made either by crimping or soldering, depending upon
design.
Table 5 – Rating and characteristics
Test method
Remarks, deviation from
Ratings and characterisitics IEC 61169-1:2013 Value
standard test method
Subclause
Electrical
Nominal impedance
50 Ω
Frequency range DC to 6 GHz
a
9.2.1
Reflection factor
– Straight styles
≤ 0,07
– Right angle styles ≤ 0,09
– Component mounting ≤ 0,070
styles
Insertion loss < 0,05 × √ f (GHz)
b
9.2.3
Centre contact resistance
– initial
0,4 mΩ
– after tests
0,8 mΩ
b
9.2.3
Outer contact continuity
– initial 1,5 mΩ
– after tests
2,0 mΩ
Insulation resistance 9.2.5
– initial
5 000 MΩ
– after tests
c,d
Proof voltage
– sea level 9.2.6 2 500 Vrms
– at 3 000 m 9.2.6
e
9.2.7
≥ 100 dB, at
Screening effectiveness
1 GHz
≥ 90 dB, at
3 GHz
Intermodulation level IEC 62037 Over –163 dBc

Transient current withstanding
– centre contact
5 KA
– with 10/350 µs pulse
– with 8/20 µs pulse 20 KA
Transient current withstanding
– outer contact
20 KA
– with 10/350 µs pulse
80 KA
– with 8/20 µs pulse
Power test at sea level
Test method
Remarks, deviation from
Ratings and characterisitics IEC 61169-1:2013 Value
standard test method
Subclause
– average  1 KW, at 2 GHz
– peak 15 KW, at 2 GHz
Mechanical
Centre contact captivation 9.3.5 Maximum displacement of 0,25
mm in any directions
– axial force  50 N
– torque 20 N.cm
Engagement and separation 9.3.6
force
– axial force (engagement) 50 N
– axial force (separation) 40 N
– torque 2 N.m
Gauge retention force 9.3.4
– centre contact  4 N to 15 N
– outer contact  10 to 40 N
– torque 2 N.m
Mechanical tests on cable
fixing
– cable pulling 9.3.8 ≥ 250 N
– cable bending 9.3.9 Bending number: 10
≥ 150 N
Bending angle: 90°
– cable torsion 9.3.10
≥ 2,5 N.m
Tensile strength of coupling 9.3.11 445 N
mechanism
Bending moment of coupling 9.3.12 na
mechanism
²
Vibration 9.3.3 100 m/s 10 g
n
10 Hz to 500 Hz
²
Shock 9.3.14 500 m/s 50 g
n
½ sine wave
6 ms
Endurance
Mechanical endurance 9.3.15 100 operations
f
9.4.5 1 000 h at For BZ4 center socket contact,
High temperature endurance
155 °C upper temperature is limited to
120 °C
Environmental
Climatic category
– operation 55/85/21
– storage 9.4.2 65/155/56 For BZ4 center socket contact,
upper temperature is limited to
120 °C
Sealing IEC 60529 IP67
Salt mist 9.4.10 96 h spray
Corrosion ISO 21207 Method B
– 18 – IEC 61169-51:2015 © IEC 2015
Test method
Remarks, deviation from
Ratings and characterisitics IEC 61169-1:2013 Value
standard test method
Subclause
Change of temperature 9.4.4
– dry heat
+85 °C
– cold –55 °C
– damp heat 9.4.3
a
Characteristics indicated are those that can be apply to basic connector. Intrinsic limitations of the cable
may diminish the performance of the assembly and reference should always made to the actual values given
in the detail specification.
b
Values for a single pair of connector.
c
Voltage are r.m.s. values of a.c. at 40 Hz to 65 Hz, unless otherwise specified.
d
Values are depending also of the cable type.
e
Applicable in fully mated position. Depending of cable type values for a single pair of connectors.
f
Upper temperature limit can be restricted by the cable characteristics. Reference should be made to the
relevant cable specification.
4.3 Periodic tests
There are no group C tests for levels H and M.
Table 6 describes the acceptance tests to be performed.
Table 6 – Acceptance tests
–    Test method Assessment level M (higher) Assessment level H (lower)
IEC 61169-1:2013
Subclause
Test IL AQL Period Test IL AQL Period
required required
% %
Group A1
Visual examination 9.1.1 a II 1 a S3 1,5
Group B1
Outline dimension 9.1.2 a S4 0,4 a S3 4,0
Mechanical 9.1.2.2 a II 1 a S3 1,5
compatibility
Engagement and 9.3.6 a S4 0,4 a S3 1,5
separation
Gauge retention 9.3.4 ia II 1 ia S3 1,5
(resilient contacts)
Sealing
non hermetic 9.4.7 ia II 0,65 ia S3 1
hermetic 9.4.8 ia II 0,015 ia S3 0,025
Voltage proof 9.2.6 a II 0,4 a II 4,0
Solderability (d) 9.3.2.2 ia S4 0,4 ia S3 4,0
Insulation resistance 9.2.5 a S4 0,4 a S3 4,0
For the symbols, abbreviations and procedures, see the end of Table 7.
Lot by Lot
Lot by Lot
Table 7 – Periodic tests
Test method Assessment level M (higher) Assessment level H (lower)
IEC 61169-1:2013
Subclause
Group D1 (d)  6 1 3 years 3 1 3 years
Solderability connector 9.3.2.2 ia  ia
assemblies
Resistance to soldering heat 9.3.2.3 ia  ia
Mechanical tests on cable fixing
cable rotation (nutation) 9.3.7 na  na
cable pulling 9.3.8 ia  ia
cable bending 9.3.9 ia  ia
cable torsion 9.3.10 ia  ia
Group D2 (d)  6 1 3 years 3 1 3 years
Contact resistance, outer 9.2.3 a  a
conductor and screen continuity
centre conductor continuity
Vibration 9.3.3 a
Damp heat, steady state 9.4.3 a  a
Group D3 (d)  1 1 3 years 1* 1 3 years
Dimensions piece-parts and 9.1.2 a  a
materials
Group D4 (d)  6 1 3 years 3 1 3 years
Mechanical endurance 9.3.15 a  a
High temperature endurance 9.4.5 a  a
Discharge test 9.2.8
Climatic conditioning 9.4 na  na
Group D5 (d)  6 1 3 years 3 1 3 years
Reflection factor 9.2.1 a  a
Screening effectiveness 9.2.7 a  a
Water immersion 9.4.9 ia  ia
Group D6 (d)  6 1 3 years 3 1 3 years
Contact captivation 9.3.5 a  a
Rapid change of temperature 9.4.4 na  na
Climatic sequence 9.4.2 a  a
Group D7 (d)  1§ 3 years 1§ 3 years
Salt mist 9.4.6 a
a suggested as applicable
ia test suggested (if technically applicable)
na not applicable
IL inspection level
AQL acceptable quality level
* one set of piece-parts each style and variant, unless using common piece parts

– 20 – IEC 61169-51:2015 © IEC 2015
# for Qualification Approval (QA) a total of two failures only permitted for level H and one failure only for level M from
groups D1 to D7
§ Group D7 – number of pairs for each solvent
(d) destructive tests – specimens shall not be returned to stock

4.4 Procedures for the qualification approval
4.4.1 Quality conformance inspection
This shall consist of test group A1 and B1 on a lot-by-lot basis and test group D1 to D7 on a
periodic basis.
4.4.2 Qualification approval and its maintenance
This shall consist of three consecutive lots passing test groups A1 and B1 followed by
selection of specimens from the lots as appropriate. These specimens shall successfully pass
the specified periodic D tests.
5 Instructions for preparation of detail specifications (DS)
5.1 General
Detail specifications writers shall use the appropriate blank detail specification (BDS). The
following pages comprise the BDS dedicated for use with type 50 Ω type QLI connectors. As
such, it will already have entered on it information relation to
a) the basic specification number applicable to all the detail specification covering connector
styles of the series covered by the sectional specification;
b) the connector series designation.
The specification writer should enter the details relating to the connector style to be covered
as indicated. The numbers in brackets in the BDS correspond to the following indications,
which shall be given.
5.2 Identification of the component
1) Enter the following details:
– Style: the style designation of the connector includes type of fixing and sealing, if
applicable.
– Attachment: by deletion of the inapplicable options of cable/wire given for centre and
outer conductors.
– Special features and marking: as applicable.
2) Enter details of assessment level and the climatic category.
3) A reproduction of the outline drawing and details of the panel piercing (if applicable). It
shall provide the maximum envelope dimensions, also the position of the reference plane
and, in the case of a fixed connector, the position of the mounting plane(s) relative to the
front face of the connector.
4) Any maximum panel thickness limitations for fixed connectors shall be stated.

5) Particulars of all variants covered by the DS. As appropriate, the information shall
include:
– cable types (or sizes) applicable to each variant,
– alternative plated or protective finishes,
– details of alternative mounting flanges having either tapped or plain mounting holes,
– details of alternative solder spills or solder buckets including when applicable those
for use with microwave integrated circuit (MIC) components.
5.3 Performances
6) Performance data listing the most important characteristics of the connectors in
accordance with the requirements of the relevant sectional specification. Deviations from
the minimum requirements shall be clearly indicated. Non-applicable parameters shall be
marked 'na'.
5.4 Marking, ordering information and related matters
7) Insert marking and ordering information as appropriate, together with details or related
documents and any invoked structural similarity.
5.5 Selection of tests, test conditions and severities
8) "na" shall be used to indicated non-applicable tests. All tests marked "a" by the detail
specification writer shall be mandatory.
When using the normal procedure with a dedicated BDS, the letter "a" for applicable shall be
entered in the "test required" column against each of the tests indicated as being mandatory
in the test schedule. Any additional tests required at the discretion of the specification writer
shall also be indicated by an 'a'.
The specification writer shall also indicate, when necessary, details of deviations from the
standard test method and test conditions, including any relevant deviations given in the test
schedule of the sectional specification.

– 22 – IEC 61169-51:2015 © IEC 2015
5.6 Blank detail specification pro-forma for type QLI connector
The following pages contain the complete BDS pro-forma
(1) Page 1 of
(2)
ISSUE
ELECTRONIC COMPONENT OF ASSESSED
QUALITY IN ACCORDANCE WITH
(3)   .
GENERIC SPECIFICATION IEC 61169-1
(4)    .
NATIONAL REFERENCE
(5) Detail specification for
Type
Radio frequency coaxial connector of assessed quality
Style    Special features and markings
Method of cable/wire+ attachment centre conductor – solder/crimp+
outer conductor – solder/clamp/crimp +
+ delete as appropriate
(6) Assessment level.   . Climatic category./././
Characteristic impedance … Ω
(7) Outline and maximum dimensions Panel piercing and mounting details
(8) Variants
Variant No. Description of variant 61196 IEC

.   .   .   .   .   .

.   .   .   .   .   .
Information about manufacturers who have components qualified under the IECQ Conformity Assessment System is available
through the IECQ on-line certificate system.

(9) Performance (including limiting conditions of use)
Ratings and characteristics Variant No. IEC 61169-1:2013 Value Remarks including any deviations
Designation Subclause from standard test methods
Electrical
Nominal impedance  50.Ω
Frequency range    0 GHz to Measurement frequency range
7,5.GHz
Reflection factor 9.2.1
GHz
GHz
GHz
Centre contact resistance 9.2.3 Initial
≤    mΩ
After conditioning
≤    mΩ
Centre conductor continuity    9.2.3 Resistance change due to conditioning
≤    mΩ
≤    mΩ
≤    mΩ
≤    mΩ
Outer contact continuity 9.2.3 Initial
≤    mΩ
After conditioning
≤    mΩ
Insulation resistance 9.2.5 Initial
≥    GΩ
After conditioning
≥    GΩ
9.2.6    kV 86 kPa to106 kPa
+ Proof voltage at sea level
kV
kV
kV
+ Proof voltage at 4,4 kPa    9.2.6    kV    kPa (if not 4,4 kPa)
kV
kV
kV
dB at
Screening effectiveness    9.2.7
Z ≤    mΩ
t
GHz
Discharge test (corona) at    9.2.8 Extinction voltage
≥    V
sea level
≥    V
≥    V
≥    V
ADDITIONAL ELECTRICAL
CHARACTERISTICS
dB at
Intermodulation level    IEC 62037 Under 2 carries of +43 dBm
GHz
+ Voltage values are r.m.s. values at 50 Hz to 60 Hz, unless otherwise specified.

– 24 – IEC 61169-51:2015 © IEC 2015
Ratings and characteristics IEC 61169-1:2013 Value Remarks including any
Subclause deviations from standard test
methods
Mechanical
Soldering 9.3.2
– bit size
Gauge retention resilient
contacts 9.3.4 See Figure 7 and Table 3
N
– inner contact See Figure 8 and Table 4
N
– outer contact
Centre contact 9.3.5
captivation    N
– axial force    mm
– permitted
displacement    Nm
each direction
– torque
Engagement and 9.3.6 Achievable by hand
separation
– axial force
Strength of coupling 9.3.11    N
mechanism
Effectiveness of cable  Rotations
fixing against
– cable rotation    9.3.7
– cable pulling 9.3.8 Point of application and duration
N    mm    s
N    mm    s
N    mm    s
N    mm    s
– cable bending 9.3.9 Length of cable and mass
cycles    mm
cycles    mm
cycles    mm
cycles    mm
– cable torsion 9.3.10 Duration of applied torque
Nm    s
Nm    s
Nm    s
Nm    s
Bending moment 9.3.12    Nm Relative to reference plane
Bumps total 9.3.13    m/s (   g acceleration)
n
to
Hz
Vibration 9.3.3    m/s (   g acceleration)
n
to
Hz
Shock 9.3.14    m/s (   g acceleration)
n
Shape
ms
ADDITIONAL
MECHANICAL
CHARACTERISTICS
Ratings and characteristics IEC 61169-1:2013 Value Remarks including any
Subclause deviations from standard test
methods
Environmental
Climatic category
Sealing non-hermetically 9.4.7    cm /h 100 kPa to 110 kPa pressure
sealed connectors differential
–5 3
Sealing hermetically 9.4.8 10 bar/cm /h 100 kPa to 110 kPa pressure
sealed connectors differential
Water immersion 9.4.9
Salt mist 9.4.10    h Duration of spraying
ADDITIONAL
ENVIRONMENTAL
CHARACTERISTICS
ENDURANCE
Mechanical 9.3.15
operations
High temperature 9.4.5    h
at    °C
ADDITIONAL
ENDURANCE
CHARACTERISTICS
CHEMICAL CONTAMINATION
Resistance to solvents 9.4.11
and contaminating fluids
to be used.
Applicable fluids
Sulphur dioxide 9.4.12    days

– 26 – IEC 61169-51:2015 © IEC 2015
(10) Supplementary information
‒ Marking of the component: in accordance with 11.1 of IEC 61169-1:2013 in the following order of procedure
1) Identity of manufacture
2) Manufacturing date code    year /week
3) Component identification    variant No./designation Identification
.
.
.
.
.
.
.
.
‒ Marking and contents of package: in accordance with 11.2:2013 of IEC 61169-1
1) Information prescribed in 11.1 of IEC 61169-1 detailed above
2) Nominal characteristic impedance    Ω
3) Assessment level code letter
4) Any additional marking required

‒ Ordering information:
1) Number of the detail specification  /variant code
2) Assessment level code letter
2) Body finish (if more than one listed)
3) Any additional information or special requirements

– Related documents (if not included in IEC 61169-1 or sectional specification):
.
.
‒ Structural similarity in accordance with 10.2.2 of IEC 61169-1:2013

Relevant information on a basic style should be entered as variant 01.

6 Marking
6.1 Marking of component
Each component shall be legibly and durably marked, where space permits and in the
following order of precedence, with:
a) identity code of the manufacturer;
b) manufacturer’s connector identification code or IEC connector designation.
6.2 Marking and contents of package
The package shall be marked with the information prescribed in 6.1 and, in addition, the
following information shall be given:
a) nominal characteristic impedance;
b) manufacturing date code;
c) any additional marking required by the relevant specification.
When required by the relevant specification, the package shall also include instructions for
assembling the connector(s) and instructions for the use of any special tools or materials, as
necessary.
_____________
