IEC 61753-052-6:2016

Fibre optic interconnecting devices and passive components - Performance standard - Part 052-6: Single-mode fibre non-connectorized fixed attenuator - Category O in outside plant environment

IEC 61753-052-6:2016 contains the minimum initial test and measurement requirements and severities which a fibre optic attenuator satisfies in order to be categorised as meeting the requirements of single-mode fibre non-connectorized fixed attenuator devices used in outside plant environments. IEC 60869-1 contains the generic specification of the optical attenuator. Optical performances specified in this document relate only to non-connectorized optical attenuators. Keywords: non-connectorized fixed attenuator devices, Category O in outside plant environments

Dispositifs d'interconnexion et composants passifs fibroniques - Norme de performance - Partie 052-6: Affaiblisseur fixe non connectorisé à fibres unimodales - Catégorie O pour des installations dans un environnement extérieur

IEC 61753-052-6:2016 contient les exigences de mesure et d'essai initiales minimales et les sévérités auxquelles satisfait un affaiblisseur fibronique pour être classé comme conforme aux exigences d'un affaiblisseur fixe non connectorisé à fibres unimodales destiné à être utilisé dans des installations dans un environnement extérieur. L'IEC 60869-1 contient la spécification générique de l'affaiblisseur optique. Les performances optiques spécifiées dans le présent document concernent uniquement des affaiblisseurs optiques non connectorisés.
Mots clés: affaiblisseur fixe non connectorisé, catégorize O pour des installations dans un environnement extérieur

General Information

• Status: Published
• Publication Date: 27-Jul-2016
• ICS: 33.180.20 - Fibre optic interconnecting devices
• Technical Committee: SC 86B - Fibre optic interconnecting devices and passive components
• Drafting Committee: WG 7 - TC 86/SC 86B/WG 7
• Current Stage: PPUB - Publication issued
• Start Date: 28-Jul-2016
• Completion Date: 15-Sep-2016

Overview

IEC 61753-052-6:2016 defines minimum initial test and measurement requirements for single-mode fibre non-connectorized fixed attenuator devices intended for outside plant (Category O) environments. It specifies the performance severities and test sequencing that manufacturers and test labs must meet to classify non-connectorized fixed attenuator devices as suitable for field-deployed outside-plant optical networks. This part complements the generic optical attenuator specification in IEC 60869-1 and applies specifically to non-connectorized devices terminated on single‑mode fibres.

Key topics and technical requirements

The standard focuses on objective measurements and environmental robustness checks using methods from the IEC 61300 series. Major topics include:

• Attenuation

  • Measured over operating wavelength ranges 1260–1360 nm and/or 1460–1625 nm.
  • Tolerances: for nominal attenuation ≤ 5 dB → ±0.5 dB; for > 5 dB → ±10%.
  • Measurement method: IEC 61300-3-7 (Method B2.1) with single‑mode launch patchcords.

• Return loss

  • Requirement: ≥ 50 dB measured at 1310 nm, 1550 nm and 1625 nm (test performed twice, reversing the sample).

• Polarization dependent loss (PDL)

  • Requirement: ≤ 0.3 dB at 1550 nm (measured per IEC 61300-3-2).

• High optical power

  • Tested up to 100 mW input with monitored insertion loss and return loss; allowed change during test: ≤ ±0.5 dB for attenuators ≤ 5 dB, ≤ ±10% for > 5 dB.

• Environmental and mechanical tests

  • Damp heat (steady state): +75 °C, >90% RH, 168 h.
  • Vibration: 10–55 Hz, 1.52 mm amplitude, 3 axes, 2 h/axis.
  • Shock: acceleration 5 000 m/s², 12 shocks total (3 axes × 2 directions).
  • All environmental tests require insertion loss and return loss to remain within limits.

• Test samples and termination

  • Samples shall be terminated onto single‑mode fibres per IEC 60793‑2‑50 (B1.1, B1.3 or B6) or cable formats per IEC 60794‑2‑50.

Applications

IEC 61753-052-6 is essential for specifying and verifying the reliability of non-connectorized fixed attenuator devices used in outside‑plant fiber infrastructure:

• Passive outside‑plant links (distribution, access and backbone segments)
• Outdoor splice closures and pre-terminated assemblies that incorporate fixed attenuation
• Systems requiring proven environmental robustness (temperature, humidity, vibration, shock)

Who uses this standard

• Optical component manufacturers (design, QA and type approval)
• Independent test laboratories and certification bodies
• Network operators and procurement/specification engineers drafting OSP hardware requirements
• Systems integrators validating in-field components for outside-plant deployments

Related standards

• IEC 60869‑1 (generic optical attenuator specification)
• IEC 61300 series (basic test and measurement procedures)
• IEC 60793‑2‑50 (single‑mode fibre product specifications)
• IEC 60794‑2‑50 (indoor cable family specs)

This standard helps ensure predictable optical performance and mechanical/environmental resilience for non-connectorized fixed attenuator devices deployed in outside plant environments.

Standards Content (Sample)

IEC 61753-052-6 ®
Edition 1.0 2016-07
INTERNATIONAL
STANDARD
Fibre optic interconnecting devices and passive components – Performance
standard –
Part 052-6: Single-mode fibre non-connectorized fixed attenuator – Category O
in outside plant environment
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61753-052-6 ®
Edition 1.0 2016-07
INTERNATIONAL
STANDARD
Fibre optic interconnecting devices and passive components – Performance

standard –
Part 052-6: Single-mode fibre non-connectorized fixed attenuator – Category O

in outside plant environment
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.180.20 ISBN 978-2-8322-3547-8

– 2 – IEC 61753-052-6:2016 © IEC 2016

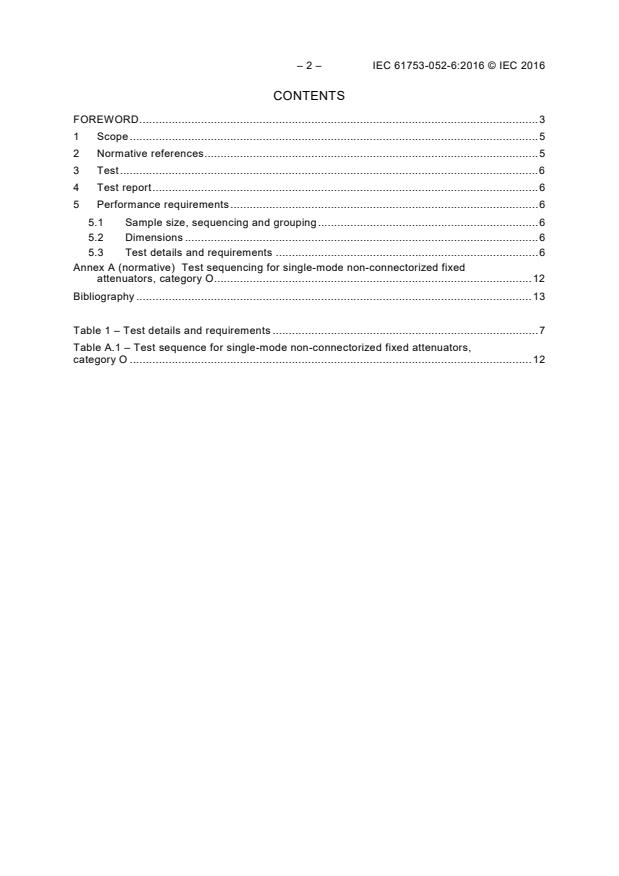

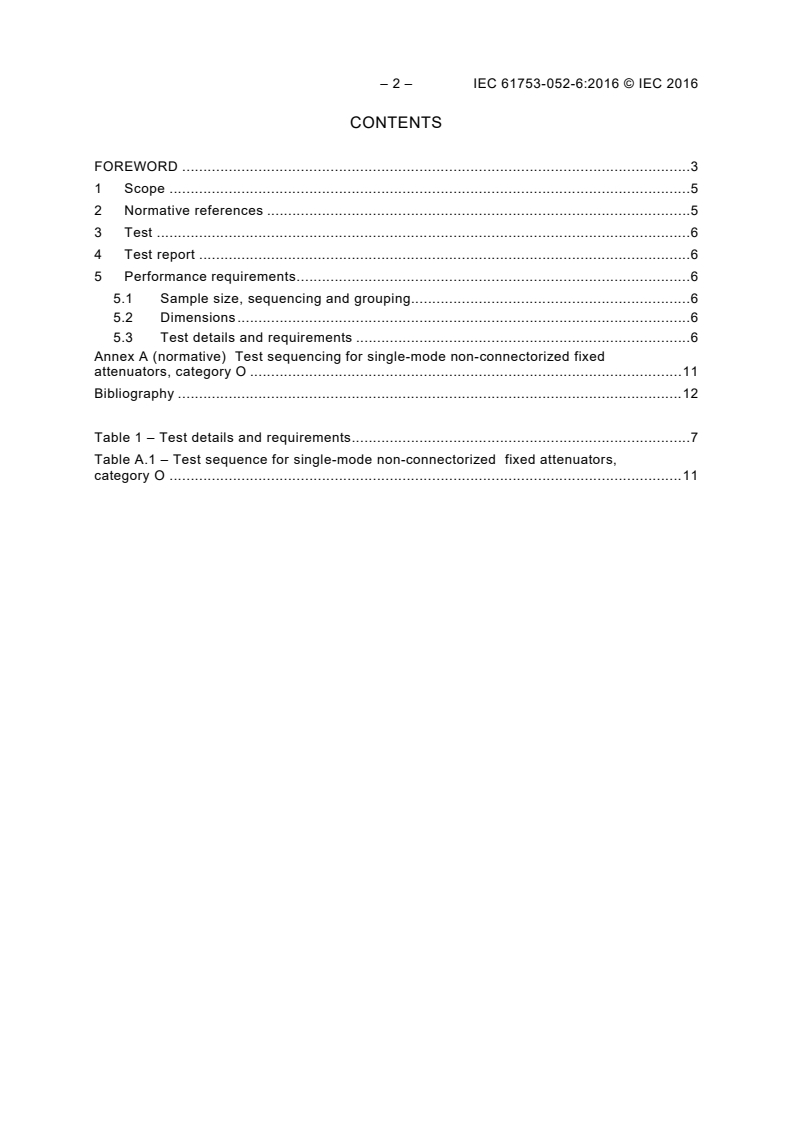

CONTENTS
