IEC TS 61851-3-5:2023

Electric vehicles conductive charging system - Part 3-5: DC EV supply equipment where protection relies on double or reinforced insulation - Pre-defined communication parameters and general application objects

IEC TS 61851-3-5:2023 This part of IEC 61851, which is a Technical Specification, applies to CANopen communication for the conductive transfer of electric power between the supply network and an electric road vehicle or a removable RESS or traction-battery of an electric road vehicle.
This document provides specifications with regard to the pre-defined communication parameters and general application objects.

General Information

• Status: Published
• Publication Date: 17-Jul-2023
• ICS: 43.120 - Electric road vehicles
• Technical Committee: TC 69 - Electrical power/energy transfer systems for electrically propelled road vehicles and industrial trucks
• Drafting Committee: WG 10 - TC 69/WG 10
• Current Stage: PPUB - Publication issued
• Start Date: 31-Oct-2022
• Completion Date: 18-Jul-2023

Standards Content (Sample)

IEC TS 61851-3-5 ®
Edition 1.0 2023-07
TECHNICAL
SPECIFICATION
Electric vehicles conductive charging system –
Part 3-5: DC EV supply equipment where protection relies on double or
reinforced insulation – Pre-defined communication parameters and general
application objects
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: [e-mail].
IEC TS 61851-3-5 ®
Edition 1.0 2023-07
TECHNICAL
SPECIFICATION
Electric vehicles conductive charging system –

Part 3-5: DC EV supply equipment where protection relies on double or

reinforced insulation – Pre-defined communication parameters and general

application objects
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 43.120 ISBN 978-2-8322-5770-8

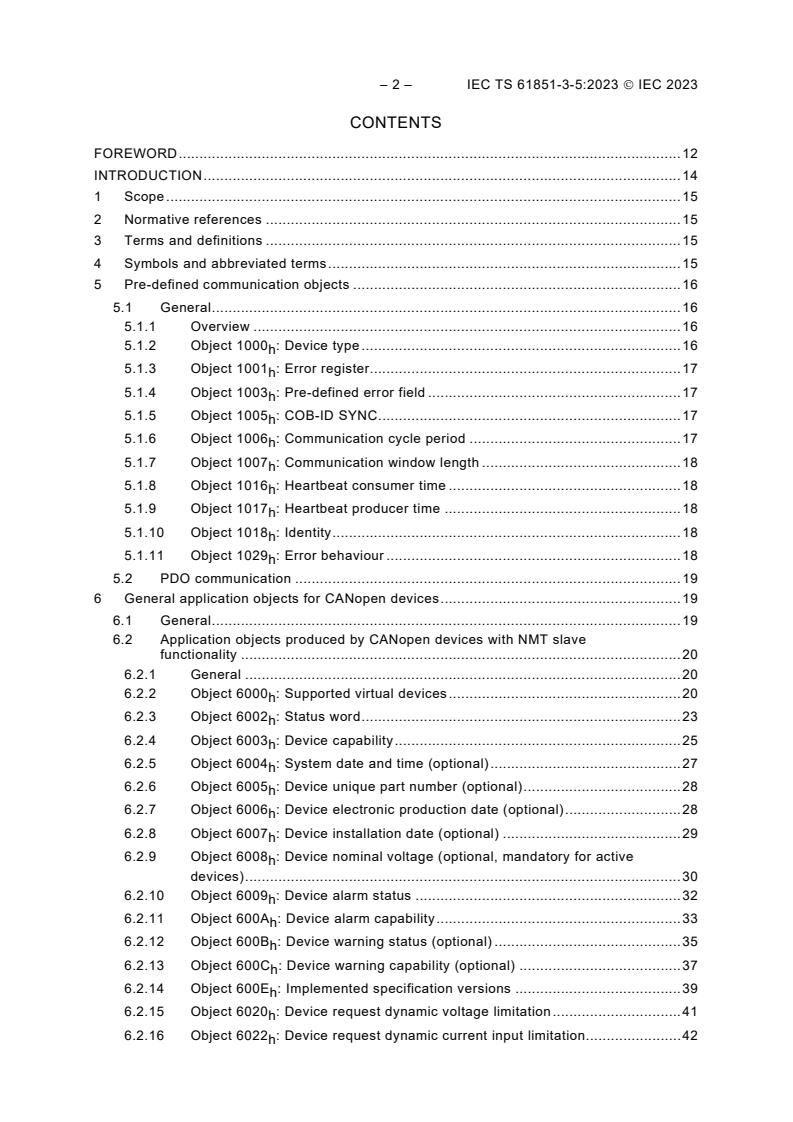

– 2 – IEC TS 61851-3-5:2023  IEC 2023
CONTENTS
FOREWORD . 12
INTRODUCTION . 14
1 Scope . 15
2 Normative references . 15
3 Terms and definitions . 15
4 Symbols and abbreviated terms . 15
5 Pre-defined communication objects . 16
5.1 General . 16
5.1.1 Overview . 16
5.1.2 Object 1000 : Device type . 16
h
5.1.3 Object 1001 : Error register. 17
h
5.1.4 Object 1003 : Pre-defined error field . 17
h
5.1.5 Object 1005 : COB-ID SYNC . 17
h
5.1.6 Object 1006 : Communication cycle period . 17
h
5.1.7 Object 1007 : Communication window length . 18
h
5.1.8 Object 1016 : Heartbeat consumer time . 18
h
5.1.9 Object 1017 : Heartbeat producer time . 18
h
5.1.10 Object 1018 : Identity . 18
h
5.1.11 Object 1029 : Error behaviour . 18
h
5.2 PDO communication . 19
6 General application objects for CANopen devices . 19
6.1 General . 19
6.2 Application objects produced by CANopen devices with NMT slave
functionality . 20
6.2.1 General . 20
6.2.2 Object 6000 : Supported virtual devices . 20
h
6.2.3 Object 6002 : Status word . 23
h
6.2.4 Object 6003 : Device capability . 25
h
6.2.5 Object 6004 : System date and time (optional) . 27
h
6.2.6 Object 6005 : Device unique part number (optional) . 28
h
6.2.7 Object 6006 : Device electronic production date (optional) . 28
h
6.2.8 Object 6007 : Device installation date (optional) . 29
h
6.2.9 Object 6008 : Device nominal voltage (optional, mandatory for active
h
devices) . 30
6.2.10 Object 6009 : Device alarm status . 32
h
6.2.11 Object 600A : Device alarm capability . 33
h
6.2.12 Object 600B : Device warning status (optional) . 35
h
6.2.13 Object 600C : Device warning capability (optional) . 37
h
6.2.14 Object 600E : Implemented specification versions . 39
h
6.2.15 Object 6020 : Device request dynamic voltage limitation . 41
h
6.2.16 Object 6022 : Device request dynamic current input limitation. 42
h
6.2.17 Object 6023 : Device request dynamic current output limitation . 44
h
6.2.18 Object 6024 : Device maximum continuous input current . 46
h
6.2.19 Object 6025 : Device maximum continuous output current . 48
h
6.2.20 Object 6026 : Device maximum voltage . 49
h
6.2.21 Object 6027 : Device minimum voltage . 51
h
6.2.22 Object 6039 : Device actual external voltage (optional) . 52
h
6.2.23 Object 603A : Device peak input current . 54
h
6.2.24 Object 603B : Device peak input current time (optional) . 55
h
6.2.25 Object 603C : Device peak output current (optional) . 57
h
6.2.26 Object 603D : Device peak output current time (optional) . 58
h
6.2.27 Object 603E : Device actual current . 59
h
6.2.28 Object 6040 : Device actual voltage . 61
h
6.2.29 Object 6042 : Device internal temperature (optional) . 62
h
6.2.30 Object 6043 : Device time on (optional) . 64
h
6.2.31 Object 6044 : Device time standby (optional) . 64
h
6.2.32 Object 6045 : Device switch on counter (optional) . 65
h
6.2.33 Object 6060 : CANopen device measurement timing (optional) . 65
h
6.2.34 Object 6064 : Device maximum AUX continuous input current (optional) . 69
h
6.2.35 Object 6065 : Device maximum AUX continuous output current
h
(optional) . 70
6.2.36 Object 6066 : Device maximum AUX voltage (optional) . 72
h
6.2.37 Object 6067 : Device minimum AUX voltage (optional) . 73
h
6.2.38 Object 6070 : Device actual AUX current (optional) . 75
h
6.2.39 Object 6071 : Device actual AUX voltage (optional) . 77
h
6.2.40 Object 6072h: Device available output voltage . 78
6.2.41 Object 6073h: Device available output current . 79
6.2.42 Object 6074h: Device available input current (optional) . 81
6.3 Security . 82
6.3.1 General . 82
6.3.2 Object 6311h: Locking status . 83
6.4 Application objects consumed by CANopen devices with NMT slave
functionality (mandatory) . 84
6.4.1 General . 84
6.4.2 Object 6001 : Control word . 85
h
6.4.3 Object 6046 : Device set maximum voltage . 86
h
6.4.4 Object 6047 : Device set minimum voltage . 88
h
6.4.5 Object 604A : Device set maximum continuous input current . 89
h
6.4.6 Object 604B : Device set maximum continuous output current . 90
h
6.4.7 Object 604C : Device set maximum peak input current . 91
h
6.4.8 Object 604D : Device set maximum peak input current time . 92
h
6.4.9 Object 604E : Device set maximum peak output current. 93
h
6.4.10 Object 604F : Device set maximum peak output current time . 94
h
– 4 – IEC TS 61851-3-5:2023  IEC 2023
6.5 Application objects consumed by CANopen devices with NMT slave
functionality (optional) . 95
6.5.1 General . 95
6.5.2 Object 600D : Error behaviour at process interface (optional) . 95
h
6.5.3 Object 6058 : Device security key (optional) . 96
h
6.5.4 Object 6059 : Devices' user name and address (optional) . 97
h
6.5.5 Object 605A : Device password (optional) . 99
h
6.5.6 Object 6053 : Prefixes and SI units for analogue values (optional) . 100
h
7 Application objects relevant for fleet management (optional) . 103
7.1 General . 103
7.2 Object 63D5h: Travelled distance . 103
7.3 Object 63D6h: Travelled distance current trip. 104
7.4 Object 63D7 : Travelled time . 105
h
7.5 Object 63D8 : Travelled time current trip . 106
h
7.6 Object 63D9 : Transferred watt hours . 107
h
7.7 Object 63DA : Current trip transferred watt hours . 108
h
8 Stationary applications (optional) . 110
8.1 General application objects relevant for stationary applications . 110
8.2 Object 6010 : Ambient temperature . 110
h
8.3 Object 6011 : Phase 1 AC Current . 111
h
8.4 Object 6012 : Phase 2 AC Current .
...
