IEC 61784-3:2010
(Main)Industrial communication networks - Profiles - Part 3: Functional safety fieldbuses - General rules and profile definitions
Industrial communication networks - Profiles - Part 3: Functional safety fieldbuses - General rules and profile definitions
IEC 61784-3:2010 explains some common principles than can be used in the transmission of safety-relevant messages among participants within a distributed network using fieldbus technology in accordance with the requirements of IEC 61508 series for functional safety. These principles can be used in various industrial applications such as process control, manufacturing automation and machinery. This second edition cancels and replaces the first edition published in 2007 and constitutes a technical revision. The main changes with respect to the previous edition are:
- clarifications and additional explanations for requirements, updated references;
- updates of definitions and requirements in relation with the new edition of IEC 61508;
- addition of a new informative Annex D providing an assessment guideline;
- updates in parts for CPF 1, CPF 2, CPF 3, CPF 6 (details provided in the parts);
- addition of new parts for CPF 8, CPF 12, CPF 13, CPF 14;
- in CPF parts, addition of an annex to provide information about test laboratories for testing and validating conformance of FSCP products.
This bilingual version published in 2011-12, corresponds to the English version published in 2010-07.
Réseaux de communication industriels - Profils - Partie 3: Bus de terrain de sécurité fonctionnelle - Règles générales et définitions de profils
La CEI 61784-3:2010 définit des principes communs pouvant être appliqués pour la transmission des messages propres à la sécurité entre les participants d'un réseau réparti, en utilisant la technologie de bus de terrain conformément aux exigences de la série CEI 61508 concernant la sécurité fonctionnelle. Ces principes peuvent être utilisés dans diverses applications industrielles, telles que la commande de processus, l'usinage automatique et les machines. Cette seconde édition annule et remplace la première édition parue en 2007 et constitue une révision technique. Les principales modifications par rapport à l'édition précédente sont:
- clarifications et explications complémentaires des exigences, références actualisées;
- actualisations des définitions et exigences par rapport à la nouvelle édition de la CEI 61508;
- ajout d'une nouvelle Annexe D informative fournissant une ligne directrice relative à l'évaluation;
- actualisations des parties pour les CPF 1, CPF 2, CPF 3, CPF 6 (détails fournis dans les parties);
- ajout de nouvelles parties pour les CPF 8, CPF 12, CPF 13, CPF 14;
- dans les parties CPF, ajout d'une annexe afin de fournir des informations concernant les laboratoires d'essais, en vue d'une vérification par des essais et d'une validation de la conformité des produits FSCP.
La présente version bilingue, correspond à la version anglaise monolingue publié en 2010-07.
General Information
Relations
Buy Standard
Standards Content (Sample)
IEC 61784-3
®
Edition 2.0 2010-06
INTERNATIONAL
STANDARD
colour
inside
Industrial communication networks – Profiles –
Part 3: Functional safety fieldbuses – General rules and profile definitions
IEC 61784-3:2010(E)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2010 IEC, Geneva, Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
---------------------- Page: 2 ----------------------
IEC 61784-3
®
Edition 2.0 2010-06
INTERNATIONAL
STANDARD
colour
inside
Industrial communication networks – Profiles –
Part 3: Functional safety fieldbuses – General rules and profile definitions
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
XA
ICS 25.040.40; 35.100.05 ISBN 978-2-88910-948-7
® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – 61784-3 © IEC:2010(E)

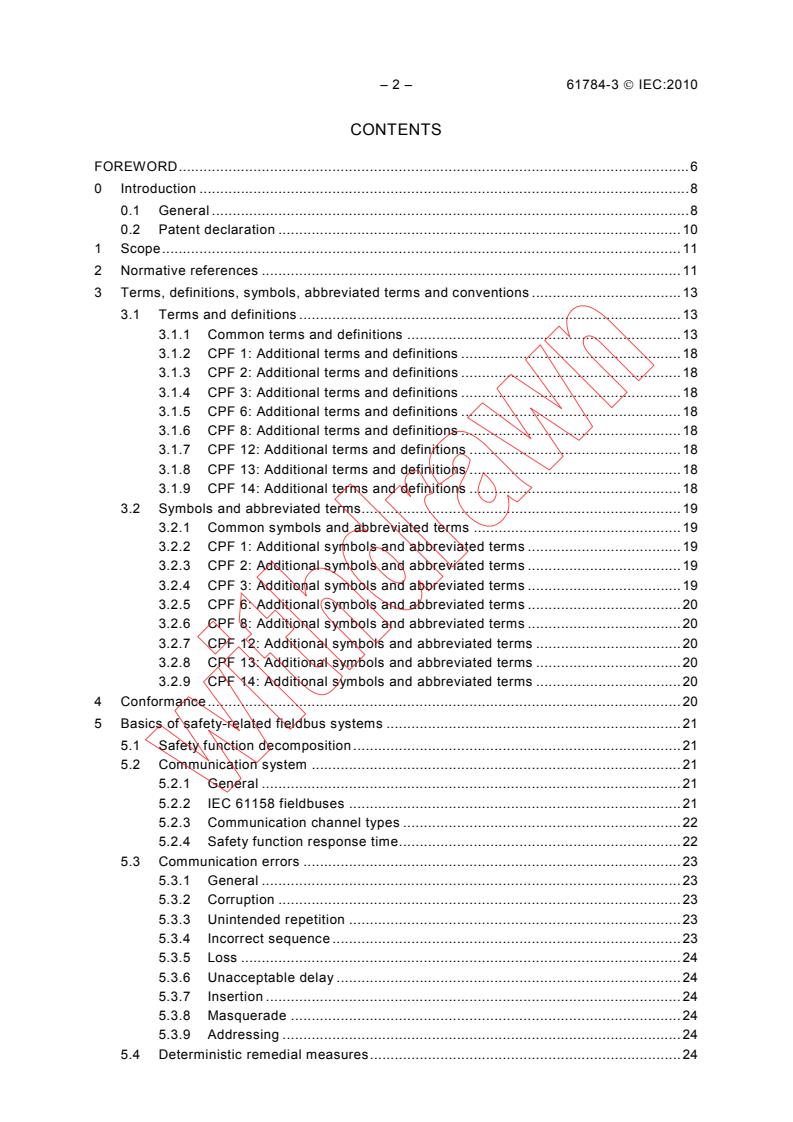

CONTENTS
