Framework for energy market communications - Part 504: Utilization of web services for electronic data interchanges on the European energy market for electricity

IEC TS 62325-504:2015(E) defines the services needed to support the electronic data interchanges between different actors on the European Energy Market for Electricity (EME) in a fast (near-real-time), and secure way. At the same time, this Technical Specification can also be applied to integration problems outside the scope of IEC 62325-451, such as to the integration of gas market systems or general enterprise integration. Web Services (in WSDL) will be specified for the defined services, applying the Basic Web Service Pattern implementation profile from IEC 61968-100. The services needed to support the electronic data interchange on the European Energy Market for Electricity are:
- List Messages;
- Get Message;
- Put Message.

General Information

Status
Published
Publication Date
30-Jan-2023
Current Stage
WPUB - Publication withdrawn
Completion Date
31-Jan-2023
Ref Project

Buy Standard

Technical specification
IEC TS 62325-504:2015 - Framework for energy market communications - Part 504: Utilization of web services for electronic data interchanges on the European energy market for electricity
English language
45 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

IEC TS 62325-504
Edition 1.0 2015-05
TECHNICAL
SPECIFICATION
colour
inside
Framework for energy market communications –
Part 504: Utilization of web services for electronic data interchanges on the
European energy market for electricity
IEC TS 62325-504:2015-05(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2015 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and

Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15

documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International

iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in

variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions

committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries

and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
---------------------- Page: 2 ----------------------
IEC TS 62325-504
Edition 1.0 2015-05
TECHNICAL
SPECIFICATION
colour
inside
Framework for energy market communications –
Part 504: Utilization of web services for electronic data interchanges on the
European energy market for electricity
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.200 ISBN 978-2-8322-2694-0

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC TS 62325-504:2015 © IEC 2015

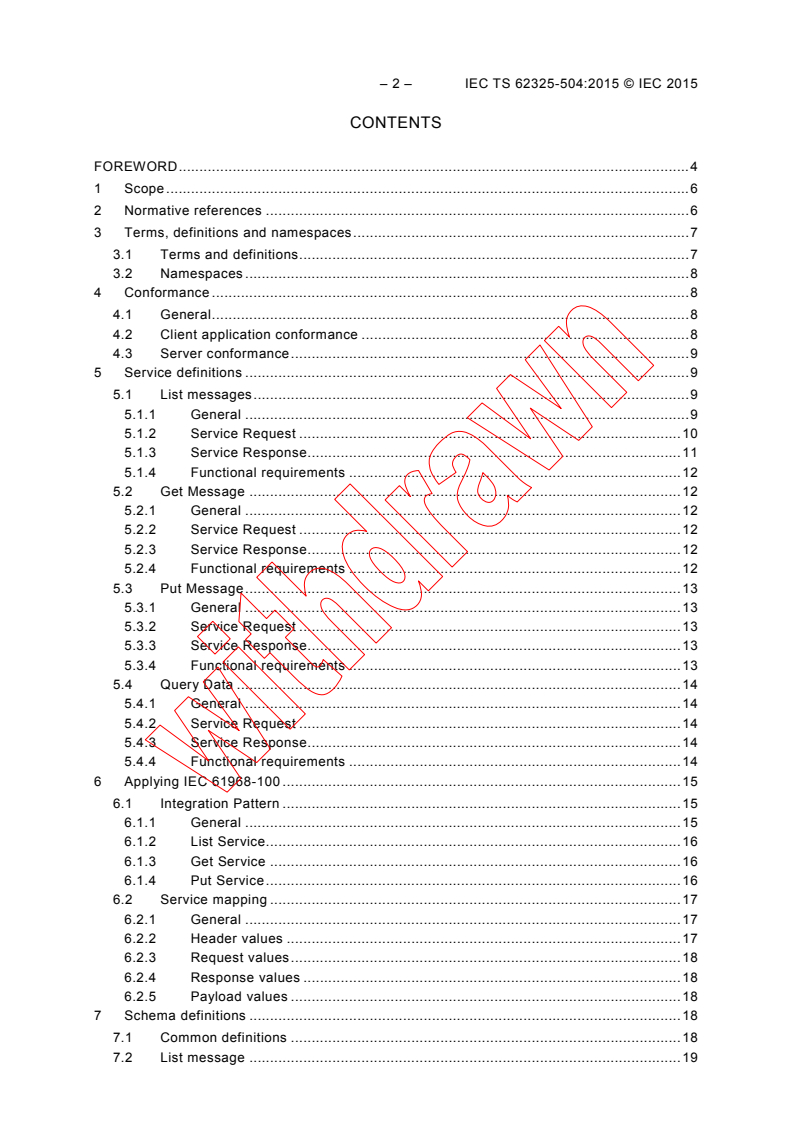

CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms, definitions and namespaces ................................................................................. 7

3.1 Terms and definitions .............................................................................................. 7

3.2 Namespaces ........................................................................................................... 8

4 Conformance ................................................................................................................... 8

4.1 General ................................................................................................................... 8

4.2 Client application conformance ............................................................................... 8

4.3 Server conformance ................................................................................................ 9

5 Service definitions ........................................................................................................... 9

5.1 List messages ......................................................................................................... 9

5.1.1 General ........................................................................................................... 9

5.1.2 Service Request ............................................................................................ 10

5.1.3 Service Response .......................................................................................... 11

5.1.4 Functional requirements ................................................................................ 12

5.2 Get Message ........................................................................................................ 12

5.2.1 General ......................................................................................................... 12

5.2.2 Service Request ............................................................................................ 12

5.2.3 Service Response .......................................................................................... 12

5.2.4 Functional requirements ................................................................................ 12

5.3 Put Message ......................................................................................................... 13

5.3.1 General ......................................................................................................... 13

5.3.2 Service Request ............................................................................................ 13

5.3.3 Service Response .......................................................................................... 13

5.3.4 Functional requirements ................................................................................ 13

5.4 Query Data ........................................................................................................... 14

5.4.1 General ......................................................................................................... 14

5.4.2 Service Request ............................................................................................ 14

5.4.3 Service Response .......................................................................................... 14

5.4.4 Functional requirements ................................................................................ 14

6 Applying IEC 61968-100 ................................................................................................ 15

6.1 Integration Pattern ................................................................................................ 15

6.1.1 General ......................................................................................................... 15

6.1.2 List Service.................................................................................................... 16

6.1.3 Get Service ................................................................................................... 16

6.1.4 Put Service .................................................................................................... 16

6.2 Service mapping ................................................................................................... 17

6.2.1 General ......................................................................................................... 17

6.2.2 Header values ............................................................................................... 17

6.2.3 Request values .............................................................................................. 18

6.2.4 Response values ........................................................................................... 18

6.2.5 Payload values .............................................................................................. 18

7 Schema definitions ........................................................................................................ 18

7.1 Common definitions .............................................................................................. 18

7.2 List message ........................................................................................................ 19

---------------------- Page: 4 ----------------------
IEC TS 62325-504:2015 © IEC 2015 – 3 –

7.3 QueryData message ............................................................................................. 20

7.4 QueryData List of data types ................................................................................. 21

8 Service Provider WSDL abstract definitions ................................................................... 21

9 Service Provider WSDL SOAP binding .......................................................................... 22

10 Security ......................................................................................................................... 23

Annex A (normative) XML schema for common IEC 62325-504 messages ........................... 25

Annex B (informative) Message examples ............................................................................ 27

B.1 List ....................................................................................................................... 27

B.1.1 Basic example – Request .............................................................................. 27

B.1.2 Basic example – Response: ........................................................................... 27

B.2 Get ....................................................................................................................... 29

B.2.1 General ......................................................................................................... 29

B.2.2 Basic example ............................................................................................... 29

B.3 Put ........................................................................................................................ 32

B.3.1 Basic example ............................................................................................... 32

B.3.2 Example with binary data ............................................................................... 33

B.4 Query Data ........................................................................................................... 34

B.4.1 List of data types example ............................................................................. 34

B.4.2 Server Timestamp Request example.............................................................. 35

B.4.3 Server Parameter Limits Request example .................................................... 36

B.4.4 Generic Query example ................................................................................ 37

B.5 Fault ..................................................................................................................... 38

B.5.1 SOAP 1.2 ...................................................................................................... 38

B.5.2 SOAP 1.1 ...................................................................................................... 39

B.6 Digital signature .................................................................................................... 39

B.6.1 Basic example ............................................................................................... 39

Annex C (informative) Java code examples .......................................................................... 42

C.1 Sign ...................................................................................................................... 42

C.2 Verify .................................................................................................................... 43

Annex D (informative) Regarding near real-time communications ......................................... 44

Annex E (informative) Regarding clients and servers configurations .................................... 45

Figure 1 – List Service Sequence Diagram ........................................................................... 16

Figure 2 – Get Service Sequence Diagram ........................................................................... 16

Figure 3 – Put Service Sequence Diagram ............................................................................ 17

Figure 4 – MessageList schema structure ............................................................................. 20

Figure 5 – QueryData schema structure ................................................................................ 21

Figure 6 – ParameterList schema structure ........................................................................... 21

Figure 7 – WSDL structure .................................................................................................... 23

Figure B.1 – List and Get Sequence Diagram ....................................................................... 29

---------------------- Page: 5 ----------------------
– 4 – IEC TS 62325-504:2015 © IEC 2015
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FRAMEWORK FOR ENERGY MARKET COMMUNICATIONS –
Part 504: Utilization of web services for
electronic data interchanges on the European
energy market for electricity
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. In

exceptional circumstances, a technical committee may propose the publication of a technical

specification when:

• the required support cannot be obtained for the publication of an International Standard,

despite repeated efforts, or

• the subject is still under technical development or where, for any other reason, there is the

future but no immediate possibility of an agreement on an International Standard.

Technical specifications are subject to review within three years of publication to decide

whether they can be transformed into International Standards.

IEC 62325-504, which is a technical specification, has been prepared by IEC technical

committee 57: Power systems management and associated information exchange.
---------------------- Page: 6 ----------------------
IEC TS 62325-504:2015 © IEC 2015 – 5 –
The text of this technical specification is based on the following documents:
Enquiry draft Report on voting
57/1520/DTS 57/1567/RVC

Full information on the voting for the approval of this technical specification can be found in

the report on voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 62325 series, published under the general title Framework for

energy market communications, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• transformed into an International standard,
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 7 ----------------------
– 6 – IEC TS 62325-504:2015 © IEC 2015
FRAMEWORK FOR ENERGY MARKET COMMUNICATIONS –
Part 504: Utilization of web services for
electronic data interchanges on the European
energy market for electricity
1 Scope

This part of IEC 62325, which is a technical specification, defines the services needed to

support the electronic data interchanges between different actors on the European Energy

Market for Electricity (EME) in a fast (near-realtime), and secure way. At the same time, this

Technical Specification can also be applied to integration problems outside the scope of

IEC 62325-451, such as to the integration of gas market systems or general enterprise

integration.

Web Services (in WSDL) will be specified for the defined services, applying the Basic Web

Service Pattern implementation profile from IEC 61968-100.

The services needed to support the electronic data interchange on the European energy

market for electricity are:

• List Messages. This service is used by a client application identified with the credentials of

an EME Actor to request a list of messages available on the server for retrieval.

• Get Message. This service is used by a client application identified with the credentials of

an EME Actor to request a specific message available on the server.

• Put Message. This service is used by a client application to send a message, usually

providing data related to a Market Participant in the energy market for electricity, to the

server for processing.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.

IEC 61968-100, Application integration at electric utilities – System interfaces for distribution

management – Part 100: Implementation profiles
IEC 62325-451-1, Framework for energy market communications – Part 451-1:
Acknowledgement business process and contextual model for CIM European market
ISO/IEC 40210, Information technology – W3C SOAP Version 1.2 Part 1: Messaging
Framework (Second Edition)
WSDL, Web Services Description Language (WSDL) 1.1
XML Schema 1.0, XML Schema Language Part 1: Structure, W3C Recommendation 28
October 2004; XML Schema Language Part 2: Data Types, W3C Recommendation 28
October 2004

XML Signature Syntax and Processing (Second Edition) http://www.w3.org/TR/xmldsig-core

---------------------- Page: 8 ----------------------
IEC TS 62325-504:2015 © IEC 2015 – 7 –
RFC 6176, Prohibiting SSL 2.0 http://tools.ietf.org/html/rfc6176

RFC 5280, Internet X.509 Public Key Infrastructure Certificate and Certificate Revocation List

(CRL) Profile http://tools.ietf.org/rfc/rfc5280

RFC 6818, Updates to the Internet X.509 Public Key Infrastructure Certificate and Certificate

Revocation List (CRL) Profile http://tools.ietf.org/rfc/rfc6818

RFC 4346, The Transport Layer Security (TLS) Protocol V1.1 http://www.ietf.org/rfc/rfc4346

3 Terms, definitions and namespaces
For the purposes of this document, the following terms and definitions apply.
3.1 Terms and definitions
3.1.1
message identification
alphanumeric string that represents the name of a message in the system
3.1.2
version
number that represents the message version
Note 1 to entry: The range of values is from 1 to 999.
3.1.3
application time interval
time interval when the message payload applies
3.1.4
server timestamp

date when the message is received by the server (input messages) or when it is made

available by the server (output messages).
3.1.5
message type

type of the message payload as defined in IEC 62325-451-n (Schedule_MarketDocument,

Acknowledgement_MarketDocument, etc.)

Note 1 to entry: As a general rule the message type is the local name of xml root element.

3.1.6
message code
number identifying a message in the server in a unique way

Note 1 to entry: For a given pair of message codes “x” and “y”, if “y” > “x” then “y” is a newer message. If “y” < “x”

then “y” is an older message. Finally if “y” = “x”, then both messages are the same.

3.1.7
data owner

person or entity that is responsible for the information contained in the message (payload)

Note 1 to entry: Usually corresponds with the sender_MarketParticipant.mRID field in the IEC 62325-451-n series.

3.1.8
data provider

person or entity that is responsible for establishing a connection with the server and sending

the message (payload)
---------------------- Page: 9 ----------------------
– 8 – IEC TS 62325-504:2015 © IEC 2015
3.1.9
M/O/C
Mandatory / Optional / Choice (choose one)

Note 1 to entry: Cn indicates “Choice n” and if several optional attributes have the same number “n” in Cn, it

means all of them shall be present if this is the selected choice.
3.1.10
status
indication of the acceptance or validity of a message as per 61968-100

Note 1 to entry: The status of messages without Acknowledgement (publication or incoming message still being

processed) will be “OK”.

Note 2 to entry: In exchanges where IEC 62325-451-1 applies, the “fully accepted reason code” is associated with

a status “OK”. The rest of the reason codes are associated with “FAILED”.
3.2 Namespaces

This Technical Specification uses these prefixes and namespaces (see XML Schema 1.0

Parts 1 and 2):

a) cmsg (urn:iec62325.504:messages:1:0): The target namespace of the messages defined

in this Technical Specification.
b) wss (urn:iec62325.504:wss:1:0): The WSDL target namespace for this Technical
Specification.
This Technical Specification refers to these other prefixes and namespaces:

a) wsdl (http://schemas.xmlsoap.org/wsdl): This contains the W3C WSDL 1.1 schema.

b) xs (http://www.w3.org/2001/XMLSchema): This contains the W3C XML Schema definition.

c) soap (http://schemas.xmlsoap.org/wsdl/soap): This contains the W3C SOAP bindings for

WSDL 1.1.

d) soap12 (http://schemas.xmlsoap.org/wsdl/soap12): This contains the W3C SOAP bindings

for WSDL 1.2 (see ISO/IEC 40210).

e) ds (http://www.w3.org/2000/09/xmldsig#): This contains the XML Digital Signature Schema

definitions (see XML Signature Syntax and Processing 2 Edition).

f) msg (http://www.iec.ch/TC57/2008/schema/message): This contains the IEC 61968-100

schema definitions.
4 Conformance
4.1 General

This clause specifies the conformance requirements for a client application and a server to

conform to this Technical Specification.
4.2 Client application conformance
In order to conform to this Technical Specification a client application shall:
a) Support the following services as a client:

• List Messages and all of the mandatory aspects of this service as specified in Clause 5

• Get Message and all of the mandatory aspects of this service as specified in Clause 5

• Put Message and all of the mandatory aspects of this service as specified in Clause 5.

b) Send and receive XML Instance documents according to the XML Schema specified in

Clause 7 in this Technical Specification for the services listed in a).

c) Use the WSDL definitions, SOAP bindings, and operations specified in Clauses 8 and 9.

---------------------- Page: 10 ----------------------
IEC TS 62325-504:2015 © IEC 2015 – 9 –

d) Be able to access the server via HTTPS, using a client digital certificate recognized by the

server for the purposes of establishing the https communication and creating the digital

signature as specified in Clause 10.
4.3 Server conformance
In order to conform to this Technical Specification a server shall:
a) Support the following services as a server:

• List Messages and all of the mandatory aspects of this service as specified in Clause 5

• Get Message and all of the mandatory aspects of this service as specified in Clause 5

• Put Message and all of the mandatory aspects of this service as specified in Clause 5.

b) Send and receive XML Instance documents according to the XML Schema specified in

Clause 7 in this Technical Specification for the services listed in a).

c) Use the WSDL definitions, SOAP bindings, and operations specified in Clauses 8 and 9.

d) Provide access to the server via HTTPS, and be able to asses that the client digital

certificate is valid and that the digital signature as specified in Clause 10 is correct.

5 Service definitions
5.1 List messages
5.1.1 General

The List Messages service is used to obtain a list of available messages for the client

according to a given filter (parameters).
The main filter shall be one of the following:
• Application Date of the returned messages
• Server Timestamp of the returned messages
• internal numerical Code of the returned messages
Additional optional filters include:
• Message Identification
• Message Type
• Data Owner

The returned list of messages shall comply with the main filter selected and also with all the

optional filters requested, and shall include the following information related to each message:

• Internal numerical code representing the message in the server
• Message Identification
• Message Version
• Status
• Application Time Interval
• Server Timestamp
• Message Type
• Data Owner
---------------------- Page: 11 ----------------------
– 10 – IEC TS 62325-504:2015 © IEC 2015
5.1.2 Service Request
Parameter Name Type M/O/C Description
StartTime dateTime C1 Specifies that the list of messages returned
shall only include messages whose end of
their Application TimeInterval (Document
TimeInterval) or Server Timestamp comes
after the provided date.
EndTime dateTime C1 Specifies that the list of messages returned
shall only include messages whose start of
their Application TimeInterval or
ServerTimestamp (when the message
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
