IEC TR 61850-90-12:2020

Communication networks and systems for power utility automation - Part 90-12: Wide area network engineering guidelines

IEC TR 61850-90-12:2020, which is a Technical Report, is intended for an audience familiar with electrical power automation based on IEC 61850 and related power system management, and particularly for data network engineers and system integrators. It is intended to help them to understand the technologies, configure a wide area network, define requirements, write specifications, select components, and conduct tests.
This document provides definitions, guidelines, and recommendations for the engineering of WANs, in particular for protection, control and monitoring based on IEC 61850 and related standards.
This document addresses substation-to-substation communication, substation-to-control centre, and control centre-to-control centre communication. In particular, this document addresses the most critical aspects of IEC 61850 such as protection related data transmission via GOOSE and SMVs, and the multicast transfer of large volumes of synchrophasor data.
The document addresses issues such as topology, redundancy, traffic latency and quality of service, traffic management, clock synchronization, security, and maintenance of the network.
This document contains use cases that show how utilities tackle their WAN engineering. This second edition cancels and replaces the first edition published in 2015. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) extension of use case with respect to distribution and customer-side applications;
b) extensions of wireless access technologies as well as power line communication ones applicable to the above-mentioned use case;
c) revisions regarding radio communication technology performance;
d) extension of network migration with respect to packet switched network;
e) a new mapping of multiprotocol label switching technology to teleprotection.

General Information

• Status: Published
• Publication Date: 27-Jul-2020
• ICS: 33.200 - Telecontrol. Telemetering
• Technical Committee: TC 57 - Power systems management and associated information exchange
• Drafting Committee: WG 10 - TC 57/WG 10
• Current Stage: PPUB - Publication issued
• Start Date: 28-Jul-2020
• Completion Date: 18-Aug-2020

Relations

• Revises: IEC TR 61850-90-12:2015 - Communication networks and systems for power utility automation - Part 90-12: Wide area network engineering guidelines
• Effective Date: 05-Sep-2023

Standards Content (Sample)

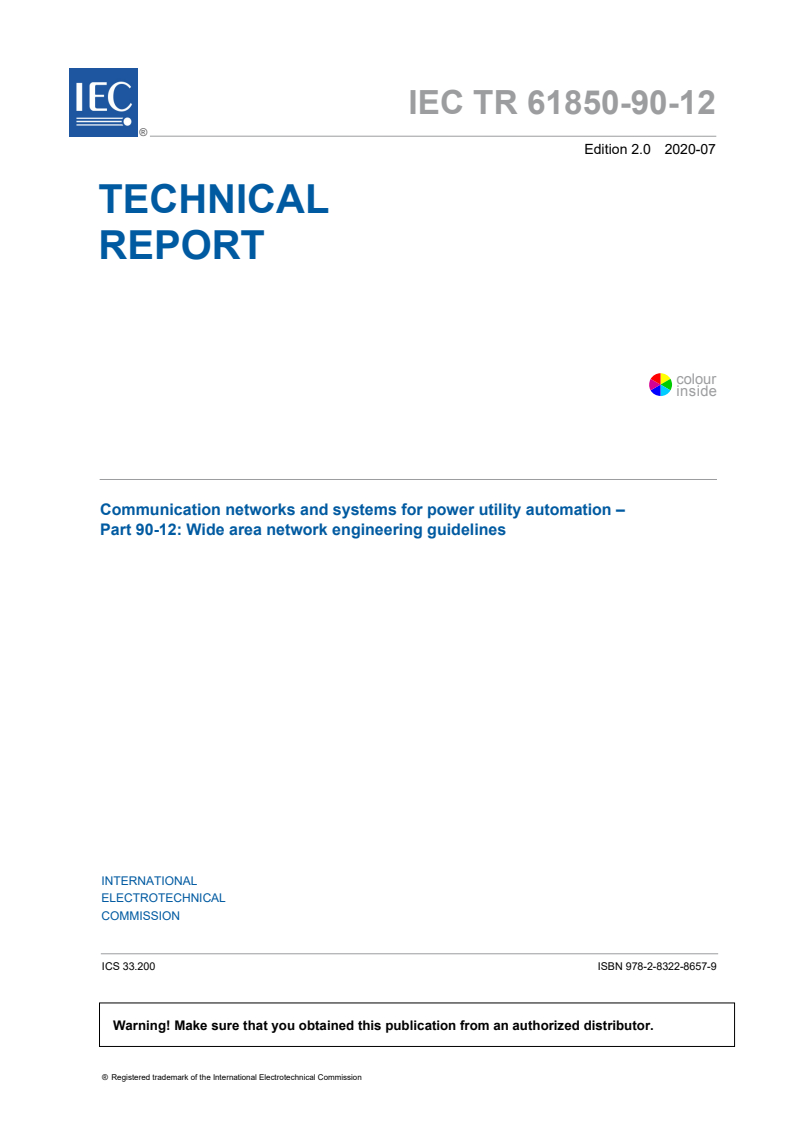

IEC TR 61850-90-12 ®
Edition 2.0 2020-07
TECHNICAL
REPORT
colour
inside
Communication networks and systems for power utility automation –
Part 90-12: Wide area network engineering guidelines
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].
IEC TR 61850-90-12 ®
Edition 2.0 2020-07
TECHNICAL
REPORT
colour
inside
Communication networks and systems for power utility automation –

Part 90-12: Wide area network engineering guidelines

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.200 ISBN 978-2-8322-8657-9

– 2 – IEC TR 61850-90-12:2020 © IEC 2020

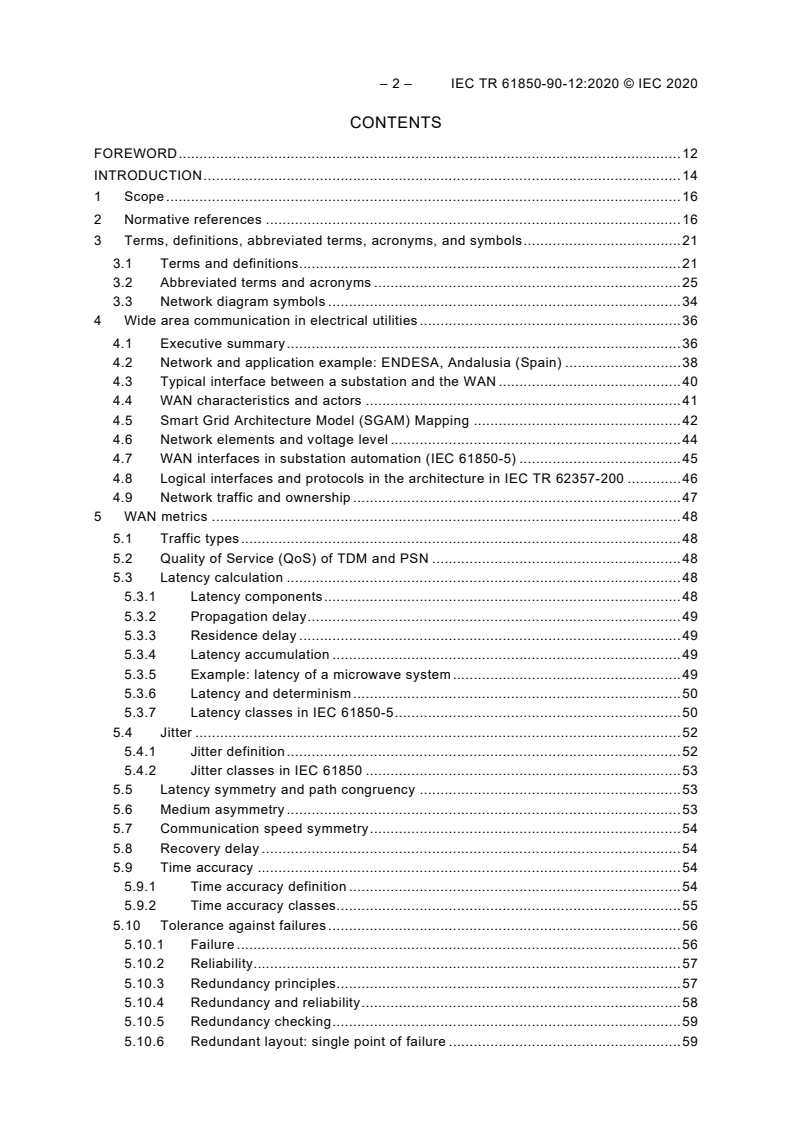

CONTENTS
