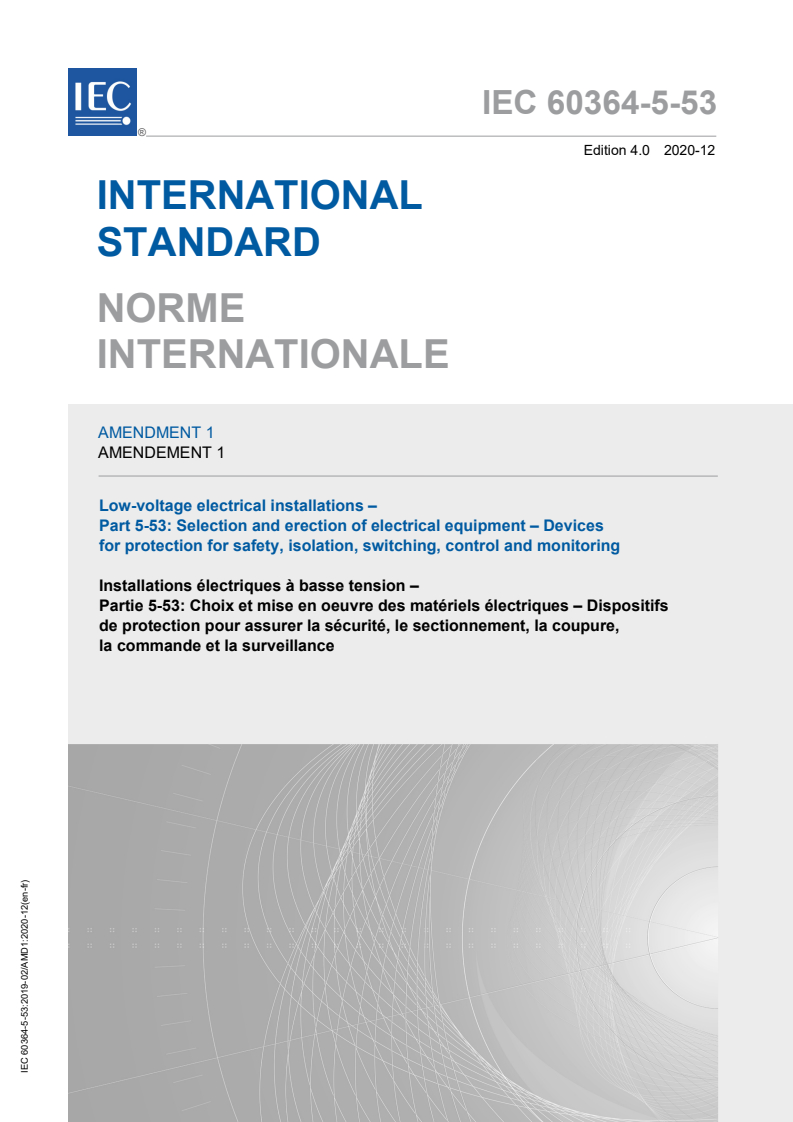

IEC 60364-5-53
Edition 4.0 2020-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Low-voltage electrical installations –
Part 5-53: Selection and erection of electrical equipment – Devices
for protection for safety, isolation, switching, control and monitoring
Installations électriques à basse tension –
Partie 5-53: Choix et mise en oeuvre des matériels électriques – Dispositifs
de protection pour assurer la sécurité, le sectionnement, la coupure,
la commande et la surveillance
IEC 60364-5-53:2019-02/AMD1:2020-12(en-fr)
---------------------- Page: 1 ----------------------

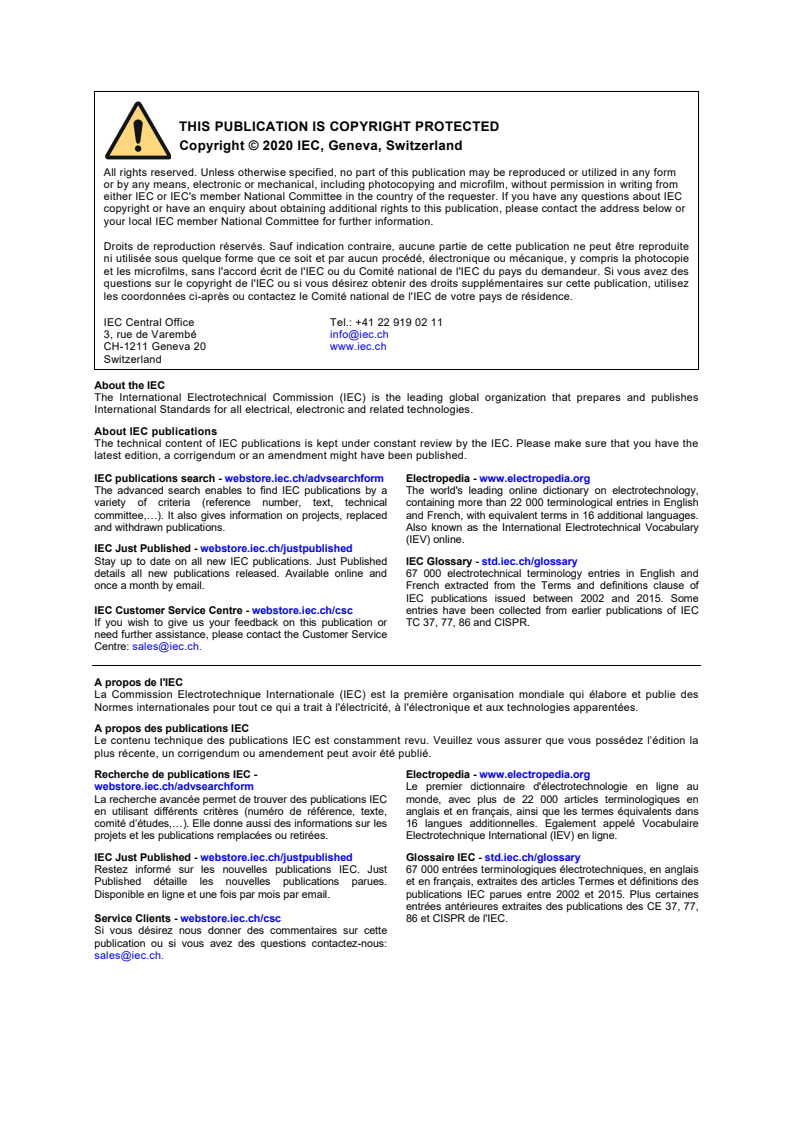

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and definitions clause of

IEC publications issued between 2002 and 2015. Some

IEC Customer Service Centre - webstore.iec.ch/csc entries have been collected from earlier publications of IEC

If you wish to give us your feedback on this publication or TC 37, 77, 86 and CISPR.

need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues entre 2002 et 2015. Plus certaines

entrées antérieures extraites des publications des CE 37, 77,
Service Clients - webstore.iec.ch/csc 86 et CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

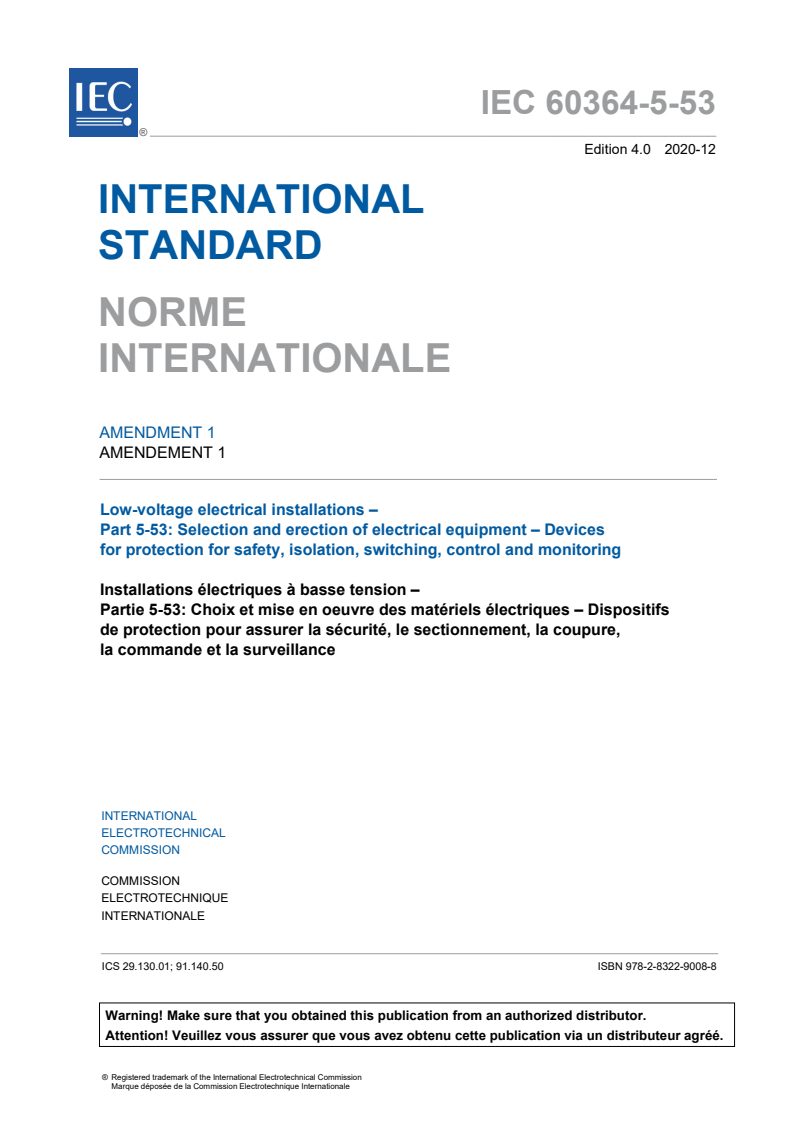

IEC 60364-5-53
Edition 4.0 2020-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Low-voltage electrical installations –
Part 5-53: Selection and erection of electrical equipment – Devices
for protection for safety, isolation, switching, control and monitoring
Installations électriques à basse tension –
Partie 5-53: Choix et mise en oeuvre des matériels électriques – Dispositifs
de protection pour assurer la sécurité, le sectionnement, la coupure,
la commande et la surveillance
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.130.01; 91.140.50 ISBN 978-2-8322-9008-8

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

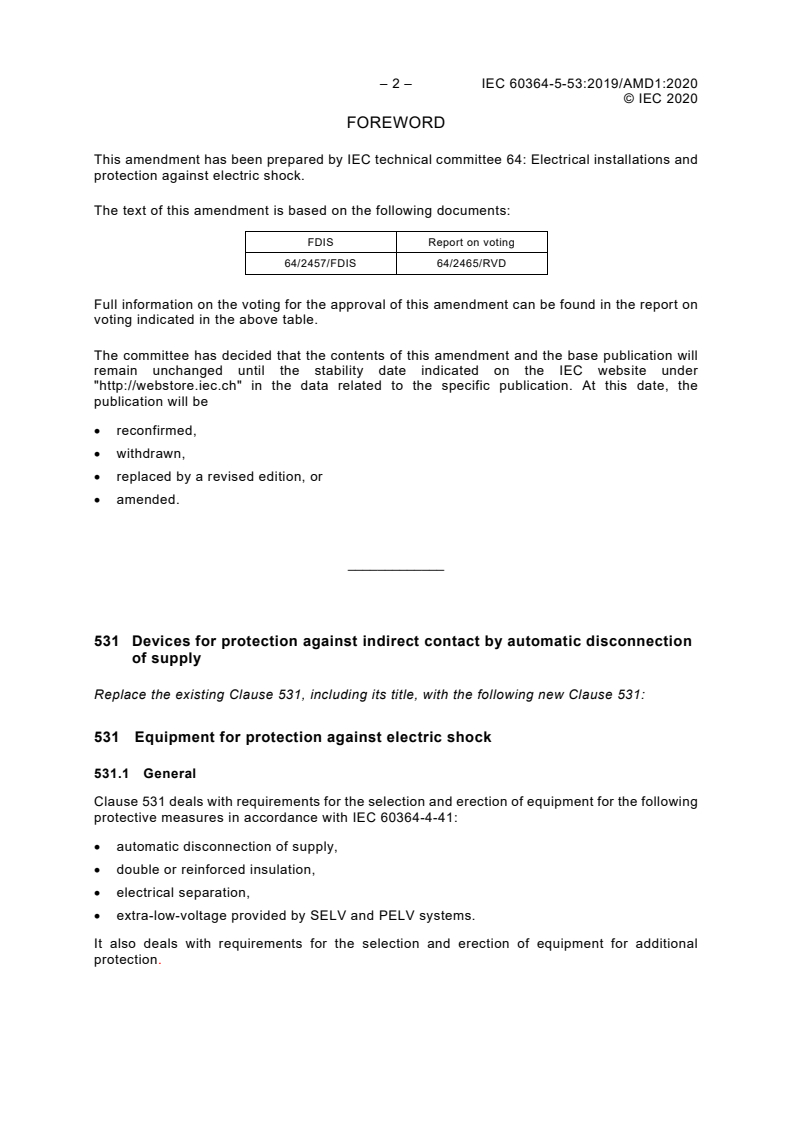

– 2 – IEC 60364-5-53:2019/AMD1:2020
© IEC 2020
FOREWORD

This amendment has been prepared by IEC technical committee 64: Electrical installations and

protection against electric shock.
The text of this amendment is based on the following documents:
FDIS Report on voting
64/2457/FDIS 64/2465/RVD

Full information on the voting for the approval of this amendment can be found in the report on

voting indicated in the above table.

The committee has decided that the contents of this amendment and the base publication will

remain unchanged until the stability date indicated on the IEC website under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
531 Devices for protection against indirect contact by automatic disconnection
of supply

Replace the existing Clause 531, including its title, with the following new Clause 531:

531 Equipment for protection against electric shock
531.1 General

Clause 531 deals with requirements for the selection and erection of equipment for the following

protective measures in accordance with IEC 60364-4-41:
• automatic disconnection of supply,
• double or reinforced insulation,
• electrical separation,
• extra-low-voltage provided by SELV and PELV systems.

It also deals with requirements for the selection and erection of equipment for additional

protection.
---------------------- Page: 4 ----------------------
IEC 60364-5-53:2019/AMD1:2020 – 3 –
© IEC 2020
531.2 Devices for automatic disconnection of supply
531.2.1 General

Devices used for automatic disconnection of supply shall be placed at the origin or upstream of

the circuit which is intended to be protected.
These devices shall be suitable for isolation in accordance with 536.

NOTE 1 Protective devices which require manual operation in order to achieve isolation are not excluded.

The following protective devices may be used:
– overcurrent protective devices in accordance with 531.2.2;
– residual current protective devices (RCDs) in accordance with 531.2.3.

Devices according to IEC 60947-2 identified with voltage value(s) followed by the symbol

(IEC 60417-6363:2016-07-16) or by the symbol shall not be used in IT systems for such

voltage(s) or above.

Devices according to IEC 60947-2 identified with the symbol (IEC 60417-6363:2016-07-16)

or by the symbol with no associated voltage value, shall not be used in IT systems.

NOTE 2 The symbol previously required will be progressively superseded by the preferred new symbol above.

531.2.2 Overcurrent protective devices
531.2.2.1 TN system

An overcurrent protective device shall be so selected that its operating characteristics meet the

following requirement:
I ≤
where

I is the current in amperes (A) causing the automatic operation of the disconnecting device

within the time specified in IEC 60364-4-41:2005 and IEC 60364-4-41:2005/AMD1:2017,

411.3.2.2 or 411.3.2.3.
Z is the impedance in ohms (Ω) of the fault loop comprising
– the source,
– the line conductor up to the point of the fault, and
– the protective conductor between the point of the fault and the source;
U is the nominal AC or DC line-to-earth voltage in volts (V).
531.2.2.2 TT system

According to IEC 60364-4-41:2005 and IEC 60364-4-41:2005/AMD 1:2017, 411.5.2, RCDs shall

generally be used for protection against electric shock in TT systems.

Overcurrent protective devices may alternatively be used for this purpose, provided a suitably

low value of earth fault loop impedance is permanently and reliably ensured.
---------------------- Page: 5 ----------------------
– 4 – IEC 60364-5-53:2019/AMD1:2020
© IEC 2020

Where, exceptionally, an overcurrent protective device is used for this purpose, it shall be so

selected that its operating characteristics meet the following requirement.
I ≤
where

is the current in amperes (A) causing the automatic operation of the disconnecting device

within the time specified in IEC 60364-4-41:2005 and IEC 60364-4-41:2005/AMD1:2017,

411.3.2.2 or 411.3.2.4;
Z is the impedance in ohms (Ω) of the fault loop comprising
– the source,
– the line conductor up to the point of the fault,
– the protective conductor of the exposed-conductive-parts,
– the earthing conductor,
– the earth electrode of the installation, and
– the earth electrode of the source;
U is the nominal AC or DC line-to-earth voltage in volts (V).
531.2.2.3 IT system

Devices shall be suitable for IT systems in accordance with the manufacturer instructions.

The overcurrent protective devices shall be so selected that their operating characteristics

comply with the following requirement:

a) Where exposed-conductive-parts are interconnected by a protective conductor collectively

earthed to the same earthing arrangement, the following conditions shall be fulfilled:

• where the neutral or mid-point conductor is not distributed:
I ≤
• or where the neutral or mid-point conductor is distributed:
I ≤
where
U is the nominal AC or DC voltage in volts (V) between line conductors;

U is the nominal AC or DC voltage in volts (V) between line conductor and neutral or

mid-point conductor, as appropriate;

Z is the impedance in ohms (Ω) of the fault loop comprising the line conductor and the

protective conductor of the circuit;

Z' is the impedance in ohms (Ω) of the fault loop comprising the neutral or mid-point

conductor and the protective conductor of the circuit;

I is the current in amperes (A) causing operation of the protective device within the

time required for TN systems in IEC 60364-4-41:2005 and IEC 60364-4-
41:2005/AMD1:2017, 411.3.2.2 or 411.3.2.3.
---------------------- Page: 6 ----------------------
IEC 60364-5-53:2019/AMD1:2020 – 5 –
© IEC 2020

NOTE The factor 2 in both formulas takes into account that in the event of the simultaneous occurrence of two

faults, the faults may exist in different circuits.

b) Where the exposed-conductive-parts are earthed in groups or individually, the following

condition applies:
• In alternating current
I ≤
where

R is the sum of the resistances in ohms (Ω) of the earth electrode and the protective

conductor to the exposed-conductive-parts;

I is the current in amperes (A) causing automatic disconnection of the protective

device in a time complying to that for TT systems in IEC 60364-4-41:2005 and
IEC 60364-4-41: 2005/AMD1:2017, 411.3.2.2 or 411.3.2.4.

In direct current, in accordance with IEC 60364-4-41:2005 and IEC 60364-4-41:2005/

AMD1:2017, 411.6.2, no requirement is needed.
531.2.3 Residual current protective devices
531.2.3.1 General conditions of installation

An RCD shall disconnect all live conductors in the circuit protected, except as permitted in

531.2.3.5.1.

For a multiphase supplied installation, where there is subdivision into single phase final circuits,

protection by individual RCDs is recommended. Where time delayed RCDs (CBRs (circuit

breaker incorporating residual current protection), and MRCD (modular residual current device)

in conjunction with circuit-breakers, according to IEC 60947-2) are used, the setting of the time

delay shall be in accordance with IEC 60364-4-41:2005 and IEC 60364-4-41:2005/
AMD1:2017, 411.3.2.

Where a modular RCD is used, an MRCD according to IEC 60947-2:2016, Annex M shall be

selected and used in conjunction with a circuit breaker in accordance with IEC 60947-2.

A protective conductor shall not pass through the sensor of an MRCD. However, where such

passing is unavoidable, for example in case of armoured cables, the protective conductor alone

shall be passed again through the sensor but in the reverse direction. The protective conductor

shall be insulated and shall not be earthed between the first and the second passing.

531.2.3.2 Unwanted tripping
To reduce the risk of unwanted tripping, the following shall be considered:

• subdivision of electrical circuits with individual associated RCDs so that the accumulated

protective conductor currents and/or leakage currents likely to occur during normal

operation downstream of an RCD is less than 0,3 times the value of the rated residual

operating current (I ) of the RCD. See also IEC 60364-1:2005, Clause 314 and IEC 60364-

5-51:2005, Clause 516,

• coordination of general type RCDs, selective type RCDs (i.e. type S according to

IEC 61008-1, IEC 61009-1 or IEC 62423) and time delayed RCDs (i.e. CBRs, MRCDs
according to IEC 60947-2), and
• coordination of RCDs with surge protective devices (SPDs).
---------------------- Page: 7 ----------------------
– 6 – IEC 60364-5-53:2019/AMD1:2020
© IEC 2020
531.2.3.3 Types of RCDs
531.2.3.3.1 Selection of type of RCD

The type of RCD shall be selected according to the waveform of the expected AC and DC

components of the residual current to be interrupted.
531.2.3.3.2 Selection of the types of RCDs connected in series

Wherever an RCD type A, F or B is installed downstream of another RCD, the upstream RCD

• shall comply at least with the requirements of the type of the downstream RCD, or

• shall be coordinated with the downstream RCD, in accordance with the manufacturer’s

instructions.

NOTE See Annex G for the different types of RCDs and their behaviour with fault currents.

531.2.3.4 Selection according to the accessibility to the installation
531.2.3.4.1

In AC installations where RCDs are accessible to ordinary persons (BA1), children (BA2) or

handicapped persons (BA3), residual current protective devices shall comply with
• IEC 61008-2-1 for RCCBs, or
• IEC 61009-2-1 for RCBOs, or
• IEC 62423 for RCCBs and RCBOs.
531.2.3.4.2

In AC installations where RCDs are accessible only to instructed persons (BA4) or skilled

persons (BA5), residual current protective devices shall comply with
• IEC 61008 (all parts) for RCCBs, or
• IEC 61009 (all parts) for RCBOs, or
• IEC 62423 for RCCBs and RCBOs, or
• IEC 60947-2 for CBRs and MRCDs.
NOTE

RCCB is a residual current operated circuit breaker without integral overcurrent protection.

RCBO is a residual current operated circuit breaker with integral overcurrent protection.

CBR is a circuit breaker incorporating residual current protection.

MRCD is a modular residual current device, in conjunction with a circuit-breaker.

531.2.3.4.3
In DC installations, IEC TS 63053 may be used as a reference for DC-RCDs.
531.2.3.5 Selection of RCD according to the type of system earthing
531.2.3.5.1 TN systems
A PEN conductor shall not be used on the load side of an RCD.

In a TN-S system and in the part of a TN-C-S system, where the neutral and protective functions

are provided by separate conductors, the neutral conductor need not be disconnected if the

neutral conductor is considered to be reliably at earth potential.
---------------------- Page: 8 ----------------------
IEC 60364-5-53:2019/AMD1:2020 – 7 –
© IEC 2020
In TN-C systems RCDs shall not be used.

The characteristics of the RCD, except those selected according to IEC 60364-4-41:2005 and

IEC 60364-4-41:2005/AMD1:2017, 411.3.3, shall be such that:
I ≤
where

I is the current in amperes (A) causing the automatic operation of the disconnecting device

within the time specified in IEC 60364-4-41:2005 and IEC 60364-4-41:2005/AMD1:2017,

411.3.2.2 or 411.3.2.3;
Z is the impedance in ohms (Ω) of the fault loop comprising
– the source,
– the line conductor up to the point of the fault, and
– the protective conductor between the point of the fault and the source;
U is the nominal AC or DC line-to-earth voltage in volts (V).
531.2.3.5.2 TT systems

In AC installations the characteristics of the RCD, except those selected according to

IEC 60364-4-41:2005 and IEC 60364-4-41:2005/AMD1:2017, 411.3.3, shall be such that:

I ≤
where

R is the sum of the resistance in ohms (Ω) of the earth electrode and the protective conductor

to the exposed conductive-parts;

I is the current in amperes (A) causing the automatic operation of the disconnecting device

within the time specified in IEC 60364-4-41:2005 and IEC 60364-4-41:2005/AMD1:2017,

411.3.2.2 or 411.3.2.4.

NOTE The disconnecting times according to IEC 60364-4-41:2005 and IEC 60364-4-41:2005/AMD1:2017,

Table 41.1 relate to prospective residual currents significantly higher than the rated residual operating current

of the RCD (typically 5 I ).
Where the value of R is not known, it shall be replaced by Z (see 531.2.2.2).
A s
531.2.3.5.3 IT systems

531.2.3.5.3.1 Disconnection at first fault condition for IT public distribution systems

Where the disconnection at the first fault is to be achieved by an RCD, the rated residual

operating current of the RCD shall be selected to be less or equal to the current which circulates

on the first fault to earth.

NOTE Where the current circulating during the first fault is not known or cannot be calculated, the current in mA

can, for IT installations connected to a network, be estimated to 0,5 times the value of the rated power of the

transformer given in kVA.
531.2.3.5.3.2 Disconnection at second fault condition

Where the automatic disconnection of supply at a second fault is to be achieved by an RCD,

that RCD shall be installed in the final circuit to be protected. The rated residual current of the

---------------------- Page: 9 ----------------------
– 8 – IEC 60364-5-53:2019/AMD1:2020
© IEC 2020

RCD shall be greater than 2 times the current which circulates on the first fault to earth of

negligible impedance affecting a line conductor.

After the occurrence of a first fault, conditions for automatic disconnection of supply in the event

of a second fault occurring on a different live conductor shall be as follows:

a) Where exposed-conductive-parts are interconnected by a protective conductor collectively

earthed to the same earthing arrangement, the following condition shall be fulfilled:

• where the neutral or mid-point conductor is not distributed:
I ≤
• or where the neutral or mid-point conductor is distributed:
I ≤
where

U is the nominal AC or DC voltage, in volts (V) between line conductor and neutral

conductor or mid-point conductor, as appropriate;
U is the nominal AC or DC voltage in volts (V) between line conductors;

Z is the impedance in ohms (Ω) of the fault loop comprising the line conductor and the

protective conductor of the circuit;

Z' is the impedance in ohms (Ω) of the fault loop comprising the neutral conductor and

the protective conductor of the circuit;

I is the current in amperes (A) causing the automatic operation of the disconnecting

device within the time specified in IEC 60364-4-41:2005 and IEC 60364-4-
41:2005/AMD1:2017, 411.3.2.2 or 411.3.2.4.

The times stated in IEC 60364-4-41:2005 and IEC 60364-4-41:2005/AMD1:2017, Table 41.1 for

the TN system apply to IT systems with a distributed or non-distributed neutral conductor or

mid-point conductor.

NOTE 1 The factor 2 in both formulas takes into account that in the event of the simultaneous occurrence of two

faults, the faults can exist in different circuits.

b) In AC installations where the exposed-conductive-parts are earthed in groups or individually,

the following condition applies:
I ≤
where

R is the sum of the resistances in ohms (Ω) of the earth electrode and the protective

conductor to the exposed-conductive-parts;

I is the current in amperes (A) causing the automatic operation of the disconnecting device

within the time specified in IEC 60364-4-41:2005 and IEC 60364-4-41:2005/AMD1:2017,

411.3.2.2 or 411.3.2.4.

NOTE 2 The disconnecting times according to IEC 60364-4-41:2005 and IEC 60364-4-41:2005/AMD1:2017, Table

41.1 relate to prospective residual fault currents significantly higher than the rated residual operating current of the

RCD (typically 5 I )
---------------------- Page: 10 ----------------------
IEC 60364-5-53:2019/AMD1:2020 – 9 –
© IEC 2020
531.3 Equipment for protection by double or reinforced insulation
531.3.1 General

For compliance with IEC 60364-4-41:2005 and IEC 60364-4-41:2005/AMD 1:2017, Clause 412,

electrical equipment shall be selected as follows:
a) electrical equipment marked with the symbol (IEC 60417-5172:2003-02-18); or

b) electrical equipment declared in the relevant product standard or by the manufacturer as

equivalent to Class II; or

c) electrical equipment with basic insulation only: supplementary insulation shall be provided

by an enclosure of at least IPXXB or IP2X, or by a process of installation providing the

equivalent level of safety; or

d) electrical equipment having uninsulated live parts shall have reinforced insulation provided

by an enclosure of at least IPXXB or IP2X, or by a process of installation providing the

equivalent level of safety.
In the case of equipment covered by c) or d) above, 531.3.2 to 531.3.6 apply.
531.3.2
The following requirements apply as specified:

– the insulating enclosure shall not be traversed by conductive parts likely to transmit a

potential; and

– the insulating enclosure shall not contain any screws or other fixing means of insulating

material which might need to be removed, or are likely to be removed, during installation

and maintenance and whose replacement by metallic screws or other fixing means could

impair the enclosure’s insulation.

Where the insulating enclosure has to be traversed by mechanical joints or connections (e.g.

for operating handles of built-in apparatus), these should be arranged in such a way that

protection against shock in case of a fault is not impaired.
531.3.3

Where lids or doors in the insulating enclosure can be opened without the use of a tool or key,

all conductive parts which are accessible if the lid or door is open shall be behind an insulating

barrier (providing a degree of protection not less than IPXXB or IP2X) preventing persons from

coming unintentionally into contact with those conductive parts. This insulating barrier shall be

removable only by use of a tool or key.
531.3.4

Conductive parts enclosed in the insulating enclosure shall not be connected to a protective

conductor. However, provision may be made for connecting protective conductors which

necessarily run through the enclosure in order to serve other items of electrical equipment

whose supply circuit also runs through the enclosure. Inside the enclosure, any such conductors

and their terminals shall be insulated as though they were live parts, and their terminals shall

be marked as PE terminals.
531.3.5

Accessible-conductive-parts and intermediate parts shall not be connected to a protective

conductor unless specific provision for this is made in the specifications for the equipment

concerned.
---------------------- Page: 11 ----------------------
– 10 – IEC 60364-5-53:2019/AMD1:2020
© IEC 2020
531.3.6

The enclosure shall not adversely affect the operation of the equipment protected in this way.

531.3.7
The installation of equipment mentioned in IEC 60364-4-41:2005 and IEC 60364-4-

41:2005/AMD1:2017, 412.2.1 (fixing, connection of conductors, etc.) shall be effected in such

a way as not to impair the protection afforded in compliance with the equipment specification.

531.4 Equipment for protection by electrical separation

The equipment selected for electrical separation, for example safety isolating transformer in

accordance with IEC 61558-2-6, shall provide at least simple separation between incoming and

outgoing terminals and the separated side shall be installed so that it is isolated from other

circuits and earth.
531.5 Equipment for protection by extra-low-voltage provided by SELV and PELV
systems
531.5.1 Sources for SELV or PELV systems
The following sources may be used for SELV or PELV systems:
• A safety isolating transformer in accordance with IEC 61558-2-6.

• A source of current providing a degree of safety equivalent to that of the safety isolating

transformer specified above (e.g. motor generator with windings providing equivalent

isolation).

• An electrochemical source (e.g. a battery) or another source independent of a higher voltage

circuit (e.g. a diesel-driven generator).

• Certain electronic devices complying with appropriate standards where provisions have

been taken in order to ensure that, even in the case of an internal fault, the voltage at the

outgoing terminals cannot exceed the values specified in IEC 60364-4-41:2005 and

IEC 60364-4-41:2005/AMD1:2017, 414.1.1. Higher voltages at the outgoing terminals are,

however, permitted if it is ensured that, in case of contact with a live part or in the event of

a fault between a live part and an exposed-conductive-part, the voltage at the output

terminals is immediately reduced to those values or less.

NOTE 1 Examples of such devices include insulation testing equipment and monitoring devices.

NOTE 2 Where higher voltages exist at the outgoing terminals, compliance with 531.5 can be assumed if the

voltage at the outgoing terminals is within the limits specified in IEC 60364-4-41:2005 and IEC 60364-4-

41:2005/AMD1:2017, 414.1.1 when measured with a voltmeter having an internal resistance of at least 3 000 Ω.

• Mobile sources supplied at low voltage, for example safety isolating transformers or motor

generators, shall be selected or erected in accordance with the requirements for protection

by the use of double or reinforced insulation (see IEC 60364-4-41:2005 and IEC 60364-4-

41:2005/AMD1:2017, Clause 412).
531.5.2 Selection of plugs and socket-outlets
Plugs and socket-outlets in SELV or PELV systems shall comply with the following
requirements:
– plugs shall not be able to enter socket-outlets of other voltage systems;
– socket-outlets shall not admit plugs of other voltage systems;
– plugs and socket-outlets in SELV systems shall not have a protective contact.

NOTE For socket-outlets according to IEC 60884-1 the protective contact is referred to as earthing contact.

---------------------- Page: 12 ----------------------
IEC 60364-5-53:2019/AMD1:2020 – 11 –
© IEC 2020
531.6 Devices for additional protection
A PEN conductor shall not be used on the load side of an RCD.

In AC installations, an RCD used for additional protection shall have a rated residual operating

current not exceeding 30 mA and shall be selected according to the requirements of 531.2.3.1

to 531.2.3.4.

In AC installations, when installed at the origin of a final circuit, an RCD with a rated residual

current not exceeding 30 mA may ensure simultaneously fault protection and additional

protection. In this case, not all final circuits supplied by a common distribution circuit shall be

disconnected by this RCD.

NOTE Correct assignment of the final circuits to the common RCD will contribute to continuity of the supply (see

531.3.2).

In AC installations, an RCD for protection of socket-outlets shall be installed at the origin of the

final circuit except whe
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
