IEC 61243-1 ®
Edition 2.0 2009-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Live working – Voltage detectors –
Part 1: Capacitive type to be used for voltages exceeding 1 kV a.c.
Travaux sous tension – Détecteurs de tension –
Partie 1: Type capacitif pour usage sur des tensions alternatives de plus de 1 kV
IEC 61243-1:2003/A1:2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.
IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61243-1 ®
Edition 2.0 2009-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Live working – Voltage detectors –
Part 1: Capacitive type to be used for voltages exceeding 1 kV a.c.
Travaux sous tension – Détecteurs de tension –
Partie 1: Type capacitif pour usage sur des tensions alternatives de plus de 1 kV
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
Q
CODE PRIX
ICS 29.240.99 ISBN 978-2-88910-450-5

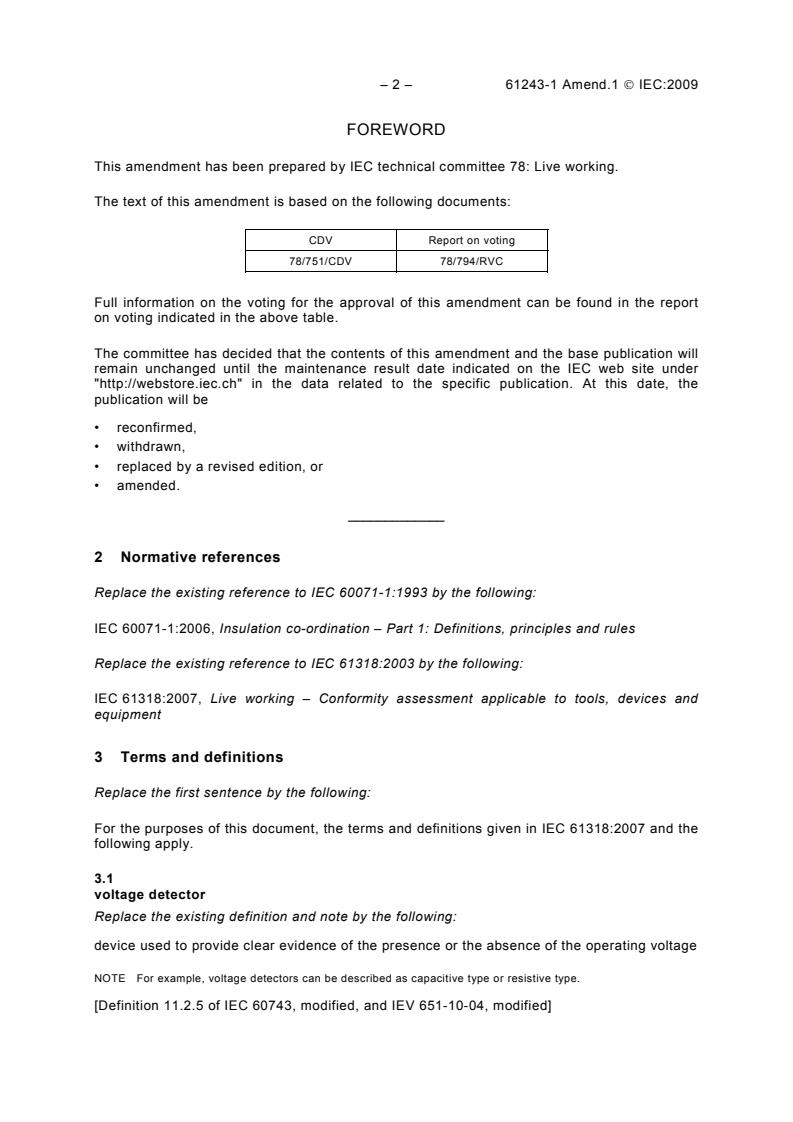

– 2 – 61243-1 Amend.1 © IEC:2009
FOREWORD
This amendment has been prepared by IEC technical committee 78: Live working.
The text of this amendment is based on the following documents:
CDV Report on voting
78/751/CDV 78/794/RVC
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
2 Normative references
Replace the existing reference to IEC 60071-1:1993 by the following:
IEC 60071-1:2006, Insulation co-ordination – Part 1: Definitions, principles and rules
Replace the existing reference to IEC 61318:2003 by the following:
IEC 61318:2007, Live working – Conformity assessment applicable to tools, devices and
equipment
3 Terms and definitions
Replace the first sentence by the following:
For the purposes of this document, the terms and definitions given in IEC 61318:2007 and the
following apply.
3.1
voltage detector
Replace the existing definition and note by the following:
device used to provide clear evidence of the presence or the absence of the operating voltage
NOTE For example, voltage detectors can be described as capacitive type or resistive type.
[Definition 11.2.5 of IEC 60743, modified, and IEV 651-10-04, modified]
61243-1 Amend.1 © IEC:2009 – 3 –
3.4
family of voltage detectors
Replace the existing definition by the following:
for testing purposes, a group of voltage detectors, delimited by a minimum and a maximum
rated voltage, that are identical in design (including dimensions) and only differ by their
nominal voltages or nominal voltage ranges
3.10
insulating stick
Replace the existing definition by the following:
insulating tool essentially made of an insulating tube and/or rod with end fittings
[Definition 2.5.1 of IEC 60743 and IEV 651-02-01]
NOTE For voltage detection, an insulating stick is intended to be attached to a voltage detector as a separate
device in order to provide the length to reach the installation to be tested and adequate safety distance and
insulation to the user.
3.29
type test
Delete the definition.
3.30
routine test
Delete the definition.
3.31
sampling test
Delete the definition.
3.32
acceptance test
Delete the definition.
4.2 Functional requirements
4.2.1 Clear indication
Replace the existing text by the following:
The voltage detector shall give an unambiguous indication of the presence and/or the
absence of the system operating voltage as a function of the nominal voltage or nominal
voltage range of the voltage detector, and its nominal frequency or nominal frequencies.
Indication may not be reliable in the vicinity of large conductive parts that create equipotential
zones.
When the voltage detector is used in accordance with instructions for use, the presence of an
adjacent live or earthed part shall not affect its indication.
When used in accordance with instructions for use, the voltage detector shall not indicate
"voltage present" for usual values of interference voltages.
– 4 – 61243-1 Amend.1 © IEC:2009
4.2.1.1 Continuous indication
The voltage detector shall give continuous indication when in direct contact with a live part.
4.2.1.2 Threshold voltage
4.2.1.2.1 General
The user shall not have access to the threshold voltage setting.
The indication “voltage present” shall appear if the voltage to earth on the part to be tested is
greater than 45 % of the nominal voltage.
NOTE 1 45 % of the nominal voltage corresponds to 0,78U 3 .
n
The indication "voltage present" shall not appear if the voltage to earth on the part to be
tested is equal to or less than 10 % of the nominal voltage.
NOTE 2 10 % of the nominal voltage corresponds to 0,17U 3 and is the maximum phase to earth induced
n
voltage normally encountered in the field.
To fulfil the above requirements, the threshold voltage U shall satisfy the following
t
relationship:
0,10 U max< U ≤ 0,45 U min
n t n
For voltage detectors with only one nominal voltage, U max. equals U min.
n n
NOTE 3 There is a theoretical limit of 4,5 to the ratio between U max. and U min. to achieve clear indication of
n n
the voltage detector. This value corresponds to the division of 0,45 by 0,1.
NOTE 4 It may happen that the induced voltage level on a specific network is higher than 10 % of the nominal
voltage or of the maximum nominal voltage of the range.
It may also happen that the variations of the nominal voltage network are such that the 0,45 U or 0,45 U max. is
n n
not the lowest possible value.
Moreover, when is it expected that the voltage detector will be used in the vicinity of large conductive parts that
create equipotential zones (see 4.2.1), the customer may specify a low value of the threshold voltage.
In all these cases, manufacturer and customer should reach an agreement to set the appropriate value for the
threshold voltage, while keeping it within the range specified above. The setting of the threshold voltage is further
limited by the requirements for clear indication which shorten the range of possible values, and the relevant tests
(clear indication) have to be passed.
4.2.1.2.2 Particular case of voltage detectors to be used on networks with low values
of interference voltage
In some cases, the customer may wish to take advantage of a network with low values of
interference voltage by reducing the lower limit of the threshold voltage below 0,10 U max.
n
NOTE 1 This particular case could help to deal with the use of the voltage detector in the vicinity of large
conductive parts. In spite of this change of the threshold voltage for a lower value, the theoretical limit of 4,5 for
the ratio between U max. and U min. still remains valid, and the relevant tests (clear indication) have to be
n n
passed.
In such case, the voltage detector shall have a special marking and a warning shall be
included in the instructions for use to inform the users of the modification brought to the
threshold voltage.
NOTE 2 The special marking should be the result of an agreement between the manufacturer and the client.
61243-1 Amend.1 © IEC:2009 – 5 –
4.2.3 Temperature and humidity dependence of the indication
Replace the existing fourth paragraph by the following:
In these cases, the threshold voltage shall satisfy 4.2.1.2.
4.4.2 Dimensions, construction
Replace the existing Table 2 and the notes by the following:
Table 2 – Minimum length of the insulating element (L )
i
of a voltage detector as a complete device
U L
r i
kV
mm
1 < U ≤ 7,2 320
r
7,2 < U ≤ 12 360
r
12 < U ≤ 17,5
r
17,5 < U ≤ 24
r
24 < U ≤ 36 520
r
36 < U ≤ 72,5 830
r
72,5 < U ≤ 123 1 300
r
1 700
123 < U ≤ 170
r
2 300
170 < U ≤ 245
r
3 600
245 < U ≤ 420
r
420 < U ≤ 525 4 300
r
525 < U ≤ 765 6 600
r
NOTE 1 The nominal voltage U is used when the parameters to be specified are related to the installation
n
dimensioning or to the functional performance of the voltage detector, while the rated voltage U is used when
r
insulation performance of the voltage detector is concerned.
NOTE 2 The L values of Table 2 correspond to the minimum distance in air (obtained from Tables 1 and 2 of
i
IEC 61936-1) plus an additional safety distance.
NOTE 3 The L values of Table 2 can be used as a guidance to determine the length of the insulating stick used
i
with a voltage detector as a separate device. However, the length of the insulating stick for live working can be
shortened for voltage detectors as a separate device taking into account the minimum approach distances or in
accordance with national or regional regulations.
Replace the second paragraph by the following:
For L equal to or greater than 520 mm, conductive parts not exceeding 200 mm (in total),
i
measured from the limit mark towards the handle, are allowed within the minimum length of
the insulating element if they are completely externally insulated.
4.5 Markings
In the list of items of marking, add the following item after the second existing item:
– special marking for low interference voltage, when relevant;
Replace the last item of the existing list of markings by the following:
– number of the relevant IEC standard immediately adjacent to the symbol, (IEC 61243-1).
– 6 – 61243-1 Amend.1 © IEC:2009
Add the following new paragraphs at the end of the existing subclause:
To be marked with the number of this IEC standard, the product shall satisfy all the
requirements specified herein.
With every voltage detector or with every batch of voltage detectors to be delivered, the
manufacturer shall provide information related to the number of the IEC standard with the
year of publication.
6.1 General
Add the following new paragraph at the beginning of the existing subclause:
This standard provides testing provisions to demonstrate compliance of the product to the
requirements of Clauses 4 and 5. These testing provisions are primarily intended to be used
as type tests for validation of the design input. Where relevant, alternative means (calculation,
examination, tests, etc.) are specified within the test subclauses for the purpose of voltage
detectors having completed the production phase.
6.1.2 Type test
Replace the first item of the existing list by the following:
– The type tests shall be performed at the lowest and at the highest nominal voltages
delimiting the family of voltage detectors. Within the limits of the family, bridging tests
(6.3.1 and 6.3.2) shall be performed for each distance d of Table 8 under the highest
voltage of each voltage range. Mechanical tests shall be done only once covering the
worst conditions.
6.1.3 Routine test
Delete the subclause.
6.1.4 Sampling test
Delete the subclause.
6.1.5 Test methods
Renumber this subclause as 6.1.3.
6.2.1.2 Measurement of threshold voltage
Replace the existing text of the subclause by the following:
6.2.1.2.1 Type test
The test set-up used for the measurement of the threshold voltage is of the ball and ring type,
as shown in Figure 2.
The electrode arrangement is selected according to the category of the voltage detectors.
Figure 2a gives the arrangement for voltage detectors of category S and Figure 2b for voltage
detectors of category L.
For voltage detectors with a nominal voltage range, the test set-up shall be selected
according to the highest nominal voltage.
61243-1 Amend.1 © IEC:2009 – 7 –
The ball and ring electrodes shall be connected as shown in Figure 4a.
The voltage detector shall be installed in such a manner that its contact electrode touches the
ball electrode and the indicator is approximately concentrically located in relation to the ring
electrode (in the horizontal axis).
The threshold voltage shall be measured by increasing the test voltage until the status of the
signal changes according to its type of indication.
The test shall be considered as passed if the measured threshold voltage is within the limits
specified in 4.2.1.2.
6.2.1.2.2 Alternative test for voltage detectors having completed the production phase
The alternative test consists of checking that the threshold voltage of a manufactured voltage
detector is within ± 5 % of the threshold voltage of a voltage detector that has successfully
passed the type tests according to 6.2.1.2.1. This test can be performed by means of an
alternative high voltage test set up.
6.2.1.3 Influence of in-phase interference field
Replace the second sentence of the penultimate paragraph by the following:
For voltage detectors with a nominal voltage range, the tests shall be performed for the lower
nominal voltage.
6.2.1.5 Influence of interference voltage
Add the following new sentence at the end of the penultimate existing paragraph:
For low interference voltage detectors the test voltage shall be 95 % of the threshold voltage
specified in the agreement between the manufacturer and the customer.
6.2.2 Clear perceptibility of visual indication
Replace the existing text of the subclause by the following:
6.2.2.1 Type test
The test set-up is given in Figure 5.
The intensity of the light striking an unpolished grey screen with a reflectivity index of 18 %
and the signal source of the indicator shall be:
– 50 000 lux ± 10 % for outdoor type voltage detector with standard light D according to
CIE 15.2 corresponding to colour temperature of 5 500°K ± 10 %;
– 1 000 lux ± 10 % for indoor type voltage detector with standard light A according to
CIE 15.2 corresponding to colour temperature of 3 200°K ± 10 %.
The voltage detector is positioned in the direction of axis A – B, and its signal source part is
centered on the axis A – B in normal use, according to Figure 5a.
The visual perceptibility test shall be performed by energizing the voltage detector by any
relevant means corresponding to the application of the threshold voltage plus 10 %.
– 8 – 61243-1 Amend.1 © IEC:2009
By switching the voltage "on" and "off", the voltage detector is set to respond in such a
manner that the indications "voltage present" and "voltage not present" alternate several
times in conditions unknown to the observer.
Three observers with average sight look towards the voltage detector, through the 5 mm holes
in the front plate (see Figure 5b).
The test shall be considered as passed if the indication is seen by the three observers
through each hole.
6.2.2.2 Alternative test for voltage detectors having completed the production phase
The alternative test consists in comparing the perceptibility of the visual indication of a
manufactured voltage detector to the one of a voltage detector which has passed successfully
the type test according to 6.2.2.1 (reference voltage detector). The test shall be considered as
passed if both perceptibilities are almost identical.
6.2.3 Clear perceptibility of audible indication
Replace the existing text of the subclause by the following:
6.2.3.1 Type test
The test shall be carried out in free-field over reflecting plane conditions, in an environment
following the requirements of Annex A of ISO 3744:1994.
NOTE 1 Such test conditions can be encountered in semi-anechoic rooms.
Averaged over the microphone positions, the level of the background noise shall be at least
6 dB(A) but preferably more than 15 dB(A) below the sound pressure level to be measured. If
the difference between the sound pressure levels of the background noise and the source
noise is between 6 dB(A) and 15 dB(A), a correction shall be applied as described in 8.3 of
ISO 3744:1994.
The instrumentation system, including the microphone and cable, shall meet the requirements
for a class 1 instrument specified in IEC 61672-1. The filters used shall meet the requirements
for a class 1 instrument specified in IEC 61260.
During each series of measurements, a sound calibrator with an accuracy of class 1 specified
in IEC 60942 shall be applied to the microphone to verify the calibration of the entire
instrument system.
The audible perceptibility test shall be performed by energizing the voltage detector by any
relevant means corresponding to the application of the threshold voltage plus 10 %.
The voltage detector shall be arranged as shown in Figure 6a, in such a manner that the
sound axis of the voltage detector is parallel to the ground and at least 1,5 m away from any
sound-reflecting surfaces.
A measuring plane shall be established, perpendicular to the sound axis according to
Figure 6a. The distance of 400 mm can be increased by 200 mm if this will enable higher
sound intensities to be measured.
The measurements shall be carried out for the indications "voltage present" and "voltage not
present", at each of the twelve microphone positions of Figure 6b. The sound pressure level
shall be measured in each octave band of the frequency range 1 000 Hz to 4 000 Hz, with the
A-weighting network.
61243-1 Amend.1 © IEC:2009 – 9 –
The period of observation shall be at least 10 s for a continuous signal. For an intermittent
signal, the integration time for the measurement shall be shorter than the signal duration.
The test shall be considered as passed, if for each microphone position, the sound pressure
level, within at least one octave band of the frequency range of interest, is greater than
– 80 dB(A), (ref.: 20 μPa) for a voltage detector with continuous sound signal;
– 77 dB(A), (ref.: 20 μPa) for a voltage detector with intermittent sound signal.
When there is an additional visual indication these values may be reduced by 10 dB(A).
NOTE 2 Other higher values may be agreed between manufacturer and customer for specific usage in very noisy
areas.
6.2.3.2 Alternative test for voltage detectors having completed the production phase
The alternative test consists in comparing the perceptibility of the audible indication of a
manufactured voltage detector to the one of a voltage detector which has passed successfully
the type test according to 6.2.3.1 (reference voltage detector). The test shall be considered as
passed if both perceptibilities are almost identical.
6.2.4 Frequency dependence
Replace the existing text of the subclause by the following:
6.2.4.1 Type test
The test shall be carried out using the test set-up and the test procedure of 6.2.1.2.1
For a voltage detector with one nominal frequency, the test shall be performed at 97 % and
103 % of the nominal frequency.
For a voltage detector with more than one nominal frequency, the test shall be performed at
97 % and 103 % of each nominal frequency.
The test shall be considered as passed if the threshold voltage is within the limits specified in
4.2.1.2.
6.2.4.2 Alternative means for voltage detectors having completed the production
phase
The manufacturer shall prove that he has followed the same documented assembly procedure
as per the type tested device. The manufacturer shall document components that affect the
frequency performance.
6.2.5 Response time
Replace the existing text of the subclause by the following:
6.2.5.1 Type test
The test voltage applied shall be the threshold voltage plus 10 %.
NOTE For practical reasons, other equivalent means for energizing the voltage detector are allowed.
The test voltage shall be applied ON, then OFF and ON twenty times. The duration of the ON
and OFF periods shall be adjusted to 1 s long.
– 10 – 61243-1 Amend.1 © IEC:2009
The test shall be considered as passed if each visual or audible signal is seen or heard as a
rhythmical indication having a minimum frequency of 0,5 Hz. The first signal(s) shall appear
during the first cycle.
6.2.5.2 Alternative means for voltage detectors having completed the production
phase
The manufacturer shall prove that he has followed the same documented assembly procedure
as per the type tested device. The manufacturer shall document components that affect the
response time.
6.2.8 Non-response to d.c. voltage
Replace the existing text of the subclause by the following:
6.2.8.1 Type test
For a voltage detector with a nominal voltage range, the test voltage shall be selected
according to the higher nominal voltage. The test voltage shall be U.2 3
n
The voltage detector shall be placed with the contact electrode on a d.c. voltage source, in
accordance with IEC 60060-1. The test shall be repeated with the polarity reversed.
The test shall be considered as passed if there is no continuous signal longer than 1 s.
NOTE For practical reasons, other equivalent means for energizing the voltage detector are allowed.
6.2.8.2 Alternative means for voltage detectors having completed the production
phase
The manufacturer shall prove that he has followed the same documented assembly procedure
as per the type tested device. The manufacturer shall document components that affect the
non-response to d.c. voltage.
6.2.9 Time rating
Replace the existing text of the subclause by the following:
6.2.9.1 Type test
The voltage detector shall be placed with the contact electrode on an a.c. voltage source, and
the test voltage applied for 5 min.
The test voltage shall be 1,2 U for a voltage detector having a nominal voltage lower than or
n
equal to 123 kV.
The test voltage shall be 1,2U 3 but shall be greater than 148 kV (≈1,2 times 123 kV) for a
n
voltage detector having a nominal voltage higher than 123 kV.
The test shall be considered as passed if the status of the signal corresponding to "voltage
present" is uninterrupted for all the test period.
61243-1 Amend.1 © IEC:2009 – 11 –
6.2.9.2 Alternative means for voltage detectors having completed the production
phase
The manufacturer shall prove that he has followed the same documented assembly procedure
as per the type tested device. The manufacturer shall document components that affect the
time rating.
6.3 Dielectric tests
6.3.1 Protection against bridging for indoor/outdoor type voltage detector
Replace the text of the first sentence of the third paragraph (or of the first paragraph after
Table 7) by the following:
The distance d between bar A and bar B shall be adjusted according to Table 8, column
“Indoor”, whatever the type of test set-up used.
Table 8 – Distance d for the bridging test set-up
Replace existing Table 8 by the following:
Table 8 – Distance d for the bridging test set-up
U d
n 1
kV mm
Indoor Outdoor
U ≤ 7,2 50 150
n
60 150
7,2 < U ≤ 12
n
12 < U ≤ 17,5 85 180
n
115 215
17,5 < U ≤ 24
n
180 325
24 < U ≤ 36
n
240 520
36 < U ≤ 52
n
330 700
52 < U ≤ 72,5
n
72,5 < U ≤ 123 650 1 100
n
1 100 1 100
123 < U ≤ 145
n
145 < U ≤ 170 1 350 1 350
n
1 850 1 850
170 < U ≤ 245
n
245 < U ≤ 300 2 100 2 100
n
2 500 2 500
300 < U ≤ 362
n
362 < U ≤ 420 2 900 2 900
n
3 400 3 400
420 < U ≤ 525
n
4 800 4 800
525 < U ≤ 765
n
6.3.2 Protection against bridging for outdoor type voltage detectors
Replace the second sentence of the first paragraph by the following:
These band electrodes are wound around the tube, one at the contact electrode and the other
in the direction of the handle at a distance d , column “Outdoor”, specified in Table 8.
– 12 – 61243-1 Amend.1 © IEC:2009
6.4.6 Climatic dependence
Replace the existing text of the subclause by the following:
6.4.6.1 Type test
Before this test, each voltage detector shall be cleaned with isopropanol and then dried in air
for 15 min.
The test is performed on the indicator and the contact electrode extension, if so equipped, in
accordance with IEC 60068-2-14 except for the temperature cycles and time relative to
humidity. In this case, the test cycle shall be in accordance with the following (see Figure 11).
The test piece shall be placed in a climatic chamber. The temperature of the chamber is
lowered from the ambient temperature to the required low value according to the climatic
category of the voltage detector (see Table 1). The temperature of the chamber shall be
maintained for 2 h.
The test piece shall then be removed from the climatic chamber and within 5 min to 10 min
following the withdrawal, the measurement of the threshold voltage shall be carried out at
ambient temperature according to 6.2.1.2.1. Wiping of external parts is allowed.
The voltage detector shall then be kept at ambient temperature for 2 h.
The test piece shall next be placed in the climatic chamber and the temperature shall be
increased 2 °K/min until it reaches the high value according to the climatic category of the
voltage detector (see Table 1). The relative humidity shall be maintained at 50 %.
The chamber shall be kept at the high temperature for 3 h. During the first hour and half, the
relative humidity shall be increased from 50 % to 96 %.
The test piece shall then be removed from the climatic chamber and within 5 min to 10 min
following the withdrawal, the measurement of the threshold voltage shall be carried out
according to 6.2.1.2.1 at ambient temperature. Wiping of external parts is allowed.
The test shall be considered as passed if the two measured threshold voltages satisfy the
limits specified in 4.2.1.2.
NOTE This test procedure combines conditions of steady extreme temperatures and sudden change of
temperature, since it is not practical to perform high voltage tests in a climatic chamber.
6.4.6.2 Alternative means for voltage detectors having completed the production
phase
It is not practical to perform the test under climatic conditions after completing the production
phase for checking the conformity to the associated requirements. Nevertheless the
manufacturer shall prove that he has followed the same documented assembly procedure as
per the type tested device. The manufacturer shall document components that affect the
climatic performance.
7 Specific tests
7.1 Leakage current for voltage detector as a complete device
After subclause 7.1.2, include the following new subclause:
61243-1 Amend.1 © IEC:2009 – 13 –
7.1.3 Alternative test for voltage detectors having completed the production phase
The manufacturer can use any alternative test set up to check that the leakage current does
not exceed the value given in 7.1.1.
8 Quality assurance plan and acceptance test
Replace the entire existing clause by the following:
8 Conformity assessment of voltage detectors having completed the
production phase
For conducting the conformity assessment during the production phase, IEC 61318 shall be
used in conjunction with the present standard.
Annex D, the result of a risk analysis on the performance of the voltage detector, provides the
classification of defects and identifies the associated tests applicable in case of production
follow-up.
Figure 3a – General arrangement
Replace, in the table just below Figure 3a, the existing three last lines by the following:
3 500 2 400* 2 400*
245 < U ≤ 420 3 200 1 785 64,5 ± 5 %
n
420 < U ≤ 525 4 100 2 900* 2 900* 3 900 2 205 87,5 ± 5 %
n
6 400 4 800* 4 800*
525 < U ≤ 765 5 300 3 150 126 ± 5 %
n
* The values of W and d are selected from Table 2 of IEC 61936-1, “Minimum phase to earth clearance” for rod
and structure N, the minimum distance taken for the highest voltage of the voltage range.
Annex B – Instructions for use
In the list of information, add the following item after the seventh existing item:
– explanation of the marking for low interference voltage, where applicable;
Annex C – Chronology of tests
Replace the existing title of the annex as follows:
Annex C – Chronology of type tests
Replace the existing Table C.1 by the following:
– 14 – 61243-1 Amend.1 © IEC:2009
Table C.1 – Sequential order for performing type tests
Sequential
Type tests Subclauses Requirements
order
4.1.2, 4.4.1, 4.4.2,
1 Visual and dimensional inspection 6.4.1
4.5, 4.6
2 Vibration resistance 6.4.3 4.4.4
2 Drop resistance 6.4.4 4.4.5
2 Shock resistance 6.4.5 4.4.6
3 Threshold voltage 6.2.1.2.1 4.2.1.2
4 Climatic dependence 6.4.6.1 4.2.3
4 Frequency dependence 6.2.4.1 4.2.4
4 Power source dependability (or out of sequence) 6.2.6 4.2.6
4.3.2
Protection against bridging for indoor/outdoor type voltage
5 6.3.1
5.2
detector
5 Protection against bridging for outdoor type voltage detector 6.3.2 4.3.2
6 Spark resistance 6.3.3 4.3.3
4.2.9
7 Time rating 6.2.9.1
4.2.1.1
8 Check of testing element 6.2.7 4.2.7
9 Influence of in-phase interference field 6.2.1.3 4.2.1
9 Influence of phase opposition interference field 6.2.1.4 4.2.1
9 Influence of interference voltage 6.2.1.5 4.2.1
Leakage current for a voltage detector as a complete device 4.3.1
10 7.1.1
under dry conditions 5.1
Leakage current for a voltage detector as a complete device 4.3.1
11 7.1.2
under wet conditions (for outdoor type only) 5.1
NOTE Tests with the same sequential number can be performed in the more convenient order.
Add the following new table:
Table C.2 – Type tests out of sequence
Type tests Subclauses Requirements
Durability of markings 6.4.7 4.5
Grip force and deflection 6.4.2 4.4.3
Non-response to d.c. voltage 6.2.8.1 4.2.8
Clear perceptibility of visual indication 6.2.2.1 4.2.2.1
Clear perceptibility of audible indication 6.2.3.1 4.2.2.2
Response time 6.2.5.1 4.2.5
NOTE Type tests out of sequence are performed on the same three voltage detectors.
61243-1 Amend.1 © IEC:2009 – 15 –
Annex D – Sampling procedure
Replace the entire existing annex as follows:
Annex D
(normative)
Classification of defects and tests to be allocated
This annex was developed to address the type of defects of a manufactured voltage detector
of capacitive type (critical, major or minor) in a consistent manner (see IEC 61318). For each
requirement identified in Table D.1, both the type of defect and the associated test are
specified.
Table D.1 – Classification of defects and associated requirements and tests
Requirements Type of defect Test
Critical Major Minor
4.4.2 Minimum length of the insulating element for a X 6.4.1.2
voltage detector as a complete device
4.5 Correctness of the marking of the voltage detector X 6.4.1.1
4.3.1 Leakage current along the insulating element of a X 7.1.3
5.1.2 voltage detector as a complete device
4.2.1.2 Setting of the threshold voltage (functional safety) X 6.2.1.2.2
b
4.2.1 Influence of in-phase interference field (functional X
safety)
4.3.2 Protection against bridging for indoor/outdoor type X 6.3.1
5.2 voltage detector
a
4.3.2 Protection against bridging for outdoor type X 6.3.1
voltage detector
4.3.3 Spark resistance (functional safety) X 6.3.3
4.2.5 Response time (functional safety) X 6.2.5.2
4.2.4 Frequency dependence (functional safety) X 6.2.4.2
4.2.3 Climatic dependence (functional safety) X 6.4.6.2
4.1.2 Clear perceptibility of indication for voltage
6.2.2.2
4.2.2.1 detectors with only one type of signal (visual or
6.2.3.2
4.2.2.2 audible)
- indication group I: X
- indication groups II and III: X
Clear perceptibility of indication for voltage
detectors with two types of signals (visual and
audible) X
b
4.2.1 Influence of phase opposition interference field X
b
4.2.1 Influence of interference voltage X
4.4.4 Vibration resistance X 6.4.3
4.4.5 Drop resistance X 6.4.4
4.4.6 Shock resistance X 6.4.5
4.2.7 Functioning of the testing element X 6.2.7
4.2.6 Power source dependability X 6.2.6
4.2.8 Non-response to d.c. X 6.2.8.2
4.2.9 Time rating (functional safety) X 6.2.9.2
4.5 Durability of marking X 6.4.7
– 16 – 61243-1 Amend.1 © IEC:2009
Requirements Type of defect Test
Critical Major Minor
4.4.3 Grip force and deflection X 6.4.2
c
4.6 Instructions for use (availability) X 6.4.1.1
a
For outdoor type voltage detectors, the tests are performed in dry conditions only.
b
At the production level, there is no need to perform a test associated to this requirement. The confirmation of
the threshold voltage value according to 6.2.1.2.2 confirms the correctness of the performance of the device to give
a correct indication under interference field and interference voltage.
c
At the production level, the test shall check the availability of the instructions for use.
Annex F – Acceptance tests
Delete the existing Annex F.
Annex G – In-service care
G.2 Testing
Replace the existing text of the subclause by the following:
Table G.1 lists the tests that verify the physical integrity, the functioning of the voltage
detector and its insulation performance. It also recommends a chronological order for
performing the tests. The insulating stick to be used with voltage detectors as a separate
device should be covered by an IEC, regional, national or local/company standard.
61243-1 Amend.1 © IEC:2009 – 17 –
Table G.1 – In-service testing
Chronological Designation
order
1 Visual and dimensional inspection
a
2 Check of testing element
b
3 Leakage current under dry conditions
c
4 Protection against bridging for indoor/outdoor type voltage detector
d
5 Spark resistance
e
6 Measurement of threshold voltage
7 Influence of in-phase interference field
f
8 Clear perceptibility of visual indication
f
8 Clear perceptibility of audible indication
a
The check of the electrical circuits, to verify that all circuits are tested is not necessary.
b
When the test is performed as a periodic testing, the admissible leakage current may be higher than that
specified in 7.1.1 but it should not exceed 200 μA.
c
Under dry conditions only.
d
For practical purposes, this test may be combined with the test for protection against bridging (number 4 of
the chronological list). The test duration for spark resistance is at least 5 s.
e
A comparison may be made with a reference voltage detector of the same design and using an alternative
high voltage test set-up.
Since the parameters of the test set-up and the test room arrangement can influence significantly the
measured value of the threshold voltage, it is recommended to measure and record the initial value of the
threshold voltage as obtained with this test set-up and this testing room, and to use the same configuration at
periodic intervals.
f
A comparison may be made with a reference voltage detector of the same design. Tests for clear
perceptibility may also be combined with other previous tests of the list.
NOTE According to the design of the voltage detector and its fabrication process, the manufacturer may specify
additional tests related to particular components or characteristics. These specific tests should be noted in the
instructions for use.
Bibliography
Replace the existing reference to IEC 60743:2001 by the following:
IEC 60743:2001 Live working – Terminology for tools, equipment and devices
Amendment 1 (2008)
___________
– 18 – 61243-1 Amend.1 © CEI:2009
AVANT-PROPOS
Le présent amendement a été établi par le comité d'études 78 de la CEI: Travaux sous
tension.
Le texte de cet amendement est issu des documents suivants:
CDV Rapport de vote
78/751/CDV 78/794/RVC
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l'approbation de cet amendement.
Le comité a décidé que le contenu de cet amendement et de la publication de base ne sera
pas modifié avant la date de maintenance indiquée sur le site web de la CEI sous
"http://webstore.iec.ch" dans les données relatives à la publication recherchée. A cette date,
la publication sera
• reconduite,
• supprimée,
• remplacée par une édition révisée, ou
• amendée.
_____________
2 Références normatives
Remplacer la référence existante à la CEI 60071-1:1993 par la suivante:
CEI 60071-1:2006, Coordination de l'isolement – Partie 1: Définitions, principes et règles
Remplacer la référence existante à la CEI 61318:2003 par la suivante:
CEI 61318:2007, Travaux sous tension – Evaluation de la conformité applicable à l’outillage,
au matériel et aux dispositifs
3 Termes et définitions
Remplacer la première phrase comme suit:
Pour les besoins du présent document, les termes et définitions donnés dans la
CEI 61318:2007 ainsi que les suivants s’appliquent.
3.1
détecteur de tension
Remplacer la définition et la note existantes comme suit:
dispositif utilisé pour démontrer de façon claire la présence ou l'absence de la tension
d’exploitation
NOTE Par exemple, les détecteurs de tension peuvent être décrits comme étant de type capacitif ou résistif.
[Définition 11.2.5 de la CEI 60743, modifiée, et VEI 651-10-04, modifiée]
61243-1 Amend.1 © CEI:2009 – 19 –
3.4
famille de détecteurs de tension
Remplacer la définition existante comme suit:
à des fins d’essai, un groupe de détecteurs de tension, délimité par des tensions assignées
minimale et maximale, qui sont identiques en matière de conception (incluant les dimensions)
et qui diffèrent seulement par leur tension nominale ou leurs plages de tensions nominales
3.10
perche isolante
Remplacer la définition existante comme suit:
outil isolant essentiellement composé d’un tube isolant ou d'une tige isolante avec des
embouts
[Définition 2.5.1 de la CEI 60743 et VEI 651-02-01]
NOTE En détection de tension, la perche isolante est destinée à être attachée à un détecteur de tension en
dispositif séparé pour procurer la longueur permettant d’atteindre l’installation à vérifier ainsi qu’une isolation et
une distance suffisante de sécurité à l’utilisateur.
3.29
essai de type
Supprimer la définition.
3.30
essai individuel de série
Supprimer la définition.
3.31
essai sur prélèvement
Supprimer la définition.
3.32
essai de réception
essai d'acceptation
Supprimer la définition.
4.2 Exigences fonctionnelles
4.2.1 Indication indiscutable
Remplacer le texte existant comme suit:
Le détecteur de tension doit fournir une indication non ambigüe de la présence et/ou de
l’absence de la tension d’exploitation du réseau compte tenu de la tension nominale ou de la
plage de tensions nominales du détecteur de tension et de sa ou ses fréquences nominales.
L’indication peut ne pas être fiable au voisinage de parties conductrices de taille importante
qui créent des zones d'équipotentialité.
Lorsque le détecteur de tension est utilisé conformément aux instructions d'emploi, la
présence d'une pièce voisine sous tension ou à la terre ne doit pas affecter l'indication.
– 20 – 61243-1 Amend.1 © CEI:2009
Lorsqu’il est utilisé conformément aux instructions d'emploi, le détecteur de tension ne doit
pas indiquer «présence de tension» pour des valeurs usuelles de tensions perturbatrices.
4.2.1.1 Indication continue
Le détecteur de tension doit donner une indication continue quand il est en contact direct
avec une pièce sous tension.
4.2.1.2 Tension de seuil
4.2.1.2.1 Généralités
L’utilisateur ne doit pas avoir accès au ré
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
