IEC TS 61724-2:2025
(Main)Photovoltaic system performance - Part 2: Power performance index and capacity evaluation method
Photovoltaic system performance - Part 2: Power performance index and capacity evaluation method
IEC TS 61724-2:2025 applies to grid-connected PV systems comprising at least one inverter.
The test evaluates the PV system only in conditions where output is unconstrained by limitations in AC power output from the inverters. This document defines a test of a PV system's power performance index (PPI). PPI, defined in IEC 61724‑1, is the ratio of a system's measured power output under test conditions to its expected output at those conditions based on the system's design.
The test is intended to be performed over a short period of typically three to five days and is typically used to satisfy a contractual performance guarantee as part of the final completion of a PV power plant. This second edition cancels and replaces the first edition published in 2016. This edition includes the following significant technical changes with respect to the previous edition:
a) Adapting the document for bifacial PV systems, in accordance with the latest edition of IEC 61724‑1 and current industry practices.
b) Adapting the test procedure to account for the limited times of unconstrained system operation which are now common because of high DC-to-AC ratios (clipping) and interconnection limits (curtailment).
c) Adapting the test procedure to achieve a test that can be performed in a short time of three to five days during favourable conditions.
d) Focusing the document more heavily on the use of modern PV system modelling software to obtain the expected performance of the system under test.
e) Simplifying the mathematical procedure for calculating the test results.
f) Clearly identifying test elections (optional choices to be made in conducting the test) and providing a template for documenting these elections.
g) Clarifying the discussion of the test boundary that separates tested variables from untested variables.
h) Expanding and clarifying the discussion of data filtering.
General Information
Relations
Standards Content (Sample)

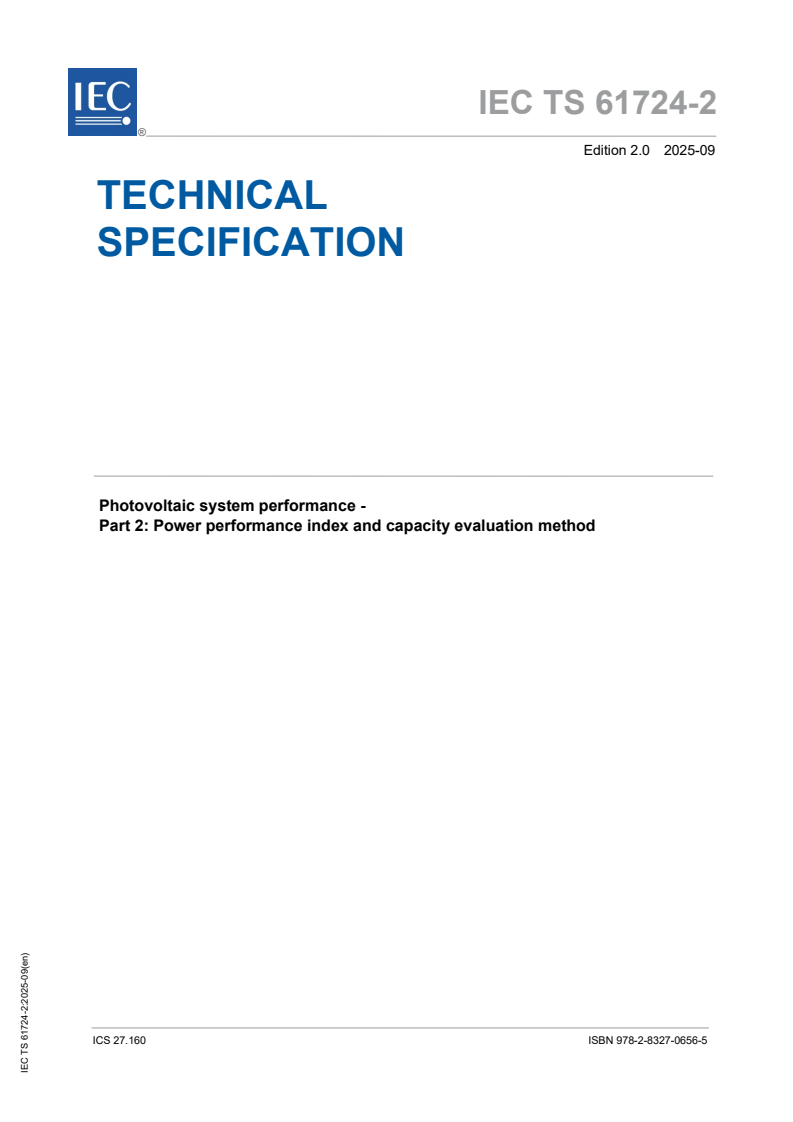

IEC TS 61724-2 ®
Edition 2.0 2025-09
TECHNICAL
SPECIFICATION
Photovoltaic system performance -
Part 2: Power performance index and capacity evaluation method
ICS 27.160 ISBN 978-2-8327-0656-5

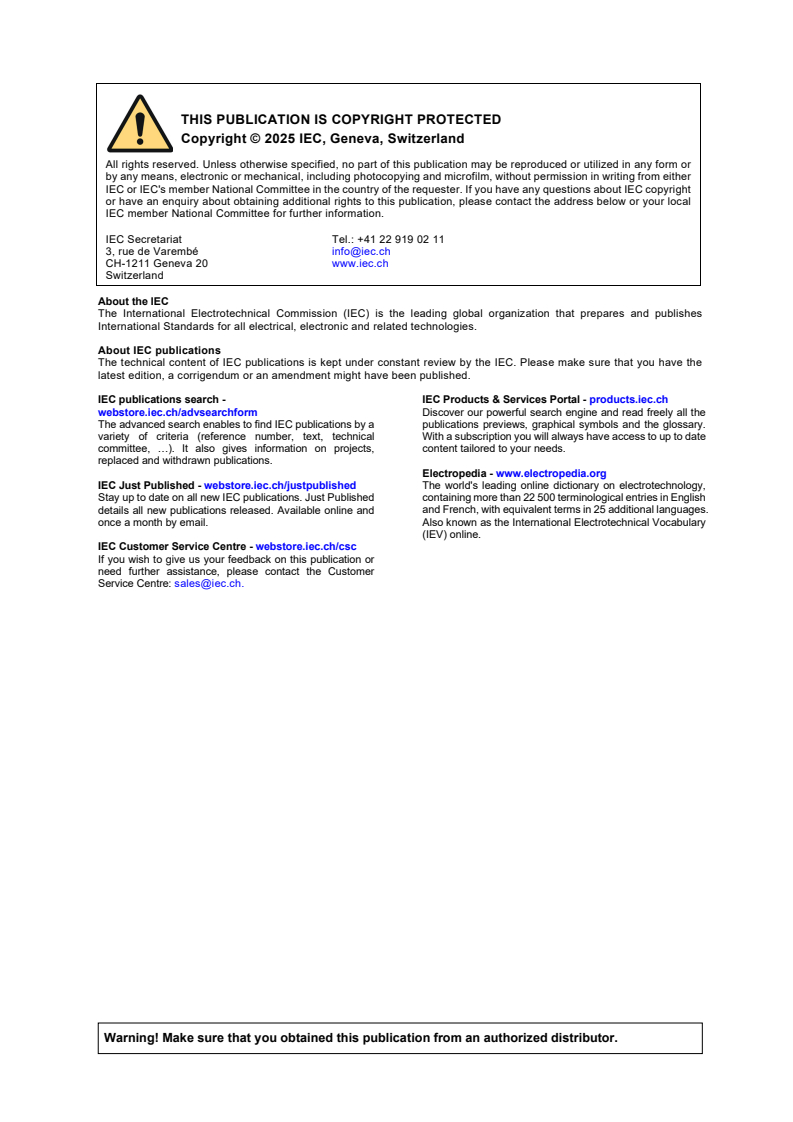

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
The world's leading online dictionary on electrotechnology,
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Purpose of the test . 8
5 Test boundary and test elections . 8
6 Schedule . 9
7 Measurement equipment . 9
7.1 General . 9
7.2 Irradiance measurement . 10
7.3 PV cell temperature . 11
7.4 Electrical power . 12
8 Soiling . 12
9 Trackers . 13
10 Performance model . 13
10.1 Overview. 13
10.2 Performance model option 1 . 14
10.3 Performance model option 2 . 15
10.4 Performance model option 3 . 16
11 Partial shading . 17
12 Plant design modifications . 17
13 Multiple plant sections . 18
14 Filtering data . 19
14.1 Purpose . 19
14.2 General requirements . 19
14.2.1 Documentation . 19
14.2.2 Synchronization . 19
14.2.3 Manner of excluding data . 19
14.2.4 Consistency . 19
14.2.5 Multiple sensors . 19
14.3 Test limits . 19
14.3.1 POA irradiance . 19
14.3.2 Inverter utilization . 20
14.3.3 Partial shading. 20
14.3.4 Angle of incidence . 20
14.4 Invalid readings . 20
14.4.1 Data out of range of reasonable physical limits . 20
14.4.2 Stuck values . 20
14.4.3 Missing data . 21
14.5 Operational issues . 21
14.5.1 Equipment not functioning . 21
14.5.2 Trackers not tracking . 21
14.6 Unstable irradiance . 21
14.7 Non-linear or non-uniform conditions . 21
15 Procedure . 22
15.1 Determine and document test elections . 22
15.2 Acquire measured data . 22
15.3 Filter the data . 22
15.4 Determine coefficients of the performance equation, if used . 22
15.5 Calculate expected power . 22
15.6 Calculate power performance index (PPI) . 22
16 Test report . 23
Annex A (informative) Template for documenting test elections . 24
Bibliography . 26
Figure 1 – Illustration of test boundary and test elections . 9
Table 1 – Problems that are either detected or potentially not detected by the test . 8
Table 2 – Solar resource test elections . 10
Table 3 – POA irradiance sensor type test elections . 11
Table 4 – PV cell temperature test elections . 12
Table 5 – Soiling test elections . 13
Table 6 – Tracker system test elections . 13
Table 7 – Performance model test elections . 14
Table 8 – Partial shading test elections . 17
Table 9 – Plant design modifications test elections . 18
Table 10 – Multiple plant sections test elections . 18
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Photovoltaic system performance -
Part 2: Power performance index and capacity evaluation method
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https:/
...
