IEC 61010-2-061:2018

Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-061: Particular requirements for laboratory atomic spectrometers with thermal atomization and ionization

IEC 61010-2-061:2018 applies to electrically powered laboratory atomic spectro­meters with thermal atomization. It has the status of a group safety publication in accordance with IEC Guide 104. This fourth edition cancels and replaces the third edition published in 2015. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- adaptation of changes introduced by Amendment 1 of IEC 61010-1;
- added tolerance for stability of AC voltage test equipment to Clause 6;
- added requirement for interlock systems containing electric/electronic or programmable components to Clause 15.

Exigences de sécurité pour appareils électriques de mesurage, de régulation et de laboratoire - Partie 2-061: Exigences particulières pour spectromètres atomiques de laboratoire avec vaporisation et ionisation thermique

L’IEC 61010-2-061:2018 s’applique aux spectromètres atomiques de laboratoire équipés d’une alimentation électrique et d’une vaporisation thermique. Elle a le statut d'une publication groupée de sécurité conformément au Guide IEC 104. Cette quatrième édition annule et remplace la troisième édition parue en 2015. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- adaptation des modifications introduites par l’Amendement 1 de l’IEC 61010-1;
- ajout à l’Article 6 de la tolérance pour la stabilité du matériel d’essai en tension alternative;
- ajout à l’Article 15 d’une exigence relative aux systèmes de verrouillage contenant des composants électriques/électroniques ou programmables.

General Information

• Status: Published
• Publication Date: 20-Sep-2018
• ICS: 19.080 - Electrical and electronic testing
• ICS: 71.040.20 - Laboratory ware and related apparatus
• Technical Committee: TC 66 - Safety of measuring, control and laboratory equipment
• Drafting Committee: MT 10 - TC 66/MT 10
• Current Stage: PPUB - Publication issued
• Start Date: 21-Sep-2018
• Completion Date: 17-Sep-2018

Relations

• Revises: IEC 61010-2-061:2015 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-061: Particular requirements for laboratory atomic spectrometers with thermal atomization and ionization
• Effective Date: 05-Sep-2023

Overview

IEC 61010-2-061:2018 - Edition 4.0 - is the IEC particular‑requirements safety standard for electrically powered laboratory atomic spectrometers with thermal atomization and ionization. It is a Part 2 document in the IEC 61010 series and has the status of a group safety publication (IEC Guide 104). This 2018 edition cancels the 2015 edition and introduces technical revisions, including alignment with Amendment 1 of IEC 61010‑1, a tolerance for stability of AC voltage test equipment, and new requirements for interlock systems that include electric/electronic or programmable components.

Key topics and requirements

The standard supplements IEC 61010‑1 with requirements tailored to laboratory atomic spectrometers (examples explicitly included: atomic absorption spectrometers, flame photometers, atomic fluorescence spectrophotometers, ICP and microwave plasma spectrometers, and mass spectrometers when thermal atomization is used).

Major technical topics covered:

• Scope and exclusions - applies to thermal atomization systems; excludes flame ionization detectors used in gas chromatography.
• Tests and safety checks - specific tests (e.g., sampling probe tip exposure, mains supply failure procedures) and routine test guidance in annexes.
• Protection measures - provisions for electric shock, mechanical hazards, fire spread, heat resistance and temperature limits, and protection against radiation (including lasers), sonic/ultrasonic pressure, liberated gases, explosion and implosion risks.
• Interlocks and control systems - added requirements for interlock systems containing electrical/electronic or programmable components (Clause 15).
• Marking and documentation - mandatory, unambiguous labels for gas and liquid connections (identity, maximum pressure, flow direction), warning markings for hot gas/plasma exits, and installation instructions including gas connector types and fume extraction needs.
• Components and assemblies - guidance on safe design, resistance to mechanical stress, and requirements for spray chambers, gas locks and flash‑back prevention.
• Risk assessment and application hazards - obligations to assess use‑case hazards and document safety measures.

Applications and who uses this standard

IEC 61010‑2‑061:2018 is used by:

• Equipment manufacturers (design, testing and CE/CB/third‑party conformity evidence)
• Product safety and compliance engineers preparing documentation and labels
• Test laboratories and certification bodies performing safety assessments
• Laboratory managers and procurement teams selecting compliant atomic spectrometers
• Regulators and safety officers defining safe installation and maintenance practices

Related standards

• IEC 61010‑1 (general safety requirements for measurement, control and laboratory equipment) - this Part 2 is intended to be used in conjunction with Part 1.
• Other IEC 61010 Part 2 documents where overlapping scopes exist (advice: consider relevant Part 2 documents if equipment also falls into their scope).

Keywords: IEC 61010-2-061, laboratory atomic spectrometers, thermal atomization, safety requirements, interlocks, marking and documentation, risk assessment.

Standards Content (Sample)

IEC 61010-2-061 ®
Edition 4.0 2018-09
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Safety requirements for electrical equipment for measurement, control, and
laboratory use –
Part 2-061: Particular requirements for laboratory atomic spectrometers with
thermal atomization and ionization

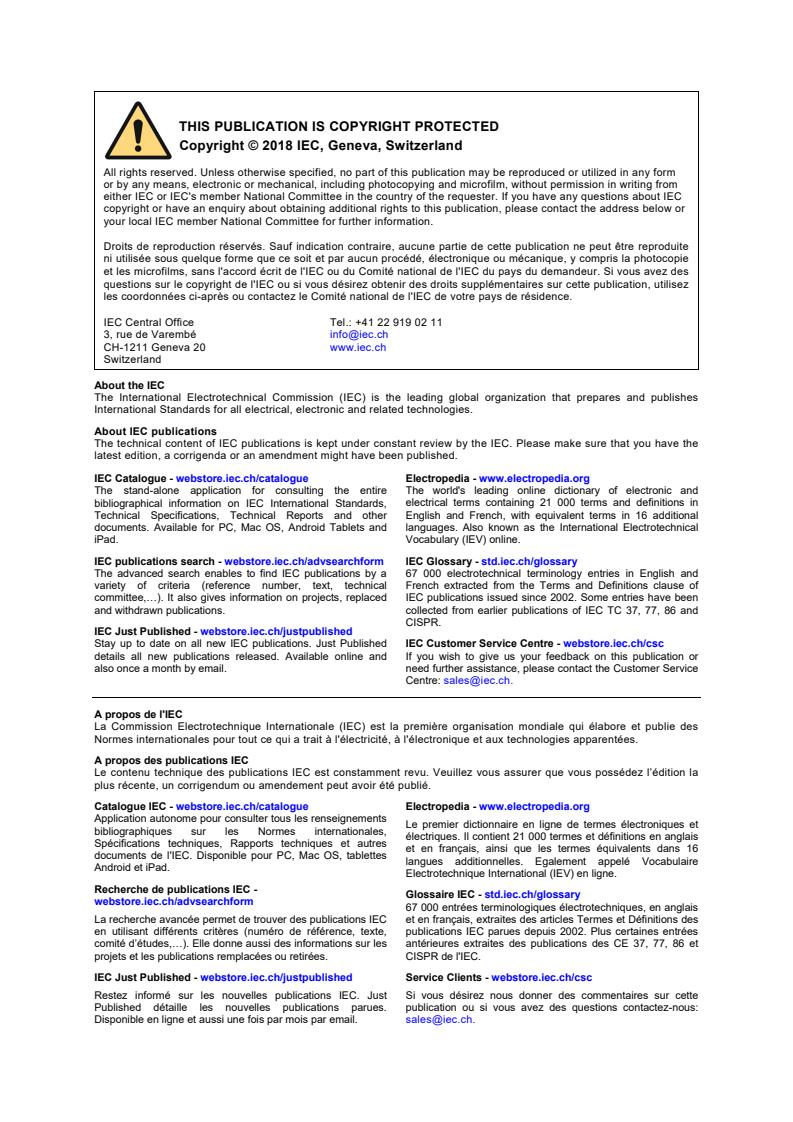

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61010-2-061 ®
Edition 4.0 2018-09
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Safety requirements for electrical equipment for measurement, control, and

laboratory use –
Part 2-061: Particular requirements for laboratory atomic spectrometers with

thermal atomization and ionization

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 19.080; 71.040.20 ISBN 978-2-8322-6063-0

– 2 – IEC 61010-2-061:2018 RLV © IEC 2018

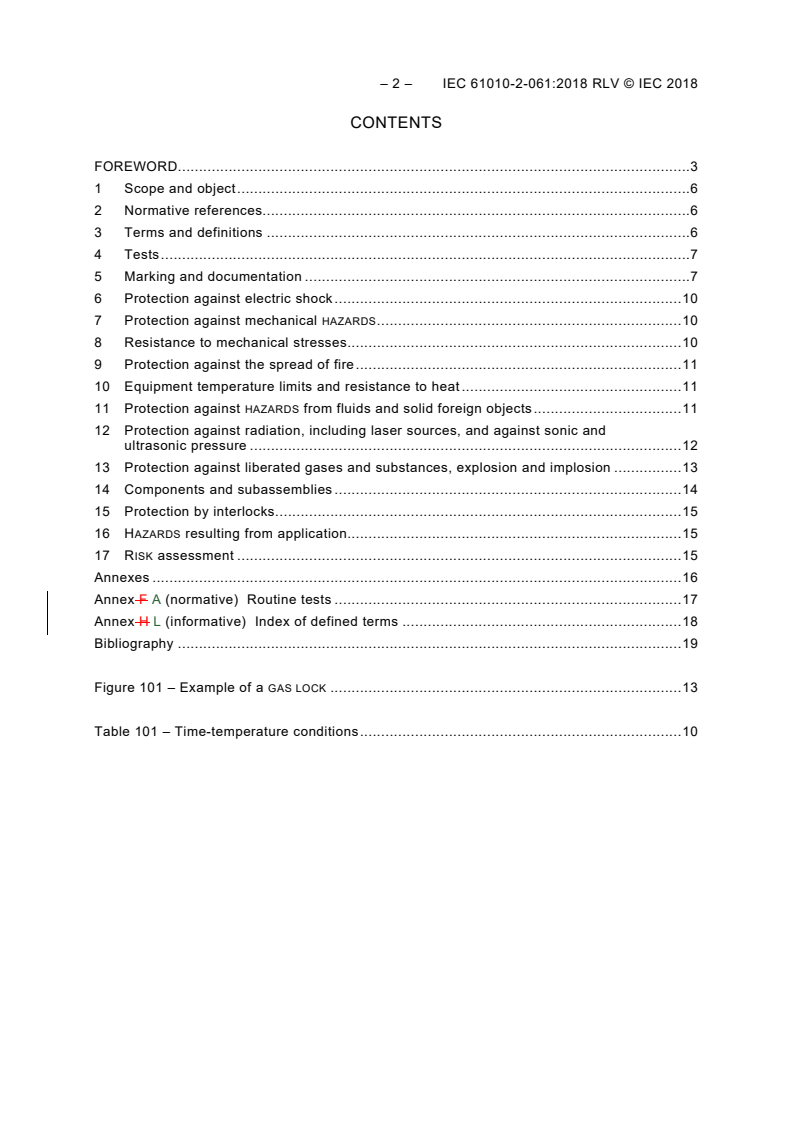

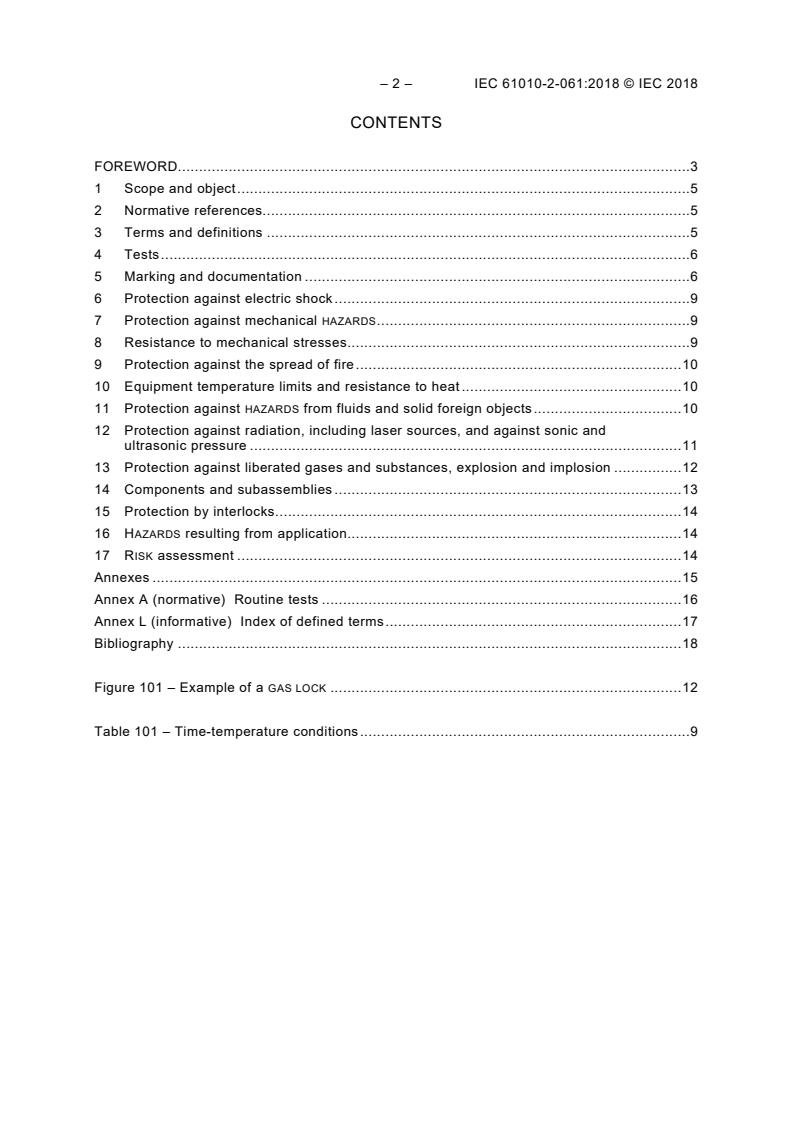

CONTENTS
FOREWORD . 3
1 Scope and object . 6
2 Normative references. 6
3 Terms and definitions . 6
4 Tests . 7
5 Marking and documentation . 7
6 Protection against electric shock . 10
7 Protection against mechanical HAZARDS . 10
8 Resistance to mechanical stresses . 10
9 Protection against the spread of fire . 11
10 Equipment temperature limits and resistance to heat . 11
11 Protection against HAZARDS from fluids and solid foreign objects . 11
12 Protection against radiation, including laser sources, and against sonic and
ultrasonic pressure . 12
13 Protection against liberated gases and substances, explosion and implosion . 13
14 Components and subassemblies . 14
15 Protection by interlocks . 15
16 HAZARDS resulting from application. 15
17 RISK assessment . 15
Annexes . 16
Annex F A (normative) Routine tests . 17
Annex H L (informative) Index of defined terms . 18
Bibliography . 19

Figure 101 – Example of a GAS LOCK . 13

Table 101 – Time-temperature conditions . 10

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT FOR
MEASUREMENT, CONTROL, AND LABORATORY USE –

Part 2-061: Particular requirements for laboratory atomic
spectrometers with thermal atomization and ionization

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition. A vertical bar appears in the margin wherever a change
has been made. Additions are in green text, deletions are in strikethrough red text.

– 4 – IEC 61010-2-061:2018 RLV © IEC 2018
International Standard IEC 61010-2-061 has been prepared by IEC technical committee 66:
Safety of measuring, control and laboratory equipment.
It has the status of a group safety publication in accordance with IEC Guide 104.
This fourth edition cancels and replaces the third edition published in 2015. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) adaptation of changes introduced by Amendment 1 of IEC 61010-1;
b) added tolerance for stability of AC voltage test equipment to Clause 6;
c) added requirement for interlock systems containing electric/electronic or programmable
components to Clause 15.
The text of this International Standard is based on the following documents:
CDV Report on voting
66/643/CDV 66/668/RVC
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 61010 series, under the general title, Safety requirements for
electrical equipment for measurement, control, and laboratory use, may be found on the IEC
website.
This Part 2-061 is intended to be used in conjunction with IEC 61010-1. It was established on
the basis of the third edition (2010) and its Amendment 1 (2016).
This Part 2-061 supplements or modifies the corresponding clauses in IEC 61010-1 so as to
convert that publication into the IEC standard: Particular requirements for laboratory atomic
spectrometers with thermal atomization and ionization.
Where a particular subclause of Part 1 is not mentioned in this Part 2, that subclause applies
as far as is reasonable. Where this part states “addition”, “modification” or “replacement”, or
“deletion”, the relevant requirement, test specification or note in Part 1 should be adapted
accordingly.
In this standard:
1) the following print types are used:
– requirements: in roman type;
– NOTES: in small roman type;
– conformity and test: in italic type;
– terms used throughout this standard which have been defined in Clause 3: SMALL
ROMAN CAPITALS;
2) subclauses, figures, tables and notes which are additional to those in Part 1 are numbered
starting from 101. The additional annexes are lettered starting from AA and additional list
items are lettered from aa).
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

– 6 – IEC 61010-2-061:2018 RLV © IEC 2018
SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT FOR
MEASUREMENT, CONTROL, AND LABORATORY USE –

Part 2-061: Particular requirements for laboratory atomic
spectrometers with thermal atomization and ionization

1 Scope and object
This clause of Part 1 is applicable except as follows:
1.1 Scope
1.1.1 Equipment included in scope
Replacement:
Replace the text by, except the first paragraph, with the following new text:
This part of IEC 61010 applies to electrically powered laboratory atomic spectrometers with
thermal atomization.
NOTE 1 Examples include atomic absorption spectrometers, emission flame photometers, atomic fluorescence
spectrophotometers, inductively coupled plasma spectrometers, microwave coupled plasma spectrometers and
mass spectrometers, all with thermal atomization and ionization (including tubing and connectors which are
provided by the manufacturer for connection to external supplies).
NOTE 2 If all or part of the equipment falls within the scope of one or more other Part 2 documents of IEC 61010
as well as within the scope of this document, consideration is to be given to those other Part 2 documents.
1.1.2 Equipment excluded from scope
Addition:
Add as, before the first paragraph, the following new text:
This document does not apply to thermal atomization detectors (flame ionization detectors)
used in gas chromatography.
2 Normative references
This clause of Part 1 is applicable.
3 Terms and definitions
This clause of Part 1 is applicable except as follows:
Additions:
Add the following definitions new terms:
3.2.101
SPRAY CHAMBER
chamber in which droplets of sample in aerosol are allowed to separate so that the droplets of
necessary size can be passed onward to the burner, with the remainder draining to waste

3.2.102
GAS LOCK
device to allow drainage of waste sample liquid, and to prevent unintentional escape of gas
from the SPRAY CHAMBER through its drain outlet
Note 1 to entry: See for example Figure 101.
3.5.101
FLASH-BACK
event during which the flame travels back through the burner with the result that the gas in
the mixing chamber is caused to ignite
4 Tests
This clause of Part 1 is applicable except as follows:
Addition:
Add the following new subclauses:
4.4.2.101 Sampling probe tip
Any system designed to withdraw a sampling probe tip after sampling has been completed
shall be overridden, so as to leave the tip in its most exposed position when a sample vessel
is removed.
Exceptions:
The withdrawal system need not be overridden if the sampling probe:
a) cannot cause a HAZARD to the OPERATOR when it is exposed;
b) is designed in such a manner that no SINGLE FAULT CONDITION can cause the tip to remain
exposed after sampling has been completed.
4.4.2.102 Failure, or partial failure, of the MAINS supply
The voltage of the power supply to the equipment from the MAINS supply shall first be reduced
to just less than 90 % of the RATED voltage, and shall then be switched off.
5 Marking and documentation
This clause of Part 1 is applicable except as follows:
Addition:
Add the following new subclause:
5.1.5.101 Gas and liquid connections
The following shall be unambiguously marked adjacent to the connector on the equipment
(see 5.2):
a) the identity of the gas or liquid;
b) the maximum permitted pressure;
c) flow direction of the gas and liquid, if applicable.

– 8 – IEC 61010-2-061:2018 RLV © IEC 2018
NOTE Such markings may can be specific (for example acetylene, propane, water) or generic (for example fuel
gas, oxidant gas, coolant, waste liquid).
Where no internationally recognized symbol (such as a chemical formula) exists, the
equipment shall be marked with symbol 14 of Table 1 together with an unambiguous text
in English. The documentation accompanying the equipment shall provide an adequate
translation of this text (where it is required) in the language of the country in which it is to be
installed, to assure that the installer or OPERATOR is able to connect the equipment correctly.
Conformity is checked by inspection.
5.2 Warning markings
Addition:
Add the following new paragraph before the conformity statement:
Where hot gases or plasma emerge from equipment, the protective structure provided (for
example a chimney, see 10.1), shall be clearly marked by symbol 13 of Table 1, to indicate
where excessively hot temperatures may can exist.
5.4.3 Equipment installation
Addition:
Add, before the first paragraph, the following new paragraph:
The documentation shall state that the RESPONSIBLE BODY shall ensure that the type of
connector used at the outlet side of the gas-pressure regulator conforms to applicable
national requirements.
Deletion:
Delete item f).
Addition:
Add, after item g) and before the note, the following new items:
aa) requirements for liquid connection;
bb) requirements for a fume extraction system to remove exhaust gases which may be
hazardous. In the case of equipment using only a propane flame in a ventilated room,
and when it is known that samples will not leave any hazardous residues, it is not
necessary to provide an extraction system, since the exhaust gases from a propane
flame will themselves not present any HAZARD;
cc) requirements for appropriate filtering or other systems which may be necessary to trap
hazardous sample residues present in the exhaust gas stream;
dd) documentation shall state stating that the RESPONSIBLE BODY shall carry out appropriate
leakage tests necessary for safety on those gas and liquid connections which the
OPERATOR is directed to assemble during installation, NORMAL USE, or maintenance;
ee) instructions for examining, during installation and maintenance, parts of the external gas
supply system including tubing connected to the equipment, in order to confirm that
their condition is satisfactory, for example to detect stress cracks. In addition any
special national regulations for the safe use of gases and gas cylinders shall be
observed;
ff) instructions for necessary provisions for collection of waste from the SPRAY CHAMBER,
including the requirements for any waste container which may be specified by the
manufacturer;
gg) requirements for connection of the equipment to supplies of air, fuel gas (for example
hydrogen, acetylene, or propane) and oxidant (for example oxygen or nitrous oxide).
See also 11.103.
Add, after the existing note, the following new notes:
NOTE 101 Connections on the outlet side of gas regulators (from which tubing connects to the equipment) vary
from country to country and are often covered by national regulations. Variations can include thread type, whether
left-hand or right-hand, types of tubing and means of attachment.
NOTE 102 Warning markings are specified in 5.1.5.101, 5.1.5.2 c), 6.1.2 b), 7.3.2 b) 3), 7.4, 10.1, and 13.2.2.
5.4.4 Equipment operation
Additions:
Add, after item j), the following new items:
aa) a reminder to the RESPONSIBLE BODY of the responsibility for the correct collection and
disposal of waste materials, including the necessity for:
1) a suitably sized waste container of appropriately resistant material for the collection
of organic solvent waste;
NOTE The proper disposal of waste materials is well documented by national authorities and it is these
procedures that supersede the requirements of this document in regard of waste disposal. This Part 2
should only brings to the attention of the OPERATOR that potentially hazardous waste materials are
present and national (local) regulations for the proper disposal can apply.
2) provision for the removal into an appropriate exhaust system of any gases or
vapours which may be produced in hazardous concentrations;
bb) a list of fluids known by the manufacturer to be potentially unsafe if used with the
equipment.
Add, after the list of items, the following new paragraph:
Documentation shall also indicate that this list cannot be taken to be exhaustive and that, in
case of uncertainty about a specific fluid, that fluid shall not be used until confirmation by the
manufacturer that it will not present a HAZARD.
Add the following new subclause:
5.4.4.101 Cleaning and decontamination
Documentation shall indicate:
a) that the RESPONSIBLE BODY has the responsibility for carrying out appropriate
decontamination if hazardous material is spilt on or inside the equipment;
b) the manufacturer's recommendations for cleaning and, where necessary, decontamination,
together with the recognized generic names of recommended materials for cleaning and
decontamination.
The following wording shall appear in the documentation:
“Before using any cleaning or decontamination methods except those specified by the
manufacturer, the RESPONSIBLE BODY should check with the manufacturer that the proposed
method will not damage the equipment.”

– 10 – IEC 61010-2-061:2018 RLV © IEC 2018
If a manufacturer claims that an item can be decontaminated by steam sterilization, it shall be
capable of withstanding steam sterilization under at least one of the time-temperature
conditions given in Table 101. Cleaning and decontamination shall be necessary as a
safeguard when spectrometers and their accessories are maintained, repaired, or transferred.
Manufacturers shall provide a format for the RESPONSIBLE BODY to certify that such a treatment
has been carried out.
NOTE Information on decontaminants, their use, dilution and potential application is contained in the Laboratory
Biosafety Manual, published by the World Health Organization and the Biosafety in Microbiological and Biomedical
Laboratories, published by Centers for Disease Control and Prevention and National Institutes of Health,
Washington. There are also national guidelines that cover these areas.
Table 101 – Time-temperature conditions
Corresponding steam temperature
Absolute pressure Minimum hold time
Nominal Range
kPa min
°C °C
325 136,0 134 to 138  3
250 127,5 126 to 129 10
215 122,5 121 to 124 15
175 116,5 115 to 118 30
NOTE “Minimum hold time” means the time the contaminant is at the steam temperature.

5.4.5 Equipment maintenance and service
Addition:
Add, after the first paragraph, the following new paragraph:
Instructions shall include any instructions for examination and tests which are to be carried
out on parts and connections containing gases or liquids inside the equipment, in order to
check that no leakage is occurring.
6 Protection against electric shock
This clause of Part 1 is applicable except as follows:
6.8.3.1 The AC voltage test
Replacement:
Replace the first sentence with the following new sentence:
The voltage tester shall be capable of maintaining the test voltage throughout the test within
± 5 % of the specified value.
7 Protection against mechanical HAZARDS
This clause of Part 1 is applicable.
8 Resistance to mechanical stresses
This clause of Part 1 is applicable except as follows:

8.1 General
Replacement:
Replace the text of item 3) by with the following new text:
3) except for FIXED EQUIPMENT, for equipment with a mass over 100 kg, or for equipment
whose size and weight make unintentional movement unlikely and which is not moved in
NORMAL USE, the appropriate test of 8.3. The equipment is not operated during the tests.
9 Protection against the spread of fire
This clause of Part 1 is applicable.
10 Equipment temperature limits and resistance to heat
This clause of Part 1 is applicable, except as follows:
10.1 Surface temperature limits for protection against burns
Addition:
Add, before Table 19, the following new paragraph:
Protection shall be provided to minimize the possibility of unintentional direct access by the
OPERATOR or other persons in the vicinity to of hot gases or plasma emerging from the
equipment. This The protection shall comprise a protective structure, for example a chimney
of sufficient height to indicate its function (see also 5.2).
11 Protection against HAZARDS from fluids and solid foreign objects
This clause of Part 1 is applicable except as follows:
11.1 General
Replacement:
Replace the first paragraph by with the following new paragraph:
Equipment shall be designed to give protection to the OPERATOR, other persons in the vicinity,
and the surrounding area against HAZARDS from direct contact with fluids encountered in
NORMAL USE, and from HAZARDS resulting from degradation of parts in contact with these.
Addition:
Add the following new subclauses:
11.101 Sampling probes
Sample fluid remaining on the outside of a sampling probe shall not cause a HAZARD to the
OPERATOR or other persons in the vicinity.
Conformity is checked by inspection and, if necessary, by a test using a suitable fluid, for
example a solution of fluorescein in water.

– 12 – IEC 61010-2-061:2018 RLV © IEC 2018
11.102 Gases
Components within the fuel-gas and oxidant paths shall be resistant to the gases specified by
the manufacturer, and to any associated solvent vapours. In the case of acetylene, a solvent,
for example acetone, will be present in the cylinder which contains the acetylene. Any special
national regulations for the safe use of gases and pressurized gas cylinders shall be
observed.
Conformity is checked by inspection and by examination of the specification of the materials
used.
11.103 Solvents
Parts in contact with solvents, including any which will be contacted by diffusion of vapour in
the stand-by condition, shall be resistant to the solvents specified by the manufacturer.
Conformity is checked by inspection and examination of the specification of the materials
used.
11.104 Parts in contact with acetylene
The following materials shall not be used for parts intended to be in contact with acetylene:
a) copper and copper alloys with a copper content of more than 70 %;
b) copper alloys (even with a copper content of less than 70 %) in the case of filters and
sieves;
c) silver and silver alloys, except for brazing. Silver filler used for brazing shall have a silver
content of less than 43 %, and a copper content of less than 21 %. The width of a solder
gap, where the silver filler might come into contact with acetylene, shall be less than 0,3
mm;
d) any other material which may form an explosive acetylide.
Conformity is checked by inspection of the materials used and their specification according to
the manufacturer.
12 Protection against radiation, including laser sources, and against sonic and
ultrasonic pressure
This clause of Part 1 is applicable except as follows:
12.5.1 Sound level
Addition:
Add, before Note 1, the following new paragraph:
Equipment which may generate occasional and unavoidable short-duration high sound
pressure levels, for example as a result of FLASH-BACK in a burner gas mixing chamber, shall
not produce a sound power level in excess of 140 dB(A).
Add, after Note 2, the following new note:
NOTE 101 Exposure to noise has been categorized in many countries by three action levels of “daily personal
noise exposure” at 85 dBA, 90 dBA, and 140 dBA. “Daily personal noise exposure” is defined as the total exposure
over the whole working day, taking into account the varying noise levels in the working environment and how long a
person is exposed to them, without taking account of whether ear protectors are worn.

The peak action level of 140 dBA relates to cartridge operated tools, shooting guns, and similar loud explosive
noises. This action level is most important where workers are subject to a small number of loud impulses during an
otherwise quiet day.
Employers in many countries are required to reduce the risk of damage to the hearing of employees from exposure
to noise to the lowest level reasonably practicable. For example some countries require manufacturers to provide
suitable and efficient ear protectors on request, to employees whose daily personal exposure is between 80 dBA
and 90 dBA. For exposures above 90 dBA, exposure is required to be reduced to the lowest level reasonably
practicable without taking account of the use of ear protectors. At the same time, suitable ear protectors are to be
provided by the employer.
13 Protection against liberated gases and substances, explosion and implosion
This clause of Part 1 is applicable except as follows:
13.1 Poisonous and injurious gases and substances
Addition:
Add, after the first second paragraph, the following new notes:
NOTE 101 Discharge of gases into a fume extraction system is not considered to be liberation (see 5.4.3 bb)).
NOTE 102 Absence of fluid from the type of GAS LOCK shown in Figure 101 is a typical SINGLE FAULT CONDITION.

Figure 101 – Example of a GAS LOCK
13.2.1 Components
Replacement:
Replace the first paragraph by with the following new text:
If an explosion could can occur either by FLASH-BACK of gases in a burner and mixing
chamber, or if components, if overheated or overcharged, are not provided with a pressure
relief device, protection for the OPERATOR and other persons shall be incorporated in the
equipment (see also 7.7).
Replace the conformity statement by with the following new text:

– 14 – IEC 61010-2-061:2018 RLV © IEC 2018
Conformity is checked by inspection and, for burners, by test a) or b) as appropriate:
a) for burners designed to prevent FLASH-BACK, the flame is ignited and the flow of gas
mixture, maintained at a constant fuel-oxidant ratio, is gradually reduced to zero. The
flame shall extinguish without FLASH-BACK;
b) for other burners, the flame is ignited and the gas mixture adjusted so as to generate the
FLASH-BACK.
maximum energy flame. Ignition is then initiated inside the burner to simulate
No parts shall be expelled outside the equipment.
Addition:
Add the following new subclauses:
13.101 Flame ignition system
For equipment which has an automatically controlled ignition system, the ignition procedure
when started shall either cause the flame to ignite in a time less than that required for 0,8 l of
fuel-gas to be delivered, or the ignition procedure shall be ended automatically and the
equipment returned to stand-by condition. For equipment which does not have an
automatically controlled ignition system, it shall not be possible to open the valves which
control the flows of fuel-gas and oxidant-gas (except compressed air) for purposes of igniting
the flame, unless a manually operated device as described below is provided.
An acceptable manually operated device is one which satisfies the following criteria:
a) it shall override the flame-failure gas shut-off device for not longer than the time for 0,8 l
of fuel-gas to be delivered;
NOTE For fuel-gas, the litre (l) will be understood as that which is measured at 0 °C and 0,1 MPa (1 bar).
b) it shall allow the gases to flow to permit the necessary adjustment of the flow rates before
the ignition system is operated;
c) if ignition is not achieved, the gas flow valves shall close immediately as soon as the
device is released.
Conformity is checked by fitting a gas flow-rate meter in the fuel-gas pipe and measuring both
the rate of gas escaping during the ignition procedure in NORMAL USE, and the time from
opening the fuel-gas inlet valve to closing it after ignition failures. The gas volume is
calculated from these measurements.
13.102 Non-interchangeability of gas connectors
Connectors available to the OPERATOR for fuel-gas shall not be interchangeable with
connectors for oxidant-gas.
Conformity is checked by inspection.
13.103 Interchangeable burners
In equipment with interchangeable burners (for example to permit the use of either air or
nitrous oxide as the oxidant gas) and where a HAZARD could arise if the incorrect gas is fed to
a burner, it shall only be possible to operate with a gas appropriate to the burner fitted.
Conformity is checked by fitting, in turn, each available burner specified by the manufacturer,
and confirming that only the gases specified for a burner can flow to the burner.
14 Components and subassemblies
This clause of Part 1 is applicable.

15 Protection by interlocks
This clause of Part 1 is applicable except as follows:
15.1 General
Addition:
Add, after the first paragraph, the following new text:
As an alternative method, for interlock systems containing electric/electronic or programmable
components (E/E/P components) the reliability and design requirements can be determined by
applying for example IEC 62061 (SIL) or ISO 13849 (all parts) (PL) or other solutions
providing equivalent functional safety.
16 HAZARDS resulting from application
This clause of Part 1 is applicable.
17 RISK assessment
This clause of Part 1 is applicable.

– 16 – IEC 61010-2-061:2018 RLV © IEC 2018
Annexes
The annexes of Part 1 are applicable except as follows:

Annex F A
(normative)
Routine tests
Addition:
Add the following new subclause:
F.101 Gas leakage test
A test is carried out to measure leakage of gas from the internal system leading to the burner.
The worst-case gas intended to be used in that internal system is applied at 1,2 times the
maximum inlet pressure for NORMAL USE. An alternative gas (for example helium) can be used
provided that the results, when converted, are equivalent to the results had the worst-case
gas been used. Leakage shall not exceed 5 ml/min.

– 18 – IEC 61010-2-061:2018 RLV © IEC 2018
Annex H L
(informative)
Index of defined terms
Addition:
Add the following new defined terms to the list:
FLASH-BACK . 3.5.101
GAS LOCK . 3.2.102
SPRAY CHAMBER . 3.2.101

Bibliography
The Bibliography of Part 1 is applicable, except as follows:
Addition:
Add the following new references:
Laboratory biosafety manual, World Health Organization
Biosafety in microbiological and biomedical laboratories, Centers for Disease Control and
Prevention and National Institutes of Health, Washington
IEC 62061, Safety of machinery – Functional safety of safety-related electrical, electronic and
programmable electronic control systems
ISO 13849 (all parts), Safety of machinery – Safety-related parts of control systems
World Health Organization, Laboratory Biosafety Manual
Centers for Disease Control and Prevention and National Institutes of Health, Biosafety in
Microbiological and Biomedical Laboratories, Washington

___________
IEC 61010-2-061 ®
Edition 4.0 2018-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
GROUP SAFETY PUBLICATION
PUBLICATION GROUPÉE DE SÉCURITÉ
Safety requirements for electrical equipment for measurement, control, and
laboratory use –
Part 2-061: Particular requirements for laboratory atomic spectrometers with
thermal atomization and ionization

Exigences de sécurité pour appareils électriques de mesurage, de régulation et
de laboratoire –
Partie 2-061: Exigences particulières pour spectromètres atomiques de
laboratoire avec vaporisation et ionisation thermiques

– 2 – IEC 61010-2-061:2018 © IEC 2018
CONTENTS
FOREWORD . 3
1 Scope and object . 5
2 Normative references. 5
3 Terms and definitions . 5
4 Tests . 6
5 Marking and documentation . 6
6 Protection against electric shock . 9
7 Protection against mechanical HAZARDS . 9
8 Resistance to mechanical stresses . 9
9 Protection against the spread of fire . 10
10 Equipment temperature limits and resistance to heat . 10
11 Protection against HAZARDS from fluids and solid foreign objects . 10
12 Protection against radiation, including laser sources, and against sonic and
ultrasonic pressure . 11
13 Protection against liberated gases and substances, explosion and implosion . 12
14 Components and subassemblies . 13
15 Protection by interlocks . 14
16 HAZARDS resulting from application. 14
17 RISK assessment . 14
Annexes . 15
Annex A (normative) Routine tests . 16
Annex L (informative) Index of defined terms . 17
Bibliography . 18

Figure 101 – Example of a GAS LOCK . 12

Table 101 – Time-temperature conditions . 9

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT FOR
MEASUREMENT, CONTROL, AND LABORATORY USE –

Part 2-061: Particular requirements for laboratory atomic
spectrometers with thermal atomization and ionization

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any
...

IEC 61010-2-061 ®
Edition 4.0 2018-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
GROUP SAFETY PUBLICATION
PUBLICATION GROUPÉE DE SÉCURITÉ
Safety requirements for electrical equipment for measurement, control, and
laboratory use –
Part 2-061: Particular requirements for laboratory atomic spectrometers with
thermal atomization and ionization

Exigences de sécurité pour appareils électriques de mesurage, de régulation et
de laboratoire –
Partie 2-061: Exigences particulières pour spectromètres atomiques de
laboratoire avec vaporisation et ionisation thermiques

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des
en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées
comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et
projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette
Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:
Disponible en ligne et aussi une fois par mois par email. [e-mail].

IEC 61010-2-061 ®
Edition 1.0 2018-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
GROUP SAFETY PUBLICATION
PUBLICATION GROUPÉE DE SÉCURITÉ

Safety requirements for electrical equipment for measurement, control, and

laboratory use –
Part 2-061: Particular requirements for laboratory atomic spectrometers with

thermal atomization and ionization

Exigences de sécurité pour appareils électriques de mesurage, de régulation et

de laboratoire –
Partie 2-061: Exigences particulières pour spectromètres atomiques de

laboratoire avec vaporisation et ionisation thermiques

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 19.080; 71.040.20 ISBN 978-2-8322-6040-1

– 2 – IEC 61010-2-061:2018 © IEC 2018
CONTENTS
FOREWORD . 3
1 Scope and object . 5
2 Normative references. 5
3 Terms and definitions . 5
4 Tests . 6
5 Marking and documentation . 6
6 Protection against electric shock . 9
7 Protection against mechanical HAZARDS . 9
8 Resistance to mechanical stresses . 9
9 Protection against the spread of fire . 10
10 Equipment temperature limits and resistance to heat . 10
11 Protection against HAZARDS from fluids and solid foreign objects . 10
12 Protection against radiation, including laser sources, and against sonic and
ultrasonic pressure . 11
13 Protection against liberated gases and substances, explosion and implosion . 12
14 Components and subassemblies . 13
15 Protection by interlocks . 14
16 HAZARDS resulting from application. 14
17 RISK assessment . 14
Annexes . 15
Annex A (normative) Routine tests . 16
Annex L (informative) Index of defined terms . 17
Bibliography . 18

Figure 101 – Example of a GAS LOCK . 12

Table 101 – Time-temperature conditions . 9

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT FOR
MEASUREMENT, CONTROL, AND LABORATORY USE –

Part 2-061: Particular requirements for laboratory atomic
spectrometers with thermal atomization and ionization

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61010-2-061 has been prepared by IEC technical committee 66:
Safety of measuring, control and laboratory equipment.
It has the status of a group safety publication in accordance with IEC Guide 104.
This fourth edition cancels and replaces the third edition published in 2015. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) adaptation of changes introduced by Amendment 1 of IEC 61010-1;
b) added tolerance for stability of AC voltage test equipment to Clause 6;

– 4 – IEC 61010-2-061:2018 © IEC 2018
c) added requirement for interlock systems containing electric/electronic or programmable
components to Clause 15.
The text of this International Standard is based on the following documents:
CDV Report on voting
66/643/CDV 66/668/RVC
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 61010 series, under the general title, Safety requirements for
electrical equipment for measurement, control, and laboratory use, may be found on the IEC
website.
This Part 2-061 is intended to be used in conjunction with IEC 61010-1. It was established on
the basis of the third edition (2010) and its Amendment 1 (2016).
This Part 2-061 supplements or modifies the corresponding clauses in IEC 61010-1 so as to
convert that publication into the IEC standard: Particular requirements for laboratory atomic
spectrometers with thermal atomization and ionization.
Where a particular subclause of Part 1 is not mentioned in this Part 2, that subclause applies
as far as is reasonable. Where this part states “addition”, “modification” or “replacement”, or
“deletion”, the relevant requirement, test specification or note in Part 1 should be adapted
accordingly.
In this standard:
1) the following print types are used:
– requirements: in roman type;
– NOTES: in small roman type;
– conformity and test: in italic type;
– terms used throughout this standard which have been defined in Clause 3: SMALL
ROMAN CAPITALS;
2) subclauses, figures, tables and notes which are additional to those in Part 1 are numbered
starting from 101. The additional annexes are lettered starting from AA and additional list
items are lettered from aa).
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT FOR
MEASUREMENT, CONTROL, AND LABORATORY USE –

Part 2-061: Particular requirements for laboratory atomic
spectrometers with thermal atomization and ionization

1 Scope and object
This clause of Part 1 is applicable except as follows:
1.1 Scope
1.1.1 Equipment included in scope
Replacement:
Replace the text, except the first paragraph, with the following new text:
This part of IEC 61010 applies to electrically powered laboratory atomic spectrometers with
thermal atomization.
NOTE 1 Examples include atomic absorption spectrometers, emission flame photometers, atomic fluorescence
spectrophotometers, inductively coupled plasma spectrometers, microwave coupled plasma spectrometers and
mass spectrometers, all with thermal atomization and ionization (including tubing and connectors which are
provided by the manufacturer for connection to external supplies).
NOTE 2 If all or part of the equipment falls within the scope of one or more other Part 2 documents of IEC 61010
as well as within the scope of this document, consideration is given to those other Part 2 documents.
1.1.2 Equipment excluded from scope
Addition:
Add, before the first paragraph, the following new text:
This document does not apply to thermal atomization detectors (flame ionization detectors)
used in gas chromatography.
2 Normative references
This clause of Part 1 is applicable.
3 Terms and definitions
This clause of Part 1 is applicable except as follows:
Addition:
Add the following new terms:
3.2.101
SPRAY CHAMBER
chamber in which droplets of sample in aerosol are allowed to separate so that the droplets of
necessary size can be passed onward to the burner, with the remainder draining to waste

– 6 – IEC 61010-2-061:2018 © IEC 2018
3.2.102
GAS LOCK
device to allow drainage of waste sample liquid, and to prevent unintentional escape of gas
from the SPRAY CHAMBER through its drain outlet
Note 1 to entry: See for example Figure 101.
3.5.101
FLASH-BACK
event during which the flame travels back through the burner with the result that the gas in
the mixing chamber is caused to ignite
4 Tests
This clause of Part 1 is applicable except as follows:
Addition:
Add the following new subclauses:
4.4.2.101 Sampling probe tip
Any system designed to withdraw a sampling probe tip after sampling has been completed
shall be overridden, so as to leave the tip in its most exposed position when a sample vessel
is removed.
Exceptions:
The withdrawal system need not be overridden if the sampling probe:
a) cannot cause a HAZARD to the OPERATOR when it is exposed;
b) is designed in such a manner that no SINGLE FAULT CONDITION can cause the tip to remain
exposed after sampling has been completed.
4.4.2.102 Failure, or partial failure, of the MAINS supply
The voltage of the power supply to the equipment from the MAINS supply shall first be reduced
to just less than 90 % of the RATED voltage, and shall then be switched off.
5 Marking and documentation
This clause of Part 1 is applicable except as follows:
Addition:
Add the following new subclause:
5.1.5.101 Gas and liquid connections
The following shall be unambiguously marked adjacent to the connector on the equipment
(see 5.2):
a) the identity of the gas or liquid;
b) the maximum permitted pressure;
c) flow direction of the gas and liquid, if applicable.

NOTE Such markings can be specific (for example acetylene, propane, water) or generic (for example fuel gas,
oxidant gas, coolant, waste liquid).
Where no internationally recognized symbol (such as a chemical formula) exists, the
equipment shall be marked with symbol 14 of Table 1 together with an unambiguous text
in English. The documentation accompanying the equipment shall provide an adequate
translation of this text (where it is required) in the language of the country in which it is to be
installed, to assure that the installer or OPERATOR is able to connect the equipment correctly.
Conformity is checked by inspection.
5.2 Warning markings
Addition:
Add the following new paragraph before the conformity statement:
Where hot gases or plasma emerge from equipment, the protective structure provided (for
example a chimney, see 10.1), shall be clearly marked by symbol 13 of Table 1, to indicate
where excessively hot temperatures can exist.
5.4.3 Equipment installation
Addition:
Add, before the first paragraph, the following new paragraph:
The documentation shall state that the RESPONSIBLE BODY shall ensure that the type of
connector used at the outlet side of the gas-pressure regulator conforms to applicable
national requirements.
Deletion:
Delete item f).
Addition:
Add, after item g) and before the note, the following new items:
aa) requirements for liquid connection;
bb) requirements for a fume extraction system to remove exhaust gases which may be
hazardous. In the case of equipment using only a propane flame in a ventilated room,
and when it is known that samples will not leave any hazardous residues, it is not
necessary to provide an extraction system, since the exhaust gases from a propane
flame will themselves not present any HAZARD;
cc) requirements for appropriate filtering or other systems which may be necessary to trap
hazardous sample residues present in the exhaust gas stream;
dd) documentation stating that the RESPONSIBLE BODY shall carry out appropriate leakage
tests necessary for safety on those gas and liquid connections which the OPERATOR is
directed to assemble during installation, NORMAL USE, or maintenance;
ee) instructions for examining, during installation and maintenance, parts of the external gas
supply system including tubing connected to the equipment, in order to confirm that
their condition is satisfactory, for example to detect stress cracks. In addition any
special national regulations for the safe use of gases and gas cylinders shall be
observed;
– 8 – IEC 61010-2-061:2018 © IEC 2018
ff) instructions for necessary provisions for collection of waste from the SPRAY CHAMBER,
including the requirements for any waste container which may be specified by the
manufacturer;
gg) requirements for connection of the equipment to supplies of air, fuel gas (for example
hydrogen, acetylene, or propane) and oxidant (for example oxygen or nitrous oxide).
See also 11.103.
Add, after the existing note, the following new notes:
NOTE 101 Connections on the outlet side of gas regulators (from which tubing connects to the equipment) vary
from country to country and are often covered by national regulations. Variations can include thread type, whether
left-hand or right-hand, types of tubing and means of attachment.
NOTE 102 Warning markings are specified in 5.1.5.101, 5.1.5.2 c), 6.1.2 b), 7.3.2 b) 3), 7.4, 10.1, and 13.2.2.
5.4.4 Equipment operation
Addition:
Add, after item j), the following new items:
aa) a reminder to the RESPONSIBLE BODY of the responsibility for the correct collection and
disposal of waste materials, including the necessity for:
1) a suitably sized waste container of appropriately resistant material for the collection
of organic solvent waste;
NOTE The proper disposal of waste materials is well documented by national authorities and it is these
procedures that supersede the requirements of this document in regard of waste disposal. This Part 2 only
brings to the attention of the OPERATOR that potentially hazardous waste materials are present and
national (local) regulations for the proper disposal can apply.
2) provision for the removal into an appropriate exhaust system of any gases or
vapours which may be produced in hazardous concentrations;
bb) a list of fluids known by the manufacturer to be potentially unsafe if used with the
equipment.
Add, after the list of items, the following new paragraph:
Documentation shall also indicate that this list cannot be taken to be exhaustive and that, in
case of uncertainty about a specific fluid, that fluid shall not be used until confirmation by the
manufacturer that it will not present a HAZARD.
Add the following new subclause:
5.4.4.101 Cleaning and decontamination
Documentation shall indicate:
a) that the RESPONSIBLE BODY has the responsibility for carrying out appropriate
decontamination if hazardous material is spilt on or inside the equipment;
b) the manufacturer's recommendations for cleaning and, where necessary, decontamination,
together with the recognized generic names of recommended materials for cleaning and
decontamination.
The following wording shall appear in the documentation:
“Before using any cleaning or decontamination methods except those specified by the
manufacturer, the RESPONSIBLE BODY should check with the manufacturer that the proposed
method will not damage the equipment.”

If a manufacturer claims that an item can be decontaminated by steam sterilization, it shall be
capable of withstanding steam sterilization under at least one of the time-temperature
conditions given in Table 101. Cleaning and decontamination shall be necessary as a
safeguard when spectrometers and their accessories are maintained, repaired, or transferred.
Manufacturers shall provide a format for the RESPONSIBLE BODY to certify that such a treatment
has been carried out.
NOTE Information on decontaminants, their use, dilution and potential application is contained in the Laboratory
Biosafety Manual, published by the World Health Organization and the Biosafety in Microbiological and Biomedical
Laboratories, published by Centers for Disease Control and Prevention and National Institutes of Health,
Washington. There are also national guidelines that cover these areas.
Table 101 – Time-temperature conditions
Corresponding steam temperature
Absolute pressure Minimum hold time
Nominal Range
kPa min
°C °C
325 136,0 134 to 138  3
250 127,5 126 to 129 10
215 122,5 121 to 124 15
175 116,5 115 to 118 30
NOTE “Minimum hold time” means the time the contaminant is at the steam temperature.

5.4.5 Equipment maintenance and service
Addition:
Add, after the first paragraph, the following new paragraph:
Instructions shall include any instructions for examination and tests which are to be carried
out on parts and connections containing gases or liquids inside the equipment, in order to
check that no leakage is occurring.
6 Protection against electric shock
This clause of Part 1 is applicable except as follows:
6.8.3.1 The AC voltage test
Replacement:
Replace the first sentence with the following new sentence:
The voltage tester shall be capable of maintaining the test voltage throughout the test within
± 5 % of the specified value.
7 Protection against mechanical HAZARDS
This clause of Part 1 is applicable.
8 Resistance to mechanical stresses
This clause of Part 1 is applicable except as follows:

– 10 – IEC 61010-2-061:2018 © IEC 2018
8.1 General
Replacement:
Replace the text of item 3) with the following new text:
3) except for FIXED EQUIPMENT, for equipment with a mass over 100 kg, or for equipment
whose size and weight make unintentional movement unlikely and which is not moved in
NORMAL USE, the appropriate test of 8.3. The equipment is not operated during the tests.
9 Protection against the spread of fire
This clause of Part 1 is applicable.
10 Equipment temperature limits and resistance to heat
This clause of Part 1 is applicable, except as follows:
10.1 Surface temperature limits for protection against burns
Addition:
Add, before Table 19, the following new paragraph:
Protection shall be provided to minimize the possibility of unintentional direct access by the
OPERATOR or other persons in the vicinity of hot gases or plasma emerging from the
equipment. The protection shall comprise a protective structure, for example a chimney of
sufficient height to indicate its function (see also 5.2).
11 Protection against HAZARDS from fluids and solid foreign objects
This clause of Part 1 is applicable except as follows:
11.1 General
Replacement:
Replace the first paragraph with the following new paragraph:
Equipment shall be designed to give protection to the OPERATOR, other persons in the vicinity,
and the surrounding area against HAZARDS from direct contact with fluids encountered in
NORMAL USE, and from HAZARDS resulting from degradation of parts in contact with these.
Addition:
Add the following new subclauses:
11.101 Sampling probes
Sample fluid remaining on the outside of a sampling probe shall not cause a HAZARD to the
OPERATOR or other persons in the vicinity.
Conformity is checked by inspection and, if necessary, by a test using a suitable fluid, for
example a solution of fluorescein in water.

11.102 Gases
Components within the fuel-gas and oxidant paths shall be resistant to the gases specified by
the manufacturer, and to any associated solvent vapours. In the case of acetylene, a solvent,
for example acetone, will be present in the cylinder which contains the acetylene. Any special
national regulations for the safe use of gases and pressurized gas cylinders shall be
observed.
Conformity is checked by inspection and by examination of the specification of the materials
used.
11.103 Solvents
Parts in contact with solvents, including any which will be contacted by diffusion of vapour in
the stand-by condition, shall be resistant to the solvents specified by the manufacturer.
Conformity is checked by inspection and examination of the specification of the materials
used.
11.104 Parts in contact with acetylene
The following materials shall not be used for parts intended to be in contact with acetylene:
a) copper and copper alloys with a copper content of more than 70 %;
b) copper alloys (even with a copper content of less than 70 %) in the case of filters and
sieves;
c) silver and silver alloys, except for brazing. Silver filler used for brazing shall have a silver
content of less than 43 %, and a copper content of less than 21 %. The width of a solder
gap, where the silver filler might come into contact with acetylene, shall be less than 0,3
mm;
d) any other material which may form an explosive acetylide.
Conformity is checked by inspection of the materials used and their specification according to
the manufacturer.
12 Protection against radiation, including laser sources, and against sonic and
ultrasonic pressure
This clause of Part 1 is applicable except as follows:
12.5.1 Sound level
Addition:
Add, before Note 1, the following new paragraph:
Equipment which may generate occasional and unavoidable short-duration high sound
pressure levels, for example as a result of FLASH-BACK in a burner gas mixing chamber, shall
not produce a sound power level in excess of 140 dB(A).
Add, after Note 2, the following new note:
NOTE 101 Exposure to noise has been categorized in many countries by three action levels of “daily personal
noise exposure” at 85 dBA, 90 dBA, and 140 dBA. “Daily personal noise exposure” is defined as the total exposure
over the whole working day, taking into account the varying noise levels in the working environment and how long a
person is exposed to them, without taking account of whether ear protectors are worn.

– 12 – IEC 61010-2-061:2018 © IEC 2018
The peak action level of 140 dBA relates to cartridge operated tools, shooting guns, and similar loud explosive
noises. This action level is most important where workers are subject to a small number of loud impulses during an
otherwise quiet day.
Employers in many countries are required to reduce the risk of damage to the hearing of employees from exposure
to noise to the lowest level reasonably practicable. For example some countries require manufacturers to provide
suitable and efficient ear protectors on request, to employees whose daily personal exposure is between 80 dBA
and 90 dBA. For exposures above 90 dBA, exposure is required to be reduced to the lowest level reasonably
practicable without taking account of the use of ear protectors. At the same time, suitable ear protectors are to be
provided by the employer.
13 Protection against liberated gases and substances, explosion and implosion
This clause of Part 1 is applicable except as follows:
13.1 Poisonous and injurious gases and substances
Addition:
Add, after the second paragraph, the following new notes:
NOTE 101 Discharge of gases into a fume extraction system is not considered to be liberation (see 5.4.3 bb)).
NOTE 102 Absence of fluid from the type of GAS LOCK shown in Figure 101 is a typical SINGLE FAULT CONDITION.

Figure 101 – Example of a GAS LOCK
13.2.1 Components
Replacement:
Replace the first paragraph with the following new text:
If an explosion can occur either by FLASH-BACK of gases in a burner and mixing chamber, or if
components, if overheated or overcharged, are not provided with a pressure relief device,
protection for the OPERATOR and other persons shall be incorporated in the equipment (see
also 7.7).
Replace the conformity statement with the following new text:

Conformity is checked by inspection and, for burners, by test a) or b) as appropriate:
a) for burners designed to prevent FLASH-BACK, the flame is ignited and the flow of gas
mixture, maintained at a constant fuel-oxidant ratio, is gradually reduced to zero. The
flame shall extinguish without FLASH-BACK;
b) for other burners, the flame is ignited and the gas mixture adjusted so as to generate the
FLASH-BACK.
maximum energy flame. Ignition is then initiated inside the burner to simulate
No parts shall be expelled outside the equipment.
Addition:
Add the following new subclauses:
13.101 Flame ignition system
For equipment which has an automatically controlled ignition system, the ignition procedure
when started shall either cause the flame to ignite in a time less than that required for 0,8 l of
fuel-gas to be delivered, or the ignition procedure shall be ended automatically and the
equipment returned to stand-by condition. For equipment which does not have an
automatically controlled ignition system, it shall not be possible to open the valves which
control the flows of fuel-gas and oxidant-gas (except compressed air) for purposes of igniting
the flame, unless a manually operated device as described below is provided.
An acceptable manually operated device is one which satisfies the following criteria:
a) it shall override the flame-failure gas shut-off device for not longer than the time for 0,8 l
of fuel-gas to be delivered;
NOTE For fuel-gas, the litre (l) will be understood as that which is measured at 0 °C and 0,1 MPa (1 bar).
b) it shall allow the gases to flow to permit the necessary adjustment of the flow rates before
the ignition system is operated;
c) if ignition is not achieved, the gas flow valves shall close as soon as the device
is released.
Conformity is checked by fitting a gas flow-rate meter in the fuel-gas pipe and measuring both
the rate of gas escaping during the ignition procedure in NORMAL USE, and the time from
opening the fuel-gas inlet valve to closing it after ignition failures. The gas volume is
calculated from these measurements.
13.102 Non-interchangeability of gas connectors
Connectors available to the OPERATOR for fuel-gas shall not be interchangeable with
connectors for oxidant-gas.
Conformity is checked by inspection.
13.103 Interchangeable burners
In equipment with interchangeable burners (for example to permit the use of either air or
nitrous oxide as the oxidant gas) and where a HAZARD could arise if the incorrect gas is fed to
a burner, it shall only be possible to operate with a gas appropriate to the burner fitted.
Conformity is checked by fitting, in turn, each available burner specified by the manufacturer,
and confirming that only the gases specified for a burner can flow to the burner.
14 Components and subassemblies
This clause of Part 1 is applicable.

– 14 – IEC 61010-2-061:2018 © IEC 2018
15 Protection by interlocks
This clause of Part 1 is applicable except as follows:
15.1 General
Addition:
Add, after the first paragraph, the following new text:
As an alternative method, for interlock systems containing electric/electronic or programmable
components (E/E/P components) the reliability and design requirements can be determined by
applying for example IEC 62061 (SIL) or ISO 13849 (all parts) (PL) or other solutions
providing equivalent functional safety.
16 HAZARDS resulting from application
This clause of Part 1 is applicable.
17 RISK assessment
This clause of Part 1 is applicable.

Annexes
The annexes of Part 1 are applicable except as follows:

– 16 – IEC 61010-2-061:2018 © IEC 2018
Annex A
(normative)
Routine tests
Addition:
Add the following new clause:
F.101 Gas leakage test
A test is carried out to measure leakage of gas from the internal system leading to the burner.
The worst-case gas intended to be used in that internal system is applied at 1,2 times the
maximum inlet pressure for NORMAL USE. An alternative gas (for example helium) can be used
provided that the results, when converted, are equivalent to the results had the worst-case
gas been used. Leakage shall not exceed 5 ml/min.

Annex L
(informative)
Index of defined terms
Addition:
Add the following new defined terms to the list:
FLASH-BACK . 3.5.101
GAS LOCK . 3.2.102
SPRAY CHAMBER . 3.2.101

– 18 – IEC 61010-2-061:2018 © IEC 2018
Bibliography
The Bibliography of Part 1 is applicable, except as follows:
Addition:
Add the following new references:
IEC 62061, Safety of machinery – Functional safety of safety-related electrical, electronic and
programmable electronic control systems
ISO 13849 (all parts), Safety of machinery – Safety-related parts of control systems
World Health Organization, Laboratory Biosafety Manual
Centers for Disease Control and Prevention and National Institutes of Health, Biosafety in
Microbiological and Biomedical Laboratories, Washington

___________
– 20 – IEC 61010-2-061:2018 © IEC 2018
SOMMAIRE
AVANT-PROPOS . 21
1 Domaine d'application et objet . 23
2 Références normatives . 23
3 Termes et définitions . 23
4 Essais . 24
5 Marquage et documentation . 24
6 Protection contre les chocs électriques . 27
7 Protection contre les DANGERS mécaniques . 28
8 Résistance aux contraintes mécaniques . 28
9 Protection contre la propagation du feu . 28
10 Limites de température de l’appareil et résistance à la chaleur . 28
11 Protection contre les DANGERS des fluides et des corps solides étrangers . 28
12 Protection contre les radiations, y compris les sources laser, et contre la pression
acoustique et ultrasonique . 30
13 Protection contre les émissions de gaz et substances, les explosions et les
implosions . 30
14 Composants et sous-ensembles . 32
15 Protection par systèmes de verrouillage . 32
16 DANGERS résultant de l’application . 33
17 Appréciation du RISQUE . 33
Annexes . 34
Annexe A (normative) Essais individuels de série . 35
Annexe L (informative) Index des termes définis . 36
Bibliographie . 37

Figure 101 – Exemple de DISPOSITIF DE RETENUE DE GAZ . 31

Tableau 101 – Conditions de température-temps . 27

COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
EXIGENCES DE SÉCURITÉ POUR APPAREILS ÉLECTRIQUES
DE MESURAGE, DE RÉGULATION ET DE LABORATOIRE –

Partie 2-061: Exigences particulières pour spectromètres atomiques
de laboratoire avec vaporisation et ionisation thermiques

AVANT-PROPOS
1) La Commission Electrotechnique Internationale (IEC) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de l’IEC). L’IEC a pour
objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines
de l'électricité et de l'électronique. A cet effet, l’IEC – entre autres activités – publie des Normes
internationales, des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au
public (PAS) et des Guides (ci-après dénommés "Publication(s) de l’IEC"). Leur élaboration est confiée à des
comités d'études, aux travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les
organisations internationales, gouvernementales et non gouvernementa
...
