Radio-frequency connectors - Part 59: Sectional specification for type L32-4 and L32-5 threaded multi-pin radio-frequency connectors

IEC 61169-59:2017, which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for type L32-4 and L32-5 threaded multi-pin radio frequency connectors with anti mismating mechanism, 50 Ω nominal impedance. The operating frequency of each channel is up to 4 GHz. These connectors have been widely used in mobile communication system like TD-SCDMA and TD-LTE, and can also be used in some similar equipment.
It also prescribes mating face dimensions for general connectors-grade 2, gauging information and tests selected from IEC 61169-1, applicable to all detail specifications relating to type L32-4 and L32-5 multi-pin connectors.
This sectional specification provides information and rules for the preparation of detail specifications for type L32-4 and L32-5 multi-pin connectors together with the pro forma blank detail specification.
This specification indicates the recommended performance characteristics to be considered when writing a detail specification and it covers test schedules and inspection requirements for assessment levels M and H.

Connecteurs pour fréquences radioélectriques - Partie 59: Spécification intermédiaire relative aux connecteurs pour fréquences radioélectriques multibroches filetés de type L32-4 et L32-5

l’IEC 61169-59:2017, qui est une spécification intermédiaire (SS), fournit des informations et des règles pour l'établissement de spécifications particulières (DS) relatives aux connecteurs pour fréquences radioélectriques multibroches filetés de type L32-4 et L32-5 disposant d’un mécanisme de protection contre les erreurs d’accouplement et présentant une impédance nominale de 50 Ω. La fréquence de fonctionnement de chaque canal s’étend jusqu’à 4 GHz. Ces connecteurs sont couramment utilisés au sein de systèmes de communication mobile tels que TD-SCDMA et TD-LTE, et peuvent également être utilisés dans d’autres matériels similaires.
La présente spécification intermédiaire prescrit également les dimensions de la face d’accouplement pour les connecteurs à usage général de grade 2, les informations relatives au calibre et les essais choisis à partir de l’IEC 61169-1, applicables à toutes les spécifications particulières relatives aux connecteurs multibroches de type L32-4 et L32-5.
La présente spécification intermédiaire fournit les informations et les règles destinées à l'établissement de spécifications particulières pour les connecteurs multibroches de type L32-4 et L32-5 ainsi que la spécification particulière-cadre pro forma.
Cette spécification indique les caractéristiques de performance recommandées à prendre en compte lors de l’écriture d’une spécification particulière et elle couvre les programmes d’essai et les exigences de contrôle pour les niveaux d’assurance M et H.

General Information

Status
Published
Publication Date
21-May-2017
Current Stage
PPUB - Publication issued
Start Date
22-May-2017
Completion Date
22-May-2017
Ref Project

Buy Standard

Standard
IEC 61169-59:2017 - Radio-frequency connectors - Part 59: Sectional specification for type L32-4 and L32-5 threaded multi-pin radio-frequency connectors
English language
32 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
IEC 61169-59:2017 - Radio-frequency connectors - Part 59: Sectional specification for type L32-4 and L32-5 threaded multi-pin radio-frequency connectors
English and French language
69 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 61169-59
Edition 1.0 2017-05
INTERNATIONAL
STANDARD
colour
inside
Radio-frequency connectors –
Part 59: Sectional specification for type L32-4 and L32-5 threaded multi-pin
radio-frequency connectors
IEC 61169-59:2017-05(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2017 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
---------------------- Page: 2 ----------------------
IEC 61169-59
Edition 1.0 2017-05
INTERNATIONAL
STANDARD
colour
inside
Radio-frequency connectors –
Part 59: Sectional specification for type L32-4 and L32-5 threaded multi-pin
radio-frequency connectors
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.120.30 ISBN 978-2-8322-4398-5

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC 61169-59:2017  IEC 2017

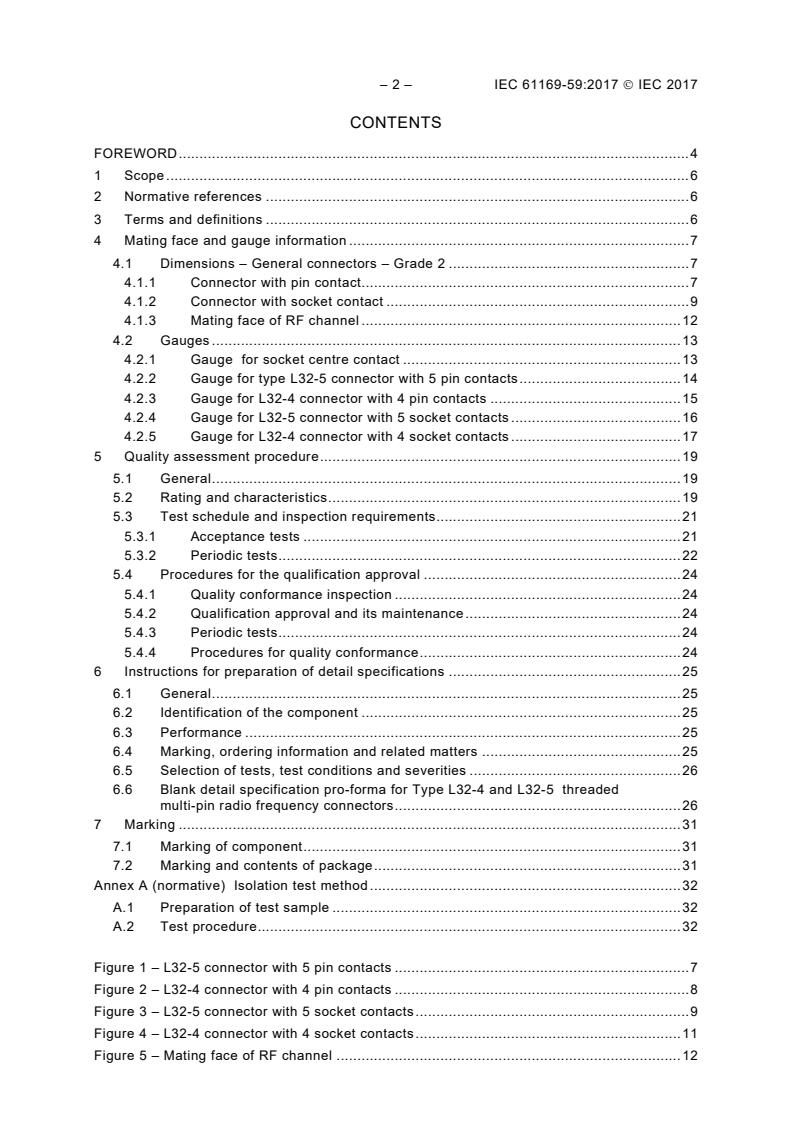

CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 6

4 Mating face and gauge information .................................................................................. 7

4.1 Dimensions – General connectors – Grade 2 .......................................................... 7

4.1.1 Connector with pin contact ............................................................................... 7

4.1.2 Connector with socket contact ......................................................................... 9

4.1.3 Mating face of RF channel ............................................................................. 12

4.2 Gauges ................................................................................................................. 13

4.2.1 Gauge for socket centre contact ................................................................... 13

4.2.2 Gauge for type L32-5 connector with 5 pin contacts ....................................... 14

4.2.3 Gauge for L32-4 connector with 4 pin contacts .............................................. 15

4.2.4 Gauge for L32-5 connector with 5 socket contacts ......................................... 16

4.2.5 Gauge for L32-4 connector with 4 socket contacts ......................................... 17

5 Quality assessment procedure ....................................................................................... 19

5.1 General ................................................................................................................. 19

5.2 Rating and characteristics ..................................................................................... 19

5.3 Test schedule and inspection requirements........................................................... 21

5.3.1 Acceptance tests ........................................................................................... 21

5.3.2 Periodic tests ................................................................................................. 22

5.4 Procedures for the qualification approval .............................................................. 24

5.4.1 Quality conformance inspection ..................................................................... 24

5.4.2 Qualification approval and its maintenance .................................................... 24

5.4.3 Periodic tests ................................................................................................. 24

5.4.4 Procedures for quality conformance ............................................................... 24

6 Instructions for preparation of detail specifications ........................................................ 25

6.1 General ................................................................................................................. 25

6.2 Identification of the component ............................................................................. 25

6.3 Performance ......................................................................................................... 25

6.4 Marking, ordering information and related matters ................................................ 25

6.5 Selection of tests, test conditions and severities ................................................... 25

6.6 Blank detail specification pro-forma for Type L32-4 and L32-5 threaded

multi-pin radio frequency connectors ..................................................................... 26

7 Marking ......................................................................................................................... 31

7.1 Marking of component ........................................................................................... 31

7.2 Marking and contents of package .......................................................................... 31

Annex A (normative) Isolation test method ........................................................................... 32

A.1 Preparation of test sample .................................................................................... 32

A.2 Test procedure ...................................................................................................... 32

Figure 1 – L32-5 connector with 5 pin contacts ....................................................................... 7

Figure 2 – L32-4 connector with 4 pin contacts ....................................................................... 8

Figure 3 – L32-5 connector with 5 socket contacts .................................................................. 9

Figure 4 – L32-4 connector with 4 socket contacts ................................................................ 11

Figure 5 – Mating face of RF channel ................................................................................... 12

---------------------- Page: 4 ----------------------
IEC 61169-59:2017  IEC 2017 – 3 –

Figure 6 – Gauge for socket contact of RF channel ............................................................... 13

Figure 7 – Gauge for L32-5 connector with 5 pin contacts ..................................................... 14

Figure 8 – Gauge for L32-4 connector with 4 pin contacts ..................................................... 15

Figure 9 – Gauge for L32-5 connector with 5 socket contacts ............................................... 16

Figure 10 – Gauge for L32-4 connector with 4 socket contacts ............................................. 18

Table 1 – Dimensions of L32-5 connector with 5 pin contacts ................................................. 8

Table 2 – Dimensions of L32-4 connector with 4 pin contacts ................................................. 9

Table 3 – Dimensions of L32-5 connector with 5 socket contacts .......................................... 10

Table 4 – Dimensions of L32-4 connector with 4 socket contacts .......................................... 11

Table 5 – Dimensions of the mating face of RF channel ........................................................ 13

Table 6 – Dimensions of gauge for socket contact ................................................................ 14

Table 7 – Dimensions of gauge L32-5 connector with 5 pin contacts ..................................... 15

Table 8 – Dimensions of gauge L32-4 connector with 4 pin contacts ..................................... 16

Table 9 – Dimensions of gauge for L32-5 connector with 5 socket contacts ......................... 17

Table 10 – Dimensions of gauge for L32-4 connector with 4 socket contacts ....................... 18

Table 11 – Rating and characteristics ................................................................................... 20

Table 12 – Acceptance tests ................................................................................................. 22

Table 13 – Periodic tests ...................................................................................................... 23

---------------------- Page: 5 ----------------------
– 4 – IEC 61169-59:2017  IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 59: Sectional specification for type L32-4 and L32-5
threaded multi-pin radio-frequency connectors
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61169-59 has been prepared by subcommittee 46F: RF and

microwave passive components, of IEC technical committee 46: Cables, wires, waveguides,

RF connectors, RF and microwave passive components and accessories.
The text of this International Standard is based on the following documents:
CDV Report on voting
46F/351/CDV 46F/362/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.
---------------------- Page: 6 ----------------------
IEC 61169-59:2017  IEC 2017 – 5 –

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts of the IEC 61169 series, under the general title: Radio-frequency connectors,

can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 7 ----------------------
– 6 – IEC 61169-59:2017  IEC 2017
RADIO-FREQUENCY CONNECTORS –
Part 59: Sectional specification for type L32-4 and L32-5
threaded multi-pin radio-frequency connectors
1 Scope

This part of IEC 61169, which is a sectional specification (SS), provides information and rules

for the preparation of detail specifications (DS) for type L32-4 and L32-5 threaded multi-pin

radio frequency connectors with anti mismating mechanism, 50 Ω nominal impedance. The

operating frequency of each channel is up to 4 GHz. These connectors have been widely used

in mobile communication system like TD-SCDMA and TD-LTE, and can also be used in some

similar equipment.

It also prescribes mating face dimensions for general connectors-grade 2, gauging information

and tests selected from IEC 61169-1, applicable to all detail specifications relating to type

L32-4 and L32-5 multi-pin connectors.

This sectional specification provides information and rules for the preparation of detail

specifications for type L32-4 and L32-5 multi-pin connectors together with the pro forma blank

detail specification.

This specification indicates the recommended performance characteristics to be considered

when writing a detail specification and it covers test schedules and inspection requirements

for assessment levels M and H.
NOTE Metric dimension are original dimensions.
All undimensioned pictorial configurations are for reference purpose only.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 61169-1:2013, Radio frequency connectors – Part 1: Generic specification – General

requirements and measuring methods

IEC 61726, Cable assemblies, cables, connectors and passive microwave components –

Screening attenuation measurement by the reverberation chamber method

IEC 62037 (all parts), Passive RF and microwave devices, intermodulation level measurement

3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
---------------------- Page: 8 ----------------------
IEC 61169-59:2017  IEC 2017 – 7 –
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Mating face and gauge information
4.1 Dimensions – General connectors – Grade 2
4.1.1 Connector with pin contact
4.1.1.1 L32-5 connector with 5 pin contacts

The mating face of L32-5 connector with 5 pin contacts is shown in Figure 1 and its

dimensions are shown in Table 1.
Main groove
36°
Note6
144° 1
108°
5Pin EQS
0.1 A B C
Note5
180°
2Supplementary groove
Note3
Note2
Note1
Note4
216°
IEC
NOTE 1 Mechanical and electrical reference plane.
NOTE 2 Chamfer of three grooves is optional.

NOTE 3 The mating face of RF channel with pin contact is shown in Figure 5a) in 4.1.3 and its dimensions are

shown in Table 5.
NOTE 4 The shape of seal ring is optional.
NOTE 5 Anti-mismating pin.

NOTE 6 The initial position number of RF channel with pin contact and the other positions numbered clockwise.

Figure 1 – L32-5 connector with 5 pin contacts
---------------------- Page: 9 ----------------------
– 8 – IEC 61169-59:2017  IEC 2017
Table 1 – Dimensions of L32-5 connector with 5 pin contacts
Ref. mm
Min. Max.
a 6,0 6,1
b 6,0 6,2
c 7,5 7,6
d M32X1,5-6g
e 14,4 14,5
f 6,0 –
g 9,5 9,7
h 24,0 –
k 27,0 27,1
m 2,1 2,2
n 16,5
4.1.1.2 L32-4 connector with 4 pin contacts

The mating face of L32-4 connector with 4 pin contacts is shown in Figure 2 and its

dimensions are shown in Table 2.
D-D
Main groove
Note6
36°
Note5
144°
108°
5Pin EQS
0.1
A B C
180°
Supplementary groove
Note3
Note2
Note4
Note1
216°
IEC
NOTE 1 Mechanical and electrical reference plane.
NOTE 2 Chamfer of three grooves is optional.

NOTE 3 The mating face of RF channel with pin contact is shown in Figure 5a) in 4.1.3 and its dimensions are

shown in Table 5.
NOTE 4 The shape of seal ring is optional.
NOTE 5 Anti-mismating pin.

NOTE 6 The initial position number of RF channel with pin contact and the other positions numbered clockwise.

Figure 2 – L32-4 connector with 4 pin contacts
---------------------- Page: 10 ----------------------
IEC 61169-59:2017  IEC 2017 – 9 –
Table 2 – Dimensions of L32-4 connector with 4 pin contacts
Ref. mm
Min. Max.
a 6,0 6,1
b 6,0 6,2
c 7,5 7,6
d M32X1,5-6g
e 14,4 14,5
f 6,0 --
g 9,5 9,7
h 24,0 --
k 27,0 27,1
m 2,1 2,2
n 16,5
16,52
4.1.2 Connector with socket contact
4.1.2.1 L32-5 connector with 5 socket contacts

The mating face of L32-5 connector with 5 socket contacts is shown in Figure 3 and its

dimensions are shown in Table 3.
Main key
Note5 36°
Note4
144°
108°
5Socket EQS
0.1 A B C
Note2
2Supplementary key
180°
Note3
Note1
216°
IEC
NOTE 1 Mechanical and electrical reference plane.

NOTE 2 The mating face of RF channel with socket contact is shown in Figure 5b) in 4.1.3 and its dimensions are

shown in Table 5.
NOTE 3 Anti-mismating socket.
NOTE 4 The shape of key of shell is optional.

NOTE 5 The initial position number of RF channel with socket contact and the other positions numbered anti-

clockwise.
Figure 3 – L32-5 connector with 5 socket contacts
---------------------- Page: 11 ----------------------
– 10 – IEC 61169-59:2017  IEC 2017
Table 3 – Dimensions of L32-5 connector with 5 socket contacts
Ref. mm
Min. Max.
a 6,25 6,35
b 7,0 --
c 7,7 7,8
d M32X1,5-7H
e 14,2 14,3
f 7,6 8,0
g -- 0,8
h 6,8 --
i 0,08 0,3
j 11,5 11,7
k 26,6 26,7
l 34,9 35,0
m 1,9 2,0
n 16,5
16,52
p 5,8 6,1
4.1.2.2 L32-4 connector with 4 socket contacts

The mating face of L32-4 connector with 4 socket contacts is shown in Figure 4 and its

dimensions are shown in Table 4.
---------------------- Page: 12 ----------------------
IEC 61169-59:2017  IEC 2017 – 11 –
D-D
Main key
Note3
36°
Note4
Note5
144°
108°
5Socket EQS
180°
0.1 A B C
Note2
2Supplementary key
Note1
216°
IEC
NOTE 1 Mechanical and electrical reference plane.

NOTE 2 The mating face of RF channel with socket contact is shown in Figure 5b) in 4.1.3 and its dimensions are

shown in Table 5.
NOTE 3 Anti-mismating socket.
NOTE 4 The shape of key of shell is optional.

NOTE 5 The initial position number of RF channel with socket contact and the other positions numbered anti-

clockwise.
Figure 4 – L32-4 connector with 4 socket contacts
Table 4 – Dimensions of L32-4 connector with 4 socket contacts
Ref. mm
Min. Max.
a 6,25 6,35
b 7,0 –
c 7,7 7,8
d M32X1,5-7H
e 14,2 14,3
f 7,6 8,0
g – 0,8
h 6,8 –
i 0,08 0,3
j 11,5 11,7
k 26,6 26,7
l 34,9 35,0
m 1,9 2,0
n 16,5 16,52
p 5,8 6,1
---------------------- Page: 13 ----------------------
– 12 – IEC 61169-59:2017  IEC 2017
4.1.3 Mating face of RF channel

The mating face of RF channel with pin contact is shown in Figure 5a), the mating face of RF

channel with socket contact is shown in Figure 5b), their dimensions are shown as Table 5.

Note1
60°
IEC
a) RF channel with pin contact
Note1
Detail A
Note2
Detail A
IEC
b) RF channel with socket contact
NOTE 1 Mechanical and electrical reference plane.

NOTE 2 The position of floating outer conductor in free state and its slot design is optional.

Figure 5 – Mating face of RF channel
---------------------- Page: 14 ----------------------
IEC 61169-59:2017  IEC 2017 – 13 –
Table 5 – Dimensions of the mating face of RF channel
Ref. mm
Min. Max.
a 0,00 0,25
b 0,00 0,25
c 1,27 –
d – 2,54
f 0,902 0,935
g 0,00 0,10
h 0,00 0,25
i 0,08 0,30
j 2,67 –
k 0,00 0,25
– –
– –
0,3 –

a It is assumed that the mechanical and electrical requirements are met with the chosen dimension for pin

Φ0,902 mm to Φ0,935 mm,

b Slot design is optional, as soon as it meets the mechanical and electrical requirements.

c 0,2 mm to 0,3 mm of radial displacement is allowed when mating of RF channel with pin contact.

4.2 Gauges
4.2.1 Gauge for socket centre contact

The gauge for socket contact of RF channel is shown in Figure 6 and its dimensions are

shown in Table 6.
IEC
Figure 6 – Gauge for socket contact of RF channel
---------------------- Page: 15 ----------------------
– 14 – IEC 61169-59:2017  IEC 2017
Table 6 – Dimensions of gauge for socket contact
Ref. Gauge A Gauge B Gauge C
(For sizing purpose) (For insertion purpose)
(For retention purpose)
Mass of gauge:28 g
mm mm mm
Min. Max. Min. Max. Min. Max.
a 0,950 0,955 0,935 0,940 0,899 0,902
b 0,76 1,14 1,27 1,91 1,27 1,91
Material: steel, polished. Surface roughness: Ra ≤0,4 μm.
Test procedure:
a) Sizing test

The gauge A should insert the socket centre contact of RF channel three times; this is a

sizing operation.
b) Insertion test

Following the sizing operation, if specified in the detail specification, the force necessary

to insert Gauge B fully into the socket centre contact shall be measured. When this test is

required, the insertion force shall not exceed 8,9 N.
c) Retention test

After sizing or insertion test, the gauge C shall be inserted into the socket centre contact.

The contact shall retain the mass of the gauge C in a vertical downward position.

4.2.2 Gauge for type L32-5 connector with 5 pin contacts

The gauge for type L32-5 connector with 5 pin contacts is shown in Figure 7 and its

dimensions are shown in Table 7.
Main key
Note2 36°
Detail A
144°
108°
5Socket EQS
0.08 A B C
180°
Note1
2Supplementary key
Detail A
216°
IEC
NOTE 1 Mechanical and electrical reference plane.
NOTE 2 Anti-mismating socket.
Figure 7 – Gauge for L32-5 connector with 5 pin contacts
---------------------- Page: 16 ----------------------
IEC 61169-59:2017  IEC 2017 – 15 –
Table 7 – Dimensions of gauge L32-5 connector with 5 pin contacts
Ref. mm
Min. Max.
a 6,25 6,35
b 7,0 –
c 0,935 0,940
d 2,67 –
e 14,4 14,5
g – 0,8
k 26,65 26,70
m 1,95 2,00
n 16,48 16,52
Test procedure:

Mechanical compatibility test: The gauge should insert the L32-5 connector with 5 pin

contacts three times, and then measure the insertion force; the insertion force should be not

less than 50 N.
4.2.3 Gauge for L32-4 connector with 4 pin contacts

The gauge for L32-4 connector with 4 pin contacts is shown in Figure 8 and its dimensions

are shown in Table 8.
E-E
Main key
36°
Note2
Detail D
144°
108°
5Socket EQS
0.08 A B C
180°
2Supplementary key
Note1
Detail D
216°
IEC
NOTE 1 Mechanical and electrical reference plane.
NOTE 2 Anti-mismating socket.
Figure 8 – Gauge for L32-4 connector with 4 pin contacts
---------------------- Page: 17 ----------------------
– 16 – IEC 61169-59:2017  IEC 2017
Table 8 – Dimensions of gauge L32-4 connector with 4 pin contacts
Ref. mm
Min. Max.
a 6,25 6,35
b 7,0 –
c 0,935 0,940
d 2,67 –
e 14,4 14,5
g – 0,8
k 26,65 26,70
m 1,95 2,00
n 16,48 16,52
Test procedure:

Mechanical compatibility test: The gauge should insert the L32-4 connector with 4 pin

contacts three times, and then measure the insertion force; the insertion force should be not

less than 50 N.
4.2.4 Gauge for L32-5 connector with 5 socket contacts

The gauge for L32-5 connector with 5 socket contacts is shown in Figure 9 and its dimensions

are shown in Table 9.
Main groove
36°
Detail D
144°
108°
5Pin EQS
0.08 A B C Note3
180°
Note2
2Supplementary groove
Detail D
Note1
216°
IEC
NOTE 1 Mechanical and electrical reference plane.
NOTE 2 Chamfer of three grooves is optional.
NOTE 3 Anti-mismating pin.
Figure 9 – Gauge for L32-5 connector with 5 socket contacts
---------------------- Page: 18 ----------------------
IEC 61169-59:2017  IEC 2017 – 17 –
Table 9 – Dimensions of gauge for L32-5 connector
with 5 socket contacts
Ref. mm
Min. Max.
a 6,0 6,1
b 6,0 6,2
c 7,5 7,6
d 29,8 30,0
e 14,4 14,5
g 6,0 –
k 27,00 27,05
m 2,10 2,15
n 16,48 16,52
w 0,899 0,902
x 1,27 1,91
y – 2,54
z 0,10 0,30
Test procedure:

Mechanical compatibility test: The gauge should insert the L32-5 connector with socket

contact three times, and then measure the insertion force; the insertion force should be not

less than 50 N.
4.2.5 Gauge for L32-4 connector with 4 socket contacts

The gauge for L32-4 connector with 4 socket contacts is shown in Figure 10 and its

dimensions are shown in Table 10.
---------------------- Page: 19 ----------------------
– 18 – IEC 61169-59:2017  IEC 2017
B E-E
Main groove
36°
Note3
Detail D
144°
108° C
5Pin EQS
0.08 A B C
180°
2Supplementary groove
Note2
Detail D
Note1
216°
IEC
NOTE 1 Mechanical and electrical reference plane.
NOTE 2 Chamfer of three grooves is optional.
NOTE 3 Anti-mismating pin.
Figure 10 – Gauge for L32-4 connector with 4 socket contacts
Table 10 – Dimensions of gauge for L32-4 connector
with 4 socket contacts
Ref. mm
Min. Max.
a 6,0 6,1
b 6,0 6,2
c 7,5 7,6
d 29,8 30,0
e 14,4 14,5
g 6,0 –
k 27,00 27,05
m 2,10 2,15
n 16,48 16,52
w 0,899 0,902
x 1,27 1,91
y – 2,54
z 0,10 0,30
Test procedure:

Mechanical compatibility test: The gauge should insert the L32-4 connector with 4 socket

contacts three times, and then measure the insertion force; the insertion force should be not

less than 50 N.
---------------------- Page: 20 ----------------------
IEC
...

IEC 61169-59
Edition 1.0 2017-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Radio-frequency connectors –
Part 59: Sectional specification for type L32-4 and L32-5 threaded multi-pin
radio-frequency connectors
Connecteurs pour fréquences radioélectriques –
Partie 59: Spécification intermédiaire relative aux connecteurs pour fréquences
radioélectriques multibroches filetés de type L32-4 et L32-5
IEC 61169-59:2017-05(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2017 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 61169-59
Edition 1.0 2017-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Radio-frequency connectors –
Part 59: Sectional specification for type L32-4 and L32-5 threaded multi-pin
radio-frequency connectors
Connecteurs pour fréquences radioélectriques –
Partie 59: Spécification intermédiaire relative aux connecteurs pour fréquences
radioélectriques multibroches filetés de type L32-4 et L32-5
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.120.30 ISBN 978-2-8322-8806-1

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 61169-59:2017  IEC 2017
CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 6

4 Mating face and gauge information .................................................................................. 7

4.1 Dimensions – General connectors – Grade 2 .......................................................... 7

4.1.1 Connector with pin contact ............................................................................... 7

4.1.2 Connector with socket contact ......................................................................... 9

4.1.3 Mating face of RF channel ............................................................................. 12

4.2 Gauges ................................................................................................................. 13

4.2.1 Gauge for socket centre contact ................................................................... 13

4.2.2 Gauge for type L32-5 connector with 5 pin contacts ....................................... 14

4.2.3 Gauge for L32-4 connector with 4 pin contacts .............................................. 15

4.2.4 Gauge for L32-5 connector with 5 socket contacts ......................................... 16

4.2.5 Gauge for L32-4 connector with 4 socket contacts ......................................... 17

5 Quality assessment procedure ....................................................................................... 19

5.1 General ................................................................................................................. 19

5.2 Rating and characteristics ..................................................................................... 19

5.3 Test schedule and inspection requirements........................................................... 21

5.3.1 Acceptance tests ........................................................................................... 21

5.3.2 Periodic tests ................................................................................................. 22

5.4 Procedures for the qualification approval .............................................................. 24

5.4.1 Quality conformance inspection ..................................................................... 24

5.4.2 Qualification approval and its maintenance .................................................... 24

5.4.3 Periodic tests ................................................................................................. 24

5.4.4 Procedures for quality conformance ............................................................... 24

6 Instructions for preparation of detail specifications ........................................................ 25

6.1 General ................................................................................................................. 25

6.2 Identification of the component ............................................................................. 25

6.3 Performance ......................................................................................................... 25

6.4 Marking, ordering information and related matters ................................................ 25

6.5 Selection of tests, test conditions and severities ................................................... 26

6.6 Blank detail specification pro-forma for Type L32-4 and L32-5 threaded

multi-pin radio frequency connectors ..................................................................... 26

7 Marking ......................................................................................................................... 31

7.1 Marking of component ........................................................................................... 31

7.2 Marking and contents of package .......................................................................... 31

Annex A (normative) Isolation test method ........................................................................... 32

A.1 Preparation of test sample .................................................................................... 32

A.2 Test procedure ...................................................................................................... 32

Figure 1 – L32-5 connector with 5 pin contacts ....................................................................... 7

Figure 2 – L32-4 connector with 4 pin contacts ....................................................................... 8

Figure 3 – L32-5 connector with 5 socket contacts .................................................................. 9

Figure 4 – L32-4 connector with 4 socket contacts ................................................................ 11

Figure 5 – Mating face of RF channel ................................................................................... 12

---------------------- Page: 4 ----------------------
IEC 61169-59:2017  IEC 2017 – 3 –

Figure 6 – Gauge for socket contact of RF channel ............................................................... 13

Figure 7 – Gauge for L32-5 connector with 5 pin contacts ..................................................... 14

Figure 8 – Gauge for L32-4 connector with 4 pin contacts ..................................................... 15

Figure 9 – Gauge for L32-5 connector with 5 socket contacts ............................................... 16

Figure 10 – Gauge for L32-4 connector with 4 socket contacts ............................................. 18

Table 1 – Dimensions of L32-5 connector with 5 pin contacts ................................................. 8

Table 2 – Dimensions of L32-4 connector with 4 pin contacts ................................................. 9

Table 3 – Dimensions of L32-5 connector with 5 socket contacts .......................................... 10

Table 4 – Dimensions of L32-4 connector with 4 socket contacts .......................................... 11

Table 5 – Dimensions of the mating face of RF channel ........................................................ 13

Table 6 – Dimensions of gauge for socket contact ................................................................ 14

Table 7 – Dimensions of gauge L32-5 connector with 5 pin contacts ..................................... 15

Table 8 – Dimensions of gauge L32-4 connector with 4 pin contacts ..................................... 16

Table 9 – Dimensions of gauge for L32-5 connector with 5 socket contacts ......................... 17

Table 10 – Dimensions of gauge for L32-4 connector with 4 socket contacts ....................... 18

Table 11 – Rating and characteristics ................................................................................... 20

Table 12 – Acceptance tests ................................................................................................. 22

Table 13 – Periodic tests ...................................................................................................... 23

---------------------- Page: 5 ----------------------
– 4 – IEC 61169-59:2017  IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 59: Sectional specification for type L32-4 and L32-5
threaded multi-pin radio-frequency connectors
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61169-59 has been prepared by subcommittee 46F: RF and

microwave passive components, of IEC technical committee 46: Cables, wires, waveguides,

RF connectors, RF and microwave passive components and accessories.
The text of this International Standard is based on the following documents:
CDV Report on voting
46F/351/CDV 46F/362/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.
---------------------- Page: 6 ----------------------
IEC 61169-59:2017  IEC 2017 – 5 –

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts of the IEC 61169 series, under the general title: Radio-frequency connectors,

can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 7 ----------------------
– 6 – IEC 61169-59:2017  IEC 2017
RADIO-FREQUENCY CONNECTORS –
Part 59: Sectional specification for type L32-4 and L32-5
threaded multi-pin radio-frequency connectors
1 Scope

This part of IEC 61169, which is a sectional specification (SS), provides information and rules

for the preparation of detail specifications (DS) for type L32-4 and L32-5 threaded multi-pin

radio frequency connectors with anti mismating mechanism, 50 Ω nominal impedance. The

operating frequency of each channel is up to 4 GHz. These connectors have been widely used

in mobile communication system like TD-SCDMA and TD-LTE, and can also be used in some

similar equipment.

It also prescribes mating face dimensions for general connectors-grade 2, gauging information

and tests selected from IEC 61169-1, applicable to all detail specifications relating to type

L32-4 and L32-5 multi-pin connectors.

This sectional specification provides information and rules for the preparation of detail

specifications for type L32-4 and L32-5 multi-pin connectors together with the pro forma blank

detail specification.

This specification indicates the recommended performance characteristics to be considered

when writing a detail specification and it covers test schedules and inspection requirements

for assessment levels M and H.
NOTE Metric dimension are original dimensions.
All undimensioned pictorial configurations are for reference purpose only.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 61169-1:2013, Radio frequency connectors – Part 1: Generic specification – General

requirements and measuring methods

IEC 61726, Cable assemblies, cables, connectors and passive microwave components –

Screening attenuation measurement by the reverberation chamber method

IEC 62037 (all parts), Passive RF and microwave devices, intermodulation level measurement

3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
---------------------- Page: 8 ----------------------
IEC 61169-59:2017  IEC 2017 – 7 –
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Mating face and gauge information
4.1 Dimensions – General connectors – Grade 2
4.1.1 Connector with pin contact
4.1.1.1 L32-5 connector with 5 pin contacts

The mating face of L32-5 connector with 5 pin contacts is shown in Figure 1 and its

dimensions are shown in Table 1.
Main groove
36°
Note6
144° 1
108°
5Pin EQS
0.1 A B C
Note5
180°
2Supplementary groove
Note3
Note2
Note1
Note4
216°
IEC
NOTE 1 Mechanical and electrical reference plane.
NOTE 2 Chamfer of three grooves is optional.

NOTE 3 The mating face of RF channel with pin contact is shown in Figure 5a) in 4.1.3 and its dimensions are

shown in Table 5.
NOTE 4 The shape of seal ring is optional.
NOTE 5 Anti-mismating pin.

NOTE 6 The initial position number of RF channel with pin contact and the other positions numbered clockwise.

Figure 1 – L32-5 connector with 5 pin contacts
---------------------- Page: 9 ----------------------
– 8 – IEC 61169-59:2017  IEC 2017
Table 1 – Dimensions of L32-5 connector with 5 pin contacts
Ref. mm
Min. Max.
a 6,0 6,1
b 6,0 6,2
c 7,5 7,6
d M32X1,5-6g
e 14,4 14,5
f 6,0 –
g 9,5 9,7
h 24,0 –
k 27,0 27,1
m 2,1 2,2
n 16,5
4.1.1.2 L32-4 connector with 4 pin contacts

The mating face of L32-4 connector with 4 pin contacts is shown in Figure 2 and its

dimensions are shown in Table 2.
D-D
Main groove
Note6
36°
Note5
144°
108°
5Pin EQS
0.1
A B C
180°
Supplementary groove
Note3
Note2
Note4
Note1
216°
IEC
NOTE 1 Mechanical and electrical reference plane.
NOTE 2 Chamfer of three grooves is optional.

NOTE 3 The mating face of RF channel with pin contact is shown in Figure 5a) in 4.1.3 and its dimensions are

shown in Table 5.
NOTE 4 The shape of seal ring is optional.
NOTE 5 Anti-mismating pin.

NOTE 6 The initial position number of RF channel with pin contact and the other positions numbered clockwise.

Figure 2 – L32-4 connector with 4 pin contacts
---------------------- Page: 10 ----------------------
IEC 61169-59:2017  IEC 2017 – 9 –
Table 2 – Dimensions of L32-4 connector with 4 pin contacts
Ref. mm
Min. Max.
a 6,0 6,1
b 6,0 6,2
c 7,5 7,6
d M32X1,5-6g
e 14,4 14,5
f 6,0 --
g 9,5 9,7
h 24,0 --
k 27,0 27,1
m 2,1 2,2
n 16,5
16,52
4.1.2 Connector with socket contact
4.1.2.1 L32-5 connector with 5 socket contacts

The mating face of L32-5 connector with 5 socket contacts is shown in Figure 3 and its

dimensions are shown in Table 3.
Main key
Note5 36°
Note4
144°
108°
5Socket EQS
0.1 A B C
Note2
2Supplementary key
180°
Note3
Note1
216°
IEC
NOTE 1 Mechanical and electrical reference plane.

NOTE 2 The mating face of RF channel with socket contact is shown in Figure 5b) in 4.1.3 and its dimensions are

shown in Table 5.
NOTE 3 Anti-mismating socket.
NOTE 4 The shape of key of shell is optional.

NOTE 5 The initial position number of RF channel with socket contact and the other positions numbered anti-

clockwise.
Figure 3 – L32-5 connector with 5 socket contacts
---------------------- Page: 11 ----------------------
– 10 – IEC 61169-59:2017  IEC 2017
Table 3 – Dimensions of L32-5 connector with 5 socket contacts
Ref. mm
Min. Max.
a 6,25 6,35
b 7,0 --
c 7,7 7,8
d M32X1,5-7H
e 14,2 14,3
f 7,6 8,0
g -- 0,8
h 6,8 --
i 0,08 0,3
j 11,5 11,7
k 26,6 26,7
l 34,9 35,0
m 1,9 2,0
n 16,5
16,52
p 5,8 6,1
4.1.2.2 L32-4 connector with 4 socket contacts

The mating face of L32-4 connector with 4 socket contacts is shown in Figure 4 and its

dimensions are shown in Table 4.
---------------------- Page: 12 ----------------------
IEC 61169-59:2017  IEC 2017 – 11 –
D-D
Main key
Note3
36°
Note4
Note5
144°
108°
5Socket EQS
180°
0.1 A B C
Note2
2Supplementary key
Note1
216°
IEC
NOTE 1 Mechanical and electrical reference plane.

NOTE 2 The mating face of RF channel with socket contact is shown in Figure 5b) in 4.1.3 and its dimensions are

shown in Table 5.
NOTE 3 Anti-mismating socket.
NOTE 4 The shape of key of shell is optional.

NOTE 5 The initial position number of RF channel with socket contact and the other positions numbered anti-

clockwise.
Figure 4 – L32-4 connector with 4 socket contacts
Table 4 – Dimensions of L32-4 connector with 4 socket contacts
Ref. mm
Min. Max.
a 6,25 6,35
b 7,0 –
c 7,7 7,8
d M32X1,5-7H
e 14,2 14,3
f 7,6 8,0
g – 0,8
h 6,8 –
i 0,08 0,3
j 11,5 11,7
k 26,6 26,7
l 34,9 35,0
m 1,9 2,0
n 16,5 16,52
p 5,8 6,1
---------------------- Page: 13 ----------------------
– 12 – IEC 61169-59:2017  IEC 2017
4.1.3 Mating face of RF channel

The mating face of RF channel with pin contact is shown in Figure 5a), the mating face of RF

channel with socket contact is shown in Figure 5b), their dimensions are shown as Table 5.

Note1
60°
IEC
a) RF channel with pin contact
Note1
Detail A
Note2
Detail A
IEC
b) RF channel with socket contact
NOTE 1 Mechanical and electrical reference plane.

NOTE 2 The position of floating outer conductor in free state and its slot design is optional.

Figure 5 – Mating face of RF channel
---------------------- Page: 14 ----------------------
IEC 61169-59:2017  IEC 2017 – 13 –
Table 5 – Dimensions of the mating face of RF channel
Ref. mm
Min. Max.
a 0,00 0,25
b 0,00 0,25
c 1,27 –
d – 2,54
f 0,902 0,935
g 0,00 0,10
h 0,00 0,25
i 0,08 0,30
j 2,67 –
k 0,00 0,25
l – –
m – –
n 0,3 –

It is assumed that the mechanical and electrical requirements are met with the chosen dimension for pin

Φ0,902 mm to Φ0,935 mm,

Slot design is optional, as soon as it meets the mechanical and electrical requirements.

0,2 mm to 0,3 mm of radial displacement is allowed when mating of RF channel with pin contact.

4.2 Gauges
4.2.1 Gauge for socket centre contact

The gauge for socket contact of RF channel is shown in Figure 6 and its dimensions are

shown in Table 6.
IEC
Figure 6 – Gauge for socket contact of RF channel
---------------------- Page: 15 ----------------------
– 14 – IEC 61169-59:2017  IEC 2017
Table 6 – Dimensions of gauge for socket contact
Ref. Gauge A Gauge B Gauge C
(For sizing purpose) (For insertion purpose)
(For retention purpose)
Mass of gauge:28 g
mm mm mm
Min. Max. Min. Max. Min. Max.
a 0,950 0,955 0,935 0,940 0,899 0,902
b 0,76 1,14 1,27 1,91 1,27 1,91
Material: steel, polished. Surface roughness: Ra ≤0,4 μm.
Test procedure:
a) Sizing test

The gauge A should insert the socket centre contact of RF channel three times; this is a

sizing operation.
b) Insertion test

Following the sizing operation, if specified in the detail specification, the force necessary

to insert Gauge B fully into the socket centre contact shall be measured. When this test is

required, the insertion force shall not exceed 8,9 N.
c) Retention test

After sizing or insertion test, the gauge C shall be inserted into the socket centre contact.

The contact shall retain the mass of the gauge C in a vertical downward position.

4.2.2 Gauge for type L32-5 connector with 5 pin contacts

The gauge for type L32-5 connector with 5 pin contacts is shown in Figure 7 and its

dimensions are shown in Table 7.
Main key
Note2 36°
Detail A
144°
108°
5Socket EQS
0.08 A B C
180°
Note1
2Supplementary key
Detail A
216°
IEC
NOTE 1 Mechanical and electrical reference plane.
NOTE 2 Anti-mismating socket.
Figure 7 – Gauge for L32-5 connector with 5 pin contacts
---------------------- Page: 16 ----------------------
IEC 61169-59:2017  IEC 2017 – 15 –
Table 7 – Dimensions of gauge L32-5 connector with 5 pin contacts
Ref. mm
Min. Max.
a 6,25 6,35
b 7,0 –
c 0,935 0,940
d 2,67 –
e 14,4 14,5
g – 0,8
k 26,65 26,70
m 1,95 2,00
n 16,48 16,52
Test procedure:

Mechanical compatibility test: The gauge should insert the L32-5 connector with 5 pin

contacts three times, and then measure the insertion force; the insertion force should be not

less than 50 N.
4.2.3 Gauge for L32-4 connector with 4 pin contacts

The gauge for L32-4 connector with 4 pin contacts is shown in Figure 8 and its dimensions

are shown in Table 8.
E-E
Main key
36°
Note2
Detail D
144°
108°
5Socket EQS
0.08 A B C
180°
2Supplementary key
Note1
Detail D
216°
IEC
NOTE 1 Mechanical and electrical reference plane.
NOTE 2 Anti-mismating socket.
Figure 8 – Gauge for L32-4 connector with 4 pin contacts
---------------------- Page: 17 ----------------------
– 16 – IEC 61169-59:2017
...
