IEC 61069-7:2016

Industrial-process measurement, control and automation - Evaluation of system properties for the purpose of system assessment - Part 7: Assessment of system safety

IEC 61069-7:2016 specifies the detailed method of the assessment of system safety of a basic control system (BCS) based on the basic concepts of IEC 61069-1 and methodology of IEC 61069-2, defines basic categorization of system safety properties, describes the factors that influence system safety and which need to be taken into account when evaluating system safety, and provides guidance in selecting techniques from a set of options (with references) for evaluating the system safety. This second edition cancels and replaces the first edition published in 1998. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- reorganization of the material of IEC 61069-7:1998 to make the overall set of standards more organized and consistent;
- IEC TS 62603-1 has been incorporated into this edition.

Mesure, commande et automation dans les processus industriels - Appréciation des propriétés d'un système en vue de son évaluation - Partie 7: Évaluation de la sécurité d'un système

L'IEC 61069-7:2016 spécifie la méthode d'évaluation détaillée de la sécurité d'un système faisant partie d'un système de commande de base (BCS) qui repose sur les principes de base de l'IEC 61069-1 et la méthodologie de l'IEC 61069-2; définit la classification de base de la sécurité d'un système; décrit les facteurs ayant une influence sur la sécurité d'un système et dont il faut tenir compte lors de l'appréciation de la sécurité d'un système; et donne des lignes directrices concernant les techniques de sélection à partir d'un ensemble d'options (avec références) pour l'appréciation de la sécurité d'un système. Cette deuxième édition annule et remplace la première édition parue en 1998. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- réorganisation des informations contenues dans l'IEC 61069-7:1998 visant à mieux organiser l'ensemble complet de normes et à le rendre plus cohérent;
- l'IEC TS 62603-1 a été incorporée dans cette édition.

General Information

• Status: Published
• Publication Date: 14-Jun-2016
• ICS: 25.040.40 - Industrial process measurement and control
• Technical Committee: SC 65A - System aspects
• Drafting Committee: WG 16 - TC 65/SC 65A/WG 16
• Current Stage: PPUB - Publication issued
• Start Date: 15-Jun-2016
• Completion Date: 15-Jul-2016

Relations

• Revises: IEC 61069-7:1999 - Industrial-process measurement and control - Evaluation of system properties for the purpose of system assessment - Part 7: Assessment of system safety
• Effective Date: 05-Sep-2023

Overview

IEC 61069-7:2016 is an international standard developed by the International Electrotechnical Commission (IEC) under the IEC 61069 series. It provides a detailed methodology for assessing the safety of basic control systems (BCS) used in industrial-process measurement, control, and automation. This standard builds upon the foundational concepts outlined in IEC 61069-1 and the assessment methodology in IEC 61069-2.

The 2016 second edition revises and replaces the initial 1998 version, introducing a better-organized framework and integrating content from IEC TS 62603-1. IEC 61069-7:2016 is crucial for professionals in system safety evaluation, offering guidance on categorizing system safety properties, identifying influencing factors, and selecting appropriate evaluation techniques.

Key Topics

• System Safety Properties
  The standard defines essential safety properties including:

  • Hazard reduction
  • Hazard isolation
  • Immunity/robustness
  • Aversion
  • Mitigation
    These properties form the basis for evaluating how well a control system prevents, avoids, or mitigates hazardous conditions.

• Factors Influencing System Safety
  IEC 61069-7 identifies multiple internal and external factors that affect system safety. These include hardware and software design, operational environment, human interactions, and external disturbances.

• Hazards, Harms, and Propagation Paths
  The standard clarifies types of hazards and how harmful effects can propagate through the system to impact users or equipment. Understanding propagation paths is essential for thorough hazard analysis and risk control.

• Assessment Methodology
  IEC 61069-7 provides a structured approach for executing system safety assessments:

  • Defining assessment objectives tailored to the intended mission
  • Designing, planning, and conducting the safety evaluation
  • Reporting outcomes with clear, actionable conclusions

• Evaluation Techniques
  The document outlines both analytical (e.g., hazard and fault analysis) and empirical methods (e.g., testing and simulation) to effectively assess system safety. Guidance is provided on selecting the appropriate techniques based on system complexity and assessment goals.

Applications

IEC 61069-7:2016 is specifically designed for assessing basic control systems within industrial automation environments. Key application areas include:

• Process Control Systems
  Ensuring safety properties in control loops and automation processes in manufacturing plants, chemical processing, and power generation.

• Safety Instrumented Systems (SIS)
  Evaluating SIS components and subsystems for hazard prevention, compliance, and operational safety.

• System Integration Projects
  Providing a common framework to assess safety when integrating multiple control systems or updating existing automation architectures.

• Systems Engineering & Functional Safety
  Supporting safety case development and verification in alignment with broader functional safety standards and regulations.

By implementing IEC 61069-7, organizations can enhance risk management strategies, improve system reliability, and meet compliance requirements related to safety in industrial automation.

Related Standards

IEC 61069-7:2016 is part of the broader IEC 61069 series that addresses evaluation of system properties for system assessment in industrial-process control:

• IEC 61069-1: Terminology and Basic Concepts
  Establishes fundamental terms and the conceptual framework used throughout the series.

• IEC 61069-2: Assessment Methodology
  Provides a general methodology applicable to the evaluation of various system properties, supporting the safety assessment processes.

• IEC 61069-3 to IEC 61069-6 and IEC 61069-8
  Focus on assessment of system functionality, performance, dependability, operability, and other properties.

Additionally, content from IEC TS 62603-1 related to safety evaluation has been incorporated in IEC 61069-7:2016, enhancing its technical coverage.

Complementary standards for functional safety and risk assessment in industrial environments include:

• IEC 61508: Functional Safety of Electrical/Electronic/Programmable Electronic Safety-related Systems
• IEC 61511: Functional Safety – Safety Instrumented Systems for the Process Industry Sector

These standards collectively help organizations implement rigorous safety evaluation and management frameworks for industrial control systems.

---

Keywords: IEC 61069-7, system safety assessment, basic control system, industrial-process control, automation safety, hazard analysis, system evaluation methodology, control system safety, IEC standards, functional safety, risk mitigation.

Standards Content (Sample)

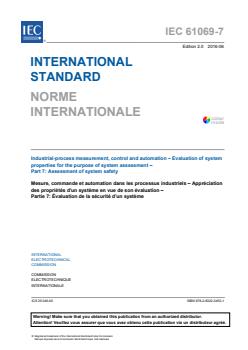

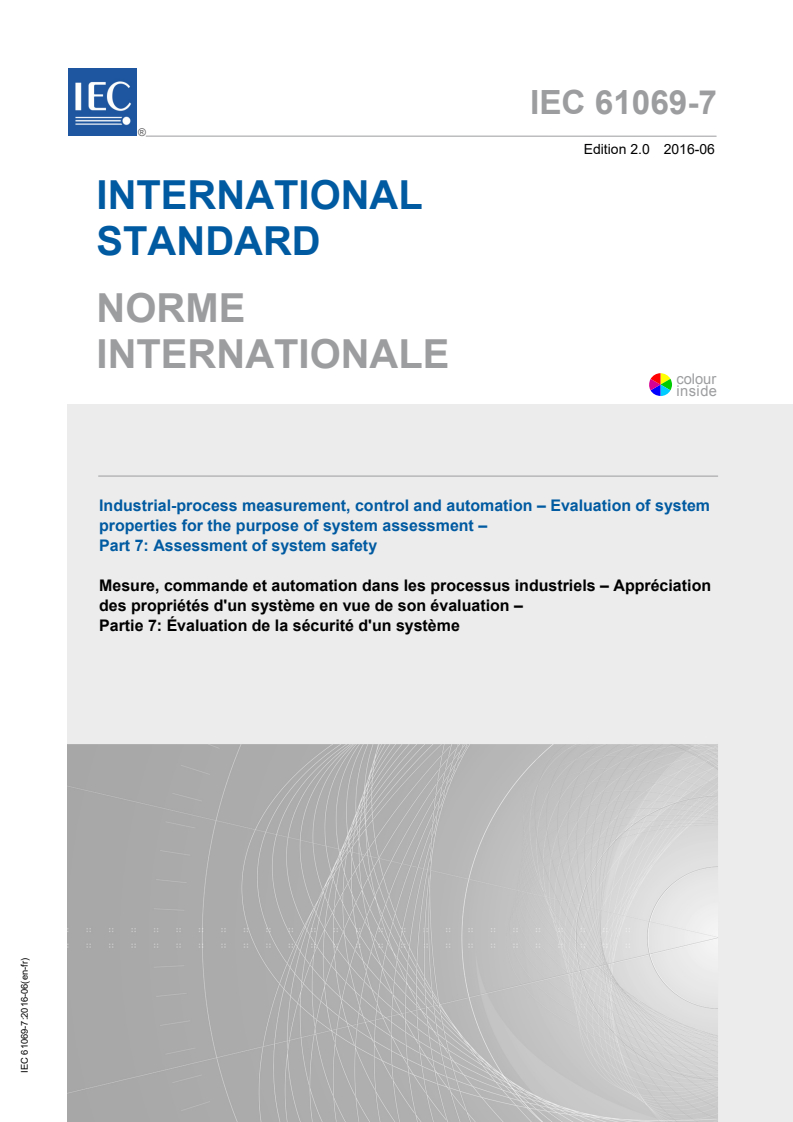

IEC 61069-7 ®
Edition 2.0 2016-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Industrial-process measurement, control and automation – Evaluation of system
properties for the purpose of system assessment –
Part 7: Assessment of system safety

Mesure, commande et automation dans les processus industriels – Appréciation
des propriétés d'un système en vue de son évaluation –
Partie 7: Évaluation de la sécurité d'un système

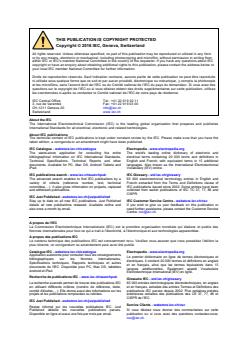

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].

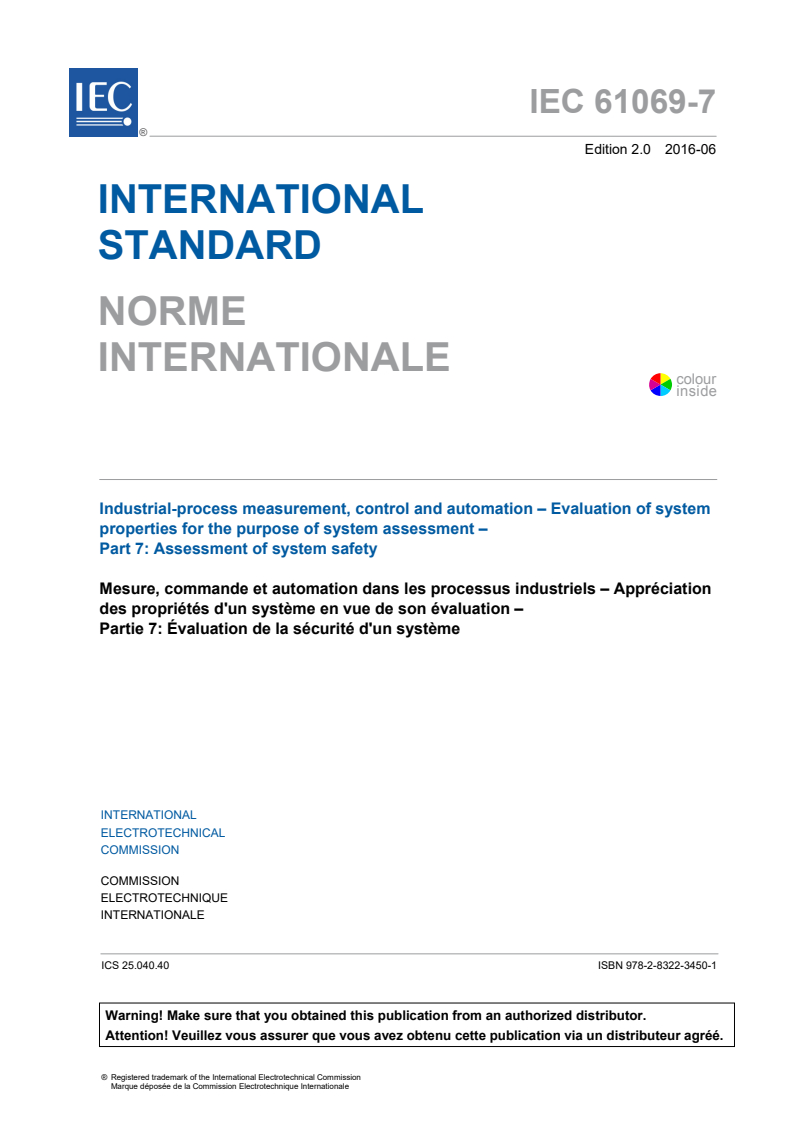

IEC 61069-7 ®
Edition 2.0 2016-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Industrial-process measurement, control and automation – Evaluation of system

properties for the purpose of system assessment –

Part 7: Assessment of system safety

Mesure, commande et automation dans les processus industriels – Appréciation

des propriétés d'un système en vue de son évaluation –

Partie 7: Évaluation de la sécurité d'un système

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040.40 ISBN 978-2-8322-3450-1

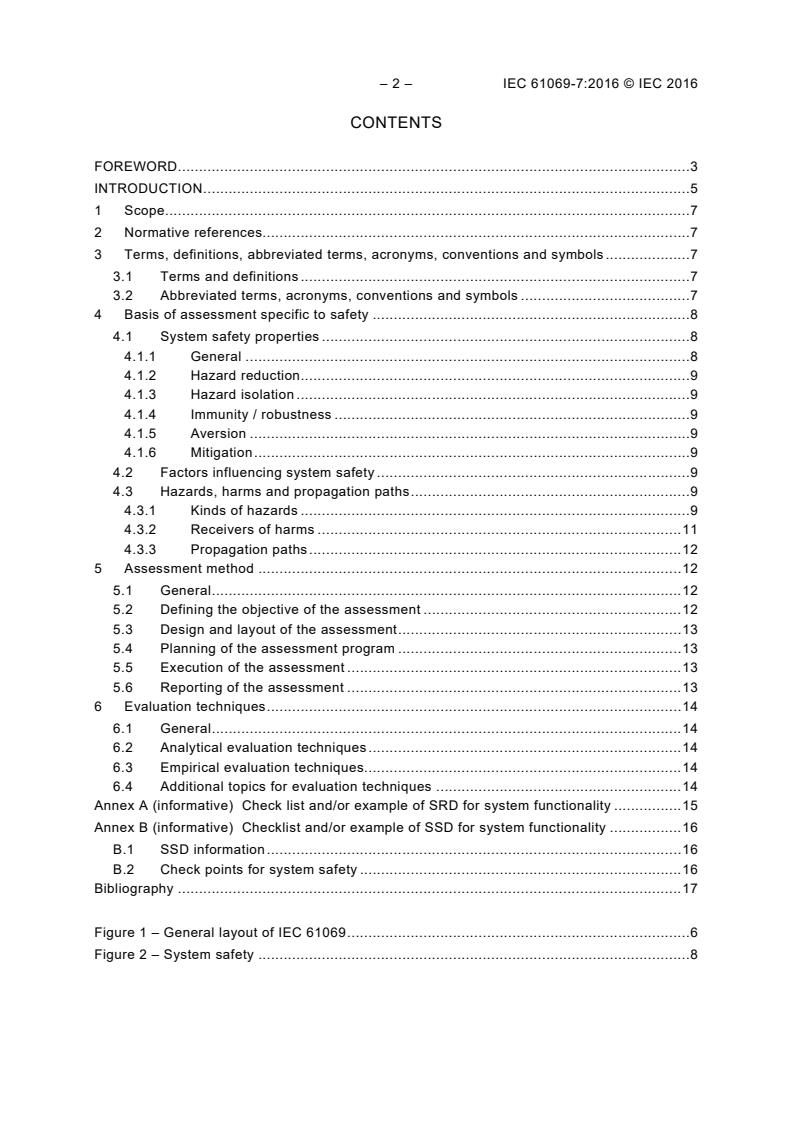

– 2 – IEC 61069-7:2016 © IEC 2016
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 7
2 Normative references. 7
3 Terms, definitions, abbreviated terms, acronyms, conventions and symbols . 7
3.1 Terms and definitions . 7
3.2 Abbreviated terms, acronyms, conventions and symbols . 7
4 Basis of assessment specific to safety . 8
4.1 System safety properties . 8
4.1.1 General . 8
4.1.2 Hazard reduction . 9
4.1.3 Hazard isolation . 9
4.1.4 Immunity / robustness . 9
4.1.5 Aversion . 9
4.1.6 Mitigation . 9
4.2 Factors influencing system safety . 9
4.3 Hazards, harms and propagation paths . 9
4.3.1 Kinds of hazards . 9
4.3.2 Receivers of harms . 11
4.3.3 Propagation paths . 12
5 Assessment method . 12
5.1 General . 12
5.2 Defining the objective of the assessment . 12
5.3 Design and layout of the assessment . 13
5.4 Planning of the assessment program . 13
5.5 Execution of the assessment . 13
5.6 Reporting of the assessment . 13
6 Evaluation techniques . 14
6.1 General . 14
6.2 Analytical evaluation techniques . 14
6.3 Empirical evaluation techniques. 14
6.4 Additional topics for evaluation techniques . 14
Annex A (informative) Check list and/or example of SRD for system functionality . 15
Annex B (informative) Checklist and/or example of SSD for system functionality . 16
B.1 SSD information . 16
B.2 Check points for system safety . 16
Bibliography . 17

Figure 1 – General layout of IEC 61069 . 6
Figure 2 – System safety . 8

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL-PROCESS MEASUREMENT, CONTROL AND AUTOMATION –
EVALUATION OF SYSTEM PROPERTIES FOR
THE PURPOSE OF SYSTEM ASSESSMENT –

Part 7: Assessment of system safety

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61069-7 has been prepared by subcommittee 65A: System
aspects, of IEC technical committee 65: Industrial-process measurement, control and
automation.
This second edition cancels and replaces the first edition published in 1999. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) reorganization of the material of IEC 61069-7:1999 to make the overall set of standards
more organized and consistent;
b) IEC TS 62603-1 has been incorporated into this edition.

– 4 – IEC 61069-7:2016 © IEC 2016
The text of this standard is based on the following documents:
FDIS Report on voting
65A/795/FDIS 65A/805/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 61069 series, published under the general title Industrial-process
measurement, control and automation – Evaluation of system properties for the purpose of
system assessment, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION
IEC 61069 deals with the method which should be used to assess system properties of a
basic control system (BCS). IEC 61069 consists of the following parts.
Part 1: Terminology and basic concepts
Part 2: Assessment methodology
Part 3: Assessment of system functionality
Part 4: Assessment of system performance
Part 5: Assessment of system dependability
Part 6: Assessment of system operability
Part 7: Assessment of system safety
Part 8: Assessment of other system properties
Assessment of a system is the judgement, based on evidence, of the suitability of the system
for a specific mission or class of missions.
To obtain total evidence would require complete evaluation (for example under all influencing
factors) of all system properties relevant to the specific mission or class of missions.
Since this is rarely practical, the rationale on which an assessment of a system should be
based is:
– the identification of the importance of each of the relevant system properties,
– the planning for evaluation of the relevant system properties with a cost-effective
dedication of effort to the various system properties.
In conducting an assessment of a system, it is crucial to bear in mind the need to gain a
maximum increase in confidence in the suitability of a system within practical cost and time
constraints.
An assessment can only be carried out if a mission has been stated (or given), or if any
mission can be hypothesized. In the absence of a mission, no assessment can be made;
however, evaluations can still be specified and carried out for use in assessments performed
by others. In such cases, IEC 61069 can be used as a guide for planning an evaluation and it
provides methods for performing evaluations, since evaluations are an integral part of
assessment.
In preparing the assessment, it can be discovered that the definition of the system is too
narrow. For example, a facility with two or more revisions of the control systems sharing
resources, for example a network, should consider issues of co-existence and inter-operability.
In this case, the system to be investigated should not be limited to the “new” BCS; it should
include both. That is, it should change the boundaries of the system to include enough of the
other system to address these concerns.
The series structure and the relationship among the parts of IEC 61069 are shown in Figure 1.

– 6 – IEC 61069-7:2016 © IEC 2016

IEC 61069: Industrial-process measurement, control and automation –
Evaluation of system properties for the purpose of system assessment
Part 1: Terminology and basic concepts
• Basic concept
• Terminology ‐ Objective
‐ Description of system
‐ Common terms
‐ Terms for particular part
‐ System properties
‐ Influencing factors
Part 2: Assessment methodology
• Generic requirements of procedure of assessment
‐ Overview, approach and phases
‐ Requirements for each phase
‐ General description of evaluation techniques
Parts 3 to 8: Assessment of each system property
• Basics of assessment specific to each property
‐ Properties and influencing factors
• Assessment method for each property
• Evaluation techniques for each property

IEC
Figure 1 – General layout of IEC 61069

INDUSTRIAL-PROCESS MEASUREMENT, CONTROL AND AUTOMATION –
EVALUATION OF SYSTEM PROPERTIES FOR
THE PURPOSE OF SYSTEM ASSESSMENT –

Part 7: Assessment of system safety

1 Scope
This part of IEC 61069:
– specifies the detailed method of the assessment of system safety of a basic control
system (BCS) based on the basic concepts of IEC 61069-1 and methodology of
IEC 61069-2,
– defines basic categorization of system safety properties,
– describes the factors that influence system safety and which need to be taken into account
when evaluating system safety, and
– provides guidance in selecting techniques from a set of options (with references) for
evaluating the system safety.
The treatment of safety in this standard is confined to hazards that can be present within the
BCS itself. That is, the BCS itself as a physical entity will not impose a hazard.
Considerations of hazards that can be introduced by the process or equipment under control,
of the BCS to be assessed, are excluded.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61069-1:2016, Industrial-process measurement, control and automation – Evaluation of
system properties for the purpose of system assessment – Part 1: Terminology and basic
concepts
IEC 61069-2:2016, Industrial-process measurement, control and automation – Evaluation of
system properties for the purpose of system assessment – Part 2: Assessment methodology
3 Terms, definitions, abbreviated terms, acronyms, conventions and symbols
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61069-1 apply.
3.2 Abbreviated terms, acronyms, conventions and symbols
For the purposes of this document, the abbreviated terms, acronyms, conventions and
symbols given in IEC 61069-1 apply.

– 8 – IEC 61069-7:2016 © IEC 2016
4 Basis of assessment specific to safety
4.1 System safety properties
4.1.1 General
A system can have a number of interactions with its environment, some of which can impose
a hazardous condition.
This standard concentrates on the conditions of the system which can cause harm. It is
important to recognize that these conditions can change through the life cycle of the system.
The extent to which the system is free of hazard can be expressed as system safety
properties. A system is not always free of hazard even if the individual parts that compose the
system are themselves free of hazard; for example, individual parts can be stable whereas the
same parts configured to form a system can be unstable and therefore hazardous.
System safety properties of a BCS in all its aspects (mechanical, electrical, etc.) depend upon
factors of its design and its dependability.
The assessment of the system safety should include evaluation of system safety properties
related to activities and measures for the system during every phase of its life cycle.
Examples of these activities and measures are:
– operating, maintenance and de-commissioning procedures,
– symbols and textual warnings given,
– disposal of packing material, waste products from equipment, replaced components and
cleaning material.
The assessment should also include environmental aspects.
The system safety properties can change over the different phases of its life cycle due to the
number of hazardous conditions present such as:
– hydraulic accumulators where pressures might be locked in by check valves,
– electrically charged devices (for example capacitors),
– nuclear waste and chemicals stored in containers exposed to corrosion.
When assessing the system safety, the following aspects should be considered:
– kinds of hazards,
– receivers of the consequences of a hazard,
– propagation paths,
– risk reduction measures.
System safety properties are categorized as shown in Figure 2.
System safety
Hazard reduction Hazard isolation Immunity / robustness Aversion Mitigation
IEC
Figure 2 – System safety
System safety cannot be assessed directly and cannot be described by a single property.
System safety can only be determined by analysis and testing of each of its properties
individually.
4.1.2 Hazard reduction
Hazard reduction is the effort to reduce the number and/or severity of the hazard.
Example: If less energy is used, the temperatures of devices are likely to be lower. The lowest
hydraulic pressure needed to transfer the necessary power is used, to avoid high trapped
energy.
4.1.3 Hazard isolation
Hazard isolation is the effort to isolate the hazard.
Example: Installing circuit breakers and disconnects inside panels deigned to suppress arc
flash.
4.1.4 Immunity / robustness
Immunity / robustness allows the system to absorb or be immune to hazards.
Example: A BCS is immune to power line surges 20 % beyond its operating rating. Or it can
absorb EMC interference and still provide proper data transfers.
4.1.5 Aversion
Aversion allows a system to avert a hazard.
Example: Interlocks or SIS capability is provided to ensure the hazard cannot occur.
4.1.6 Mitigation
Mitigation protects only part of the system if other systems are compromised.
Example: Alarms, evacuation are examples where a hazard may have made itself felt, but
some method is still provided to make best effort to minimize loss.
4.2 Factors influencing system safety
The system safety can be affected by the influencing factors listed IEC 61069-1:2016, 5.3.
Generally the largest influencing factor is human beings.
4.3 Hazards, harms and propagation paths
4.3.1 Kinds of hazards
4.3.1.1 General
This subclause encompasses a set of hazards.
As a minimum, the kinds of hazards addressed by 4.3.1.2 to 4.3.1.8 shall be considered.
As described in the scope, considerations of hazards that can be introduced by the process or
equipment under control, of the BCS to be assessed, are excluded.

– 10 – IEC 61069-7:2016 © IEC 2016
4.3.1.2 Mechanical
Weight can be a source of harm, for example during lifting or when falling down.
Pressure can be a source of harm, for example due to breakage of pipes or containers.
Elasticity can be a source of harm, for example due to breakage of springs or mechanical
structures.
Vibration can be a source of harm, for example due to fatigue of material or the emission of
excessive sound.
Temperature can be a source of harm, for example due to items heating through friction,
insufficient cooling, poor/faulty insulation. In certain circumstances extreme cold can also be
hazardous by reducing flexibility and affecting human tissue.
Wear can be a source of harm, for example due to release of toxic particles or due to
weakening parts.
Mechanical design can be a source of harm, for example due to the incorporation of sharp
edges or rough surfaces.
4.3.1.3 Electrical
The voltage or current can be a source of harm, for example due to short-circuiting (heat) or
bypassing isolation (electrical shock).
NOTE The electrical energies which are the sources of hazards can originate from within the system and/or from
the power supply to the system.
4.3.1.4 Electromagnetic field
The system can emit electromagnetic fields of different intensities and frequencies which can
be a source of harm. Emission limits for equipment are given in the relevant product, product
family and generic EMC standards, for example CISPR 22. Guidance on the limits for harm to
humans can be found, for example, in ENV 50166-1 and ENV 50166-2.
4.3.1.5 Light
The system can emit light of different intensities and frequencies which can be a source of
harm; for example, short-circuit or operation of optic emitters (such as laser sources) can
produce and propagate light at an intensity that can reach a hazardous level. For laser
sources, refer to IEC 60825-1.
4.3.1.6 Radioactivity
A system which includes radioactive elements (such as sensors) can be a source of harm.
4.3.1.7 Biological
A system which includes biological elements (such as sensors) can be a source of harm.
4.3.1.8 Chemical
A system which includes chemical substances can be a source of harm (for example toxicity
or corrosion).
4.3.2 Receivers of harms
4.3.2.1 General
The level of harm that can be accepted by a receiver depends on
– the characteristics of the type of receiver and
– the area in which the receiver is located.
Within the environment of a BCS, different areas can be identified such as the control room,
manufacturing facility or area surrounding the manufacturing facility. These area
classifications are typically given in international, national or proprietary standards. Within
each of these areas, individual levels of harm and hazardous situation can be acceptable for
each type of receiver.
The different types of receivers are listed in 4.3.2.2 to 4.3.2.4.
4.3.2.2 Human
Hazards which can exist in the BCS can affect the human body in different ways. Some
examples are given below:
a) mechanical:
1) weight can, for example, break bones;
2) excess pressure can, for example, lead to general injury, the breaking of bones, eye
and/or ear damage, or the collapse of the lungs;
3) elasticity can, for example, lead to general injury or the breaking of bones;
4) vibration can, for example, lead to ear damage;
5) temperature can, for example, lead to burns;
b) electrical short circuit or shock can, for example, cause burns, fibrillation of the heart or
eye damage;
c) electromagnetic fields can, for example, cause alteration of the metabolism, eye damage
or destruction of an organ;
d) light can, for example, cause eye damage or burns;
e) radioactivity can, for example, cause alteration of the metabolism, eye damage or
destruction of an organ;
f) biological substances can penetrate and, for example, cause alteration of the metabolism
or modification of the alimentary track;
g) chemical substances can penetrate and, for example, cause alteration of the metabolism,
eye damage, destruction of an organ, skin irritation or neurological damage.
4.3.2.3 Biological
Hazards which can exist in the BCS can affect biological systems such as flora, fauna and the
ecological system, in similar ways as described in 4.3.2.2. The degree of the physical injury to
a biological system can be different from that to a human.
4.3.2.4 Equipment
Hazards which can exist in the BCS can affect surrounding equipment in different ways. Some
examples are given below:
a) mechanical:
1) weight, pressure, elasticity can, depending on the severity, result in misalignment,
bending or breaking parts, etc.;

– 12 – IEC 61069-7:2016 © IEC 2016
2) vibration can, depending on the severity, result in misalignment, metal fatigue, parts
coming loose, etc.;
3) temperature can, depending on its level, result in misalignment, decreased life time,
loss of mechanical strength, degasification, burning, etc.;
b) electrical sources can, depending on the severity, result in supply power distortion,
breakdown due to overload, current surges, flashover, burns, etc.;
c) electromagnetic fields can, depending on the severity, result in electromagnetic inter-
ference, alteration of data, etc.;
d) light or radioactivity can, depending on the level, result in changes of material properties
due to ultra-violet or laser-light, etc.;
e) biological: no effect foreseen;
f) chemical substances can, depending on the severity, result in chemical transformation of
material, etc.
4.3.3 Propagation paths
4.3.3.1 General
For a hazard to be harmful, there is a propagation path between the source of harm and the
receiver.
Although single propagation paths can be identified, it is very often the case that a complete
propagation path is a combination of several single types of propagation paths.
Some single propagation paths are listed in 4.3.3.2 to 4.3.3.5.
4.3.3.2 Direct propagation path
A direct propagation path means that the receiver is in direct contact with the source of harm
(for example a finger touching a high-voltage conductor).
4.3.3.3 Indirect propagation path
An indirect propagation path means that the receiver is in contact with the source of harm via
any movable item (for example a tool or a ladder) or a fixed construction element (for example
supports or rails).
4.3.3.4 Dynamic propagation path
A dynamic propagation path means that the receiver is in time-dependent contact with the
source of harm via any dynamic media (for example flowing liquids or gases).
4.3.3.5 Contact-less propagation path
A contact-less propagation path means that the receiver is exposed to the source of harm via,
for example, radiations, light or electromagnetic fields.
5 Assessment method
5.1 General
The assessment shall follow the method as laid down in IEC 61069-2:2016, Clause 5.
5.2 Defining the objective of the assessment
Defining the objective of the assessment shall follow the method as laid down in
IEC 61069-2:2016, 5.2.
5.3 Design and layout of the assessment
Design and layout of the assessment shall follow the method as laid down in IEC 61069-
2:2016, 5.3.
Defining the scope of assessment shall follow the method laid down in IEC 61069-2:2016,
5.3.1.
Collation of documented information shall be conducted in accordance with IEC 61069-2:2016,
5.3.3.
The statements compiled in accordance with IEC 61069-2:2016, 5.3.3 should include the
following in addition to the items listed in IEC 61069-2:2016, 5.3.3:
– kinds of hazards and their propagation paths from the system to its environment;
– influencing factors that can create a hazardous condition inside the system;
– risk reduction measures provided to minimize the consequences of hazardous conditions;
– risk reduction measures provided to minimize the probability that a conjunction of
phenomena which can create hazardous conditions can arise;
– way in which the different system modules and elements interact and the possibility that a
lack of safety can arise at the system level as a result of the interactions;
– global pre-knowledge available and extent to which the system safety property should be
assessed.
Documenting collated information shall follow the method in IEC 61069-2:2016, 5.3.4.
Selecting assessment items shall follow IEC 61069-2:2016, 5.3.5.
Assessment specification should be developed in accordance with IEC 61069-2: 2016, 5.3.6.
Comparison of the SRD and the SSD shall follow IEC 61069-2:2016, 5.3.
NOTE 1 A checklist of SRD for system dependability is provided in Annex A.
NOTE 2 A checklist of SSD for system dependability is provided in Annex B.
5.4 Planning of the assessment program
Planning of the assessment program shall follow the method as laid down IEC 61069-2:2016,
5.4.
Assessment activities shall be developed in accordance with IEC 61069-2:2016, 5.4.2.
The final assessment program should specify points specified in IEC 61069-2:2016, 5.4.3.
5.5 Execution of the assessment
The execution of the assessment shall be in accordance with IEC 61069-2:2016, 5.5.
5.6 Reporting of the assessment
The reporting of the assessment shall be in accordance with IEC 61069-2:2016, 5.6.
The report shall include information specified in IEC 61069-2:2016, 5.6. Additionally, the
assessment report should address the following points:
– no additional items are noted.

– 14 – IEC 61069-7:2016 © IEC 2016
6 Evaluation techniques
6.1 General
Within this standard, several evaluation techniques are suggested. Other methods may be
applied but, in all cases, the assessment report should provide references to documents
describing the techniques used.
Those evaluation techniques are categorized as described in IEC 61069-2:2016, Clause 6.
Factors influencing the system safety according to 4.2 shall be taken into account.
The techniques given in 6.2, 6.3 and 6.4 are recommended to assess system safety.
It is not possible to evaluate the system safety properties as one entity. Instead each system
safety properties should be addressed separately.
6.2 Analytical evaluation techniques
Safety evaluation techniques for BCSs are mainly analytical.
For each kind of hazard, the following steps should be taken:
– check whether a hazard is present and, for each hazard present, check if certifications are
available and are also valid under the operating conditions stated in the SRD or by
mandatory regulations;
– if satisfactory certifications are not available, an appropriate risk analysis should be
applied, for example the analysis described in ISO 31010. In support of such an analysis,
one of the evaluation techniques of 6.3 can be applied.
6.3 Empirical evaluation techniques
Empirical evaluation techniques are supplementary to analytical ones.
Whenever analytical techniques cannot guarantee the safety level of the system, an empirical
evaluation should be carried out in order to assess those aspects on which there is a lack of
data.
An empirical evaluation shall always be carried out when required by regulatory bodies (refer
also to IEC 61069-2:2016, 5.3.5).
For this purpose, a number of techniques can be applied of which the following are listed for
guidance:
– mechanical: testing methods of enclosures as described, for example, in IEC 60529;
– electrical: insulation coordination and electric strength testing as described, for example,
in the IEC 60243 series and IEC 60664-1;
– electromagnetic fields: measurement techniques as described, for example, in CISPR 22;
– thermal: fire hazard testing as described, for example, in IEC 60695-2, IEC 60695-11-10
and IEC 60695-11-20.
6.4 Additional topics for evaluation techniques
No additional items are noted.

Annex A
(informative)
Check list and/or example of SRD for system functionality

The system requirement document should be reviewed to check that the risk reduction
measures required for the system have been addressed and are listed as described in
IEC 61069-2.
The effectiveness of the safety assessment is strongly dependent upon the comprehensive-
ness of the statement of requirements.
Particular attention should be given to checking that adequate information is given on:
– the applicable international, national or company safety standards or regulations and, in
particular, IEC 60664-1 and IEC 61010-1,
– the admissible emission levels for the kinds of hazards listed in 4.2,
– the areas where the BCS and its modules and elements are to be situated, referring to
area classification standards, for example,
– the working conditions within these areas which should be fulfilled to allow access to the
BCS, and the procedures to obtain work permits,
– the permitted infringements of these working conditions, their frequency and the
emergency procedures to be followed in this case,
– the admissible emission levels for the kinds of hazards listed in 4.2 for the neighbouring
areas of the BCS,
– the extent to which the BCS is intended to be used to provide safety functions outside of
the scope of the IEC 61508 series.

– 16 – IEC 61069-7:2016 © IEC 2016
Annex B
(informative)
Checklist and/or example of SSD for system functionality

B.1 SSD information
The system specification document should be reviewed to check that the properties given in
the SRD are listed as described in IEC 61069-2:2016, Clause B.2.
B.2 Check points for system safety
The system specification document should be reviewed to check that the risk reduction
measures of the BCS are listed as described in IEC 61069-2.
Particular attention should be given to checking that adequate information is given on the
following:
– kinds of hazard within the BCS, and the risk reduction measures taken to limit the possible
consequences;
– levels of emissions, even if they are lower than the safe and/or allowed limits;
– appropriate safety certifications, issuing institutions and consistency with national
regulations;
– any maintenance action required which can infringe the system safety and the precautions
to be taken in these circumstances, to avoid any hazardous conditions;
– special installation requirements to guarantee the system safety.

Bibliography
IEC 60243 (all parts), Electric strength of insulating materials – Test methods
IEC 60529, Degrees of protection provided by enclosures (IP Code)
IEC 60695-2 (all parts), Fire hazard testing – Part 2: Test methods
IEC 60664-1, Insulation coordination for equipment within low-voltage systems – Part 1:
Principles, requirements and tests
IEC 60695-11-10, Fire hazard testing – Part 11-10: Test flames – 50 W horizontal and vertical
flame test methods
IEC 60695-11-20, Fire hazard testing – Part 11-20: Test flames – 500 W flame test method
IEC 60825-1, Safety of laser products – Part 1: Equipment classification and requirements
IEC 61010-1:2010, Safety requirements for electrical equipment for measurement, control and
laboratory use – Part 1: General requirements
IEC 61069-3, Industrial-process measurement, control and automation – Evaluation of system
properties for the purpose of system assessment – Part 3: Assessment of system functionality
IEC 61069-4, Industrial-process measurement, control and automation – Evaluation of system
properties for the purpose of system assessment – Part 4: Assessment of system
performance
IEC 61069-5:2016, Industrial-process measurement, control and automation – Evaluation of
system properties for the purpose of system assessment – Part 5: Assessment of system
dependability
IEC 61069-6:2016, Industrial-process measurement, control and automation – Evaluation of
system properties for the purpose of system assessment – Part 6: Assessment of system
operability
IEC 61069-8, Industrial process measurement, control and automation – Evaluation of system
properties for the purpose of system assessment – Part 8: Assessment of other system
properties
IEC 61508 (all parts), Functional safety of electrical/electronic/programmable electronic
safety-related systems
IEC TS 62603-1, Industrial process control systems – Guideline for evaluating process control
systems – Part 1: Specifications
CISPR 22, Information technology equipment – Radio disturbance characteristics – Limits and
methods of measurement
ISO/IEC Guide 51, Safety aspects – Guidelines for their inclusion in standards
ISO 31010:2009, Risk management – Risk assessment techniques
ENV 50166-1, Human exposure to electromagnetic fields. Low-frequency (0 Hz to 10 kHz)
ENV 50166-2, Human exposure to electromagnetic fields. High-frequency (10 kHz to 300 GHz)

_____________
– 18 – IEC 61069-7:2016 © IEC 2016
36B36BSOMMAIRE
AVANT-PROPOS . 19
INTRODUCTION . 21
1 Domaine d'application . 23
2 Références normatives . 23
3 Termes, définitions, abréviations, acronymes, conventions et symboles . 23
3.1 Termes et définiti
...
