IEC TS 61000-5-10:2017

Electromagnetic compatibility (EMC) - Part 5-10: Installation and mitigation guidelines - Guidance on the protection of facilities against HEMP and IEMI

IEC TS 61000-5-10:2017(E) provides guidelines to protect commercial facilities from the high-power electromagnetic disturbances of high-altitude electromagnetic pulse (HEMP) and intentional electromagnetic interference (IEMI).
This document is applicable to both existing facilities and new buildings when the customer has decided that protection of critical electronics from HEMP and IEMI is important to the function of the facility.
IEC TS 61000-5-10:2017 has the status of a basic EMC publication in accordance with IEC Guide 107.

General Information

• Status: Published
• Publication Date: 17-May-2017
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 33.100.20 - Immunity
• Technical Committee: SC 77C - High power transient phenomena
• Current Stage: PPUB - Publication issued
• Start Date: 18-May-2017
• Completion Date: 18-May-2017

Standards Content (Sample)

IEC TS 61000-5-10
Edition 1.0 2017-05
TECHNICAL
SPECIFICATION
colour
inside
BASIC EMC PUBLICATION
Electromagnetic compatibility (EMC) –

Part 5-10: Installation and mitigation guidelines – Guidance on the protection of

facilities against HEMP and IEMI
IEC TS 61000-5-10:2017-05(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2017 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: [e-mail].
---------------------- Page: 2 ----------------------

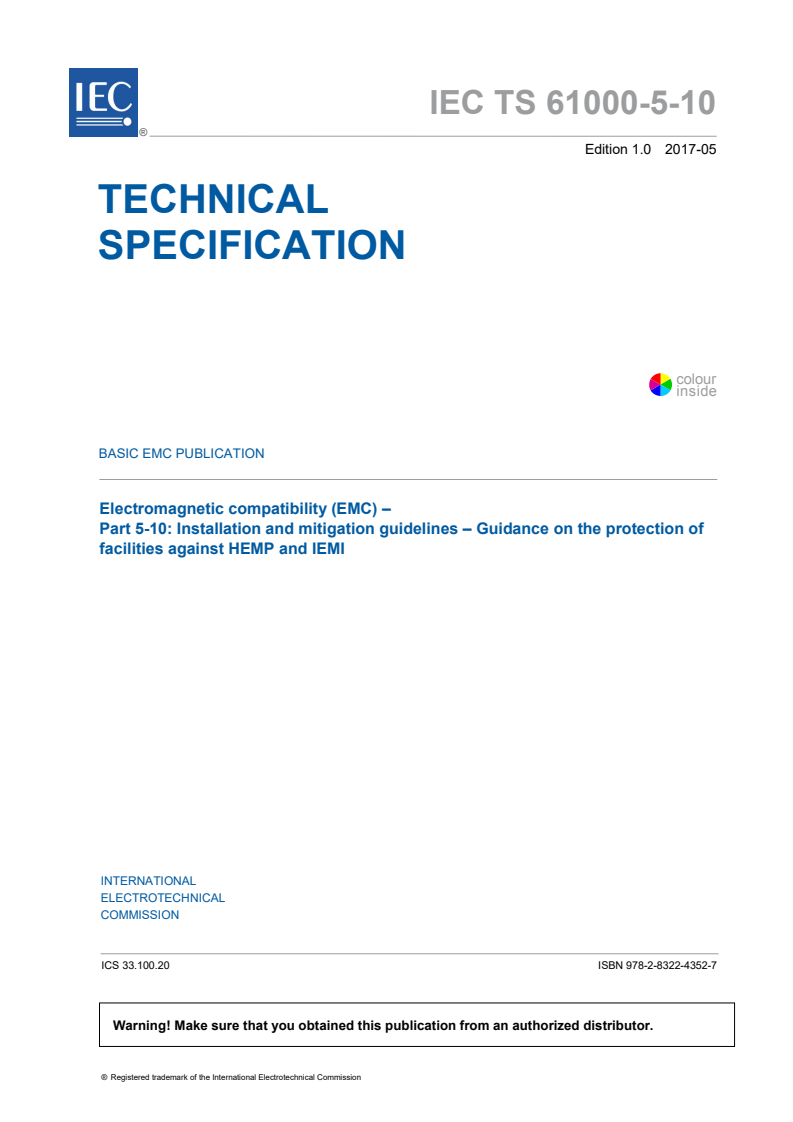

IEC TS 61000-5-10
Edition 1.0 2017-05
TECHNICAL
SPECIFICATION
colour
inside
BASIC EMC PUBLICATION
Electromagnetic compatibility (EMC) –

Part 5-10: Installation and mitigation guidelines – Guidance on the protection of

facilities against HEMP and IEMI
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.100.20 ISBN 978-2-8322-4352-7

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------

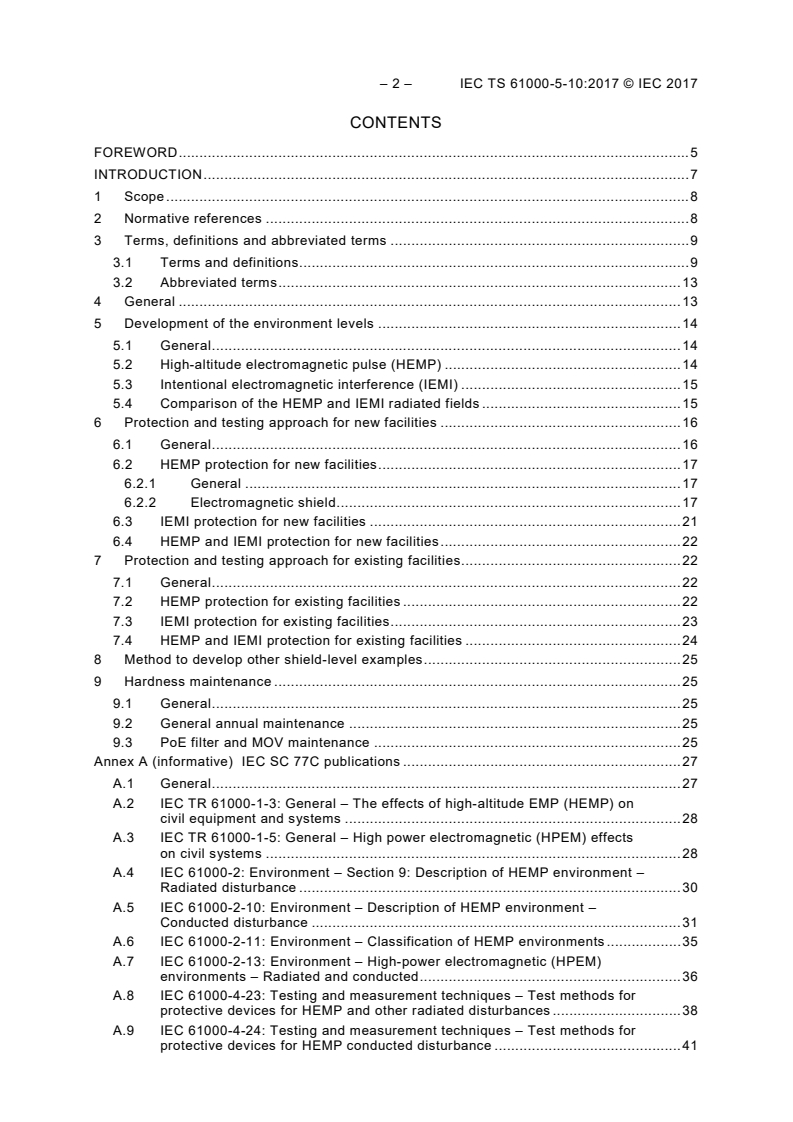

– 2 – IEC TS 61000-5-10:2017 © IEC 2017
CONTENTS

FOREWORD ........................................................................................................................... 5

INTRODUCTION ..................................................................................................................... 7

1 Scope .............................................................................................................................. 8

2 Normative references ...................................................................................................... 8

3 Terms, definitions and abbreviated terms ........................................................................ 9

3.1 Terms and definitions .............................................................................................. 9

3.2 Abbreviated terms ................................................................................................. 13

4 General ......................................................................................................................... 13

5 Development of the environment levels ......................................................................... 14

5.1 General ................................................................................................................. 14

5.2 High-altitude electromagnetic pulse (HEMP) ......................................................... 14

5.3 Intentional electromagnetic interference (IEMI) ..................................................... 15

5.4 Comparison of the HEMP and IEMI radiated fields ................................................ 15

6 Protection and testing approach for new facilities .......................................................... 16

6.1 General ................................................................................................................. 16

6.2 HEMP protection for new facilities ......................................................................... 17

6.2.1 General ......................................................................................................... 17

6.2.2 Electromagnetic shield ................................................................................... 17

6.3 IEMI protection for new facilities ........................................................................... 21

6.4 HEMP and IEMI protection for new facilities .......................................................... 22

7 Protection and testing approach for existing facilities ..................................................... 22

7.1 General ................................................................................................................. 22

7.2 HEMP protection for existing facilities ................................................................... 22

7.3 IEMI protection for existing facilities ...................................................................... 23

7.4 HEMP and IEMI protection for existing facilities .................................................... 24

8 Method to develop other shield-level examples .............................................................. 25

9 Hardness maintenance .................................................................................................. 25

9.1 General ................................................................................................................. 25

9.2 General annual maintenance ................................................................................ 25

9.3 PoE filter and MOV maintenance .......................................................................... 25

Annex A (informative) IEC SC 77C publications ................................................................... 27

A.1 General ................................................................................................................. 27

A.2 IEC TR 61000-1-3: General – The effects of high-altitude EMP (HEMP) on

civil equipment and systems ................................................................................. 28

A.3 IEC TR 61000-1-5: General – High power electromagnetic (HPEM) effects

on civil systems .................................................................................................... 28

A.4 IEC 61000-2: Environment – Section 9: Description of HEMP environment –

Radiated disturbance ............................................................................................ 30

A.5 IEC 61000-2-10: Environment – Description of HEMP environment –

Conducted disturbance ......................................................................................... 31

A.6 IEC 61000-2-11: Environment – Classification of HEMP environments .................. 35

A.7 IEC 61000-2-13: Environment – High-power electromagnetic (HPEM)

environments – Radiated and conducted ............................................................... 36

A.8 IEC 61000-4-23: Testing and measurement techniques – Test methods for

protective devices for HEMP and other radiated disturbances ............................... 38

A.9 IEC 61000-4-24: Testing and measurement techniques – Test methods for

protective devices for HEMP conducted disturbance ............................................. 41

---------------------- Page: 4 ----------------------
IEC TS 61000-5-10:2017 © IEC 2017 – 3 –
A.10 IEC 61000-4-25: Testing and measurement techniques – HEMP immunity

test methods for equipment and systems .............................................................. 42

A.11 IEC TR 61000-4-32: Testing and measurement techniques – High-altitude

electromagnetic pulse (HEMP) simulator compendium .......................................... 43

A.12 IEC 61000-4-33: Testing and measurement techniques – Measurement

methods for high-power transient parameters ....................................................... 43

A.13 IEC TR 61000-4-35: Testing and measurement techniques – HPEM

simulator compendium .......................................................................................... 44

A.14 IEC 61000-4-36: Testing and measurement techniques – IEMI immunity test

methods for equipment and systems ..................................................................... 44

A.15 IEC TR 61000-5-3: Installation and mitigation guidelines – HEMP protection

concepts ............................................................................................................... 45

A.16 IEC TR 61000-5: Installation and mitigation guidelines – Section 4:

Specifications for protective devices against HEMP radiated disturbance .............. 46

A.17 IEC 61000-5: Installation and mitigation guidelines – Section 5: Specification

of protective devices for HEMP conducted disturbance ......................................... 47

A.18 IEC TR 61000-5-6: Installation and mitigation guidelines – Mitigation of

external EM influences .......................................................................................... 47

A.19 IEC 61000-5-7: Installation and mitigation guidelines – Degrees of protection

provided by enclosures against electromagnetic disturbances (EM code) .............. 49

A.20 IEC TS 61000-5-8: Installation and mitigation guidelines – HEMP protection

methods for the distributed infrastructure .............................................................. 50

A.21 IEC TS 61000-5-9: Installation and mitigation guidelines – System-level

susceptibility assessments for HEMP and HPEM .................................................. 50

A.22 IEC 61000-6-6: Generic standards – HEMP immunity for indoor equipment .......... 52

Bibliography .......................................................................................................................... 54

Figure 1 – Comparison of IEMI radiated environments with those of E1 HEMP and

lightning ................................................................................................................................ 16

Figure 2 – Basic high frequency shielding approach for a building ........................................ 17

Figure A.1 – Organization of the current publications of IEC SC 77C .................................... 27

Figure A.2 – Topological diagram for the simple system........................................................ 29

Figure A.3 – Illustration of typical HPEM inadvertent penetration protection methods ........... 30

Figure A.4 – Complete standard HEMP time waveform with the dashed line indicating

a negative value of the E3 HEMP waveform ......................................................................... 31

Figure A.5 – Amplitude spectrum of each HEMP component ................................................. 31

Figure A.6 – Simple equivalent circuit where E is the induced late time HEMP electric

field ...................................................................................................................................... 33

Figure A.7 – Several types of HPEM environments compared with the IEC E1 HEMP

waveform .............................................................................................................................. 37

Figure A.8 – Typical configuration of a CW test facility .......................................................... 39

Figure A.9 – Example scan from 9 kHz to 3 GHz for the ambient electromagnetic field

from communication signals .................................................................................................. 39

Figure A.10 – Measurement methods for evaluating shielding effectiveness of high-

level shields .......................................................................................................................... 40

Figure A.11 – Representation of typical IEMI radiation and coupling onto systems ............... 45

Figure A.12 – Example of penetration from radiated and conducted disturbances

through a two-barrier protection ............................................................................................ 46

Figure A.13 – Generalised system topology .......................................................................... 48

Figure A.14 – Assessment methodology flowchart ................................................................ 51

---------------------- Page: 5 ----------------------
– 4 – IEC TS 61000-5-10:2017 © IEC 2017

Table 1 – Radiated and conducted environments for early time HEMP and concepts 1

to 6 (IEC 61000-6-6) ............................................................................................................. 19

Table A.1 – Early time HEMP conducted common-mode short-circuit current including

the time history and peak value I as a function of severity level, length L in m and

ground conductivity in S/m .................................................................................................... 32

Table A.2 – Intermediate time HEMP conducted common-mode short-circuit currents

including the time history and peak value I as a function of length L in m and ground

conductivity in S/m ................................................................................................................ 33

Table A.3 – E1 HEMP response levels for I for the loaded vertical monopole

antenna (current values are in kA) ...................................................................................... 34

Table A.4 – E1 HEMP response levels for I for the loaded horizontal dipole antenna

(current values are in kA) ................................................................................................... 35

Table A.5 – Minimum required attenuation of peak time domain external environments

for the six principal protection concepts for E1 HEMP .......................................................... 36

Table A.6 – Definitions for IEMI bandwidth classification ....................................................... 37

Table A.7 – Overview of conducted early time HEMP test requirements defined in

other specifications ............................................................................................................... 41

Table A.8 – Performance criteria of a filter against early time HEMP at the AC power

port with a nominal load of 2 Ω ............................................................................................. 42

Table A.9 – Radiated and conducted environments for early time HEMP and concepts

1 to 6 .................................................................................................................................... 53

---------------------- Page: 6 ----------------------
IEC TS 61000-5-10:2017 © IEC 2017 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTROMAGNETIC COMPATIBILITY (EMC) –
Part 5-10: Installation and mitigation guidelines –
Guidance on the protection of facilities against HEMP and IEMI
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. In

exceptional circumstances, a technical committee may propose the publication of a technical

specification when

• the required support cannot be obtained for the publication of an International Standard,

despite repeated efforts, or

• the subject is still under technical development or where, for any other reason, there is the

future but no immediate possibility of an agreement on an International Standard.

Technical Specification IEC 61000-5-10 has been prepared by subcommittee 77C: High-

power transient phenomena, of IEC technical committee 77: Electromagnetic compatibility.

It forms part 5-10 of IEC 61000. It has the status of a basic EMC publication in accordance

with IEC Guide 107.
---------------------- Page: 7 ----------------------
– 6 – IEC TS 61000-5-10:2017 © IEC 2017
The text of this technical specification is based on the following documents:
Enquiry draft Report on voting
77C/260/DTS 77C/262/RVDTS

Full information on the voting for the approval of this technical specification can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 61000 series, published under the general title Electromagnetic

compatibility (EMC), can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 8 ----------------------
IEC TS 61000-5-10:2017 © IEC 2017 – 7 –
INTRODUCTION
IEC 61000 is published in separate parts according to the following structure:
Part 1: General
General considerations (introduction, fundamental principles)
Definitions, terminology
Part 2: Environment
Description of the environment
Classification of the environment
Compatibility levels
Part 3: Limits
Emission limits

Immunity limits (in so far as they do not fall under the responsibility of the product

committees)
Part 4: Testing and measurement techniques
Measurement techniques
Testing techniques
Part 5: Installation and mitigation guidelines
Installation guidelines
Mitigation methods and devices
Part 6: Generic standards
Part 9: Miscellaneous

Each part is further subdivided into several parts, published either as international standards

or as technical specifications or technical reports, some of which have already been published

as sections. Others will be published with the part number followed by a dash and a second

number identifying the subdivision (example: IEC 61000-6-1).
---------------------- Page: 9 ----------------------
– 8 – IEC TS 61000-5-10:2017 © IEC 2017
ELECTROMAGNETIC COMPATIBILITY (EMC) –
Part 5-10: Installation and mitigation guidelines –
Guidance on the protection of facilities against HEMP and IEMI
1 Scope

This part of IEC 61000 provides guidelines to protect commercial facilities from the high-

power electromagnetic disturbances of high-altitude electromagnetic pulse (HEMP) and

intentional electromagnetic interference (IEMI). These guidelines are developed from the

entire body of IEC SC 77C publications.

This document is applicable to both existing facilities and new buildings when the customer

has decided that protection of critical electronics from HEMP and IEMI is important to the

function of the facility.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC TR 61000-1-3, Electromagnetic compatibility (EMC) – Part 1-3: General – The effects of

high-altitude EMP (HEMP) on civil equipment and systems

IEC TR 61000-1-5, Electromagnetic compatibility (EMC) – Part 1-5: General – High power

electromagnetic (HPEM) effects on civil systems

IEC 61000-2-9, Electromagnetic compatibility (EMC) – Part 2: Environment – Section 9:

Description of HEMP environment – Radiated disturbance

IEC 61000-2-10:1998, Electromagnetic compatibility (EMC) – Part 2-10: Environment –

Description of HEMP environment – Conducted disturbance
IEC 61000-2-11, Electromagnetic compatibility (EMC) – Part 2-11: Environment –
Classification of HEMP environments

IEC 61000-2-13, Electromagnetic compatibility (EMC) – Part 2-13: Environment – High-power

electromagnetic (HPEM) environments – Radiated and conducted

IEC 61000-4-23:2016, Electromagnetic compatibility (EMC) – Part 4-23: Testing and

measurement techniques – Test methods for protective devices for HEMP and other radiated

disturbances

IEC 61000-4-24, Electromagnetic compatibility (EMC) – Part 4-24: Testing and measurement

techniques – Test methods for protective devices for HEMP conducted disturbance

IEC 61000-4-25, Electromagnetic compatibility (EMC) – Part 4-25: Testing and measurement

techniques – HEMP immunity test methods for equipment and systems
---------------------- Page: 10 ----------------------
IEC TS 61000-5-10:2017 © IEC 2017 – 9 –
IEC TR 61000-4-32, Electromagnetic compatibility (EMC) – Part 4-32: Testing and
measurement techniques – High-altitude electromagnetic pulse (HEMP) simulator
compendium

IEC 61000-4-33, Electromagnetic compatibility (EMC) – Part 4-33: Testing and measurement

techniques – Measurement methods for high-power transient parameters
IEC TR 61000-4-35, Electromagnetic compatibility (EMC) – Part 4-35: Testing and
measurement techniques –HPEM simulator compendium

IEC 61000-4-36:2014, Electromagnetic compatibility (EMC) – Part 4-36: Testing and

measurement techniques – IEMI immunity test methods for equipment and systems

IEC TR 61000-5-3, Electromagnetic compatibility (EMC) – Part 5-3: Installation and mitigation

guidelines – HEMP protection concepts

IEC TR 61000-5-4, Electromagnetic compatibility (EMC) – Part 5: Installation and mitigation

guidelines – Section 4: Immunity to HEMP – Specifications for protective devices against

HEMP radiated disturbance

IEC 61000-5-5:1996, Electromagnetic compatibility (EMC) – Part 5: Installation and mitigation

guidelines – Section 5: Specification of protective devices for HEMP conducted disturbance

IEC TR 61000-5-6, Electromagnetic compatibility (EMC) – Part 5-6: Installation and mitigation

guidelines – Mitigation of external EM influences

IEC 61000-5-7:2001, Electromagnetic compatibility (EMC) – Part 5-7: Installation and

mitigation guidelines – Degrees of protection provided by enclosures against electromagnetic

disturbances (EM code)

IEC TS 61000-5-8, Electromagnetic compatibility (EMC) – Part 5-8: Installation and mitigation

guidelines – HEMP protection methods for the distributed infrastructure

IEC TS 61000-5-9, Electromagnetic compatibility (EMC) – Part 5-9: Installation and mitigation

guidelines – System-level susceptibility assessments for HEMP and HPEM

IEC 61000-6-6, Electromagnetic compatibility (EMC) – Part 6-6: Generic standards – HEMP

immunity for indoor equipment
3 Terms, definitions and abbreviated terms

For the purposes of this document, the following terms, definitions and abbreviated terms

apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1 Terms and definitions
3.1.1
attenuation

reduction in magnitude (e.g., as a result of absorption and/or scattering) of an electric or

magnetic field or a current or voltage
---------------------- Page: 11 ----------------------
– 10 – IEC TS 61000-5-10:2017 © IEC 2017
Note 1 to entry: It is usually expressed in dB.
3.1.2
bandratio
ratio of the high and low frequencies between which there is 90 % of the energy

Note 1 to entry: If the spectrum has a large DC content, the lower limit is nominally defined as 1 Hz.

3.1.3
conducted HPEM environment

totality of high-power electromagnetic currents and voltages that are either coupled to or

directly injected into cables and wires with voltage levels that typically exceed 1 kV

3.1.4
continuous wave
time waveform that has a fixed frequency and is continuous
3.1.5
coupling

interaction of HEMP/IEMI fields with a system or equipment to produce currents and voltages

on system surfaces, cables and wires
3.1.6
E1, E2, E3
terminology for the HEMP electric fields

Note 1 to entry: E1 is early time HEMP electric field, for times less than 1 µs, E2 is intermediate time HEMP

electric field, for times between 1 µs and 1 s, and E3 is late time HEMP electric field, for times greater than 1 s.

3.1.7
electromagnetic compatibility
EMC

ability of an equipment or system to function satisfactorily in its electromagnetic environment

without introducing intolerable electromagnetic disturbances to anything in that environment

[SOURCE: IEC 60050-161:1990, 161-01-07]
3.1.8
electromagnetic disturbance
any electromagnetic phenomenon which may degrade the performance of a device,
equipment or system
[SOURCE: IEC 60050-161:1990, 161-01-05, modified – the last part o
...
