IEC 60384-13:2020

Fixed capacitors for use in electronic equipment - Part 13: Sectional specification - Fixed polypropylene film dielectric metal foil d.c. capacitors

IEC 60384-13:2020 specifies preferred ratings and characteristics, selects from IEC 60384-1:2016 the appropriate quality assessment procedures, tests and measuring methods, and gives general performance requirements for this type of capacitor. Test severities and requirements specified in detail specifications referring to this sectional specification are of an equal or higher performance level. Lower performance levels are not permitted.
This part of IEC 60384 applies to fixed direct current capacitors, using as dielectric a polypropylene film with electrodes of thin metal foils. The capacitors covered by this document are intended for use in electronic equipment.
Capacitors for electromagnetic interference suppression are not included, but are covered by IEC 60384-14.
This edition includes the following significant technical changes with respect to the previous edition:
a) revision of all parts of the document based on the ISO/IEC Directives, Part 2:2018, and harmonization with other similar kinds of documents;
b) the document structure has been organized to follow new sectional specification structure decided in TC 40;
c) revised tables and Clause 5 so as to prevent duplications and contradictions.

Condensateurs fixes utilisés dans les équipements électroniques - Partie 13: Spécification intermédiaire - Condensateurs fixes pour courant continu à diélectrique en film de polypropylène à armatures en feuilles métalliques

L’IEC 60384-13:2020 spécifie des valeurs assignées et des caractéristiques préférentielles, sélectionne, à partir de l’IEC 60384-1:2016, les procédures d’assurance de la qualité, les essais et les méthodes de mesure appropriées et spécifie les exigences de performances générales pour ce type de condensateur. Les sévérités d'essai et les exigences précisées dans les spécifications particulières sont d'un niveau supérieur ou égal à celui de la présente spécification intermédiaire. Des niveaux de performances inférieurs ne sont pas admis.
La présente partie de l’IEC 60384 s’applique aux condensateurs fixes pour courant continu, utilisant comme diélectrique un film de polypropylène avec des électrodes de feuilles métalliques minces. Les condensateurs couverts par le présent document sont destinés à être utilisés dans des équipements électroniques.
Les condensateurs d’antiparasitage ne sont pas inclus, mais sont couverts par l’IEC 60384-14.
This edition includes the following significant technical changes with respect to the previous edition:
a) revision of all parts of the document based on the ISO/IEC Directives, Part 2:2018, and harmonization with other similar kinds of documents;
b) the document structure has been organized to follow new sectional specification structure decided in TC 40;
c) revised tables and Clause 5 so as to prevent duplications and contradictions.

General Information

• Status: Published
• Publication Date: 10-Nov-2020
• ICS: 31.060.30 - Paper and plastics capacitors
• Technical Committee: TC 40 - Capacitors and resistors for electronic equipment
• Drafting Committee: MT 60384-13 - TC 40/MT 60384-13
• Current Stage: PPUB - Publication issued
• Start Date: 31-Jul-2020
• Completion Date: 11-Nov-2020

Relations

• Revises: IEC 60384-13:2011 - Fixed capacitors for use in electronic equipment - Part 13: Sectional specification - Fixed polypropylene film dielectric metal foil d.c. capacitors
• Effective Date: 05-Sep-2023

Standards Content (Sample)

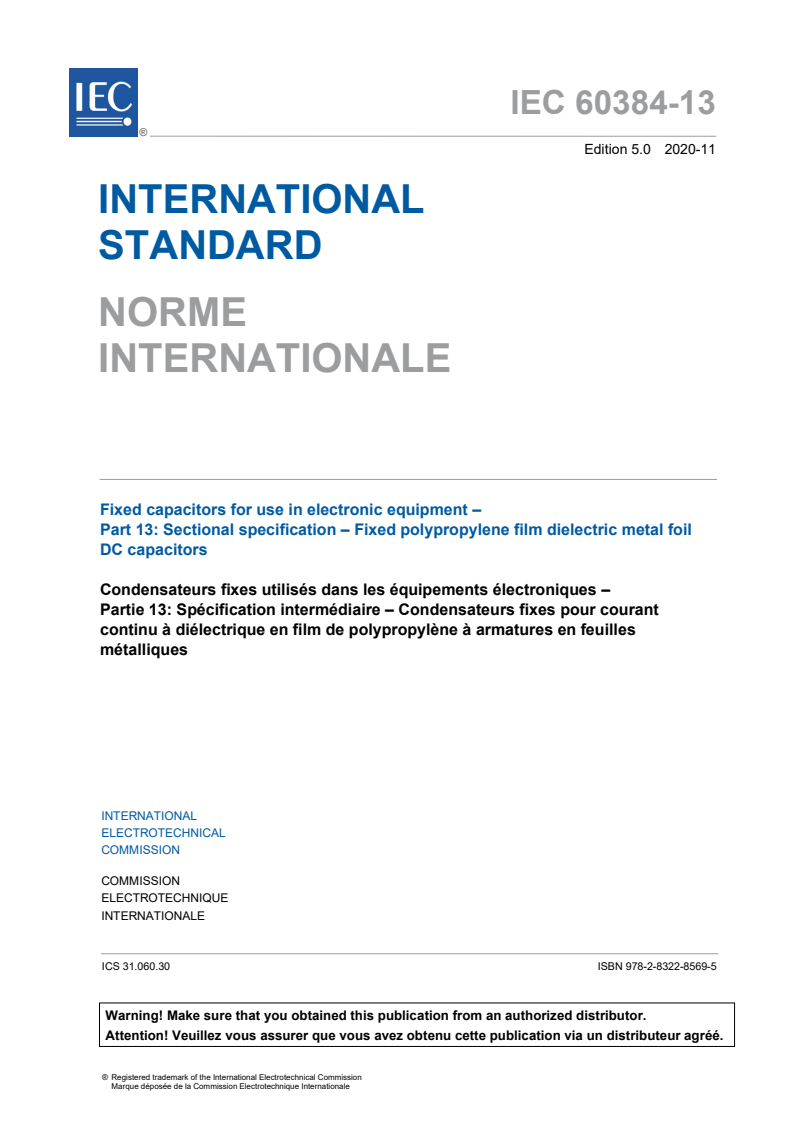

IEC 60384-13 ®
Edition 5.0 2020-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment –
Part 13: Sectional specification – Fixed polypropylene film dielectric metal foil
DC capacitors
Condensateurs fixes utilisés dans les équipements électroniques –
Partie 13: Spécification intermédiaire – Condensateurs fixes pour courant
continu à diélectrique en film de polypropylène à armatures en feuilles
métalliques
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].

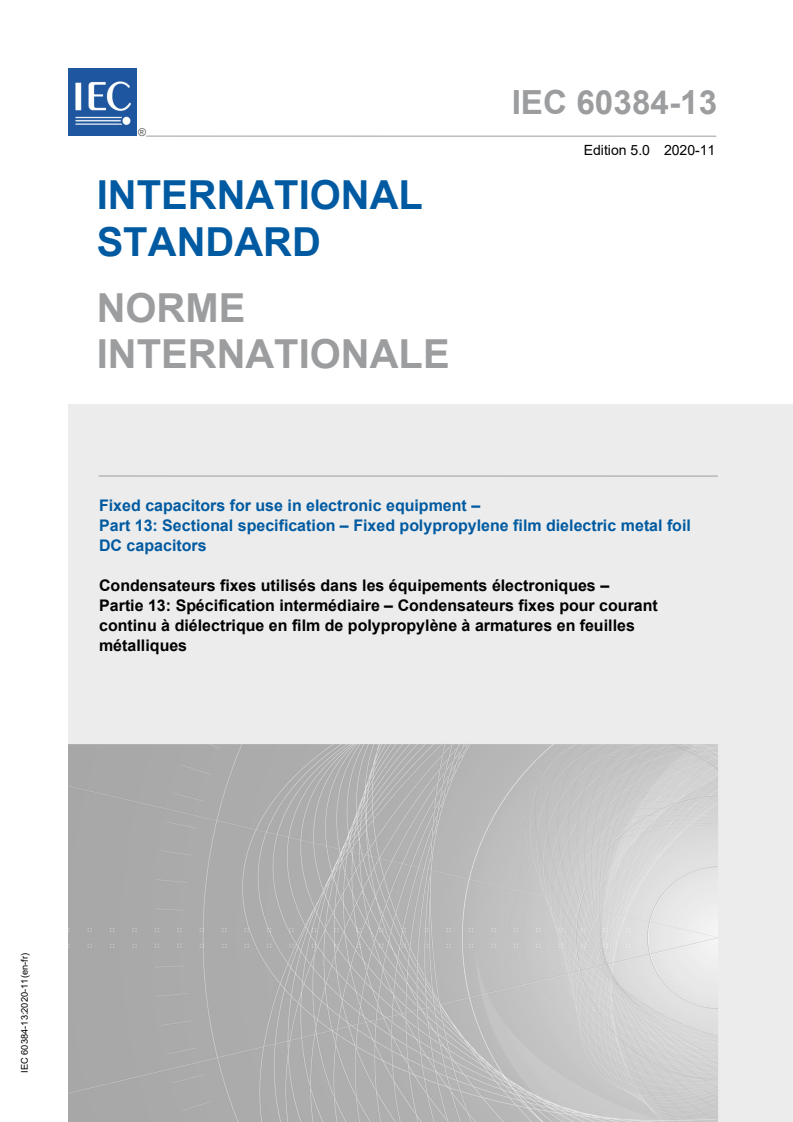

IEC 60384-13 ®
Edition 5.0 2020-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment –

Part 13: Sectional specification – Fixed polypropylene film dielectric metal foil

DC capacitors
Condensateurs fixes utilisés dans les équipements électroniques –

Partie 13: Spécification intermédiaire – Condensateurs fixes pour courant

continu à diélectrique en film de polypropylène à armatures en feuilles

métalliques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.060.30 ISBN 978-2-8322-8569-5

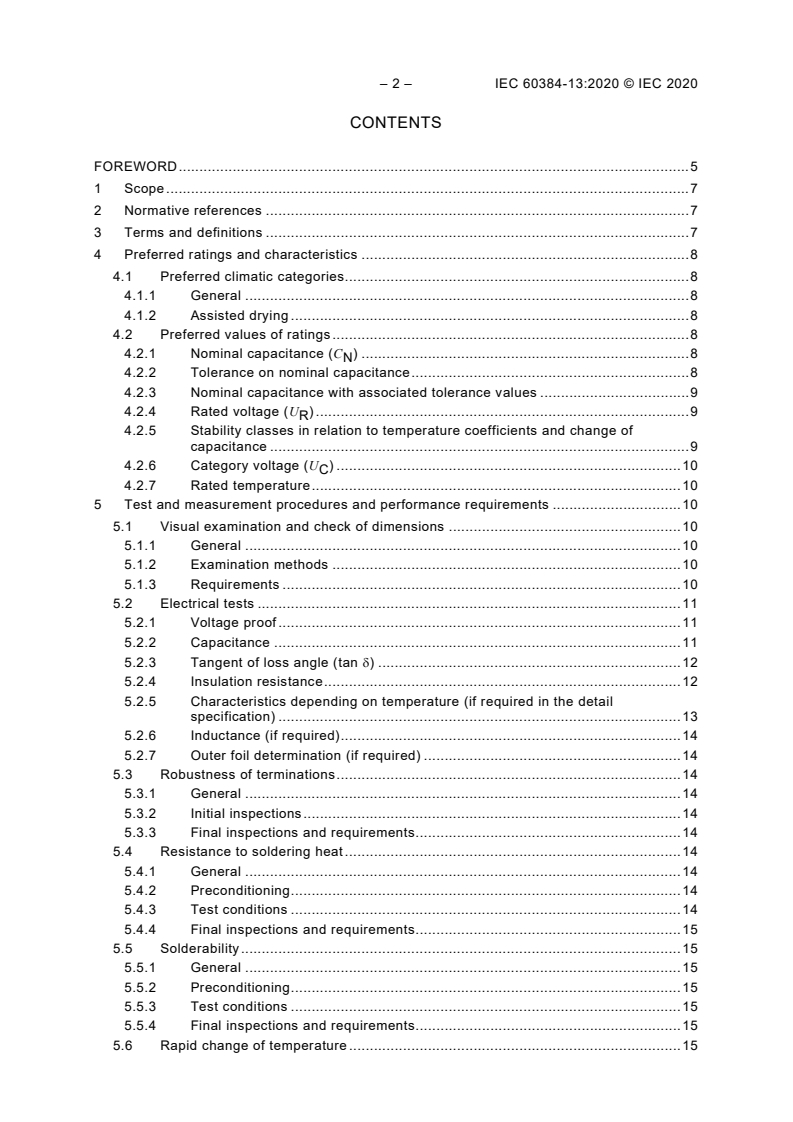

– 2 – IEC 60384-13:2020 © IEC 2020
CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Preferred ratings and characteristics . 8
4.1 Preferred climatic categories . 8
4.1.1 General . 8
4.1.2 Assisted drying . 8
4.2 Preferred values of ratings . 8
4.2.1 Nominal capacitance (C ) . 8
N
4.2.2 Tolerance on nominal capacitance . 8
4.2.3 Nominal capacitance with associated tolerance values . 9
4.2.4 Rated voltage (U ) . 9
R
4.2.5 Stability classes in relation to temperature coefficients and change of
capacitance . 9
4.2.6 Category voltage (U ) . 10
C
4.2.7 Rated temperature . 10
5 Test and measurement procedures and performance requirements . 10
5.1 Visual examination and check of dimensions . 10
5.1.1 General . 10
5.1.2 Examination methods . 10
5.1.3 Requirements . 10
5.2 Electrical tests . 11
5.2.1 Voltage proof . 11
5.2.2 Capacitance . 11
5.2.3 Tangent of loss angle (tan δ) . 12
5.2.4 Insulation resistance . 12
5.2.5 Characteristics depending on temperature (if required in the detail
specification) . 13
5.2.6 Inductance (if required) . 14
5.2.7 Outer foil determination (if required) . 14
5.3 Robustness of terminations . 14
5.3.1 General . 14
5.3.2 Initial inspections . 14
5.3.3 Final inspections and requirements . 14
5.4 Resistance to soldering heat . 14
5.4.1 General . 14
5.4.2 Preconditioning . 14
5.4.3 Test conditions . 14
5.4.4 Final inspections and requirements . 15
5.5 Solderability . 15
5.5.1 General . 15
5.5.2 Preconditioning . 15
5.5.3 Test conditions . 15
5.5.4 Final inspections and requirements . 15
5.6 Rapid change of temperature . 15

5.6.1 General . 15
5.6.2 Initial inspections . 15
5.6.3 Test conditions . 16
5.6.4 Final inspections and requirements . 16
5.7 Vibration . 16
5.7.1 General . 16
5.7.2 Initial inspections . 16
5.7.3 Mounting . 16
5.7.4 Test conditions . 16
5.7.5 Final inspections and requirements . 16
5.8 Bump (repetitive shock) . 16
5.8.1 General . 16
5.8.2 Mounting . 16
5.8.3 Initial measurements . 17
5.8.4 Test conditions . 17
5.8.5 Final inspections and requirements . 17
5.9 Shock . 17
5.9.1 General . 17
5.9.2 Mounting . 17
5.9.3 Initial measurements . 17
5.9.4 Test conditions . 17
5.9.5 Final inspections and requirements . 18
5.10 Climatic sequence. 18
5.10.1 General . 18
5.10.2 Initial measurements . 18
5.10.3 Dry heat . 18
5.10.4 Damp heat, cyclic, test Db, first cycle . 18
5.10.5 Cold. 18
5.10.6 Low air pressure (if required) . 18
5.10.7 Damp heat, cyclic, Test Db, remaining cycles . 18
5.10.8 Recovery . 19
5.10.9 Final inspections and requirements . 19
5.11 Damp heat, steady state . 19
5.11.1 General . 19
5.11.2 Initial inspections . 19
5.11.3 Test conditions . 19
5.11.4 Recovery . 19
5.11.5 Final inspections and requirements . 19
5.12 Endurance . 19
5.12.1 General . 19
5.12.2 Initial inspections . 19
5.12.3 Test conditions . 20
5.12.4 Final inspections and requirements . 20
5.13 Component solvent resistance (if applicable) . 20
5.14 Solvent resistance of the marking (if applicable) . 20
6 Marking . 20
6.1 General . 20
6.2 Information for marking . 20
6.3 Marking on capacitors . 21

– 4 – IEC 60384-13:2020 © IEC 2020
6.4 Marking on packaging . 21
6.5 Additional marking . 21
7 Information to be given in the detail specification . 21
7.1 General . 21
7.2 Outline drawing and dimensions . 21
7.3 Mounting . 22
7.4 Ratings and characteristics . 22
7.4.1 General . 22
7.4.2 Nominal capacitance range . 22
7.4.3 Particular characteristics . 22
7.4.4 Soldering . 22
7.5 Marking . 22
8 Quality assessment procedures . 22
8.1 Primary stage of manufacture . 22
8.2 Structurally similar components . 22
8.3 Certified records of released lots . 23
8.4 Qualification approval . 23
8.4.1 General . 23
8.4.2 Qualification approval on the basis of the fixed sample size procedure . 23
8.5 Quality conformance inspection . 29
8.5.1 Formation of inspection lots . 29
8.5.2 Test schedule . 29
8.5.3 Delayed delivery . 29
8.5.4 Assessment levels . 30
Annex X (informative) Cross-references for references to the previous edition of this

document . 31
Bibliography . 33

Table 1 – Preferred combinations of capacitance series and tolerance . 9
Table 2 – Preferred values and combinations. 10
Table 3 – Test voltages . 11
Table 4 – Insulation resistance . 13
Table 5 – Correction factor dependent on test temperature . 13
Table 6 – Acceleration and duration of the pulse . 17
Table 7 – Endurance test . 20
Table 8 – Fixed sample size test plan for qualification approval Assessment level EZ . 24
Table 9 – Test schedule for qualification approval . 25
Table 10 – Lot-by-lot inspection . 30
Table 11 – Periodic inspection . 30
Table X.1 – Cross-references . 31

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –

Part 13: Sectional specification – Fixed polypropylene
film dielectric metal foil DC capacitors

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60384-13 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This fifth edition cancels and replaces the fourth edition published in 2011. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) revision of all parts of the document based on the ISO/IEC Directives, Part 2:2018, and
harmonization with other similar kinds of documents;
b) the document structure has been organized to follow new sectional specification structure
decided in TC 40;
c) revised tables and Clause 5 so as to prevent duplications and contradictions.

– 6 – IEC 60384-13:2020 © IEC 2020
The text of this standard is based on the following documents:
FDIS Report on voting
40/2751/FDIS 40/2759/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
The list of all parts of the IEC 60384 series, under the general title Fixed capacitors for use in
electronic equipment, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –

Part 13: Sectional specification – Fixed polypropylene
film dielectric metal foil DC capacitors

1 Scope
This part of IEC 60384 specifies preferred ratings and characteristics, selects from
IEC 60384-1:2016 the appropriate quality assessment procedures, tests and measuring
methods, and gives general performance requirements for this type of capacitor. Test
severities and requirements specified in detail specifications referring to this sectional
specification are of an equal or higher performance level. Lower performance levels are not
permitted.
This part of IEC 60384 applies to fixed direct current capacitors, using as dielectric a
polypropylene film with electrodes of thin metal foils. The capacitors covered by this
document are intended for use in electronic equipment.
Capacitors for electromagnetic interference suppression are not included, but are covered by
IEC 60384-14.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60062, Marking codes for resistors and capacitors
IEC 60063, Preferred number series for resistors and capacitors
IEC 60068-1:2013, Environmental testing – Part 1: General and guidance
IEC 60384-1:2016, Fixed capacitors for use in electronic equipment – Part 1: Generic
specification
IEC 60417, Graphical symbols for use on equipment
(available at http://www.graphicalsymbols.info/equipment)
IEC 61193-2:2007, Quality assessment systems – Part 2: Selection and use of sampling plans
for inspection of electronic components and packages
ISO 3, Preferred numbers – Series of preferred numbers
3 Terms and definitions
For the purposes of this document, the terms and definitions of IEC 60384-1:2016, and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
– 8 – IEC 60384-13:2020 © IEC 2020
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
stability class
tolerance on the temperature coefficient together with the permissible change of capacitance
after defined tests
Note 1 to entry: The stability class is stated in the detail specification.
Note 2 to entry: Table 2 shows the preferred stability classes.
3.2
rated voltage
U
R
maximum DC voltage that can be applied continuously to a capacitor at the rated temperature
4 Preferred ratings and characteristics
4.1 Preferred climatic categories
4.1.1 General
The values given in detail specifications shall preferably be selected from the following:
The capacitors covered by this sectional specification are classified into climatic categories in
accordance with the general rules given in IEC 60068-1:2013, Annex A.
The lower and upper category temperatures and the duration of the damp heat, steady-state
test shall be chosen from the following:
• lower category temperature: −55 °C, −40 °C and −25 °C.
• upper category temperature: +85 °C, +100 °C and +105 °C.
• duration of the damp heat, steady-state test: 21 days and 56 days.
The severities for the cold and dry heat tests are the lower and upper category temperatures,
respectively.
4.1.2 Assisted drying
Conditions for assisted drying are:
• time period between 1 h and 6 h;
• temperature (55 ± 2) °C;
• relative humidity not exceeding 20 %.
4.2 Preferred values of ratings
4.2.1 Nominal capacitance (C )
N
Preferred values of nominal capacitance shall be chosen from the E series of IEC 60063,
n
which are given in Table 1, and their decimal multiples (× 10 , where n is an integer).
4.2.2 Tolerance on nominal capacitance
The preferred tolerances on the nominal capacitance are ±20 %; ±10 %; ±5 %; ±2 %; ±1 %.

4.2.3 Nominal capacitance with associated tolerance values
For preferred combinations of capacitance series and tolerances, see Table 1.
Table 1 – Preferred combinations of capacitance series and tolerance
Preferred combinations
Series Tolerances
E 6 ±20 %
E 12 ±10 %
E 24 ±5 %
E 48 ±2 %
E 96 ±1 %
In all cases, the minimum tolerance is ±1 pF. Additional values of capacitance outside the
E 96 range and additional tolerances may be specified.
4.2.4 Rated voltage (U )
R
The preferred values of rated voltages are: 40 V, 63 V, 100 V, 160 V, 250 V and their decimal
multiples. These values conform to the basic series of preferred values R 5 given in ISO 3.
The sum of the DC voltage and the peak AC voltage applied to the capacitor shall not exceed
the rated voltage. The value of the peak AC voltage shall not exceed the following
percentages of the rated voltage at the frequencies stated, and should not be greater than
280 V:
50 Hz: 20 %
100 Hz: 15 %
1 000 Hz: 3 %
10 000 Hz: 1 %
unless otherwise specified in the detail specification.
4.2.5 Stability classes in relation to temperature coefficients and change of
capacitance
Preferred values of temperature coefficients (α) with associated tolerances and preferred
values of permissible change of capacitance and also preferred combinations of these values
defined as stability classes are given in Table 2.
The table is not valid for capacitance values smaller than 50 pF.

– 10 – IEC 60384-13:2020 © IEC 2020
Table 2 – Preferred values and combinations
a
Stability Temperature coefficient α and tolerance in Permissible change of capacitance
class parts per million per degree Kelvin Upper category temperature
−6
10 /K
−80 −100 −125 −160 −250 85 °C 100 °C 105 °C
1 ±40 ±50 ±60 ±80 ±120 ±(0,5 % + 0,5 pF) ±(1 % + 0,5 pF) ±(1 % + 0,5 pF)
±100 ±125 ±160 ±250 ±(1 % + 1 pF) ±(2 % + 1 pF) ±(2 % + 1 pF)
±160 ±250 ±(2 % + 2 pF) ±(5 % + 2 pF) ±(5 % + 2 pF)
a
Permissible change of capacitance after each of the following tests;
– resistance to soldering heat;
– rapid change of temperature;
– vibration;
– bump or shock;
– damp heat, cyclic;
– damp heat, steady state;
– endurance.
4.2.6 Category voltage (U )
C
At 85 °C, the category voltage is equal to the rated voltage (U ). For upper category
R
temperature of 100 °C, the category voltage is equal to 0,7 U , and for 105 °C equal to 0,6 U .
R R
4.2.7 Rated temperature
The standard value of rated temperature is 85 °C.
5 Test and measurement procedures and performance requirements
5.1 Visual examination and check of dimensions
5.1.1 General
See IEC 60384-1:2016, 4.4, with the details in 5.1.2 and 5.1.3.
5.1.2 Examination methods
Visual examination shall be carried out with suitable equipment with approximately 10×
magnification and lighting appropriate to the specimen under test and the quality level
required.
The operator should have available facilities for incident or transmitted illumination, as well as
an appropriate measuring facility.
The capacitors shall be examined to verify that the materials, design, construction and
physical dimensions are appropriate.
5.1.3 Requirements
See Table 9.
The workmanship shall be in accordance with the applicable requirements given in the detail
specification.
5.2 Electrical tests
5.2.1 Voltage proof
5.2.1.1 General
See IEC 60384-1:2016, 4.6, with the details in 5.2.1.2 to 5.2.1.4.
5.2.1.2 Test circuit
The product of R and the nominal capacitance of the capacitor under test (C ) shall be
1 x
smaller than or equal to 1 s and greater than 0,01 s.
R includes the internal resistance of the power supply.
R shall limit the discharge current to a value equal to or less than 1 A.
5.2.1.3 Test conditions
The voltages given in Table 3 shall be applied between the measuring points (from
IEC 60384-1:2016, Table 3) for a period of 1 min for qualification approval testing and at
measuring point 1a) for a period of 1 s for the lot-by-lot quality conformance testing.
Table 3 – Test voltages
Test point Test voltage
1a) 2 U
R
1b) and 1c) 2 U with a minimum of 400 V
R
5.2.1.4 Requirement
There shall be no breakdown or flashover during the test.
5.2.2 Capacitance
5.2.2.1 General
See IEC 60384-1:2016, 4.7, with the details in 5.2.2.2 and 5.2.2.3.
5.2.2.2 Measuring conditions
The capacitance shall be measured for
a) nominal capacitance C ≤ 1 000 pF:
N
– For measuring purposes: 1 MHz ± 0,2 MHz or 100 kHz ± 20 kHz.
– For referee purposes: 1 MHz ± 0,2 MHz.
b) nominal capacitance C > 1 000 pF:
N
– For measuring purposes: 1 kHz ± 0,2 kHz or 10 kHz ± 2 kHz.
– For referee purposes: 1 kHz ± 0,2 kHz.
The peak value of applied voltage shall not exceed 3 % of the rated voltage or 5 V, whichever
is smaller.
5.2.2.3 Requirements
The capacitance shall be within the specified tolerance.

– 12 – IEC 60384-13:2020 © IEC 2020
For capacitors with a value of less than 10 pF or of more than 1 µF, the method of
measurement and the limits shall be given in the detail specification.
5.2.3 Tangent of loss angle (tan δ)
5.2.3.1 General
See IEC 60384-1:2016, 4.8, with the details in 5.2.3.2 and 5.2.3.3.
5.2.3.2 Measuring conditions
Tangent of loss angle shall be measured, and the values recorded (for reference purposes).
The measuring frequency shall be same as that used for the capacitance measurement in
5.2.2.2.
The accuracy of the measuring instruments shall be such that the measuring error does not
−4
exceed 10 .
5.2.3.3 Requirement for measurements
The tangent of the loss angle shall not exceed the following limits.
−4
at 1 MHz or 100 kHz: 10 × 10 for C ≤ 1 000 pF
N
−4
at 1 kHz or 10 kHz: 5 × 10 for 1 000 pF < C ≤ 0,1 µF
N
−4
at 1 kHz: 10 × 10 for C > 0,1 µF
N
When the nominal capacitance is 10 pF or less or higher than 1 µF, the limits shall be given in
the detail specification.
5.2.4 Insulation resistance
5.2.4.1 General
See IEC 60384-1:2016, 4.5, with the details in 5.2.4.2 to 5.2.4.4.
5.2.4.2 Preconditioning
Prior to the test, capacitors shall be carefully cleaned to remove any contamination. Care
shall be taken to maintain cleanliness in the test chambers and during post-test
measurements.
Before measurement, the capacitor shall be fully discharged. The product of the resistance of
the discharge circuit and the nominal capacitance of the capacitor under test shall be ≥ 0,01 s
or any other value stated in the detail specification.
5.2.4.3 Measuring conditions
The measuring voltage shall be in accordance with IEC 60384-1:2016, 4.5.2.
The measuring points shall be in accordance with IEC 60384-1:2016, Table 3.
The voltage shall be applied immediately at the correct value through the internal resistance
of the voltage source. The product of the internal resistance and the nominal capacitance of
the capacitor shall be smaller than 1 s or any other value stated in the detail specification.

5.2.4.4 Requirements
The insulation resistance shall meet the requirements in Table 4.
Table 4 – Insulation resistance
Requirements
Minimum RC product Minimum insulation Minimum insulation
Measuring points
(R = insulation resistance resistance between the resistance between
in accordance with
between the terminations terminations terminations and case
IEC 60384-1:2016,
C = nominal capacitance)
N
Table 3
s MΩ MΩ
C > 0,1 µF C ≤ 0,1 µF
N N
1a) 10 000 100 000 -
1b) and 1c) – – 100 000
NOTE For stability class 3, a minimum insulation resistance value of 30 000 MΩ is permitted.

5.2.4.5 Correction factors
When the test is carried out at a temperature other than 20 °C, the result shall, when
necessary, be corrected to 20 °C by multiplying the result of the measurement by the
appropriate correction factor. In case of doubt, measurement at 20 °C is decisive. The
correction factors in Table 5 can be considered as an average for polypropylene film dielectric
metal foil capacitors.
Table 5 – Correction factor dependent on test temperature
Temperature Correction factor
°C
15 0,75
20 1,00
25 1,25
30 1,75
35 2,00
5.2.5 Characteristics depending on temperature (if required in the detail specification)
5.2.5.1 General
See IEC 60384-1:2016, 4.24.1, with the details in 5.2.5.2 and 5.2.5.3.
5.2.5.2 Measurement conditions
The capacitors shall be dried before the testing (see IEC 60384-1:2016, 4.3).
The capacitance measurements shall be carried out during one temperature cycle at points a)
(20 °C = comparison temperature), b) (lower category temperature), d) (20 °C = comparison
temperature), f) (upper category temperature) and g) (20 °C = comparison temperature).
5.2.5.3 Requirements
The change of capacitance during and after the temperature cycle (temperature coefficient
and temperature cyclic drift of capacitance) shall be within the limits of the relevant stability
class and upper category temperature in accordance with Table 2.

– 14 – IEC 60384-13:2020 © IEC 2020
5.2.6 Inductance (if required)
See IEC 60384-1:2016, 4.11, with the following details.
The inductance of the capacitor shall be measured. The limit for its value shall be stated in
the detail specification.
NOTE An approximate value of inductance can be provided from the resonant frequency value obtained, for
example, with an absorption method and from the capacitance value
5.2.7 Outer foil determination (if required)
See IEC 60384-1:2016, 4.12, with the following details.
The correct indication of the termination that is connected to the outside metal foil shall be
checked in such a way that the capacitor is not damaged.
5.3 Robustness of terminations
5.3.1 General
See IEC 60384-1:2016, 4.13, with the details in 5.3.2 and 5.3.3.
5.3.2 Initial inspections
The capacitance shall be measured in accordance with 5.2.2.2.
The tangent of loss angle shall be measured in accordance with 5.2.3.2.
5.3.3 Final inspections and requirements
No visible damage. See Table 9.
5.4 Resistance to soldering heat
5.4.1 General
See IEC 60384-1:2016, 4.14, with the details 5.4.2 to 5.4.4.
5.4.2 Preconditioning
No pre-drying.
5.4.3 Test conditions
Method 1 (solder bath) or 2 (soldering iron) of IEC 60384-1:2016, 4.14, unless otherwise
specified in the detail specification
If method 1 is applied,
• temperature of the solder bath: 260 °C ± 5 °C;
• immersion time: 5 s ± 0,5 s or 10 s ± 1 s, as specified in the detail specification.
If method 2 is applied,
• temperature of the soldering iron: 350 °C ± 10 °C;
• soldering iron size A;
• soldering duration time: 10 s ± 1 s.

5.4.4 Final inspections and requirements
After recovery, the capacitors shall be visually examined and measured and shall meet the
following requirements.
Under normal lighting and approximately 10× magnification, there shall be no signs of damage
such as cracks.
The capacitance and tangent of loss angle shall be measured in accordance with 5.3.2 and
shall meet the requirements given in Table 9.
5.5 Solderability
5.5.1 General
See IEC 60384-1:2016, 4.15, with the details in 5.5.2 to 5.5.4.
5.5.2 Preconditioning
No ageing.
5.5.3 Test conditions
See IEC 60384-1:2016, 4.15.3.
Temperature of the solder bath and process time for preferred solders:
• SnPb solder: 235 °C ± 3 °C for (2 ± 0,2) s;
• Sn96,5Ag3Cu,5 solder: 245 °C ± 3 °C for (3 ± 0,3) s;
• Sn99,3Cu,7 solder: 250 °C ± 3 °C for (3 ± 0,3) s.
The requirements for the globule test method shall be stated in the detail specification. When
neither the solder bath nor the solder globule method is appropriate, the soldering iron test
shall be carried out with soldering iron size A.
5.5.4 Final inspections and requirements
The capacitor shall be visually examined under normal lighting and approximately 10×
magnification.
The areas to be soldered shall be covered with a smooth and bright solder coating with no
more than a small amount of scattered imperfections such as pinholes or un-wetted or de-
wetted areas. These imperfections shall not be concentrated in one area.
In the solder globule method, the detail specification shall define the flow time of the solder in
seconds.
5.6 Rapid change of temperature
5.6.1 General
See IEC 60384-1:2016, 4.16, with the details in 5.6.2 to 5.6.4.
5.6.2 Initial inspections
Initial measurements shall
...
