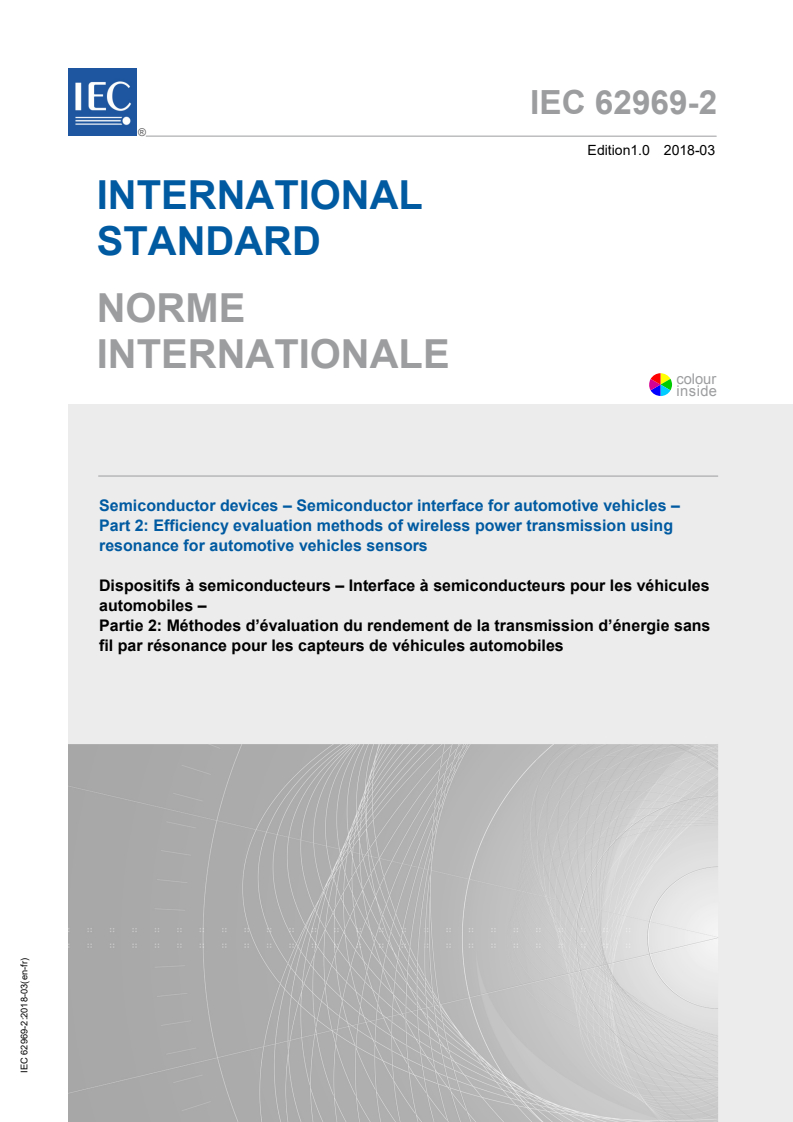

IEC 62969-2 ®
Edition1.0 2018-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Semiconductor devices – Semiconductor interface for automotive vehicles –
Part 2: Efficiency evaluation methods of wireless power transmission using
resonance for automotive vehicles sensors

Dispositifs à semiconducteurs – Interface à semiconducteurs pour les véhicules
automobiles –
Partie 2: Méthodes d’évaluation du rendement de la transmission d’énergie sans
fil par résonance pour les capteurs de véhicules automobiles

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des
en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées
comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et
projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette
Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:
Disponible en ligne et aussi une fois par mois par email. [e-mail].

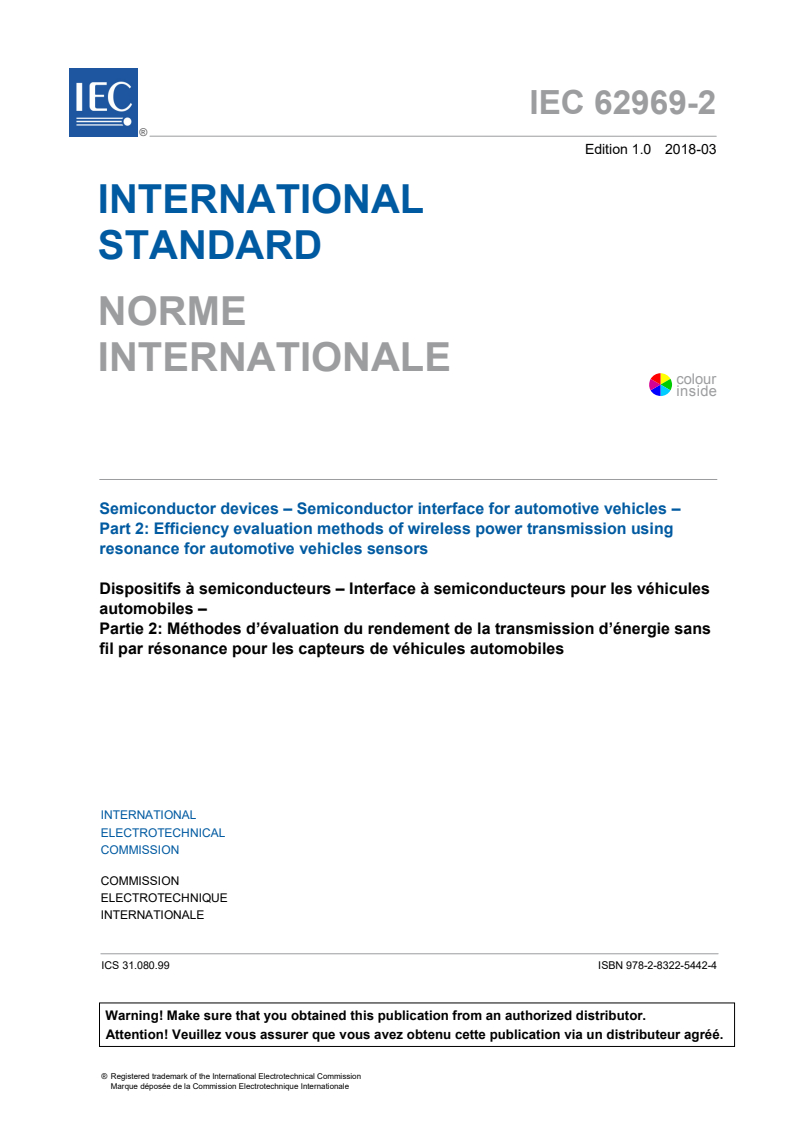

IEC 62969-2 ®
Edition 1.0 2018-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Semiconductor devices – Semiconductor interface for automotive vehicles –

Part 2: Efficiency evaluation methods of wireless power transmission using

resonance for automotive vehicles sensors

Dispositifs à semiconducteurs – Interface à semiconducteurs pour les véhicules

automobiles –
Partie 2: Méthodes d’évaluation du rendement de la transmission d’énergie sans

fil par résonance pour les capteurs de véhicules automobiles

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.080.99 ISBN 978-2-8322-5442-4

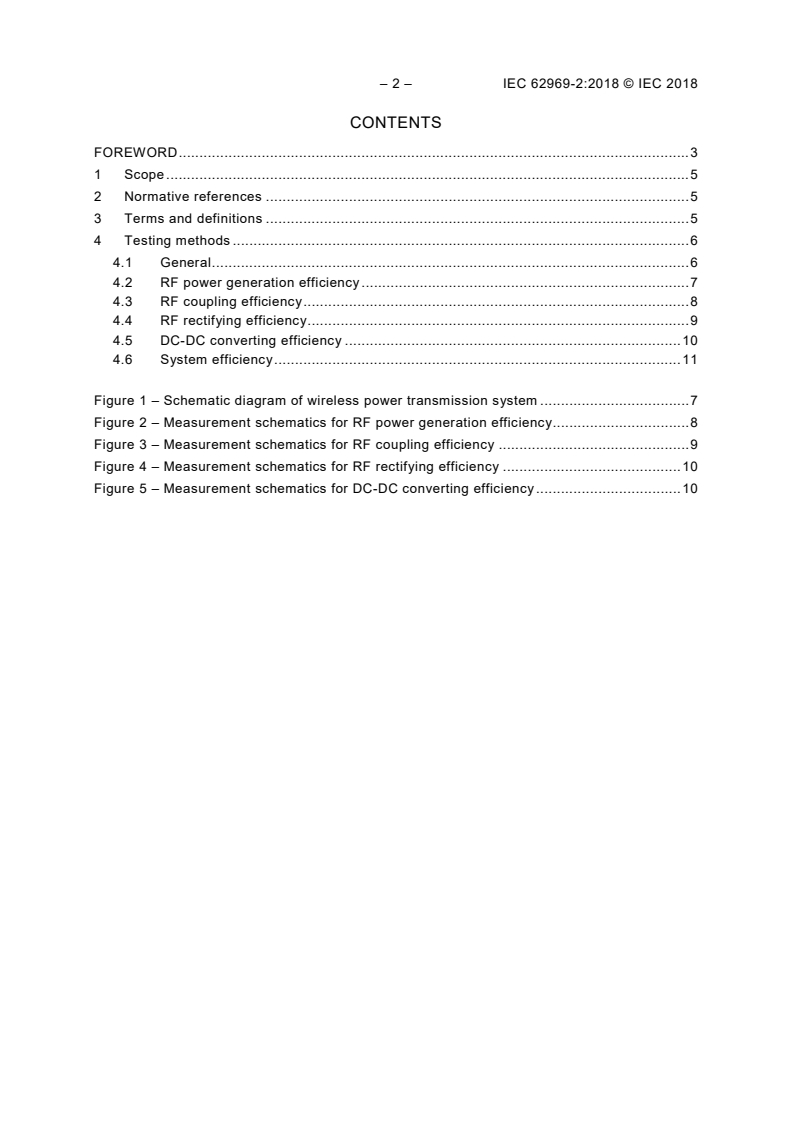

– 2 – IEC 62969-2:2018 © IEC 2018
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Testing methods . 6
4.1 General . 6
4.2 RF power generation efficiency . 7
4.3 RF coupling efficiency . 8
4.4 RF rectifying efficiency . 9
4.5 DC-DC converting efficiency . 10
4.6 System efficiency . 11

Figure 1 – Schematic diagram of wireless power transmission system . 7
Figure 2 – Measurement schematics for RF power generation efficiency . 8
Figure 3 – Measurement schematics for RF coupling efficiency . 9
Figure 4 – Measurement schematics for RF rectifying efficiency . 10
Figure 5 – Measurement schematics for DC-DC converting efficiency . 10

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
SEMICONDUCTOR INTERFACE FOR AUTOMOTIVE VEHICLES –

Part 2: Efficiency evaluation methods of wireless power transmission
using resonance for automotive vehicles sensors

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62969-2 has been prepared by IEC technical committee 47:
Semiconductor devices.
The text of this International Standard is based on the following documents:
FDIS Report on voting
47/2450/FDIS 47/2460/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC 62969-2:2018 © IEC 2018
A list of all the parts in the IEC 62969 series, published under the general title Semiconductor
devices – Semiconductor interface for automotive vehicles, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
SEMICONDUCTOR DEVICES –
SEMICONDUCTOR INTERFACE FOR AUTOMOTIVE VEHICLES –

Part 2: Efficiency evaluation methods of wireless power transmission
using resonance for automotive vehicles sensors

1 Scope
This part of IEC 62969 specifies procedures and definitions for measuring the efficiency of the
wireless power transmission system for the automotive vehicles sensors. This document deals
with the power range below 500 mW.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
wireless power transfer
technology of power transmission/receiving without power line
3.2
resonance frequency
f
special frequency which is determined by inductance and capacitance of the coil
3.3
resonant wireless power transfer
energy transfer maximizing method using the concord of resonance frequency between the
two coils which make magnetic inductive coupling
3.4
power driving coil
coil which receives RF power directly
Note 1 to entry: The power driving coil is part of the basic elements of the resonant wireless power transmission
system.
3.5
transmitting resonator coil
coil which transfers power using magnetic resonance
Note 1 to entry: The transmitting resonator coil is part of the basic elements of the resonant wireless power
transmission system.
– 6 – IEC 62969-2:2018 © IEC 2018
3.6
receiving resonator coil
coil which is receiving wireless power
Note 1 to entry: The receiving resonator coil is part of the basic elements of the resonant wireless power
transmission system.
3.7
load coil
coil which supplies power to the devices
Note 1 to entry: The load coil is part of the basic elements of the resonant wireless power transmission system.
3.8
resonator coil
coil, the inductance and capacitance of which have been determined according to its
geometry
4 Testing methods
4.1 General
The concept of resonant wireless power transfer system is shown in Figure 1 and efficiency is
a function of the loading conditions (e.g. light load, medium load, and full load) as well as the
degree of coupling between the transmission and receiver coils (e.g. weak coupling or perfect
coupling). The system comprises six main functional units which are an automotive vehicle
DC supply unit, a RF power generator unit, a T coil unit, an R coil unit, a rectifier unit and a
x x
DC-DC converter unit. The T coil unit includes a power driving coil and a transmitting
x
resonator coil. The R coil unit includes a receiving resonator coil and a load coil.
x
The automotive vehicle DC supply means that the supplied electric power which is provided
by vehicle, which voltage can be +12V or +24V. The RF power generator unit is the circuit
which can convert DC power to RF power. At this time, the frequency of RF power can be
hundreds of kHz to tens of MHz. The T coil unit and the R coil unit are actually delivering
x x
power wirelessly. The rectifier unit is the electric circuit which can convert RF power to DC
power. The DC-DC converter unit converts the level of DC voltage. The rectified voltage is
different from the voltage for driving a load. Therefore, the DC-DC converter is required.
Finally a load can be connected to the output of DC-DC converter. The value of characteristic
impedance (Z ) should be specified when designing a high frequency circuit and measuring
the high frequency characteristics. Usually the value of Z is 50 Ω.
T coil
x
Power driving coil
Automotive P P
DC1 RF1
RF power
vehicle
generator
DC supply
Transmitting
resonator coil
Transmission
distance
Receiving
resonator coil
P P P
DC3 DC2 RF2
DC-DC
Rectifier
converter
Load coil
R coil
x
Load
IEC
Key
P DC power from automotive vehicle DC supply
DC1
P RF power from RF power generator
RF1
P RF power from R coil
x
RF2
P DC power from rectifier
DC2
P DC power from DC-DC converter

DC3
Figure 1 – Schematic diagram of wireless power transmission system
4.2 RF power generation efficiency
The RF power generation efficiency is defined as the conversion efficiency when the power is
converted from DC power to RF power which is shown in Figure 2. The efficiency is
represented by the ratio of RF output power to the used power for DC input. The efficiency
can be affected by the efficiency of inverter circuit when the used frequency is lower than
1 MHz and the efficiency of power amplifier when the used frequency is higher than 1 MHz.
The efficiency can be calculated by measuring the power calculated from the voltage and
current of P and by measuring the RF power of P using RF power sensor. During the
DC1 RF1
efficiency measurement, the RF output power is adjusted to sufficient. The RF power
generation efficiency shall be given as shown by Formula (1) below:
(1)
where
η
is RF power generation efficiency;
RF
P is RF power from RF power generator;

RF1
P is DC power from automotive vehicle DC supply.
DC1
– 8 – IEC 62969-2:2018 © IEC 2018
Digital multi-meter
or
oscilloscope
Coupler
Automotive
P
P
DC1
RF1
RF power
vehicle
generator
DC supply
Z
Z 0
RF power
sensor
IEC
Figure 2 – Measurement schematics for RF power generation efficiency
4.3 RF coupling efficiency
The RF coupling efficiency is defined as the transmission efficiency when the signal is
transferred wirelessly which is shown in Figure 3. The efficiency is represented by the ratio of
RF output power to the RF input power. The efficiency can be affected by the coupling of
between transfer and receiver part, the resistance loss between transfer and receiver part,
radiation. The RF coupling efficiency is major efficiency of the wireless power transmission
system.
The RF coupling efficiency can be measured by s-parameter using Vector Network Analyser
(VNA). The RF coupling efficiency shall be given as shown by Formula (2) below:
(2)
where
η
is RF coupling efficiency;
Coupling
P is RF power from RF power generator;
RF1
P is RF power from R coil.
RF2 x
Transmission
distance
Power driving
Load coil
coil
Transmitting Receiving
resonator coil resonator coil
P P
RF1 RF2
Vector network
analyzer
IEC
Figure 3 – Measurement schematics for RF coupling efficiency
4.4 RF rectifying efficiency
The RF rectifying efficiency is defined as the efficiency when the power is transferred from
P to P which is shown in Figure 4. The RF rectifying efficiency is represented by the
RF2 DC2
power ratio of DC output power by rectifying circuit to received RF input power. The RF
rectifying efficiency can be affected by the diodes efficiency. The RF rectifying efficiency shall
be given as shown by Formula (3) below:
(3)
where
η
is RF rectifying efficiency;
Rect
P is DC power from rectifier;
DC2
P is RF power from R coil.
RF2 x
– 10 – IEC 62969-2:2018 © IEC 2018
Digital multi-meter
or
oscilloscope
Coupler
P P
RF2 DC2
Power
Signal
Rectifier
amplifier
generator
R of DC-DC
Z IN
converter
RF power
sensor
IEC
...
