Standards Content (sample)

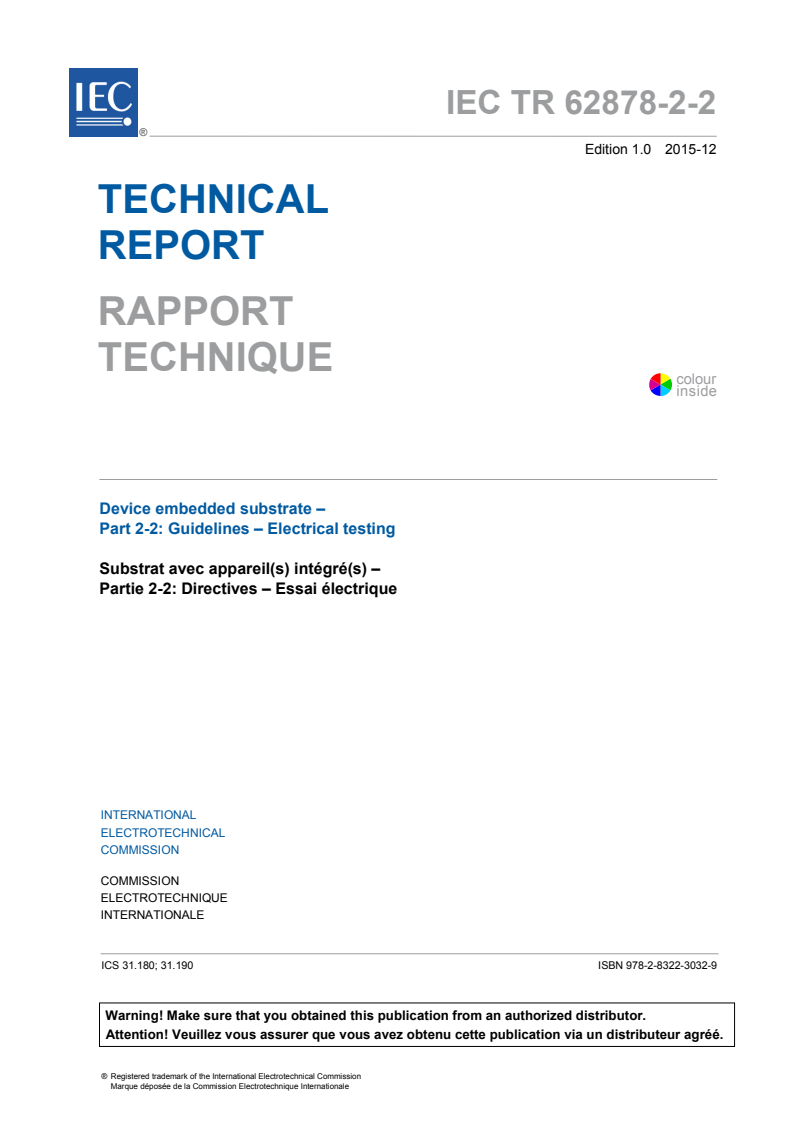

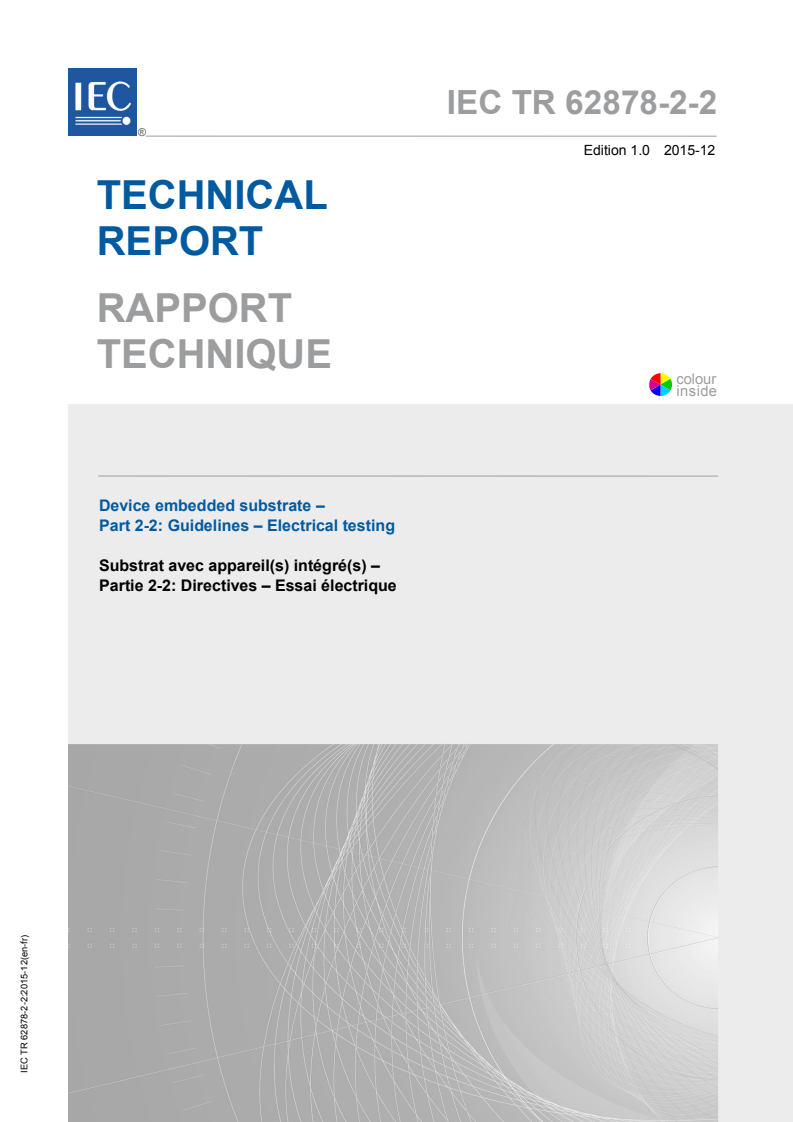

IEC TR 62878-2-2
Edition 1.0 2015-12
TECHNICAL
REPORT
RAPPORT
TECHNIQUE
colour
inside
Device embedded substrate –
Part 2-2: Guidelines – Electrical testing
Substrat avec appareil(s) intégré(s) –
Partie 2-2: Directives – Essai électrique
IEC TR 62878-2-2:2015-12(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2015 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and

Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15

documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International

iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in

variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions

committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries

and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC

en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et

comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus

projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just

Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette

Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:

csc@iec.ch.
---------------------- Page: 2 ----------------------
IEC TR 62878-2-2
Edition 1.0 2015-12
TECHNICAL
REPORT
RAPPORT
TECHNIQUE
colour
inside
Device embedded substrate –
Part 2-2: Guidelines – Electrical testing
Substrat avec appareil(s) intégré(s) –
Partie 2-2: Directives – Essai électrique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.180; 31.190 ISBN 978-2-8322-3032-9

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC TR 62878-2-2:2015 © IEC 2015

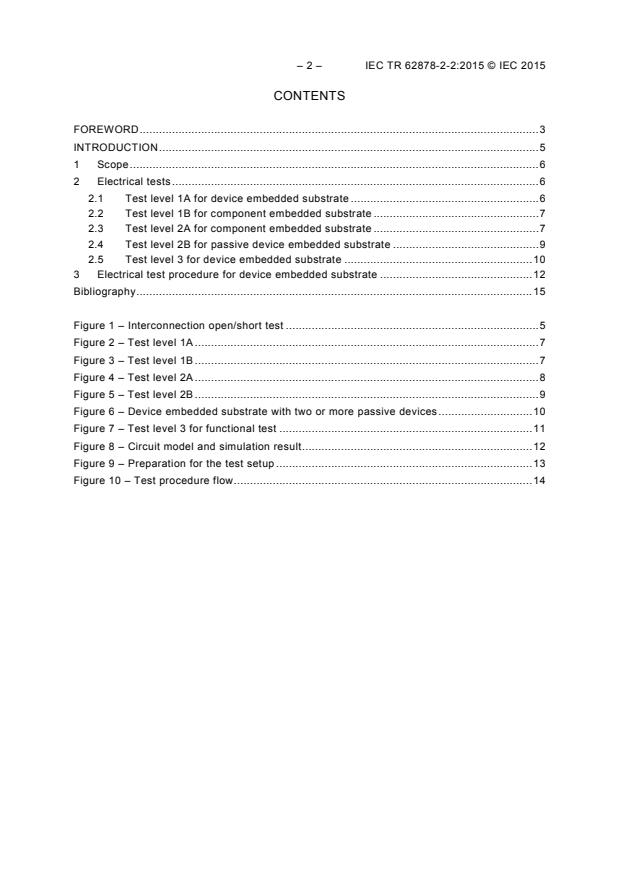

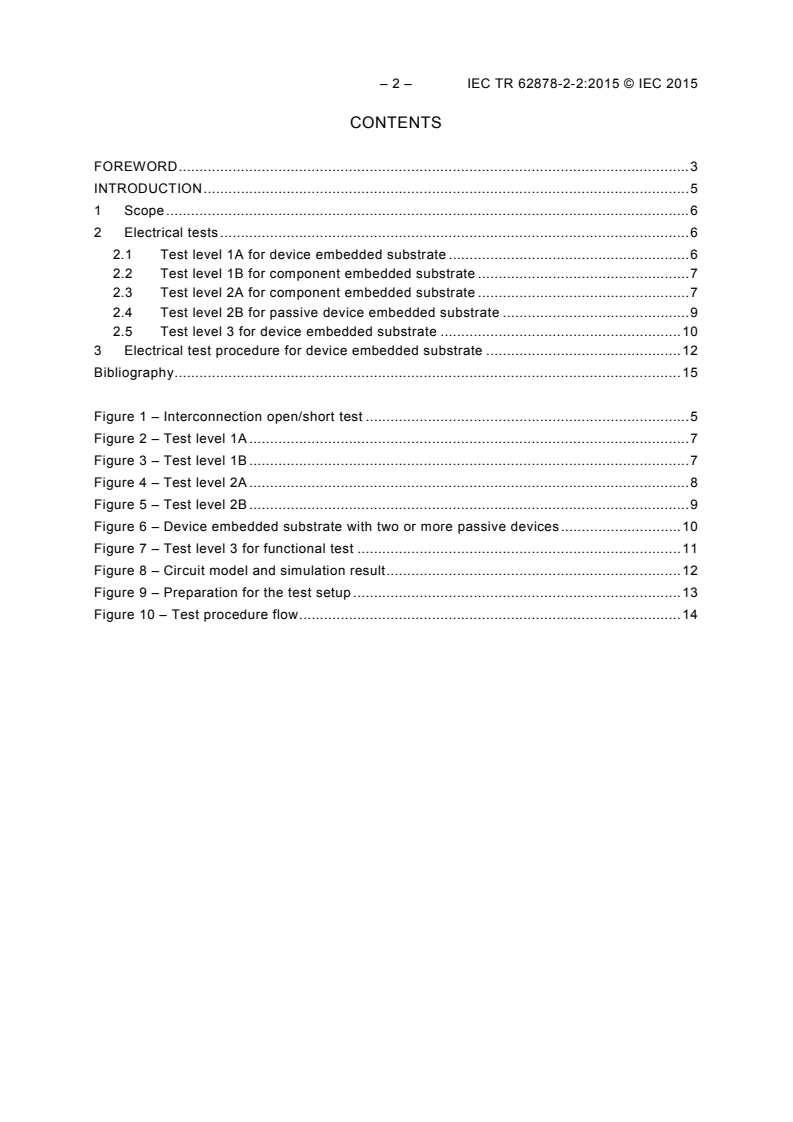

CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Electrical tests ................................................................................................................. 6

2.1 Test level 1A for device embedded substrate .......................................................... 6

2.2 Test level 1B for component embedded substrate ................................................... 7

2.3 Test level 2A for component embedded substrate ................................................... 7

2.4 Test level 2B for passive device embedded substrate ............................................. 9

2.5 Test level 3 for device embedded substrate .......................................................... 10

3 Electrical test procedure for device embedded substrate ............................................... 12

Bibliography .......................................................................................................................... 15

Figure 1 – Interconnection open/short test .............................................................................. 5

Figure 2 – Test level 1A .......................................................................................................... 7

Figure 3 – Test level 1B .......................................................................................................... 7

Figure 4 – Test level 2A .......................................................................................................... 8

Figure 5 – Test level 2B .......................................................................................................... 9

Figure 6 – Device embedded substrate with two or more passive devices ............................. 10

Figure 7 – Test level 3 for functional test .............................................................................. 11

Figure 8 – Circuit model and simulation result ....................................................................... 12

Figure 9 – Preparation for the test setup ............................................................................... 13

Figure 10 – Test procedure flow ............................................................................................ 14

---------------------- Page: 4 ----------------------
IEC TR 62878-2-2:2015 © IEC 2015 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DEVICE EMBEDDED SUBSTRATE –
Part 2-2: Guidelines – Electrical testing
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. However, a

technical committee may propose the publication of a Technical Report when it has collected

data of a different kind from that which is normally published as an International Standard, for

example "state of the art".

IEC TR 62878-2-2, which is a Technical Report, has been prepared by IEC technical

committee 91: Electronics assembly technology.
The text of this Technical Report is based on the following documents:
Enquiry draft Report on voting
91/1220/DTR 91/1245/RVC

Full information on the voting for the approval of this Technical Report can be found in the

report on voting indicated in the above table.
---------------------- Page: 5 ----------------------
– 4 – IEC TR 62878-2-2:2015 © IEC 2015
The French version of this Technical Report has not been voted upon.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 62878 series, published under the general title Device embedded

substrate, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 6 ----------------------
IEC TR 62878-2-2:2015 © IEC 2015 – 5 –
INTRODUCTION

Current electrical package designs are becoming more complex, more functionally integrated,

more reliable and more miniaturized than ever. Hence, electrical tests should be classified

into levels in order to ensure the performance and quality of device embedded substrates

since the substrate contains active/passive devices within it. While the interconnection

open/short test is enough for general substrates, functional tests should be done when

active/passive devices are embedded inside the substrate. However, the main problem is that

we need to understand which devices are embedded and how they are connected functionally

to each other. This is the main reason that there should be standardized test methods for

device embedded substrate. Figure 1 shows the existing substrate test method: the

interconnection open/short test.
P1 P2
IEC IEC
a) Open test b) Short test
Figure 1 – Interconnection open/short test
---------------------- Page: 7 ----------------------
– 6 – IEC TR 62878-2-2:2015 © IEC 2015
DEVICE EMBEDDED SUBSTRATE –
Part 2-2: Guidelines – Electrical testing
1 Scope

This part of IEC 62878, which is a Technical Report, describes the necessary information on

electrical testing for device embedded substrate. This includes the interconnection open- and

short-circuit tests as well as the device functional test. It also provides guidelines by

demonstrating the electrical test for device embedded substrate.

This part of IEC 62878 is applicable to device embedded substrates fabricated by use of

organic base material, which include for example active or passive devices, discrete

components formed in the fabrication process of electronic wiring board, and sheet formed

components.

The IEC 62878 series does not apply to the re-distribution layer (RDL) nor to the electronic

modules defined as an M-type business model in IEC 62421.
2 Electrical tests
2.1 Test level 1A for device embedded substrate

Test level 1A for device embedded substrate is to check the continuity and isolation of

interconnections which are not connected to any embedded components. This is shown in

Figure 2. Test point 1 and test point 2 are on different networks. After measuring the

resistance between net 1 and net 2, it can be found that net 1 and net 2 are short if the

measured resistances are below a certain resistance. Test point 3 and test point 4 are on the

same net, which is net 3. They are open if the measured resistance between the two test

points is over a certain resistance. It means that they are not electrically connected.

Multi-testers which can measure voltage and current are commercially available. The source

meter can measure the resistance directly since it has its own power supply. In terms of

reliability, a high-current or low-level voltage test can be done to check the micro-open which

causes the latent defects in the printed-circuit board and to check the micro-short which

causes noise in the RF system.
---------------------- Page: 8 ----------------------
IEC TR 62878-2-2:2015 © IEC 2015 – 7 –
Test point 1
Test point 2
Test point 3
Net 3
A V
Voltage
Current
source
source
Current
meter
Voltage
meter
Net 1 Net 2 Net 4
Test point 4
IEC
Figure 2 – Test level 1A
2.2 Test level 1B for component embedded substrate

Test level 1B is for testing electrical interconnection between wiring nets and component nets.

This is shown in Figure 3. The test method of this level is the same as that of test level 1A

because test level 1B is to check the isolation interconnection. Electrical interconnections are

short if the measured resistance between wiring nets and component nets is below a certain

resistance. It means that they are electrically connected.
Component nets
Current
meter
Voltage
source
Wiring nets
Resistor Capacitor
IEC
Figure 3 – Test level 1B
2.3 Test level 2A for component embedded substrate

Test level 2A is for testing a single component embedded substrate. Figure 4 a) shows the

passive component scheme. Through this test, the electrical performance of the passive

component and the continuity of the net can be measured. However, only the electrical

performance test is suitable because the performance of the passive component will be

affected if there is a problem with the continuity. In order to measure the performance of the

passive component, the test method and the test signal need to be changed along with the

---------------------- Page: 9 ----------------------
– 8 – IEC TR 62878-2-2:2015 © IEC 2015

type of passive component. In the case of resistors, resistance can be measured by detecting

the current/voltage ratio using constant voltage and constant current as in test levels 1A and

1B. However, in the case of capacitors and inductors, capacitance and inductance need to

use an AC source to get the values. LCR meters and impedance analyzers are commercially

available to measure resistance, capacitance, inductance and impedance. The equipment

should be selected based on the frequency range to be measured.

Figure 4 b) shows the active component circuit diagram, the method and the design of the

electrostatic discharge (ESD) protection diode. Test level 2A is achieved by applying

positive/negative bias to the circuit.
Voltage Voltage
Inductor Current
Resistor Capacitor
meter source
meter
IEC
a) Passive component scheme
Input V
pMOS
nMOS
Current
Voltage
source
measure
IEC
b) Active component circuit diagram and the method
Key
V drain voltage
V source voltage
pMOS p-channel metal oxide semiconductor
nMOS n-channel metal oxide semiconductor
Figure 4 – Test level 2A
---------------------- Page: 10 ----------------------
IEC TR 62878-2-2:2015 © IEC 2015 – 9 –
2.4 Test level 2B for passive device embedded substrate

Test level 2B is for a simple passive structure which consists of a few passive components.

These components are connected either in parallel or in series (Figure 5). This test will

measure the electrical performance of the structure and the continuity of the transmission

lines. For this case, only the electrical performance test is suitable because the performance

of the passive components will be affected if there is a problem with the continuity, as for test

level 2A. To be able to test passive components, test level 2B uses an AC source like test

level 2A. However, it cannot measure the performance of individual passive components

because the measured impedance will be the combination of impedances of all passive

components. Moreover, tolerance values are introduced when the passive components are

measured.
A V AC
Resistor
Voltage Voltage
Current
Capacitor meter source
meter
Inductor
Capacitor
Inductor
Resistor
IEC
Figure 5 – Test level 2B

For example, as shown in Figure 6 a), if the capacitance of C1 is 1 µF with a tolerance of

± 20 %, the capacitance of C2 is 0,1 µF with a tolerance of ± 10 % and they are good

components, then the total capacitance will be 0,89 µF ≤ (C1 + C2) ≤ 1,31 µF because of their

tolerances. Thus, the passive component is good if the measured capacitance is between

0,89 µF and 1,31 µF. However, if C1 is good and C2 (< 0,09 µF) is bad, or C1 is good and C2

(> 0,11 µF) is bad, then the results are 0,8 µF ≤ (C1 + C2) ≤ 1,29 µF and (C1 + C2) > 0,91 µF,

respectively. In these cases, we cannot judge if the passive components are good or bad

because the results of both experiments are good even though one component is bad.

However, if the frequency dependence of impedance is measured as in Figure 6 b), then the

performances of each individual capacitor can be seen. Hence we can decide if C1 and/or C2

are good or bad depending on the frequency difference of resonance frequency. The

inductance case between L1 and L2 of Figure 6 a) is similar to the capacitance case of

Figure 6 a).
---------------------- Page: 11 ----------------------
– 10 – IEC TR 62878-2-2:2015 © IEC 2015
C1: 1 µF L1: 1 µH
(Tolerance ± 20 %) (Tolerance ± 20 %)
C2: 0,1 µF L2: 0,1 µH
(Tolerance ± 10 %) (Tolerance ± 10 %)
IEC
a) Parallel and series structures of passive devices with tolerances
0 0
–20 –20
–40 –40
–60 –60
–80 –80
–100
–100
Frequency (㎐)
Frequency (㎐)
IEC
b) Graph for frequency dependence of impedance from the structure in a)
Figure 6 – Device embedded substrate with two or more passive devices

Therefore, it is necessary to judge whether each series or parallel passive component is good

or bad at more than two specific frequency points by measuring total impedance and phase

difference as test level 2B. The frequency points will be selected from simulation results or

calculation. For more detailed analysis, continuous changes of impedance or phase difference

need to be measured along with the frequency.

There is commercially available measurement equipment such as impedance analyzer and

network analyzer. If the equipment has a wider measurable frequency range, the

measurement result from the equipment will be more accurate. When a very high frequency

measurement is required, the equipment setting such as probe tips and transmission lines to

the equipment should be changed for a very high frequency measurement. One tip for easier

measurement at high frequency is to design external test pads well so as not to use a high-

cost probe card for high frequency measurement but to use RF probe tips which are

commercially available.
2.5 Test level 3 for device embedded substrate

Figure 7 shows the functional test method of device embedded substrate which acts like a

signal filter. The passive components in the substrate are connected to each other either in

parallel or in series. In case of such a structure, the test result will not be the performance of

individual passive components, but the performance of the filter. Typical open/short tests are

dB (S(1,1))
dB (S(1,1))
---------------------- Page: 12 ----------------------
IEC TR 62878-2-2:2015 © IEC 2015 – 11 –

not required since the performance of the filter will be affected when the continuity of nets has

a problem.
Network analyzer
Inductors
Capacitors
IEC
Figure 7 – Test level 3 for functional test

Test level 3 is to test the functional performance of passive device embedded substrate when

the embedded passive devices function as a filter or filter banks. The scattering parameter

(S-parameter) is measured to test the embedded substrate with the network analyzer, time

domain reflectometry (TDR) and time domain transmission (TDT) within the specific frequency

range. Each of the ports of the filter in Figure 8 will be connected to each measuring port of

the network analyzer to get input and output signal distributions. The S-parameter can be

measured by dividing the input voltage into the output voltage. For example, the embedded

filter which consists of embedded passive components can be modelled and simulated. The

circuit model of the filter is shown in Figure 8 a) and the response is shown in Figure 8 b).

The simulation result becomes a basis for deciding if the filter is either good or bad. Since the

filter is measured as one device, the individual passive components cannot be measured or

tested. Therefore, we do not know which passive component is bad if there is a problem with

the filter. Comparing the measured data to the simulation data, the specifications to pay

attention to are insertion loss, bandwidth skirt properties, ripple level, rejection loss, noise

level, etc.
---------------------- Page: 13 ----------------------
– 12 – IEC TR 62878-2-2:2015 © IEC 2015
Z Z
–20
–40
–60
–80
–100
–120
Z –140
0 0,2 0,4 0,6 0,8 1 1,2 1,4 1,6 1,8 2
Frequency (GHz)
IEC IEC
a) Circuit model b) Simulation result
Key
Z C2 22 pF
50 Ω
L1 47 nH C3 22 pF
L2 100 nH C4 47 pF
C1 47 pF

NOTE In case of testing device embedded substrate, all of the functional testing such as digital testing, analogue

testing, mixed signal testing, RF testing, memory testing, and image sensor testing may be needed. For this test,

the performance board, substrate handler for a double side probing, and automatic test equipment are prepared.

Figure 8 – Circuit model and simulation result
3 Electrical test procedure for device embedded substrate

A test design review is important to decide how to test device embedded substrate and how to

define test specifications. In order to decide test specifications, active device information is

especially required. This is the main reason that the test method of device embedded

substrate has not been standardized. For the standardization test for device embedded

substrate, the test specification of the embedded active device may be required for evaluating

the embedded active device.

In order to set up the test for device embedded substrate, information such as the design and

the structure of device embedded substrate and embedded passive component specifications

is required. Also, information on test pattern and performance measurement should be

gathered to test embedded devices before the actual test. It will affect the final yield on device

embedded substrate and will be the important indicator when test specifications are defined.

Figure 9 and Figure 10 show the test design review and the preparation flow for the test setup.

dB (S(3,1))
dB (S(2,1))
---------------------- Page: 14 ----------------------
IEC TR 62878-2-2:2015 © IEC 2015 – 13 –
Start
 Design review of product
 Chip design/test engineer
Product design/test engineer from embedded
Kick off meeting
PCB supplier
Preparation for test setup
 Product information
 Requirement for hardware
 Application
 Package information (size, pitch)
 Specifications
 Pad size, pitch and centre coordinate
 Block diagram for the
 Pin definition and connections
device
 Unused pin information
 Data sheet and references
 Power pin information
Information for load board application and
special parts
 Information for developing test program
 Test vectors or ASCII vectors for target tester
 Timing table showing period, delay, setup, hold time
 Explanation of each test vector

 Cycle by cycle waveforms, setup conditions, and electrical specs including min. and

max. conditions
 Functional table
IEC
Figure 9 – Preparation for the test setup

The first thing to do, after finishing the test design review and the preparation for the test

setup, is to make a test plan. The plan includes a test circuit and test interface such as test

socket and test board. After that, a test interface will be made with the selected test circuit.

Meanwhile, the test program will be written so that the whole pilot test can be done by using

the test program after making the test interface.

Using the test result, the original test design will be verified. If there is a problem with the test

design, the test should be redesigned. Or, the program needs to be debugged if the test

program causes any problems. If the test p
...
