IEC 61169-17:2022

Radio-frequency connectors - Part 17: Sectional specification for RF coaxial connectors with inner diameter of outer conductor 6,5 mm (0,256 in) with screw coupling - Characteristic impedance 50 ohms (Type TNC)

IEC 61169-17:2022, which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for series TNC RF coaxial connectors with threaded coupling with a characteristic impedance of 50 Ω.
This document prescribes mating face dimensions for high performance connectors - grade 2, dimensional details of standard test connectors - grade 0, gauging information and tests selected from IEC 61169-1, applicable to all detail specifications relating to series TNC RF connectors.
This document indicates recommended performance characteristics to be considered when writing a detail specification and it covers test schedules and inspection requirements for assessment levels M and H.

Connecteurs pour fréquences radioélectriques - Partie 17: Spécification intermédiaire relative aux connecteurs RF coaxiaux à couplage à vis avec conducteur extérieur présentant un diamètre intérieur de 6,5 mm (0,256 in) - Impédance caractéristique de 50 ohms (type TNC)

IEC 61169-17:2022, qui est une spécification intermédiaire (SS), fournit des informations et des règles pour l’élaboration des spécifications particulières (DS) relatives aux connecteurs RF coaxiaux de la série TNC, à couplage à vis et ayant une impédance caractéristique de 50 Ω.
Le présent document décrit les dimensions des interfaces d’accouplement pour les connecteurs à usage général (grade 2), les détails dimensionnels des connecteurs d’essai normalisés (grade 0), les informations relatives aux calibres et les essais choisis dans l’IEC 61169-1, applicables à toutes les spécifications particulières relatives aux connecteurs RF de série TNC.
Le présent document indique les caractéristiques de performance recommandées à prendre en compte lors de la rédaction d’une spécification particulière et il couvre les programmes d’essai et les exigences de contrôle pour les niveaux d’assurance M et H.

General Information

• Status: Published
• Publication Date: 03-Mar-2022
• ICS: 33.120.30 - RF connectors
• Technical Committee: SC 46F - RF and microwave passive components
• Drafting Committee: WG 1 - TC 46/SC 46F/WG 1
• Current Stage: PPUB - Publication issued
• Start Date: 04-Mar-2022
• Completion Date: 25-Mar-2022

Standards Content (Sample)

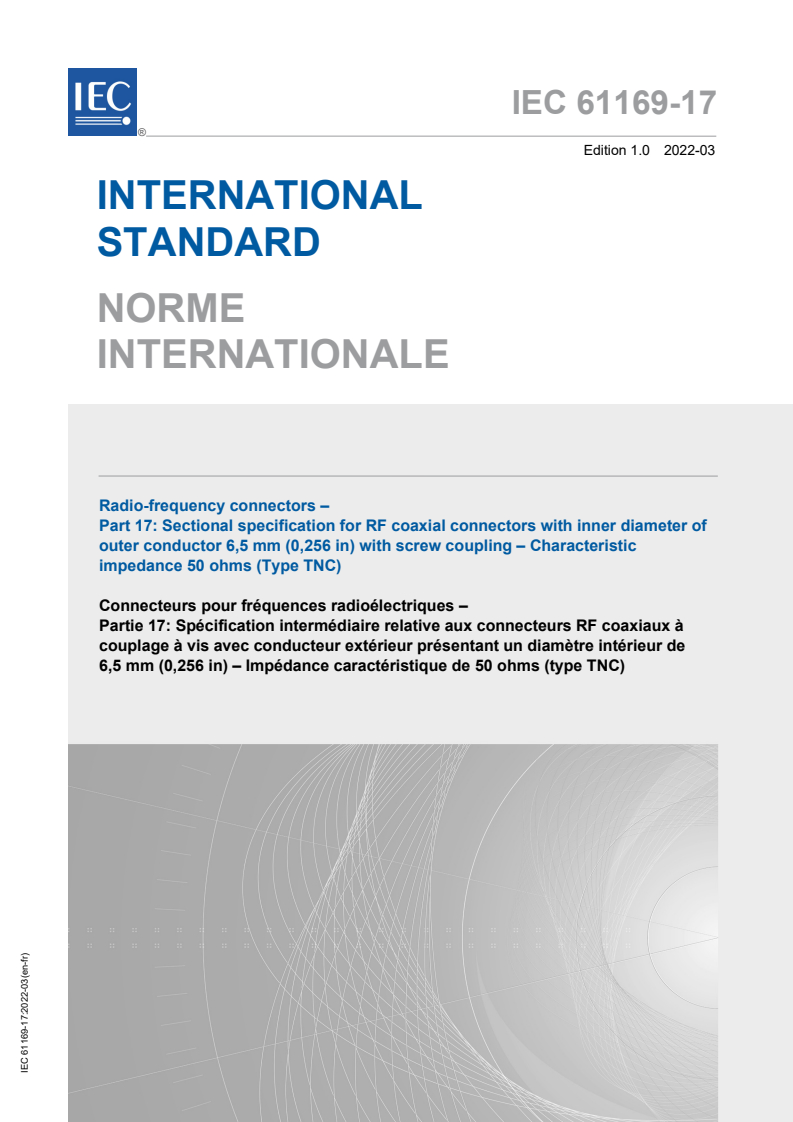

IEC 61169-17 ®
Edition 1.0 2022-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radio-frequency connectors –
Part 17: Sectional specification for RF coaxial connectors with inner diameter of
outer conductor 6,5 mm (0,256 in) with screw coupling – Characteristic
impedance 50 ohms (Type TNC)
Connecteurs pour fréquences radioélectriques –
Partie 17: Spécification intermédiaire relative aux connecteurs RF coaxiaux à
couplage à vis avec conducteur extérieur présentant un diamètre intérieur de
6,5 mm (0,256 in) – Impédance caractéristique de 50 ohms (type TNC)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 300 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
19 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].

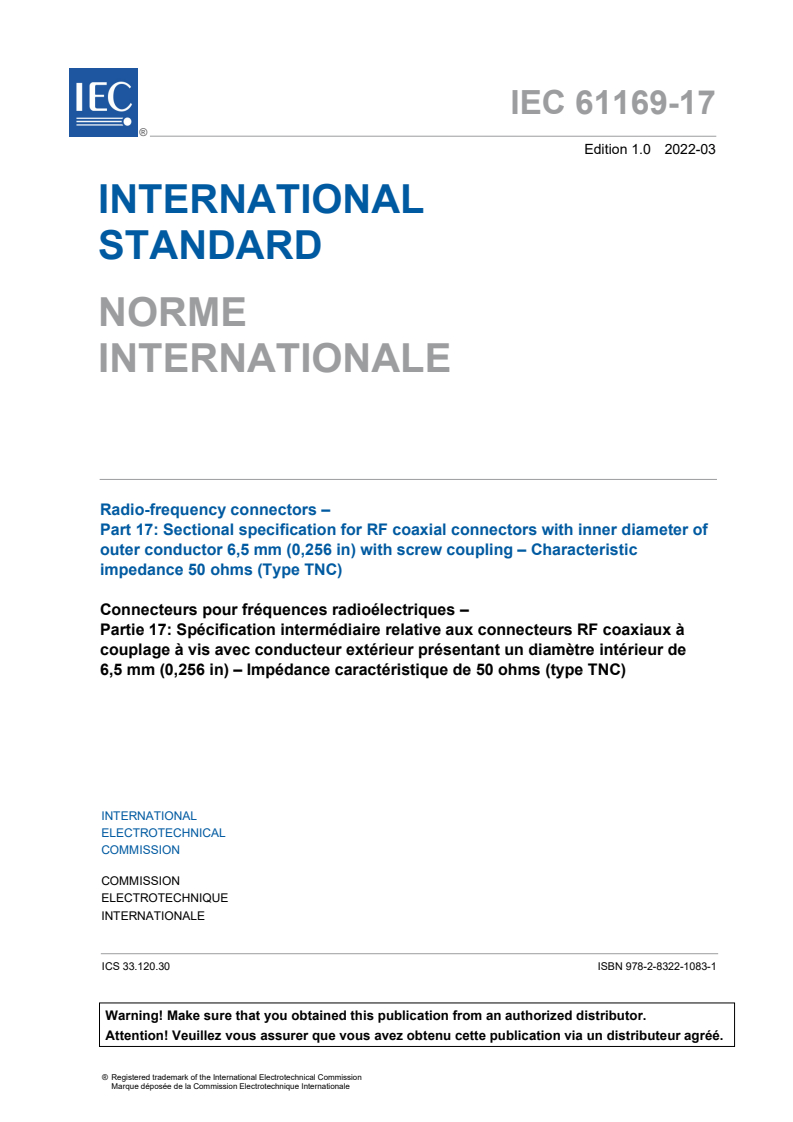

IEC 61169-17 ®
Edition 1.0 2022-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radio-frequency connectors –
Part 17: Sectional specification for RF coaxial connectors with inner diameter of

outer conductor 6,5 mm (0,256 in) with screw coupling – Characteristic

impedance 50 ohms (Type TNC)
Connecteurs pour fréquences radioélectriques –

Partie 17: Spécification intermédiaire relative aux connecteurs RF coaxiaux à

couplage à vis avec conducteur extérieur présentant un diamètre intérieur de

6,5 mm (0,256 in) – Impédance caractéristique de 50 ohms (type TNC)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.120.30 ISBN 978-2-8322-1083-1

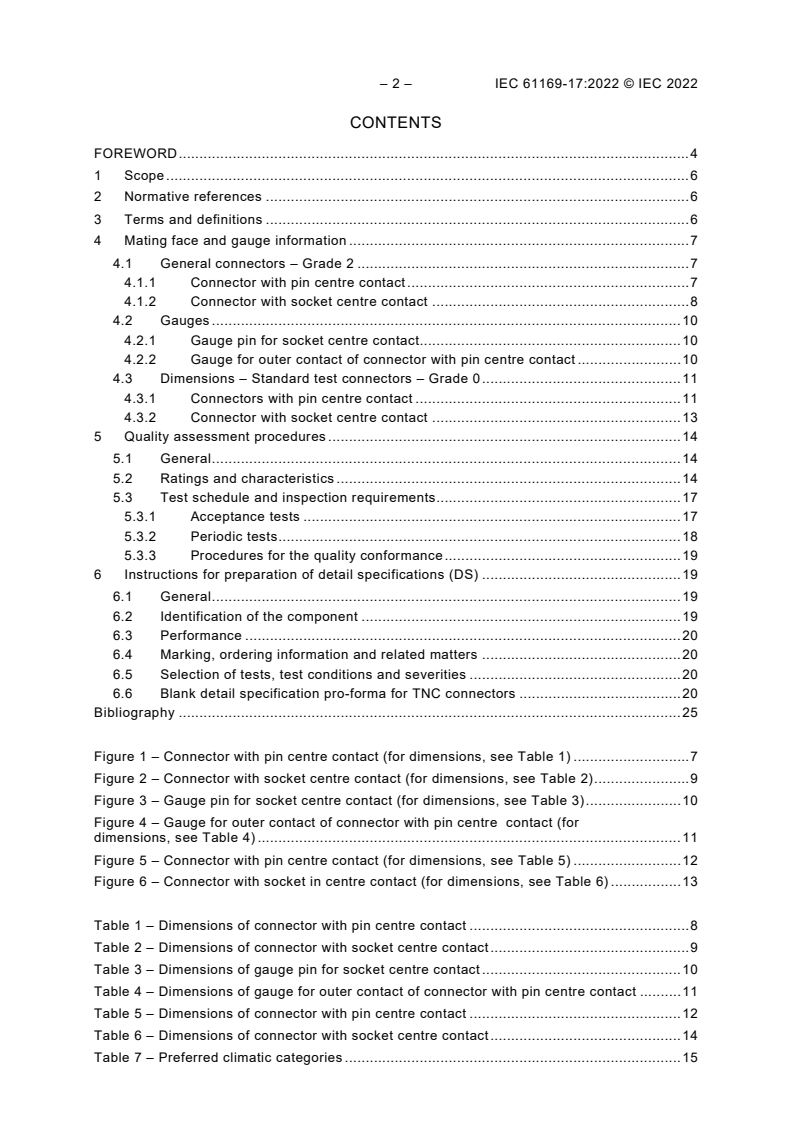

– 2 – IEC 61169-17:2022 © IEC 2022
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Mating face and gauge information . 7
4.1 General connectors – Grade 2 . 7
4.1.1 Connector with pin centre contact . 7
4.1.2 Connector with socket centre contact . 8
4.2 Gauges . 10
4.2.1 Gauge pin for socket centre contact. 10
4.2.2 Gauge for outer contact of connector with pin centre contact . 10
4.3 Dimensions – Standard test connectors – Grade 0 . 11
4.3.1 Connectors with pin centre contact . 11
4.3.2 Connector with socket centre contact . 13
5 Quality assessment procedures . 14
5.1 General . 14
5.2 Ratings and characteristics . 14
5.3 Test schedule and inspection requirements. 17
5.3.1 Acceptance tests . 17
5.3.2 Periodic tests . 18
5.3.3 Procedures for the quality conformance . 19
6 Instructions for preparation of detail specifications (DS) . 19
6.1 General . 19
6.2 Identification of the component . 19
6.3 Performance . 20
6.4 Marking, ordering information and related matters . 20
6.5 Selection of tests, test conditions and severities . 20
6.6 Blank detail specification pro-forma for TNC connectors . 20
Bibliography . 25

Figure 1 – Connector with pin centre contact (for dimensions, see Table 1) . 7
Figure 2 – Connector with socket centre contact (for dimensions, see Table 2) . 9
Figure 3 – Gauge pin for socket centre contact (for dimensions, see Table 3) . 10
Figure 4 – Gauge for outer contact of connector with pin centre contact (for
dimensions, see Table 4) . 11
Figure 5 – Connector with pin centre contact (for dimensions, see Table 5) . 12
Figure 6 – Connector with socket in centre contact (for dimensions, see Table 6) . 13

Table 1 – Dimensions of connector with pin centre contact . 8
Table 2 – Dimensions of connector with socket centre contact . 9
Table 3 – Dimensions of gauge pin for socket centre contact . 10
Table 4 – Dimensions of gauge for outer contact of connector with pin centre contact . 11
Table 5 – Dimensions of connector with pin centre contact . 12
Table 6 – Dimensions of connector with socket centre contact . 14
Table 7 – Preferred climatic categories . 15

Table 8 – Ratings and characteristics . 15
Table 9 – Acceptance tests . 17
Table 10 – Periodic tests . 18

– 4 – IEC 61169-17:2022 © IEC 2022
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 17: Sectional specification for RF coaxial connectors with inner
diameter of outer conductor 6,5 mm (0,256 in) with screw coupling –
Characteristic impedance 50 ohms (Type TNC)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 61169-17 has been prepared by subcommittee 46F: RF and microwave passive
components, of IEC technical committee 46: Cables, wires, waveguides, RF connectors, RF
and microwave passive components and accessories. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
46F/603/FDIS 46F/615/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts of the IEC 61169 series, under the general title: Radio-frequency connectors,
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 61169-17:2022 © IEC 2022
RADIO-FREQUENCY CONNECTORS –
Part 17: Sectional specification for RF coaxial connectors with inner
diameter of outer conductor 6,5 mm (0,256 in) with screw coupling –
Characteristic impedance 50 ohms (Type TNC)

1 Scope
This part of IEC 61169, which is a sectional specification (SS), provides information and rules
for the preparation of detail specifications (DS) for series TNC RF coaxial connectors with
threaded coupling with a characteristic impedance of 50 Ω.
This document prescribes mating face dimensions for high performance connectors – grade 2,
dimensional details of standard test connectors − grade 0, gauging information and tests
selected from IEC 61169-1, applicable to all detail specifications relating to series TNC RF
connectors.
This document indicates recommended performance characteristics to be considered when
writing a detail specification and it covers test schedules and inspection requirements for
assessment levels M and H.
The series TNC connectors which are used with all kinds of RF cables and microstrips in
microwave transmission systems. The operating frequency is up to 11 GHz.
NOTE Metric dimension are original dimensions. All undimensioned pictorial configurations are for reference
purpose only.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61169-1:2013, Radio frequency connectors – Part 1: Generic specification – General
requirements and measuring methods
IEC 62153-4-7, Metallic cables and other passive components test methods – Part 4-7:
Electromagnetic compatibility (EMC) – Test method for measuring of transfer impedance Z and
T
screening attenuation aS or coupling attenuation aC of connectors and assemblies –Triaxial tube
in tube method
IEC 62037-3, Passive RF and microwave devices, intermodulation level measurement – Part 3:
Measurement of passive intermodulation in coaxial connectors
3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Mating face and gauge information
4.1 General connectors – Grade 2
4.1.1 Connector with pin centre contact
The mating face of a connector with pin centre contact is shown in Figure 1 and its dimensions
are shown in Table 1.
a) Connector with slotted outer conductor b) Connector with unslotted outer
conductor
NOTE 1 Mechanical and electrical reference plane.
NOTE 2 Sealing ring.
NOTE 3 Slot is optional. Slotted and flared to meet gauge requirements of 4.2.2.
Figure 1 – Connector with pin centre contact (for dimensions, see Table 1)

– 8 – IEC 61169-17:2022 © IEC 2022
Table 1 – Dimensions of connector with pin centre contact
mm in
Ref. Remarks
min max min max
a
11,18 —— 0,440 ——
b
7,98 8,08 0,314 0,318
c
4,83 —— 0,190 ——
d
1,32 1,37 0,052 0,054
e
5,31 5,84 0,209 0,230
f
5,28 5,79 0,208 0,228
g
0,15 —— 0,006 ——
h
0,08 1,02 0,003 0,040
j
5,38 —— 0,212 ——
a
k
—— —— —— ——
m
2,14 (nom.) 0,084 (nom.)
b
p
—— 1,98 —— 0,078
c
s
—— —— —— ——
t
1,60 —— 0,063 ——
v
—— 8,18 —— 0,322
w
3,96 —— 0,156 ——
af
—— 0,64 —— 0,025
ab
1,98 —— 0,078 ——
a
Dimension k depends on the dimension m and dielectric constant, and shall meet the requirement of 50 Ω
characteristics.
b
Coupling nut in forward position.
c
Dimension s shall meet electrical and sealing performance requirements.

4.1.2 Connector with socket centre contact
The mating face of a connector with socket centre contact is shown in Figure 2 and its
dimensions are shown in Table 2.

NOTE Mechanical and electrical reference plane.
Figure 2 – Connector with socket centre contact (for dimensions, see Table 2)
Table 2 – Dimensions of connector with socket centre contact
mm in
Ref. Remarks
min max min max
a 9,60 9,68 0,378 0,381
b
8,31 8,46 0,327 0,333
c 8,10 8,15 0,319 0,321
d —— 4,72 —— 0,186
e —— 0,15 —— 0,006
f 10,52 —— 0,414 ——
g 8,31 8,51 0,327 0,335
h 1,73 2,24 0,068 0,088
j 4,75 —— 0,187 ——
a
—— —— —— ——
k
m 2,14 (nom.) 0,084 (nom.)
n 4,72 5,28 0,186 0,208
p 4,78 5,28 0,188 0,208
b
—— —— —— ——
s
t 4,95 —— 0,195 ——
c
—— —— —— ——
u
d
—— —— —— ——
w
rb 0,15 0,30 0,006 0,012 Radius
or chamfer
a
Dimension k depends on the dimension m and dielectric constant, and shall meet the requirement of
characteristic impedance of 50 Ω.
b
Design of slotting is optional. It is chosen to meet return loss (RL), mating characteristics, and connector
durability requirements, when mated with a 1,32 mm to 1,37 mm (0,052 in to 0,054 in) gauge pin.
c
Spherical or chamfered.
d
Dimension w shall meet the requirements of 4.2.1.

– 10 – IEC 61169-17:2022 © IEC 2022
4.2 Gauges
4.2.1 Gauge pin for socket centre contact
The gauge pin for a socket centre contact is shown in Figure 3 and its dimensions are shown
in Table 3.
Figure 3 – Gauge pin for socket centre contact (for dimensions, see Table 3)
Table 3 – Dimensions of gauge pin for socket centre contact
Gauge C
Gauge A Gauge B
(For retention purpose)
(For sizing purpose) (For insertion purpose)
Mass of gauge：57 g ± 1 g
mm in mm in mm in
Ref.
min max min max min max min max min max min max
d 1,38 1,460 0,0543 0,0575 1,370 1,375 0,0539 0,0541 1,308 1,321 0,0515 0,0520
n 3,17 — 0,125 — 3,17 — 0,125 — 3,17 — 0,125 —
p — 4 — 0,157 — 4 — 0,157 — 4 — 0,157
ra 0,10 0,30 0,004 0,012 0,10 0,30 0,004 0,012 0,10 0,30 0,004 0,012
rb — 0,20 — 0,008 — 0,20 — 0,008 — 0,20 — 0,008
Material: steel, polished.
The test procedure is as follows:
a) Sizing test
The gauge A shall be inserted into the socket-centre contact three times. This is a sizing
operation and should only be carried out when the socket-centre contact is removed from
the connector.
b) Insertion test
After the sizing test, the standard gauge B should be inserted into the socket-centre contact.
The insertion depth should not be less than 3,17 mm and the insertion force should not be
more than 8,9 N.
c) Retention test
After the sizing test, the gauge C shall be inserted into socket-centre contact. The contact
shall retain the mass of the gauge B in a vertical downward position.
4.2.2 Gauge for outer contact of connector with pin centre contact
The gauge for outer contact of a connector with pin centre contact is shown in Figure 4 and its
dimensions are shown in Table 4.

Figure 4 – Gauge for outer contact of connector with pin centre
contact (for dimensions, see Table 4)
Table 4 – Dimensions of gauge for outer contact of connector with pin centre contact
Gauge E (For retention purpose)
Gauge D (For sizing purpose)
Mass of gauge：225 g ± 5 g
mm in mm in
Ref.
min. max. min. max. min. max. min. max.
a 9,63 9,68 0,379 0,381 9,63 9,68 0,379 0,381
b —— 5,08 —— 0,200 —— 5,08 —— 0,200
c 8,08 8,10 0,318 0,319 8,15 8,18 0,321 0,322
d 8,31 8,36 0,327 0,329 8,41 8,46 0,331 0,333
e 8,79 (nom.) 0,346 (nom.) 8,79 (nom.) 0,346(nom.)
f 8,41 8,46 0,331 0,333 8,36 8,41 0,329 0,331
g 4,00 —— 0,157 —— 4,00 —— 0,157 ——
a
0,50 0,80 0,020 0,031 0,50 0,80 0,020 0,031
r
Material: steel, polished.
a
Radius.
The test procedure is as follows:
a) Sizing test
The outer contact shall be inserted into the gauge D once. This is a sizing operation.
b) Retention test
After the sizing test, the outer contact shall be inserted into the gauge E. The outer contact
shall retain the gauge in a vertical downward direction.
This test may also be carried out on the connector with the insulator unremoved.
4.3 Dimensions – Standard test connectors – Grade 0
4.3.1 Connectors with pin centre contact
The interface of a connector with pin centre contact is shown in Figure 5, and its dimensions
are shown in Table 5.
– 12 – IEC 61169-17:2022 © IEC 2022

NOTE Mechanical and electrical reference plane.
Figure 5 – Connector with pin centre contact (for dimensions, see Table 5)
Table 5 – Dimensions of connector with pin centre contact
mm in
Ref. Note
min. max. min. max.
b
8,06 8,09 0,3173 0,3185
ba 6,72 6,74 0,265 0,266
c 4,88 4,93 0,192 0,194
k
6,99 7,01 0,275 0,276
fa 5,31 5,36 0,209 0,211
e 5,31 5,38 0,209 0,212
h 0,08 1,02 0,003 0,040
g 0,15 0,30 0,006 0,012
f 5,38 5,54 0,212 0,218
d 1,35 1,37 0,053 0,054
a
2,14 (nom.) 0,084 (nom.)
m
ra 0,10 0,30 0,004 0,012 radius
rb — 0,13 — 0,005 radius
ab 1,98 — 0,078 —
af
— 0,64 — 0,025
NOTE Dimensions not specified in this table, see 4.1.1.
a
Dimension m depends on the dimension k and dielectric constant, and shall meet the requirements of

characteristic impedance of 50 Ω ± 0,5 Ω.

4.3.2 Connector with socket centre contact
The mating face of a standard test connector with socket centre contact is shown in Figure 6
and its dimensions are shown in Table 6.

NOTE Mechanical and electrical reference plane.
Figure 6 – Connector with socket in centre contact (for dimensions, see Table 6)

– 14 – IEC 61169-17:2022 © IEC 2022
Table 6 – Dimensions of connector with socket centre contact
mm in
Ref. Note
min. max. min. max.
b 8,31 8,46 0,327 0,333
c 8,10 8,15 0,319 0,321
d 4,67 4,72 0,184 0,186
e 0,00 0,15 0,000 0,006
f 0,51 1,02 0,020 0,040
g 8,36 8,46 0,329 0,333
h 0,79 0,84 0,031 0,033
a
2,14 (nom.) 0,084(nom.)
m
k 6,99 7,01 0,275 0,276
n 5,21 5,28 0,205 0,208
p 5,08 5,23 0,200 0,206
s 1,52 1,63 0,060 0,064
t 5,21 —— 0,205 ——
u 2,16 2,18 0,085 0,086
w 6,58 6,68 0,259 0,263
b
0,18 0,23 0,007 0,009
y
z 6,05 6,10 0,238 0,240
sa 0,38 0,89 0,015 0,035
sb 1,356 1,361 0,053 0,054
sc 1,52 1,58 0,060 0,062
sd 4,62 4,88 0,182 0,192
NOTE Dimensions not specified in this table, see 4.1.2.
a
Dimension m depends on the dimension k and dielectric constant, and shall meet the requirements of
characteristic impedance of 50 Ω ± 0,5 Ω.
b
Design for slotting is optional. It is chosen to meet electrical and mechanical requirements, when mated with
a 1,35 mm (0,0531 in) to 1,37 mm (0,0539 in) pin contact.

5 Quality assessment procedures
5.1 General
Subclauses 5.2 to 5.3 provide recommended ratings, performance and test conditions to be
considered when writing a detail specification (DS). They also provide an appropriate schedule
of tests with minimum levels of conformance inspection sampling, together with the pro-forma
blank detail specification (BDS) and instructions for the preparation of a detail specification.
5.2 Ratings and characteristics
Preferred climatic categories are given in Table 7.
The values indicated below are recommended for TNC series RF connectors and are given for
the writer of the detail specification. They are applicable for the condition when the connectors
are fully mated. Ratings and characteristics are given in Table 8.

Certain tests are listed without any recommended values being given. These tests will usually
not be required. When these tests are required, appropriate values shall be entered in the detail
specification at the discretion of the specification writer.
Table 7 – Preferred climatic categories
Climate series Grade* Temperature range Steady damp heat
40/85/21 A −40 °C to +85 °C 21 days
55/125/21 B −55 °C to +125 °C 21 days
55/155/56 C −55 °C to +155 °C 56 days

* To be included in the IEC series designation.

Table 8 – Ratings and characteristics
Remarks including any
IEC 61169-1:2013
Ratings and characteristics Value deviations from
Subclause
standard test methods
Including parts and
Dimensions 9.1.2 See DS materials and mechanical
interchangeability
Electrical
Nominal impedance 50 Ω
a
DC to 11 GHz
Frequency range
a
Return loss
9.2.1
Grade 2 connectors
– straight styles
≥17,692 dB
– right-angle styles
See DS
– component mounting styles
See DS
– solder bucket and PCB mounting styles
See DS
b
Centre contact resistance 9.2.3
– initial ≤1,5 mΩ
– after conditioning ≤2,5 mΩ
b
Outer conductor resistance
9.2.3
– initial ≤0,4 mΩ
– after conditioning ≤1,2 mΩ
Insulation resistance
9.2.5
– initial ≥5 000 MΩ
– after conditioning ≥200 MΩ
c,d
1 500 V (86 to 106) kPa
Voltage proof at sea level 9.2.6
4,4 kPa approximately
c,d
Voltage proof at 4,4 kPa 9.2.6 300 V
equivalent to 20 km
c,d
500 V (86 to 106) kPa
Environmental test voltage at sea level
c,d
100 V
Environmental test voltage at 4,4 kPa
e
Screening effectiveness
≥90 dB, at 1 GHz to
IEC 62153-4-7
3 GHz
(straight cabled connectors only)
Discharge test (corona effect) 375 V Extinction voltage at
9.2.8
4,4 kPa
PIM ≤−150 dBc Test power (2 × 20) W
IEC 62037-3
(1 800 MHz)
– 16 – IEC 61169-17:2022 © IEC 2022
Remarks including any
IEC 61169-1:2013
Ratings and characteristics Value deviations from
Subclause
standard test methods
Mechanical
Soldering See DS
9.3.2
– bit size
Gauge insertion force (resilient contacts)
9.3.4
– inner contact ≤8,9 N
– outer contact ≤22,2 N
Gauge retention force (resilient contacts)
– inner contact ≥0,57 N
– outer contact ≥2,25 N
Centre contact captivation Only applicable to centre
9.3.5
contact with captivation
– axial force 26,7 N
structure; after test, the
– permitted displacement in each direction ≤0,25 mm
dimension of centre
contact complies with
– torque See DS
interface dimensions
Engagement and separation Shall be achievable by
9.3.6
hand in a normal manner
g
– axial force
na
– torque
≤0,23 N•m
Coupling moment  Shall be achievable by

hand in a normal manner
– normally torque 0,6 N•m to 1,0 N•m

– proof torque 1,7 N•m
Strength of coupling mechanism
9.3.11
– axial force ≥445 N
– torque 1,7 N•m
Effectiveness of cable fixing against

– cable rotation (cable end flinch) See DS
9.3.7
– cable pulling See DS
9.3.8
– cable bending See DS
9.3.9
– cable torsion See DS
9.3.10
Bending moment 1 N•m
9.3.12
Bumps total See DS
9.3.13
Vibration (15 g acceleration)
9.3.3 150 m/s
n
10 Hz to 2 000 Hz
Shock (75 g acceleration)
9.3.14 750 m/s
n
Sawtooth wave,
11 ms
Environmental
Climatic category A: 40/85/21
B: 55/125/21
Steady-state hygrothermal See DS
9.4.3
Rapid temperature change See DS
9.4.4
Sealing non-hermetically 100 kPa to 110 kPa
9.4.7 1 cm /h
sealed connectors pressure differential
Sealing hermetically sealed 100 kPa to 110 kPa
9.4.8 1 Pa•cm /s
connectors -5 3 pressure differential
(10 bar•cm /s)
Water immersion See DS
9.4.9
Salt mist ≥48 h Duration of spraying
9.4.10
Remarks including any
IEC 61169-1:2013
Ratings and characteristics Value deviations from
Subclause
standard test methods
Endurance
Mechanical 500 operations
9.3.15
f
1 000 h at 155 °C
High temperature 9.4.5
a
These values apply to basic connector. In practice, these can be influenced by the cable used and reference
should always be made to the actual values given in the detail specification.
b
Values for a single pair of connectors.
c
Voltages are RMS values of AC at 40 Hz to 65 Hz, unless otherwise specified.
d
Some cables usable with these connectors have ratings lower than the values given here.
e
When interfaces are fully mated.
f
For certain connectors, the upper temperature limit is restricted by the cable characteristics. Reference should
be made to the relevant cable specification.
g
na = not applicable.
5.3 Test schedule and inspection requirements
5.3.1 Acceptance tests
Table 9 describes the acceptance tests to be performed.
Table 9 – Acceptance tests
Assessment level M (higher) Assessment level H (lower)
IEC 61169-1:2013
Test Test
IL AQL Period IL AQL Period
required required
Subclause
%  %
Group A1
Visual examination 9.1.1 a II 1 a S3 1,5
Group B1
Outline dimensions 9.1.2 a S4 0,4 a S3 4
Mechanical compatibility 9.1.2.2 a II 1 a S3 1,5
Engagement and separation 9.3.6 a S4 0,4 a S3 1,5
Insertion force (resilient 9.3.4 ia II 1 ia S3 1,5
contacts )
Lot by Lot by
Sealing   lot  lot
– non hermetic 9.4.7 ia II 0,65 ia S3 1
– hermetic 9.4.8 ia II 0,015 ia S3 0,025
Water immersion 9.4.9 ia II 0,015 ia S3 0,025
Voltage proof 9.2.6 a II 0,4 a S3 4
PIM IEC 62037-3 ia S4 0,4 ia S3 4
Solderability(d) 9.3.2.2 ia S4 0,4 ia S3 4
Insulation resistance 9.2.5 a S4 0,4 a S3 4
Abbreviations:
a = suggested as applicable
ia = test suggested (if technically applicable)
na = not applicable
IL = inspection level
AQL = acceptable quality level
(d) = destructive tests – specimens shall not be returned to stock

– 18 – IEC 61169-17:2022 © IEC 2022
5.3.2 Periodic tests
There are no group C tests for level H and M. Table 10 lists the periodic tests to be performed.
Table 10 – Periodic tests
Assessment level M (higher) Assessment level H (lower)
IEC 61169-1:
Permitted Permitted
Test Number of Test Number of
failures failures
Period Period
Subclause required specimens required specimens
a a
per group per group
Group D1 (d)  6 1 3 years  3 1 3 years
Solderability 9.3.2.2 ia  ia
connector
assemblies
Resistance to 9.3.2.3 ia  ia
soldering heat
Effectiveness of
cable fixing
against
1) cable rotation 9.3.7 na  na
(nutation)
2) cable pulling 9.3.8 ia  ia
3) cable bending 9.3.9 Ia  ia
4) cable torsion 9.3.10 ia  ia
Group D2 (d)  6 1 3 years 3 1 3 years
Contact 9.2.3 a  a
resistance, outer
conductor and
centre conductor
continuity
Vibration 9.3.3 a  a
Damp heat, 9.4.3 a  a
steady state
b b
Group D3 (d)  1 3 years 1 3 years
1 1
Dimensions 9.1.2 a  a
piece-parts and
materials
Group D4 (d)  6 1 3 years 3 1 3 years
Mechanical 9.3.15 a  a
endurance
High temperature 9.4.5 a  a
endurance
Discharge test 9.2.8
Climatic 9.4 na  na
conditioning
Group D5 (d)  6 1 3 years 3 1 3 years
Return loss 9.2.1 a  a
Screening IEC 62153-4-7 a  a
effectiveness
Water immersion 9.4.9 ia  ia
Group D6 (d)  6 1 3 years 3 1 3 years
Contact 9.3.5 a  a
captivation
Rapid change of 9.4.4 na  na
temperature
Climatic 9.4.2 a  a
sequence
c
Group D7 (d)  c – 3 years  3 years
Salt mist 9.4.10 a
Abbreviations:
a = suggested as applicable
ia = test suggested (if technically applicable)
na = not applicable
(d) = destructive tests − specimens shall not be returned to stock
a
For qualification approval (QA), a total of two failures only permitted from groups D1 to D7.
b
One set of piece-parts of each style and variant, unless using common piece parts.
c
Group D7 – number of pairs for each solvent.

5.3.3 Procedures for the quality conformance
5.3.3.1 Quality conformance inspection
This shall consist of test groups A1 and B1 on a lot-by-lot basis.
5.3.3.2 Quality conformance and its maintenance
This shall consist of three consecutive lots passing test groups A1 and B1 followed by a
selection of specimens from the lots as appropriate. These specimens shall successfully pass
the specified periodic D tests.
6 Instructions for preparation of detail specifications (DS)
6.1 General
Detail specifications (DS) writers shall use the appropriate blank detail specification (BDS).
The following pages comprise the pro-forma BDS dedicated for use with series TNC connectors.
As such, it will have already entered on it information in relation to:
a) the basic specification number applicable to all the detail specifications covering connector
styles of the series covered by the sectional specification;
b) the connector series designation.
The specification writer should enter the details relating to the connector style to be covered as
indicated. The numbers in brackets in the BDS correspond to the following indications, which
shall be given.
6.2 Identification of the component
(1) Enter the following details:
– Style: the style designation of the connector including type of fixing and sealing if
applicable.
– Attachment: by deletion of the inapplicable options of cable/wire given for centre and
outer conductors.
– Special features and marking: as applicable.
– Series designation: in bold characters/digits approximately 15 mm high.
(2) Enter detail of assessment level and the climatic category.
(3) A reproduction of the outline drawing and details of the panel piercing (if applicable). It shall
provide the maximum envelope dimensions, also the position of the reference plane, and,
in the case of a fixed connector, the position of the mounting plane(s), relative to the front
face of the connector
(4) Any maximum panel thickness limitation for fixed connectors shall be stated.

– 20 – IEC 61169-17:2022 © IEC 2022
(5) Particulars of all variants covered by the DS. As appropriate, the information shall include:
– cable series (or sizes) applicable to each variant;
– alternative plated or protective finishes;
– details of alternative mounting flanges having either tapped or plain mounting holes;
– details of alternative solder spills or solder buckets including, when applicable those for
use with microwave integrated circuit (MIC) components.
6.3 Performance
(6) Performance data listing the most important characteristics of the connectors in accordance
with the requirements of the relevant sectional specification. Deviations from the minimum
requirements shall be clearly indicated. Non applicable parameters shall be marked "na".
6.4 Marking, ordering information and related matters
(7) Insert marking and ordering information as appropriate, together with details of related
documents and any invoked structural similarity.
6.5 Selection of tests, test conditions and severities
(8) "na" shall be used to indicate non-applicable test. All tests marked "a" by the detail
specification writer shall be mandatory.
When using the normal procedure with a dedicated BDS, the letter "a" − for applicable − shall
be entered in the "test required" column against each of the tests indicated as being mandatory
in the test schedule of the relevant sectional specification. Any additional test required at the
discretion of the specification writer shall also be indicated by an "a".
The specification writer shall also indicate, when necessary, details of deviations from the
standard test conditions, including any relevant deviations given in the test schedule of the
sectional specification.
6.6 Blank detail specification pro-forma for TNC connectors
The following pages contain the complete BDS.

(1) Page 1 of
(2)
ELECTRONIC COMPONENT OF ASSESSED (3)
QUALITY IN ACCORDANCE WITH GENERIC (4)
SPECIFICATION IEC 61169-1:2013
NATIONAL REFERENCE
(5) Detail specification for radio frequency coaxial
connector of assessed quality
Series: TNC
Style: Special features and markings:

Method of cable/wire+ attachment centre conductor – solder/crimp+
outer conductor – solder/clamp/crimp +
+ delete as appropriate
(6) Assessment level Characteristic impedance … Climatic category./././
Ω
(7) Outline and maximum dimensions Panel piercing and mounting details
(8) Variants
Variant No. Description of IEC 61196
variant
-01
Information about manufacturers who have components qualified under the IECQ Conformity Assessment System
is available through the IECQ on-line certificate system.

(9) Performance (including limiting conditions of use)
Variant No. IEC 61169-1:
Remarks, including any
Designation 2013
Ratings and characteristics Values deviations from standard test
methods
Subclause
Electrical
Nominal impedance  ……Ω
Frequency range    01 DC ∼ …… GHz Measurement frequency range
(86 to 106) kPa, determined by
Rated voltage at sea-level  ……………… V
the cable
Rated voltage at 4,4 kPa  ……………… V 4,4 kPa approximately
equivalent to 20 km,
determined by the cable
Return loss       …… 9.2.1 …………… GHz ……………………………………
…
……  …………… GHz ……………………………………
…
……          …………… GHz ……………………………………
…
Centre contact resistance 9.2.3 ≤ …………… mΩ Initial
≤ …………… mΩ After conditioning
Centre conductor  01 9.2.3 ≤ …………… mΩ

– 22 – IEC 61169-17:2022 © IEC 2022
Variant No. IEC 61169-1:
Remarks, including any
Designation 2013
Ratings and characteristics Values deviations from standard test
methods
Subclause
Continuity       ……  ≤ …………… mΩ Resistance change due to
conditioning
……  ≤ …………… mΩ
……  ≤ …………… mΩ
Outer contact continuity 01 9.2.3 ……………  mΩ Initial
……  ……………  mΩ After conditioning
Insulation resistance 9.2.5 ≥ …………… GΩ Initial
≥ …………… GΩ After conditioning
a
01 9.2.6 ……………… kV 86 kPa to 106 kPa
Voltage proof
at sea-level      ……  ……………… kV
……  ……………… kV
……        ……………… kV
a
01 9.2.6 ……………… kV …, kPa (if not 4,4 kPa)
Voltage proof
at 4,4 kPa  ……………… kV
……     ……………… kV
……  ……………… kV
Screening effectiveness 01 IEC 62153-4-7 dB at……GHz Z ≤ ………… mΩ
t
Discharge test (corona) at 01 9.2.8 ≥ ……………… V Extinction voltages
sea-level
≥ ……………… V
≥ ……………… V
≥ ……………… V
PIM IEC 62037-3 ≤dBc Test power …. W
At   MHz
ADDITIONAL ELECTRICAL
CHARACTERISTICS
Mechanical
Soldering 9.3.2 ……………….
– bit size
Insertion force (resilient 9.3.4
contacts)
– inner contact  ……………… N
– outer contact  ………… …… N
Centre contact captivation 9.3.5
– axial force  ……………… N
– permitted displacement in  ……………… mm
each direction
– torque  ……………… N•m
Engagement and separation 9.3.6
forces
Strength of coupling 9.3.11
mechanism
– axial force  ……………… N
– torque  ……………… N•m
Effectiveness of cable fixing 01
against
Variant No. IEC 61169-1:
Remarks, including any
Designation 2013
Ratings and characteristics Values deviations from standard test
methods
Subclause
1) cable rotation
01 9.3.7 Rotations
………
………
………
2) cable pulling  Point of application and
duration
...
