High-voltage switchgear and controlgear - Part 213: Voltage detecting and indicating system

IEC 62271-213:2021 is applicable to the voltage detecting and indicating system (VDIS) to be installed on indoor and outdoor high-voltage equipment.
The VDIS as defined by this document includes a coupling system per phase (capacitive, resistive coupling or other technology) to connect to live parts (main circuit).
This first edition cancels and replaces the first edition of IEC 61243-5 published in1997 and the first edition of IEC 62271-206 published in 2011. This edition constitutes a merging of the content of IEC 61243-5 and IEC 62271-206.
This edition includes the following significant technical changes with respect to the previous editions of IEC 61243-5 and IEC 62271-206:
a) an optional output signal is defined to be used for multipurpose use cases;
b) only one interface is defined for voltage detecting and indicating system (VDIS);
c) the measurement of the current carrying capacity of the voltage limiting element is considered as inaccurate and is not considered in this document. The experience shows that a probability of the failure of the coupling element is negligible.

Appareillage à haute tension - Partie 213: Système détecteur et indicateur de tension

L’IEC 62271-213:2021 s’applique au système détecteur et indicateur de tension (VDIS) à installer sur des équipements haute tension pour installation à l’intérieur et à l’extérieur.
Le VDIS défini par le présent document comprend un système de couplage par phase (couplage capacitif, résistif ou d’une autre technologie) assurant la connexion avec les parties actives (circuit principal).
Cette première édition annule et remplace la première édition de l’IEC 61243-5 parue en 1997 et la première édition de l’IEC 62271-206 parue en 2011. Cette édition est issue de la fusion de l’IEC 61243-5 et de l’IEC 62271-206.
Cette édition inclut les modifications techniques majeures suivantes par rapport aux éditions précédentes de l’IEC 61243-5 et l’IEC 62271-206:
a) un signal de sortie facultatif est défini pour être utilisé dans les cas d’utilisation générale;
b) une seule interface est définie pour le système détecteur et indicateur de tension (VDIS);
c) le mesurage de la capacité de courant admissible dans le dispositif limiteur de tension est considéré comme étant inexact et n’est pas traité dans le présent document. L’expérience démontre que la probabilité d’une défaillance de l’élément de couplage est négligeable.

General Information

Status
Published
Publication Date
23-Jun-2021
Technical Committee
Current Stage
PPUB - Publication issued
Completion Date
24-Jun-2021
Ref Project

Buy Standard

Standard
IEC 62271-213:2021 - High-voltage switchgear and controlgear - Part 213: Voltage detecting and indicating system
English and French language
105 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 62271-213
Edition 1.0 2021-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
High-voltage switchgear and controlgear –
Part 213: Voltage detecting and indicating system
Appareillage à haute tension –
Partie 213: Système détecteur et indicateur de tension
IEC 62271-213:2021-06(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always

committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC online collection - oc.iec.ch

webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez

La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un

en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour

comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

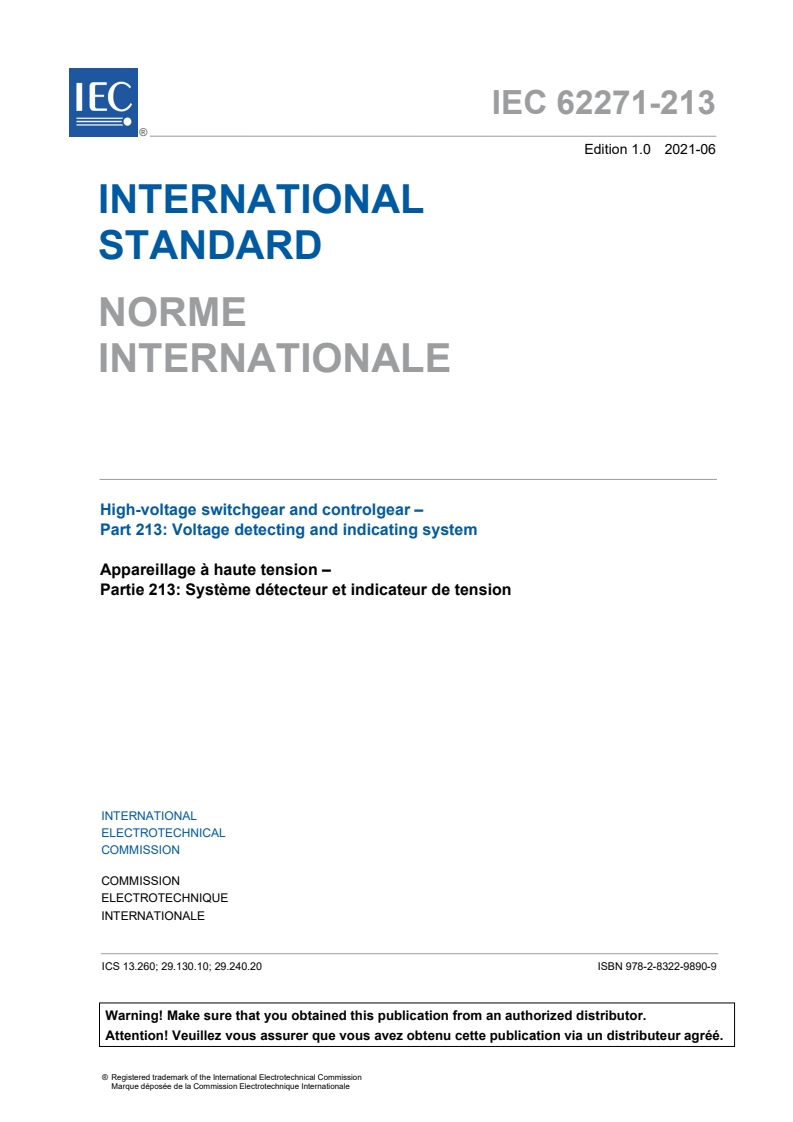

IEC 62271-213
Edition 1.0 2021-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
High-voltage switchgear and controlgear –
Part 213: Voltage detecting and indicating system
Appareillage à haute tension –
Partie 213: Système détecteur et indicateur de tension
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.260; 29.130.10; 29.240.20 ISBN 978-2-8322-9890-9

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

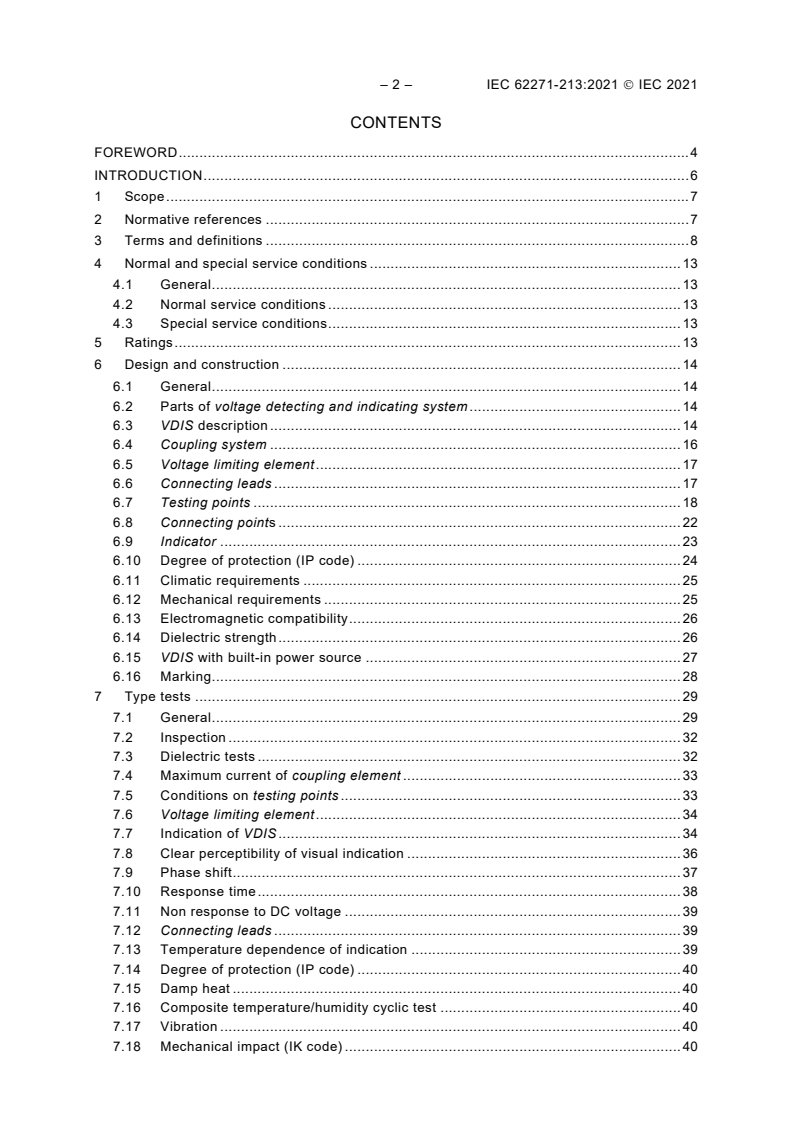

– 2 – IEC 62271-213:2021  IEC 2021
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms and definitions ...................................................................................................... 8

4 Normal and special service conditions ........................................................................... 13

4.1 General ................................................................................................................. 13

4.2 Normal service conditions ..................................................................................... 13

4.3 Special service conditions ..................................................................................... 13

5 Ratings .......................................................................................................................... 13

6 Design and construction ................................................................................................ 14

6.1 General ................................................................................................................. 14

6.2 Parts of voltage detecting and indicating system ................................................... 14

6.3 VDIS description ................................................................................................... 14

6.4 Coupling system ................................................................................................... 16

6.5 Voltage limiting element ........................................................................................ 17

6.6 Connecting leads .................................................................................................. 17

6.7 Testing points ....................................................................................................... 18

6.8 Connecting points ................................................................................................. 22

6.9 Indicator ............................................................................................................... 23

6.10 Degree of protection (IP code) .............................................................................. 24

6.11 Climatic requirements ........................................................................................... 25

6.12 Mechanical requirements ...................................................................................... 25

6.13 Electromagnetic compatibility ................................................................................ 26

6.14 Dielectric strength ................................................................................................. 26

6.15 VDIS with built-in power source ............................................................................ 27

6.16 Marking ................................................................................................................. 28

7 Type tests ..................................................................................................................... 29

7.1 General ................................................................................................................. 29

7.2 Inspection ............................................................................................................. 32

7.3 Dielectric tests ...................................................................................................... 32

7.4 Maximum current of coupling element ................................................................... 33

7.5 Conditions on testing points .................................................................................. 33

7.6 Voltage limiting element ........................................................................................ 34

7.7 Indication of VDIS ................................................................................................. 34

7.8 Clear perceptibility of visual indication .................................................................. 36

7.9 Phase shift ............................................................................................................ 37

7.10 Response time ...................................................................................................... 38

7.11 Non response to DC voltage ................................................................................. 39

7.12 Connecting leads .................................................................................................. 39

7.13 Temperature dependence of indication ................................................................. 39

7.14 Degree of protection (IP code) .............................................................................. 40

7.15 Damp heat ............................................................................................................ 40

7.16 Composite temperature/humidity cyclic test .......................................................... 40

7.17 Vibration ............................................................................................................... 40

7.18 Mechanical impact (IK code) ................................................................................. 40

---------------------- Page: 4 ----------------------
IEC 62271-213:2021  IEC 2021 – 3 –

7.19 Fall ....................................................................................................................... 40

7.20 Electrostatic discharge .......................................................................................... 41

7.21 Radiated electromagnetic fields ............................................................................ 41

7.22 VDIS with built-in power source ............................................................................ 41

8 Routine tests ................................................................................................................. 42

9 Guide to the selection of VDIS (informative) .................................................................. 42

10 Information to be given with enquiries, tenders and orders ............................................ 43

10.1 General ................................................................................................................. 43

10.2 Information with enquiries and orders ................................................................... 43

10.3 Information with tenders ........................................................................................ 43

11 Transport, storage, installation, operation, maintenance and instructions for use ........... 44

11.1 General ................................................................................................................. 44

11.2 Installation ............................................................................................................ 44

11.3 Operating instructions ........................................................................................... 44

11.4 Maintenance ......................................................................................................... 44

11.5 Instructions for use ............................................................................................... 46

12 Safety ............................................................................................................................ 47

13 Influence of VDIS on the environment ............................................................................ 47

Annex A (informative) Derivations and formulas .................................................................. 48

A.1 Threshold voltages for indication of VDIS.............................................................. 48

A.2 Maximum measuring voltage of VDIS .................................................................... 48

A.3 Impedances of connected devices to the testing points of VDIS ............................ 49

A.4 Current levels of the testing points of VDIS ........................................................... 50

Annex B (informative) List of notes concerning certain countries ......................................... 51

Bibliography .......................................................................................................................... 52

Figure 1 – Example of the typical structure of an integrated VDIS ......................................... 15

Figure 2 – Example of the typical structure of a separable VDIS ........................................... 16

Figure 3 – Plug and socket size and design without insulation shield .................................... 20

Figure 4 – Plug and socket size and design with insulation shield ......................................... 21

Figure 5 – Maximum footprint dimensions of separable VDIS and example of

arrangement ......................................................................................................................... 22

Figure 6 – Examples of socket-outlet arrangement for integrated VDIS ................................. 22

Figure 7 – Connection of the voltage source ......................................................................... 35

Figure 8 – Test set-up for perceptibility of visual indication ................................................... 37

Figure 9 – Examples of measure of the response time .......................................................... 38

Table 1 – Impedances of connected devices ......................................................................... 18

Table 2 – Current levels (RMS values) .................................................................................. 19

Table 3 – Thresholds for voltage indication ........................................................................... 24

Table 4 – Sequence of type tests .......................................................................................... 30

Table 5 – List of type tests without sequence ........................................................................ 31

Table 6 – List of routine tests without sequence .................................................................... 42

---------------------- Page: 5 ----------------------
– 4 – IEC 62271-213:2021  IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR –
Part 213: Voltage detecting and indicating system
FOREWORD

1) The international Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes international Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. international, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the international Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62271-213 has been prepared by subcommittee 17C:Assemblies,

of IEC technical committee 17: High-voltage switchgear and controlgear.

This first edition cancels and replaces the first edition of IEC 61243-5 published in1997 and the

first edition of IEC 62271-206 published in 2011. This edition constitutes a merging of the

content of IEC 61243-5 and IEC 62271-206.

This edition includes the following significant technical changes with respect to the previous

editions of IEC 61243-5 and IEC 62271-206:
a) an optional output signal is defined to be used for multipurpose use cases;

b) only one interface is defined for voltage detecting and indicating system (VDIS);

c) the measurement of the current carrying capacity of the voltage limiting element is

considered as inaccurate and is not considered in this document. Experience shows that

the probability of failure of the coupling element is negligible.
---------------------- Page: 6 ----------------------
IEC 62271-213:2021  IEC 2021 – 5 –
The text of this International Standard is based on the following documents:
FDIS Report on voting
17C/787/FDIS 17C/794/RVD

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.

The language used for the development of this International Standard is English .

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.
In this document, the following print types are used:
• Terms defined in Clause 3: in italic type.

The reader's attention is drawn to the fact that Annex B lists all of the "in-some-country" clauses

on differing practices of a less permanent nature relating to the subject of this document.

A list of all parts in the IEC 62271 series, published under the general title High-voltage

switchgear and controlgear, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 7 ----------------------
– 6 – IEC 62271-213:2021  IEC 2021
INTRODUCTION

This part of IEC 62271 has been prepared in accordance with the requirements of IEC 62271-1.

The products designed and manufactured in accordance with this document contribute to the

safety of the users, provided they are used by skilled or instructed persons, in accordance with

safe methods of work and the instructions for use.

The product covered by this document can have an impact on the environment during some or

all stages of its life cycle. These impacts can range from slight to significant, be of short-term

or long-term duration, and occur at the global, regional or local level.

IEC 62271-213 does not cover the phase comparison function of IEC 61243-5 which is covered

by the new IEC 62271-215. Unless IEC 62271-215 is not published, the relevant subclauses in

IEC 61243-5 related to UPCs are applicable.
---------------------- Page: 8 ----------------------
IEC 62271-213:2021  IEC 2021 – 7 –
HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR –
Part 213: Voltage detecting and indicating system
1 Scope

This part of IEC 62271 is applicable to the voltage detecting and indicating system (VDIS) to

be installed on indoor and outdoor high-voltage equipment.

The VDIS as defined by this document includes a coupling system per phase (capacitive,

resistive coupling or other technology) to connect to live parts (main circuit).

The VDIS is applicable on systems with nominal voltages above 1 kV and service frequencies

from 16,7 Hz up to and including 60 Hz. The VDIS is used to detect and indicate the presence

or absence of operating voltage. It is not intended to distinguish between voltage not present

(i.e. U < 10 % of nominal voltage) and dead circuit state (i.e. U = 0 V).

NOTE 1 The use of a specific means of connection to earth of the main circuit (e.g. by an earthing switch) provides

the "dead circuit" (U = 0 V) state.

NOTE 2 The VDIS has the same threshold values as the voltage presence indicating system (VPIS) (IEC 62271-

206) and the voltage detecting system (VDS) (IEC 61243-5) for not indicating presence of voltage and for detecting

an absence of operating voltage, respectively.

The VDIS is fixed on equipment such as switchgear and controlgear according to the IEC 62271

series or transformers according to their own standards.

The products designed and manufactured in accordance with this document contribute to the

safety of the users, provided they are used by skilled or instructed persons in accordance with

safe methods of work and the instructions for use.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 60060-1, High-voltage test techniques – Part 1: General definitions and requirements

IEC 60068-2-1:2007, Environmental testing – Part 2-1: Tests – Test A: Cold
IEC 60068-2-2:2007, Environmental testing – Part 2-2: Tests – Test B: Dry heat

IEC 60068-2-6, Environmental testing – Part 2-6: Tests – Test Fc: Vibration (sinusoidal)

IEC 60068-2-11, Basic environmental testing procedures – Part 2-11: Tests – Test Ka: Salt mist

IEC 60068-2-31, Environmental testing – Part 2-31: Tests – Test Ec: Rough handling shocks,

primarily for equipment-type specimens
IEC 60068-2-38, Environmental testing – Part 2-38: Tests – Test Z/AD: Composite
temperature/humidity cyclic test
---------------------- Page: 9 ----------------------
– 8 – IEC 62271-213:2021  IEC 2021

IEC 60068-2-78, Environmental testing – Part 2-78: Tests – Test Cab: Damp heat, steady state

IEC 60352-1, Solderless connections – Part 1: Wrapped connections; general requirements,

test methods and practical guidance

IEC 60352-2, Solderless connections – Part 2: Solderless crimped connections – General

requirements, test methods and practical guidance

IEC 60352-5, Solderless connections – Part 5: Press-in connections – General requirements,

test methods and practical guidance

IEC 60417, Graphical symbols for use on equipment (available at http://www.graphical-

symbols.info/equipment)
IEC 60529, Degrees of protection provided by enclosures (IP Code)

IEC 61000-4-2, Electromagnetic compatibility (EMC) – Part 4-2: Testing and measurement

techniques – Electrostatic discharge immunity test

IEC 61000-4-3, Electromagnetic compatibility (EMC) – Part 4-3: Testing and measurement

techniques – Radiated, radio-frequency, electromagnetic field immunity test

IEC 61010-031:2015, Safety requirements for electrical equipment for measurement, control

and laboratory use – Part 031: Safety requirements for hand-held probe assemblies for

electrical measurement and test
IEC 61010-031:2015/AMD1:2018

IEC 61210, Connecting devices – Flat quick-connect terminations for electrical copper

conductors – Safety requirements

IEC 62262, Degrees of protection provided by enclosures for electrical equipment against

external mechanical impacts (IK code)

IEC 62271-1, High-voltage switchgear and controlgear – Part 1: Common specifications for

alternating current switchgear and controlgear
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• ISO Online browsing platform: available at https://www.iso.org/obp
• IEC Electropedia: available at http://www.electropedia.org/
3.1
active signal

audible or visual phenomenon of the VDIS whose presence, absence or variation is considered

as representing information on the condition “voltage present” or “voltage not present”

---------------------- Page: 10 ----------------------
IEC 62271-213:2021  IEC 2021 – 9 –

[SOURCE: IEC 61243-1:2021 [15] , 3.2, modified – “of the VDIS” is added, the Note 1 to entry

is removed.]
3.2
adjustment element

part of the coupling system, connected to the earth, which is used to modify the signal of the

coupling element

Note 1 to entry: Different components can be used for the adjustment element, for example, capacitive, resistive,

or other.
3.3
connecting lead

element of the VDIS which provides electrical connection between the coupling element and all

other parts being used in the construction of the VDIS

Note 1 to entry: The other parts can be, for example, the testing points and connecting points, integrated indicator,

etc.
3.4
connecting point
rear accessible point of the VDIS which provides access to the signal
3.5
coupling element

part of the coupling system which establishes the connection with the main circuit

Note 1 to entry: Different physical principles can be used for the coupling element, for example, capacitive or

resistive.
3.6
coupling system

part of the VDIS connected between the main circuit and earth, which transmits a signal to the

indicating element
Note 1 to entry: The coupling system is generally designed as a voltage divider.
3.7
equipment
single apparatus or s
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
