IEC 61800-3:2017

Adjustable speed electrical power drive systems - Part 3: EMC requirements and specific test methods

IEC 61800-3:2017 is also available as IEC 61800-3:2017 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 61800-3:2017 specifies electromagnetic compatibility (EMC) requirements for power drive systems (PDSs, defined in 3.1). These are adjustable speed AC or DC motor drives. Requirements are stated for PDSs with converter input and/or output voltages (line-to-line voltage), up to 35 kV AC RMS.
This third edition cancels and replaces the second edition published in 2004 and Amendment 1:2011. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) clarification of requirements for the test report, particularly when a number of alternative test methods exist;
b) introduction of a more detailed test setup for radiated emission measurements, along with the introduction of a 3 m measurement distance for small size equipment;
c) general updates in the informative annexes.

Entraînements électriques de puissance à vitesse variable - Partie 3: Exigences de CEM et méthodes d'essai spécifiques

IEC 61800-3:2017 est disponible sous forme de IEC 61800-3:2017 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 61800-3:2017 spécifie les exigences de compatibilité électromagnétique (CEM) applicables aux entraînements de puissance (PDS, définis en 3.1). Il s'agit d'entraînements à vitesse variable pour moteurs électriques à courant alternatif ou continu. Le présent document spécifie les exigences relatives aux PDS avec convertisseurs ayant des tensions d'entrée et/ou sortie (tensions entre phases) d'une valeur efficace allant jusqu'à 35 kV en courant alternatif.
Cette troisième édition annule et remplace la seconde édition parue en 2004 et l'Amendement 1:2011. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) éclaircissement des exigences concernant le rapport d'essai, notamment quand il existe plusieurs autres méthodes d'essai;
b) introduction d'une configuration d'essai plus détaillée pour les mesures des émissions rayonnées, ainsi que d'une distance de mesure de 3 m pour les petits matériels;
c) mises à jour générales des annexes informatives.

General Information

• Status: Published
• Publication Date: 22-Feb-2017
• ICS: 29.140.30 - Fluorescent lamps. Discharge lamps
• ICS: 29.200 - Rectifiers. Convertors. Stabilized power supply
• ICS: 33.100.01 - Electromagnetic compatibility in general
• Technical Committee: SC 22G - Adjustable speed electric power drive systems (PDS)
• Drafting Committee: MT 7 - TC 22/SC 22G/MT 7
• Current Stage: DELPUB - Deleted Publication
• Start Date: 30-Nov-2022
• Completion Date: 31-May-2019

Relations

• Revised: IEC 61800-3:2022 - Adjustable speed electrical power drive systems - Part 3: EMC requirements and specific test methods for PDS and machine tools
• Effective Date: 05-Sep-2023
• Revises: IEC 61800-3:2004/AMD1:2011 - Amendment 1 - Adjustable speed electrical power drive systems - Part 3: EMC requirements and specific test methods
• Effective Date: 05-Sep-2023
• Revises: IEC 61800-3:2004 - Adjustable speed electrical power drive systems - Part 3: EMC requirements and specific test methods
• Effective Date: 05-Sep-2023

Overview

IEC 61800-3:2017 - "Adjustable speed electrical power drive systems – Part 3: EMC requirements and specific test methods" is the International Electrotechnical Commission standard that specifies electromagnetic compatibility (EMC) requirements and test methods for adjustable speed AC and DC motor drive systems (Power Drive Systems, PDS). The third edition (also published as a Redline version showing changes versus the previous edition) is a technical revision. It covers PDSs with converter input and/or output voltages up to 35 kV AC RMS and updates both measurement setups and reporting requirements for EMC compliance.

Key updates in the 2017 edition

• Clarified requirements for the test report, particularly when alternative test methods are used.
• Introduced a more detailed test setup for radiated emission measurements and a 3 m measurement distance for small equipment.
• General updates and expansions in informative annexes (EMC techniques, low-frequency phenomena, filtering, installation rules, EMC planning).

Key Topics

• Scope and definitions for PDS installations, ports, interfaces and intended use.
• Immunity requirements: performance criteria for low-frequency disturbances (harmonics, commutation notches, voltage dips, unbalance, magnetic fields) and high-frequency disturbances (radiated and conducted immunity).
• Emission limits and measurement: procedures for low- and high-frequency emissions, conducted and radiated tests, and category-based requirements (equipment categories such as C1–C4 are addressed).
• Test methods and setup: detailed configurations for in-situ and laboratory measurements, cable arrangements, AMN/impedance usage, and the new 3 m radiated measurement distance for small equipment.
• Documentation and test reporting: mandatory content and clarity when multiple test methods are applicable.
• Informative annexes: practical guidance on harmonics, commutation notches, reactive power compensation, filtering, EMC planning for large installations, and user guidelines for managing high-frequency emissions.

Applications and Users

IEC 61800-3:2017 is essential for:

• Manufacturers of adjustable speed drives and converters who need to design products that meet EMC requirements.
• EMC test laboratories performing emission and immunity testing to international methods.
• System integrators and electrical engineers specifying drives for industrial, commercial or utility-connected installations up to 35 kV.
• Compliance officers and procurement teams requiring documented EMC performance and standardized test reports.
• Maintenance and commissioning engineers addressing EMC-related disturbances, harmonics, filtering and installation mitigation.

Practical uses include product design validation, type testing, site acceptance testing, EMC planning for complex installations (category C4), and guidance on filtering and reactive compensation to limit emissions and improve immunity.

Related Standards

IEC 61800-3 interfaces with other EMC and power quality standards (harmonic/voltage disturbance standards and test-method standards). For product compliance it is typically used alongside general EMC standards and national grid connection rules.

Standards Content (Sample)

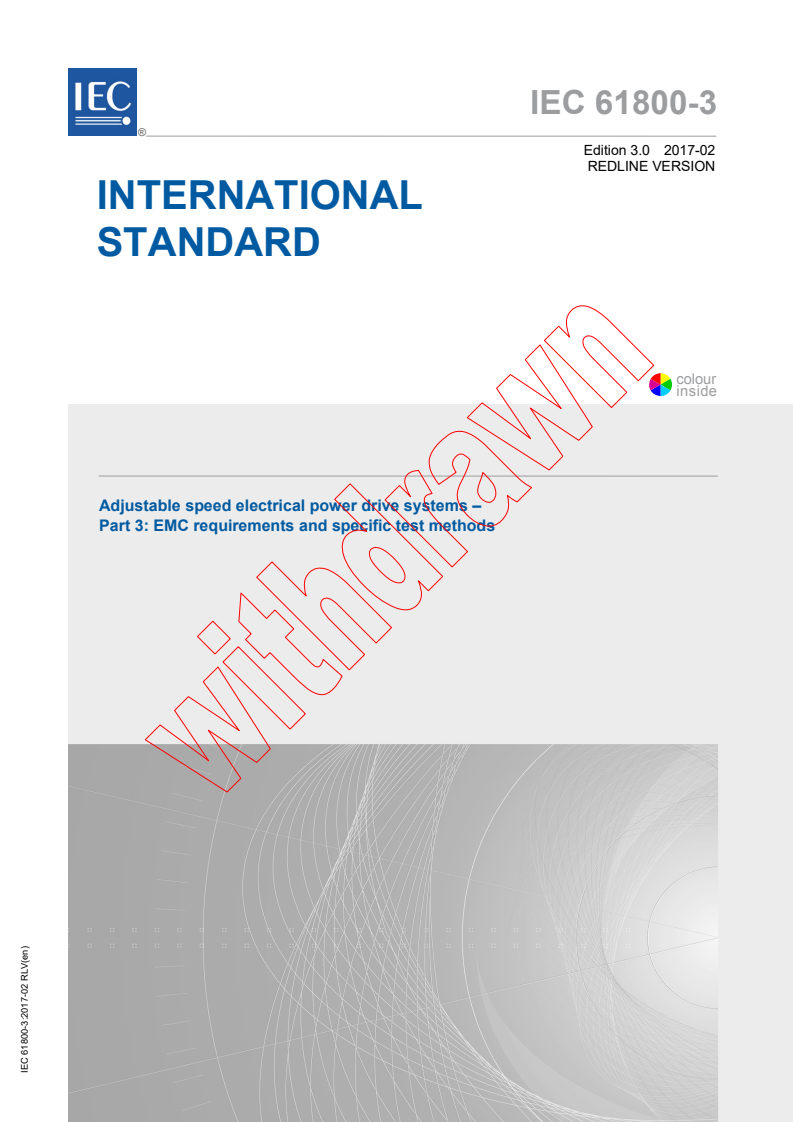

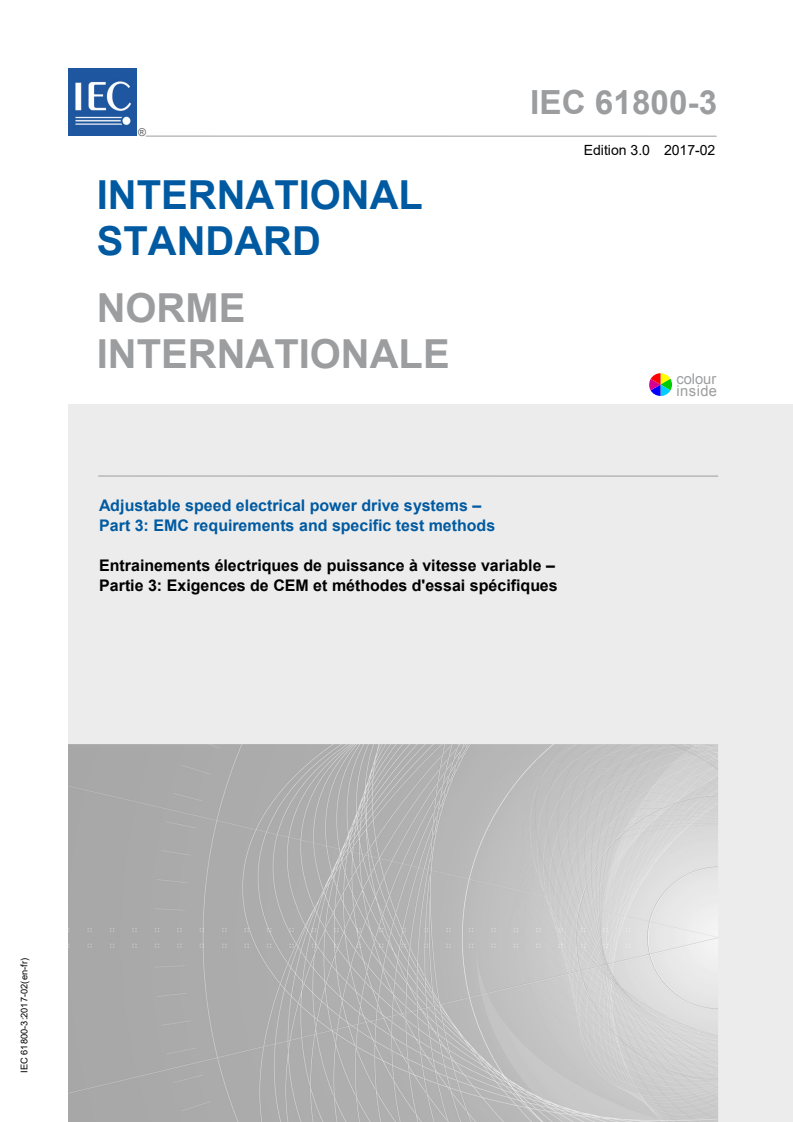

IEC 61800-3 ®
Edition 3.0 2017-02
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Adjustable speed electrical power drive systems –
Part 3: EMC requirements and specific test methods

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]

CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61800-3 ®
Edition 3.0 2017-02
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Adjustable speed electrical power drive systems –

Part 3: EMC requirements and specific test methods

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.200; 33.100.01 ISBN 978-2-8322-4007-6

– 2 – IEC 61800-3:2017 RLV © IEC 2017

CONTENTS
FOREWORD . 7

1 Scope and object . 9

2 Normative references . 10

3 Terms and definitions . 13

3.1 Overview.

3.1 Installation and its content . 13

3.2 Intended use . 15

3.3 Location, ports and interfaces . 16
3.4 Components of the PDS . 19
3.5 Phenomena-related definitions . 20
4 Common requirements. 21
4.1 General conditions . 21
4.2 Tests . 21
4.2.1 Conditions . 21
4.2.2 Test report . 22
4.3 Documentation for the user . 23
5 Immunity requirements . 24
5.1 General conditions . 24
5.1.1 Acceptance criteria (performance criteria) . 24
5.1.2 Selection of performance type . 24
5.1.3 Conditions during the test . 26
5.2 Basic immunity requirements – low-frequency disturbances . 27
5.2.1 Common principle . 27
5.2.2 Harmonics and commutation notches/voltage distortion . 27
5.2.3 Voltage deviations (variations, changes, fluctuations), dips and short
interruptions . 30
5.2.4 Voltage unbalance and frequency variations . 33
5.2.5 Supply influences – Magnetic fields . 35
5.3 Basic immunity requirements – High-frequency disturbances . 35
5.3.1 Conditions . 35
5.3.2 First environment . 35
5.3.3 Second environment . 36

5.3.4 Immunity against electromagnetic fields. 39
5.4 Application of immunity requirements – Statistical aspect . 39
6 Emission. 40
6.1 General emission requirements . 40
6.2 Basic low-frequency emission limits . 42
6.2.1 Compliance method . 42
6.2.2 Commutation notches . 42
6.2.3 Harmonics and interharmonics . 42
6.2.4 Voltage fluctuations . 43
6.2.5 Emissions in the frequency range from 2 kHz to 9 kHz. 44
6.2.6 Common mode harmonic emission (low-frequency common mode
voltage) . 45
6.3 Conditions related to high-frequency emission measurement . 45
6.3.1 General requirements . 45

6.3.2 Connection requirements . 50

6.4 Basic high-frequency emission limits . 50

6.4.1 Equipment of categories C1 and C2 . 50

6.4.2 Equipment of category C3 . 53

6.5 Engineering practice . 54

6.5.1 PDS of category C4 . 54

6.5.2 Limits outside the boundary of an installation, for a PDS of category C4

– Example of propagation of disturbances . 55

6.6 Application of emission requirements – Statistical aspects . 58

Annex A (informative) EMC techniques . 59

A.1 General overview of EMC phenomena .
A.1 Application of PDSs and EMC . 61
A.2 Load conditions regarding high-frequency phenomena . 62
A.2.1 Load conditions during emission tests . 62
A.2.2 Load conditions during immunity tests . 62
A.2.3 Load test . 62
A.3 Some immunity aspects .
A.3 Immunity to power frequency magnetic fields . 63
A.4 High-frequency emission measurement techniques . 64
A.4.1 Impedance/artificial mains network (AMN) . 64
A.4.2 Performing high-frequency in situ emission tests . 66
A.4.3 Established experience with high power PDSs . 68
Annex B (informative) Low-frequency phenomena . 69
B.1 Commutation notches . 69
B.1.1 Occurrence – description . 69
B.1.2 Calculation . 71
B.1.3 Recommendations regarding commutation notches . 72
B.2 Definitions related to harmonics and interharmonics . 73
B.2.1 General discussion . 73
B.2.2 Phenomena related definitions . 74
B.2.3 Conditions of application. 77
B.3 Application of harmonic emission standards . 81
B.3.1 General . 81
B.3.2 Public networks . 82
B.3.3 Summation methods for harmonics in an installation – Practical rules . 88

B.4 Installation rules – Assessment of harmonic compatibility . 90
B.4.1 Low power industrial three-phase system . 90
B.4.2 Large industrial system . 92
B.4.3 Interharmonics and voltages or currents at higher frequencies . 94
B.5 Voltage unbalance . 95
B.5.1 Origin . 95
B.5.2 Definition and assessment . 95
B.5.3 Effect on PDSs . 98
B.6 Voltage dips – Voltage fluctuations . 98
B.6.1 Voltage dips . 98
B.6.2 Voltage fluctuation . 101
B.7 Verification of immunity to low frequency disturbances . 101
Annex C (informative) Reactive power compensation – Filtering . 102

– 4 – IEC 61800-3:2017 RLV © IEC 2017

C.1 Installation . 102

C.1.1 Usual operation . 102

C.1.2 Power definitions under distorted conditions . 103

C.1.3 Practical solutions . 104

C.1.4 Reactive power compensation . 105

C.1.5 Filtering methods . 109

C.2 Reactive power and harmonics . 111

C.2.1 Usual installation mitigation methods . 111

C.2.2 Other solutions . 113

Annex D (informative) Considerations on high-frequency emission . 117

D.1 User guidelines . 117
D.1.1 Expected emission of PDSs . 117
D.1.2 Guidelines . 119
D.2 Safety and RFI-filtering in power supply systems . 121
D.2.1 Safety and leakage currents . 121
D.2.2 Safety and RFI-filtering in power supply systems isolated from earth . 121
Annex E (informative) EMC analysis and EMC plan for PDS of category C4 . 123
E.1 General – System EMC analysis applied to PDSs . 123
E.1.1 Electromagnetic environment . 123
E.1.2 System EMC analysis techniques . 124
E.2 Example of EMC plan for general applications . 125
E.2.1 Project data and description . 125
E.2.2 Electromagnetic environment analysis . 126
E.2.3 EMC analysis. 127
E.2.4 Establishment of installation rules . 127
E.2.5 Formal result and maintenance . 129
E.3 Example of supplement to EMC plan for particular application . 129
E.3.1 Electromagnetic environment complementary analysis . 129
E.3.2 EMC analysis. 131
Bibliography . 133

Figure 1 – Definition of the Installation and its content . 14
Figure 2 – Internal interfaces of the PDS and examples of ports . 17
Figure 3 – Power interfaces of a PDS with common DC BUS . 18

Figure 4 – Power interfaces with common input transformer . 18
Figure 5 – Example for a typical cable arrangement for measurements in 3 m
separation distance, for a table-top or wall-mounted equipment, top view . 48
Figure 6 – Example for a typical cable arrangement for measurements in 3 m
separation distance for a table-top or wall-mounted equipment, side view . 49
Figure 7 – Example for a typical test set up for measurement of conducted and/or
radiated disturbances from a floor-standing PDS, 3D view . 50
Figure 8 – Propagation of disturbances . 56
Figure 9 – Propagation of disturbances in installation with a PDS rated > 1 000 V . 56
Figure A.1 – Coordination between disturbance and immunity .
Figure B.1 – Typical waveform of commutation notches – Distinction from non-
repetitive transient . 69
Figure B.2 – PCC, IPC, installation current ratio and R . 80
SI
Figure B.3 – PCC, IPC, installation current ratio and R . 81
SC
Figure B.4 – Assessment of the harmonic emission of a PDS . 84

Figure B.5 – Load conditions for the measurement of harmonic emission of a PDS .

Figure B.5 – Test set-up with mechanical load . 86

Figure B.6 – Test set-up with electrical load replacing the loaded motor . 86

Figure B.7 – Test set-up with resistive load . 87

Figure B.8 – Assessment of harmonic emission where PDS is used (apparatus,

systems or installations) . 91

Figure C.1 – Reactive power compensation . 106

Figure C.2 – Simplified diagram of an industrial network . 108
Figure C.3 – Impedance versus frequency of the simplified network . 108
Figure C.4 – Example of passive filter battery . 110
Figure C.5 – Example of inadequate solution in reactive power compensation . 112
Figure C.6 – VSI PWM active filter topologies . 114
Figure C.7 – Boost mode converter . 115
Figure C.8 – Front-End inverter system . 116
Figure D.1 – Conducted emission of various unfiltered PDSs . 118
Figure D.2 – Expected radiated emission of PDS up to rated voltage 400 V Peak
values normalised at 10 m . 119
Figure D.3 – Safety and filtering. 122
Figure E.1 – Interaction between systems and EM environment . 123
Figure E.2 – Zone concept . 124
Figure E.3 – Example of drive . 125

Table 1 – Subclauses containing alternative test methods . 23
Table 2 – Minimum immunity requirements for harmonics and commutation
notches/voltage distortion on power ports of low voltage PDSs .
Table 2 – Criteria to prove the acceptance of a PDS against electromagnetic
disturbances . 26
Table 3 – Minimum immunity requirements for total harmonic distortion on power ports
of low voltage PDSs . 28
Table 4 – Minimum immunity requirements for harmonics and commutation

notches/voltage distortion on auxiliary low voltage power ports of PDSs .
Table 4 – Minimum immunity requirements for individual harmonic orders on power
ports of low voltage PDSs . 28
Table 5 – Minimum immunity requirements for commutation notches on power ports of
low voltage PDSs . 29
Table 6 – Minimum immunity requirements for harmonics and commutation notches/
voltage distortion on main power ports of PDSs of rated voltage above 1 000 V . 30
Table 7 – Minimum immunity requirements for voltage deviations, dips and short
interruptions on power ports of low voltage PDSs . 31
Table 8 – Minimum immunity requirements for voltage deviations, dips and short
interruptions on main power ports of rated voltage above 1 000 V of PDSs . 32
Table 9 – Minimum immunity requirements for voltage deviations, dips and short
interruptions on auxiliary low voltage power ports of PDSs . 33

– 6 – IEC 61800-3:2017 RLV © IEC 2017

Table 10 – Minimum immunity requirements for voltage unbalance and frequency

variations on power ports of low voltage PDSs . 34

Table 11 – Minimum immunity requirements for voltage unbalance and frequency

variations on main power ports of rated voltage above 1 000 V of PDSs . 34

Table 12 – Minimum immunity requirements for voltage unbalance and frequency
variations on auxiliary low voltage power ports of PDSs . 35

Table 13 – Minimum immunity requirements for PDSs intended for use in the first

environment . 36

Table 14 – Minimum immunity requirements for PDSs intended for use in the second

environment . 38

Table 15 – Summary of emission requirements . 41
Table 16 – Limits for mains terminal disturbance voltage in the frequency band
150 kHz to 30 MHz . 51
Table 17 – Limits for electromagnetic radiation disturbance in the frequency band 30
MHz to 1 000 MHz . 52
Table 18 – Limits of disturbance voltage on the power interface. 53
Table 19 – Limits for mains terminal disturbance voltage in the frequency band
150 kHz to 30 MHz for a PDS in the second environment – PDS of category C3 . 53
Table 20 – Limits for electromagnetic radiation disturbance in the frequency band
30 MHz to 1 000 MHz for a PDS in the second environment – PDS of category C3 . 54
Table 21 – Limits for propagated disturbance voltage
("outside" in the first environment) . 57
Table 22 – Limits for propagated disturbance voltage ("outside" in the second
environment) . 57
Table 23 – Limits for propagated electromagnetic disturbance above 30 MHz . 57
Table 24 – Limits for electromagnetic disturbance below 30 MHz . 58
Table A.1 – EMC overview .
Table B.1 – Maximum allowable depth of commutation notches at the PC . 72
Table B.2 – Harmonic current emission requirements relative to the total current of the
agreed power at the PCC or IPC . 93
Table B.3 – Verification plan for immunity to low frequency disturbances . 101
Table E.1 – EM interaction between subsystems and environment . 125
Table E.2 – Frequency analysis . 131

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
ADJUSTABLE SPEED ELECTRICAL POWER

DRIVE SYSTEMS –
Part 3: EMC requirements and specific test methods

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition. A vertical bar appears in the margin wherever a change
has been made. Additions are in green text, deletions are in strikethrough red text.

– 8 – IEC 61800-3:2017 RLV © IEC 2017

International Standard IEC 61800-3 has been prepared by subcommittee 22G: Adjustable

speed electric drive systems incorporating semiconductor power converters, of IEC technical

committee 22: Power electronic systems and equipment.

This third edition cancels and replaces the second edition published in 2004 and

Amendment 1:2011. This edition constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:
a) clarification of requirements for the test report, particularly when a number of alternative

test methods exist;
b) introduction of a more detailed test setup for radiated emission measurements, along with
the introduction of a 3 m measurement distance for small size equipment;
c) general updates in the informative annexes.
The text of this standard is based on the following documents:
FDIS Report on voting
22G/347/FDIS 22G/350/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2, and with
IEC Guide 107.
A list of all parts in the IEC 61800 series, published under the general title Adjustable speed
electrical power drive systems, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The "colour inside" logo on the cover page of this publication
indicates that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this publication using a
colour printer.
ADJUSTABLE SPEED ELECTRICAL POWER

DRIVE SYSTEMS –
Part 3: EMC requirements and specific test methods

1 Scope and object
This part of IEC 61800 specifies electromagnetic compatibility (EMC) requirements for power
drive systems (PDSs, defined in 3.1). These are adjustable speed AC or DC motor drives.
Requirements are stated for PDSs with converter input and/or output voltages (line-to-line
voltage), up to 35 kV AC RMS.
PDSs covered by this document are those installed in residential, commercial and industrial
locations with the exception of traction applications, and electric vehicles. PDSs may can be
connected to either industrial or public power distribution networks. Industrial networks are
supplied by a dedicated distribution transformer, which is usually adjacent to or inside the
industrial location, and supplies only industrial customers. Industrial networks can also be
supplied by their own electric generating equipment. On the other hand, PDSs can be directly
connected to low-voltage public mains networks which also supply domestic residential
premises, and in which the neutral is generally earthed (grounded).
The scope of this part of IEC 61800, related to EMC, includes a broad range of PDSs from a
few hundred watts to hundreds of megawatts. PDSs are often included in a larger system. The
system aspect is not covered by this document but guidance is provided in the informative
annexes.
The requirements have been selected so as to ensure EMC for PDSs at residential,
commercial and industrial locations. The requirements cannot, however, cover extreme cases
which may can occur with an extremely low probability. Changes in the EMC behaviour of a
PDS, as a result of fault conditions, are not taken into account.
The object of this document is to define the limits and test methods for a PDS according to its
intended use. This document includes immunity requirements and requirements for electro-
magnetic emissions.
NOTE 1 Emission can cause interference in other electronic equipment (for example radio receivers, measuring
and computing devices). Immunity is required meant to protect the equipment from continuous and transient
conducted and radiated disturbances including electrostatic discharges. The emission and immunity requirements
are balanced against each other and against the actual environment of the PDS.

This document defines the minimum EMC requirements for a PDS.
Immunity requirements are given according to the environment classification. Low-frequency
emission requirements are given according to the nature of the supply network. High-
frequency emission requirements are given according to four categories of intended use,
which cover both environment and bringing into operation.
As a product standard, this document may can be used for the assessment of PDS. It may
can also be used for the assessment of complete drive modules (CDM) or basic drive modules
(BDM) (see 3.1), which can be marketed separately.
This document contains
• conformity assessment requirements for products to be placed on the market, and

– 10 – IEC 61800-3:2017 RLV © IEC 2017

• recommended engineering practice (see 6.5) for cases where high frequency emissions

cannot be measured before the equipment is placed on the market (such PDSs are

defined in 3.2.7 as category C4).

NOTE 2 The first edition of IEC 61800-3 identified that the intended use could require engineering for putting into
service. This was done by the “restricted distribution mode”. Equipment that used to be covered by the formerly

identified under “restricted distribution mode” is now covered in the second edition by categories C2 and C4 (see

3.2).
This document is intended as a complete EMC product standard for the EMC conformity

assessment of products of categories C1, C2 and C3, when placing them on the market (see

definitions 3.2.4 to 3.2.6).
Radio frequency emission of equipment of category C4 is only assessed when it is installed in
its intended location. It is therefore treated as a fixed installation, for which this document
gives rules of engineering practice in 6.5 and Annex E, although it gives no defined emission
limits (except in case of complaint).
This document does not specify any safety requirements for the equipment such as protection
against electric shocks, insulation co-ordination and related dielectric tests, unsafe operation,
or unsafe consequences of a failure. It also does not cover safety and functional safety
implications of electromagnetic phenomena.
In special cases, when highly susceptible apparatus is being used in proximity, additional
mitigation measures may can have to be employed to reduce the electromagnetic emission
further below the specified levels or additional countermeasures may can have to be
employed to increase the immunity of the highly susceptible apparatus.
As an EMC product standard for PDSs, this document takes precedence over all aspects of
the generic standards, and no additional EMC tests are required or necessary performed. If a
PDS is included as part of equipment covered by a separate EMC product standard, the EMC
standard of the complete equipment applies.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60050 (131):2002, International Electrotechnical Vocabulary (IEV) – Chapter 131: Circuit
theory
IEC 60050 (151):2001, International Electrotechnical Vocabulary (IEV) – Chapter 151:
Electrical and magnetic devices
IEC 60050 (161):1990, International Electrotechnical Vocabulary (IEV) – Chapter 161:
Electromagnetic compatibility
IEC 60146-1-1:1991 2009, Semiconductor convertors – General requirements and line
commutated convertors – Part 1-1: Specifications of basic requirements
IEC 60364-1:2001, Electrical installations of buildings – Part 1: Fundamental principles,
assessment of general characteristics, definitions
IEC 60664-1:1992, Insulation co-ordination for equipment within low-voltage systems – Part 1:
Principles, requirements and tests

IEC 61000-1-1, Electromagnetic compatibility (EMC) – Part 1: General – Section 1:

Application and interpretation of fundamental definitions and terms

IEC 61000-2-1:1990, Electromagnetic compatibility (EMC) – Part 2: Environment – Section 1:

Description of the environment – Electromagnetic environment for low-frequency conducted

disturbances and signalling in public power supply systems

IEC 61000-2-2:2002, Electromagnetic compatibility (EMC) – Part 2-2: Environment –

Compatibility levels for low-frequency conducted disturbances and signalling in public low-

voltage power supply systems
IEC 61000-2-4:2003 2002, Electromagnetic compatibility (EMC) – Part 2-4: Environment –
Compatibility levels in industrial plants for low-frequency conducted disturbances
IEC 61000-2-6:1995, Electromagnetic compatibility (EMC) – Part 2: Environment – Section 6:
Assessment of the emission levels in the power supply of industrial plants as regards low-
frequency conducted disturbances
IEC 61000-3-2:2000 2014, Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for
harmonic current emissions (equipment input current ≤ 16 A per phase)
IEC 61000-3-3:1994 2013, Electromagnetic compatibility (EMC) – Part 3-3: Limits – Limitation
of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for
equipment with rated current ≤ 16 A per phase and not subject to conditional connection
IEC 61000-3-4:1998, Electromagnetic compatibility (EMC) – Part 3: Limits – Section 4:
Limitation of emission of harmonic currents in low-voltage power supply systems for
equipment with rated current greater than 16 A
IEC 61000-3-7:1996, Electromagnetic compatibility (EMC) – Part 3: Limits – Section 7: Limits
for fluctuating loads in MV and HV power systems – Basic EMC publication
IEC 61000-3-11:2000, Electromagnetic compatibility (EMC) – Part 3-11: Limits – Limitation of
voltage changes, voltage fluctuations and flicker in public low-voltage supply systems –
Equipment with rated current ≤ 75 A and subject to conditional connection
IEC 61000-3-12: 2011, Electromagnetic compatibility (EMC) – Part 3-12: Limits – Limits for
harmonic currents produced by equipment connected to public low-voltage systems with input
current > 16 A and ≤ 75 A per phase
IEC 61000-4-2:2008, Electromagnetic compatibility (EMC) – Part 4-2: Testing and
measurement techniques – Electrostatic discharge immunity test Basic EMC publication
IEC 61000-4-3:2002 2006, Electromagnetic compatibility (EMC) – Part 4-3: Testing and
measurement techniques – Radiated, radio-frequency, electromagnetic field immunity test
Basic EMC publication
IEC 61000-4-4:1995 2012, Electromagnetic compatibility (EMC) – Part 4-4: Testing and
measurement techniques – Electrical fast transient/burst immunity test Basic EMC publication
Amendment 1 (2000)
Amendment 2 (2001)
IEC 61000-4-5:1995 2014, Electromagnetic compatibility (EMC) – Part 4-5: Testing and
measurement techniques – Surge immunity test

– 12 – IEC 61800-3:2017 RLV © IEC 2017

IEC 61000-4-6:2003 2013, Electromagnetic compatibility (EMC) – Part 4-6: Testing and

measurement techniques – Immunity to conducted disturbances, induced by radio-frequency

fields
IEC 61000-4-8:2001 2009, Electromagnetic compatibility (EMC) – Part 4-8: Testing and

measurement techniques – Power frequency magnetic field immunity test Basic EMC

publication
IEC 61000-4-11:2004, Electromagnetic compatibility (EMC) – Part 4-11: Testing and

measurement techniques – Voltage dips, short interruptions and voltage variations immunity

tests
IEC 61000-4-13:2002, Electromagnetic compatibility (EMC) – Part 4-13: Testing and
measurement techniques – Harmonics and interharmonics including mains signalling at a.c.
power port, low frequency immunity tests
IEC 61000-4-34:2005, Electromagnetic compatibility (EMC) – Part 4-34: Testing and
measurement techniques – Voltage dips, short interruptions and voltage variations immunity
tests for equipment with input current more than 16 A per phase
IEC 61800-1:1997, Adjustable speed electrical powe
...

IEC 61800-3 ®
Edition 3.0 2017-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Adjustable speed electrical power drive systems –
Part 3: EMC requirements and specific test methods

Entrainements électriques de puissance à vitesse variable –
Partie 3: Exigences de CEM et méthodes d'essai spécifiques

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 61800-3 ®
Edition 3.0 2017-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Adjustable speed electrical power drive systems –

Part 3: EMC requirements and specific test methods

Entrainements électriques de puissance à vitesse variable –

Partie 3: Exigences de CEM et méthodes d'essai spécifiques

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.200; 33.100.01 ISBN 978-2-8322-3888-2

– 2 – IEC 61800-3:2017 © IEC 2017
CONTENTS
FOREWORD . 7
1 Scope . 9
2 Normative references . 10
3 Terms and definitions . 12
3.1 Installation and its content . 12
3.2 Intended use . 13
3.3 Location, ports and interfaces . 14
3.4 Components of the PDS . 17
3.5 Phenomena-related definitions . 18
4 Common requirements. 19
4.1 General conditions . 19
4.2 Tests . 20
4.2.1 Conditions . 20
4.2.2 Test report . 20
4.3 Documentation for the user . 21
5 Immunity requirements . 22
5.1 General conditions . 22
5.1.1 Acceptance criteria (performance criteria) . 22
5.1.2 Selection of performance type . 22
5.1.3 Conditions during the test . 24
5.2 Basic immunity requirements – low-frequency disturbances . 25
5.2.1 Common principle . 25
5.2.2 Harmonics and commutation notches/voltage distortion . 25
5.2.3 Voltage deviations, dips and short interruptions . 27
5.2.4 Voltage unbalance and frequency variations . 30
5.2.5 Supply influences – Magnetic fields . 31
5.3 Basic immunity requirements – High-frequency disturbances . 32
5.3.1 Conditions . 32
5.3.2 First environment . 32
5.3.3 Second environment . 33
5.3.4 Immunity against electromagnetic fields. 35
5.4 Application of immunity requirements – Statistical aspect . 35
6 Emission. 35
6.1 General emission requirements . 35
6.2 Basic low-frequency emission limits . 37
6.2.1 Compliance method . 37
6.2.2 Commutation notches . 37
6.2.3 Harmonics and interharmonics . 37
6.2.4 Voltage fluctuations . 38
6.2.5 Emissions in the frequency range from 2 kHz to 9 kHz. 39
6.2.6 Common mode harmonic emission (low-frequency common mode
voltage) . 39
6.3 Conditions related to high-frequency emission measurement . 39
6.3.1 General requirements . 39
6.3.2 Connection requirements . 44

6.4 Basic high-frequency emission limits . 44
6.4.1 Equipment of categories C1 and C2 . 44
6.4.2 Equipment of category C3 . 47
6.5 Engineering practice . 48
6.5.1 PDS of category C4 . 48
6.5.2 Limits outside the boundary of an installation, for a PDS of category C4
– Example of propagation of disturbances . 49
6.6 Application of emission requirements – Statistical aspects . 52
Annex A (informative) EMC techniques . 53
A.1 Application of PDSs and EMC . 53
A.2 Load conditions regarding high-frequency phenomena . 53
A.2.1 Load conditions during emission tests . 53
A.2.2 Load conditions during immunity tests . 54
A.2.3 Load test . 54
A.3 Immunity to power frequency magnetic fields . 54
A.4 High-frequency emission measurement techniques . 54
A.4.1 Impedance/artificial mains network (AMN) . 54
A.4.2 Performing high-frequency in situ emission tests . 56
A.4.3 Established experience with high power PDSs . 56
Annex B (informative) Low-frequency phenomena . 57
B.1 Commutation notches . 57
B.1.1 Occurrence – description . 57
B.1.2 Calculation . 59
B.1.3 Recommendations regarding commutation notches . 60
B.2 Definitions related to harmonics and interharmonics . 61
B.2.1 General discussion . 61
B.2.2 Phenomena related definitions . 62
B.2.3 Conditions of application. 64
B.3 Application of harmonic emission standards . 68
B.3.1 General . 68
B.3.2 Public networks . 69
B.3.3 Summation methods for harmonics in an installation – Practical rules . 73
B.4 Installation rules – Assessment of harmonic compatibility . 75
B.4.1 Low power industrial three-phase system . 75
B.4.2 Large industrial system . 78
B.4.3 Interharmonics and voltages or currents at higher frequencies . 80
B.5 Voltage unbalance . 80
B.5.1 Origin . 80
B.5.2 Definition and assessment . 81
B.5.3 Effect on PDSs . 83
B.6 Voltage dips – Voltage fluctuations . 83
B.6.1 Voltage dips . 83
B.6.2 Voltage fluctuation . 85
B.7 Verification of immunity to low frequency disturbances . 86
Annex C (informative) Reactive power compensation – Filtering . 87
C.1 Installation . 87
C.1.1 Usual operation . 87
C.1.2 Power definitions under distorted conditions . 87

– 4 – IEC 61800-3:2017 © IEC 2017
C.1.3 Practical solutions . 88
C.1.4 Reactive power compensation . 89
C.1.5 Filtering methods . 93
C.2 Reactive power and harmonics . 95
C.2.1 Usual installation mitigation methods . 95
C.2.2 Other solutions . 97
Annex D (informative) Considerations on high-frequency emission . 101
D.1 User guidelines . 101
D.1.1 Expected emission of PDSs . 101
D.1.2 Guidelines . 103
D.2 Safety and RFI-filtering in power supply systems . 105
D.2.1 Safety and leakage currents . 105
D.2.2 Safety and RFI-filtering in power supply systems isolated from earth . 105
Annex E (informative) EMC analysis and EMC plan for PDS of category C4 . 107
E.1 General – System EMC analysis applied to PDSs . 107
E.1.1 Electromagnetic environment . 107
E.1.2 System EMC analysis techniques . 108
E.2 Example of EMC plan . 109
E.2.1 Project data and description . 109
E.2.2 Electromagnetic environment analysis . 110
E.2.3 EMC analysis. 111
E.2.4 Establishment of installation rules . 111
E.2.5 Formal result and maintenance . 113
E.3 Example of supplement to EMC plan for particular application . 113
E.3.1 Electromagnetic environment complementary analysis . 113
E.3.2 EMC analysis. 115
Bibliography . 117

Figure 1 –Installation and its content . 12
Figure 2 – Internal interfaces of the PDS and examples of ports . 15
Figure 3 – Power interfaces of a PDS with common DC BUS . 16
Figure 4 – Power interfaces with common input transformer . 17
Figure 5 – Example for a typical cable arrangement for measurements in 3 m
separation distance, for a table-top or wall-mounted equipment, top view . 43
Figure 6 – Example for a typical cable arrangement for measurements in 3 m
separation distance for a table-top or wall-mounted equipment, side view . 43
Figure 7 – Example for a typical test set up for measurement of conducted and/or
radiated disturbances from a floor-standing PDS, 3D view . 44
Figure 8 – Propagation of disturbances . 50
Figure 9 – Propagation of disturbances in installation with a PDS rated > 1 000 V . 50
Figure B.1 – Typical waveform of commutation notches – Distinction from non-
repetitive transient . 57
Figure B.2 – PCC, IPC, installation current ratio and R . 67
SI
Figure B.3 – PCC, IPC, installation current ratio and R . 68
SC
Figure B.4 – Assessment of the harmonic emission of a PDS . 70
Figure B.5 – Test set-up with mechanical load . 71
Figure B.6 – Test set-up with electrical load replacing the loaded motor . 72

Figure B.7 – Test set-up with resistive load . 72
Figure B.8 – Assessment of harmonic emission where PDS is used (apparatus,
systems or installations) . 77
Figure C.1 – Reactive power compensation . 90
Figure C.2 – Simplified diagram of an industrial network . 92
Figure C.3 – Impedance versus frequency of the simplified network . 92
Figure C.4 – Example of passive filter battery . 94
Figure C.5 – Example of inadequate solution in reactive power compensation . 96
Figure C.6 – VSI PWM active filter topologies . 98
Figure C.7 – Boost mode converter . 98
Figure C.8 – Front-End inverter system . 99
Figure D.1 – Conducted emission of various unfiltered PDSs . 102
Figure D.2 – Expected radiated emission of PDS up to rated voltage 400 V Peak
values normalised at 10 m . 103
Figure D.3 – Safety and filtering. 106
Figure E.1 – Interaction between systems and EM environment . 107
Figure E.2 – Zone concept . 108
Figure E.3 – Example of drive . 109

Table 1 – Subclauses containing alternative test methods . 21
Table 2 – Criteria to prove the acceptance of a PDS against electromagnetic
disturbances . 24
Table 3 – Minimum immunity requirements for total harmonic distortion on power ports
of low voltage PDSs . 26
Table 4 – Minimum immunity requirements for individual harmonic orders on power
ports of low voltage PDSs . 26
Table 5 – Minimum immunity requirements for commutation notches on power ports of
low voltage PDSs . 27
Table 6 – Minimum immunity requirements for harmonics and commutation notches/
voltage distortion on main power ports of PDSs of rated voltage above 1 000 V . 27
Table 7 – Minimum immunity requirements for voltage deviations, dips and short
interruptions on power ports of low voltage PDSs . 28
Table 8 – Minimum immunity requirements for voltage deviations, dips and short
interruptions on main power ports of rated voltage above 1 000 V of PDSs . 29
Table 9 – Minimum immunity requirements for voltage deviations, dips and short
interruptions on auxiliary low voltage power ports of PDSs . 30
Table 10 – Minimum immunity requirements for voltage unbalance and frequency
variations on power ports of low voltage PDSs . 30
Table 11 – Minimum immunity requirements for voltage unbalance and frequency
variations on main power ports of rated voltage above 1 000 V of PDSs . 31
Table 12 – Minimum immunity requirements for voltage unbalance and frequency
variations on auxiliary low voltage power ports of PDSs . 31
Table 13 – Minimum immunity requirements for PDSs intended for use in the first
environment . 32
Table 14 – Minimum immunity requirements for PDSs intended for use in the second
environment . 34
Table 15 – Summary of emission requirements . 36

– 6 – IEC 61800-3:2017 © IEC 2017
Table 16 – Limits for mains terminal disturbance voltage in the frequency band
150 kHz to 30 MHz . 45
Table 17 – Limits for electromagnetic radiation disturbance in the frequency band 30
MHz to 1 000 MHz . 46
Table 18 – Limits of disturbance voltage on the power interface. 46
Table 19 – Limits for mains terminal disturbance voltage in the frequency band
150 kHz to 30 MHz for a PDS in the second environment – PDS of category C3 . 47
Table 20 – Limits for electromagnetic radiation disturbance in the frequency band
30 MHz to 1 000 MHz for a PDS in the second environment – PDS of category C3 . 48
Table 21 – Limits for propagated disturbance voltage ("outside" in the first environment)
............................................................................................................................................. 51
Table 22 – Limits for propagated disturbance voltage ("outside" in the second
environment) . 51
Table 23 – Limits for propagated electromagnetic disturbance above 30 MHz . 51
Table 24 – Limits for electromagnetic disturbance below 30 MHz . 52
Table B.1 – Maximum allowable depth of commutation notches at the PC . 60
Table B.2 – Harmonic current emission requirements relative to the total current of the
agreed power at the PCC or IPC . 79
Table B.3 – Verification plan for immunity to low frequency disturbances . 86
Table E.1 – EM interaction between subsystems and environment . 109
Table E.2 – Frequency analysis . 115

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ADJUSTABLE SPEED ELECTRICAL POWER
DRIVE SYSTEMS –
Part 3: EMC requirements and specific test methods

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61800-3 has been prepared by subcommittee 22G: Adjustable
speed electric drive systems incorporating semiconductor power converters, of IEC technical
committee 22: Power electronic systems and equipment.
This third edition cancels and replaces the second edition published in 2004 and
Amendment 1:2011. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) clarification of requirements for the test report, particularly when a number of alternative
test methods exist;
b) introduction of a more detailed test setup for radiated emission measurements, along with
the introduction of a 3 m measurement distance for small size equipment;
c) general updates in the informative annexes.

– 8 – IEC 61800-3:2017 © IEC 2017
The text of this standard is based on the following documents:
FDIS Report on voting
22G/347/FDIS 22G/350/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2, and with
IEC Guide 107.
A list of all parts in the IEC 61800 series, published under the general title Adjustable speed
electrical power drive systems, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The "colour inside" logo on the cover page of this publication
indicates that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this publication using a
colour printer.
ADJUSTABLE SPEED ELECTRICAL POWER
DRIVE SYSTEMS –
Part 3: EMC requirements and specific test methods

1 Scope
This part of IEC 61800 specifies electromagnetic compatibility (EMC) requirements for power
drive systems (PDSs, defined in 3.1). These are adjustable speed AC or DC motor drives.
Requirements are stated for PDSs with converter input and/or output voltages (line-to-line
voltage), up to 35 kV AC RMS.
PDSs covered by this document are those installed in residential, commercial and industrial
locations with the exception of traction applications, and electric vehicles. PDSs can be
connected to either industrial or public power distribution networks. Industrial networks are
supplied by a dedicated distribution transformer, which is usually adjacent to or inside the
industrial location, and supplies only industrial customers. Industrial networks can also be
supplied by their own electric generating equipment. On the other hand, PDSs can be directly
connected to low-voltage public mains networks which also supply residential premises, and
in which the neutral is generally earthed (grounded).
The scope of this part of IEC 61800, related to EMC, includes a broad range of PDSs from a
few hundred watts to hundreds of megawatts. PDSs are often included in a larger system. The
system aspect is not covered by this document but guidance is provided in the informative
annexes.
The requirements have been selected so as to ensure EMC for PDSs at residential,
commercial and industrial locations. The requirements cannot, however, cover extreme cases
which can occur with an extremely low probability. Changes in the EMC behaviour of a PDS,
as a result of fault conditions, are not taken into account.
The object of this document is to define the limits and test methods for a PDS according to its
intended use. This document includes immunity requirements and requirements for electro-
magnetic emissions.
NOTE 1 Emission can cause interference in other electronic equipment (for example radio receivers, measuring
and computing devices). Immunity is meant to protect the equipment from continuous and transient conducted and
radiated disturbances including electrostatic discharges. The emission and immunity requirements are balanced
against each other and against the actual environment of the PDS.
This document defines the minimum EMC requirements for a PDS.
Immunity requirements are given according to the environment classification. Low-frequency
emission requirements are given according to the nature of the supply network. High-
frequency emission requirements are given according to four categories of intended use,
which cover both environment and bringing into operation.
As a product standard, this document can be used for the assessment of PDS. It can also be
used for the assessment of complete drive modules (CDM) or basic drive modules (BDM)
(see 3.1), which can be marketed separately.
This document contains
• conformity assessment requirements for products to be placed on the market, and

– 10 – IEC 61800-3:2017 © IEC 2017
• recommended engineering practice (see 6.5) for cases where high frequency emissions
cannot be measured before the equipment is placed on the market (such PDSs are
defined in 3.2.7 as category C4).
NOTE 2 The first edition of IEC 61800-3 identified that the intended use could require engineering for putting into
service. This was done by the “restricted distribution mode”. Equipment formerly identified under “restricted
distribution mode” is now covered by categories C2 and C4 (see 3.2).
This document is intended as a complete EMC product standard for the EMC conformity
assessment of products of categories C1, C2 and C3, when placing them on the market (see
definitions 3.2.4 to 3.2.6).
Radio frequency emission of equipment of category C4 is only assessed when it is installed in
its intended location. It is therefore treated as a fixed installation, for which this document
gives rules of engineering practice in 6.5 and Annex E, although it gives no defined emission
limits (except in case of complaint).
This document does not specify any safety requirements for the equipment such as protection
against electric shocks, insulation co-ordination and related dielectric tests, unsafe operation,
or unsafe consequences of a failure. It also does not cover safety and functional safety
implications of electromagnetic phenomena.
In special cases, when highly susceptible apparatus is being used in proximity, additional
mitigation measures can have to be employed to reduce the electromagnetic emission further
below the specified levels or additional countermeasures can have to be employed to
increase the immunity of the highly susceptible apparatus.
As an EMC product standard for PDSs, this document takes precedence over all aspects of
the generic standards, and no additional EMC tests are performed. If a PDS is included as
part of equipment covered by a separate EMC product standard, the EMC standard of the
complete equipment applies.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60146-1-1:2009, Semiconductor convertors – General requirements and line commutated
convertors – Part 1-1: Specifications of basic requirements
IEC 61000-2-2:2002, Electromagnetic compatibility (EMC) – Part 2-2: Environment –
Compatibility levels for low-frequency conducted disturbances and signalling in public low-
voltage power supply systems
IEC 61000-2-4:2002, Electromagnetic compatibility (EMC) – Part 2-4: Environment –
Compatibility levels in industrial plants for low-frequency conducted disturbances
IEC 61000-3-2:2014, Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for
harmonic current emissions (equipment input current ≤ 16 A per phase)
IEC 61000-3-3:2013, Electromagnetic compatibility (EMC) – Part 3-3: Limits – Limitation of
voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for
equipment with rated current ≤ 16 A per phase and not subject to conditional connection

IEC 61000-3-11:2000, Electromagnetic compatibility (EMC) – Part 3-11: Limits – Limitation of
voltage changes, voltage fluctuations and flicker in public low-voltage supply systems –
Equipment with rated current ≤ 75 A and subject to conditional connection
IEC 61000-3-12: 2011, Electromagnetic compatibility (EMC) – Part 3-12: Limits – Limits for
harmonic currents produced by equipment connected to public low-voltage systems with input
current > 16 A and ≤ 75 A per phase
IEC 61000-4-2:2008, Electromagnetic compatibility (EMC) – Part 4-2: Testing and
measurement techniques – Electrostatic discharge immunity test
IEC 61000-4-3:2006, Electromagnetic compatibility (EMC) – Part 4-3: Testing and measure-
ment techniques – Radiated, radio-frequency, electromagnetic field immunity test
IEC 61000-4-4:2012, Electromagnetic compatibility (EMC) – Part 4-4: Testing and
measurement techniques – Electrical fast transient/burst immunity test
IEC 61000-4-5:2014, Electromagnetic compatibility (EMC) – Part 4-5: Testing and
measurement techniques – Surge immunity test
IEC 61000-4-6:2013, Electromagnetic compatibility (EMC) – Part 4-6: Testing and measure-
ment techniques – Immunity to conducted disturbances, induced by radio-frequency fields
IEC 61000-4-8:2009, Electromagnetic compatibility (EMC) – Part 4-8: Testing and measure-
ment techniques – Power frequency magnetic field immunity test
IEC 61000-4-11:2004, Electromagnetic compatibility (EMC) – Part 4-11: Testing and
measurement techniques – Voltage dips, short interruptions and voltage variations immunity
tests
IEC 61000-4-13:2002, Electromagnetic compatibility (EMC) – Part 4-13: Testing and
measurement techniques – Harmonics and interharmonics including mains signalling at a.c.
power port, low frequency immunity tests
IEC 61000-4-34:2005, Electromagnetic compatibility (EMC) – Part 4-34: Testing and
measurement techniques – Voltage dips, short interruptions and voltage variations immunity
tests for equipment with input current more than 16 A per phase
CISPR 11:2015, Industrial, scientific and medical equipment – Radio-frequency disturbance
characteristics – Limits and methods of measurement
CISPR 11:2015/AMD1:2016
CISPR 16-1-2:2014, Specification for radio disturbance and immunity measuring apparatus
and methods – Part 1-2: Radio disturbance and immunity measuring apparatus – Coupling
devices for conducted disturbance measurements
CISPR 16-1-4:2010, Specification for radio disturbance and immunity measuring apparatus
and methods – Part 1-4: Radio disturbance and immunity measuring apparatus – Antennas
and test sites for radiated disturbance measurements
CISPR 22, Information technology equipment – Radio disturbance cha
...
