IEC 62271-3:2015
(Main)High-voltage switchgear and controlgear - Part 3: Digital interfaces based on IEC 61850
High-voltage switchgear and controlgear - Part 3: Digital interfaces based on IEC 61850
IEC 62271-3:2015 is applicable to high-voltage switchgear and controlgear for all rated voltage levels above 1 kV and assemblies thereof and specifies equipment for digital communication with other parts of the power utility automation and its impact on testing. This equipment for digital communication, replacing metal parallel wiring, can be integrated into the high-voltage switchgear, controlgear, and assemblies thereof, or can be external equipment in order to provide compliance for existing switchgear and controlgear and assemblies thereof with the standards of the IEC 61850 series. This second edition cancels and replaces the first edition published in 2006. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) an update to the latest edition(s) of IEC 61850 series; (e.g. Annex B "LNs for sensors and monitoring" of edition 1 has been deleted since these LNs are now covered by standard IEC 61850-7-4:2010)
b) an update of normative references;
c) the minimum voltage range this standard refers to, was changed from 72,5 kV to above 1 kV;
d) the description of performance tests and conformance tests became more specific;
e) the new - informative - Annex C gives an example for performance type testing;
f) 6.2.3 "transmission systems" as well as appropriate subclauses have been superseded by standard IEC TR 61850-90-4:2013;
g) fibre optical connector type LC becomes only recommended type of fibre optic connector in accordance with IEC TR 61850-90-4:2013;
h) electronic nameplates have been redefined as extension of LN XCBR and LN XSWI with data objects, reflecting required additional name plate information.
Appareillage à haute tension - Partie 3: Interfaces numériques basées sur l'IEC 61850
L'IEC 62271-3:2015 s'applique aux appareillages à haute tension pour tous les niveaux de tension assignée supérieurs à 1 kV et à leurs assemblages et spécifie l'équipement destiné à la communication numérique avec d'autres parties du système d'automatisation de poste électrique et son impact sur les essais. Cet équipement de communication numérique, remplaçant le traditionnel câblage cuivre parallèle, peut être intégré dans l'appareillage à haute tension et dans ses assemblages ou peut être un équipement externe destiné à assurer la conformité des appareillages existants et de leurs assemblages avec les normes de la série IEC 61850. Cette deuxième édition annule et remplace la première édition, parue en 2006. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) une mise à jour de la ou des dernières éditions de la série IEC 61850; (par exemple l'Annexe B "Noeuds logiques pour les capteurs et la surveillance" de l'édition 1 a été supprimée car ces noeuds logiques sont désormais couverts par la norme IEC 61850-7-4:2010)
b) une mise à jour des références normatives;
c) la plage de tension minimale à laquelle se réfère la présente norme a été modifiée de 72,5 kV à plus de 1 kV;
d) la description des essais de qualification et des essais de conformité est devenue plus spécifique;
e) la nouvelle Annexe C (informative) donne un exemple d'essai de type de qualification;
f) le 6.2.3 "Systèmes de transmission" et les paragraphes correspondants ont été remplacés par l'IEC TR 61850-90-4:2013;
g) le type de connecteur pour fibres optiques LC devient le seul type recommandé de connecteur pour fibres optiques conformément à l'IEC TR 61850-90-4:2013;
h) les plaques signalétiques électroniques ont été redéfinies comme une extension du noeud logique XCBR et du noeud logique XSWI avec des objets de données, reflétant les informations supplémentaires exigées relatives à la plaque signalétique.
General Information
Standards Content (sample)
IEC 62271-3
Edition 2.0 2015-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
High-voltage switchgear and controlgear –
Part 3: Digital interfaces based on IEC 61850
Appareillage à haute tension –
Partie 3: Interfaces numériques basées sur l'IEC 61850
IEC 62271-3:2015-03(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2015 IEC, Geneva, Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 113, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,
77, 86 and CISPR.IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IECLe contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des
CE 37, 77, 86 et CISPR de l'IEC.IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.---------------------- Page: 2 ----------------------

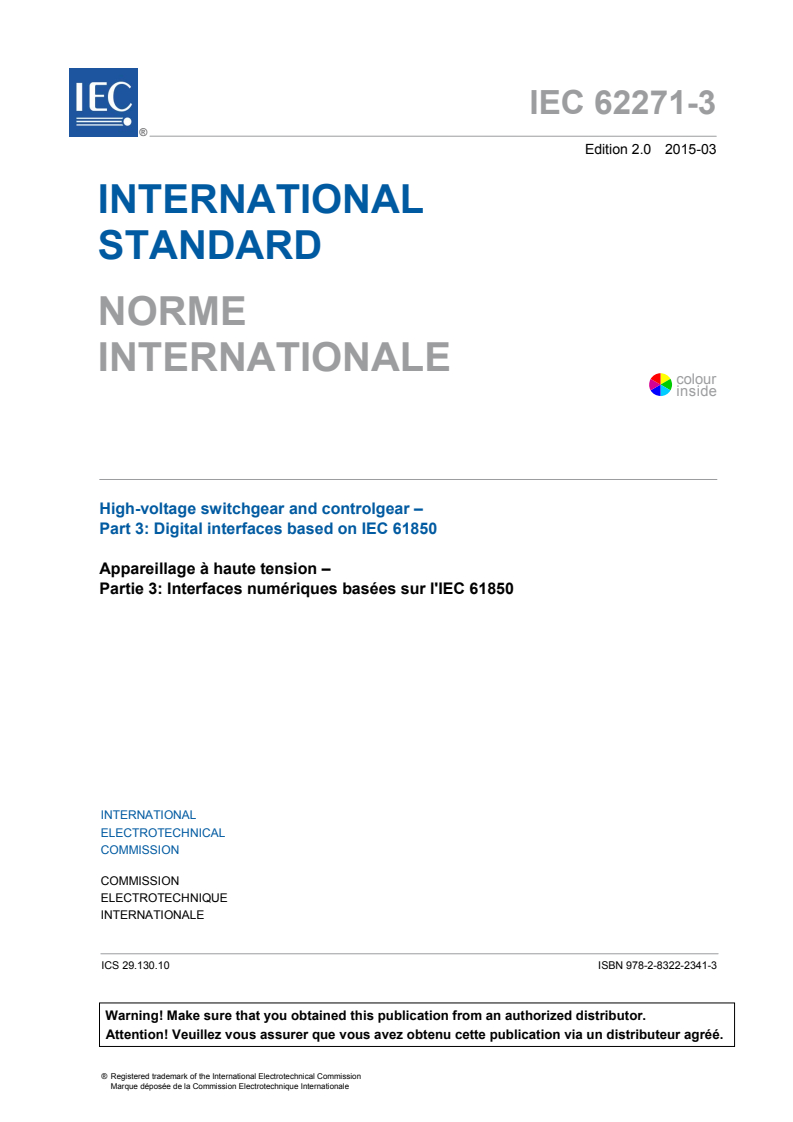

IEC 62271-3
Edition 2.0 2015-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
High-voltage switchgear and controlgear –
Part 3: Digital interfaces based on IEC 61850
Appareillage à haute tension –
Partie 3: Interfaces numériques basées sur l'IEC 61850
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.130.10 ISBN 978-2-8322-2341-3
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical CommissionMarque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

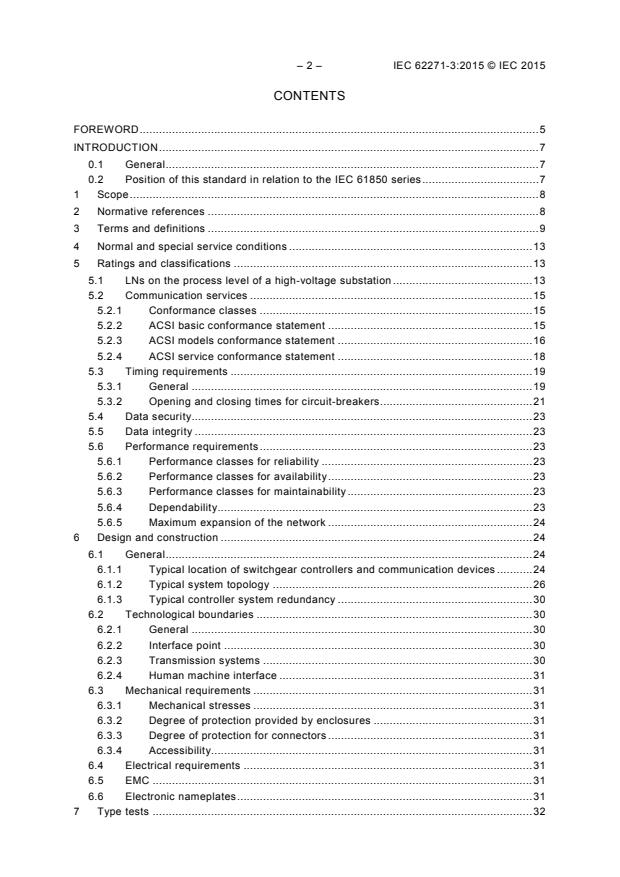

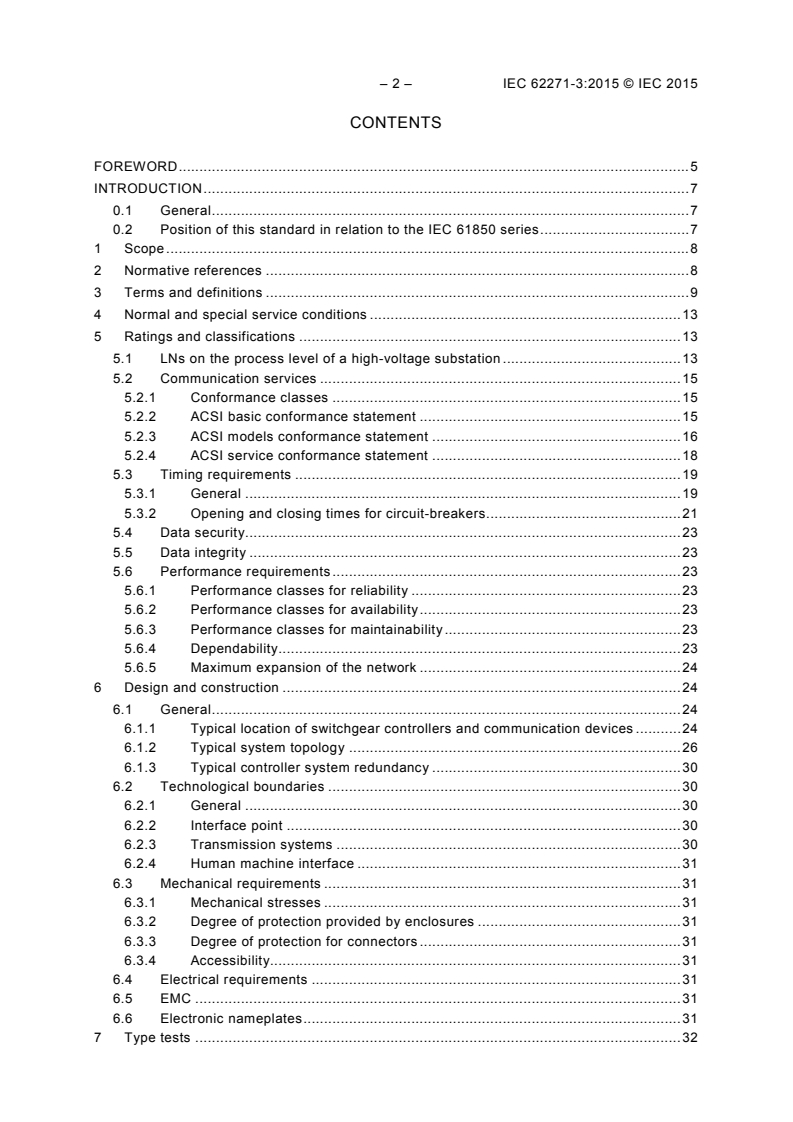

– 2 – IEC 62271-3:2015 © IEC 2015
CONTENTS
FOREWORD ........................................................................................................................... 5
INTRODUCTION ..................................................................................................................... 7
0.1 General ................................................................................................................... 7
0.2 Position of this standard in relation to the IEC 61850 series .................................... 7
1 Scope .............................................................................................................................. 8
2 Normative references ...................................................................................................... 8
3 Terms and definitions ...................................................................................................... 9
4 Normal and special service conditions ........................................................................... 13
5 Ratings and classifications ............................................................................................ 13
5.1 LNs on the process level of a high-voltage substation ........................................... 13
5.2 Communication services ....................................................................................... 15
5.2.1 Conformance classes .................................................................................... 15
5.2.2 ACSI basic conformance statement ............................................................... 15
5.2.3 ACSI models conformance statement ............................................................ 16
5.2.4 ACSI service conformance statement ............................................................ 18
5.3 Timing requirements ............................................................................................. 19
5.3.1 General ......................................................................................................... 19
5.3.2 Opening and closing times for circuit-breakers ............................................... 21
5.4 Data security......................................................................................................... 23
5.5 Data integrity ........................................................................................................ 23
5.6 Performance requirements .................................................................................... 23
5.6.1 Performance classes for reliability ................................................................. 23
5.6.2 Performance classes for availability ............................................................... 23
5.6.3 Performance classes for maintainability ......................................................... 23
5.6.4 Dependability ................................................................................................. 23
5.6.5 Maximum expansion of the network ............................................................... 24
6 Design and construction ................................................................................................ 24
6.1 General ................................................................................................................. 24
6.1.1 Typical location of switchgear controllers and communication devices ........... 24
6.1.2 Typical system topology ................................................................................ 26
6.1.3 Typical controller system redundancy ............................................................ 30
6.2 Technological boundaries ..................................................................................... 30
6.2.1 General ......................................................................................................... 30
6.2.2 Interface point ............................................................................................... 30
6.2.3 Transmission systems ................................................................................... 30
6.2.4 Human machine interface .............................................................................. 31
6.3 Mechanical requirements ...................................................................................... 31
6.3.1 Mechanical stresses ...................................................................................... 31
6.3.2 Degree of protection provided by enclosures ................................................. 31
6.3.3 Degree of protection for connectors ............................................................... 31
6.3.4 Accessibility................................................................................................... 31
6.4 Electrical requirements ......................................................................................... 31
6.5 EMC ..................................................................................................................... 31
6.6 Electronic nameplates ........................................................................................... 31
7 Type tests ..................................................................................................................... 32
---------------------- Page: 4 ----------------------IEC 62271-3:2015 © IEC 2015 – 3 –
7.1 General ................................................................................................................. 32
7.2 Switchgear communication interface conformance tests ........................................ 32
7.3 Time measurement of switchgear .......................................................................... 32
7.3.1 Circuit-breakers ............................................................................................. 32
7.3.2 Other switchgear ........................................................................................... 35
8 Routine tests ................................................................................................................. 35
8.1 General ................................................................................................................. 35
8.2 Time measurement on switchgear ......................................................................... 36
9 Information to be given with enquiries, tenders and orders ............................................ 36
10 Rules for transport, storage, installation, operation and maintenance ............................ 36
11 Safety ............................................................................................................................ 36
Annex A (normative) Test overview table ............................................................................. 37
Annex B (normative) Electronic nameplates ......................................................................... 38
B.1 General ................................................................................................................. 38
B.2 Electronic nameplate for circuit breaker ................................................................ 38
B.3 Electronic nameplate for switchgear other than circuit breakers ............................ 40
B.4 Presence conditions .............................................................................................. 41
Annex C (informative) Test procedures – Performance type testing ..................................... 44
Bibliography .......................................................................................................................... 46
Figure 1 – Calculation of intelligent switchgear operating times (example 1) ......................... 20
Figure 2 – Calculation of intelligent switchgear operating times (example 2) ......................... 20
Figure 3 – Opening/closing command to intelligent switchgear .............................................. 21
Figure 4 – Opening/closing command to switchgear .............................................................. 21
Figure 5 – Opening operation of an intelligent circuit-breaker................................................ 22
Figure 6 – Closing operation of an intelligent circuit-breaker ................................................. 23
Figure 7 – GIS (example 1) ................................................................................................... 24
Figure 8 – Secondary system in medium voltage cubicle (example 2) ................................... 25
Figure 9 – AIS circuit-breaker (example 3) ............................................................................ 26
Figure 10 – AIS circuit-breaker (example 4) .......................................................................... 26
Figure 11 – GIS (example 1) with serial communication network ........................................... 27
Figure 12 – GIS (example 2) with serial communication network ........................................... 28
Figure 13 – AIS circuit-breaker (example 3) with serial communication network .................... 29
Figure 14 – AIS circuit-breaker (example 4) with serial communication network .................... 29
Figure 15 – Performance test of an intelligent switchgear (configuration 1) ........................... 33
Figure 16 – Performance test of an intelligent switchgear (configuration 2) ........................... 34
Figure C.1 – Performance test of an intelligent switchgear – CBC operating time .................. 44
Figure C.2 – Performance test of an intelligent switchgear – CB operating time .................... 45
Table 1 – LNs on process level ............................................................................................. 14
Table 2 – ACSI basic conformance statement ....................................................................... 16
Table 3 – ACSI models conformance statement .................................................................... 17
Table 4 – Additional restrictions for GOOSE ......................................................................... 18
Table 5 – ACSI service conformance statement .................................................................... 19
---------------------- Page: 5 ----------------------– 4 – IEC 62271-3:2015 © IEC 2015
Table A.1 – Test overview table ............................................................................................ 37
Table B.1 – Common data class VSD ................................................................................... 38
Table B.2 – New Data Objects added to LN XCBR ................................................................ 39
Table B.3 – New data objects added to LN XSWI .................................................................. 40
Table B.4 – Conditions for application of new data objects .................................................... 41
Table B.5 – Explanations for attributes (1 of 2) ..................................................................... 42
---------------------- Page: 6 ----------------------IEC 62271-3:2015 © IEC 2015 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR –
Part 3: Digital interfaces based on IEC 61850
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62271-3 has been prepared by subcommittee 17C: High-voltage
switchgear and controlgear assemblies, of IEC technical committee 17: Switchgear and
controlgear.This second edition cancels and replaces the first edition published in 2006. This edition
constitutes a technical revision.This edition includes the following significant technical changes with respect to the previous
edition:a) an update to the latest edition(s) of IEC 61850 series;
(e.g. Annex B “LNs for sensors and monitoring” of edition 1 has been deleted since these
LNs are now covered by standard IEC 61850-7-4:2010)b) an update of normative references;
---------------------- Page: 7 ----------------------
– 6 – IEC 62271-3:2015 © IEC 2015
c) the minimum voltage range this standard refers to, was changed from 72,5 kV to above
1 kV;d) the description of performance tests and conformance tests became more specific;
e) the new – informative – Annex C gives an example for performance type testing;
f) 6.2.3 “transmission systems” as well as appropriate subclauses have been superseded by
standard IEC TR 61850-90-4:2013;g) fibre optical connector type LC becomes only recommended type of fibre optic connector
in accordance with IEC TR 61850-90-4:2013;h) electronic nameplates have been redefined as extension of LN XCBR and LN XSWI with
data objects, reflecting required additional name plate information.NOTE A new common data class Visible String Description (VSD) will be added to the IEC 61850-7-3 to support
these new data objects.This standard has the status of a product family standard and may be used as a normative
reference in a dedicated product standard for highvoltage switchgear and controlgear.
The text of this standard is based on the following documents:FDIS Report on voting
17C/617/FDIS 17C/623/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62271 series, published under the general title High voltage
switchgear and controlgear, can be found on the IEC website.The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correctunderstanding of its contents. Users should therefore print this document using a
colour printer.---------------------- Page: 8 ----------------------
IEC 62271-3:2015 © IEC 2015 – 7 –
INTRODUCTION
0.1 General
This standard is a product family standard for high-voltage switchgear and controlgear and
assemblies thereof. It provides an application of the horizontal standard series IEC 61850
which details layered power utility communication architecture, in the world of high-voltage
switchgear and controlgear.By providing tutorial material such as examples and explanations, it also gives an access for
switchgear experts to concepts and methods applied in the IEC 61850 series.Compared to switchgear equipment, digital communication technology is subject to ongoing
changes which are expected to continue in the future. Profound experience with electronics
integrated directly into switchgear has yet to be gathered on a broader basis, as this type of
equipment is not widely spread in the industry and a change of metabolism has not yet
occurred.This situation is taken into account in this standard by setting an appropriate validity date and
by specifying several options to most of the communication-related requirements, such as
connectors or fibres.0.2 Position of this standard in relation to the IEC 61850 series
The IEC 61850 series is a horizontal standard intended to be used for communication and
systems in the power utility. The most important parts of this series define:1) information models for the power utility automation system.
These information models include both the models of the switchgear (like circuit-breakers
and disconnectors) and other process equipment (like instrument transformers), and the
models of the power utility automation system (like protection relays);2) the communication between intelligent electronic devices (IEDs) of the power utility
automation system;3) a configuration language used to describe the configuration aspects of the power utility
automation system;4) conformance testing of the communication interfaces of the IEDs of the power utility
automation system including their data models.Typically, IEDs like bay level controllers interface to switchgear. In that case, the data models
of the switchgear are implemented in these devices. However, this is not the only realization.
In the case where electronics are integrated direct into switchgear, the above-mentioned data
models should be implemented within the switchgear and the switchgear supports acommunication interface.
IEC 61850, being a horizontal standard series, leaves many options open in order to support
present and future requirements of all sizes of power utility automation system at all voltage
levels.---------------------- Page: 9 ----------------------
– 8 – IEC 62271-3:2015 © IEC 2015
HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR –
Part 3: Digital interfaces based on IEC 61850
1 Scope
This part of IEC 62271 is applicable to high-voltage switchgear and controlgear for all rated
voltage levels above 1 kV and assemblies thereof and specifies equipment for digital
communication with other parts of the power utility automation and its impact on testing. This
equipment for digital communication, replacing metal parallel wiring, can be integrated into
the high-voltage switchgear, controlgear, and assemblies thereof, or can be external
equipment in order to provide compliance for existing switchgear and controlgear and
assemblies thereof with the standards of the IEC 61850 series.This International Standard is a product standard based on the IEC 61850 series. It deals with
all relevant aspects of switchgear and controlgear, and assemblies thereof with a serial
communication interface according to the IEC 61850 series. In particular it defines:
a) a selection of the information models from the IEC 61850 series that are supported by
such switchgear and controlgear, and assemblies thereof;b) conformance classes for the set of communication services that are supported by the
switchgear and controlgear, and assemblies thereof;c) modifications and extensions to type and routine tests of switchgear and controlgear, and
assemblies thereof that are required due to the serial communication interface.The standard specifies the requirements for digital communication equipment used within
high-voltage switchgear, controlgear, and assemblies thereof, as well as the relevant testing
requirements.The relevant switchgear standards of the IEC 62271 series are applicable in general, with the
additional specifications described in this standard.NOTE 1 This standard intends to promote interoperability of communication interfaces. Interchangeability is
outside the scope of this standard, as there is no requirement for it. Interchangeability is also outside the scope of
the IEC 61850 series.NOTE 2 For an introduction to power utility automation communication and the related terms, definitions and
models, refer to IEC 61850-1 which provides an overview of the objectives and requirements of the IEC 61850
series in general. IEC 61850-7-1 provides an overview of modelling techniques.2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including anyamendments) applies.
IEC 60870-4:1990, Telecontrol equipment and systems – Part 4: Performance requirements
IEC 61850-3:2013, Communication networks and systems for power utility automation –
Part 3: General requirementsIEC 61850-4:2011, Communication networks and systems for power utili
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
