IEC 60598-2-5:2015

Luminaires - Part 2-5: Particular requirements - Floodlights

IEC 60598-2-5:2015 specifies requirements for floodlights for use with electrical light sources on supply voltages not exceeding 1 000 V. This third edition cancels and replaces the second edition published in 1998, and constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: it introduces requirements for the glass breaking test.

Luminaires - Partie 2-5: Exigences particulières - Projecteurs

L'IEC 60598-2-5:2015 spécifie les exigences relatives aux projecteurs destinés à être utilisés avec des sources lumineuses électriques dont la tension d'alimentation ne dépasse pas 1 000 V. Cette troisième édition annule et remplace la deuxième édition parue en 1998 et constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: elle introduit des exigences concernant l'essai de bris du verre.

General Information

• Status: Published
• Publication Date: 05-Aug-2015
• ICS: 17.220.20 - Measurement of electrical and magnetic quantities
• ICS: 29.140.40 - Luminaires
• ICS: 33.120.10 - Coaxial cables. Waveguides
• Technical Committee: SC 34D - Luminaires
• Drafting Committee: WG 1 - TC 34/SC 34D/WG 1
• Current Stage: PPUB - Publication issued
• Start Date: 06-Aug-2015
• Completion Date: 31-Aug-2015

Relations

• Revises: IEC 60598-2-5:1998 - Luminaires - Part 2-5: Particular requirements - Floodlights
• Effective Date: 05-Sep-2023
• Revises: IEC 60598-2-5:1998/ISH1:2001 - Interpretation sheet 1 - Luminaires - Part 2-5: Particular requirements - Floodlights
• Effective Date: 05-Sep-2023

Overview

IEC 60598-2-5:2015 is an international standard issued by the International Electrotechnical Commission (IEC) that defines particular requirements for floodlights. This standard applies to luminaires designed for floodlighting using electrical light sources operating on supply voltages up to 1,000 V. The third edition, published in 2015, replaces the previous 1998 edition, featuring important technical updates, notably the introduction of requirements for a glass breaking test. This revision ensures enhanced safety and durability standards for floodlights in diverse environments.

Key Topics

• Scope and Application: Specifies requirements for floodlights for both indoor and outdoor environments, ensuring suitability for electrical sources on voltages not exceeding 1,000 V.

• Construction Requirements:

  • Floodlights intended for outdoor use must provide at least IPX3 protection against moisture ingress.
  • Structural components such as lampholder brackets and lamp supports must withstand normal usage throughout the product's life.
  • Secure attachment to supports withstanding wind speeds of up to 150 km/h is mandatory for outdoor floodlights.
  • Fixings must prevent dislodgement due to vibration, with particular attention to safety for floodlights mounted at heights of 3 meters or more.

• Marking and Documentation:

  • Besides general marking requirements, manufacturers must provide detailed information, including operating position, weight, dimensions, and mounting limitations, to ensure safe and correct installation.

• Mechanical and Safety Tests:

  • Compliance includes endurance, thermal, insulation resistance, and mechanical impact tests.
  • The glass breaking test addresses the risk of hazardous glass particle release under stress.
  • Wind load tests with sandbags simulate real-world mechanical stresses to assess fixing integrity.

• Classification and Definitions:

  • The standard harmonizes classification criteria with IEC 60598-1.
  • Defines floodlighting as the lighting of a scene or object to increase illuminance relative to surroundings, typically using projectors or floodlights.

Applications

IEC 60598-2-5:2015 provides crucial guidelines for manufacturers, suppliers, and installers of floodlighting systems, ensuring products meet rigorous safety, performance, and durability requirements. Typical applications include:

• Outdoor Floodlighting: Sports arenas, building facades, security lighting, and landscape illumination where exposure to weather and mechanical stress is frequent.

• Indoor Floodlighting: Warehouses, factories, and large indoor venues requiring broad illumination.

Implementing this standard ensures products can endure environmental challenges such as moisture, mechanical impact, vibration, and thermal stresses, thus enhancing operational safety and reliability. It also helps organizations comply with international safety regulations, reducing liability risks related to product failure or accidents.

Related Standards

To fully comply with IEC 60598-2-5:2015, users should also reference the following related IEC standards:

• IEC 60598-1: Luminaires – Part 1: General requirements and tests – Provides overarching requirements applicable to all luminaires, including floodlights.

• IEC 60068-2-75: Environmental testing – Hammer tests – Details mechanical impact tests relevant to durability assessments.

• IEC 62262: Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code) – Assists in specifying mechanical robustness.

These interconnected standards form a comprehensive framework ensuring that luminaires, including floodlights, meet international performance, safety, and quality benchmarks.

---

By adhering to IEC 60598-2-5:2015, manufacturers and designers ensure floodlighting products maintain high safety standards, optimal performance, and environmental resilience-key factors driving global consumer trust and regulatory compliance in lighting solutions.

Standards Content (Sample)

IEC 60598-2-5 ®
Edition 3.0 2015-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Luminaires –
Part 2-5: Particular requirements – Floodlights

Luminaires –
Partie 2-5: Exigences particulières – Projecteurs

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 60598-2-5 ®
Edition 3.0 2015-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Luminaires –
Part 2-5: Particular requirements – Floodlights

Luminaires –
Partie 2-5: Exigences particulières – Projecteurs

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.40 ISBN 978-2-8322-2821-0

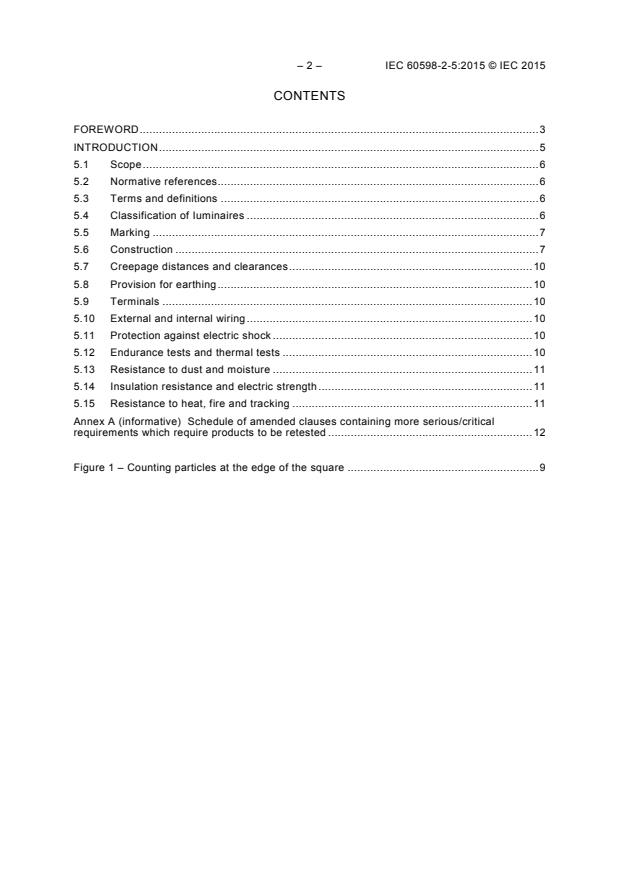

– 2 – IEC 60598-2-5:2015 © IEC 2015
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
5.1 Scope . 6
5.2 Normative references . 6
5.3 Terms and definitions . 6
5.4 Classification of Iuminaires . 6
5.5 Marking . 7
5.6 Construction . 7
5.7 Creepage distances and clearances . 10
5.8 Provision for earthing . 10
5.9 Terminals . 10
5.10 External and internal wiring . 10
5.11 Protection against electric shock . 10
5.12 Endurance tests and thermal tests . 10
5.13 Resistance to dust and moisture . 11
5.14 Insulation resistance and electric strength . 11
5.15 Resistance to heat, fire and tracking . 11
Annex A (informative) Schedule of amended clauses containing more serious/critical

requirements which require products to be retested . 12

Figure 1 – Counting particles at the edge of the square . 9

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LUMINAIRES –
Part 2-5: Particular requirements – Floodlights

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60598-2-5 has been prepared by subcommittee 34D: Luminaires, of
IEC technical committee 34: Lamps and related equipment.
This third edition cancels and replaces the second edition published in 1998, and constitutes a
technical revision.
This edition includes the following significant technical changes with respect to the previous
edition: it introduces requirements for the glass breaking test.

– 4 – IEC 60598-2-5:2015 © IEC 2015
The text of this standard is based on the following documents:
FDIS Report on voting
34D/1172/FDIS 34D/1180/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This standard is to be read in conjunction with IEC 60598-1: Luminaires – Part 1: General
requirements and tests.
A list of all the parts in the IEC 60598 series, published under the general title Luminaires can
be found on the IEC website.
NOTE In this standard, the following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
The mechanical stress on floodlights is similar to the mechanical stress on luminaires for road
and street lighting. Because of this reason this standard contains an update to align the
mechanical and breakage test requirements on flat and curved glass with IEC 60598-2-3.

– 6 – IEC 60598-2-5:2015 © IEC 2015
LUMINAIRES –
Part 2-5: Particular requirements – Floodlights

5.1 Scope
This part of IEC 60598 specifies requirements for floodlights for use with electrical light
sources on supply voltages not exceeding 1 000 V.
5.2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
IEC 60068-2-75, Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests
IEC 60598-1, Luminaires – Part 1: General requirements and tests
IEC 62262, Degrees of protection provided by enclosures for electrical equipment against
external mechanical impacts (IK code)
5.3 Terms and definitions
For the purposes of this document , the terms and definitions given in IEC 60598-1, as well as
the following apply.
5.3.1
floodlighting
lighting of a scene or an object, usually by projectors, in order to increase considerably its
illuminance relative to its surroundings
Note 1 to entry: The difference in illumination between the subject and its surroundings may, alternatively, be
achieved by colour.
5.3.2
floodlight
luminaire for floodlighting
Note 1 to entry: A floodlight can be for either exterior or interior use or for both.
5.4 Classification of Iuminaires
Luminaires shall be classified in accordance with the provisions of Section 2 of IEC 60598-1.
The provisions of Section 0 of IEC 60598-1 apply. The tests described in each appropriate
section of Part 1 shall be carried out in the order listed in this Part 2.

5.5 Marking
The provisions of Section 3 of IEC 60598-1 apply. In addition, the following information shall be
provided in the instruction leaflet supplied with the luminaire, if applicable:
a) operating position, if not universal;
b) weight and overall dimensions of the floodlight;
c) maximum projected area of the floodlight;.
d) limitation of use indoors and/or outdoor;
e) maximum mounting height if ≤ 5 m, relevant to the selected method for protection against
the falling of glass particles and the number of fixing devices.
5.6 Construction
The provisions of Section 4 of IEC 60598-1 apply together with the requirements of 5.6.1
to 5.6.8.
5.6.1 Floodlights for use outdoors shall have protection against the ingress of moisture at
least equivalent to IPX3.
5.6.2 Lampholder brackets and lamp supports where used shall withstand normal usage
throughout the life of the floodlight. They shall accept and retain lamps which are within the
dimensional tolerances stated in the appropriate IEC publication where applicable, and locate
the lamp or lamps in the designed relationship to the optical control devices in the floodlight.
5.6.3 When provision is made for alternative sizes of lamps or light centre positions, the
adjusting means shall be positive and firmly retained in the selected position.
5.6.4 Refractors, reflectors or any other light controlling components shall be so marked or
constructed that they can be fitted or replaced only in the correct relationship to the light
source.
5.6.5 The means for attaching the floodlight to its support shall be appropriate to the weight of
the floodlight.
For floodlights for use above ground level outdoors, the connection shall withstand wind
speeds of 150 km/h on the projected surface of the floodlight assembly without undue
deflection.
Fixings which carry the weight of the floodlight and internal accessories shall be provided with
appropriate means to prevent the dislodgement of any part of the floodlight by vibration, either
in service or during maintenance.
Parts of floodlights for mounting heights of 3 m or higher which are fixed other than with at
least two devices, for example, screws or equivalent means of sufficient strength, shall have
such extra protection as to prevent those parts falling and endangering persons, animals and
surroundings, if a fixing device fails under normal conditions. The points of attachment which
allow the floodlight to rotate and which are tested below are excluded from the requirements of
this paragraph.
Compliance shall be checked by inspection and, for floodlights for use above ground level
outdoors, by the additional following test.
The floodlight is mounted with its largest projected area as viewed in elevation lying in the
horizontal plane, and with the means of attachment secured in accordance with the
manufacturer's recommendations.

– 8 – IEC 60598-2-5:2015 © IEC 2015
For floodlights for use above ground level outdoors, a constant evenly distributed load is
applied for 10 min on the floodlight using sand-bags providing 2,4 kN per square metre of
floodlight projected area. The floodlight is then turned 180° in the vertical plane, about the point
of attachment, and the test is repeated.
During the test there shall be no failure or movement about the point of attachment and after
either part of this test there shall be no permanent set exceeding 1°.
5.6.6 Where means for angular adjustment are provided, there shall be provision for positive
locking after any such adjustments have been effected.
5.6.7 Floodlights for use outdoors shall be resistant to the vibrations which may occur during
normal use.
5.6.8 In order to reduce the risk of injury caused by breaking glass, the following
requirements, in relation to the intended mounting height of the luminaire, are applicable.
When luminaires are installed below 5 m, no additional requirements are requested on glass
covers.
When luminaires are installed above 5 m, glass covers shall be:
a) constituted with a glass that fractures into small pieces,
b) constituted with a glass having a high impact shock resistance, or
c) protected by any means to retain glass fragments in case of breakage (e.g. guard, film
coating).
Compliance is checked:
– for a) by test and inspection according to 5.6.8.1;
– for b) by test and inspection according to 5.6.8.2;
– for c) by inspection.
The luminaire manufacturer shall declare to the testing laboratory the method of protection
used.
5.6.8.1 Protection by the use of glass that fractures into small pieces
Preconditioning of the luminaire and glass cover before testing is not required.
For flat glass, the glass component is supported over the whole area to ensure that particles
will not be scattered upon fragmentation and that movement of the particles is prevented.
Shatter the glass with a centre punch at a point 30 mm from the mid-point of one of the longer
edges of glass towards the centre.
NOTE 1 A centre punch is a tool made of steel with a sharp point.
For formed glass, the glass component part shall be supported on all the surfaces (example of
testing method could be the use of material like sand or a mould). The thickness of the
material used as a support surface shall be more than 30 mm. The face of the glass shall be
completely covered with an adhesive film in order to avoid any movement of the broken
particles. Shatter the glass (from the inside or the outside) with a centre punch in the middle of
the glass cover.
Within 5 min of fracture, count the particles in a 50 mm square, located approximately at the
centre of the area of the coarsest fracture but always within the confines of the glass.

Compliance: A glass is deemed to have passed the test if the number of particles in the 50 mm
square is more than 40; glass splinters and pieces less than the full thickness of the glass
being excluded from the count. For glass of smaller size where a 50 mm × 50 mm area is not
possible, the number of pieces necessary in the count is proportionately reduced. The size of
the particles shall be less than 50 mm for all the dimensions.
In the count of the total number of particles in the 50 mm square, the particles in the centre of
the square plus those at the edge shall be taken into account. In order to count particles at the
edge of the square, it is recommended that all pieces intersected by two adjacent sides be
included and all particles intersected by the two other sides be ignored (see Figure 1). Where
possible, the area of measurement should not be within 30 mm of any edge, hole or machining
of the glass or in a circle of 50 mm around the impact.
Dimensions in millimetres
D
A
B C
IEC
Particles counted (intersected by two selected adjacent sides: AB/BC)

Particles not counted (not intersected by two selected adjacent sides: AB/BC)

Figure 1 – Counting particles at the edge of the square
NOTE 2 A suitable method of counting the particles is to place a square of 50 mm side, of transparent material
over the glass and mark a spot of ink as each particle within the square counted.
NOTE 3 When the test sample remains as one sheet, the fragmentation lines would normally be used to indicate
fractures and the size and number of particles would thus be evaluated, unless reinforcing or a film were employed.
– 10 – IEC 60598-2-5:2015 © IEC 2015
5.6.8.2 Protection by the use of high impact resistant glass
5.6.8.2.1 Glass covers shall have high mechanical strength.
The luminaire and glass cover shall be preconditioned by the thermal endurance test of 12.3 of
IEC 60598-1.
The test is performed on one sample and on the external face (opposite side of the lamp) of
the glass mounted on the luminaire.
The testing procedure shall be in accordance with the IEC 62262, and the test apparatus used
is the pendulum hammer or vertical hammer according to IEC 60068-2-75.
Compliance: The glass shall not be broken after a shock with impact energy of 5 J (equivalent
to IK08 according to IEC 62262).
5.6.8.2.2 Glass covers shall not break into large pieces.
Glass covers shall be tested according the same testing procedure as 5.6.8.1.
Compliance: A glass is deemed to have passed the test if the number of particles in the 50 mm
square is more than 20, glass splinters and pieces less than the full thickness of the glass
being excluded from the count. For glass of smaller size where a 50 mm × 50 mm area is not
possible, the number of pieces necessary in the count is proportionately reduced. The size of
the particles shall be less than 50 mm for all the dimensions.
5.7 Creepage distances and clearances
The provisions of Section 11 of IEC 60598-1 apply.
5.8 Provision for earthing
The provisions of Section 7 of IEC 60598-1 apply.
5.9 Terminals
The provisions of Sections 14 and 15 of IEC 60598-1 apply.
5.10 External and internal wiring
The provisions of Section 5 of IEC 60598-1 apply.
5.11 Protection against electric shock
The provisions of Section 8 of IEC 60598-1 apply.
5.12 Endurance tests and thermal tests
Luminaires with an IP classification greater than IP20 shall be subjected to the relevant tests of
12.4, 12.5, 12.6 and 12.7 of Section 12 of IEC 60598-1 after the test(s) of 9.2 but before the
test(s) of 9.3 of Section 9 of IEC 60598-1 specified in 5.13 of this part of IEC 60598.

The provisions of Section 12 of IEC 60598-1 apply, but with the following modification.
...
