IEC 63211-3-2:2025

Durability test methods for electronic displays - Part 3-2: Mechanical tests - Static stress

63211-3-2:2025 defines common test methods for the evaluation of the mechanical or functional durability of electronic displays and its components against static or quasi-static stress application. The testing methods and procedures are applicable for all the electronic display panels, modules and components.

General Information

• Status: Published
• Publication Date: 29-Apr-2025
• ICS: 31.120 - Electronic display devices
• Technical Committee: TC 110 - Electronic displays
• Drafting Committee: WG 14 - TC 110/WG 14
• Current Stage: PPUB - Publication issued
• Start Date: 30-Apr-2025
• Completion Date: 23-May-2025

Overview

IEC 63211-3-2:2025 - Durability test methods for electronic displays, Part 3-2: Mechanical tests – Static stress - defines common, standardized procedures to evaluate the mechanical and functional durability of electronic displays and their components under static and quasi-static stress. Published as Edition 1.0 (2025-04) by the IEC Technical Committee 110, this international standard applies to display panels, modules and components across technologies (LCD, OLED, etc.) and is intended as a reference for future and revised display durability standards.

Key topics and technical requirements

• Scope and purpose: Common test methods for evaluation of mechanical/functional durability against static or quasi‑static stress.
• Test methods covered: Detailed procedures for common mechanical tests, including:
  • Two‑point bend
  • Four‑point bend
  • Ring‑on‑ring
  • Point loading (static and quasi‑static)
• Apparatus and setup: Specifications for testing machines, fixtures, face plates and load assemblies, plus guidance on displacement/loading rates.
• Measurement and calculation: Methods for stress measurement and calculation, and defined failure criteria for each test method.
• Standard measuring conditions: Environmental conditions for mechanical and optical tests: 25 °C ± 3 °C, 50 %RH ± 10 %RH, 86–106 kPa atmospheric pressure; deviations must be reported.
• Specimen sampling and statistics: Minimum sample guidance - at least 30 specimens recommended for statistically significant strength distribution (e.g., Weibull analysis); minimum 10 for estimating the mean. Reports must note if fewer specimens are used.
• Stress/strain rate guidance: Distinction between static and quasi‑static loading; acknowledgement that loading rate affects strength results.
• Safety: Tests conducted with appropriate PPE and safeguards; reference to IEC 62368‑1 for equipment safety requirements.

Applications and who uses it

• Display manufacturers and module integrators use IEC 63211-3-2 to validate product mechanical durability during design verification and production qualification.
• Test laboratories and QA teams apply the standardized procedures to generate comparable, reproducible test data (e.g., strength, failure modes).
• R&D and reliability engineers use the methods to compare materials, cover glasses, adhesives and assembly strategies under static stress.
• Certification bodies and standards developers adopt the standard as a reference for conformity assessment and for aligning technology‑specific standards (IEC TC 110).

Related standards

• IEC 62368‑1 - referenced for safety requirements.
• IEC 63211 series - other parts define additional durability test domains; this document is intended as a common mechanical-test reference for future revisions of technology‑specific display standards.

Keywords: IEC 63211-3-2, durability test methods, electronic displays, static stress, mechanical tests, two-point bend, four-point bend, ring-on-ring, point loading, Weibull analysis.

Standards Content (Sample)

IEC 63211-3-2 ®
Edition 1.0 2025-04
INTERNATIONAL
STANDARD
Durability test methods for electronic displays –
Part 3-2: Mechanical tests – Static stress

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].

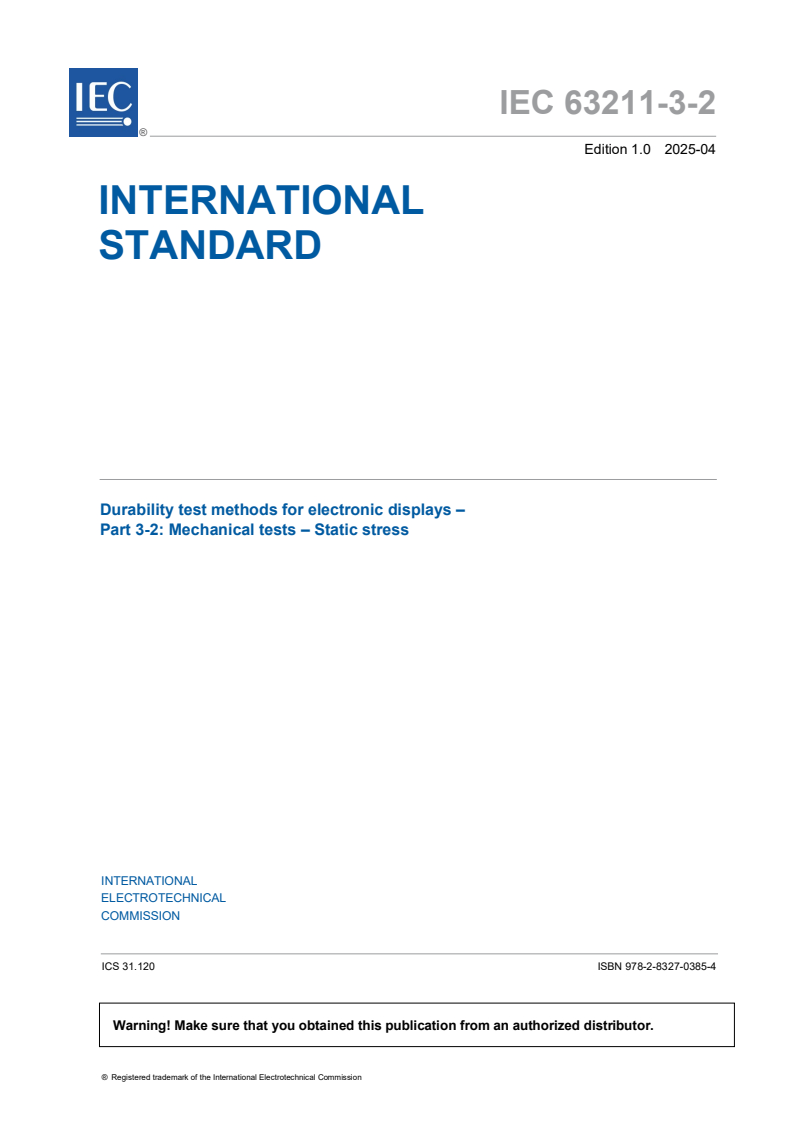

IEC 63211-3-2 ®
Edition 1.0 2025-04
INTERNATIONAL
STANDARD
Durability test methods for electronic displays –

Part 3-2: Mechanical tests – Static stress

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.120  ISBN 978-2-8327-0385-4

– 2 – IEC 63211-3-2:2025 © IEC 2025

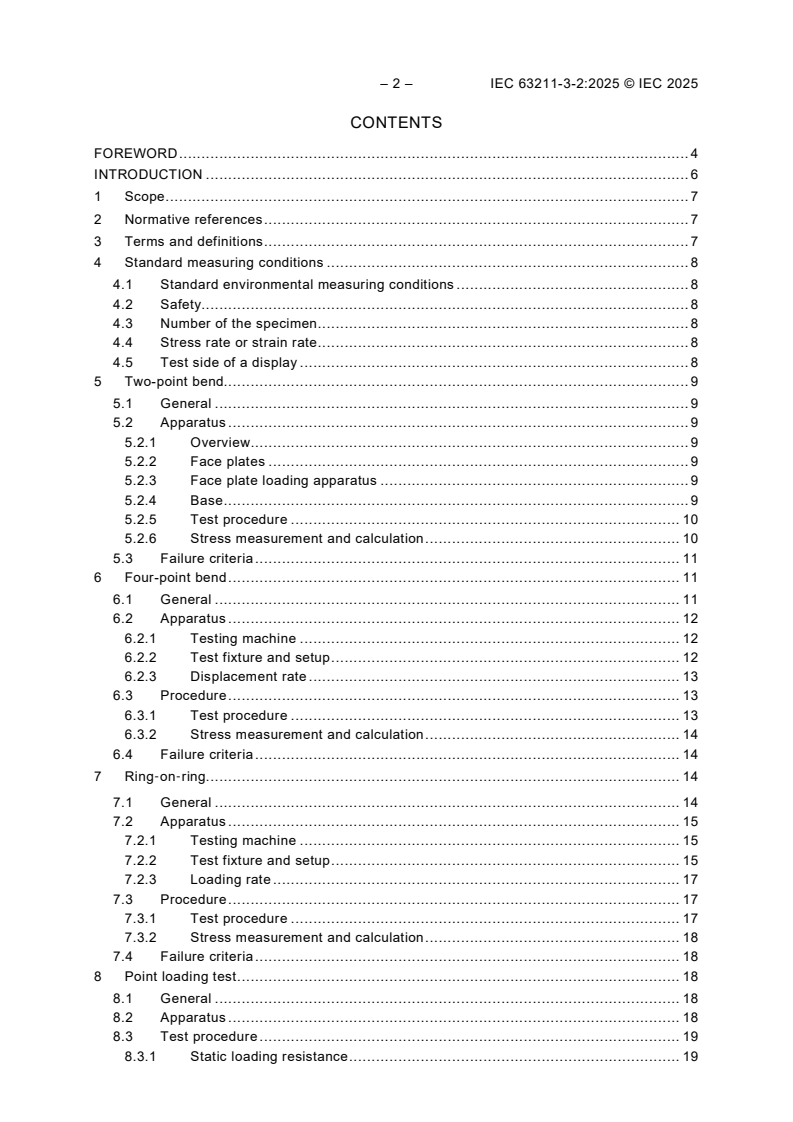

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Standard measuring conditions . 8
4.1 Standard environmental measuring conditions . 8
4.2 Safety. 8
4.3 Number of the specimen . 8
4.4 Stress rate or strain rate . 8
4.5 Test side of a display . 8
5 Two-point bend. 9
5.1 General . 9
5.2 Apparatus . 9
5.2.1 Overview . 9
5.2.2 Face plates . 9
5.2.3 Face plate loading apparatus . 9
5.2.4 Base . 9
5.2.5 Test procedure . 10
5.2.6 Stress measurement and calculation . 10
5.3 Failure criteria . 11
6 Four-point bend . 11
6.1 General . 11
6.2 Apparatus . 12
6.2.1 Testing machine . 12
6.2.2 Test fixture and setup . 12
6.2.3 Displacement rate . 13
6.3 Procedure . 13
6.3.1 Test procedure . 13
6.3.2 Stress measurement and calculation . 14
6.4 Failure criteria . 14
7 Ring-on-ring. 14
7.1 General . 14
7.2 Apparatus . 15
7.2.1 Testing machine . 15
7.2.2 Test fixture and setup . 15
7.2.3 Loading rate . 17
7.3 Procedure . 17
7.3.1 Test procedure . 17
7.3.2 Stress measurement and calculation . 18
7.4 Failure criteria . 18
8 Point loading test . 18
8.1 General . 18
8.2 Apparatus . 18
8.3 Test procedure . 19
8.3.1 Static loading resistance . 19

8.3.2 Quasi-static failure load . 19
8.3.3 Stress measurement and calculation . 19
8.4 Failure criteria . 20
Bibliography . 21

Figure 1 – Testing apparatus for two-point bend . 10
Figure 2 – Testing apparatus for four-point bend [4] . 12
Figure 3 – Specimen configuration under four-point bending test [4] . 13
Figure 4 – Support assembly (side view, cross-section) [5] . 15
Figure 5 – Support assembly (top view) [5]. 16
Figure 6 – Load assembly (side view, cross-section) [5] . 16
Figure 7 – Load assembly (bottom view) [5] . 17
Figure 8 – Schematic of quasi-static and static point loading test [4] . 19

– 4 – IEC 63211-3-2:2025 © IEC 2025
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DURABILITY TEST METHODS FOR ELECTRONIC DISPLAYS –

Part 3-2: Mechanical tests – Static stress

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 63211-3-2 has been prepared by IEC technical committee 110: Electronic displays. It is an
International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
110/1743/FDIS 110/1761/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 63211 series, published under the general title Durability test
methods for electronic displays, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
– 6 – IEC 63211-3-2:2025 © IEC 2025
INTRODUCTION
The purpose of this document is to provide mechanical testing procedures for durability
evaluation of electronic displays and their components against static or quasi-static stress.
It is assumed that all tests – described in detail in individual test method standards – are
performed by personnel skilled in the general art of mechanical property tests.
This document relates to the common durability test methods applicable in the field of electronic
displays, which can overlap with some of the parts of existing IEC TC 110 documents that
describe the durability test methods of individual technologies, such as LCD, OLED, PDP and
others. This document is intended to be used as the reference document in future standards
and in revisions of existing ones. The existing standards will be revised in their maintenance
time to refer to this document to the largest extent possible.

DURABILITY TEST METHODS FOR ELECTRONIC DISPLAYS –

Part 3-2: Mechanical tests – Static stress

1 Scope
This part of IEC 63211 defines common test methods for the evaluation of the mechanical or
functional durability of electronic displays and its components against static or quasi-static
stress application. The testing methods and procedures are applicable for all the electronic
display panels, modules and components.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 62368-1, Audio/video, information and communication technology equipment – Part 1:
Safety requirements
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1
specimen
individual piece of display panel, module or components to be tested
3.2
static stress
mechanical stress applied without temporal variation
3.3
quasi-static stress
stress applied at a temporal variation rate in which time or inertia effects are negligible to the
outcome of test results
3.4
strength
stress or load at which a specimen fails for a given loading condition
3.5
limit sample
sample that represents the threshold between acceptable and unacceptable samples

– 8 – IEC 63211-3-2:2025 © IEC 2025
4 Standard measuring conditions
4.1 Standard environmental measuring conditions
Mechanical and optical tests shall be carried out under the standard environmental conditions:
– temperature: 25 °C ± 3 °C
– relative humidity: 50 %RH ± 10 %RH
– atmospheric pressure: 86 kPa to 106 kPa
When different environmental conditions are used, they shall be specified in the report.
4.2 Safety
All appropriate safety equipment shall be worn during testing. Guards shall be used to protect
operators from being injured during testing. Specimen devices shall include safeguards in
accordance with IEC 62368-1.
4.3 Number of the specimen
This document applies to the displays or components. In all cases a minimum of 30 specimens
should be used to obtain a statistically significant strength distribution using Weibull analysis,
for example. At least 10 specimens shall be used for the purpose of estimating the mean. A
minimum of 30 specimens are necessary if estimates regarding the form of failure distribution
are to be reported. If the number of specimens is less than 30, a special notification shall be
stated in the report. Any specimen should be rejected prior to testing for defects considered
likely to affect the durability against static or quasi-static stress.
4.4 Stress rate or strain rate
Although the evaluation of durability against static stress is preferred, quasi-static loading
conditions can be applied instead of static condition to finish the test within a reasonable period.
However, stress or strain rate affects the test results especially for mechanical strength
evaluation. Therefore, stress and strain rate shall be determined to prevent any phenomena
caused by dynamic stress application. Stress and strain rate should be measured using strain
gauge, calculated using theoretical formula, digital image correlation or finite element analysis
and other appropriate methods. When the stress or strain rate is confirmed and well-calibrated
to be low enough, testing conditions such as crosshead travel speed and testing time may be
-4 -1
used instead. Maximum stress or strain rate should not exceed 1 × 10 s as the strain rate.
When the strain rate is difficult to measure, the maximum crosshead speed shall be equal to or
smaller than 5 mm/min.
4.5 Test side of a display
Usually, a stress test is applied to the display surface side of the device under test or to its
display components.
5 Two-point bend
5.1 General
This test evaluates the ability of the display panels, modules and components to resist the static
or quasi-static bending stresses. Bending stress should be applied to them when they are under
uniaxial load due to external loadings induced by handling, processing and fabrication of the
specimen specified as a part of the end product. Since two-point configuration generates tensile
stress along the surface and edge on concave side, mechanical or functional durability of the
display panel under such situations can be evaluated. Two-point bend is advantageous to
relatively thin and large area specimens. This test method cannot be applied to specimens that
are too rigid to bend. It is recommended that all equipment are suitably calibrated using the
predetermined method recommended for each apparatus and that records of the calibration
data and traceability are kept. The maximum dimension of the specimen applicable to this test
method should be 2 500 mm in diagonal length and 100 mm in thickness. Since the non-linearity
and the Poisson effect that may be introduced in the two-point bend testing of thin, flexible or
bendable displays, this test method shall not be applied for the display panels which are used
for foldable, bendable and rollable displays.
5.2 Apparatus
5.2.1 Overview
A schematic illustration of the test apparatus is shown in
...
