IEC 61196-1-102:2025
(Main)Coaxial communication cables - Part 1-102: Electrical test methods - Test for insulation resistance of cable dielectric
Coaxial communication cables - Part 1-102: Electrical test methods - Test for insulation resistance of cable dielectric
IEC 61196-1-102:2025 applies to coaxial communication cables. It specifies test methods for determining the insulation resistance of coaxial cables. It is intended to detect the flaws in the dielectric of finished coaxial cables. This second edition cancels and replaces the first edition, published in 2005. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) the scope was extended;
b) the procedure is updated for the period of discharge and the test sample with high insulation resistance;
c) the unit of cable length has been amended;
d) the test procedures for the cables with special structure are specified in Annex A.
Câbles coaxiaux de communication - Partie 1-102: Méthodes d'essai électrique - Essai pour la résistance d'isolation du diélectrique du câble
General Information
Relations
Standards Content (Sample)

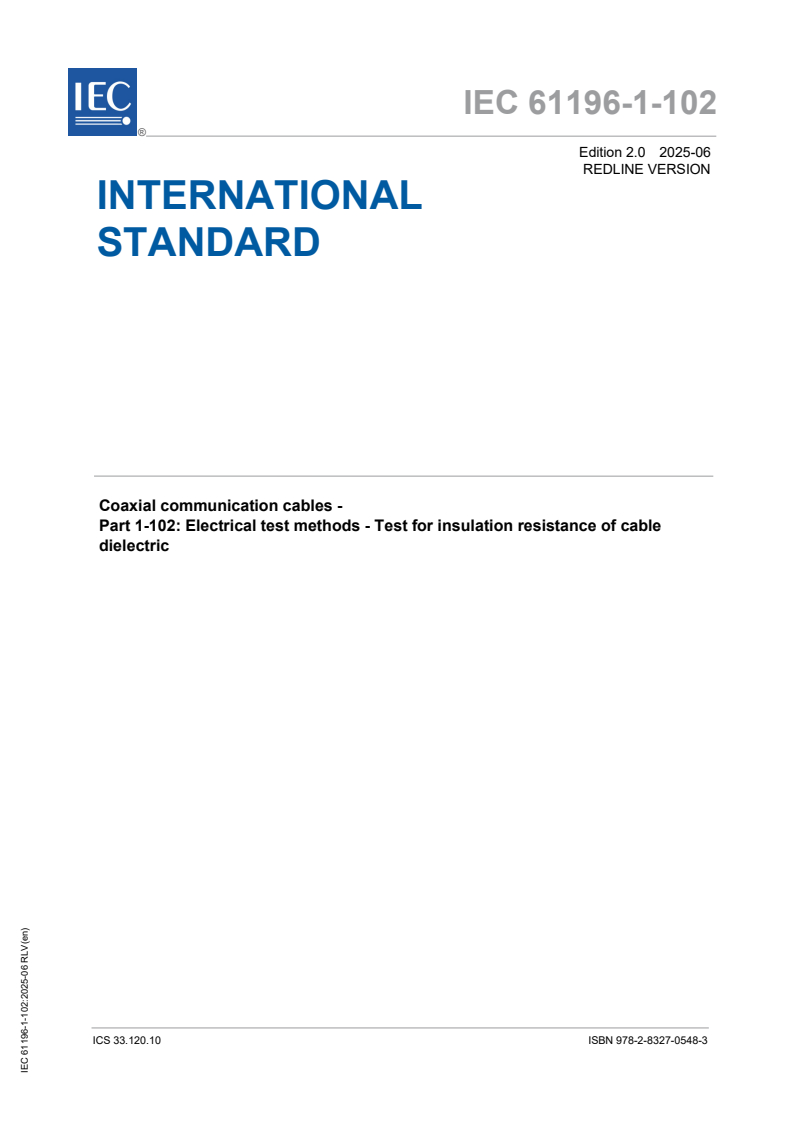

IEC 61196-1-102 ®
Edition 2.0 2025-06
REDLINE VERSION
INTERNATIONAL
STANDARD
Coaxial communication cables -
Part 1-102: Electrical test methods - Test for insulation resistance of cable
dielectric
ICS 33.120.10 ISBN 978-2-8327-0548-3
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
The world's leading online dictionary on electrotechnology,
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.
CONTENTS
FOREWORD . 2
1 Scope . 1
2 Normative references . 4
3 Terms and definitions . 4
4 Test for insulation resistance of dielectric . 4
4.1 Principle . 4
4.2 Test equipment . 4
4.3 Preparation of the test specimen . 4
4.4 Procedure . 4
4.5 Expression of results . 5
5 Test report . 5
6 Requirement . 5
Annex A (normative) Test procedures for the cables with special structure . 6
A.1 Armoured cables and cables with intermediate sheaths . 6
A.1.1 Armoured cables . 6
A.1.2 Cables with intermediate sheaths . 6
A.2 Multi-conductor, hybrid or compozite cables. 6
Bibliography . 7
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Coaxial communication cables -
Part 1-102: Electrical test methods - Test for insulation resistance of cable
dielectric
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not notice of (a) patent(s), which may be
required to implement this document. However, implementers are cautioned that this may not represent the latest
information, which may be obtained from the patent database available at https://patents.iec.ch and
www.iso.org/patents . IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition IEC 61196-1-102:2005. A vertical bar appears in the margin
wherever a change has been made. Additions are in green text, deletions are in
strikethrough red text.
IEC 61196-1-102 has been prepared by subcommittee 46A: Coaxial cables, of IEC technical
committee 46: Cables, wires, waveguides, RF connectors, RF and microwave passive
components and accessories. It is an International Standard.
This second edition cancels and replaces the first edition, published in 2005. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the scope was extended;
b) the procedure is updated for the period of discharge and the test sample with high insulation
resistance;
c) the unit of cable length has been amended;
d) the test procedures for the cables with special structure are specified in Annex A.
The text of this International Standard is based on the following documents:
Draft Report on voting
46A/1707/CDV 46A/1726/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 61196 series, published under the general title Coaxial
communication cables, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
1 Scope
This part of IEC 61196 applies to coaxial communication cables. It specifies test methods for
determining the insulation resistance of coaxial cables. It is intended to detect the flaws in the
dielectric of finished coaxial cables.
The test procedures for the cables with special structure are specified in Annex A accordingly.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61196-1:2005, Coaxial communication cables - Part 1: Generic specification - General,
definitions and requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61196-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
– IEC Electropedia: available at http://www.electropedia.org/
– ISO Online browsing platform: available at http://www.iso.org/obp
4 Test for insulation resistance of dielectric
4.1 Principle
The purpose of the test is to determine the DC insulation resistance of the insulation material
between the inner conductor and the outer conductor or screen or the DC insulation resistance
of an insulating material between the outer conductor and additional screens or metallic
elements of a cable.
4.2 Test equipment
– DC power supply > 80 V DC and ≤ 500 V DC, unless otherwise specified.
– Megohmmeter with a range ≥ 2‧10 MΩ.
4.3 Preparation of the test specimen
The test shall be carried out on a delivery length of finished cable after preconditioning at a
temperature between 15 °C and 35 °C and checking the continuity of the conductors. The
conductor ends shall be stripped of insulation.
4.4 Procedure
Unless otherwise specified, the insulation resistance shall be measured between inner and
outer conductor and/or between outer conductor and additional screens or metallic elements. If
it is not specified in the relevant cable specification, the test voltage shall be 500 V and the
minimum period of electrification shall be 1 min while the minimum period of discharge shall be
3 min.
If the test sample with high insulation resistance, notably, for the insulation resistance is greater
than 1‧10 MΩ, the test result can be affected by the electromagnetic fields. In this case, the
test sample shall be stored in a metal box that is fixed to the ground.
4.5 Expression of results
The insulation resistance shall be expressed in MΩ∙km. When the test length differs from 1 000
m, the measured value shall be corrected as follows:
𝑙𝑙
(1)
𝑅𝑅 =𝑅𝑅 .
m
1 000
where
R is the corrected insulation resistance in MΩ∙km;
Rm is the insulation resistance measured, in MΩ;
l is the cable length, in km m.
5 Test report
The test report shall give the following test conditions and record the measured and the
corrected value of the insulation resistance in MΩ∙km:
– temperature, in °C;
– CUT length, in m;
– test voltage, in V.
6 Requirement
The corrected value of the insulation resistance shall comply with that indicated in the relevant
sectional or detail specification.
Annex A
(normative)
Test procedures
...
