ISO/IEC TS 29125:2017

Information technology - Telecommunications cabling requirements for remote powering of terminal equipment

ISO/IEC TS 29125:2017(E) This document specifies the use of generic balanced cabling for customer premises, as specified in the ISO/IEC 11801 series, for remote powering of terminal equipment. It provides guidance on new cabling installations and renovations. The customer premises may encompass one of more buildings or may be within a building that contains more than one organization. The cabling may be installed prior to the seelction of remote powering equipment or powered terminal equipment.

General Information

• Status: Published
• Publication Date: 24-Oct-2024
• ICS: 35.200 - Interface and interconnection equipment
• Technical Committee: ISO/IEC JTC 1/SC 25 - Interconnection of information technology equipment
• Drafting Committee: WG 3 - ISO/IEC JTC 1/SC 25/WG 3
• Current Stage: PPUB - Publication issued
• Start Date: 27-Mar-2019
• Completion Date: 26-Oct-2025

Relations

• Amended By: ISO/IEC TS 29125:2017/AMD2:2024 - Amendment 2 - Information technology - Telecommunications cabling requirements for remote powering of terminal equipment
• Effective Date: 08-Dec-2023
• Amended By: ISO/IEC TS 29125:2017/AMD1:2020 - Amendment 1 - Information technology - Telecommunications cabling requirements for remote powering of terminal equipment
• Effective Date: 05-Sep-2023

Overview

ISO/IEC TS 29125:2017 - Information technology - Telecommunications cabling requirements for remote powering of terminal equipment - provides guidance on using generic balanced cabling (as defined in the ISO/IEC 11801 series) to deliver remote power to terminal equipment across customer premises. The technical specification covers both new cabling installations and renovations, and applies where cabling may be installed before the selection of remote powering or powered devices.

Key topics and requirements

• Cabling types supported: Requirements for 4‑pair balanced cabling and 1‑pair balanced cabling used for remote powering.
• Installation conditions: Guidance on ambient temperature, installation near equipment, cable bundling, conduit vs. air installations, and administrative considerations.
• Temperature rise and current capacity: Methods and limits for modelling and measuring temperature rise in cable bundles, factors affecting heating, and how bundle size and layout impact conductor current capacity.
• Remote power delivery methods: Examples and topologies including end‑point powering, mid‑span powering and single‑pair remote powering; considerations for using signal pairs versus spare pairs.
• Transmission parameters: DC loop resistance, DC resistance unbalance (within pair and pair‑to‑pair), and maximum loop resistance for channels used for powering.
• Connecting hardware: Requirements for connectors and connecting hardware for both 4‑pair and 1‑pair remote powering implementations.
• Testing and validation: Informative annexes include modelling approaches, test protocols, detailed test procedures, and illustrative figures/tables to evaluate heating and compliance.

Practical applications

ISO/IEC TS 29125 is practical for anyone planning, installing or specifying cabling that will carry power in addition to data. Typical uses:

• Designing building cabling for remote powering of IP phones, wireless access points, security cameras or IoT devices (where remote powering topologies apply).
• Specifying cable types and bundle practices to ensure safe current capacity and acceptable temperature rise.
• Creating installation and test procedures to validate remote powering deployments and meet safety/performance targets.
• Assessing retrofit/renovation scenarios where cabling may be installed before the final choice of powered equipment.

Who should use this standard

• Network designers and cabling consultants
• Electrical and telecom installers
• Facilities and data center managers
• Specifiers, procurement teams, and standards compliance officers
• Manufacturers of cabling products and connecting hardware

Related standards

• ISO/IEC 11801 series (generic cabling for customer premises) - primary cabling framework referenced by ISO/IEC TS 29125.

Keywords: ISO/IEC TS 29125, remote powering, telecommunications cabling, balanced cabling, 4‑pair, 1‑pair, temperature rise, DC loop resistance, ISO/IEC 11801.

Standards Content (Sample)

ISO/IEC TS 29125
Edition 1.0 2017-04
TECHNICAL
SPECIFICATION
colour
inside
Information technology – Telecommunications cabling requirements for remote
powering of terminal equipment

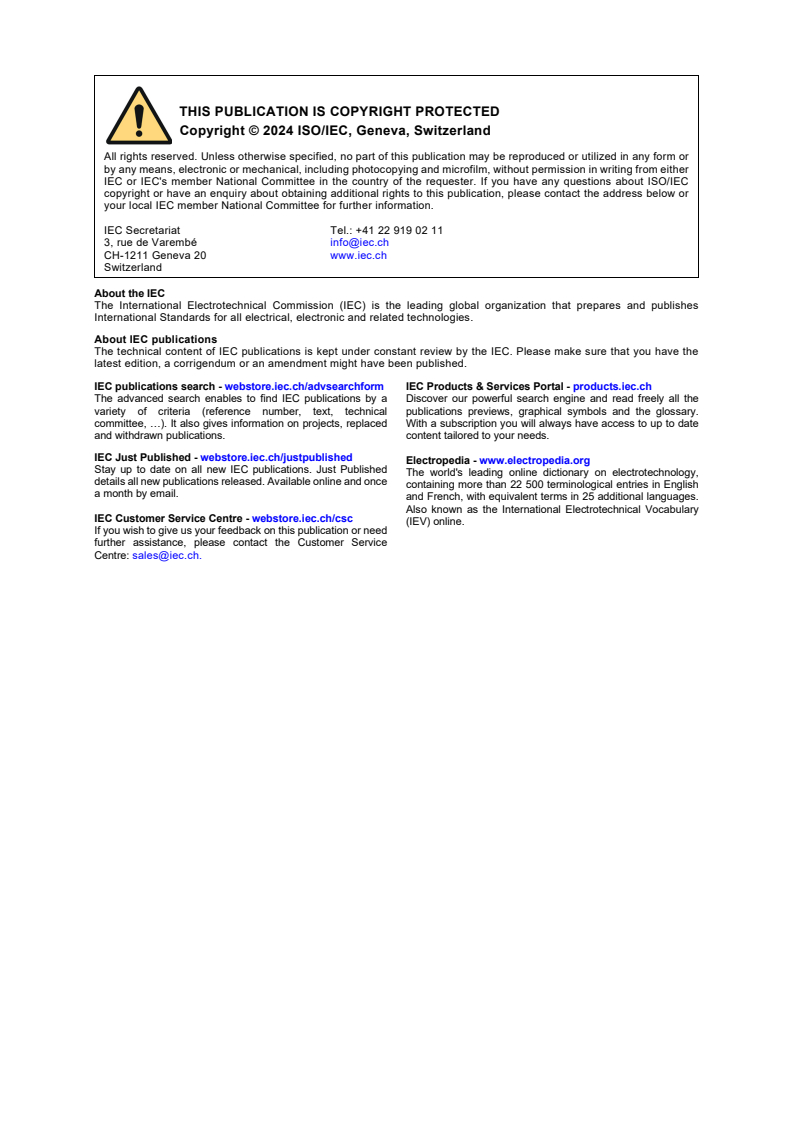

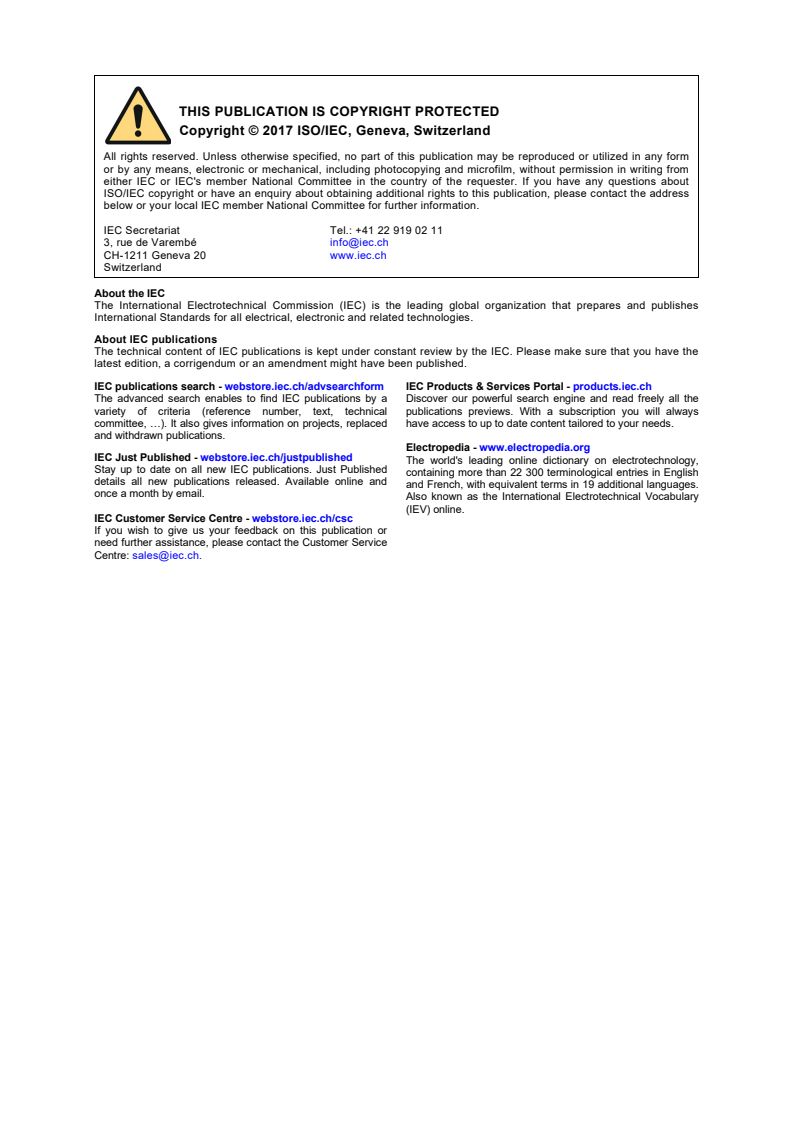

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about
ISO/IEC copyright or have an enquiry about obtaining additional rights to this publication, please contact the address
below or your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
ISO/IEC TS 29125
Edition 1.0 2017-04
TECHNICAL
SPECIFICATION
colour
inside
Information technology – Telecommunications cabling requirements for remote

powering of terminal equipment

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 35.200 ISBN 978-2-8322-4223-0

– 2 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017

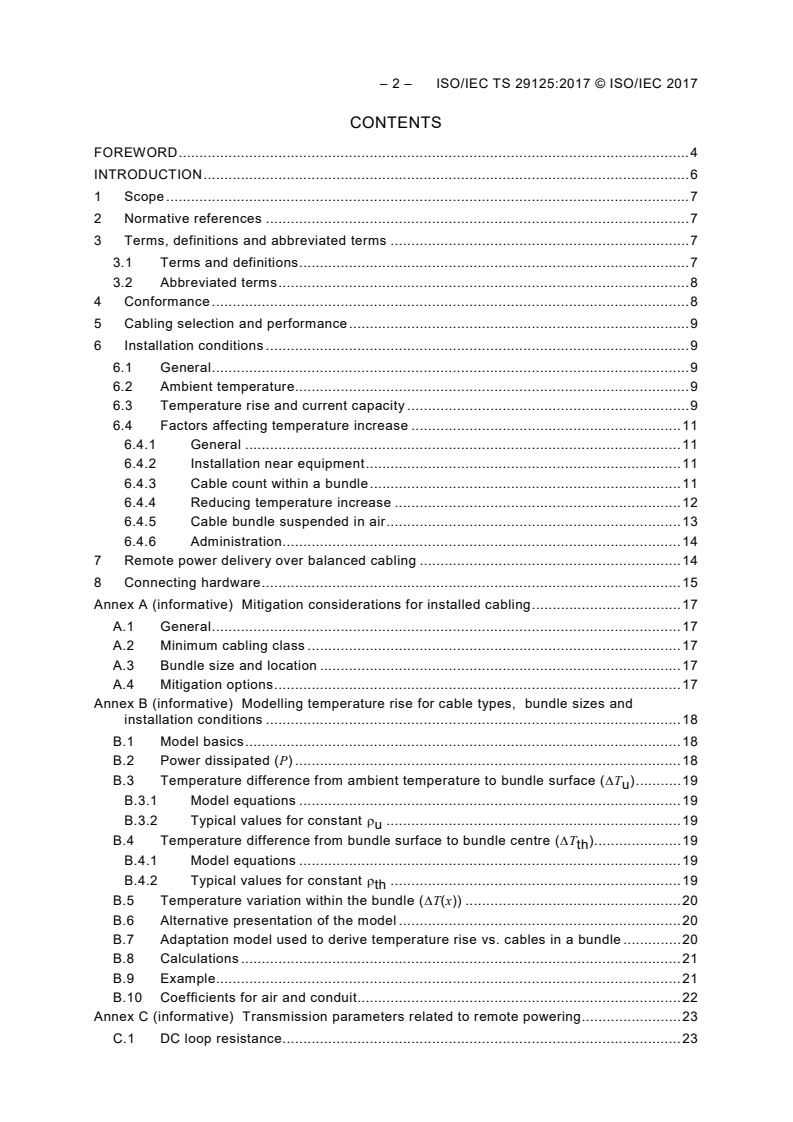

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and abbreviated terms . 7
3.1 Terms and definitions . 7
3.2 Abbreviated terms . 8
4 Conformance . 8
5 Cabling selection and performance . 9
6 Installation conditions . 9
6.1 General . 9
6.2 Ambient temperature. 9
6.3 Temperature rise and current capacity . 9
6.4 Factors affecting temperature increase . 11
6.4.1 General . 11
6.4.2 Installation near equipment . 11
6.4.3 Cable count within a bundle . 11
6.4.4 Reducing temperature increase . 12
6.4.5 Cable bundle suspended in air . 13
6.4.6 Administration. 14
7 Remote power delivery over balanced cabling . 14
8 Connecting hardware . 15
Annex A (informative) Mitigation considerations for installed cabling . 17
A.1 General . 17
A.2 Minimum cabling class . 17
A.3 Bundle size and location . 17
A.4 Mitigation options . 17
Annex B (informative) Modelling temperature rise for cable types, bundle sizes and
installation conditions . 18
B.1 Model basics . 18
B.2 Power dissipated (P) . 18
B.3 Temperature difference from ambient temperature to bundle surface (∆T ) . 19
u
B.3.1 Model equations . 19
B.3.2 Typical values for constant ρ . 19
u
B.4 Temperature difference from bundle surface to bundle centre (∆T ) . 19
th
B.4.1 Model equations . 19
B.4.2 Typical values for constant ρ . 19
th
B.5 Temperature variation within the bundle (∆T(x)) . 20
B.6 Alternative presentation of the model . 20
B.7 Adaptation model used to derive temperature rise vs. cables in a bundle . 20
B.8 Calculations . 21
B.9 Example. 21
B.10 Coefficients for air and conduit. 22
Annex C (informative) Transmission parameters related to remote powering. 23
C.1 DC loop resistance. 23

C.2 DC resistance unbalance (within pair) . 23
C.3 DC resistance unbalance (pair to pair) . 24
Annex D (informative) Illustrations of heating of various bundle sizes and
configurations . 26
D.1 Limiting cable bundle size . 26
D.2 Separating into smaller bundles . 27
Annex E (informative) Test protocol . 28
E.1 Background. 28
E.2 Test set-up . 28
Annex F (informative) Detailed test procedure . 30
F.1 General . 30
F.2 Test set-up . 30
F.2.1 Thermocouple placement . 30
F.2.2 Measurement of cable bundle in air . 31
F.2.3 Measurement of cable bundle in conduit . 32
Bibliography . 34

Figure 1 – Examples of end point powering systems using signal pairs (top) and spare
pairs (bottom) . 14
Figure 2 – Examples of mid-span powering systems . 15
Figure B.1 – Temperature rise profile . 18
Figure D.1 – 91-cable bundle . 26
Figure D.2 – Three bundles of 37 cables . 26
Figure D.3 – Three bundles of 37 cables with separation . 27
Figure E.1 – 37-cable bundle and temperature location. 28
Figure E.2 – "Perfect bundle" and thermocouple configuration . 29
Figure E.3 – Conductor configuration . 29
Figure F.1 – Placement of thermocouple . 30
Figure F.2 – Securing of the thermocouple. 31
Figure F.3 – Test set-up for cable bundles in air . 32
Figure F.4 – Test set-up for cable bundles in conduit . 33

Table 1 – Maximum current per conductor versus temperature rise in a 37-cable
bundle in air and conduit (all 4 pairs energized) . 10
Table 2 – Calculated worst case current per conductor versus temperature rise in a
bundle of 37 4-pair cables (all pairs energized) . 11
Table 3 – Temperature rise versus cable bundle size (500 mA per conductor) . 12
Table 4 – Temperature rise for a type of cable versus the number of energized pairs in
a 37-cable bundle (500 mA per conductor) . 13
Table B.1 – Bundling coefficients for different types of cables and cords (all 4 pairs
energized) . 22
Table C.1 – Maximum DC loop resistance of channels . 23
Table C.2 – DC resistance unbalance of cables, connecting hardware and channels . 24
Table C.3 – DC resistance unbalance (pair to pair) . 25

– 4 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
INFORMATION TECHNOLOGY –
TELECOMMUNICATIONS CABLING REQUIREMENTS
FOR REMOTE POWERING OF TERMINAL EQUIPMENT

FOREWORD
1) ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees established
by the respective organization to deal with particular fields of technical activity. ISO and IEC technical
committees collaborate in fields of mutual interest. Other international organizations, governmental and non-
governmental, in liaison with ISO and IEC, also take part in the work. In the field of information technology,
ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
2) The formal decisions or agreements of IEC and ISO on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested IEC National Committees and ISO member bodies.
3) IEC, ISO and ISO/IEC publications have the form of recommendations for international use and are accepted
by IEC National Committees and ISO member bodies in that sense. While all reasonable efforts are made to
ensure that the technical content of IEC, ISO and ISO/IEC publications is accurate, IEC or ISO cannot be held
responsible for the way in which they are used or for any misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees and ISO member bodies undertake to
apply IEC, ISO and ISO/IEC publications transparently to the maximum extent possible in their national and
regional publications. Any divergence between any ISO, IEC or ISO/IEC publication and the corresponding
national or regional publication should be clearly indicated in the latter.
5) ISO and IEC do not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. ISO or IEC are not responsible
for any services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or ISO or its directors, employees, servants or agents including individual
experts and members of their technical committees and IEC National Committees or ISO member bodies for
any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or
for costs (including legal fees) and expenses arising out of the publication of, use of, or reliance upon, this
ISO/IEC publication or any other IEC, ISO or ISO/IEC publications.
8) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this ISO/IEC publication may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
The main task of the joint technical committee is to prepare International Standards. In
exceptional circumstances, the joint technical committee may propose the publication of a
Technical Specification when
• the required support cannot be obtained for the publication of an International Standard,
despite repeated efforts, or
• when the subject is still under technical development or where, for any other reason, there
is the future but not immediate possibility of an agreement on an International Standard.
Technical Specifications are subject to review within three years of publication to decide
whether they can be transformed into International Standards.
ISO/IEC TS 29125, which is a Technical Specification, has been prepared by subcommittee
25: Interconnection of information technology equipment, of ISO/IEC joint technical
committee 1: Information technology.
This first edition cancels and replaces ISO/IEC TR 29125:2010. This edition constitutes a
technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) extension of the current per conductor from 300 mA to 500 mA;
b) provision of additional details of installation conditions that were not described in
ISO/IEC TR 29125:2010;
c) inclusion of guidelines for cords;
d) inclusion of a model to calculate temperature rise in different bundle sizes.
This Technical Specification has been approved by vote of the member bodies, and the voting
results may be obtained from the address given on the second title page.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
INTRODUCTION
This document specifies the use of generic balanced cabling for customer premises, as
specified in the ISO/IEC 11801 series, for remote powering of terminal equipment. It provides
guidance on new cabling installations and renovations. The customer premises may
encompass one or more buildings or may be within a building that contains more than one
organization. The cabling may be installed prior to the selection of remote powering
equipment or powered terminal equipment.
ISO/IEC 11801-1 specifies a structure and performance requirements for cabling subsystems
that support a wide range of applications. They provide appropriate equipment interfaces to
the cabling infrastructure in equipment rooms, telecommunications rooms and work areas.
A growing number of organizations employ equipment at locations that require the provision of
remote powering. This document was created to provide supplementary information to
ISO/IEC 11801-1 to implement remote powering over generic balanced cabling as specified in
ISO/IEC 11801-1.
This document provides additional guidance for remote powering on the use of balanced
cabling systems as specified in ISO/IEC 11801-1 and guidance on different installation
conditions that require special considerations:
• information to bring together all the considerations about remote powering in a single
document;
• guidance on mating and un-mating of connectors that convey remote power.
This document does not include requirements from national or local safety standards and
regulations.
This document was developed based on a number of contributions describing remote
powering over telecommunications cabling under different installation conditions. The relevant
safety standards and regulations, application standard, and equipment manufacturers give
guidance on factors that should be taken into account during design of the generic balanced
cabling that supports the distribution of remote powering.
This document extends the current per conductor specified in ISO/IEC TR 29125:2010 from
300 mA to 500 mA. This document covers additional details of installation conditions that are
not described in ISO/IEC TR 29125:2010. This document includes guidelines for cords.

INFORMATION TECHNOLOGY –
TELECOMMUNICATIONS CABLING REQUIREMENTS
FOR REMOTE POWERING OF TERMINAL EQUIPMENT

1 Scope
This document
a) addresses the support of safety extra low voltage (SELV) and limited power source (LPS)
applications that provide remote power over balanced cabling in accordance with the
reference implementations of ISO/IEC 11801 series standards using currents per
conductor of up to 500 mA and targets the support of applications that provide remote
power over balanced cabling to terminal equipment,
b) covers the transmission and electrical parameters needed to support remote power over
balanced cabling,
c) covers various installation scenarios and how these may impact the capability of balanced
cabling to support remote powering,
d) specifies design and configuration of cabling as specified in ISO/IEC 11801-1.
NOTE SELV requirements specify a maximum voltage of 60 V DC and LPS is understood in the applications
referenced to be up to 100 W supplied within 4-pair cabling.
This document includes a mathematical model to predict the behaviour of different bundle
sizes, various cabling constructions, and installation conditions for different current
capacities.
Safety (e.g. electrical safety and protection and fire) and electromagnetic compatibility (EMC)
requirements are outside the scope of this document, and are covered by other standards and
regulations. However, information given by this document can be of assistance.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
ISO/IEC 11801-1, Information technology – Generic cabling for customer premises – Part 1:
General requirements
ISO/IEC 14763-2, Information technology – Implementation and operation of customer
premises cabling – Part 2: Planning and installation
ISO/IEC TR 24746, Information technology – Generic cabling for customer premises – Mid-
span DTE power insertion
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 11801-1,
ISO/IEC 14763-2 and the following apply.

– 8 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
power source equipment
equipment that provides power
3.1.2
cable bundle
several cables tied together or in contact with one another in a parallel configuration for at
least 1 m, with the cross-section profile of the arrangement basically circular
3.1.3
conductor
element intended to carry electric current
[SOURCE IEC 60050-151:2001, 151-12-05, modified – The 3 Notes have been deleted.]
3.1.4
current carrying capacity
maximum current a cable circuit (one or several conductors) can support resulting in a
specified increase of temperature of the conductor beyond the ambient temperature, not
exceeding the maximum allowed operating temperature of the cable
[SOURCE: IEC 61156-1:2007/AMD1:2009, 3.24, modified – "increase of temperature" has
replaced "increase of the surface temperature".]
3.1.5
remote powering
supply of power to application specific equipment via balanced cabling
3.1.6
temperature rise
difference in temperature between the initial temperature of the conductor without power and
the final temperature of the powered conductor at steady state
3.2 Abbreviated terms
EMC electromagnetic compatibility
FD floor distributor
HVAC heating, ventilation and air conditioning
PTZ pan, tilt, zoom
WAP wireless access point
4 Conformance
For cabling to comply with this document, the following applies:
a) the design of the cabling shall comply with the relevant cabling design standard of the
ISO/IEC 11801 series;
b) the installation shall comply with ISO/IEC 14763-2 as amended by the additional
requirements of this document.

5 Cabling selection and performance
Cabling for remote powering should be implemented using 4-pair balanced cabling.
This cabling will be used simultaneously to support signal transmission and remote power
feeding for the terminal equipment. This document assumes the use of balanced cabling
components specified in the reference implementation clause of the relevant design standards
of the ISO/IEC 11801 series.
The transmission parameters of balanced cables related to remote powering can be found in
Annex C.
6 Installation conditions
6.1 General
Cabling may be installed in different types of continuous and non-continuous pathway
systems as described in ISO/IEC 14763-2. The installation of a cable within the pathway
systems should take into account the specified operating temperature of the cable. Due to the
Joule effect, each energized conductor has a temperature rise. Larger cable bundles have
more heat generation and therefore the temperature rise is worse than smaller cable bundles.
The cable bundle size is limited by the current capacity in 6.3 and the induced temperature
rise that results in an operating temperature of the cable, not to exceed its temperature rating.
The following guidelines for pathway selection and installation should be considered:
a) installation design including the type of pathways selected, the pathway fill factor, whether
the pathway is sealed at both ends,
b) the pathway environment and whether the pathway goes through thermally insulated
areas, in which case the type of insulation will be a significant factor. For optimal thermal
performance, pathway design should avoid any insulated areas,
c) thermal aspects of the entire pathway (e.g. open tray, closed tray, ventilated, non-
ventilated, plastic conduit, metal conduit, fire barriers) should be taken into account.
6.2 Ambient temperature
Different segments of a link can have different ambient temperatures, which can influence the
amount of remote power that can be delivered. Therefore the ambient temperature in different
length segments of a link or channel has a direct impact on the operating temperature of the
cable used for the link or channel and can limit the capability of the cable for remote power
delivery to powered terminal equipment. The worst case installed cabling condition with
respect to the maximum ambient temperature shall be used to determine the maximum
operating temperature for a link or channel when subject to remote powering.
6.3 Temperature rise and current capacity
When remote power is applied to balanced cabling, the temperature of the cabling will rise
due to resistive heat generation (Joule effect) in the conductors. Depending on cable
construction and installed cabling conditions, the heat generated will be dissipated into the
surrounding environment until a steady state is reached with the temperature of the cable
bundle (operating temperature) higher than the ambient temperature of the surrounding
environment. The maximum temperature of any cable shall not exceed the temperature rating
of the cable. The standards in the ISO/IEC 11801 series require this temperature to be 60 °C
(minimum).
– 10 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
Temperature rise in the cable will lead to an increase in insertion loss as indicated in the
reference implementations of the ISO/IEC 11801 series standards and should be taken into
account when selecting cables and using them in links or channels. The maximum length of
the channel or link should be reduced based on the maximum temperature of the cable using
the de-rating factors in ISO/IEC 11801-1.
The maximum current per conductor for different temperature rise in a bundle of 37 cables of
4-pair Category 5 cables with solid conductors, and 37 cords of 4-pair 0,40 mm stranded
cords with all pairs energized is shown in Table 1.
Annex B provides an engineering model that may be used for specific cable types, cable
constructions, and installation conditions to derive the bundle size for a particular current per
conductor. Clause B.7 describes a simplified version of the engineering model in Annex B and
was used to derive the worst case values in Tables 1, 2, 3 and 4 based on constants
calculated from measurements of typical cables for each cable category. The measurement
procedures used to determine the constants are detailed in Annex F.
Table 1 – Maximum current per conductor versus temperature rise in a 37-cable bundle
in air and conduit (all 4 pairs energized)
Current per conductor Current per conductor
Temperature rise
0,4 mm cords Category 5 cables
°C
mA mA
air conduit air conduit
5 278 223 341 287
7,5 340 273 418 351
10 393 315 482 406
12,5 439 352 539 453
15 481 386 591 497
17,5 520 417 638 537
20 556 446 682 574
Temperature rise above 10 °C shown in grey background is not recommended.
NOTE These values are based on conductor temperature measurement of typical cables and cords.

Table 2 shows current capacity for different categories of cable, independent of construction,
for a given temperature rise.
Table 2 – Calculated worst case current per conductor versus temperature
rise in a bundle of 37 4-pair cables (all pairs energized)
Category 5 Category 6 Category 6 Category 7 Category 7
A A
0,4 mm cords cables cables cables cables cables
∆T mA mA mA mA mA mA
cond- cond- cond- cond- cond- cond-
°C air uit air uit air uit air uit air uit air uit
2 175 141 215 181 246 207 267 229 267 229 324 264
4 248 199 305 256 348 293 378 324 378 324 459 373
6 304 244 373 314 427 359 463 397 463 397 562 457
8 351 282 431 363 493 414 535 459 535 459 649 528
10 393 315 482 406 551 463 598 513 598 513 725 590
12 430 345 528 444 604 507 655 562 655 562 795 646
14 465 373 571 480 652 548 708 607 708 607 858 698
16 497 399 610 513 697 586 756 649 756 649 918 746
18 527 423 647 544 740 622 802 688 802 688 973 792
20 556 446 682 574 780 655 846 725 846 725 1026 835
Temperature rise above 10 °C shown in grey background is not recommended
The values in this table are based on the implicit DC resistance derived from the insertion loss of the various
categories of cable. Manufacturers’ and/or suppliers’ specifications give information relating to a specific cable.
NOTE The current per conductor for each category is dependent on the cable construction.

6.4 Factors affecting temperature increase
6.4.1 General
The steady state temperature for the conductor of any power carrying cable is reached when
the generation of heat within the cable (Joule effect) is equal to the heat dissipated into the
environment, be it the open atmosphere, trays, ducts or other cables which can also be power
carrying cables.
6.4.2 Installation near equipment
Ambient temperature near equipment will be higher and also installation of
telecommunications cables and cords in hot aisles will lead to higher ambient temperature
around the patch cord bundle.
6.4.3 Cable count within a bundle
This document uses 37-cable bundles as the basis for developing the temperature rise and
current per conductor with all pairs energized. For other cases (e.g. where bundle count
exceeds 37 cables), the guidelines provided in 6.4 can be used. Refer to Table 3 to determine
the maximum temperature rise using 500 mA per conductor for cable bundles of different
count.
– 12 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
Table 3 – Temperature rise versus cable bundle size (500 mA per conductor)
Temperature rise
°C
Number
0,4 mm
of
cords Cat 5 cables Cat 6 cables Cat 6 cables Cat 7 cables Cat 7 cables
cables
A A
cond- cond- cond- cond- cond- cond-
air uit air uit air uit air uit air uit air uit
1 1,9 3,1 1,1 1,7 0,8 1,3 0,7 1,1 0,7 1,1 0,6 0,9
7 5,7 9,1 3,5 5,2 2,6 4,0 2,3 3,3 2,3 3,3 1,7 2,6
19 10,5 16,5 6,7 9,7 5,1 7,4 4,4 6,1 4,4 6,1 3,1 4,7
24 12,2 19,1 7,9 11,3 6,0 8,7 5,1 7,1 5,1 7,1 3,6 5,5
37 16,2 25,1 10,7 15,2 8,2 11,6 7,0 9,5 7,0 9,5 4,7 7,2
48 19,3 29,8 13,0 18,2 10,0 14,0 8,5 11,4 8,5 11,4 5,7 8,5
52 20,3 31,4 13,8 19,3 10,6 14,8 9,0 12,0 9,0 12,0 6,0 9,0
61 22,7 34,9 15,5 21,6 12,0 16,6 10,1 13,4 10,1 13,4 6,7 10,0
64 23,5 36,1 16,1 22,4 12,4 17,1 10,5 13,9 10,5 13,9 6,9 10,3
74 26,0 39,8 17,9 24,9 13,9 19,1 11,7 15,4 11,7 15,4 7,7 11,3
91 30,1 45,9 21,0 29,0 16,4 22,2 13,8 17,9 13,8 17,9 8,9 13,1
Temperature rise above 10 °C shown in grey background is not recommended.
The values in this table are based on the implicit DC resistance derived from the insertion loss of the various
categories of cable. Manufacturers’ and/or suppliers’ specifications give information relating to a specific cable.
NOTE 1 The temperature rise (°C) is based upon a current of 500 mA per conductor, for all pairs in all cables in
the bundle.
NOTE 2 The current per conductor for each category is dependent on the cable construction.

6.4.4 Reducing temperature increase
Minimizing the cabling temperature rise is recommended, as it
a) reduces the impact on the transmission performance (e.g. insertion loss) of the cabling,
b) reduces the HVAC loading within the premises,
c) allows operation in higher ambient temperatures without exceeding the cable temperature
rating,
d) reduces the overall cost of delivering remote power by minimizing the resistive heating
loss (power dissipated in the cabling).
The temperature rise can be reduced by minimizing the heat generation and maximizing the
heat dissipation. Examples of how this can be achieved include:
– using higher category cable,
– selecting a larger conductor size which decreases per unit length DC resistance,
– improving thermal dissipation by selecting cable with
• improved heat transfer coefficient between materials within the cable,
• improved heat transfer coefficient between cable sheath and air,
• screen or other additional metallic elements,
• solid insulation,
• a larger diameter,
– reducing the number of energized pairs,

– reducing the number of cables per bundle and avoiding tight cable bundles,
– selection of applications and devices that use lower current.
NOTE Manufacturers’ and/or suppliers’ specifications give information relating to a specific cable.
Mixing power-carrying cabling with unpowered cabling in bundles is also recommended as a
practice to minimize heat rise.
If bundling is necessary, separate large bundles into smaller bundles, as described in
Annex D. Other mitigation considerations are described in Annex A. Otherwise avoid bundling
cables to minimize temperature rise.
Table 4 shows the effect of energizing the number of pairs within a 37-cable bundle for
different cable categories.
The recommendation of ISO/IEC 14763-2 for cable bundles of no more than 24 is further
reinforced for remote powering due to:
1) installation factors,
2) possible high ambient temperature,
3) the use of 0,4 mm conductor diameter cords,
4) higher currents up to 500 mA per conductor with all 4 pairs energized.
Table 4 – Temperature rise for a type of cable versus the number
of energized pairs in a 37-cable bundle (500 mA per conductor)
∆T (°C)
No.
0,4 mm cords Cat 5 cables Cat 6 cables Cat 6 cables Cat 7 cables Cat 7 cables

A A
of
pairs
cond- cond- cond- cond- cond- cond-
air uit air uit air uit air uit air uit air uit
24 5,2 8,4 3,2 4,7 2,4 3,6 2,0 3,0 2,0 3,0 1,5 2,4
48 7,9 12,5 5,0 7,2 3,7 5,5 3,2 4,6 3,2 4,6 2,3 3,6
96 12,2 19,1 7,9 11,3 6,0 8,7 5,1 7,1 5,1 7,1 3,6 5,5
144 15,9 24,7 10,5 14,9 8,0 11,4 6,8 9,3 6,8 9,3 4,7 7,0
148 16,2 25,1 10,7 15,2 8,2 11,6 7,0 9,5 7,0 9,5 4,7 7,2
Temperature rise above 10 C shown in grey background is not recommended.
The values in this table are based on the implicit DC resistance derived from the insertion loss of the various
categories of cable. Manufacturers’ and/or suppliers’ specifications give information relating to a specific cable.
NOTE 1 The temperature rise (°C) is based upon a current of 500 mA on each energized conductor
NOTE 2 The current per conductor for each category is dependent on the cable construction.

6.4.5 Cable bundle suspended in air
The maximum ambient temperature of 50 °C is possible in certain environments and operating
conditions. To allow for this ambient temperature and limit the temperature rise to 10 °C, for
the minimum Category 5 cables supporting 500 mA per conductor, it is necessary to limit the
bundle size to a smaller number than 100 cables.

– 14 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
6.4.6 Administration
The administration system as described in ISO/IEC 14763-2 can be used to select the
channels in a bundle to use to supply power optimally. For example, the administration
system can be used to record the powering details of the cables used for remote powering. An
AIM system as specified in ISO/IEC 18598 can be designed to use bundle records and issue
alerts when a bundle exceeds its thermal capacity.
7 Remote power delivery over balanced cabling
Figure 1 shows examples of specified transmission paths used in generic balanced cabling.
The channel is the transmission path between equipment such as a LAN switch or hub and
the terminal equipment. The channel does not include the connections at the data source
equipment and the terminal equipment. The channel, the permanent link or the CP link shall
meet the transmission requirements specified in the design standards.
Remote power may be provided to terminal equipment via balanced cabling equipment
interfaces. Remote power may be introduced to the balanced cabling channel at the FD using
spare pairs, if available, or by remote power supplied over the phantom circuit of data pairs
from the power sourcing equipment, as shown in Figure 1.
Powered Terminal Equipment
Powered Switch/Hub
signal
signal
signal
signal
signal
signal
signal
signal
power power
balanced pair
source sink
Powered Terminal Equipment
Powered Switch/Hub
signal
signal
power power
source sink
signal
signal
IEC
Figure 1 – Examples of end point powering systems
using signal pairs (top) and spare pairs (bottom)
Alternatively, remote power may be supplied by mid-span power source equipment that
inserts remote power independent of the data source equipment, as shown in Figure 2.

Powered Terminal Equipment
Unpowered Switch/Hub Midspan Power Insertion
signal signal
signal signal
signal signal
signal signal
power power
balanced pair
source sink
Unpowered Switch/Hub Midspan Power Insertion Powered Terminal Equipment
signal
signal
power
power
source
sink
signal
signal
IEC
Figure 2 – Examples of mid-span powering systems
When mid-span power source equipment replaces a generic balanced cabling component or
components, the data pairs shall meet the performance requirements of the component or
components it replaces (e.g. patch cord, patch panel or combination thereof), regardless of
the equipment interfaces used for input and output connections. Placement of mid-span power
insertion equipment shall be external to the permanent link, see ISO/IEC TR 24746.
8 Connecting hardware
Connecting hardware in channels used to support remote power applications shall have an
appropriate current rating when mated. Connecting hardware contacts may deteriorate as a
result of mating or un-mating under electrical load, leading to possible degradation of
transmission characteristics (see IEC 60512-99-001). Manufacturers should be consulted
regarding the number of mating and un-mating cycles supported by connecting hardware
while conveying the intended levels of electrical power.
The temporary removal of remote power should be considered before mating or un-mating
connecting hardware in a remotely powered channel.
It is preferable that remote powering is not present during mating or un-mating of connecting
hardware.
– 16 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
Intelligent powering systems such as Power over Ethernet and Power over Ethernet-plus
(defined in ISO/IEC/IEEE 8802-3) automatically recognize compliant loads before applying the
required level of remote power, thus eliminating electrical stress during connector mating.
ISO/IEC/IEEE 8802-3 also defines optional features to remotely manage the provision of
electrical power to each port via port power management which can be used to remove
remote power from a particular channel prior to un-mating connectors.
Port power management is therefore the preferred approach to reconfiguration of remotely
powered cabling channels.
Where it is not practicable to switch off the remote power before mating or un-mating (e.g. for
power sources that do not have power management), connecting hardware having the
required performance for mating and un-mating under the relevant levels of electrical power
and load should be chosen. These requirements are not within the scope of the balanced
connecting hardware standards (e.g. IEC 60603-7, IEC 61076-3-104 and IEC 61076-3-110)
referenced from ISO/IEC 11801-1 and equivalent standards but may be assessed using
additional test schedules.
NOTE A test schedule for engaging and separating connectors under electrical load is described in
IEC 60512-99-001.
Annex A
(informative)
Mitigation considerations for installed cabling
A.1 General
Installed cabling is not easy to change to support new applications with additional
requirements. Annex A offers some considerations that can be useful to provide remote power
over existing installations of Class D or better balanced cabling. Consideration should be
given to local heat dissipation conditions, for instance going through framed wall construction
or through insulating material.
A.2 Minimum cabling class
Class D is the minimum cabling suitable for remote powering. Better balanced cabling is
recommended to allow higher power needed by emerging applications such as next
generation WAPs and outdoor heated PTZ cameras.
A.3 Bundle size and location
Cables with improved thermal characteristics may be configured into larger bun
...

ISO/IEC TS 29125
Edition 1.0 2017-04
TECHNICAL
SPECIFICATION
colour
inside
Information technology – Telecommunications cabling requirements for remote
powering of terminal equipement

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about
ISO/IEC copyright or have an enquiry about obtaining additional rights to this publication, please contact the address
below or your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: [e-mail].
ISO/IEC TS 29125
Edition 1.0 2017-04
TECHNICAL
SPECIFICATION
colour
inside
Information technology – Telecommunications cabling requirements for remote

powering of terminal equipement

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 35.200 ISBN 978-2-8322-4223-0

– 2 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and abbreviated terms . 7
3.1 Terms and definitions . 7
3.2 Abbreviated terms . 8
4 Conformance . 8
5 Cabling selection and performance . 9
6 Installation conditions . 9
6.1 General . 9
6.2 Ambient temperature. 9
6.3 Temperature rise and current capacity . 9
6.4 Factors affecting temperature increase . 11
6.4.1 General . 11
6.4.2 Installation near equipment . 11
6.4.3 Cable count within a bundle . 11
6.4.4 Reducing temperature increase . 12
6.4.5 Cable bundle suspended in air . 13
6.4.6 Administration. 14
7 Remote power delivery over balanced cabling . 14
8 Connecting hardware . 15
Annex A (informative) Mitigation considerations for installed cabling . 17
A.1 General . 17
A.2 Minimum cabling class . 17
A.3 Bundle size and location . 17
A.4 Mitigation options . 17
Annex B (informative) Modelling temperature rise for cable types, bundle sizes and
installation conditions . 18
B.1 Model basics . 18
B.2 Power dissipated (P) . 18
B.3 Temperature difference from ambient temperature to bundle surface (∆T ) . 19
u
B.3.1 Model equations . 19
B.3.2 Typical values for constant ρ . 19
u
B.4 Temperature difference from bundle surface to bundle centre (∆T ) . 19
th
B.4.1 Model equations . 19
B.4.2 Typical values for constant ρ . 19
th
B.5 Temperature variation within the bundle (∆T(x)) . 20
B.6 Alternative presentation of the model . 20
B.7 Adaptation model used to derive temperature rise vs. cables in a bundle . 20
B.8 Calculations . 21
B.9 Example. 21
B.10 Coefficients for air and conduit. 22
Annex C (informative) Transmission parameters related to remote powering. 23
C.1 DC loop resistance. 23

C.2 DC resistance unbalance (within pair) . 23
C.3 DC resistance unbalance (pair to pair) . 24
Annex D (informative) Illustrations of heating of various bundle sizes and
configurations . 26
D.1 Limiting cable bundle size . 26
D.2 Separating into smaller bundles . 27
Annex E (informative) Test protocol . 28
E.1 Background. 28
E.2 Test set-up . 28
Annex F (informative) Detailed test procedure . 30
F.1 General . 30
F.2 Test set-up . 30
F.2.1 Thermocouple placement . 30
F.2.2 Measurement of cable bundle in air . 31
F.2.3 Measurement of cable bundle in conduit . 32
Bibliography . 34

Figure 1 – Examples of end point powering systems using signal pairs (top) and spare
pairs (bottom) . 14
Figure 2 – Examples of mid-span powering systems . 15
Figure B.1 – Temperature rise profile . 18
Figure D.1 – 91-cable bundle . 26
Figure D.2 – Three bundles of 37 cables . 26
Figure D.3 – Three bundles of 37 cables with separation . 27
Figure E.1 – 37-cable bundle and temperature location. 28
Figure E.2 – "Perfect bundle" and thermocouple configuration . 29
Figure E.3 – Conductor configuration . 29
Figure F.1 – Placement of thermocouple . 30
Figure F.2 – Securing of the thermocouple. 31
Figure F.3 – Test set-up for cable bundles in air . 32
Figure F.4 – Test set-up for cable bundles in conduit . 33

Table 1 – Maximum current per conductor versus temperature rise in a 37-cable
bundle in air and conduit (all 4 pairs energized) . 10
Table 2 – Calculated worst case current per conductor versus temperature rise in a
bundle of 37 4-pair cables (all pairs energized) . 11
Table 3 – Temperature rise versus cable bundle size (500 mA per conductor) . 12
Table 4 – Temperature rise for a type of cable versus the number of energized pairs in
a 37-cable bundle (500 mA per conductor) . 13
Table B.1 – Bundling coefficients for different types of cables and cords (all 4 pairs
energized) . 22
Table C.1 – Maximum DC loop resistance of channels . 23
Table C.2 – DC resistance unbalance of cables, connecting hardware and channels . 24
Table C.3 – DC resistance unbalance (pair to pair) . 25

– 4 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
INFORMATION TECHNOLOGY –
TELECOMMUNICATIONS CABLING REQUIREMENTS
FOR REMOTE POWERING OF TERMINAL EQUIPMENT

FOREWORD
1) ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees established
by the respective organization to deal with particular fields of technical activity. ISO and IEC technical
committees collaborate in fields of mutual interest. Other international organizations, governmental and non-
governmental, in liaison with ISO and IEC, also take part in the work. In the field of information technology,
ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
2) The formal decisions or agreements of IEC and ISO on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested IEC National Committees and ISO member bodies.
3) IEC, ISO and ISO/IEC publications have the form of recommendations for international use and are accepted
by IEC National Committees and ISO member bodies in that sense. While all reasonable efforts are made to
ensure that the technical content of IEC, ISO and ISO/IEC publications is accurate, IEC or ISO cannot be held
responsible for the way in which they are used or for any misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees and ISO member bodies undertake to
apply IEC, ISO and ISO/IEC publications transparently to the maximum extent possible in their national and
regional publications. Any divergence between any ISO, IEC or ISO/IEC publication and the corresponding
national or regional publication should be clearly indicated in the latter.
5) ISO and IEC do not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. ISO or IEC are not responsible
for any services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or ISO or its directors, employees, servants or agents including individual
experts and members of their technical committees and IEC National Committees or ISO member bodies for
any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or
for costs (including legal fees) and expenses arising out of the publication of, use of, or reliance upon, this
ISO/IEC publication or any other IEC, ISO or ISO/IEC publications.
8) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this ISO/IEC publication may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
The main task of the joint technical committee is to prepare International Standards. In
exceptional circumstances, the joint technical committee may propose the publication of a
Technical Specification when
• the required support cannot be obtained for the publication of an International Standard,
despite repeated efforts, or
• when the subject is still under technical development or where, for any other reason, there
is the future but not immediate possibility of an agreement on an International Standard.
Technical Specifications are subject to review within three years of publication to decide
whether they can be transformed into International Standards.
ISO/IEC TS 29125, which is a Technical Specification, has been prepared by subcommittee
25: Interconnection of information technology equipment, of ISO/IEC joint technical
committee 1: Information technology.
This first edition cancels and replaces ISO/IEC TR 29125:2010. This edition constitutes a
technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) extension of the current per conductor from 300 mA to 500 mA;
b) provision of additional details of installation conditions that were not described in
ISO/IEC TR 29125:2010;
c) inclusion of guidelines for cords;
d) inclusion of a model to calculate temperature rise in different bundle sizes.
This Technical Specification has been approved by vote of the member bodies, and the voting
results may be obtained from the address given on the second title page.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
INTRODUCTION
This document specifies the use of generic balanced cabling for customer premises, as
specified in the ISO/IEC 11801 series, for remote powering of terminal equipment. It provides
guidance on new cabling installations and renovations. The customer premises may
encompass one or more buildings or may be within a building that contains more than one
organization. The cabling may be installed prior to the selection of remote powering
equipment or powered terminal equipment.
ISO/IEC 11801-1 specifies a structure and performance requirements for cabling subsystems
that support a wide range of applications. They provide appropriate equipment interfaces to
the cabling infrastructure in equipment rooms, telecommunications rooms and work areas.
A growing number of organizations employ equipment at locations that require the provision of
remote powering. This document was created to provide supplementary information to
ISO/IEC 11801-1 to implement remote powering over generic balanced cabling as specified in
ISO/IEC 11801-1.
This document provides additional guidance for remote powering on the use of balanced
cabling systems as specified in ISO/IEC 11801-1 and guidance on different installation
conditions that require special considerations:
• information to bring together all the considerations about remote powering in a single
document;
• guidance on mating and un-mating of connectors that convey remote power.
This document does not include requirements from national or local safety standards and
regulations.
This document was developed based on a number of contributions describing remote
powering over telecommunications cabling under different installation conditions. The relevant
safety standards and regulations, application standard, and equipment manufacturers give
guidance on factors that should be taken into account during design of the generic balanced
cabling that supports the distribution of remote powering.
This document extends the current per conductor specified in ISO/IEC TR 29125:2010 from
300 mA to 500 mA. This document covers additional details of installation conditions that are
not described in ISO/IEC TR 29125:2010. This document includes guidelines for cords.

INFORMATION TECHNOLOGY –
TELECOMMUNICATIONS CABLING REQUIREMENTS
FOR REMOTE POWERING OF TERMINAL EQUIPMENT

1 Scope
This document
a) addresses the support of safety extra low voltage (SELV) and limited power source (LPS)
applications that provide remote power over balanced cabling in accordance with the
reference implementations of ISO/IEC 11801 series standards using currents per
conductor of up to 500 mA and targets the support of applications that provide remote
power over balanced cabling to terminal equipment,
b) covers the transmission and electrical parameters needed to support remote power over
balanced cabling,
c) covers various installation scenarios and how these may impact the capability of balanced
cabling to support remote powering,
d) specifies design and configuration of cabling as specified in ISO/IEC 11801-1.
NOTE SELV requirements specify a maximum voltage of 60 V DC and LPS is understood in the applications
referenced to be up to 100 W supplied within 4-pair cabling.
This document includes a mathematical model to predict the behaviour of different bundle
sizes, various cabling constructions, and installation conditions for different current
capacities.
Safety (e.g. electrical safety and protection and fire) and electromagnetic compatibility (EMC)
requirements are outside the scope of this document, and are covered by other standards and
regulations. However, information given by this document can be of assistance.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
ISO/IEC 11801-1, Information technology – Generic cabling for customer premises – Part 1:
General requirements
ISO/IEC 14763-2, Information technology – Implementation and operation of customer
premises cabling – Part 2: Planning and installation
ISO/IEC TR 24746, Information technology – Generic cabling for customer premises – Mid-
span DTE power insertion
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 11801-1,
ISO/IEC 14763-2 and the following apply.

– 8 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
power source equipment
equipment that provides power
3.1.2
cable bundle
several cables tied together or in contact with one another in a parallel configuration for at
least 1 m, with the cross-section profile of the arrangement basically circular
3.1.3
conductor
element intended to carry electric current
[SOURCE IEC 60050-151:2001, 151-12-05, modified – The 3 Notes have been deleted.]
3.1.4
current carrying capacity
maximum current a cable circuit (one or several conductors) can support resulting in a
specified increase of temperature of the conductor beyond the ambient temperature, not
exceeding the maximum allowed operating temperature of the cable
[SOURCE: IEC 61156-1:2007/AMD1:2009, 3.24, modified – "increase of temperature" has
replaced "increase of the surface temperature".]
3.1.5
remote powering
supply of power to application specific equipment via balanced cabling
3.1.6
temperature rise
difference in temperature between the initial temperature of the conductor without power and
the final temperature of the powered conductor at steady state
3.2 Abbreviated terms
EMC electromagnetic compatibility
FD floor distributor
HVAC heating, ventilation and air conditioning
PTZ pan, tilt, zoom
WAP wireless access point
4 Conformance
For cabling to comply with this document, the following applies:
a) the design of the cabling shall comply with the relevant cabling design standard of the
ISO/IEC 11801 series;
b) the installation shall comply with ISO/IEC 14763-2 as amended by the additional
requirements of this document.

5 Cabling selection and performance
Cabling for remote powering should be implemented using 4-pair balanced cabling.
This cabling will be used simultaneously to support signal transmission and remote power
feeding for the terminal equipment. This document assumes the use of balanced cabling
components specified in the reference implementation clause of the relevant design standards
of the ISO/IEC 11801 series.
The transmission parameters of balanced cables related to remote powering can be found in
Annex C.
6 Installation conditions
6.1 General
Cabling may be installed in different types of continuous and non-continuous pathway
systems as described in ISO/IEC 14763-2. The installation of a cable within the pathway
systems should take into account the specified operating temperature of the cable. Due to the
Joule effect, each energized conductor has a temperature rise. Larger cable bundles have
more heat generation and therefore the temperature rise is worse than smaller cable bundles.
The cable bundle size is limited by the current capacity in 6.3 and the induced temperature
rise that results in an operating temperature of the cable, not to exceed its temperature rating.
The following guidelines for pathway selection and installation should be considered:
a) installation design including the type of pathways selected, the pathway fill factor, whether
the pathway is sealed at both ends,
b) the pathway environment and whether the pathway goes through thermally insulated
areas, in which case the type of insulation will be a significant factor. For optimal thermal
performance, pathway design should avoid any insulated areas,
c) thermal aspects of the entire pathway (e.g. open tray, closed tray, ventilated, non-
ventilated, plastic conduit, metal conduit, fire barriers) should be taken into account.
6.2 Ambient temperature
Different segments of a link can have different ambient temperatures, which can influence the
amount of remote power that can be delivered. Therefore the ambient temperature in different
length segments of a link or channel has a direct impact on the operating temperature of the
cable used for the link or channel and can limit the capability of the cable for remote power
delivery to powered terminal equipment. The worst case installed cabling condition with
respect to the maximum ambient temperature shall be used to determine the maximum
operating temperature for a link or channel when subject to remote powering.
6.3 Temperature rise and current capacity
When remote power is applied to balanced cabling, the temperature of the cabling will rise
due to resistive heat generation (Joule effect) in the conductors. Depending on cable
construction and installed cabling conditions, the heat generated will be dissipated into the
surrounding environment until a steady state is reached with the temperature of the cable
bundle (operating temperature) higher than the ambient temperature of the surrounding
environment. The maximum temperature of any cable shall not exceed the temperature rating
of the cable. The standards in the ISO/IEC 11801 series require this temperature to be 60 °C
(minimum).
– 10 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
Temperature rise in the cable will lead to an increase in insertion loss as indicated in the
reference implementations of the ISO/IEC 11801 series standards and should be taken into
account when selecting cables and using them in links or channels. The maximum length of
the channel or link should be reduced based on the maximum temperature of the cable using
the de-rating factors in ISO/IEC 11801-1.
The maximum current per conductor for different temperature rise in a bundle of 37 cables of
4-pair Category 5 cables with solid conductors, and 37 cords of 4-pair 0,40 mm stranded
cords with all pairs energized is shown in Table 1.
Annex B provides an engineering model that may be used for specific cable types, cable
constructions, and installation conditions to derive the bundle size for a particular current per
conductor. Clause B.7 describes a simplified version of the engineering model in Annex B and
was used to derive the worst case values in Tables 1, 2, 3 and 4 based on constants
calculated from measurements of typical cables for each cable category. The measurement
procedures used to determine the constants are detailed in Annex F.
Table 1 – Maximum current per conductor versus temperature rise in a 37-cable bundle
in air and conduit (all 4 pairs energized)
Current per conductor Current per conductor
Temperature rise
0,4 mm cords Category 5 cables
°C
mA mA
air conduit air conduit
5 278 223 341 287
7,5 340 273 418 351
10 393 315 482 406
12,5 439 352 539 453
15 481 386 591 497
17,5 520 417 638 537
20 556 446 682 574
Temperature rise above 10 °C shown in grey background is not recommended.
NOTE These values are based on conductor temperature measurement of typical cables and cords.

Table 2 shows current capacity for different categories of cable, independent of construction,
for a given temperature rise.
Table 2 – Calculated worst case current per conductor versus temperature
rise in a bundle of 37 4-pair cables (all pairs energized)
Category 5 Category 6 Category 6 Category 7 Category 7
A A
0,4 mm cords cables cables cables cables cables
∆T mA mA mA mA mA mA
cond- cond- cond- cond- cond- cond-
°C air uit air uit air uit air uit air uit air uit
2 175 141 215 181 246 207 267 229 267 229 324 264
4 248 199 305 256 348 293 378 324 378 324 459 373
6 304 244 373 314 427 359 463 397 463 397 562 457
8 351 282 431 363 493 414 535 459 535 459 649 528
10 393 315 482 406 551 463 598 513 598 513 725 590
12 430 345 528 444 604 507 655 562 655 562 795 646
14 465 373 571 480 652 548 708 607 708 607 858 698
16 497 399 610 513 697 586 756 649 756 649 918 746
18 527 423 647 544 740 622 802 688 802 688 973 792
20 556 446 682 574 780 655 846 725 846 725 1026 835
Temperature rise above 10 °C shown in grey background is not recommended
The values in this table are based on the implicit DC resistance derived from the insertion loss of the various
categories of cable. Manufacturers’ and/or suppliers’ specifications give information relating to a specific cable.
NOTE The current per conductor for each category is dependent on the cable construction.

6.4 Factors affecting temperature increase
6.4.1 General
The steady state temperature for the conductor of any power carrying cable is reached when
the generation of heat within the cable (Joule effect) is equal to the heat dissipated into the
environment, be it the open atmosphere, trays, ducts or other cables which can also be power
carrying cables.
6.4.2 Installation near equipment
Ambient temperature near equipment will be higher and also installation of
telecommunications cables and cords in hot aisles will lead to higher ambient temperature
around the patch cord bundle.
6.4.3 Cable count within a bundle
This document uses 37-cable bundles as the basis for developing the temperature rise and
current per conductor with all pairs energized. For other cases (e.g. where bundle count
exceeds 37 cables), the guidelines provided in 6.4 can be used. Refer to Table 3 to determine
the maximum temperature rise using 500 mA per conductor for cable bundles of different
count.
– 12 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
Table 3 – Temperature rise versus cable bundle size (500 mA per conductor)
Temperature rise
°C
Number
0,4 mm
of
cords Cat 5 cables Cat 6 cables Cat 6 cables Cat 7 cables Cat 7 cables
cables
A A
cond- cond- cond- cond- cond- cond-
air uit air uit air uit air uit air uit air uit
1 1,9 3,1 1,1 1,7 0,8 1,3 0,7 1,1 0,7 1,1 0,6 0,9
7 5,7 9,1 3,5 5,2 2,6 4,0 2,3 3,3 2,3 3,3 1,7 2,6
19 10,5 16,5 6,7 9,7 5,1 7,4 4,4 6,1 4,4 6,1 3,1 4,7
24 12,2 19,1 7,9 11,3 6,0 8,7 5,1 7,1 5,1 7,1 3,6 5,5
37 16,2 25,1 10,7 15,2 8,2 11,6 7,0 9,5 7,0 9,5 4,7 7,2
48 19,3 29,8 13,0 18,2 10,0 14,0 8,5 11,4 8,5 11,4 5,7 8,5
52 20,3 31,4 13,8 19,3 10,6 14,8 9,0 12,0 9,0 12,0 6,0 9,0
61 22,7 34,9 15,5 21,6 12,0 16,6 10,1 13,4 10,1 13,4 6,7 10,0
64 23,5 36,1 16,1 22,4 12,4 17,1 10,5 13,9 10,5 13,9 6,9 10,3
74 26,0 39,8 17,9 24,9 13,9 19,1 11,7 15,4 11,7 15,4 7,7 11,3
91 30,1 45,9 21,0 29,0 16,4 22,2 13,8 17,9 13,8 17,9 8,9 13,1
Temperature rise above 10 °C shown in grey background is not recommended.
The values in this table are based on the implicit DC resistance derived from the insertion loss of the various
categories of cable. Manufacturers’ and/or suppliers’ specifications give information relating to a specific cable.
NOTE 1 The temperature rise (°C) is based upon a current of 500 mA per conductor, for all pairs in all cables in
the bundle.
NOTE 2 The current per conductor for each category is dependent on the cable construction.

6.4.4 Reducing temperature increase
Minimizing the cabling temperature rise is recommended, as it
a) reduces the impact on the transmission performance (e.g. insertion loss) of the cabling,
b) reduces the HVAC loading within the premises,
c) allows operation in higher ambient temperatures without exceeding the cable temperature
rating,
d) reduces the overall cost of delivering remote power by minimizing the resistive heating
loss (power dissipated in the cabling).
The temperature rise can be reduced by minimizing the heat generation and maximizing the
heat dissipation. Examples of how this can be achieved include:
– using higher category cable,
– selecting a larger conductor size which decreases per unit length DC resistance,
– improving thermal dissipation by selecting cable with
• improved heat transfer coefficient between materials within the cable,
• improved heat transfer coefficient between cable sheath and air,
• screen or other additional metallic elements,
• solid insulation,
• a larger diameter,
– reducing the number of energized pairs,

– reducing the number of cables per bundle and avoiding tight cable bundles,
– selection of applications and devices that use lower current.
NOTE Manufacturers’ and/or suppliers’ specifications give information relating to a specific cable.
Mixing power-carrying cabling with unpowered cabling in bundles is also recommended as a
practice to minimize heat rise.
If bundling is necessary, separate large bundles into smaller bundles, as described in
Annex D. Other mitigation considerations are described in Annex A. Otherwise avoid bundling
cables to minimize temperature rise.
Table 4 shows the effect of energizing the number of pairs within a 37-cable bundle for
different cable categories.
The recommendation of ISO/IEC 14763-2 for cable bundles of no more than 24 is further
reinforced for remote powering due to:
1) installation factors,
2) possible high ambient temperature,
3) the use of 0,4 mm conductor diameter cords,
4) higher currents up to 500 mA per conductor with all 4 pairs energized.
Table 4 – Temperature rise for a type of cable versus the number
of energized pairs in a 37-cable bundle (500 mA per conductor)
∆T (°C)
No.
0,4 mm cords Cat 5 cables Cat 6 cables Cat 6 cables Cat 7 cables Cat 7 cables

A A
of
pairs
cond- cond- cond- cond- cond- cond-
air uit air uit air uit air uit air uit air uit
24 5,2 8,4 3,2 4,7 2,4 3,6 2,0 3,0 2,0 3,0 1,5 2,4
48 7,9 12,5 5,0 7,2 3,7 5,5 3,2 4,6 3,2 4,6 2,3 3,6
96 12,2 19,1 7,9 11,3 6,0 8,7 5,1 7,1 5,1 7,1 3,6 5,5
144 15,9 24,7 10,5 14,9 8,0 11,4 6,8 9,3 6,8 9,3 4,7 7,0
148 16,2 25,1 10,7 15,2 8,2 11,6 7,0 9,5 7,0 9,5 4,7 7,2
Temperature rise above 10 C shown in grey background is not recommended.
The values in this table are based on the implicit DC resistance derived from the insertion loss of the various
categories of cable. Manufacturers’ and/or suppliers’ specifications give information relating to a specific cable.
NOTE 1 The temperature rise (°C) is based upon a current of 500 mA on each energized conductor
NOTE 2 The current per conductor for each category is dependent on the cable construction.

6.4.5 Cable bundle suspended in air
The maximum ambient temperature of 50 °C is possible in certain environments and operating
conditions. To allow for this ambient temperature and limit the temperature rise to 10 °C, for
the minimum Category 5 cables supporting 500 mA per conductor, it is necessary to limit the
bundle size to a smaller number than 100 cables.

– 14 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
6.4.6 Administration
The administration system as described in ISO/IEC 14763-2 can be used to select the
channels in a bundle to use to supply power optimally. For example, the administration
system can be used to record the powering details of the cables used for remote powering. An
AIM system as specified in ISO/IEC 18598 can be designed to use bundle records and issue
alerts when a bundle exceeds its thermal capacity.
7 Remote power delivery over balanced cabling
Figure 1 shows examples of specified transmission paths used in generic balanced cabling.
The channel is the transmission path between equipment such as a LAN switch or hub and
the terminal equipment. The channel does not include the connections at the data source
equipment and the terminal equipment. The channel, the permanent link or the CP link shall
meet the transmission requirements specified in the design standards.
Remote power may be provided to terminal equipment via balanced cabling equipment
interfaces. Remote power may be introduced to the balanced cabling channel at the FD using
spare pairs, if available, or by remote power supplied over the phantom circuit of data pairs
from the power sourcing equipment, as shown in Figure 1.
Powered Terminal Equipment
Powered Switch/Hub
signal
signal
signal
signal
signal
signal
signal
signal
power power
balanced pair
source sink
Powered Terminal Equipment
Powered Switch/Hub
signal
signal
power power
source sink
signal
signal
IEC
Figure 1 – Examples of end point powering systems
using signal pairs (top) and spare pairs (bottom)
Alternatively, remote power may be supplied by mid-span power source equipment that
inserts remote power independent of the data source equipment, as shown in Figure 2.

Powered Terminal Equipment
Unpowered Switch/Hub Midspan Power Insertion
signal signal
signal signal
signal signal
signal signal
power power
balanced pair
source sink
Unpowered Switch/Hub Midspan Power Insertion Powered Terminal Equipment
signal
signal
power
power
source
sink
signal
signal
IEC
Figure 2 – Examples of mid-span powering systems
When mid-span power source equipment replaces a generic balanced cabling component or
components, the data pairs shall meet the performance requirements of the component or
components it replaces (e.g. patch cord, patch panel or combination thereof), regardless of
the equipment interfaces used for input and output connections. Placement of mid-span power
insertion equipment shall be external to the permanent link, see ISO/IEC TR 24746.
8 Connecting hardware
Connecting hardware in channels used to support remote power applications shall have an
appropriate current rating when mated. Connecting hardware contacts may deteriorate as a
result of mating or un-mating under electrical load, leading to possible degradation of
transmission characteristics (see IEC 60512-99-001). Manufacturers should be consulted
regarding the number of mating and un-mating cycles supported by connecting hardware
while conveying the intended levels of electrical power.
The temporary removal of remote power should be considered before mating or un-mating
connecting hardware in a remotely powered channel.
It is preferable that remote powering is not present during mating or un-mating of connecting
hardware.
– 16 –  ISO/IEC TS 29125:2017 © ISO/IEC 2017
Intelligent powering systems such as Power over Ethernet and Power over Ethernet-plus
(defined in ISO/IEC/IEEE 8802-3) automatically recognize compliant loads before applying the
required level of remote power, thus eliminating electrical stress during connector mating.
ISO/IEC/IEEE 8802-3 also defines optional features to remotely manage the provision of
electrical power to each port via port power management which can be used to remove
remote power from a particular channel prior to un-mating connectors.
Port power management is therefore the preferred approach to reconfiguration of remotely
powered cabling channels.
Where it is not practicable to switch off the remote power before mating or un-mating (e.g. for
power sources that do not have power management), connecting hardware having the
required performance for mating and un-mating under the relevant levels of electrical power
and load should be chosen. These requirements are not within the scope of the balanced
connecting hardware standards (e.g. IEC 60603-7, IEC 61076-3-104 and IEC 61076-3-110)
referenced from ISO/IEC 11801-1 and equivalent standards but may be assessed using
additional test schedules.
NOTE A test schedule for engaging and separating connectors under electrical load is described in
IEC 60512-99-001.
Annex A
(informative)
Mitigation considerations for installed cabling
A.1 General
Installed cabling is not easy to change to support new applications with additional
requirements. Annex A offers some considerations that can be useful to provide remote power
over existing installations of Class D or better balanced cabling. Consideration should be
given to local heat dissipation conditions, for instance going through framed wall construction
or through insulating material.
A.2 Minimum cabling class
Class D is the minimum cabling suitable for remote powering. Better balanced cabling is
recommended to allow higher power needed by emerging applications such as next
generation WAPs and outdoor heated PTZ cameras.
A.3 Bundle size and location
Cables with improved thermal characteristics may be configured into larger bundles. The
location of a cable bundle is also an important consideration. Conduits sealed at both ends
typically retain more heat than open conduits, leading to a higher temperature rise in the
sealed conduit. If cables are installed in an open tray, the temperature rise will be lower than
the temperature rise in conduits (sealed or uns
...

ISO/IEC TS 29125
Edition 1.2 2024-10
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
colour
inside
Information technology – Telecommunications cabling requirements for remote
powering of terminal equipment

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about ISO/IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].
ISO/IEC TS 29125
Edition 1.2 2024-10
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
colour
inside
Information technology – Telecommunications cabling requirements for remote
powering of terminal equipment
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 35.200 ISBN 978-2-8322-9971-5
REDLINE VERSION – 2 – ISO/IEC TS 29125:2017+AMD1:2020
+AMD2:2024 CSV © ISO/IEC 2024
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
INTRODUCTION to Amendment 1 . 7
INTRODUCTION to Amendment 2 . 7
1 Scope . 8
2 Normative references . 8
3 Terms, definitions and abbreviated terms . 9
3.1 Terms and definitions . 9
3.2 Abbreviated terms . 9
4 Conformance . 10
5 Cabling selection and performance . 10
6 Installation conditions . 10
6.1 General . 10
6.2 Ambient temperature. 10
6.3 Temperature rise and current capacity . 11
6.4 Factors affecting temperature increase . 13
6.4.1 General . 13
6.4.2 Installation near equipment . 13
6.4.3 Cable count within a bundle . 13
6.4.4 Reducing temperature increase . 15
6.4.5 Cable bundle suspended in air . 21
6.4.6 Administration. 21
7 Remote power delivery over balanced cabling . 21
7.1 4-pair balanced cabling . 21
7.2 1-pair balanced cabling . 23
8 Connecting hardware . 24
8.1 General . 24
8.2 4-pair balanced cabling . 24
8.3 1-pair balanced cabling . 25
Annex A (informative) Mitigation considerations for installed cabling . 26
A.1 General . 26
A.2 Minimum cabling class . 26
A.3 Bundle size and location . 26
A.4 Mitigation options . 26
Annex B (informative) Modelling temperature rise for cable types, bundle sizes and
installation conditions . 27
B.1 Model basics . 27
B.2 Power dissipated (P) . 27
B.3 Temperature difference from ambient temperature to bundle surface (∆T ) . 28
u
B.3.1 Model equations . 28
B.3.2 Typical values for constant ρ . 28
u
B.4 Temperature difference from bundle surface to bundle centre (∆T ) . 28
th
B.4.1 Model equations . 28
B.4.2 Typical values for constant ρ . 28
th
B.5 Temperature variation within the bundle (∆T(x)) . 29

+AMD2:2024 CSV © ISO/IEC 2024
B.6 Alternative presentation of the model . 29
B.7 Adaptation model used to derive temperature rise vs. cables in a bundle . 29
B.8 Calculations . 30
B.9 Example. 30
B.10 Coefficients for air and conduit. 31
Annex C (informative) Transmission parameters related to remote powering. 33
C.1 DC loop resistance. 33
C.1.1 4-pair cabling . 33
C.1.2 1-pair cabling . 33
C.2 DC resistance unbalance (within pair) . 34
C.2.1 General . 34
C.2.2 4-pair cabling . 34
C.2.3 1-pair cabling . 34
C.3 DC resistance unbalance (pair to pair) . 34
Annex D (informative) Illustrations of heating of various bundle sizes and
configurations . 36
D.1 Limiting cable bundle size . 36
D.2 Separating into smaller bundles . 37
Annex E (informative) Test protocol . 38
E.1 Background. 38
E.2 Test set-up . 38
Annex F (informative) Detailed test procedure . 41
F.1 General . 41
F.2 Test set-up . 41
F.2.1 Thermocouple placement . 41
F.2.2 Measurement of cable bundle in air . 42
F.2.3 Measurement of cable bundle in conduit . 43
Bibliography . 45

Figure 3 – Temperature rise for a 0,57 mm conductor diameter 1-pair cable versus
current for different bundle sizes in air . 18
Figure 4 – Temperature rise for a 0,57 mm conductor diameter 1-pair cable versus
current for different bundle sizes in conduit . 19
Figure 6 – Temperature rise for a 1,02 mm conductor diameter 1-pair cable versus
current for different bundle sizes in air . 20
Figure 7 – Temperature rise for a 1,02 mm conductor diameter 1-pair cable versus
current for different bundle sizes in conduit . 21
Figure 1 – Examples of end point powering systems using signal pairs (top) and spare
pairs (bottom) . 22
Figure 2 – Examples of mid-span powering systems . 23
Figure 5 – Single pair remote powering using signal pairs . 24
Figure B.1 – Temperature rise profile . 27
Figure D.1 – 91-cable bundle . 36
Figure D.2 – Three bundles of 37 cables . 36
Figure D.3 – Three bundles of 37 cables with separation . 37
Figure E.1 – 37-cable bundle and temperature location. 38
Figure E.2 – "Perfect bundle" and thermocouple configuration . 39

REDLINE VERSION – 4 – ISO/IEC TS 29125:2017+AMD1:2020
+AMD2:2024 CSV © ISO/IEC 2024
Figure E.3 – 4-pair cabling conductor configuration . 39
Figure E.4 – 1-pair cabling conductor configuration . 39
Figure F.1 – Placement of thermocouple . 41
Figure F.2 – Securing of the thermocouple. 42
Figure F.3 – Test set-up for cable bundles in air . 43
Figure F.4 – Test set-up for cable bundles in conduit . 44

Table 1 – Maximum current per conductor versus temperature rise in a 37 4-pair cable
bundle in air and conduit (all 4 pairs energized) . 11
Table 5 – Maximum current per conductor versus temperature rise in a 37 1-pair cable
bundle in air and conduit . 12
Table 2 – Calculated worst case current per conductor versus temperature rise in a
bundle of 37 4-pair cables (all pairs energized) . 12
Table 6 – Calculated worst case current per conductor versus temperature rise in a
bundle of 37 1-pair cables of different conductor diameters in air and conduit . 13
Table 3 – Temperature rise versus 4-pair cable bundle size (500 mA per conductor) . 14
Table 7 – Temperature rise versus 1-pair cable bundle size (1 000 mA per conductor) . 15
Table 4 – Temperature rise for a type of 4-pair cable versus the number of energized
pairs in a 37-cable bundle (500 mA per conductor) . 17
Table 8 – Temperature rise for a 0,57 mm conductor diameter 1-pair cable versus
current for different bundle sizes in air . 17
Table 9 – Temperature rise for a 0,57 mm conductor diameter 1-pair cable versus
current for different bundle sizes in conduit . 18
Table 10 – Temperature rise for a 1,02 mm conductor diameter 1-pair cable versus
current for different bundle sizes in air . 19
Table 11 – Temperature rise for a 1,02 mm conductor diameter 1-pair cable versus
current for different bundle sizes in conduit . 20
Table B.1 – Bundling coefficients for different types of 4-pair cables and cords (all 4
pairs energized) in air and conduit . 31
Table B.2 – DC resistance and bundling coefficients for 1-pair cables of different
conductor diameters (all conductors energized) in air and conduit . 32
Table C.1 – Maximum DC loop resistance of channels . 33
Table C.4 – Maximum DC loop resistance of 1-pair channels . 33
Table C.2 – DC resistance unbalance of 4-pair cables, connecting hardware and
channels . 34
Table C.3 – DC resistance unbalance (pair to pair) . 35

+AMD2:2024 CSV © ISO/IEC 2024
INFORMATION TECHNOLOGY –
TELECOMMUNICATIONS CABLING REQUIREMENTS
FOR REMOTE POWERING OF TERMINAL EQUIPMENT

FOREWORD
1) ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees established
by the respective organization to deal with particular fields of technical activity. ISO and IEC technical
committees collaborate in fields of mutual interest. Other international organizations, governmental and non-
governmental, in liaison with ISO and IEC, also take part in the work.
2) The formal decisions or agreements of IEC and ISO on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested IEC and ISO National bodies.
3) IEC and ISO documents have the form of recommendations for international use and are accepted by IEC and
ISO National bodies in that sense. While all reasonable efforts are made to ensure that the technical content of
IEC and ISO documents is accurate, IEC and ISO cannot be held responsible for the way in which they are
used or for any misinterpretation by any end user.
4) In order to promote international uniformity, IEC and ISO National bodies undertake to apply IEC and ISO
documents transparently to the maximum extent possible in their national and regional publications. Any
divergence between any IEC and ISO document and the corresponding national or regional publication shall be
clearly indicated in the latter.
5) IEC and ISO do not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC and ISO marks of conformity. IEC and ISO are not
responsible for any services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this document.
7) No liability shall attach to IEC and ISO or their directors, employees, servants or agents including individual
experts and members of its technical committees and IEC and ISO National bodies for any personal injury,
property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including
legal fees) and expenses arising out of the publication, use of, or reliance upon, this ISO/IEC document or any
other IEC and ISO documents.
8) Attention is drawn to the Normative references cited in this document. Use of the referenced publications is
indispensable for the correct application of this document.
9) IEC and ISO draw attention to the possibility that the implementation of this document may involve the use of
(a) patent(s). IEC and ISO take no position concerning the evidence, validity or applicability of any claimed
patent rights in respect thereof. As of the date of publication of this document, IEC and ISO had not received
notice of (a) patent(s), which may be required to implement this document. However, implementers are
cautioned that this may not represent the latest information, which may be obtained from the patent database
available at https://patents.iec.ch and www.iso.org/patents. IEC and ISO shall not be held responsible for
identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendments has been
prepared for user convenience.
ISO/IEC TS 29125 edition 1.2 contains the first edition (2017-04), its amendment 1 (2020-
05) [documents JTC1-SC25/2919/DTS and JTC1-SC25/2945/RVDTS] and its amendment 2
(2024-10) [documents JTC1-SC25/3272/DTS and JTC1-SC25/3289/RVDTS].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendments 1 and 2. Additions are in green text, deletions are in
strikethrough red text. A separate Final version with all changes accepted is available
in this publication.
REDLINE VERSION – 6 – ISO/IEC TS 29125:2017+AMD1:2020
+AMD2:2024 CSV © ISO/IEC 2024
The main task of the joint technical committee is to prepare International Standards. In
exceptional circumstances, the joint technical committee may propose the publication of a
Technical Specification when
• the required support cannot be obtained for the publication of an International Standard,
despite repeated efforts, or
• when the subject is still under technical development or where, for any other reason, there
is the future but not immediate possibility of an agreement on an International Standard.
Technical Specifications are subject to review within three years of publication to decide
whether they can be transformed into International Standards.
ISO/IEC TS 29125, which is a Technical Specification, has been prepared by subcommittee
25: Interconnection of information technology equipment, of ISO/IEC joint technical
committee 1: Information technology.
This first edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) extension of the current per conductor from 300 mA to 500 mA;
b) provision of additional details of installation conditions that were not described in
ISO/IEC TR 29125:2010;
c) inclusion of guidelines for cords;
d) inclusion of a model to calculate temperature rise in different bundle sizes.
This Technical Specification has been approved by vote of the member bodies, and the voting
results may be obtained from the address given on the second title page.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
+AMD2:2024 CSV © ISO/IEC 2024
INTRODUCTION
This document specifies the use of generic balanced cabling for customer premises, as
specified in the ISO/IEC 11801 series, for remote powering of terminal equipment. It provides
guidance on new cabling installations and renovations. The customer premises may
encompass one or more buildings or may be within a building that contains more than one
organization. The cabling may be installed prior to the selection of remote powering
equipment or powered terminal equipment.
ISO/IEC 11801-1 specifies a structure and performance requirements for cabling subsystems
that support a wide range of applications. They provide appropriate equipment interfaces to
the cabling infrastructure in equipment rooms, telecommunications rooms and work areas.
A growing number of organizations employ equipment at locations that require the provision of
remote powering. This document was created to provide supplementary information to
ISO/IEC 11801-1 to implement remote powering over generic balanced cabling as specified in
ISO/IEC 11801-1.
This document provides additional guidance for remote powering on the use of balanced
cabling systems as specified in ISO/IEC 11801-1 and guidance on different installation
conditions that require special considerations:
• information to bring together all the considerations about remote powering in a single
document;
• guidance on wire diameter and bundling on heating;
• guidance on mating and un-mating of connectors that convey remote power.
This document does not include requirements from national or local safety standards and
regulations.
This document was developed based on a number of contributions describing remote
powering over telecommunications cabling under different installation conditions. The relevant
safety standards and regulations, application standard, and equipment manufacturers give
guidance on factors that should be taken into account during design of the generic balanced
cabling that supports the distribution of remote powering.
This document extends the current per conductor specified in ISO/IEC TR 29125:2010 from
300 mA to 500 mA. This document covers additional details of installation conditions that are
not described in ISO/IEC TR 29125:2010. This document includes guidelines for cords. This
document addresses the use of generic balanced single pair cabling for customer premises,
to be specified in future amendments of the ISO/IEC 11801 series, for remote powering of
terminal equipment. This document uses measurements and empirical models to estimate the
thermal performance of single pair cable bundles of various conductor diameters.
INTRODUCTION to Amendment 1
This amendment incorporates changes necessary to include remote powering using single
pair cabling.
INTRODUCTION to Amendment 2
This amendment incorporates changes necessary to extend the current for remote powering
using single pair cabling up to 2 000 mA.

REDLINE VERSION – 8 – ISO/IEC TS 29125:2017+AMD1:2020
+AMD2:2024 CSV © ISO/IEC 2024
INFORMATION TECHNOLOGY –
TELECOMMUNICATIONS CABLING REQUIREMENTS
FOR REMOTE POWERING OF TERMINAL EQUIPMENT

1 Scope
This document
a) addresses the support of safety extra low voltage (SELV) and limited power source (LPS)
applications that provide remote power over:
• 4-pair balanced cabling in accordance with the reference implementations of
ISO/IEC 11801 series standards using currents per conductor of up to 500 mA;
• 1-pair balanced cabling using currents per conductor of up to 2 000 mA;
and targets the support of applications that provide remote power over balanced cabling to
terminal equipment,
b) covers the transmission and electrical parameters needed to support remote power over
balanced cabling,
c) covers various installation scenarios and how these may impact the capability of balanced
cabling to support remote powering,
d) specifies design and configuration of cabling as specified in ISO/IEC 11801-1.
NOTE SELV requirements specify a maximum voltage of 60 V DC and LPS is understood in the applications
referenced to be up to 100 W supplied within 4-pair cabling.
This document includes a mathematical model to predict the behaviour of different bundle
sizes, various cabling constructions, and installation conditions for different current
capacities.
Safety (e.g. electrical safety and protection and fire) and electromagnetic compatibility (EMC)
requirements are outside the scope of this document, and are covered by other standards and
regulations. However, information given by this document can be of assistance.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
ISO/IEC 11801-1, Information technology – Generic cabling for customer premises – Part 1:
General requirements
ISO/IEC 14763-2, Information technology – Implementation and operation of customer
premises cabling – Part 2: Planning and installation
ISO/IEC TR 24746, Information technology – Generic cabling for customer premises – Mid-
span DTE power insertion
+AMD2:2024 CSV © ISO/IEC 2024
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 11801-1,
ISO/IEC 14763-2 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
power source equipment
equipment that provides power
3.1.2
cable bundle
several cables tied together or in contact with one another in a parallel configuration for at
least 1 m, with the cross-section profile of the arrangement basically circular
3.1.3
conductor
element intended to carry electric current
[SOURCE IEC 60050-151:2001, 151-12-05, modified – The 3 Notes have been deleted.]
3.1.4
current carrying capacity
maximum current a cable circuit (one or several conductors) can support resulting in a
specified increase of temperature of the conductor beyond the ambient temperature, not
exceeding the maximum allowed operating temperature of the cable
[SOURCE: IEC 61156-1:2007/AMD1:2009, 3.24, modified – "increase of temperature" has
replaced "increase of the surface temperature".]
3.1.5
remote powering
supply of power to application specific equipment via balanced cabling
3.1.6
temperature rise
difference in temperature between the initial temperature of the conductor without power and
the final temperature of the powered conductor at steady state
3.2 Abbreviated terms
EMC electromagnetic compatibility
FD floor distributor
HVAC heating, ventilation and air conditioning
PTZ pan, tilt, zoom
WAP wireless access point
REDLINE VERSION – 10 – ISO/IEC TS 29125:2017+AMD1:2020
+AMD2:2024 CSV © ISO/IEC 2024
4 Conformance
For cabling to comply with this document, the following applies:
a) the design of the cabling shall comply with the relevant cabling design standard of the
ISO/IEC 11801 series;
b) the installation shall comply with ISO/IEC 14763-2 as amended by the additional
requirements of this document.
5 Cabling selection and performance
Cabling for remote powering should can be implemented using 4-pair and 1-pair balanced
cabling.
This cabling will be used simultaneously to support signal transmission and remote power
feeding for the terminal equipment. This document assumes the use of balanced cabling
components specified in the reference implementation clause of the relevant design standards
of the ISO/IEC 11801 series.
The transmission parameters of balanced cables related to remote powering can be found in
Annex C.
6 Installation conditions
6.1 General
Cabling may be installed in different types of continuous and non-continuous pathway
systems as described in ISO/IEC 14763-2. The installation of a cable within the pathway
systems should take into account the specified operating temperature of the cable. Due to the
Joule effect, each energized conductor has a temperature rise. Larger cable bundles have
more heat generation and therefore the temperature rise is worse than smaller cable bundles.
The cable bundle size is limited by the current capacity in 6.3 and the induced temperature
rise that results in an operating temperature of the cable, not to exceed its temperature rating.
The following guidelines for pathway selection and installation should be considered:
a) installation design including the type of pathways selected, the pathway fill factor, whether
the pathway is sealed at both ends,
b) the pathway environment and whether the pathway goes through thermally insulated
areas, in which case the type of insulation will be a significant factor. For optimal thermal
performance, pathway design should avoid any insulated areas,
c) thermal aspects of the entire pathway (e.g. open tray, closed tray, ventilated, non-
ventilated, plastic conduit, metal conduit, fire barriers) should be taken into account.
6.2 Ambient temperature
Different segments of a link can have different ambient temperatures, which can influence the
amount of remote power that can be delivered. Therefore the ambient temperature in different
length segments of a link or channel has a direct impact on the operating temperature of the
cable used for the link or channel and can limit the capability of the cable for remote power
delivery to powered terminal equipment. The worst case installed cabling condition with
respect to the maximum ambient temperature shall be used to determine the maximum
operating temperature for a link or channel when subject to remote powering.

+AMD2:2024 CSV © ISO/IEC 2024
6.3 Temperature rise and current capacity
When remote power is applied to balanced cabling, the temperature of the cabling will rise
due to resistive heat generation (Joule effect) in the conductors. Depending on cable
construction and installed cabling conditions, the heat generated will be dissipated into the
surrounding environment until a steady state is reached with the temperature of the cable
bundle (operating temperature) higher than the ambient temperature of the surrounding
environment. The maximum temperature of any cable shall not exceed the temperature rating
of the cable. The standards in the ISO/IEC 11801 series require this temperature to be 60 °C
(minimum) specify this temperature up to 60 °C in MICE C environments and 70 °C in MICE
C and C environments.
2 3
Temperature rise in the cable will lead to an increase in insertion loss as indicated in the
reference implementations of the ISO/IEC 11801 series standards and should be taken into
account when selecting cables and using them in links or channels. The maximum length of
the channel or link should be reduced based on the maximum temperature of the cable using
the de-rating factors in ISO/IEC 11801-1.
The maximum current per conductor for different temperature rise in a bundle of 37 cables of
4-pair Category 5 cables with solid conductors, and 37 cords of 4-pair 0,40 mm stranded
cords with all pairs energized is shown in Table 1.
The maximum current per conductor for different temperature rise in a bundle of 37 cables of
1-pair cables with 0,57 mm diameter conductors, and 37 cords of 1-pair 0,40 mm cords with
all pairs energized is shown in Table 5.
Annex B provides an engineering model that may be used for specific cable types, cable
constructions, and installation conditions to derive the bundle size for a particular current per
conductor. Clause B.7 describes a simplified version of the engineering model in Annex B and
was used to derive the worst case values in Tables 1, 2, 3 and 4 to 9 based on constants
calculated from measurements of typical cables for each cable category or conductor
diameter. The measurement procedures used to determine the constants are detailed in
Annex F.
Table 1 – Maximum current per conductor versus temperature rise in a 37 4-pair cable
bundle in air and conduit (all 4 pairs energized)
Current per conductor Current per conductor
Temperature rise
0,4 mm cords Category 5 cables
°C
mA mA
air conduit air conduit
5 278 223 341 287
7,5 340 273 418 351
10 393 315 482 406
12,5 439 352 539 453
15 481 386 591 497
17,5 520 417 638 537
20 556 446 682 574
Temperature rise above 10 °C shown in grey background is not recommended.
NOTE These values are based on conductor temperature measurement of typical cables and cords.

REDLINE VERSION – 12 – ISO/IEC TS 29125:2017+AMD1:2020
+AMD2:2024 CSV © ISO/IEC 2024
Table 5 – Maximum current per conductor versus temperature rise
in a 37 1-pair cable bundle in air and conduit
Temperature Current per conductor
rise
0,57 mm wire diameter 0,40 mm stranded wire 1,02 mm stranded wire
diameter (cords) diameter (cords)
K mA mA mA
air conduit air conduit air conduit
5 866 738 608 518 1 550 1 320
7,5 1 061 904 744 634 1 900 1 620
10 1 225 1 044 860 732 2 190 1 870
12,5 1 370 1 167 961 819 - 2 090
15 1 501 1 278 1 053 897 - -
17,5 1 621 1 381 1 137 969 - -
20 1 733 1 476 1 216 1 036 - -
Temperature rise above 10 K shown in grey background is not recommended for cables installed in an
environment that can reach 50 °C.
NOTE 1 These values are based on conductor temperature measurement of typical cables and cords.
NOTE 2 Currents above 2 000 mA are for information only.

Table 2 shows current capacity for different categories of 4-pair cable, independent of
construction, for a given temperature rise. Table 6 shows current capacity for 1-pair cables of
conductor diameters of cable, independent of construction, for a given temperature rise.
Table 2 – Calculated worst case current per conductor versus temperature
rise in a bundle of 37 4-pair cables (all pairs energized)
Category 5 Category 6 Category 6 Category 7 Category 7
A A
0,4 mm cords cables cables cables cables cables
∆T mA mA mA mA mA mA
cond- cond- cond- cond- cond- cond-
°C air uit air uit air uit air uit air uit air uit
2 175 141 215 181 246 207 267 229 267 229 324 264
4 248 199 305 256 348 293 378 324 378 324 459 373
6 304 244 373 314 427 359 463 397 463 397 562 457
8 351 282 431 363 493 414 535 459 535 459 649 528
10 393 315 482 406 551 463 598 513 598 513 725 590
12 430 345 528 444 604 507 655 562 655 562 795 646
14 465 373 571 480 652 548 708 607 708 607 858 698
16 497 399 610 513 697 586 756 649 756 649 918 746
18 527 423 647 544 740 622 802 688 802 688 973 792
20 556 446 682 574 780 655 846 725 846 725 1026 835
Temperature rise above 10 °C shown in grey background is not recommended
The values in this table are based on the implicit DC resistance derived from the insertion loss of the various
categories of cable. Manufacturers’ and/or suppliers’ specifications give information relating to a specific cable.
NOTE The current per conductor for each category is dependent on the cable construction.

+AMD2:2024 CSV © ISO/IEC 2024
Table 6 – Calculated worst case current per conductor versus temperature rise
in a bundle of 37 1-pair cables of different conductor diameters in air and conduit
0,40 mm 0,51 mm 0,57 mm 0,65 mm 0,81 mm 1,02 mm
diameter diameter diameter diameter diameter diameter

∆T mA mA mA mA mA mA
°C air conduit air conduit air conduit air conduit air conduit air conduit
2 384 327 490 417 548 466 624 532 779 663 981 835
4 543 463 693 590 775 660 883 753 1 101 938 1 387 1 181
6 666 567 849 723 949 808 1 082 922 1 349 1 149 1 699 1 446
8 769 655 981 835 1 096 933 1 249 1 065 1 558 1 327 1 962 1 670
10 860 732 1 096 934 1 225 1 044 1 397 1 190 1 742 1 484 2 194 1 867
12 942 802 1 201 1 023 1 342 1 143 1 530 1 304 1 908 1 625 2 403 2 046
14 1 017 867 1 297 1 105 1 450 1 235 1 653 1 409 2 061 1 755 2 596 2 210
16 1 087 926 1 387 1 181 1 550 1 320 1 767 1 506 2 203 1 877 2 775 2 362
18 1 153 983 1 471 1 253 1 644 1 400 1 874 1 597 2 337 1 991 2 943 2 506
20 1 216 1 036 1 551 1 321 1 733 1 476 1 976 1 684 2 463 2 098 3 102 2 641
Temperature rise above 10 °C shown in grey background is not recommended.
The values in this table are based on the implicit DC resistance derived from the insertion loss of the various
conductor diameters of cable. Manufacturers' and/or suppliers' specifications give information relating to a
specific cable.
NOTE 1 The current per conductor for each 1-pair cable is also dependent on the cable construction.
NOTE 2 Currents above 2 000 mA are for information only.

6.4 Factors affecting temperature increase
6.4.1 General
The steady state temperature for the conductor of any power carrying cable is reached when
the generation of heat within the cable (Joule effect) is equal to the heat dissipated into the
environment, be it the open atmosphere, trays, ducts or other cables which can also be power
carrying cables.
6.4.2 Installation near equipment
Ambient temperature near equipment will be higher and also installation of
telecommunications cables and cords in hot aisles will lead to higher ambient temperature
around the patch cord bundle.
6.4.3 Cable count within a bundle
This document uses 37-cable bundles as the basis for developing the temperature rise and
current per conductor with all pairs energized. For other cases (e.g. where bundle count
exceeds 37 cables), the guidelines provided in 6.4 can be used. Refer to Table 3 to determine
the maximum temperature rise using 500 mA per conductor for cable bundles of different
count.
Refer to Table 7 to determine the maximum temperature rise using 2 000 mA per conductor
for 1-pair cable bundles of different count.
NOTE The temperature rise of one cable is lower than that of a 7-cable bundle shown in all tables.

REDLINE VERSION – 14 – ISO/IEC TS 29125:2017+AMD1:2020
+AMD2:2024 CSV © ISO/IEC 2024
Table 3 – Temperature rise versus 4-pair cable bundle size (500 mA per conductor)
Temperature rise
°C
Number
0,4 mm
of
cords Cat 5 cables Cat 6 cables Cat 6 cables Cat 7 cables Cat 7 cables

cables
A A
cond- cond- cond- cond- cond- cond-
air uit air uit air uit air uit air uit air uit
1 1,9 3,1 1,1 1,7 0,8 1,3 0,7 1,1 0,7 1,1 0,6 0,9
7 5,7 9,1 3,5 5,2 2,6 4,0 2,3 3,3 2,3 3,3 1,7 2,6
19 10,5 16,5 6,7 9,7 5,1 7,4 4,4 6,1 4,4 6,1 3,1 4,7
24 12,2 19,1 7,9 11,3 6,0 8,7 5,1 7,1 5,1 7,1 3,6 5,5
37 16,2 25,1 10,7 15,2 8,2 11,6 7,0 9,5 7,0 9,5 4,7 7,2
48 19,3 29,8 13,0 18,2 10,0 14,0 8,5 11,4 8,5 11,4 5,7 8,5
52 20,3 31,4 13,8 19,3 10,6 14,8 9,0 12,0 9,0 12,0 6,0 9,0
61 22,7 34,9 15,5 21,6 12,0 16,6 10,1 13,4 10,1 13,4 6,7 10,0
64 23,5 36,1 16,1 22,4 12,4 17,1 10,5 13,9 10,5 13,9 6,9 10,3
74 26,0 39,8 17,9 24,9 13,9 19,1 11,7 15,4 11,7 15,4 7,7 11,3
91 30,1 45,9 21,0 29,0 16,4 22,2 13,8 17,9 13,8 17,9 8,9 13,1
Temperature rise above 10 °C shown in grey background is not recommended.
The values in this table are based on the implicit DC resistance derived from the insertion loss of the various
categories of cable. Manufacturers’ and/or suppliers’ specifications give information relating to a specific cable.
NOTE 1 The temperature rise (°C) is based upon a current of 500 mA per conductor, for all pairs in all cables in
the bundle.
NOTE 2 The current per conductor for each category is dependent on the cable construction.

+AMD2:2024 CSV © ISO/IEC 2024
Table 7 – Temperature rise versus 1-pair cabl
...

ISO/IEC TS 29125
Edition 1.1 2020-05
CONSOLIDATED VERSION
TECHNICAL
SPECIFICATION
colour
inside
Information technology – Telecommunications cabling requirements for remote
powering of terminal equipment

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about
ISO/IEC copyright or have an enquiry about obtaining additional rights to this publication, please contact the address
below or your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and definitions clause of
IEC publications issued between 2002 and 2015. Some
IEC Customer Service Centre - webstore.iec.ch/csc entries have been collected from earlier publications of IEC
If you wish to give us your feedback on this publication or TC 37, 77, 86 and CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].
ISO/IEC TS 29125
Edition 1.1 2020-05
CONSOLIDATED VERSION
TECHNICAL
SPECIFICATION
colour
inside
Information technology – Telecommunications cabling requirements for remote

powering of terminal equipment

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 35.200 ISBN 978-2-8322-8389-9

ISO/IEC TS 29125
Edition 1.1 2020-05
CONSOLIDATED VERSION
REDLINE VERSION
colour
inside
Information technology – Telecommunications cabling requirements for remote
powering of terminal equipment

– 2 – ISO/IEC TS 29125:2017+AMD1:2020 CSV
© ISO/IEC 2020
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
INTRODUCTION to the amendment . 7
1 Scope . 8
2 Normative references . 8
3 Terms, definitions and abbreviated terms . 9
3.1 Terms and definitions . 9
3.2 Abbreviated terms . 9
4 Conformance . 10
5 Cabling selection and performance . 10
6 Installation conditions . 10
6.1 General . 10
6.2 Ambient temperature. 10
6.3 Temperature rise and current capacity . 11
6.4 Factors affecting temperature increase . 13
6.4.1 General . 13
6.4.2 Installation near equipment . 13
6.4.3 Cable count within a bundle . 13
6.4.4 Reducing temperature increase . 15
6.4.5 Cable bundle suspended in air . 19
6.4.6 Administration. 19
7 Remote power delivery over balanced cabling . 19
7.1 4-pair balanced cabling . 19
7.2 1-pair balanced cabling . 21
8 Connecting hardware . 22
8.1 General . 22
8.2 4-pair balanced cabling . 22
8.3 1-pair balanced cabling . 23
Annex A (informative) Mitigation considerations for installed cabling . 24
A.1 General . 24
A.2 Minimum cabling class . 24
A.3 Bundle size and location . 24
A.4 Mitigation options . 24
Annex B (informative) Modelling temperature rise for cable types, bundle sizes and
installation conditions . 25
B.1 Model basics . 25
B.2 Power dissipated (P) . 25
B.3 Temperature difference from ambient temperature to bundle surface (∆T ) . 26
u
B.3.1 Model equations . 26
B.3.2 Typical values for constant ρ . 26
u
B.4 Temperature difference from bundle surface to bundle centre (∆T ) . 26
th
B.4.1 Model equations . 26
B.4.2 Typical values for constant ρ . 26
th
B.5 Temperature variation within the bundle (∆T(x)) . 27
B.6 Alternative presentation of the model . 27

© ISO/IEC 2020
B.7 Adaptation model used to derive temperature rise vs. cables in a bundle . 27
B.8 Calculations . 28
B.9 Example. 28
B.10 Coefficients for air and conduit. 29
Annex C (informative) Transmission parameters related to remote powering. 30
C.1 DC loop resistance. 30
C.1.1 4-pair cabling . 30
C.1.2 1-pair cabling . 30
C.2 DC resistance unbalance (within pair) . 30
C.2.1 General . 30
C.2.2 4-pair cabling . 31
C.2.3 1-pair cabling . 31
C.3 DC resistance unbalance (pair to pair) . 31
Annex D (informative) Illustrations of heating of various bundle sizes and
configurations . 33
D.1 Limiting cable bundle size . 33
D.2 Separating into smaller bundles . 34
Annex E (informative) Test protocol . 35
E.1 Background. 35
E.2 Test set-up . 35
Annex F (informative) Detailed test procedure . 38
F.1 General . 38
F.2 Test set-up . 38
F.2.1 Thermocouple placement . 38
F.2.2 Measurement of cable bundle in air . 39
F.2.3 Measurement of cable bundle in conduit . 40
Bibliography . 42

Figure 1 – Examples of end point powering systems using signal pairs (top) and spare
pairs (bottom) . 20
Figure 2 – Examples of mid-span powering systems . 21
Figure 3 – Temperature rise for a 0,57 mm conductor diameter 1-pair cable versus
current for different bundle sizes in air . 18
Figure 4 – Temperature rise for a 0,57 mm conductor diameter 1-pair cable versus
current for different bundle sizes in conduit . 19
Figure 5 – Single pair remote powering using signal pairs . 22
Figure B.1 – Temperature rise profile . 25
Figure D.1 – 91-cable bundle . 33
Figure D.2 – Three bundles of 37 cables . 33
Figure D.3 – Three bundles of 37 cables with separation . 34
Figure E.1 – 37-cable bundle and temperature location. 35
Figure E.2 – "Perfect bundle" and thermocouple configuration . 36
Figure E.3 –4-pair cabling conductor configuration. 36
Figure E.4 – 1-pair cabling conductor configuration . 36
Figure F.1 – Placement of thermocouple . 38
Figure F.2 – Securing of the thermocouple. 39
Figure F.3 – Test set-up for cable bundles in air . 40

– 4 – ISO/IEC TS 29125:2017+AMD1:2020 CSV
© ISO/IEC 2020
Figure F.4 – Test set-up for cable bundles in conduit . 41

Table 1 – Maximum current per conductor versus temperature rise in a 37 4-pair cable
bundle in air and conduit (all 4 pairs energized) . 11
Table 2 – Calculated worst case current per conductor versus temperature rise in a
bundle of 37 4-pair cables (all pairs energized) . 12
Table 3 – Temperature rise versus 4-pair cable bundle size (500 mA per conductor) . 14
Table 4 – Temperature rise for a type of 4-pair cable versus the number of energized
pairs in a 37-cable bundle (500 mA per conductor) . 17
Table 5 – Maximum current per conductor versus temperature rise in a 37 1-pair cable
bundle in air and conduit . 12
Table 6 – Calculated worst case current per conductor versus temperature rise in a
bundle of 37 1-pair cables of different conductor diameters in air and conduit . 13
Table 7 – Temperature rise versus 1-pair cable bundle size (1 000 mA per conductor) . 15
Table 8 – Temperature rise for a 0,57 mm conductor diameter 1-pair cable versus
current for different bundle sizes in air . 17
Table 9 – Temperature rise for a 0,57 mm conductor diameter 1-pair cable versus
current for different bundle sizes in conduit . 18
Table B.1 – Bundling coefficients for different types of 4-pair cables and cords (all 4
pairs energized) in air and conduit . 29
Table B.2 – DC resistance and bundling coefficients for 1-pair cables of different
conductor diameters (all conductors energized) in air and conduit . 29
Table C.1 – Maximum DC loop resistance of channels . 30
Table C.2 – DC resistance unbalance of 4-pair cables, connecting hardware and
channels . 31
Table C.3 – DC resistance unbalance (pair to pair) . 32

© ISO/IEC 2020
INFORMATION TECHNOLOGY –
TELECOMMUNICATIONS CABLING REQUIREMENTS
FOR REMOTE POWERING OF TERMINAL EQUIPMENT

FOREWORD
1) ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees established
by the respective organization to deal with particular fields of technical activity. ISO and IEC technical
committees collaborate in fields of mutual interest. Other international organizations, governmental and non-
governmental, in liaison with ISO and IEC, also take part in the work. In the field of information technology,
ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
2) The formal decisions or agreements of IEC and ISO on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested IEC National Committees and ISO member bodies.
3) IEC, ISO and ISO/IEC publications have the form of recommendations for international use and are accepted
by IEC National Committees and ISO member bodies in that sense. While all reasonable efforts are made to
ensure that the technical content of IEC, ISO and ISO/IEC publications is accurate, IEC or ISO cannot be held
responsible for the way in which they are used or for any misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees and ISO member bodies undertake to
apply IEC, ISO and ISO/IEC publications transparently to the maximum extent possible in their national and
regional publications. Any divergence between any ISO, IEC or ISO/IEC publication and the corresponding
national or regional publication should be clearly indicated in the latter.
5) ISO and IEC do not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. ISO or IEC are not responsible
for any services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or ISO or its directors, employees, servants or agents including individual
experts and members of their technical committees and IEC National Committees or ISO member bodies for
any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or
for costs (including legal fees) and expenses arising out of the publication of, use of, or reliance upon, this
ISO/IEC publication or any other IEC, ISO or ISO/IEC publications.
8) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this ISO/IEC publication may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment(s) has been
prepared for user convenience.
ISO/IEC TS 29125 edition 1.1 contains the first edition (2017-04) and its amendment 1
(2020-05) [documents JTC1-SC25/2919/DTS and JTC1-SC25/2945/RVDTS].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendment 1. Additions are in green text, deletions are in strikethrough
red text. A separate Final version with all changes accepted is available in this
publication.
– 6 – ISO/IEC TS 29125:2017+AMD1:2020 CSV
© ISO/IEC 2020
The main task of the joint technical committee is to prepare International Standards. In
exceptional circumstances, the joint technical committee may propose the publication of a
Technical Specification when
• the required support cannot be obtained for the publication of an International Standard,
despite repeated efforts, or
• when the subject is still under technical development or where, for any other reason, there
is the future but not immediate possibility of an agreement on an International Standard.
Technical Specifications are subject to review within three years of publication to decide
whether they can be transformed into International Standards.
ISO/IEC TS 29125, which is a Technical Specification, has been prepared by subcommittee
25: Interconnection of information technology equipment, of ISO/IEC joint technical
committee 1: Information technology.
This first edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) extension of the current per conductor from 300 mA to 500 mA;
b) provision of additional details of installation conditions that were not described in
ISO/IEC TR 29125:2010;
c) inclusion of guidelines for cords;
d) inclusion of a model to calculate temperature rise in different bundle sizes.
This Technical Specification has been approved by vote of the member bodies, and the voting
results may be obtained from the address given on the second title page.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
© ISO/IEC 2020
INTRODUCTION
This document specifies the use of generic balanced cabling for customer premises, as
specified in the ISO/IEC 11801 series, for remote powering of terminal equipment. It provides
guidance on new cabling installations and renovations. The customer premises may
encompass one or more buildings or may be within a building that contains more than one
organization. The cabling may be installed prior to the selection of remote powering
equipment or powered terminal equipment.
ISO/IEC 11801-1 specifies a structure and performance requirements for cabling subsystems
that support a wide range of applications. They provide appropriate equipment interfaces to
the cabling infrastructure in equipment rooms, telecommunications rooms and work areas.
A growing number of organizations employ equipment at locations that require the provision of
remote powering. This document was created to provide supplementary information to
ISO/IEC 11801-1 to implement remote powering over generic balanced cabling as specified in
ISO/IEC 11801-1.
This document provides additional guidance for remote powering on the use of balanced
cabling systems as specified in ISO/IEC 11801-1 and guidance on different installation
conditions that require special considerations:
• information to bring together all the considerations about remote powering in a single
document;
• guidance on mating and un-mating of connectors that convey remote power.
This document does not include requirements from national or local safety standards and
regulations.
This document was developed based on a number of contributions describing remote
powering over telecommunications cabling under different installation conditions. The relevant
safety standards and regulations, application standard, and equipment manufacturers give
guidance on factors that should be taken into account during design of the generic balanced
cabling that supports the distribution of remote powering.
This document extends the current per conductor specified in ISO/IEC TR 29125:2010 from
300 mA to 500 mA. This document covers additional details of installation conditions that are
not described in ISO/IEC TR 29125:2010. This document includes guidelines for cords. This
document addresses the use of generic balanced single pair cabling for customer premises,
to be specified in future amendments of the ISO/IEC 11801 series, for remote powering of
terminal equipment. This document uses measurements and empirical models to estimate the
thermal performance of single pair cable bundles of various conductor diameters.

INTRODUCTION to the amendment
This amendment incorporates changes necessary to include remote powering using single
pair cabling.
– 8 – ISO/IEC TS 29125:2017+AMD1:2020 CSV
© ISO/IEC 2020
INFORMATION TECHNOLOGY –
TELECOMMUNICATIONS CABLING REQUIREMENTS
FOR REMOTE POWERING OF TERMINAL EQUIPMENT

1 Scope
This document
a) addresses the support of safety extra low voltage (SELV) and limited power source (LPS)
applications that provide remote power over:
• 4-pair balanced cabling in accordance with the reference implementations of
ISO/IEC 11801 series standards using currents per conductor of up to 500 mA;
• 1-pair balanced cabling using currents per conductor of up to 1 000 mA;
and targets the support of applications that provide remote power over balanced cabling to
terminal equipment,
b) covers the transmission and electrical parameters needed to support remote power over
balanced cabling,
c) covers various installation scenarios and how these may impact the capability of balanced
cabling to support remote powering,
d) specifies design and configuration of cabling as specified in ISO/IEC 11801-1.
NOTE SELV requirements specify a maximum voltage of 60 V DC and LPS is understood in the applications
referenced to be up to 100 W supplied within 4-pair cabling.
This document includes a mathematical model to predict the behaviour of different bundle
sizes, various cabling constructions, and installation conditions for different current
capacities.
Safety (e.g. electrical safety and protection and fire) and electromagnetic compatibility (EMC)
requirements are outside the scope of this document, and are covered by other standards and
regulations. However, information given by this document can be of assistance.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
ISO/IEC 11801-1, Information technology – Generic cabling for customer premises – Part 1:
General requirements
ISO/IEC 14763-2, Information technology – Implementation and operation of customer
premises cabling – Part 2: Planning and installation
ISO/IEC TR 24746, Information technology – Generic cabling for customer premises – Mid-
span DTE power insertion
© ISO/IEC 2020
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 11801-1,
ISO/IEC 14763-2 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
power source equipment
equipment that provides power
3.1.2
cable bundle
several cables tied together or in contact with one another in a parallel configuration for at
least 1 m, with the cross-section profile of the arrangement basically circular
3.1.3
conductor
element intended to carry electric current
[SOURCE IEC 60050-151:2001, 151-12-05, modified – The 3 Notes have been deleted.]
3.1.4
current carrying capacity
maximum current a cable circuit (one or several conductors) can support resulting in a
specified increase of temperature of the conductor beyond the ambient temperature, not
exceeding the maximum allowed operating temperature of the cable
[SOURCE: IEC 61156-1:2007/AMD1:2009, 3.24, modified – "increase of temperature" has
replaced "increase of the surface temperature".]
3.1.5
remote powering
supply of power to application specific equipment via balanced cabling
3.1.6
temperature rise
difference in temperature between the initial temperature of the conductor without power and
the final temperature of the powered conductor at steady state
3.2 Abbreviated terms
EMC electromagnetic compatibility
FD floor distributor
HVAC heating, ventilation and air conditioning
PTZ pan, tilt, zoom
WAP wireless access point
– 10 – ISO/IEC TS 29125:2017+AMD1:2020 CSV
© ISO/IEC 2020
4 Conformance
For cabling to comply with this document, the following applies:
a) the design of the cabling shall comply with the relevant cabling design standard of the
ISO/IEC 11801 series;
b) the installation shall comply with ISO/IEC 14763-2 as amended by the additional
requirements of this document.
5 Cabling selection and performance
Cabling for remote powering should can be implemented using 4-pair and 1-pair balanced
cabling.
This cabling will be used simultaneously to support signal transmission and remote power
feeding for the terminal equipment. This document assumes the use of balanced cabling
components specified in the reference implementation clause of the relevant design standards
of the ISO/IEC 11801 series.
The transmission parameters of balanced cables related to remote powering can be found in
Annex C.
6 Installation conditions
6.1 General
Cabling may be installed in different types of continuous and non-continuous pathway
systems as described in ISO/IEC 14763-2. The installation of a cable within the pathway
systems should take into account the specified operating temperature of the cable. Due to the
Joule effect, each energized conductor has a temperature rise. Larger cable bundles have
more heat generation and therefore the temperature rise is worse than smaller cable bundles.
The cable bundle size is limited by the current capacity in 6.3 and the induced temperature
rise that results in an operating temperature of the cable, not to exceed its temperature rating.
The following guidelines for pathway selection and installation should be considered:
a) installation design including the type of pathways selected, the pathway fill factor, whether
the pathway is sealed at both ends,
b) the pathway environment and whether the pathway goes through thermally insulated
areas, in which case the type of insulation will be a significant factor. For optimal thermal
performance, pathway design should avoid any insulated areas,
c) thermal aspects of the entire pathway (e.g. open tray, closed tray, ventilated, non-
ventilated, plastic conduit, metal conduit, fire barriers) should be taken into account.
6.2 Ambient temperature
Different segments of a link can have different ambient temperatures, which can influence the
amount of remote power that can be delivered. Therefore the ambient temperature in different
length segments of a link or channel has a direct impact on the operating temperature of the
cable used for the link or channel and can limit the capability of the cable for remote power
delivery to powered terminal equipment. The worst case installed cabling condition with
respect to the maximum ambient temperature shall be used to determine the maximum
operating temperature for a link or channel when subject to remote powering.

© ISO/IEC 2020
6.3 Temperature rise and current capacity
When remote power is applied to balanced cabling, the temperature of the cabling will rise
due to resistive heat generation (Joule effect) in the conductors. Depending on cable
construction and installed cabling conditions, the heat generated will be dissipated into the
surrounding environment until a steady state is reached with the temperature of the cable
bundle (operating temperature) higher than the ambient temperature of the surrounding
environment. The maximum temperature of any cable shall not exceed the temperature rating
of the cable. The standards in the ISO/IEC 11801 series require this temperature to be 60 °C
(minimum).
Temperature rise in the cable will lead to an increase in insertion loss as indicated in the
reference implementations of the ISO/IEC 11801 series standards and should be taken into
account when selecting cables and using them in links or channels. The maximum length of
the channel or link should be reduced based on the maximum temperature of the cable using
the de-rating factors in ISO/IEC 11801-1.
The maximum current per conductor for different temperature rise in a bundle of 37 cables of
4-pair Category 5 cables with solid conductors, and 37 cords of 4-pair 0,40 mm stranded
cords with all pairs energized is shown in Table 1.
The maximum current per conductor for different temperature rise in a bundle of 37 cables of
1-pair cables with 0,57 mm diameter conductors, and 37 cords of 1-pair 0,40 mm cords with
all pairs energized is shown in Table 5.
Annex B provides an engineering model that may be used for specific cable types, cable
constructions, and installation conditions to derive the bundle size for a particular current per
conductor. Clause B.7 describes a simplified version of the engineering model in Annex B and
was used to derive the worst case values in Tables 1, 2, 3 and 4 to 9 based on constants
calculated from measurements of typical cables for each cable category or conductor
diameter. The measurement procedures used to determine the constants are detailed in
Annex F.
Table 1 – Maximum current per conductor versus temperature rise in a 37 4-pair cable
bundle in air and conduit (all 4 pairs energized)
Current per conductor Current per conductor
Temperature rise
0,4 mm cords Category 5 cables
°C
mA mA
air conduit air conduit
5 278 223 341 287
7,5 340 273 418 351
10 393 315 482 406
12,5 439 352 539 453
15 481 386 591 497
17,5 520 417 638 537
20 556 446 682 574
Temperature rise above 10 °C shown in grey background is not recommended.
NOTE These values are based on conductor temperature measurement of typical cables and cords.

– 12 – ISO/IEC TS 29125:2017+AMD1:2020 CSV
© ISO/IEC 2020
Table 5 – Maximum current per conductor versus temperature rise
in a 37 1-pair cable bundle in air and conduit
Temperature rise Current per conductor 0,57 mm diameter Current per conductor 0,40 mm cords
°C mA mA
air conduit air conduit
5 866 738 608 518
7,5 1 061 904 744 634
10 1 225 1 044 860 732
12,5 1 370 1 167 961 819
15 1 501 1 278 1 053 897
17,5 1 621 1 381 1 137 969
20 1 733 1 476 1 216 1 036
Temperature rise above 10 °C shown in grey background is not recommended.
NOTE These values are based on conductor temperature measurement of typical cables and cords.

Table 2 shows current capacity for different categories of 4-pair cable, independent of
construction, for a given temperature rise. Table 6 shows current capacity for 1-pair cables of
conductor diameters of cable, independent of construction, for a given temperature rise.
Table 2 – Calculated worst case current per conductor versus temperature
rise in a bundle of 37 4-pair cables (all pairs energized)
Category 5 Category 6 Category 6 Category 7 Category 7
A A
0,4 mm cords cables cables cables cables cables
∆T
mA mA mA mA mA mA
cond- cond- cond- cond- cond- cond-
°C air uit air uit air uit air uit air uit air uit
2 175 141 215 181 246 207 267 229 267 229 324 264
4 248 199 305 256 348 293 378 324 378 324 459 373
6 304 244 373 314 427 359 463 397 463 397 562 457
8 351 282 431 363 493 414 535 459 535 459 649 528
10 393 315 482 406 551 463 598 513 598 513 725 590
12 430 345 528 444 604 507 655 562 655 562 795 646
14 465 373 571 480 652 548 708 607 708 607 858 698
16 497 399 610 513 697 586 756 649 756 649 918 746
18 527 423 647 544 740 622 802 688 802 688 973 792
20 556 446 682 574 780 655 846 725 846 725 1026 835
Temperature rise above 10 °C shown in grey background is not recommended
The values in this table are based on the implicit DC resistance derived from the insertion loss of the various
categories of cable. Manufacturers’ and/or suppliers’ specifications give information relating to a specific cable.
NOTE The current per conductor for each category is dependent on the cable construction.

© ISO/IEC 2020
Table 6 – Calculated worst case current per conductor versus temperature
rise in a bundle of 37 1-pair cables of different conductor diameters in air and conduit
0,32 mm 0,40 mm 0,51 mm 0,57 mm 0,65 mm 0,81 mm 1,02 mm
diameter diameter diameter diameter diameter diameter diameter

ΔT mA mA mA mA mA mA mA
°C air conduit air conduit air conduit air conduit air conduit air conduit air conduit
2 307 262 384 327 490 417 548 466 624 532 779 663 981 835
4 435 370 543 463 693 590 775 660 883 753 1 101 938 1 387 1 181
6 533 454 666 567 849 723 949 808 1 082 922 1 349 1 149 1 699 1 446
8 615 524 769 655 981 835 1 096 933 1 249 1 065 1 558 1 327 1 962 1 670
10 688 586 860 732 1 096 934 1 225 1 044 1 397 1 190 1 742 1 484 2 194 1 867
12 753 642 942 802 1 201 1 023 1 342 1 143 1 530 1 304 1 908 1 625 2 403 2 046
14 814 693 1 017 867 1 297 1 105 1 450 1 235 1 653 1 409 2 061 1 755 2 596 2 210
16 870 741 1 087 926 1 387 1 181 1 550 1 320 1 767 1 506 2 203 1 877 2 775 2 362
18 923 786 1 153 983 1 471 1 253 1 644 1 400 1 874 1 597 2 337 1 991 2 943 2 506
20 973 829 1 216 1 036 1 551 1 321 1 733 1 476 1 976 1 684 2 463 2 098 3 102 2 641
Temperature rise above 10 °C shown in grey background is not recommended.
The values in this table are based on the implicit DC resistance derived from the insertion loss of the various
conductor diameters of cable. Manufacturers' and/or suppliers' specifications give information relating to a
specific cable.
NOTE The current per conductor for each 1-pair cable is also dependent on the cable construction.

6.4 Factors affecting temperature increase
6.4.1 General
The steady state temperature for the conductor of any power carrying cable is reached when
the generation of heat within the cable (Joule effect) is equal to the heat dissipated into the
environment, be it the open atmosphere, trays, ducts or other cables which can also be power
carrying cables.
6.4.2 Installation near equipment
Ambient temperature near equipment will be higher and also installation of
telecommunications cables and cords in hot aisles will lead to higher ambient temperature
around the patch cord bundle.
6.4.3 Cable count within a bundle
This document uses 37-cable bundles as the basis for developing the temperature rise and
current per conductor with all pairs energized. For other cases (e.g. where bundle count
exceeds 37 cables), the guidelines provided in 6.4 can be used. Refer to Table 3 to determine
the maximum temperature rise using 500 mA per conductor for cable bundles of different
count.
This document uses 37-cable bundles as the basis for developing the temperature rise and
current per conductor with all pairs energized. For other cases (e.g. where bundle count
exceeds 37 cables), the guidelines provided in 6.4 can be used.
Refer to Table 7 to determine the maximum temperature rise using 1 000 mA per conductor
for 1-pair cable bundles of different count.

– 14 – ISO/IEC TS 29125:2017+AMD1:2020 CSV
© ISO/IEC 2020
Table 3 – Temperature rise versus 4-pair cable bundle size (500 mA per conductor)
Temperature rise
°C
Number
0,4 mm
of
cords Cat 5 cables Cat 6 cables Cat 6 cables Cat 7 cables Cat 7 cables

cables
A A
cond- cond- cond- cond- cond- cond-
air uit air uit air uit air uit air uit air uit
1 1,9 3,1 1,1 1,7 0,8 1,3 0,7 1,1 0,7 1,1 0,6 0,9
7 5,7 9,1 3,5 5,2 2,6 4,0 2,3 3,3 2,3 3,3 1,7 2,6
19 10,5 16,5 6,7 9,7 5,1 7,4 4,4 6,1 4,4 6,1 3,1 4,7
24 12,2 19,1 7,9 11,3 6,0 8,7 5,1 7,1 5,1 7,1 3,6 5,5
37 16,2 25,1 10,7 15,2 8,2 11,6 7,0 9,5 7,0 9,5 4,7 7,2
48 19,3 29,8 13,0 18,2 10,0 14,0 8,5 11,4 8,5 11,4 5,7 8,5
52 20,3 31,4 13,8 19,3 10,6 14,8 9,0 12,0 9,0 12,0 6,0 9,0
61 22,7 34,9 15,5 21,6 12,0 16,6 10,1 13,4 10,1 13,4 6,7 10,0
64 23,5 36,1 16,1 22,4 12,4 17,1 10,5 13,9 10,5 13,9 6,9 10,3
74 26,0 39,8 17,9 24,9 13,9 19,1 11,7 15,4 11,7 15,4 7,7 11,3
91 30,1 45,9 21,0 29,0 16,4 22,2 13,8 17,9 13,8 17,9 8,9 13,1
Temperature rise above 10 °C shown in grey background is not recommended.
The values in this table are based on the implicit DC resistance derived from the insertion loss of the various
categories of cable. Manufacturers’ and/or suppliers’ specifications give information relating to a specific cable.
NOTE 1 The temperature rise (°C) is based upon a current of 500 mA per conductor, for all pairs in all cables in
the bundle.
NOTE 2 The current per conductor for each category is dependent on the cable construction.

© ISO/IEC 2020
Table 7 – Temperature rise versus 1-pair cable bundle size
(1 000 mA per conductor)
Temperature rise
°C
Number 0,32 mm 0,40 mm 0,51 mm 0,57 mm 0,65 mm 0,81 mm 1,02 mm
of cables diameter diameter diameter diameter diameter diameter diameter
mA mA mA mA mA mA mA
air conduit air conduit air conduit air conduit air conduit air conduit air conduit
1 2,9 4,4 1,9 2,8 1,1 1,7 0,9 1,4 0,7 1,1 0,5 0,7 0,3 0,4
7 8,2 11,9 5,2 7,6 3,2 4,7 2,6 3,8 2,0 2,9 1,3 1,9 0,8 1,2
19 14,3 20,2 9,2 12,9 5,6 8,0 4,5 6,4 3,5 4,9 2,2 3,2 1,4 2,0
24 16,4 23,0 10,5 14,7 6,4 9,0 5,2 7,2 4,0 5,6 2,6 3,6 1,6 2,3
37 21,1 29,1 13,5 18,6 8,3 11,5 6,7 9,2 5,1 7,1 3,3 4,5 2,1 2,9
48 24,7 33,6 15,8 21,5 9,7 13,2 7,8 10,6 6,0 8,1 3,9 5,2 2,4 3,3
52 25,9 35,2 16,6 22,5 10,2 13,8 8,2 11,1 6,3 8,5 4,0 5,5 2,5 3,5
61 28,6 38,5 18,3 24,6 11,3 15,1 9,0 12,1 6,9 9,3 4,5 6,0 2,8 3,8
64 29,4 39,5 18,8 25,3 11,6 15,6 9,3 12,5 7,1 9,6 4,6 6,2 2,9 3,9
74 32,2 42,9 20,6 27,5 12,7 16,9 10,2 13,5 7,8 10,4 5,0 6,7 3,2 4,2
91 36,7 48,4 23,5 31,0 14,5 19,0 11,6 15,2 8,9 11.7 5,7 7,5 3,6 4,8
Temperature rise above 10 °C shown in grey background is not recommended.
The values in this table are based on the implicit DC resistance of the various conductor diameters of cable.
Manufacturers' and/or suppliers' specifications give information relating to a specific cable.
NOTE 1 The temperature rise (°C) is based upon a current of 1 000 mA per conductor, for all cables in the
bundle.
NOTE 2 The current per conductor for each conductor diameter is also dependent on the cable construction.

6.4.4 Reducing temperature increase
Minimizing the cabling temperature rise is recommended, as it
a) reduces the impact on the tr
...
