IEC 60317-36:2013

Specifications for particular types of winding wires - Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with a bonding layer

IEC 60317-36:2013 specifies the requirements of solderable enamelled round copper winding wire of class 180 with a dual coating. The underlying coating is based on polyesterimide resin, which may be modified providing it retains the chemical identity of the original resin and meets all specified wire requirements. The superimposed coating is a bonding layer based on a thermoplastic resin. NOTE - A modified resin is a resin that has undergone a chemical change, or contains one or more additives to enhance certain performance or application characteristics. The range of nominal conductor diameters covered by this part is:
- Grade 1B: 0,020 mm up to and including 1,600 mm;
- Grade 2B: 0,020 mm up to and including 1,600 mm. The nominal conductor diameters are specified in Clause 4 of IEC 60317-0-1:2013. This second edition cancels and replaces the first edition published in 1992, Amendment 1:1997 and Amendment 2:1999. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- new 3.2.2 containing general notes on winding wire, formerly a part of the scope;
- revision to references to IEC 60317-0-1:2013 to clarify that their application is normative;
- consolidation of 17.1 and 17.2 of the solderability requirements;
- new Clause 23, Pin hole test. Keywords: requirements of solderable enamelled round copper winding wire, class 180, dual coating

Spécifications pour types particuliers de fils de bobinage - Partie 36: Fil brasable de section circulaire en cuivre émaillé avec polyesterimide, classe 180, avec une couche adhérente

La CEI 60317-36:2013 spécifie les exigences pour les fils de bobinage brasables de section circulaire en cuivre émaillé de classe 180 avec un double revêtement. La sous-couche est à base de résine polyesterimide, qui peut être modifiée sous réserve de conserver l'identité chimique de la résine initiale et de répondre à toutes les exigences spécifiées pour le fil. La surcouche est une couche adhérente à base de résine thermoplastique. NOTE - Une résine modifiée est une résine qui a subi une modification chimique, ou qui contient un ou plusieurs additifs pour améliorer certaines performances ou les caractéristiques d'utilisation. La gamme des diamètres nominaux des conducteurs couverte par la présente partie est:
- Grade 1B: 0,020 mm jusqu'à 1,600 mm compris;
- Grade 2B: 0,020 mm jusqu'à 1,600 mm compris. Les diamètres nominaux des conducteurs sont spécifiés dans l'Article 4 de la CEI 60317-0-1:2013. Cette deuxième édition annule et remplace la première édition parue en 1992, l'Amendement 1:1997 et l'Amendement 2:1999. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- un nouveau 3.2.2 contenant des notes générales sur le fil de bobinage intégrées auparavant au domaine d'application;
- la révision des références à la CEI 60317-0-1:2013 pour bien établir que leur application est normative;
- la consolidation de 17.1 et 17.2 des exigences relatives à la brasabilité;
- un nouvel Article 23, Détection des microfissures en immersion. Mots clés: exigences pour les fils de bobinage brasables de section circulaire en cuivre émaillé, classe 180, double revêtement

General Information

• Status: Published
• Publication Date: 13-Jun-2024
• ICS: 23.140 - Compressors and pneumatic machines
• ICS: 29.060.10 - Wires
• Technical Committee: TC 55 - Winding wires
• Drafting Committee: WG 1 - TC 55/WG 1
• Current Stage: PPUB - Publication issued
• Start Date: 14-Oct-2013
• Completion Date: 15-Nov-2013

Relations

• Amended By: IEC 60317-36:2013/AMD1:2019 - Amendment 1 - Specifications for particular types of winding wires - Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with a bonding layer
• Effective Date: 05-Sep-2023
• Amended By: IEC 60317-36:2013/AMD2:2024 - Amendment 2 - Specifications for particular types of winding wires - Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with a bonding layer
• Effective Date: 05-Sep-2023
• Revises: IEC 60317-36:1992 - Specifications for particular types of winding wires - Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with a bonding layer
• Effective Date: 05-Sep-2023
• Revises: IEC 60317-36:1992/AMD1:1997 - Amendment 1 - Specifications for particular types of winding wires - Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with a bonding layer
• Effective Date: 05-Sep-2023
• Revises: IEC 60317-36:1992/AMD2:1999 - Amendment 2 - Specifications for particular types of winding wires - Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with a bonding layer
• Effective Date: 05-Sep-2023

Overview

IEC 60317-36:2013 specifies the requirements of solderable enamelled round copper winding wire, class 180, with a dual coating. The wire uses an underlying polyesterimide enamel (which may be modified while retaining its chemical identity) plus a thermoplastic bonding layer to enable solderability and improved bonding. The standard covers manufacturing, dimensions, performance tests and acceptance criteria for solderable polyesterimide enamelled round copper wire, class 180, with a bonding layer for nominal conductor diameters from 0.020 mm up to and including 1.600 mm (Grades 1B and 2B).

Key topics and requirements

• Thermal class: Class 180 (temperature index 180); minimum heat shock temperature of 200 °C.
• Dual coating composition: Polyesterimide base enamel + thermoplastic bonding layer for solderability and heat/solvent bonding.
• Conductor diameter range: Grade 1B and Grade 2B both cover 0.020 mm to 1.600 mm (nominal diameters per IEC 60317-0-1).
• Electrical & mechanical tests: Dimensions, electrical resistance, elongation, springiness, flexibility, adherence, heat shock, cut-through (no failure within 2 min at 265 °C), resistance to abrasion, solvents, breakdown voltage, continuity of insulation and dielectric dissipation factor.
• Solderability: Consolidated solderability requirements covering small and larger diameters to ensure reliable solder joints.
• Bonding tests: Heat and solvent bonding strength tests for helical and twisted coils.
• New/updated tests: Addition of Clause 23 - Pin hole test, consolidation of solderability clauses and clarifications to normative references in the 2nd edition and later amendments.
• Normative references: Used in conjunction with IEC 60317-0-1:2013 (general requirements for enamelled round copper wire) and related test-method standards.

Applications

• Selection and specification of high-temperature winding wire for motors, transformers, inductors, solenoids and other electrical windings requiring reliable solderability at elevated temperatures.
• Use where a bonding layer is required for automated winding, impregnation, or mechanical stabilization.
• Environments requiring class 180 thermal performance (e.g., industrial drives, power electronics, HVAC compressors, traction and aerospace applications where higher temperature endurance is needed).

Who uses this standard

• Wire manufacturers and formulators of enamel and bonding layers.
• Motor, transformer and coil designers and OEMs specifying wire performance for thermal class 180.
• Quality, test and compliance engineers in manufacturing and test laboratories.
• Procurement and regulatory teams ensuring international conformity and interchangeability in global supply chains.

Related standards (brief)

• IEC 60317-0-1:2013 - General requirements for enamelled round copper wire (normative).
• IEC 60851 series - Test methods for winding wires.
• IEC 60264 - Packaging of winding wires.

This standard ensures consistent, internationally recognized performance criteria for solderable polyesterimide enamelled round copper wire, class 180, with a bonding layer, supporting reliable high-temperature winding applications and global supply compatibility.

Standards Content (Sample)

IEC 60317-36 ®
Edition 2.2 2024-06
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
colour
inside
Specifications for particular types of winding wires –
Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with
a bonding layer
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].

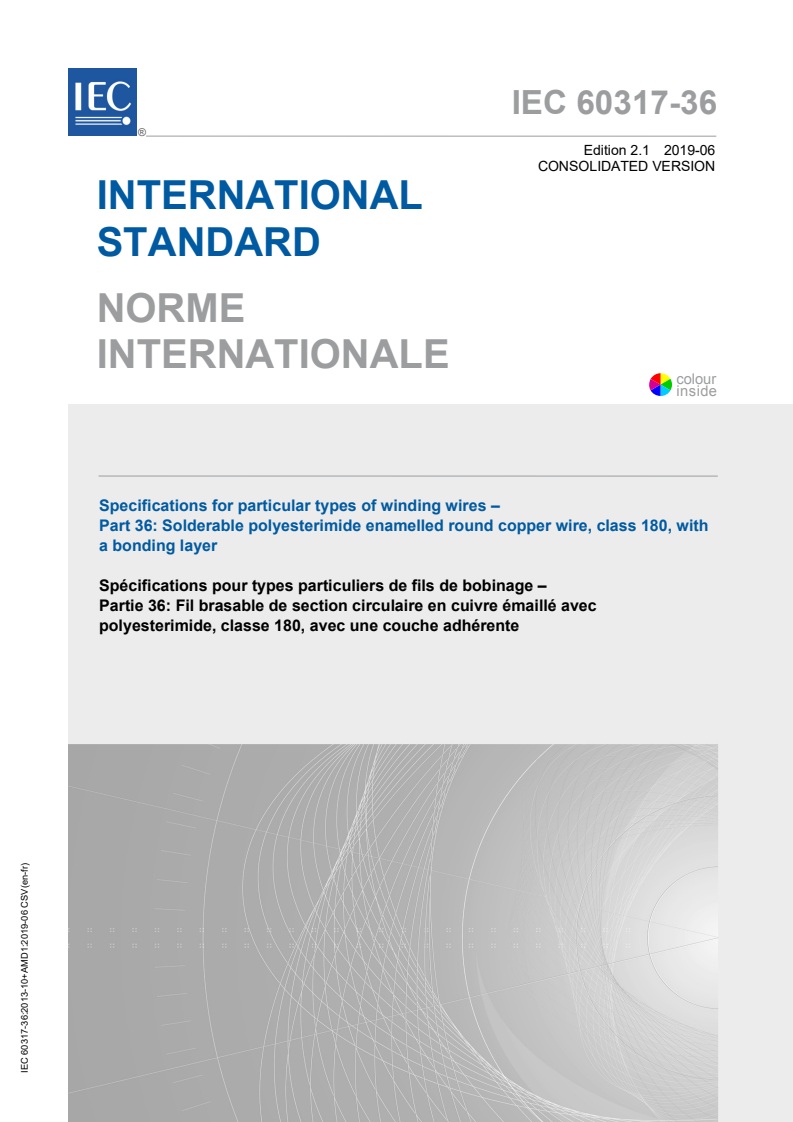

IEC 60317-36 ®
Edition 2.1 2024-06
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
colour
inside
Specifications for particular types of winding wires –
Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with
a bonding layer
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.060.10 ISBN 978-2-8322-9207-5
REDLINE VERSION – 2 – IEC 60317-36:2013+AMD1:2019
+AMD2:2024 CSV © IEC 2024

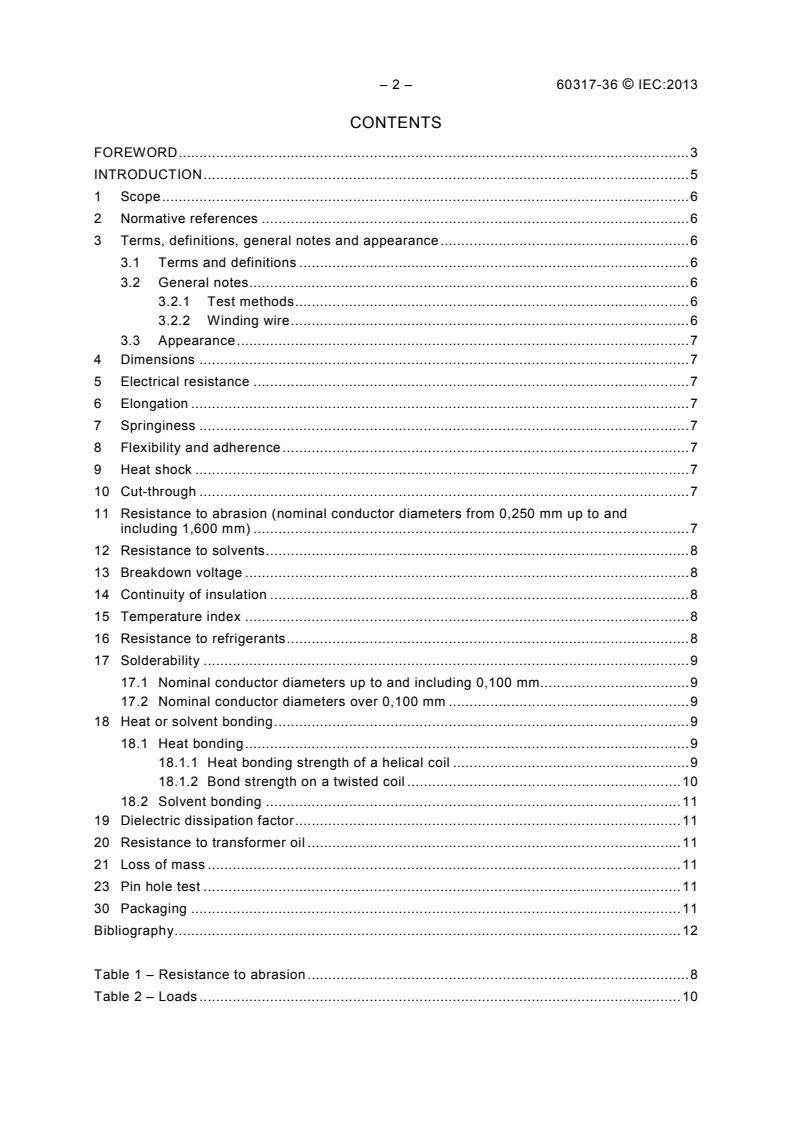

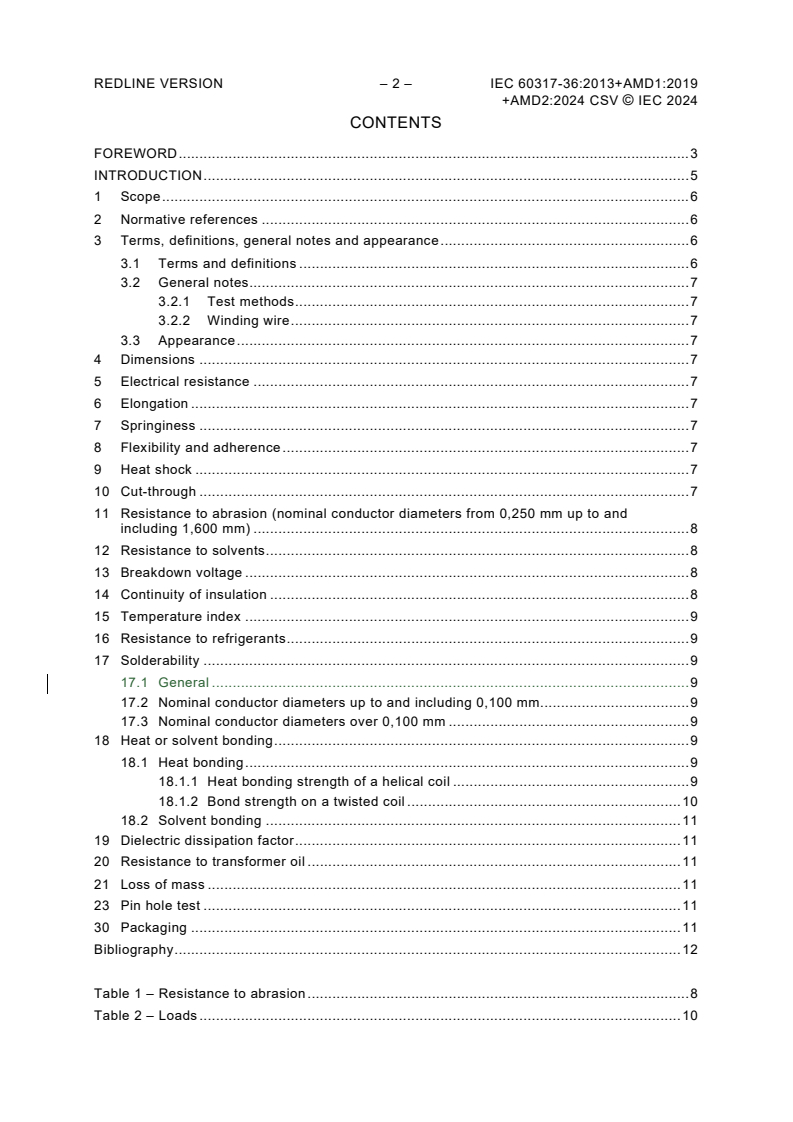

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 7
3.2.1 Test methods . 7
3.2.2 Winding wire . 7
3.3 Appearance . 7
4 Dimensions . 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to and
including 1,600 mm) . 8
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 9
16 Resistance to refrigerants . 9
17 Solderability . 9
17.1 General . 9
17.2 Nominal conductor diameters up to and including 0,100 mm. 9
17.3 Nominal conductor diameters over 0,100 mm . 9
18 Heat or solvent bonding . 9
18.1 Heat bonding . 9
18.1.1 Heat bonding strength of a helical coil . 9
18.1.2 Bond strength on a twisted coil . 10
18.2 Solvent bonding . 11
19 Dielectric dissipation factor . 11
20 Resistance to transformer oil . 11
21 Loss of mass . 11
23 Pin hole test . 11
30 Packaging . 11
Bibliography . 12

Table 1 – Resistance to abrasion . 8
Table 2 – Loads . 10

+AMD2:2024 CSV © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 36: Solderable polyesterimide enamelled
round copper wire, class 180, with a bonding layer

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s),
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
https://patents.iec.ch. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendments has been
prepared for user convenience.
IEC 60317-36 edition 2.1 contains the second edition (2013-10) [documents 55/1417/FDIS
and 55/1438/RVD], its amendment 1 (2019-06) [documents 55/1692/CDV and
55/1742/RVC] and its amendment 2 (2024-06) [documents 55/1990/CDV and
55/2026/RVC].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendment 1. Additions are in green text, deletions are in strikethrough
red text. A separate Final version with all changes accepted is available in this
publication.
REDLINE VERSION – 4 – IEC 60317-36:2013+AMD1:2019
+AMD2:2024 CSV © IEC 2024
International Standard IEC 60317-36 has been prepared by IEC technical committee 55:
Winding wires.
This second edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
– new 3.2.2 containing general notes on winding wire, formerly a part of the scope;
– revision to references to IEC 60317-0-1:2013 to clarify that their application is normative;
– consolidation of 17.1 and 17.2 of the solderability requirements;
– new Clause 23, Pin hole test.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 60317 series, published under the general title Specifications for
particular types of winding wires, can be found on the IEC website.
This International Standard is to be used in conjunction with IEC 60317-0-1:2013 and its
Amendment 1:2019.
The numbering of clauses in this standard is not continuous from Clauses 20 and 30 in order
to reserve space for possible future wire requirements prior to those for wire packaging.
The committee has decided that the contents of this document and its amendments will
remain unchanged until the stability date indicated on the IEC website under webstore.iec.ch
in the data related to the specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
+AMD2:2024 CSV © IEC 2024
INTRODUCTION
This part of IEC 60317 is one of a series of standards which deals with insulated wires used
for windings in electrical equipment. The series has three groups describing:
1) Winding wires – Test methods (IEC 60851);
2) Specifications for particular types of winding wires (IEC 60317);
3) Packaging of winding wires (IEC 60264).

REDLINE VERSION – 6 – IEC 60317-36:2013+AMD1:2019
+AMD2:2024 CSV © IEC 2024
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 36: Solderable polyesterimide enamelled
round copper wire, class 180, with a bonding layer

1 Scope
This part of IEC 60317 specifies the requirements of solderable enamelled round copper
winding wire of class 180 with a dual coating. The underlying coating is based on polyester-
imide resin, which may be modified providing it retains the chemical identity of the original
resin and meets all specified wire requirements. The superimposed coating is a bonding layer
based on a thermoplastic resin.
NOTE A modified resin is a resin that has undergone a chemical change, or contains one or more additives to
enhance certain performance or application characteristics.
The range of nominal conductor diameters covered by this part is:
– Grade 1B: 0,020 mm up to and including 1,600 mm;
– Grade 2B: 0,020 mm up to and including 1,600 mm.
The nominal conductor diameters are specified in Clause 4 of IEC 60317-0-1:2013.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. The following documents are referred to in the text in
such a way that some or all of their content constitutes requirements of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
IEC 60317-0-1 :2013, Specifications for particular types of winding wires – Part 0-1: General
requirements – Enamelled round copper wire.
IEC 60317-0-1:2013/AMD1:2019
3 Terms, definitions, general notes and appearance
3.1 Terms and definitions
Subclause 3.1 of IEC 60317-0-1:2013 applies.
For the purposes of this document, the terms and definitions given in IEC 60317-0-1 apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp

There exists a consolidated edition 4.1:2021 that includes IEC 60317-0-1:2013 and its Amendment 1:2019.

+AMD2:2024 CSV © IEC 2024
3.2 General notes
3.2.1 Test methods
Subclause 3.2.1 of IEC 60317-0-1:2013 and IEC 60317-0-1:2013/AMD1:2019 applies.
In case of inconsistencies between IEC 60317-0-1:2013 and this part of IEC 60317 document,
the latter IEC 60317-36 shall prevail.
3.2.2 Winding wire
Class 180 is a thermal class that requires a minimum temperature index of 180 and a heat
shock temperature of at least 200 °C.
The temperature in degrees Celsius corresponding to the temperature index is not necessarily
that at which it is recommended that the wire be operated and this will depend on many
factors, including the type of equipment involved.
3.3 Appearance
Subclause 3.3 of IEC 60317-0-1:2013 applies.
4 Dimensions
Clause 4 of IEC 60317-0-1:2013 applies.
5 Electrical resistance
Clause 5 of IEC 60317-0-1:2013 and IEC 60317-0-1:2013/AMD1:2019 applies.
6 Elongation
Clause 6 of IEC 60317-0-1:2013 applies.
7 Springiness
Clause 7 of IEC 60317-0-1:2013 applies.
8 Flexibility and adherence
Clause 8 of IEC 60317-0-1:2013 applies. For 8.4, the constant K used for the calculation of
the number of revolutions for the peel test shall be 110 mm.
9 Heat shock
Clause 9 of IEC 60317-0-1:2013 applies. The minimum heat shock temperature shall be
200 °C.
10 Cut-through
No failure shall occur within 2 min at 265 °C.

REDLINE VERSION – 8 – IEC 60317-36:2013+AMD1:2019
+AMD2:2024 CSV © IEC 2024
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to
and including 1,600 mm)
The wire shall meet the requirements given in Table 1.
For intermediate nominal conductor diameters, the value of the next larger nominal conductor
diameter shall be taken.
Table 1 – Resistance to abrasion
Grade 1B Grade 2B
Nominal conductor
Minimum average Minimum force to Minimum average Minimum force to
diameter
force to failure failure of each force to failure failure of each
measurement measurement
mm N N N N
0,250 2,85 2,45 4,70 4,00
0,280 3,10 2,60 5,05 4,30
0,315 3,35 2,80 5,45 4,60
0,355 3,60 3,05 5,85 4,95
0,400 3,85 3,25 6,25 5,30
0,450 4,15 3,50 6,75 5,70
0,500 4,45 3,75 7,20 6,10
0,560 4,75 4,05 7,70 6,50
0,630 5,10 4,35 8,25 7,00
0,710 5,45 4,65 8,85 7,50
0,800 5,85 4,95 9,50 8,05
0,900 6,30 5,35 10,2 8,60
1,000 6,75 5,75 10,9 9,20
1,120 7,35 6,20 11,6 9,80
1,250 7,90 6,70 12,5 10,5
1,400 8,50 7,20 13,3 11,3
1,600 9,20 7,80 14,3 12,1
12 Resistance to solvents
Test inappropriate.
13 Breakdown voltage
Clause 13 of IEC 60317-0-1:2013 applies. The elevated temperature shall be 180 °C.
14 Continuity of insulation
Clause 14 of IEC 60317-0-1:2013 applies.

+AMD2:2024 CSV © IEC 2024
15 Temperature index
Clause 15 of IEC 60317-0-1:2013 applies. The minimum temperature index shall be 180.
16 Resistance to refrigerants
Test inappropriate.
17 Solderability
17.1 General
The temperature of the solder bath shall be (470 ± 5) °C. The surface of the tinned wire shall
be smooth and free from holes and enamel residues.
17.117.2 Nominal conductor diameters up to and including 0,100 mm
The temperature of the solder bath shall be (470 ± 5) °C. The maximum immersion time shall
be 3 s.
The surface of the tinned wire shall be smooth and free from holes and enamel residues.
17.217.3 Nominal conductor diameters over 0,100 mm
The temperature of the solder bath shall be (470 ± 5) °C. The maximum immersion time
(in seconds) shall be the following multiple of the nominal conductor diameter (in millimetres)
with a minimum of 3 s.
Grade 1B Grade 2B
12 s/mm 16 s/mm
The surface of the tinned wire shall be smooth and free from holes and enamel residues.
18 Heat or solvent bonding
18.1 Heat bonding
18.1.1 Heat bonding strength of a helical coil
18.1.1.1 At room temperature
The specimens shall be prepared according to the test method, and the temperature of the
oven for bonding shall be fixed as agreed between purchaser and supplier for the different
types of bonding enamels. The suggested temperature for polyamide bonding enamel is
(200 ± 2) °C and the suggested temperature for aromatic polyamide bonding enamel is
(230 ± 2) °C.
Results: when testing the specimens according to the test method, under the action of load
specified in Table 2, no turns (other than possibly the first and the last) shall separate.
18.1.1.2 At elevated temperature
The specimens shall be prepared and shall be conditioned as described in the test method.

REDLINE VERSION – 10 – IEC 60317-36:2013+AMD1:2019
+AMD2:2024 CSV © IEC 2024
The elevated temperature shall be fixed as agreed between purchaser and supplier for the
different types of bonding enamels. The suggested temperature for polyamide bonding
enamel is (155 ± 2) °C and the suggested temperature for aromatic polyamide bonding
enamel is (170 ± 2) °C.
Results: when testing the specimens according to the test method, under the action of load
specified in Table 2, no turns (other than possibly the first and the last) shall separate.
Table 2 – Loads
Nominal conductor diameter Load
mm N
Over Up to and including Room Elevated
temperature temperature
a a
– 0,050
0,050 0,071 0,05 0,04
0,071 0,100 0,08 0,06
0,100 0,160 0,12 0,08
0,160 0,200 0,25 0,19
0,200 0,315 0,35 0,25
0,315 0,400 0,70 0,55
0,400 0,500 1,10 0,80
0,500 0,630 1,60 1,20
0,630 0,710 2,20 1,70
0,710 0,800 2,80 2,10
0,800 0,900 3,40 2,60
0,900 1,000 4,20 3,20
1,000 1,120 5,00 3,80
1,120 1,250 5,80 4,40
1,250 1,400 6,50 4,90
1,400 1,600 8,50 6,40
a
For nominal conductor diameters up to and including 0,050 mm, the test method and requirements shall be
agreed between purchaser and supplier.

18.1.2 Bond strength on a twisted coil
18.1.2.1 General
This test shall be considered only as a special
...

IEC 60317-36 ®
Edition 2.0 2013-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –
Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with
a bonding layer
Spécifications pour types particuliers de fils de bobinage –
Partie 36: Fil brasable de section circulaire en cuivre émaillé avec
polyesterimide, classe 180, avec une couche adhérente

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: [e-mail].

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: [e-mail].
IEC 60317-36 ®
Edition 2.0 2013-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –

Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with

a bonding layer
Spécifications pour types particuliers de fils de bobinage –

Partie 36: Fil brasable de section circulaire en cuivre émaillé avec

polyesterimide, classe 180, avec une couche adhérente

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 29.060.10 ISBN 978-2-8322-1145-8

– 2 – 60317-36 © IEC:2013
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 6
3.2.1 Test methods . 6
3.2.2 Winding wire . 6
3.3 Appearance . 7
4 Dimensions . 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to and
including 1,600 mm) . 7
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 9
17.1 Nominal conductor diameters up to and including 0,100 mm. 9
17.2 Nominal conductor diameters over 0,100 mm . 9
18 Heat or solvent bonding . 9
18.1 Heat bonding . 9
18.1.1 Heat bonding strength of a helical coil . 9
18.1.2 Bond strength on a twisted coil . 10
18.2 Solvent bonding . 11
19 Dielectric dissipation factor . 11
20 Resistance to transformer oil . 11
21 Loss of mass . 11
23 Pin hole test . 11
30 Packaging . 11
Bibliography . 12

Table 1 – Resistance to abrasion . 8
Table 2 – Loads . 10

60317-36 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 36: Solderable polyesterimide enamelled
round copper wire, class 180, with a bonding layer

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60317-36 has been prepared by IEC technical committee 55:
Winding wires.
This second edition cancels and replaces the first edition published in 1992,
Amendment 1:1997 and Amendment 2:1999. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
– new 3.2.2 containing general notes on winding wire, formerly a part of the scope;
– revision to references to IEC 60317-0-1:2013 to clarify that their application is normative;
– consolidation of 17.1 and 17.2 of the solderability requirements;
– new Clause 23, Pin hole test.

– 4 – 60317-36 © IEC:2013
The text of this standard is based on the following documents:
FDIS Report on voting
55/1417/FDIS 55/1438/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 60317 series, published under the general title Specifications for
particular types of winding wires, can be found on the IEC website.
The numbering of clauses in this standard is not continuous from Clauses 20 and 30 in order
to reserve space for possible future wire requirements prior to those for wire packaging.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60317-36 © IEC:2013 – 5 –
INTRODUCTION
This part of IEC 60317 is one of a series of standards which deals with insulated wires used
for windings in electrical equipment. The series has three groups describing:
1) Winding wires – Test methods (IEC 60851);
2) Specifications for particular types of winding wires (IEC 60317);
3) Packaging of winding wires (IEC 60264).

– 6 – 60317-36 © IEC:2013
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 36: Solderable polyesterimide enamelled
round copper wire, class 180, with a bonding layer

1 Scope
This part of IEC 60317 specifies the requirements of solderable enamelled round copper
winding wire of class 180 with a dual coating. The underlying coating is based on polyester-
imide resin, which may be modified providing it retains the chemical identity of the original
resin and meets all specified wire requirements. The superimposed coating is a bonding layer
based on a thermoplastic resin.
NOTE A modified resin is a resin that has undergone a chemical change, or contains one or more additives to
enhance certain performance or application characteristics.
The range of nominal conductor diameters covered by this part is:
– Grade 1B: 0,020 mm up to and including 1,600 mm;
– Grade 2B: 0,020 mm up to and including 1,600 mm.
The nominal conductor diameters are specified in Clause 4 of IEC 60317-0-1:2013.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60317-0-1:2013, Specifications for particular types of winding wires – Part 0-1: General
requirements – Enamelled round copper wire
3 Terms, definitions, general notes and appearance
3.1 Terms and definitions
Subclause 3.1 of IEC 60317-0-1:2013 applies.
3.2 General notes
3.2.1 Test methods
Subclause 3.2.1 of IEC 60317-0-1:2013 applies. In case of inconsistencies between
IEC 60317-0-1:2013 and this part of IEC 60317, the latter shall prevail.
3.2.2 Winding wire
Class 180 is a thermal class that requires a minimum temperature index of 180 and a heat
shock temperature of at least 200 °C.
The temperature in degrees Celsius corresponding to the temperature index is not necessarily
that at which it is recommended that the wire be operated and this will depend on many
factors, including the type of equipment involved.

60317-36 © IEC:2013 – 7 –
3.3 Appearance
Subclause 3.3 of IEC 60317-0-1:2013 applies.
4 Dimensions
Clause 4 of IEC 60317-0-1:2013 applies.
5 Electrical resistance
Clause 5 of IEC 60317-0-1:2013 applies.
6 Elongation
Clause 6 of IEC 60317-0-1:2013 applies.
7 Springiness
Clause 7 of IEC 60317-0-1:2013 applies.
8 Flexibility and adherence
Clause 8 of IEC 60317-0-1:2013 applies. For 8.4, the constant K used for the calculation of
the number of revolutions for the peel test shall be 110 mm.
9 Heat shock
Clause 9 of IEC 60317-0-1:2013 applies. The minimum heat shock temperature shall be
200 °C.
10 Cut-through
No failure shall occur within 2 min at 265 °C.
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to
and including 1,600 mm)
The wire shall meet the requirements given in Table 1.
For intermediate nominal conductor diameters, the value of the next larger nominal conductor
diameter shall be taken.
– 8 – 60317-36 © IEC:2013
Table 1 – Resistance to abrasion
Grade 1B Grade 2B
Nominal conductor
Minimum average Minimum force to Minimum average Minimum force to
diameter
force to failure failure of each force to failure failure of each
measurement measurement
mm N N N N
0,250 2,85 2,45 4,70 4,00
0,280 3,10 2,60 5,05 4,30
0,315 3,35 2,80 5,45 4,60
0,355 3,60 3,05 5,85 4,95
0,400 3,85 3,25 6,25 5,30
0,450 4,15 3,50 6,75 5,70
0,500 4,45 3,75 7,20 6,10
0,560 4,75 4,05 7,70 6,50
0,630 5,10 4,35 8,25 7,00
0,710 5,45 4,65 8,85 7,50
0,800 5,85 4,95 9,50 8,05
0,900 6,30 5,35 10,2 8,60
1,000 6,75 5,75 10,9 9,20
1,120 7,35 6,20 11,6 9,80
1,250 7,90 6,70 12,5 10,5
1,400 8,50 7,20 13,3 11,3
1,600 9,20 7,80 14,3 12,1
12 Resistance to solvents
Test inappropriate.
13 Breakdown voltage
Clause 13 of IEC 60317-0-1:2013 applies. The elevated temperature shall be 180 °C.
14 Continuity of insulation
Clause 14 of IEC 60317-0-1:2013 applies.
15 Temperature index
Clause 15 of IEC 60317-0-1:2013 applies. The minimum temperature index shall be 180.
16 Resistance to refrigerants
Test inappropriate.
60317-36 © IEC:2013 – 9 –
17 Solderability
17.1 Nominal conductor diameters up to and including 0,100 mm
The temperature of the solder bath shall be (470 ± 5) °C. The maximum immersion time shall
be 3 s.
The surface of the tinned wire shall be smooth and free from holes and enamel residues.
17.2 Nominal conductor diameters over 0,100 mm
The temperature of the solder bath shall be (470 ± 5) °C. The maximum immersion time
(in seconds) shall be the following multiple of the nominal conductor diameter (in millimetres)
with a minimum of 3 s.
Grade 1B Grade 2B
12 s/mm 16 s/mm
The surface of the tinned wire shall be smooth and free from holes and enamel residues.
18 Heat or solvent bonding
18.1 Heat bonding
18.1.1 Heat bonding strength of a helical coil
18.1.1.1 At room temperature
The specimens shall be prepared according to the test method, and the temperature of the
oven for bonding shall be fixed as agreed between purchaser and supplier for the different
types of bonding enamels. The suggested temperature for polyamide bonding enamel is
(200 ± 2) °C and the suggested temperature for aromatic polyamide bonding enamel is
(230 ± 2) °C.
Results: when testing the specimens according to the test method, under the action of load
specified in Table 2, no turns (other than possibly the first and the last) shall separate.
18.1.1.2 At elevated temperature
The specimens shall be prepared and shall be conditioned as described in the test method.
The elevated temperature shall be fixed as agreed between purchaser and supplier for the
different types of bonding enamels. The suggested temperature for polyamide bonding
enamel is (155 ± 2) °C and the suggested temperature for aromatic polyamide bonding
enamel is (170 ± 2) °C.
Results: when testing the specimens according to the test method, under the action of load
specified in Table 2, no turns (other than possibly the first and the last) shall separate.

– 10 – 60317-36 © IEC:2013
Table 2 – Loads
Nominal conductor diameter Load
mm N
Over Up to and including Room Elevated
temperature temperature
a a
– 0,050
0,050 0,071 0,05 0,04
0,071 0,100 0,08 0,06
0,100 0,160 0,12 0,08
0,160 0,200 0,25 0,19
0,200 0,315 0,35 0,25
0,315 0,400 0,70 0,55
0,400 0,500 1,10 0,80
0,500 0,630 1,60 1,20
0,630 0,710 2,20 1,70
0,710 0,800 2,80 2,10
0,800 0,900 3,40 2,60
0,900 1,000 4,20 3,20
1,000 1,120 5,00 3,80
1,120 1,250 5,80 4,40
1,250 1,400 6,50 4,90
1,400 1,600 8,50 6,40
a
For nominal conductor diameters up to and including 0,050 mm, the test method and requirements shall be
agreed between purchaser and supplier.

18.1.2 Bond strength on a twisted coil
18.1.2.1 General
This test shall be considered only as a special test and is applicable to the di
...

IEC 60317-36 ®
Edition 2.1 2019-06
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Specifications for particular types of winding wires –
Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with
a bonding layer
Spécifications pour types particuliers de fils de bobinage –
Partie 36: Fil brasable de section circulaire en cuivre émaillé avec
polyesterimide, classe 180, avec une couche adhérente

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 60317-36 ®
Edition 2.1 2019-06
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Specifications for particular types of winding wires –

Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with

a bonding layer
Spécifications pour types particuliers de fils de bobinage –

Partie 36: Fil brasable de section circulaire en cuivre émaillé avec

polyesterimide, classe 180, avec une couche adhérente

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.10 ISBN 978-2-8322-7040-0

IEC 60317-36 ®
Edition 2.1 2019-06
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Specifications for particular types of winding wires –
Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with
a bonding layer
Spécifications pour types particuliers de fils de bobinage –
Partie 36: Fil brasable de section circulaire en cuivre émaillé avec
polyesterimide, classe 180, avec une couche adhérente

– 2 – IEC 60317-36:2013+AMD1:2019 CSV
© IEC 2019
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 6
3.2.1 Test methods . 6
3.2.2 Winding wire . 6
3.3 Appearance . 7
4 Dimensions . 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to and
including 1,600 mm) . 7
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 9
17.1 General . 9
17.12 Nominal conductor diameters up to and including 0,100 mm. 9
17.23 Nominal conductor diameters over 0,100 mm . 9
18 Heat or solvent bonding . 9
18.1 Heat bonding . 9
18.1.1 Heat bonding strength of a helical coil . 9
18.1.2 Bond strength on a twisted coil . 10
18.2 Solvent bonding . 11
19 Dielectric dissipation factor . 11
20 Resistance to transformer oil . 11
21 Loss of mass . 11
23 Pin hole test . 11
30 Packaging . 11
Bibliography . 12

Table 1 – Resistance to abrasion . 8
Table 2 – Loads . 10

© IEC 2019
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –
Part 36: Solderable polyesterimide enamelled
round copper wire, class 180, with a bonding layer
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been prepared
for user convenience.
IEC 60317-36 edition 2.1 contains the second edition (2013-10) [documents 55/1417/FDIS and
55/1438/RVD] and its amendment 1 (2019-06) [documents 55/1692/CDV and 55/1742/RVC].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendment 1. Additions are in green text, deletions are in strikethrough
red text. A separate Final version with all changes accepted is available in
this publication.
– 4 – IEC 60317-36:2013+AMD1:2019 CSV
© IEC 2019
International Standard IEC 60317-36 has been prepared by IEC technical committee 55:
Winding wires.
This second edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
– new 3.2.2 containing general notes on winding wire, formerly a part of the scope;
– revision to references to IEC 60317-0-1:2013 to clarify that their application is normative;
– consolidation of 17.1 and 17.2 of the solderability requirements;
– new Clause 23, Pin hole test.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 60317 series, published under the general title Specifications for
particular types of winding wires, can be found on the IEC website.
The numbering of clauses in this standard is not continuous from Clauses 20 and 30 in order
to reserve space for possible future wire requirements prior to those for wire packaging.
The committee has decided that the contents of the base publication and its amendment will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
© IEC 2019
INTRODUCTION
This part of IEC 60317 is one of a series of standards which deals with insulated wires used
for windings in electrical equipment. The series has three groups describing:
1) Winding wires – Test methods (IEC 60851);
2) Specifications for particular types of winding wires (IEC 60317);
3) Packaging of winding wires (IEC 60264).

– 6 – IEC 60317-36:2013+AMD1:2019 CSV
© IEC 2019
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 36: Solderable polyesterimide enamelled
round copper wire, class 180, with a bonding layer

1 Scope
This part of IEC 60317 specifies the requirements of solderable enamelled round copper
winding wire of class 180 with a dual coating. The underlying coating is based on polyester-
imide resin, which may be modified providing it retains the chemical identity of the original
resin and meets all specified wire requirements. The superimposed coating is a bonding layer
based on a thermoplastic resin.
NOTE A modified resin is a resin that has undergone a chemical change, or contains one or more additives to
enhance certain performance or application characteristics.
The range of nominal conductor diameters covered by this part is:
– Grade 1B: 0,020 mm up to and including 1,600 mm;
– Grade 2B: 0,020 mm up to and including 1,600 mm.
The nominal conductor diameters are specified in Clause 4 of IEC 60317-0-1:2013.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60317-0-1:2013, Specifications for particular types of winding wires – Part 0-1: General
requirements – Enamelled round copper wire
3 Terms, definitions, general notes and appearance
3.1 Terms and definitions
Subclause 3.1 of IEC 60317-0-1:2013 applies.
3.2 General notes
3.2.1 Test methods
Subclause 3.2.1 of IEC 60317-0-1:2013 applies. In case of inconsistencies between
IEC 60317-0-1:2013 and this part of IEC 60317, the latter shall prevail.
3.2.2 Winding wire
Class 180 is a thermal class that requires a minimum temperature index of 180 and a heat
shock temperature of at least 200 °C.
The temperature in degrees Celsius corresponding to the temperature index is not necessarily
that at which it is recommended that the wire be operated and this will depend on many
factors, including the type of equipment involved.

© IEC 2019
3.3 Appearance
Subclause 3.3 of IEC 60317-0-1:2013 applies.
4 Dimensions
Clause 4 of IEC 60317-0-1:2013 applies.
5 Electrical resistance
Clause 5 of IEC 60317-0-1:2013 applies.
6 Elongation
Clause 6 of IEC 60317-0-1:2013 applies.
7 Springiness
Clause 7 of IEC 60317-0-1:2013 applies.
8 Flexibility and adherence
Clause 8 of IEC 60317-0-1:2013 applies. For 8.4, the constant K used for the calculation of
the number of revolutions for the peel test shall be 110 mm.
9 Heat shock
Clause 9 of IEC 60317-0-1:2013 applies. The minimum heat shock temperature shall be
200 °C.
10 Cut-through
No failure shall occur within 2 min at 265 °C.
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to
and including 1,600 mm)
The wire shall meet the requirements given in Table 1.
For intermediate nominal conductor diameters, the value of the next larger nominal conductor
diameter shall be taken.
– 8 – IEC 60317-36:2013+AMD1:2019 CSV
© IEC 2019
Table 1 – Resistance to abrasion
Grade 1B Grade 2B
Nominal conductor
Minimum average Minimum force to Minimum average Minimum force to
diameter force to failure failure of each force to failure failure of each
measurement measurement
mm N N N N
0,250 2,85 2,45 4,70 4,00
0,280 3,10 2,60 5,05 4,30
0,315 3,35 2,80 5,45 4,60
0,355 3,60 3,05 5,85 4,95
0,400 3,85 3,25 6,25 5,30
0,450 4,15 3,50 6,75 5,70
0,500 4,45 3,75 7,20 6,10
0,560 4,75 4,05 7,70 6,50
0,630 5,10 4,35 8,25 7,00
0,710 5,45 4,65 8,85 7,50
0,800 5,85 4,95 9,50 8,05
0,900 6,30 5,35 10,2 8,60
1,000 6,75 5,75 10,9 9,20
1,120 7,35 6,20 11,6 9,80
1,250 7,90 6,70 12,5 10,5
1,400 8,50 7,20 13,3 11,3
1,600 9,20 7,80 14,3 12,1
12 Resistance to solvents
Test inappropriate.
13 Breakdown voltage
Clause 13 of IEC 60317-0-1:2013 applies. The elevated temperature shall be 180 °C.
14 Continuity of insulation
Clause 14 of IEC 60317-0-1:2013 applies.
15 Temperature index
Clause 15 of IEC 60317-0-1:2013 applies. The minimum temperature index shall be 180.
16 Resistance to refrigerants
Test inappropriate.
© IEC 2019
17 Solderability
17.1 General
The temperature of the solder bath shall be (470 ± 5) °C. The surface of the tinned wire shall
be smooth and free from holes and enamel residues.
17.117.2 Nominal conductor diameters up to and including 0,100 mm
The temperature of the solder bath shall be (470 ± 5) °C. The maximum immersion time shall
be 3 s.
The surface of the tinned wire shall be smooth and free from holes and enamel residues.
17.217.3 Nominal conductor diameters over 0,100 mm
The temperature of the solder bath shall be (470 ± 5) °C. The maximum immersion time
(in seconds) shall be the following multiple of the nominal conductor diameter (in millimetres)
with a minimum of 3 s.
Grade 1B Grade 2B
12 s/mm 16 s/mm
The surface of the tinned wire shall be smooth and free from holes and enamel residues.
18 Heat or solvent bonding
18.1 Heat bonding
18.1.1 Heat bonding strength of a helical coil
18.1.1.1 At room temperature
The specimens shall be prepared according to the test method, and the temperature of the
oven for bonding shall be fixed as agreed between purchaser and supplier for the different
types of bonding enamels. The suggested temperature for polyamide bonding enamel is
(200 ± 2) °C and the suggested temperature for aromatic polyamide bonding enamel is
(230 ± 2) °C.
Results: when testing the specimens according to the test method, under the action of load
specified in Table 2, no turns (other than possibly the first and the last) shall separate.
18.1.1.2 At elevated temperature
The specimens shall be prepared and shall be conditioned as described in the test method.
The elevated temperature shall be fixed as agreed between purchaser and supplier for the
different types of bonding enamels. The suggested temperature for polyamide bonding
enamel is (155 ± 2) °C and the suggested temperature for aromatic polyamide bonding
enamel is (170 ± 2) °C.
Results: when testing the specimens according to the test method, under the action of load
specified in Table 2, no turns (other than possibly the first and the last) shall separate.

– 10 – IEC 60317-36:2013+AMD1:2019 CSV
© IEC 2019
Table 2 – Loads
Nominal conductor diameter Load
mm N
Room Elevated
Over Up to and including
temperature temperature
a a
– 0,050
0,050 0,071 0,05 0,04
0,071 0,100 0,08 0,06
0,100 0,160 0,12 0,08
0,160 0,200 0,25 0,19
0,200 0,315 0,35 0,25
0,315 0,400 0,70 0,55
0,400 0,500 1,10 0,80
0,500 0,630 1,60 1,20
0,630 0,710 2,20 1,70
0,710 0,800 2,80 2,10
0,800 0,900 3,40 2,60
0,900 1,000 4,20 3,20
1,000 1,120 5,00 3,80
1,120 1,250 5,80 4,40
1,250 1,400 6,50 4,90
1,400 1,600 8,50 6,40
a
For nominal conductor diameters up to and including 0,050 mm, the test method and requirements shall be
agreed between purchaser and supplier.

18.1.2 Bond strength on a twisted coil
18.1.2.1 General
This test shall be considered only as a special test and is applicable to the diameter
0,315 mm.
18.1.2.2 At room temperature
When preparing a test sample of diameter 0,315 mm according to the test method, the time
shall be 30 s and the current shall be fixed as agreed between purchaser and supplier. The
suggested value for polyamide bonding enamel is (2,7 ± 0,1) A and the suggested value for
aromatic polyamide bonding enamel is (3,0 ± 0,1) A.
Results: when testing the samples according to the test method, under the action of the
deflection force of 100 N, the sample shall not break.
18.1.2.3 At elevated temperature
The samples of diameter 0,315 mm shall be prepared according to the test method, using the
parameters listed in 18.1.2.2 and shall then be conditioned as described in the test method.
The elevated temperature shall be fixed as agreed between purchaser and supplier. The
suggested temperature for polyamide bonding enamel is (155 ± 2) °C and the suggested
temperature for aromatic polyamide bonding enamel is (170 ± 2) °C.

© IEC 2019
Results: when testing the samples according to the test method, under the action of the
deflection force of 10 N, the sample shall not break.
18.2 Solvent bonding
Test required but not yet under consideration.
19 Dielectric dissipation factor
Test inappropriate.
20 Resistance to transformer oil
Test inappropriate.
21 Loss of mass
Test inappropriate.
23 Pin hole test
Clause 23 of IEC 60317-0-1:2013 applies.
30 Packaging
Clause 30 of IEC 60317-0-1:2013 applies.

– 12 – IEC 60317-36:2013+AMD1:2019 CSV
© IEC 2019
Bibliography
IEC 60264 (all parts), Packaging of winding wires
IEC 60317 (all parts), Specifications for particular types of winding wires
IEC 60851 (all parts), Winding wires – Test methods

_____________
– 14 – IEC 60317-36:2013+AMD1:2019 CSV
© IEC 2019
SOMMAIRE
AVANT-PROPOS . 15
INTRODUCTION . 17
1 Domaine d'application . 18
2 Références normatives . 18
3 Termes, définitions, notes générales et aspect . 18
3.1 Termes et définitions . 18
3.2 Notes générales . 18
3.2.1 Méthodes d'essai . 18
3.2.2 Fil de bobinage . 18
3.3 Aspect . 19
4 Dimensions . 19
5 Résistance électrique . 19
6 Allongement . 19
7 Effet de ressort . 19
8 Souplesse et adhérence . 19
9 Choc thermique . 19
10 Thermoplasticité . 19
11 Résistance à l'abrasion (diamètres nominaux des conducteurs de 0,250 mm
jusques et y compris 1,600 mm) . 19
12 Résistance aux solvants . 20
13 Tension de claquage . 20
14 Continuité de l'isolant . 20
15 Indice de température . 20
16 Résistance aux réfrigérants . 21
17 Brasabilité . 21
17.1 Généralités . 21
17.12 Diamètres nominaux des conducteurs jusques et y compris 0,100 mm . 21
17.23 Diamètres nominaux des conducteurs supérieurs à 0,100 mm . 21
18 Adhérence par chaleur ou par solvant . 21
18.1 Adhérence par chaleur . 21
18.1.1 Force d'adhérence par chaleur d'un bobinage hélicoïdal . 21
18.1.2 Force de collage d'un bobinage torsadé . 22
18.2 Adhérence par solvant . 23
19 Facteur de dissipation diélectrique . 23
20 Résistance à l'huile de transformateur . 23
21 Perte de masse . 23
23 Détection des microfissures en immersion . 23
30 Conditionnement . 23
Bibliographie . 24
Tableau 1 – Résistance à l'abrasion . 20
Tableau 2 – Charges . 22

© IEC 2019
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
SPÉCIFICATIONS POUR TYPES PARTICULIERS DE FILS DE BOBINAGE –
Partie 36: Fil brasable de section circulaire en cuivre émaillé
avec polyesterimide, classe 180, avec une couche adhérente
AVANT-PROPOS
1) La Commission Electrotechnique Internationale (IEC) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de l’IEC). L’IEC a pour
objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines
de l'électricité et de l'électronique. A cet effet, l’IEC – entre autres activités – publie des Normes
internationales, des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au
public (PAS) et des Guides (ci-après dénommés "Publication(s) de l’IEC"). Leur élaboration est confiée à des
comités d'études, aux travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les
organisations internationales, gouvernementales et non gouvernementales, en liaison avec l’IEC, participent
également aux travaux. L’IEC collabore étroitement avec l'Organisation Internationale de Normalisation (ISO),
selon des conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de l’IEC concernant les questions techniques représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de l’IEC
intéressés sont représentés dans chaque comité d’études.
3) Les Publications de l’IEC se présentent sous la forme de recommandations internationales et sont agréées
comme telles par les Comités nationaux de l’IEC. Tous les efforts raisonnables sont entrepris afin que l’IEC
s'assure de l'exactitude du contenu technique de ses publications; l’IEC ne peut pas être tenue responsable de
l'éventuelle mauvaise utilisation ou interprétation qui en est faite par un quelconque utilisateur final.
4) Dans le but d'encourager l'uniformité internationale, les Comités nationaux de l’IEC s'engagent, dans toute la
mesure possible, à appliquer de façon transparente les Publications de l’IEC dans leurs publications nationales
et régionales. Toutes divergences entre toutes Publications de l’IEC et toutes publications nationales ou
régionales correspondantes doivent être indiquées en termes clairs dans ces dernières.
5) L’IEC elle-même ne fournit aucune attestation de conformité. Des organismes de certification indépendants
fournissent des services d'évaluation de conformité et, dans certains secteurs, accèdent aux marques de
conformité de l’IEC. L’IEC n'est responsable d'aucun des services effectués par les organismes de certification
indépendants.
6) Tous les utilisateurs doivent s'assurer qu'ils sont en possession de la dernière édition de cette publication.
7) Aucune responsabilité ne doit être imputée à l’IEC, à ses administrateurs, employés, auxiliaires ou
mandataires, y compris ses experts particuliers et les membres de ses comités d'études et des Comités
nationaux de l’IEC, pour tout préjudice causé en cas de dommages corporels et matériels, ou de tout autre
dommage de quelque nature que ce soit, directe ou indirecte, ou pour supporter les coûts (y compris les frais
de justice) et les dépenses découlant de la publication ou de l'utilisation de cette Publication de l’IEC ou de
toute autre Publication de l’IEC, ou au crédit qui lui est accordé.
8) L'attention est attirée sur les références normatives citées dans cette publication. L'utilisation de publications
référencées est obligatoire pour une application correcte de la présente publication.
9) L’attention est attirée sur le fait que certains des éléments de la présente Publication de l’IEC peuvent faire
l’objet de droits de brevet. L’IEC ne saurait être tenue pour responsable de ne pas avoir identifié de tels droits
de brevets et de ne pas avoir signalé leur existence.
Cette version consolidée de la Norme IEC officielle et de son amendement a été préparée
pour la commodité de l'utilisateur.
L'IEC 60317-36 édition 2.1 contient la deuxième édition (2013-10) [documents 55/1417/
FDIS et 55/1438/RVD] et son amendement 1 (2019-06) [documents 55/1692/CDV et
55/1742/RVC].
Dans cette version Redline, une ligne verticale dans la marge indique où le contenu
technique est modifié par l'amendement 1. Les ajouts sont en vert, les suppressions
sont en rouge, barrées. Une version Finale avec toutes les modifications acceptées
est disponible dans cette publication.

– 16 – IEC 60317-36:2013+AMD1:2019 CSV
© IEC 2019
La Norme internationale IEC 60317-36 a été établie par le comité d’études 55 de l'IEC: Fils de
bobinage.
Cette deuxième édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à
l'édition précédente:
– un nouveau 3.2.2 contenant des notes générales sur le fil de bobinage intégrées
auparavant au domaine d'application;
– la révision des références à l'IEC 60317-0-1:2013 pour bien établir que leur application
est normative;
– la consolidation de 17.1 et 17.2 des exigences relatives à la brasabilité;
– un nouvel Article 23, Détection des microfissures en immersion.
Cette publication a été rédigée selon les Directives ISO/IEC, Partie 2.
Une liste de toutes les parties de la série IEC 60317, publiées sous le titre général
Spécifications pour types particuliers de fils de bobinage, peut être consultée sur le site web
de l'IEC.
La numérotation des articles dans la présente norme n'est pas continue entre les Articles 20
et 30 afin de permettre l'introduction d'éventuelles futures exigences pour les fils avant celles
concernant le conditionnement des fils.
Le comité a décidé que le contenu de la publication de base et de son amendement ne sera
pas modifié avant la date de stabilité indiquée sur le site web de l’IEC sous
"http://webstore.iec.ch" dans les données relatives à la publication recherchée. A cette date,

la publication sera
• reconduite,
• supprimée,
• remplacée par une édition révisée, ou
• amendée.
IMPORTANT – Le logo "colour inside" qui se trouve sur la page de couverture de cette
publication indique qu'elle contient des couleurs qui sont considérées comme utiles à
une bonne compréhension de son contenu. Les utilisateurs devraient, par conséquent,
imprimer cette publication en utilisant une imprimante couleur.

© IEC 2019
INTRODUCTION
La présente partie de l'IEC 60317 constitue l'un des éléments traitant des fils isolés utilisés
dans les enroulements des appareils électriques. Cette série est composée de trois groupes
définissant respectivement:
1) Fils de bobinage – Méthodes d'essai (IEC 60851);
2) Spécifications pour types particuliers de fils de bobinage (IEC 60317);
3) Conditionnement des fils de bobinage (IEC 60264).

– 18 – IEC 60317-36:2013+AMD1:2019 CSV
© IEC 2019
SPÉCIFICATIONS POUR TYPES PARTICULIERS DE FILS DE BOBINAGE –

Partie 36: Fil brasable de section circulaire en cuivre émaillé
avec polyesterimide, classe 180, avec une couche adhérente

1 Domaine d'application
La présente partie de l'IEC 60317 spécifie les exigences pour les fils de bobinage brasables
de section circulaire en cuivre émaillé de classe 180 avec un double revêtement. La sous-
couche est à base de résine polyesterimide, qui peut être modifiée sous réserve de conserver
l'identité chimique de la résine initiale et de répondre à toutes les exigences spécifiées pour
le fil. La surcouche est une couche adhérente à base de résine thermoplastique.
NOTE Une résine modifiée est une résine qui a subi une modification chimique, ou qui contient un ou plusieurs
additifs pour améliorer certaines performances ou les caractéristiques d'utilisation.
La gamme des diamètres nominaux des conducteurs couverte par la présente partie est:
– Grade 1B: 0,020 mm jusqu'à 1,600 mm compris;
– Grade 2B: 0,020 mm jusqu'à 1,600 mm compris.
Les diamètres nominaux des conducteurs sont spécifiés dans l’Article 4 de
l'IEC 60317-0-1:2013.
2 Références normatives
Les documents suivants sont cités en référence de manière normative, en intégralité ou en
partie, dans le présent document et sont indispensables pour son application. Pour les
références datées, seule l’édition citée s’applique. Pour les références non datées, la
dernière édition du document de référence s’applique (y compris les éventuels
amendements).
IEC 60317-0-1:2013, Spécifications pour types particuliers de fils de bobinage – Partie 0-1:
Exigences générales – Fil de section circulaire en cuivre émaillé
3 Termes, définitions, notes générales et aspect
3.1 Termes et définitions
